Last summer, a massive music festival in Houston—drawing thousands of excited fans—was on the verge of disaster. The LED display setup demanded more layers and higher pixel capacity than the crew had planned for, and their original controller was failing fast. Pressure was sky-high. With the show about to start, it seemed like all hope was lost.
At the very last moment, the team swapped in a VX2000 Pro. Instantly, the visuals lit up the stage in flawless clarity, saving the night. Weeks later, another event in Austin relied on the Novastar VX1000 Pro for a smaller but equally demanding display. Once again, the performance was flawless. Both controllers proved themselves—just in different ways.
Novastar VX1000 Pro Overview
The Novastar VX1000 Pro is a powerful all-in-one controller for LED displays.
It integrates video processing and control in a single unit.
It handles up to 6.5 million pixels with a maximum width of 10,240 or height of 8,192.
You get six adjustable layers with full control over size, position, and priority.
SuperView III processing ensures smooth scaling and vivid colors.
It supports HDMI 2.0, HDMI 1.3, 3G-SDI, and USB 3.0 playback.
Three working modes are available, video controller, fiber converter, and bypass — with ultra-low latency in bypass mode.

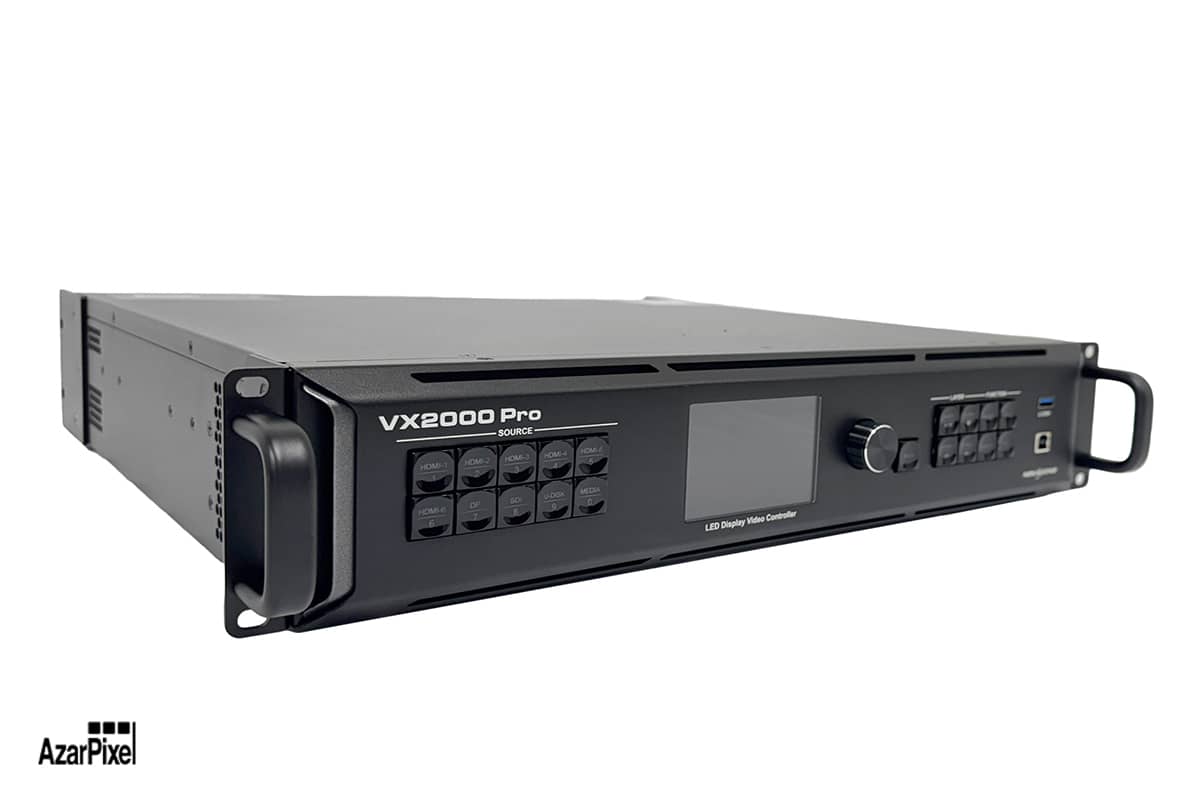

VX2000 Pro Overview
The VX2000 Pro is the flagship of the VX series.
It can handle up to 13 million pixels with a maximum width of 16,384 or height of 8,192.
It offers sophisticated display layouts with 12 separate layers.
DP 1.2, HDMI 2.0, HDMI 1.3, 12G-SDI, and USB 3.0 playback are offered.
20 Ethernet and 4 optical connectors enable long-distance, high-speed transmission.
Fiber and HDMI mosaicing, Genlock sync, and pixel-level calibration are supported.
It uses SuperView III processing like the VX1000 Pro for clear, precise images.
Key Differences
Pixel Capacity
VX1000 Pro supports 6.5 million pixels
VX2000 Pro supports 13 million pixels
Layer Support
VX1000 Pro offers six layers
VX2000 Pro offers twelve layers
Outputs
VX1000 Pro has ten Ethernet ports and two optical ports
VX2000 Pro has twenty Ethernet ports and four optical ports
Inputs
VX2000 Pro includes DP 1.2 and more HDMI 2.0 ports for higher bandwidth
Best Use Case
VX1000 Pro fits mid to large displays
VX2000 Pro is built for massive or highly complex setups
Choosing the Right Model
If your project involves mid to large screens with creative layouts, the Novastar VX1000 Pro is more than capable.
For those overseeing a large LED wall or juggling several high-resolution sources simultaneously, the VX2000 Pro stands out as the superior choice.
Both versions offer reliability, multiple backup systems, and precise color management. The decision depends on scale, layering requirements, and connectivity criteria.
At SinaPlug, we provide both the Novastar VX1000 Pro and VX2000 Pro, along with expert advice on setup and integration. Contact us to find the right solution for your LED display project.
Final Thought
The Novastar VX1000 Pro or VX2000 Pro should be chosen based on the size and complexity of your job. Both deliver professional-grade video processing, precise color, and reliable backup systems. The key difference is how far you need to push your setup.
If you’re an event organizer, you can rest easy knowing that when you use one of the Novastar models, your show won’t be derailed by technical failures. With SinaPlug by your side, you’ll have expert guidance to select the right controller, set it up, and keep it running at peak performance.
Call 972-707-0801 or email info@sinaplug.com today and turn your vision into a flawless on-screen reality.
