In today’s fast-changing connected world, the need for simpler, more efficient network installations continues to grow. As businesses and smart homes increasingly integrate IP-based devices like security cameras, wireless access points, and VoIP phones, one technology called PoE (short for Power over Ethernet) has quietly transformed the way we power and connect these devices.
In this blog, we will answer these important questions about this new technology: What exactly is PoE, how does it work, and why is it becoming essential in modern networking? Let's dive in and explore more details about these innovative devices.
What is PoE?
PoE is a technology that enables simultaneous transmission of data and electrical power through a single Ethernet cable. As we know, network cables, such as Cat5e or Cat6, are designed just for data transmission, requiring devices to be connected to a separate power cable and electrical outlet to function.
With PoE, separate wiring is not needed anymore, as it efficiently combines data and power into a single cable for optimal functionality. That means you can install devices in locations where providing electrical power would be difficult or expensive.
How Does PoE Work?
Ethernet cables typically consist of four pairs of twisted wires. With PoE, certain pairs, or sometimes all four pairs (depending on the specific standard) are used to deliver both power and data signals simultaneously.
A PoE setup typically consists of two key components:
Power Sourcing Equipment (PSE)

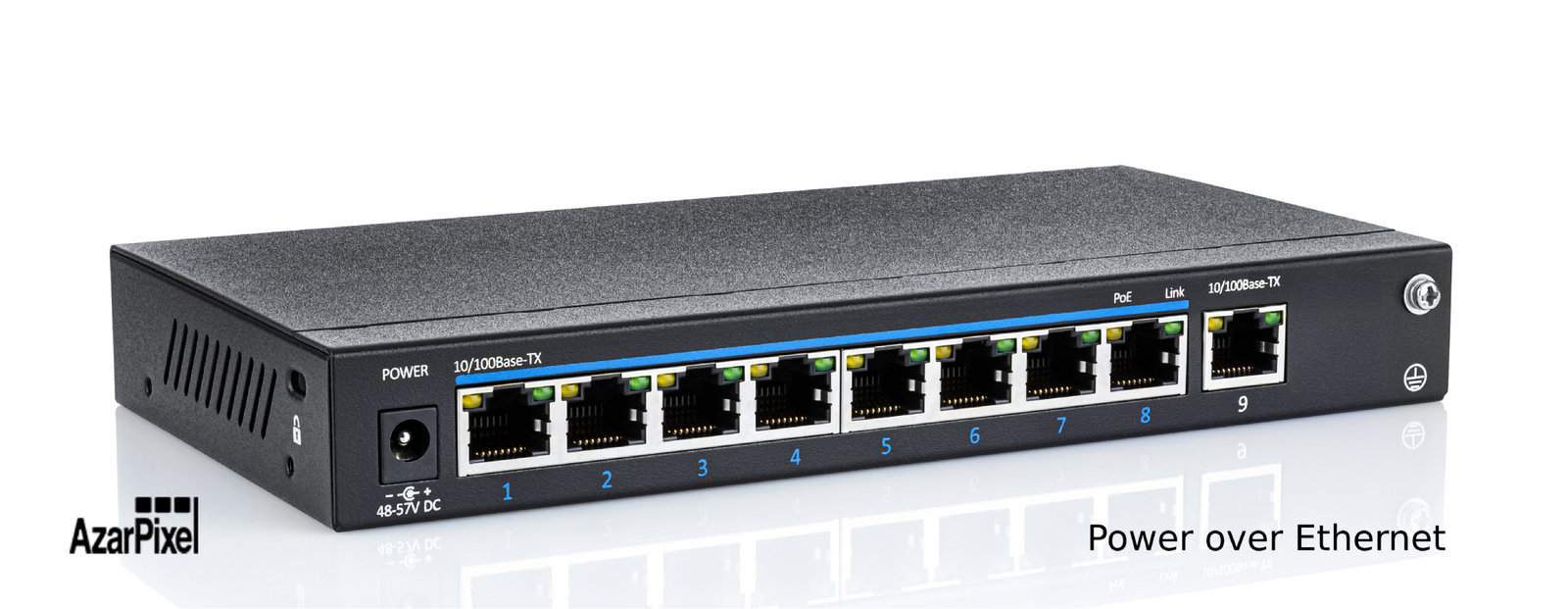

This device provides the power needed for operation. It could be a PoE-enabled network switch or a PoE injector, which is a handy tool that adds power directly to the Ethernet cable.
Powered Device (PD)
This is the device that receives power over the Ethernet cable, like an IP camera, wireless access point, or VoIP phone.
When you plug a powered device (PD) into the network, the power sourcing equipment (PSE) will automatically detect the device and check how much power is needed. All of this happens according to IEEE PoE standards, ensuring everything runs smoothly and safely.
IEEE PoE Standards
PoE technology has evolved over the years through several standards developed by the IEEE (Institute of Electrical and Electronics Engineers). Here’s a quick look at these standards:
IEEE 802.3af (PoE)
Introduced in 2003, it delivers up to 15.4 watts per port. Suitable for low-power devices like VoIP phones.
IEEE 802.3at (PoE+)
Ratified in 2009, it provides up to 25.5 watts. This is widely used for wireless access points and PTZ cameras.
IEEE 802.3bt (PoE++)
Introduced in 2018, it comes in two types: Type 3 (up to 60 watts) and Type 4 (up to 100 watts). This allows powering more energy-intensive devices like high-performance wireless APs, video conferencing systems, and even small computers.
These standards help different manufacturers work together seamlessly while ensuring reliable and consistent performance.
Benefits of PoE
Here are the key advantages of utilizing this technology:
Simplified Installation
By combining power and data in a single cable, there’s no need to worry about setting up separate electrical wiring. It’s a simpler, faster solution that saves both time and money.
Flexibility and Placement
PoE enables you to install devices in remote locations, like ceilings, hallways, or outdoor areas, without worrying about nearby power outlets.
Safety
PoE is designed to be safe. It only provides power to devices that are specifically designed to be PoE-compatible. So, if you connect something that doesn’t support PoE, the switch simply won’t send any power, ensuring there’s no risk of accidental damage.
Scalability
You can just add new devices: plug them into your PoE switch, and they are powered and connected instantly.
Applications of PoE
Power over Ethernet (PoE) has grown into a key technology that supports a wide range of applications, such as:
IP Security Cameras
PoE makes it easy to install cameras anywhere, even without electrical wiring, which is critical for surveillance systems.
Wireless Access Points
Access points powered by PoE can be mounted on ceilings and walls to provide optimal Wi-Fi coverage.
VoIP Phones
PoE powers desk phones while connecting them to the network, reducing clutter and simplifying moves or changes.
Network Switches and Hubs
Some switches themselves can be powered over Ethernet in specialized setups.
Digital Signage and Displays
PoE enables placement of signs and displays in locations without nearby power outlets.
Considerations When Using PoE
While PoE is convenient, there are some important points that need to be considered while using one:
Power Budget
Each switch has a maximum power budget. Make sure it can handle all the devices you plan to connect.
Cable Length
The maximum recommended cable length is 100 meters (328 feet). Longer cables can result in voltage drop and insufficient power delivery.
Heat Dissipation
PoE can generate heat within cables, especially at higher wattages. So it is recommended to use high-quality cables to prevent any issues.
Device Compatibility
Always check that your devices comply with IEEE standards to ensure seamless operation.
Conclusion
PoE has significantly changed the way networks are designed and installed. By combining data and power delivery through a single cable, it offers a simpler, more flexible, and cost-effective approach.
Whether you are configuring a small office, implementing a smart home system, or deploying a large-scale enterprise network, PoE provides a dependable solution that eliminates the need for separate power supplies and streamlines the entire installation process.
