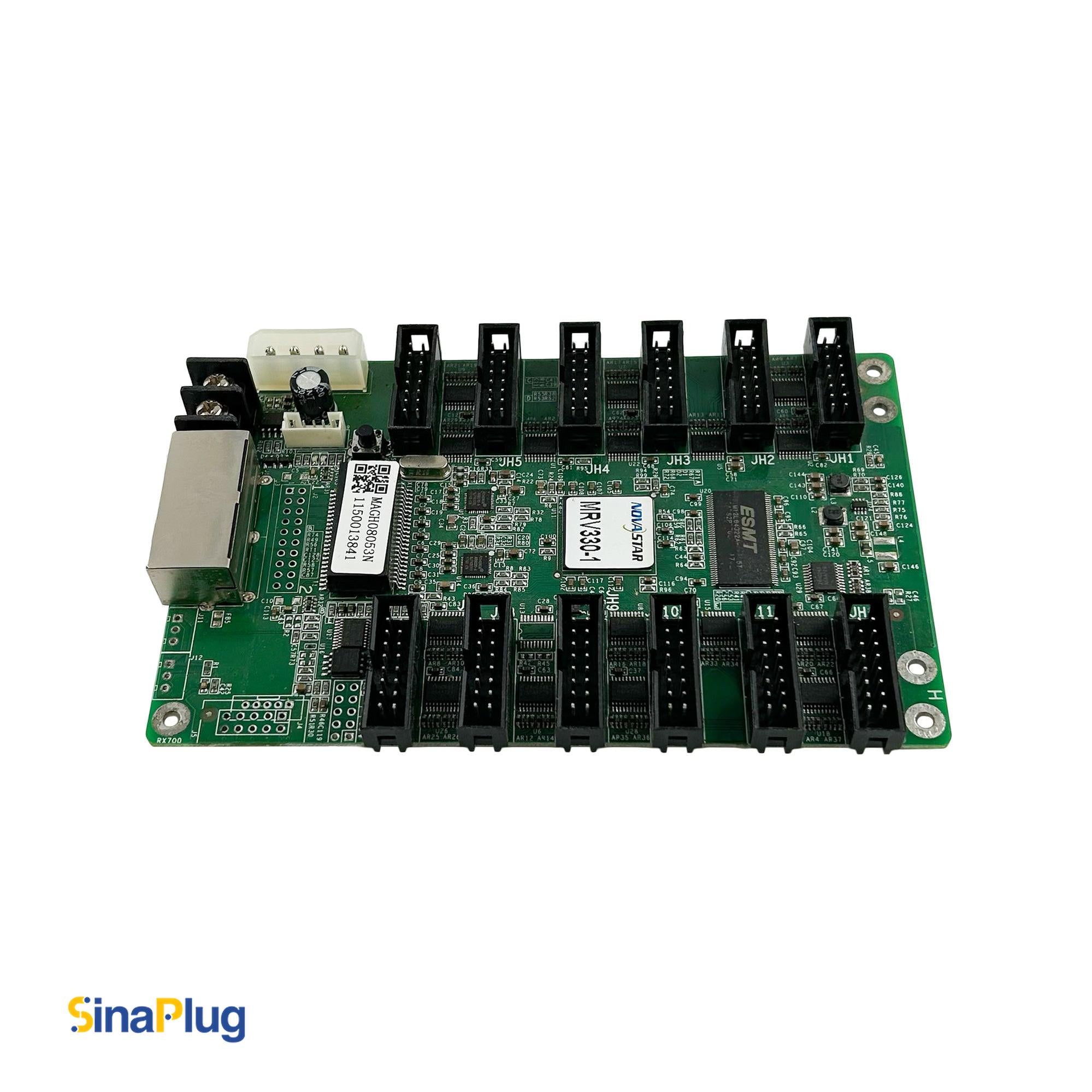

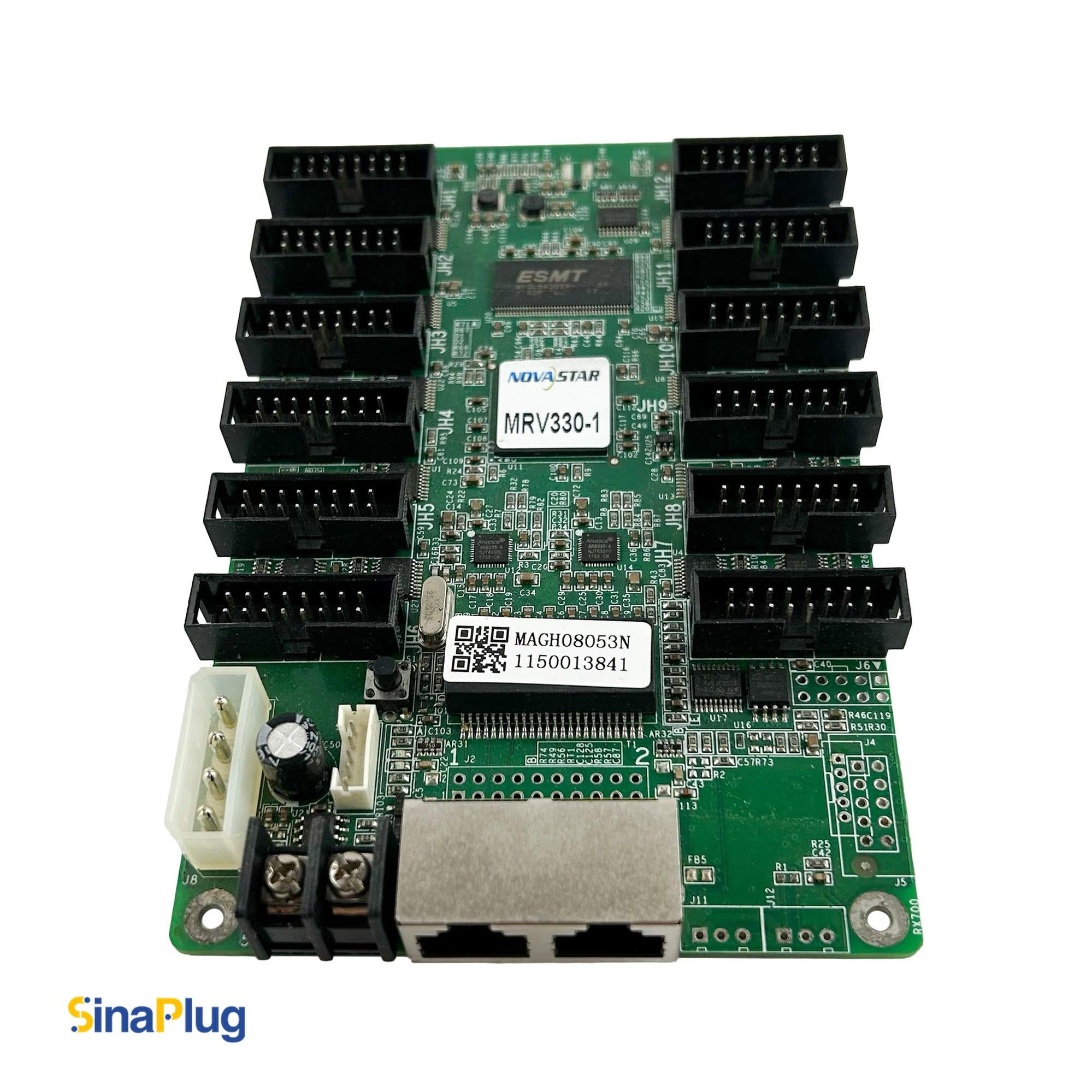

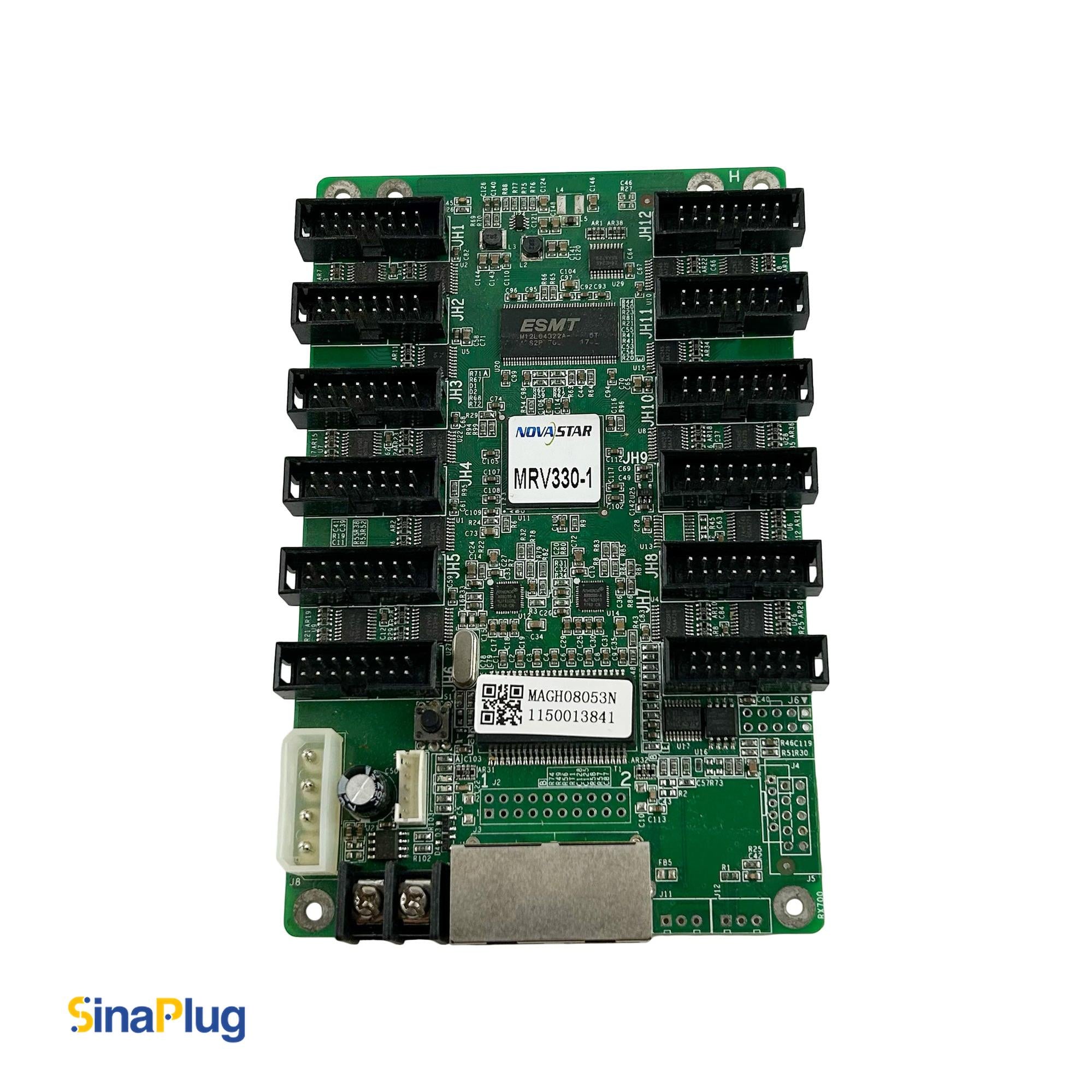

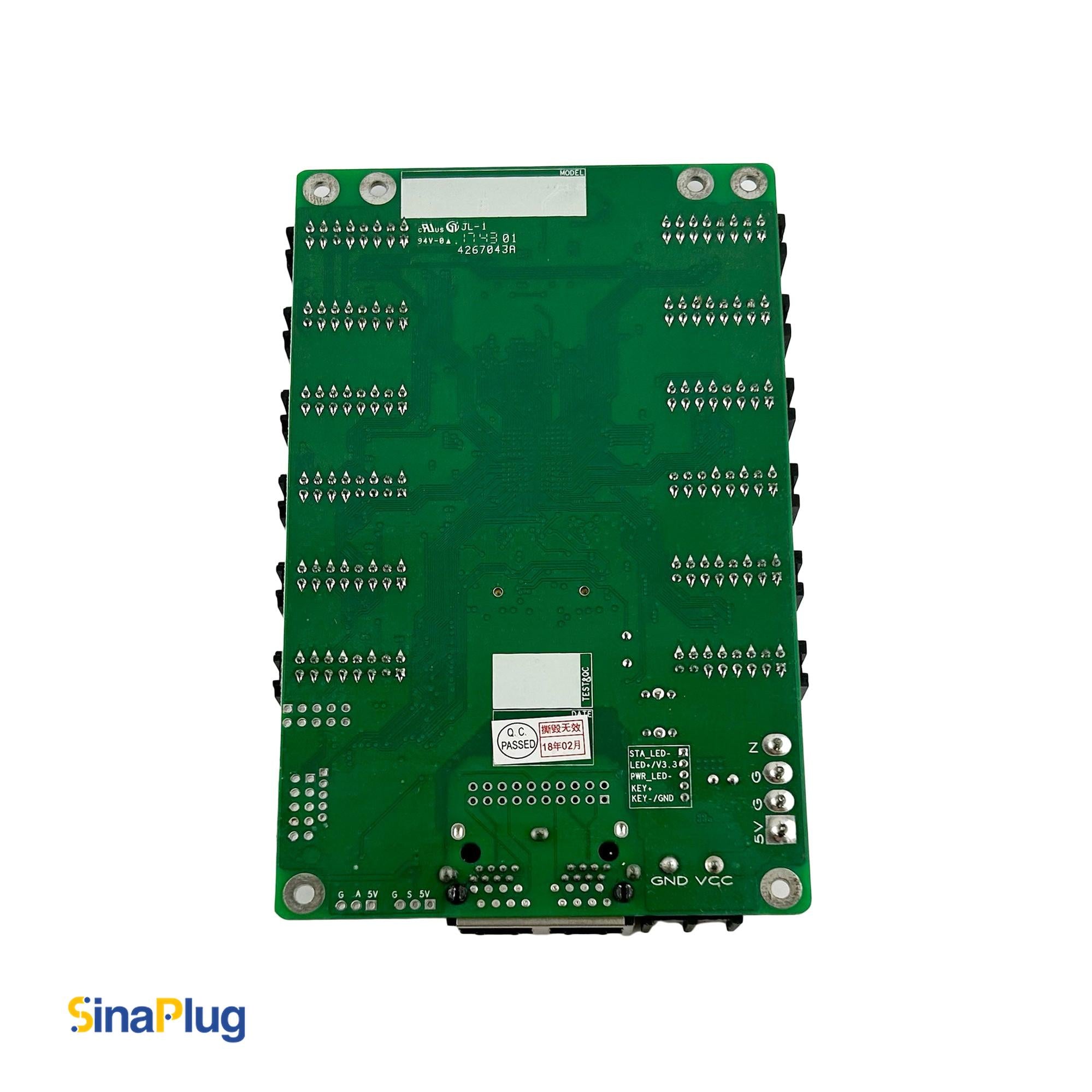

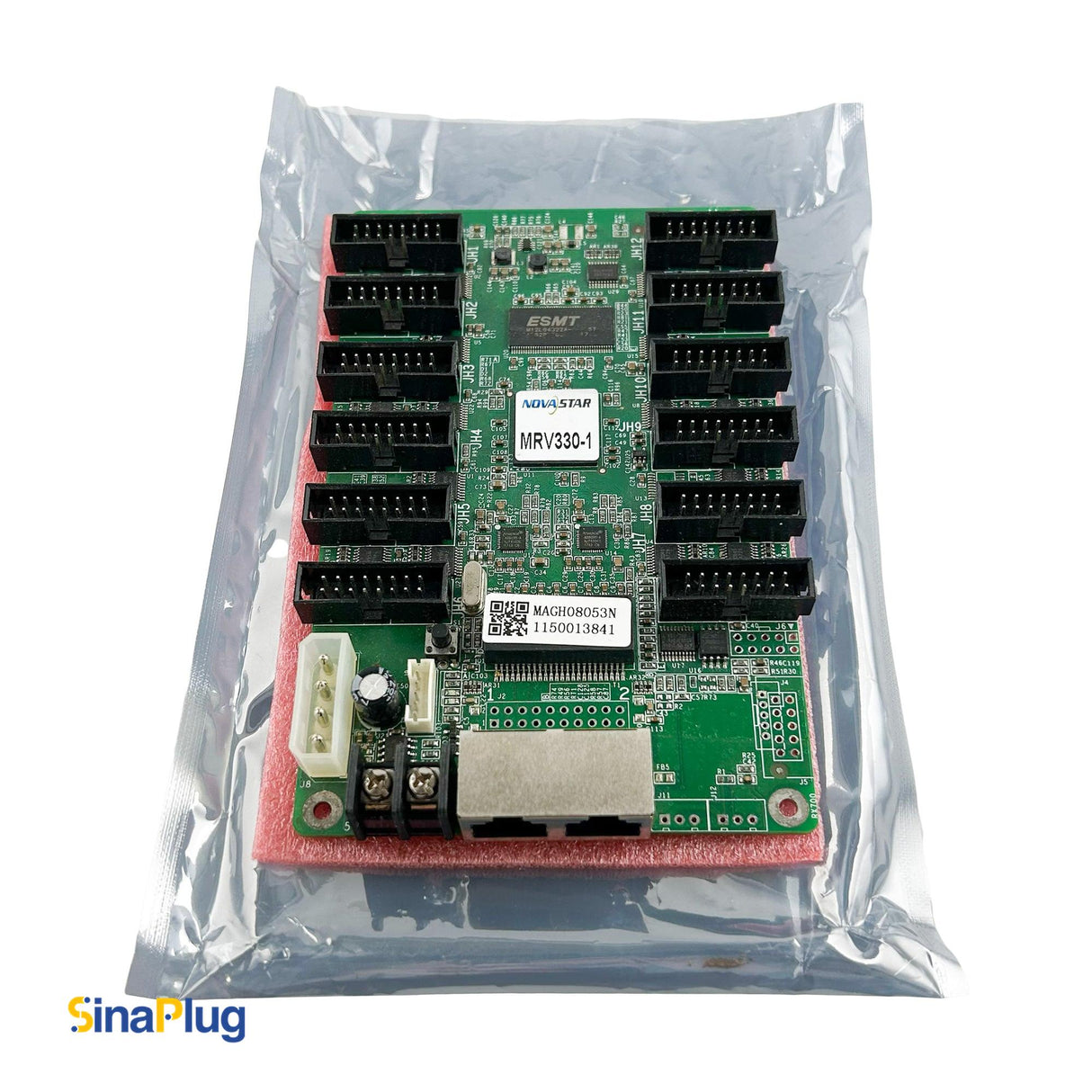

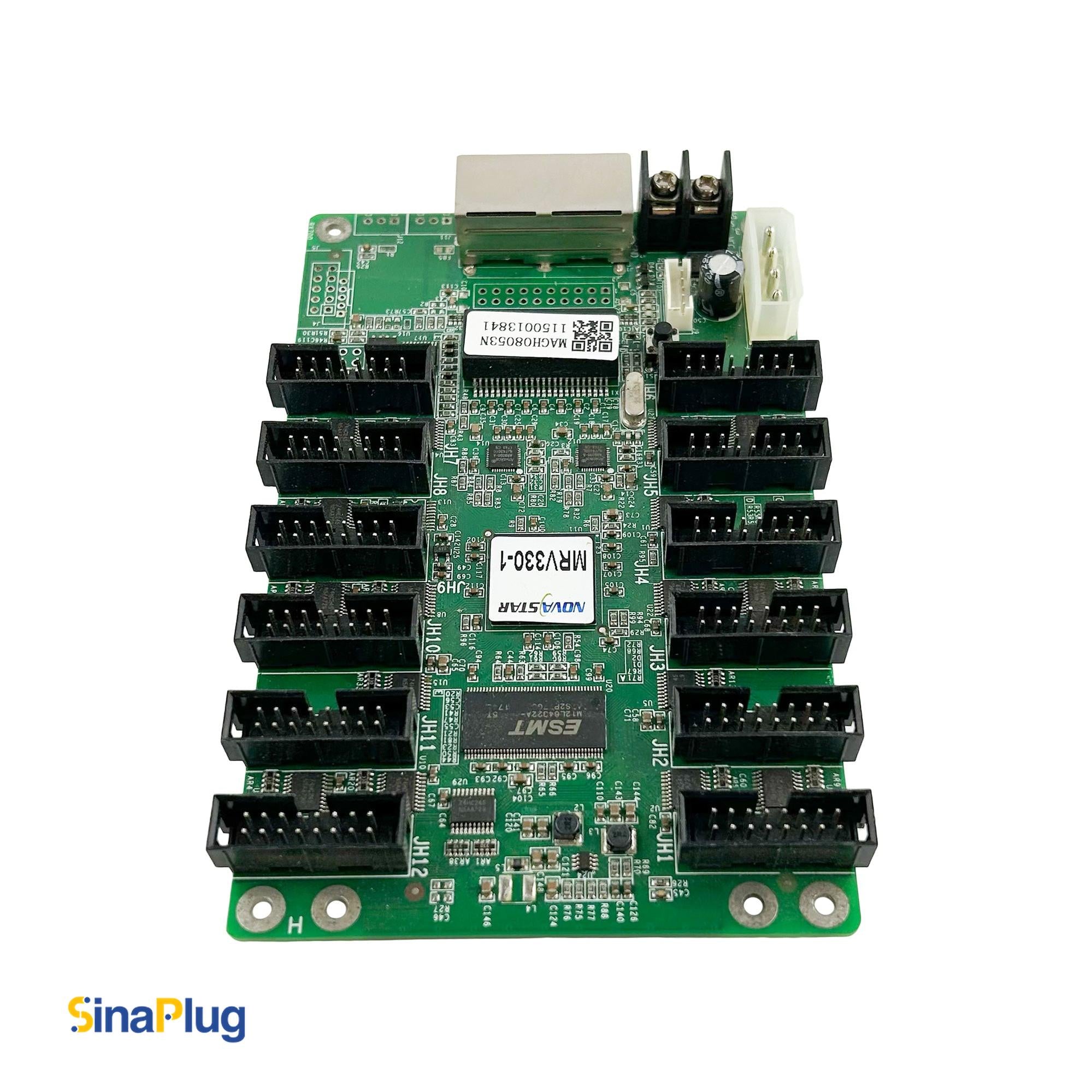

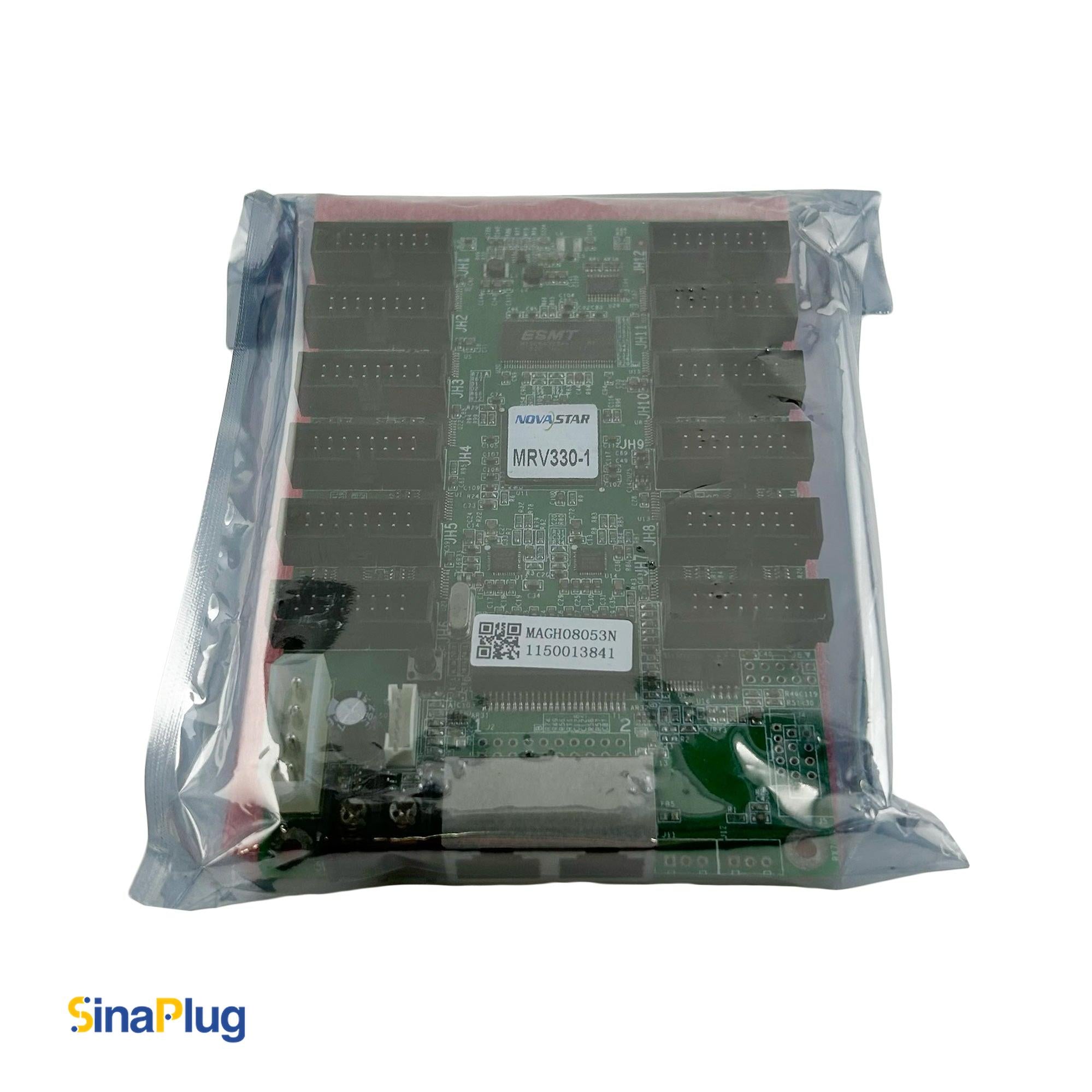

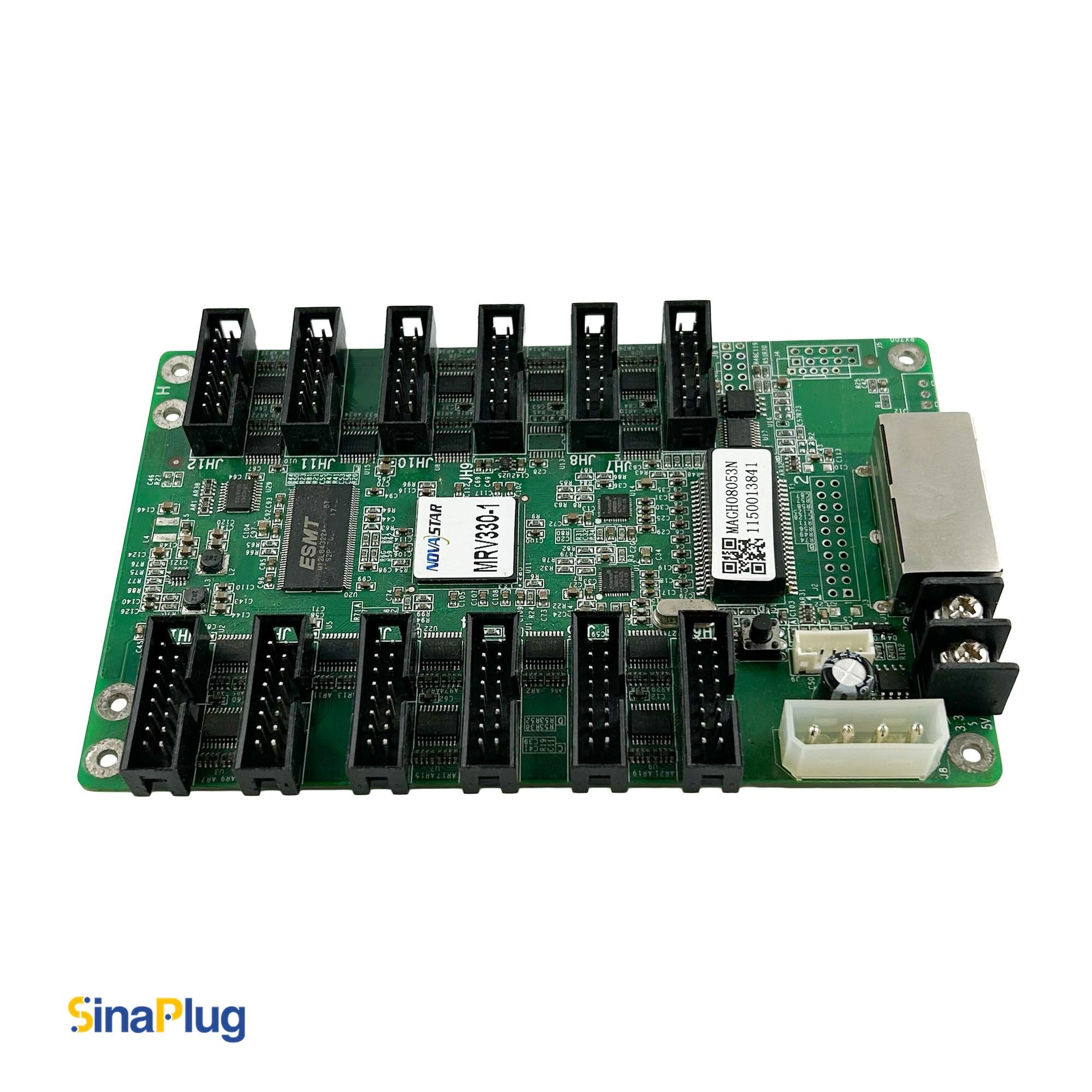

NovaStar MRV330-1 Receiving Card

Azar Pixel offers the NovaStar MRV330-1, a compact receiving card designed for outstanding performance. It supports maximum resolution of 256×226 pixels. This card provides 12 standard HUB75 connectors and supports 24 sets of parallel RGB data ensuring a reliable data transfer interface and efficient operation for demanding display applications.

Note: The primary difference between MRV330 series is the location of the male hub connectors. On the MRV330-1, the connectors are at the top of the board, while they are located at the bottom for the MRV330-2.

It also has improved features such as temperature monitoring, Ethernet cable communication status monitoring, and power supply voltage monitoring. Calibration of pixel-level brightness and chromaticity guarantees uniform performance and increased image quality for modern LED displays and panels.

It complies with the EU CE-EMC standards for electromagnetic compatibility and the RoHS certification.

This card has an operating temperature range of -20°C to +70°C and an input voltage range of DC 3.3 V to 5.5 V, guaranteeing durability via effective design. The MRV330-1 is a dependable option in various environments for LED display systems since it guarantees consistent performance.
