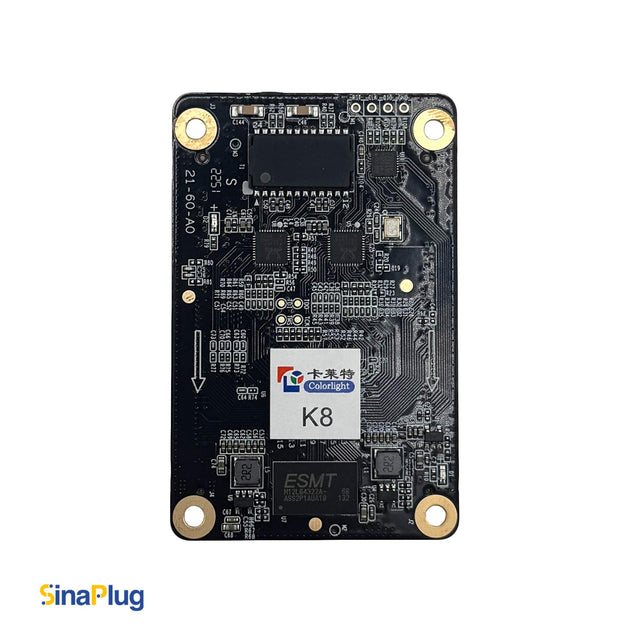

Colorlight K8 Receiving Card

Azar Pixel is proud to introduce the Colorlight K8, a compact, high-performance receiving card tailored for fine-pitch LED displays that demand large load capacity and superb image quality. This small-sized card features high-density connectors that provide dustproof and shockproof effects for both rental and fixed installations which leads to high stability and dependability, in addition to its RoHS and EMC Class A certifications.

The K8 manages up to 32 groups of parallel RGB data and 128 groups of serial data, supporting PWM chips and resolutions up to 512×384 pixels. It supports irregular module wiring for versatile display configurations, both 8-bit and 10-bit video input for vibrant color reproduction, advanced HDR imaging, and full gamma/color temperature adjustment for superior clarity and wide color gamut.

Per-pixel brightness and chromaticity calibration with 14-bit coefficients ensures uniformity and excellent grayscale at low brightness. It also supports both standard and high frame rates up to 240Hz delivering smooth and vivid visuals. Maintenance is simplified with features like highlight marking, OSD hardware identification, screen rotation (90°/180°/270°), and support for up to 16 smart modules.

Reliability features include loop redundancy, dual card hot backup, PSU and firmware redundancy, and comprehensive hardware monitoring (temperature, voltage, fan control, bit error detection), ensuring stable 24/7 operation.
