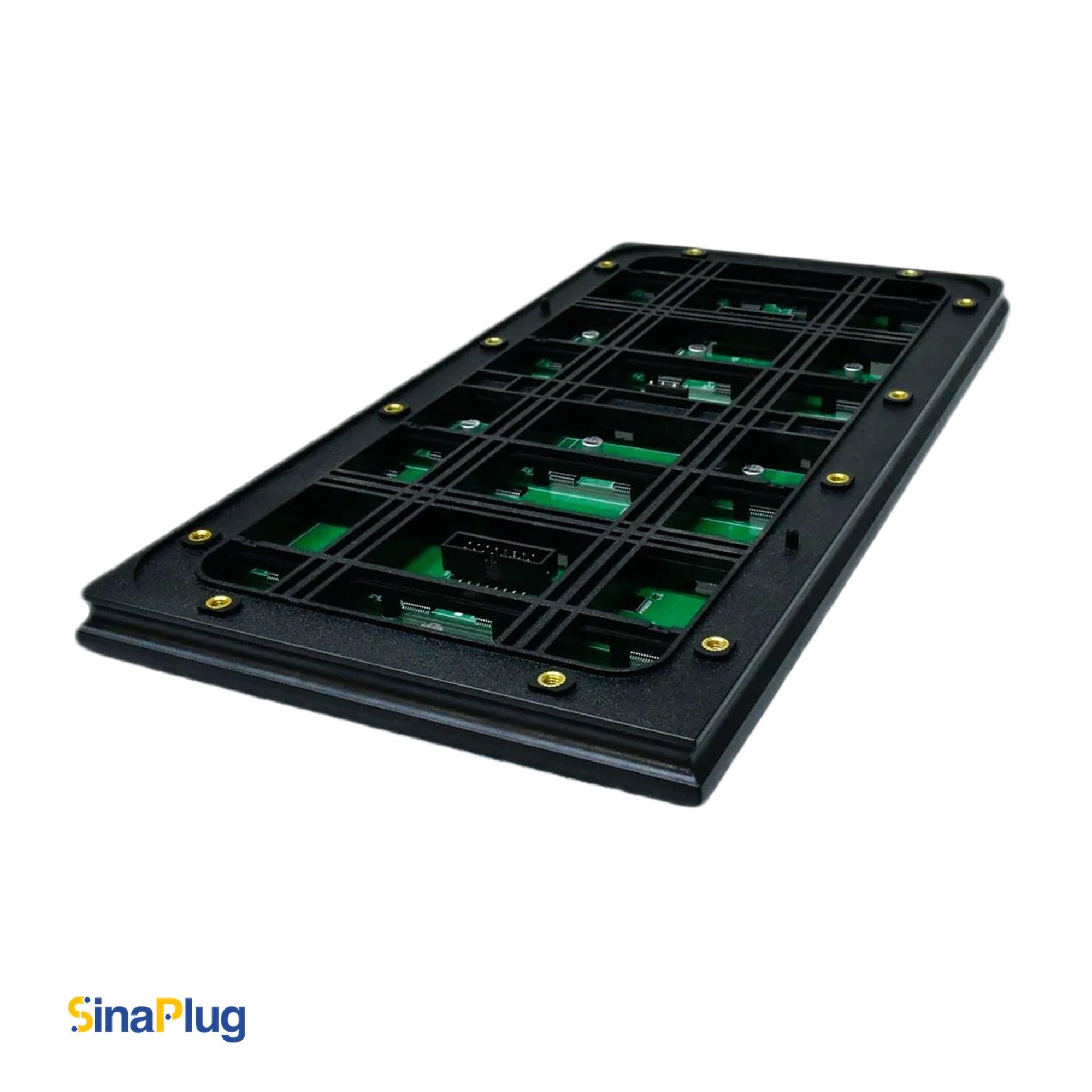

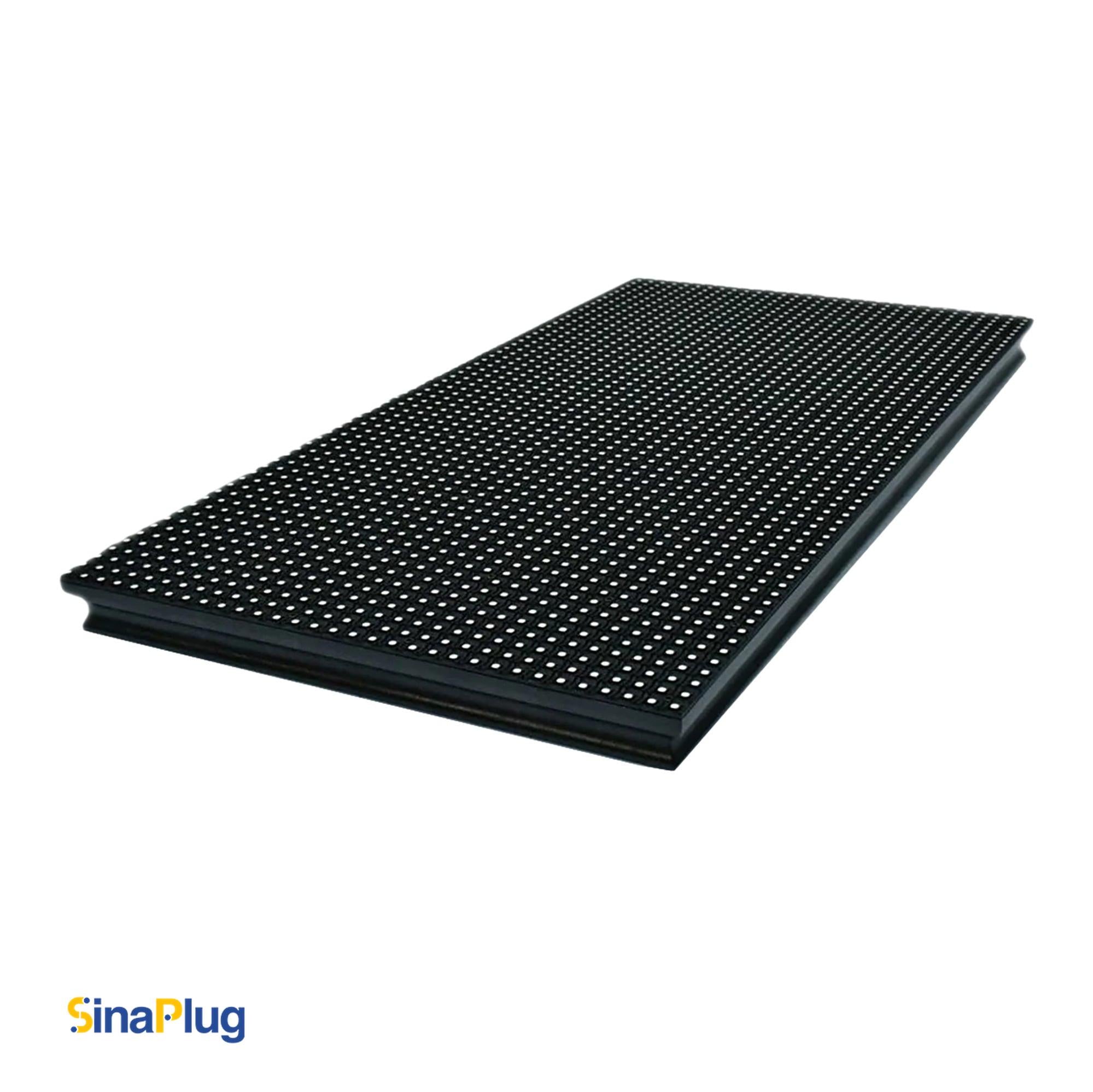

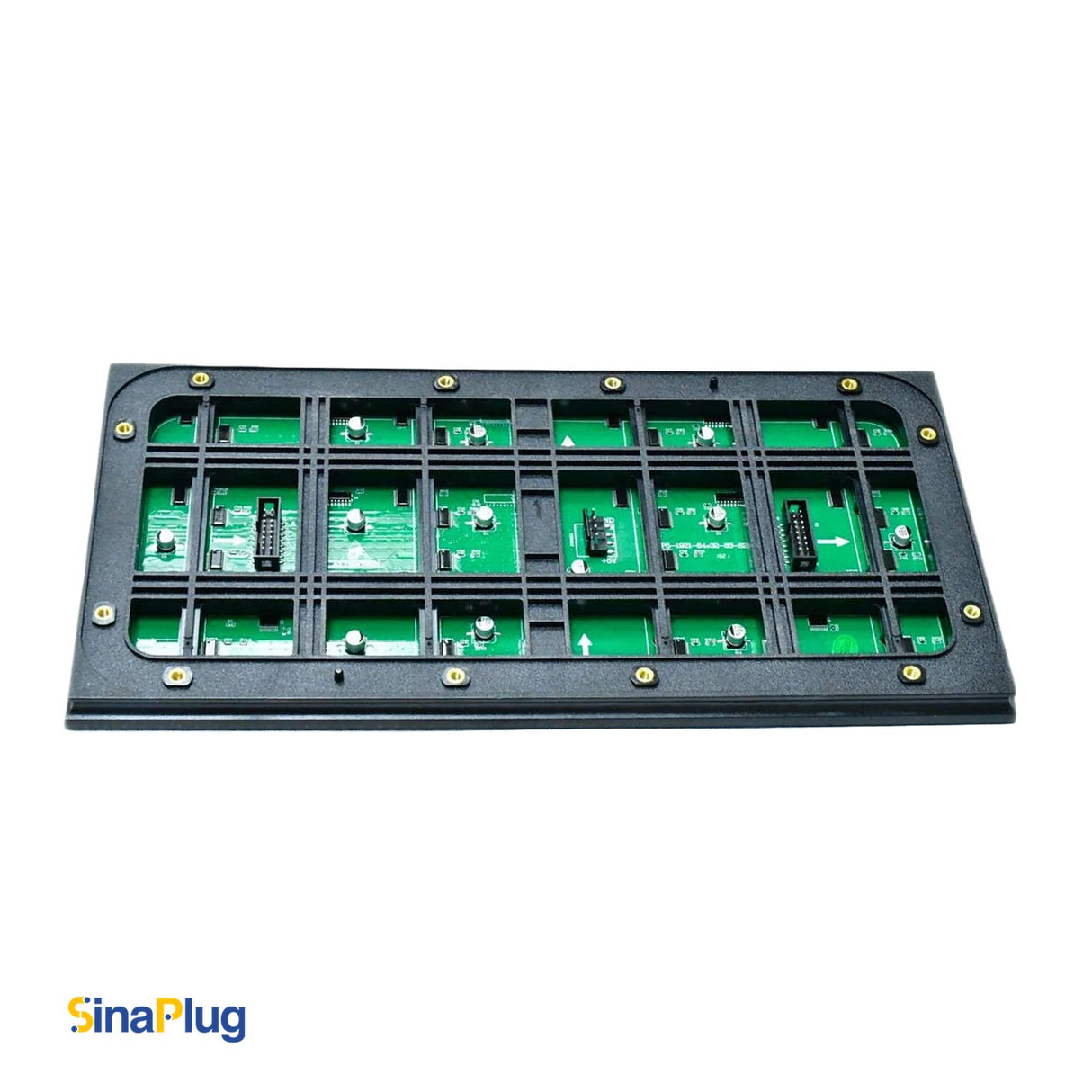

AzarPixel Outdoor P5.0mm SMD LED Module

Provided by AzarPixel, SMD outdoor P5mm LED Module is available to be ordered and shipped today. As the foundation of any LED equipment, this module brings a perfect mix of clarity, resolution and contrast to any RGB display in a cost-effective price margin.

Gaining the quality of SMD1921 (manufactured by King Light) LEDs, all the 8,192 pixels (64x128) are arranged within a 5mm pitch, allowing the module to maintain a viewing distance as low as 6 meters and a viewing angle as wide as Hor: 140°, Ver: 120°.

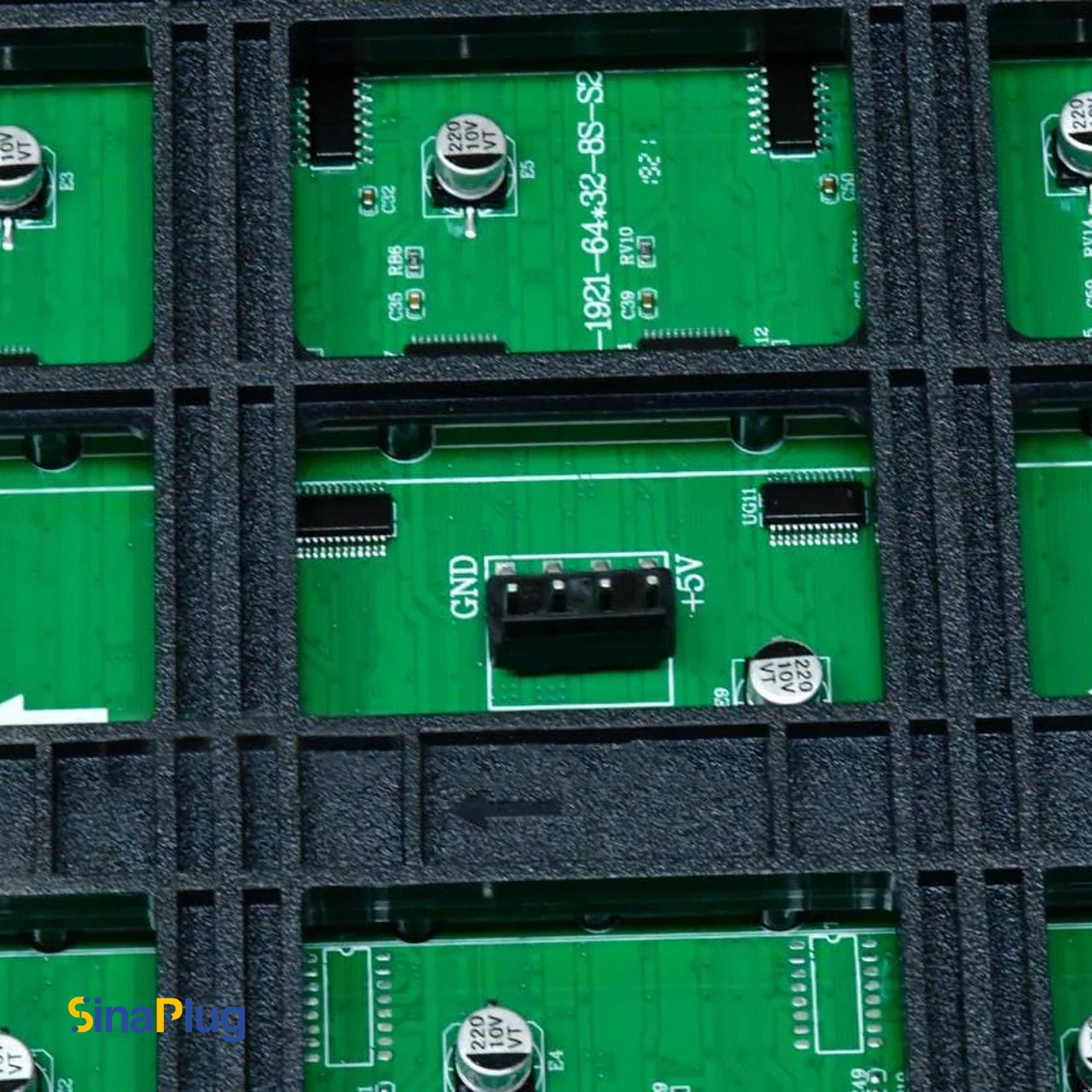

Powered by a standard 5V input voltage by (4-pin power socket), it takes a maximum of 7.5A, resulting in a max of 37.5W power consumption.

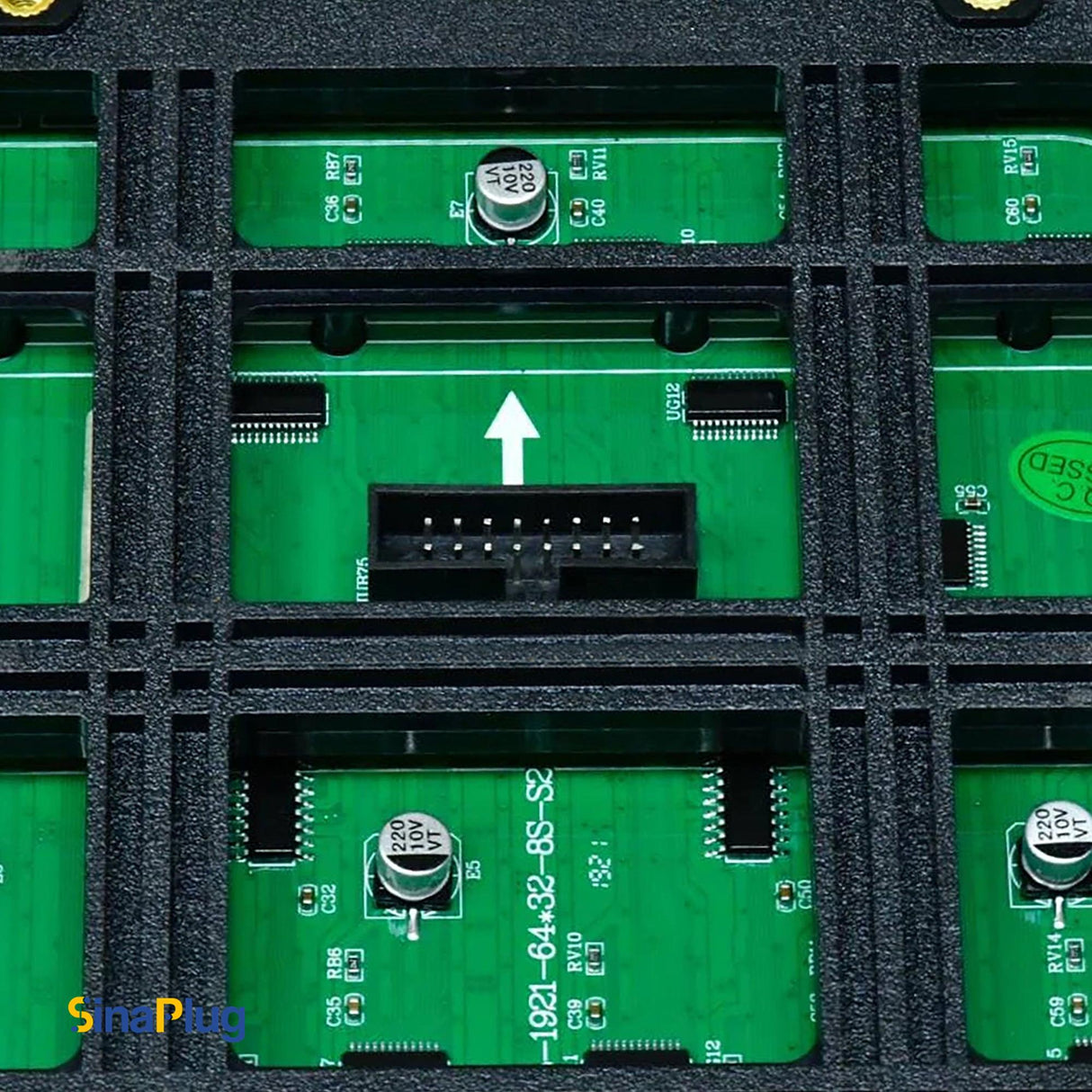

This P5 module features a standard 160×320 mm dimension and a HUB75 input signal interface, making it one of the most used modules in LED display setups.

Thanks to its high brightness level (4000-5000 nit) and durable sealing technic, it is designed to operate flawlessly in outdoor panels within an ambient temperature range of -20℃ to 80℃.
