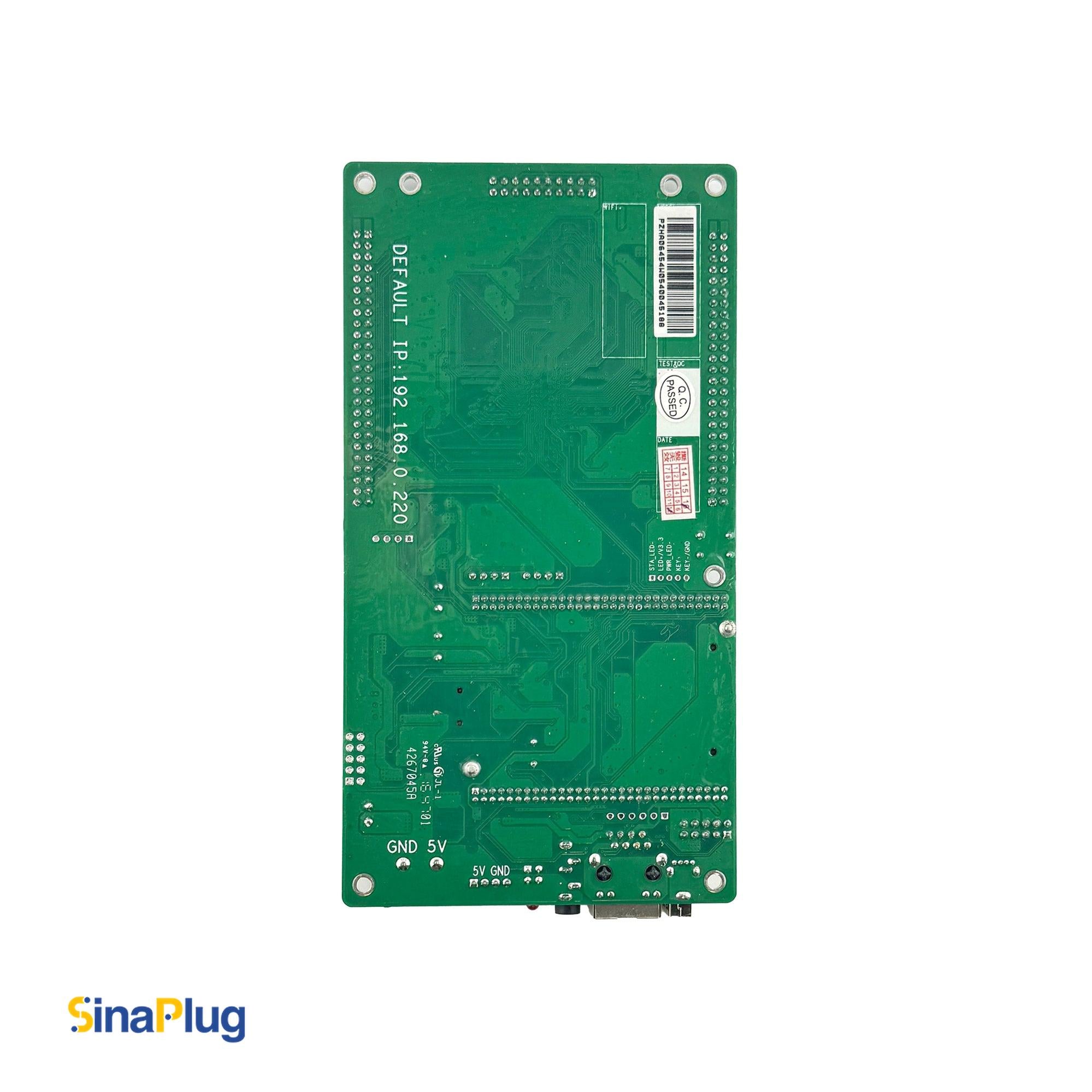

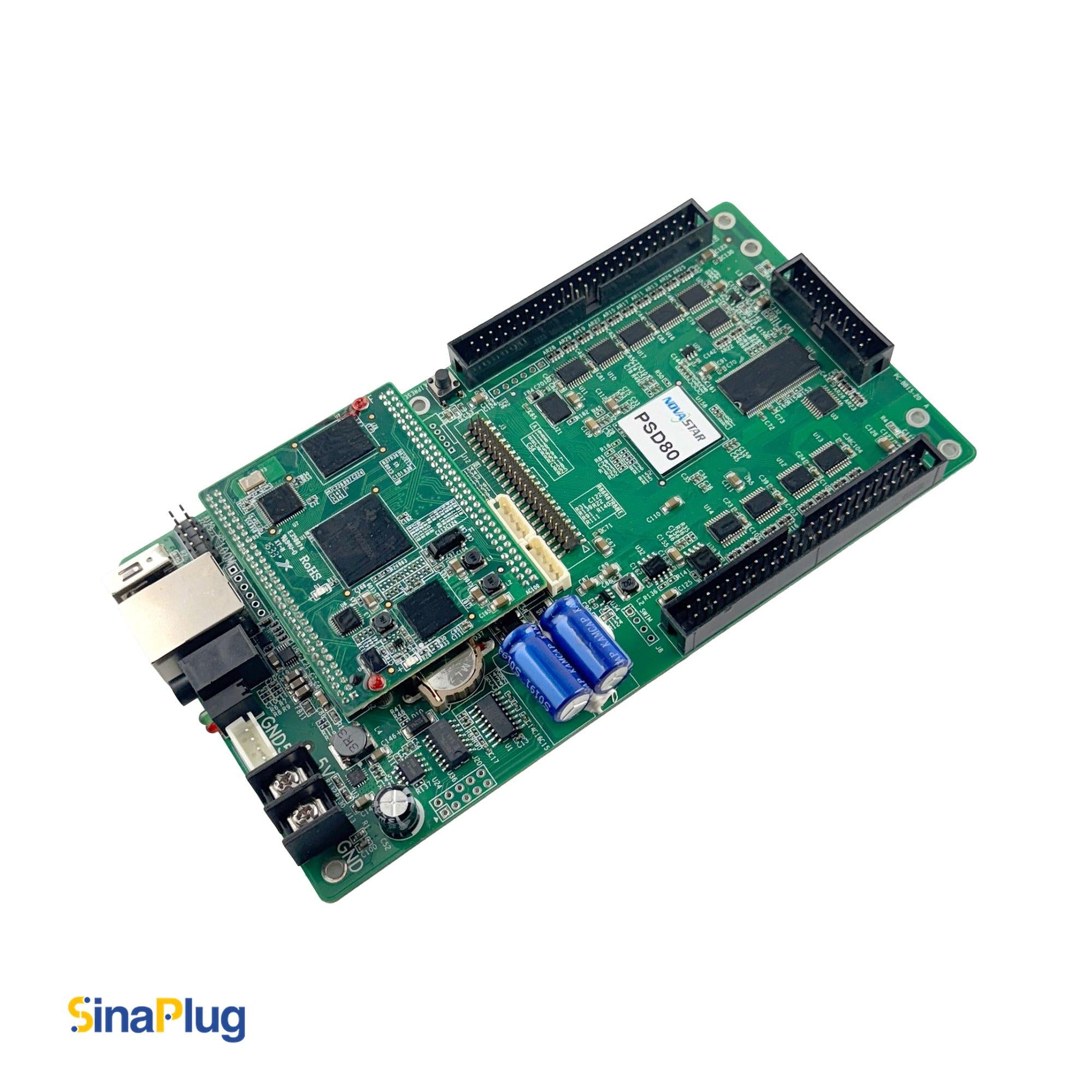

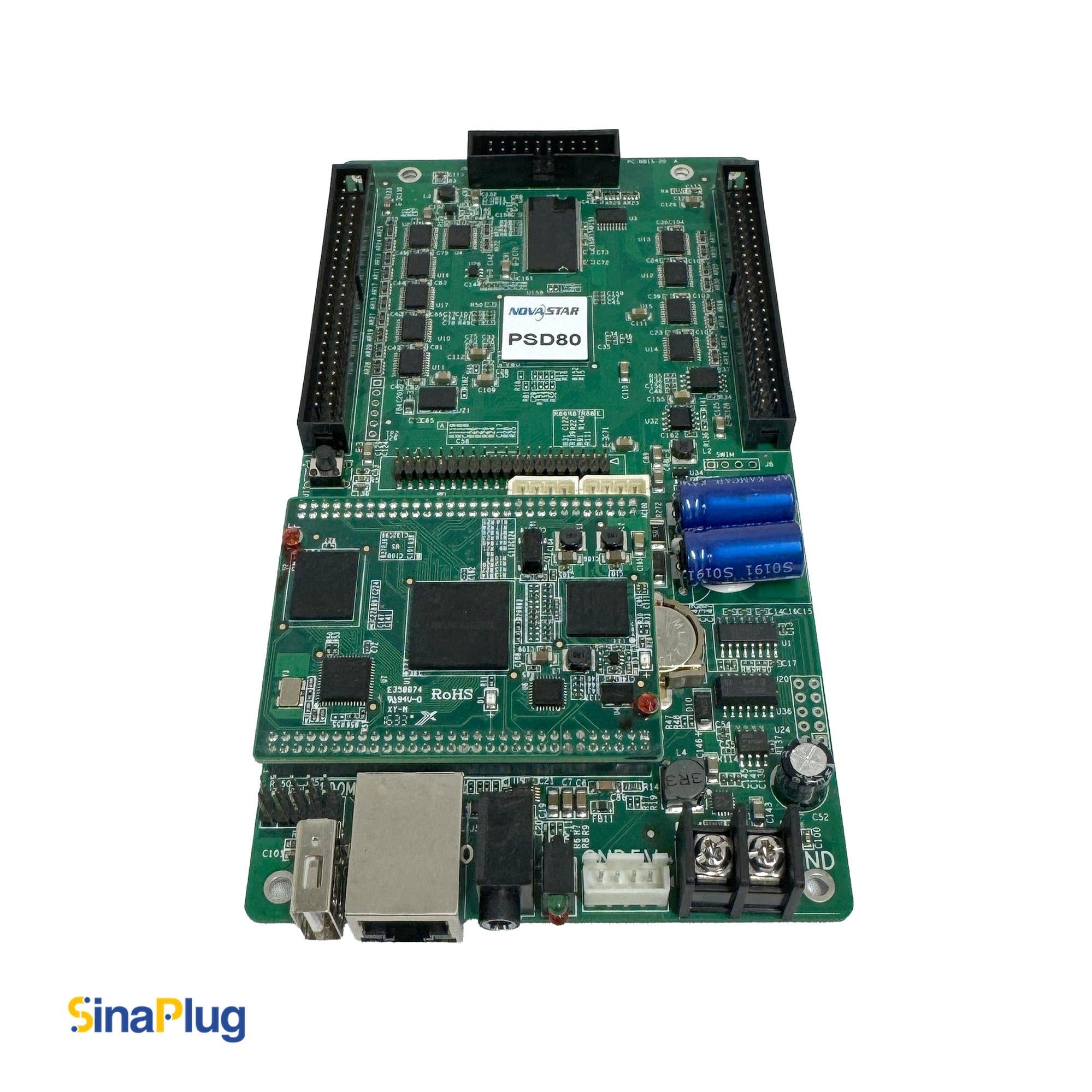

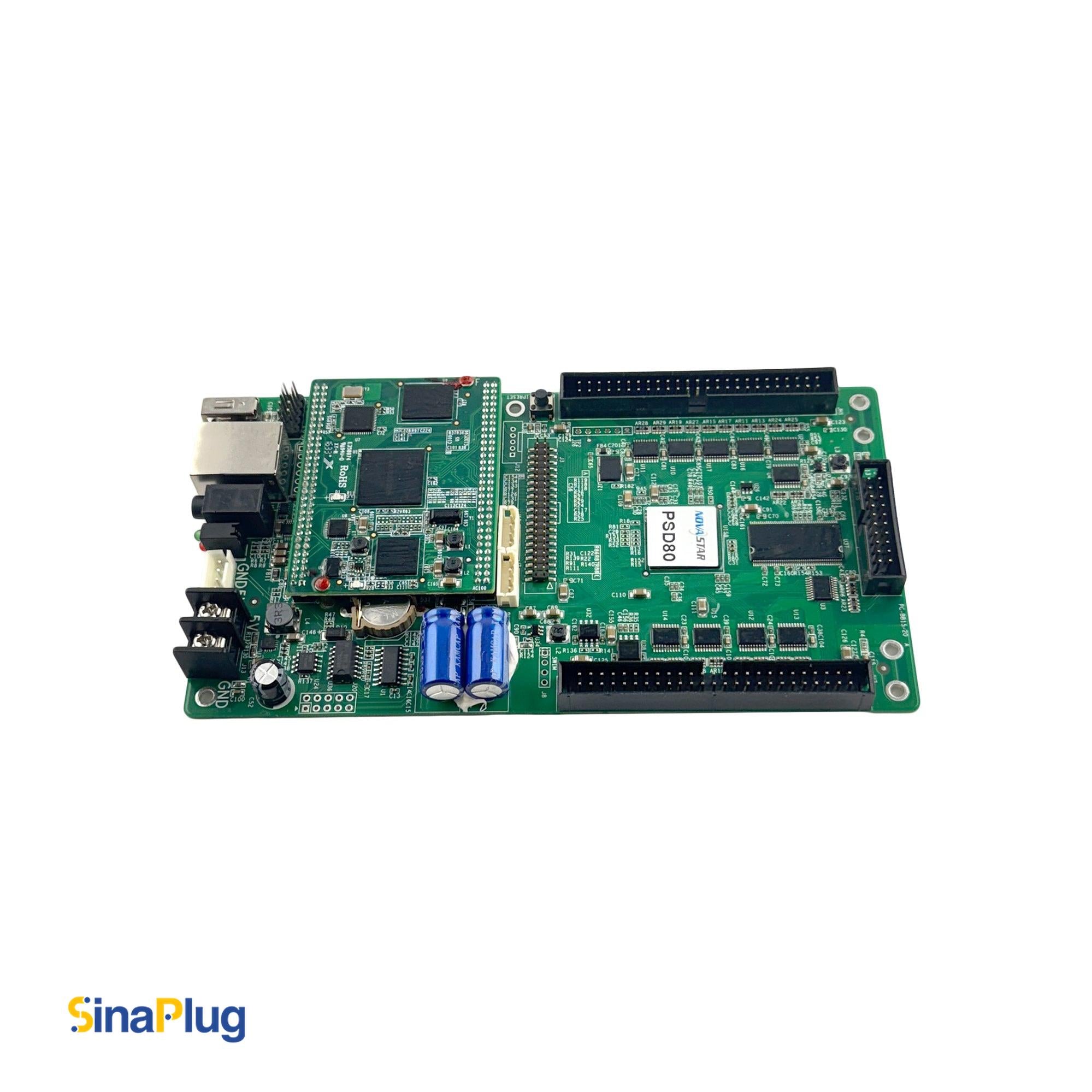

Novastar PSD80 LED Asynchronous Controller Card

PSD80 is an asynchronous full-color control card.

It has an extraordinary high cost-effectiveness with the realistic displaying effect and the supporting of rich media formats.

  Remote publish play-program;

 Remote monitoring the current play information;

 Play as per time segment or according to date, week and time;

 Self-adapting window display;

 Multiple clients synchronous display;

 Support a variety of media formats, such as video, images, text, weather, clock, countdown, Word、Excel、TXT, etc;

 Audio output;

Support emergency insert play, immediate notification;

 Remote manage the playback log;

 U disk export and Insert-and-Play;

 Support remote upgrade of application software and hardware programs;

 Loading capacity: 384×256;

 Support 16-group, 20-group and 24-group data modes;

   Support chips: TI, Toshiba, MBlock, Dianjing, Riyuecheng, Mingyang, etc. Support DM13H, MBI5024/5036/5034, MBI5042/5041/5030, MBI5040, MBI5050, etc.

 Support full-color static to 32 scan;

 Field frequency as 60Hz;

The gray level is settable, and support 16 bit 65536 level gray to the maximum;

 Refresh frequency: scanning screen can achieve 3840Hz and static screen can achieve 6000Hz;

 Support brightness correction and chromaticity correction;

 On-board 4Gb storage space;

 On-board temperature and voltage test;

 Support (with the optical probe NS048C) automatic brightness adjustment;

 Support secondary development.
