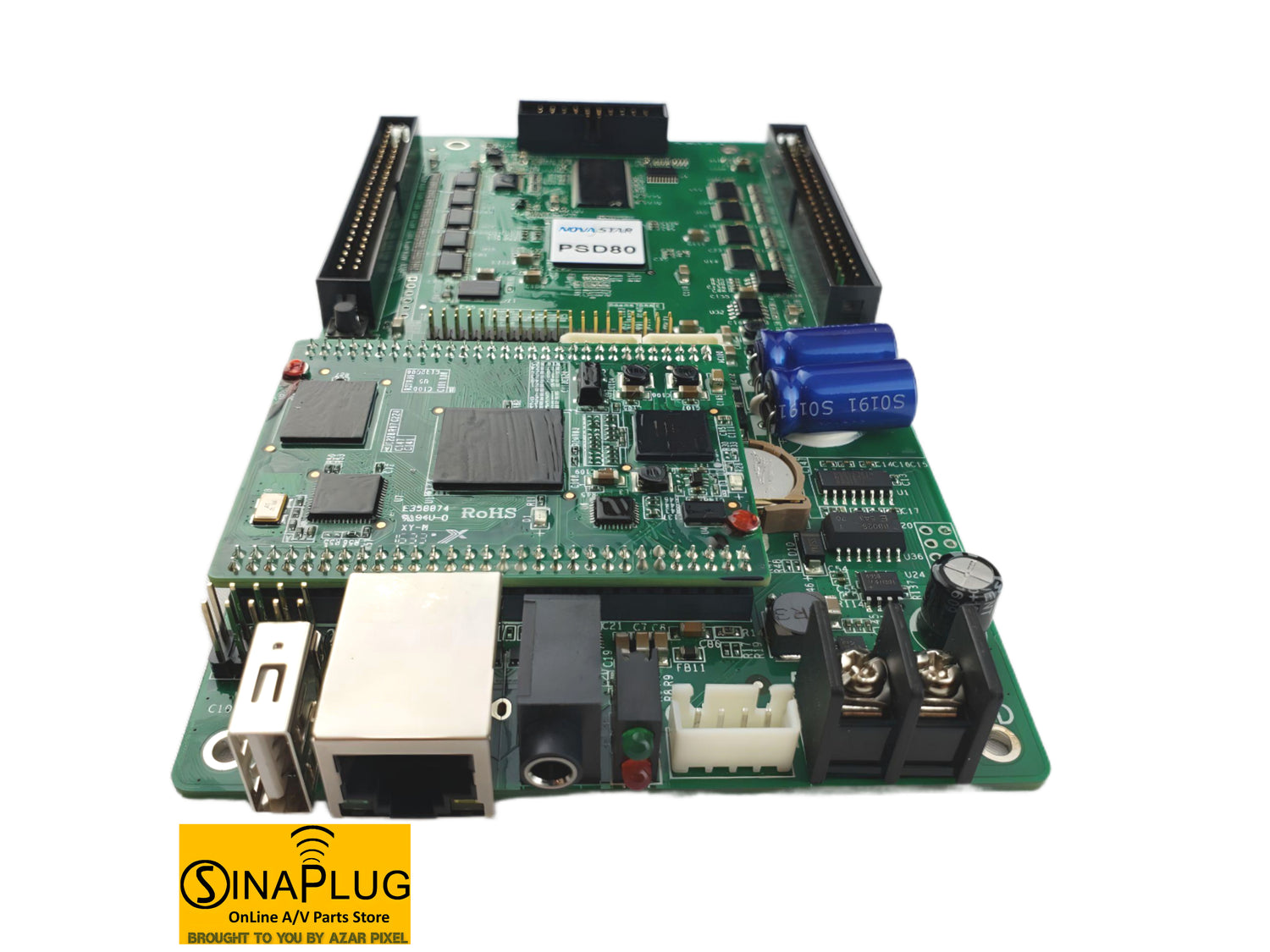

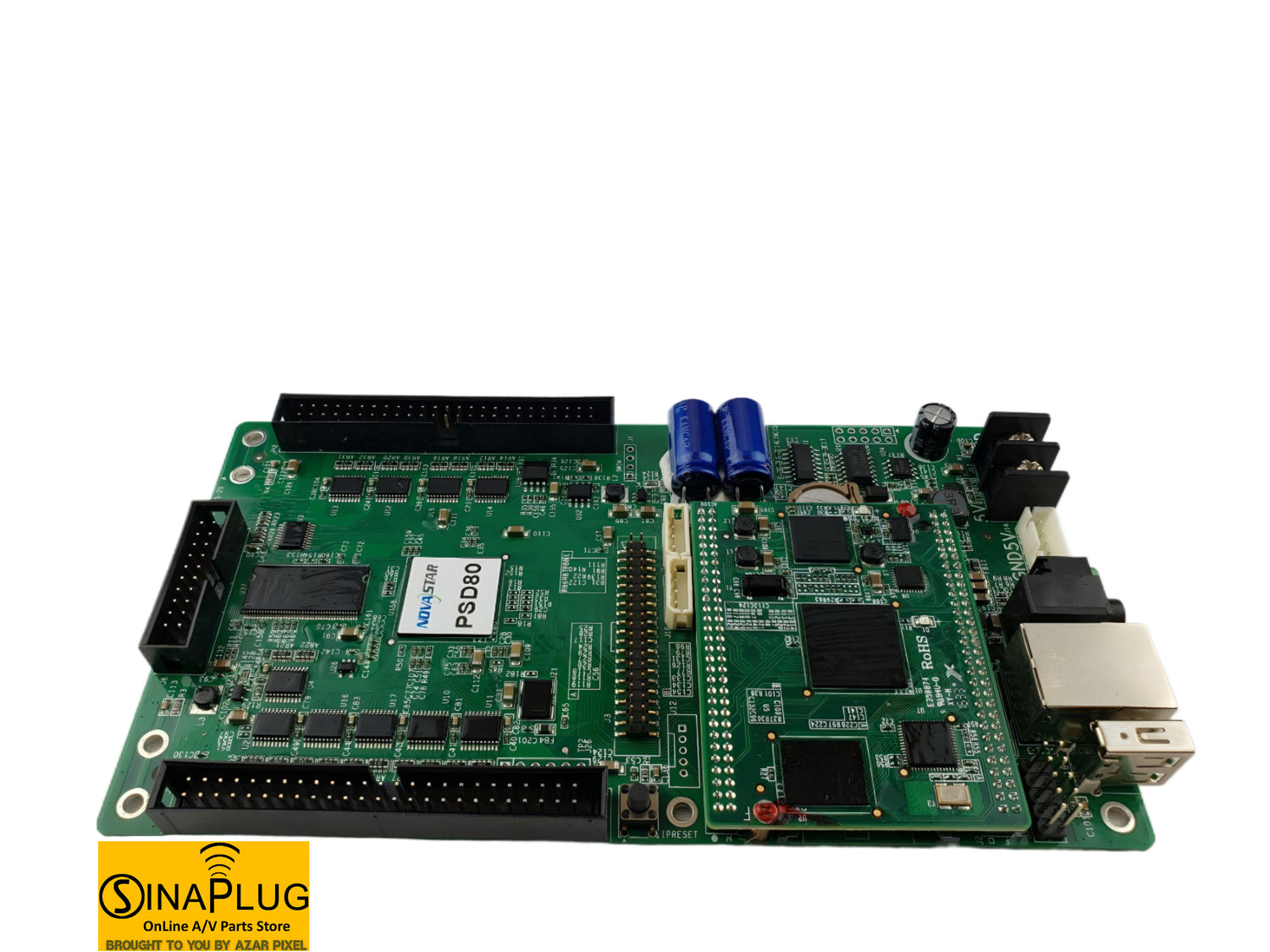

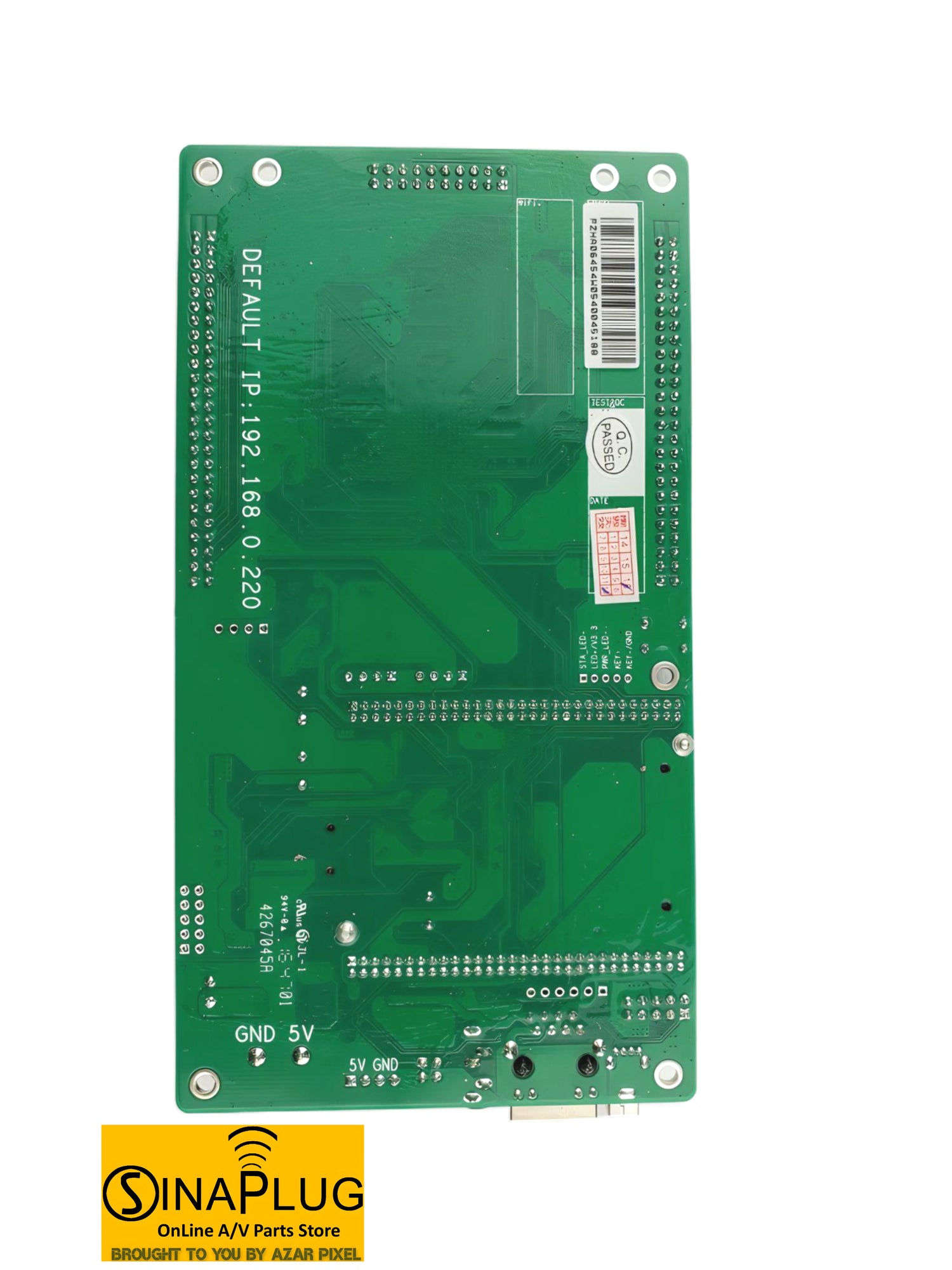

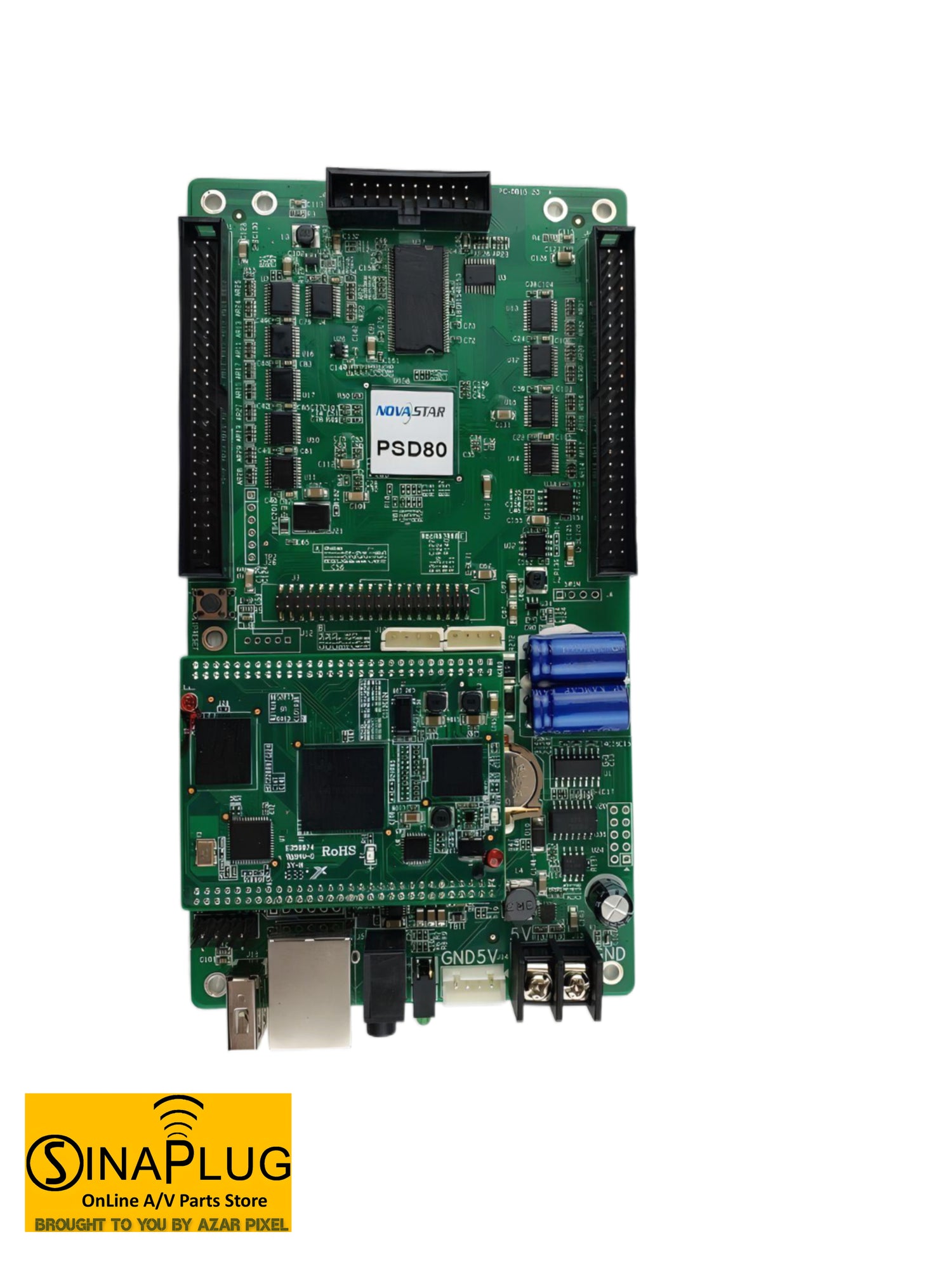

Novastar PSD80 Asynchronous LED Controller Card
Novastar PSD80 Asynchronous LED Controller Card is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Documents
Documents
No files available.
The Novastar PSD80 is a versatile full-color asynchronous control card that offers exceptional value for vibrant LED displays by considering its wide range of media format support and realistic visual output design.
The PSD80 allows for convenient remote playlist publishing and monitoring current play information. This card also has self-adapting window display and allows for synchronized display across several screens.
It supports a wide range of multimedia formats, including video, photos, text, weather updates, clocks, and countdown timers, with audio output. Managing playback logs remotely is straightforward and content may be easily loaded and played via a U-disk. It enables remote upgrades for both its hardware programs and application software and program files will be stored on the card's 4GB of onboard storage.
It supports up to 16‑bit (65 536 levels) grayscale and achieves a refresh frequency of up to 3840Hz for scanning screens and supports full-color static displays up to 32 scan rates with a field frequency of 60Hz. Additionally, brightness and chromaticity correction are supported, and automatic brightness adjustment is also a supported feature.
Key Features of PSD80
Ports
- 1x USB (Type A) port
- 1x RJ45 network port
- 1x 3.5mm Audio output
Communication
- Wi-Fi / LAN / U-disk
Functionality
- Support 16-bit 65536 grayscale
- Support 1-32 scan rate
- Support remote playback log management
- Multiple connection solutions (wired and wireless)
- Supports flexible scheduling options (allowing content to play according to specific time segments or based on date)
- Support a variety of media formats, such as video, images, text, weather, clock, countdown, Word, Excel, TXT, etc.
Others
- 4 GB internal storage
- Input power terminal (5Volt)
Dimensions (L*W*H)
- 170.5mm * 90mm * 15mm
