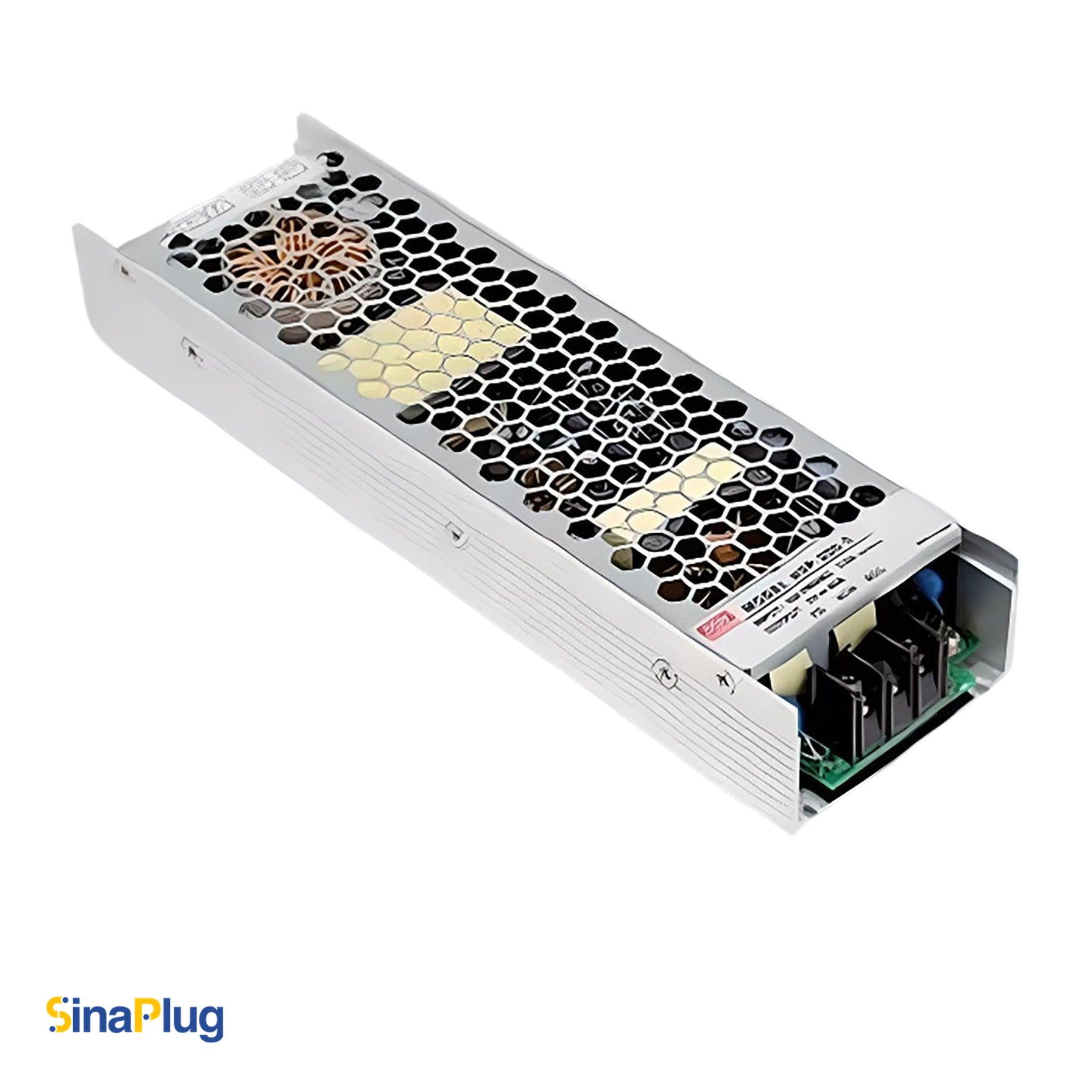

MEAN WELL HSP-200-4.2 Switching Power Supply (Output 4.2Volts, 40Amps)

The MEAN WELL HSP-200-4.2 is a highly qualified, enclosed power supply ideal for LED equipment, especially industrial control systems that require consistent processes, thanks to its power factor correction and ±1% load regulation.

This AC/DC, compact HSP-200-4.2 provides a 4.2V with an adjustable 3.6-4.4V range, at 40A, delivering 168W of power from wide-range 100-240 VAC inputs. It contains a PFC function that enhances the overall efficiency (up to 88%) and minimizes harmonic distortion.

Their high reliability and stable operation due to their small and space-saving design, long lifespan, and 2G anti-vibration capability (range of 10-500Hz), ensuring consistent performance in challenging conditions, are the most significant advantages that make Meanwell's AC/DC power supplies a leading brand considering all at an affordable price.

The small-sized HSP-200 series ensures long-term operation in demanding situations due to the design of a metallic mesh case that improves heat dissipation (by preserving at least 5cm installation distance surrounding) and performs smoothly in adverse ambient temperatures ranging from -30°C to +70°C.

In addition to the advanced protections such as overload, over temperature, over-voltage, and short circuit protections (all with automatic recovery), it is certified by Safety Standards: UL60950-1, EN62368-1, and EMC Standards; EN55032, GB17625.1, EN61000-3-2, EN61000-4-2, EN55035 and more that allow it to meet the worldwide energy requirement.
