Seetronic  |  SKU: PCN-SET-SAC3MXxxxx-0

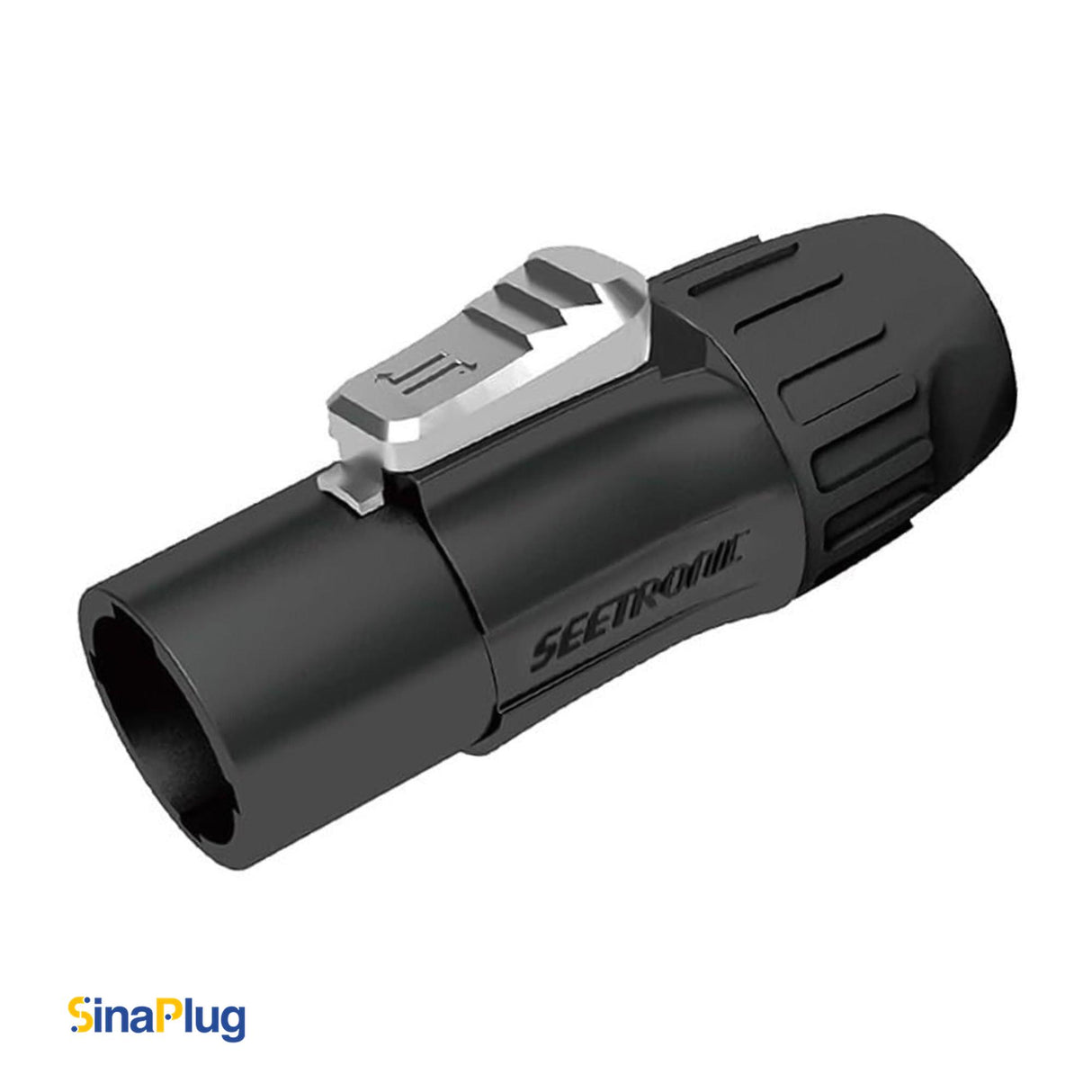

Seetronic SAC3MX Waterproof Power Plug (Male Cable Connector of SAC3FPX Socket)

$8.45 $12.21

Buy at discounted prices

Minimum Qty Maximum Qty Discount
10 49 7% off
50 99 12% off
100 + 15% off

Documents

Datasheet_Seetronic_SAC3MX_V1

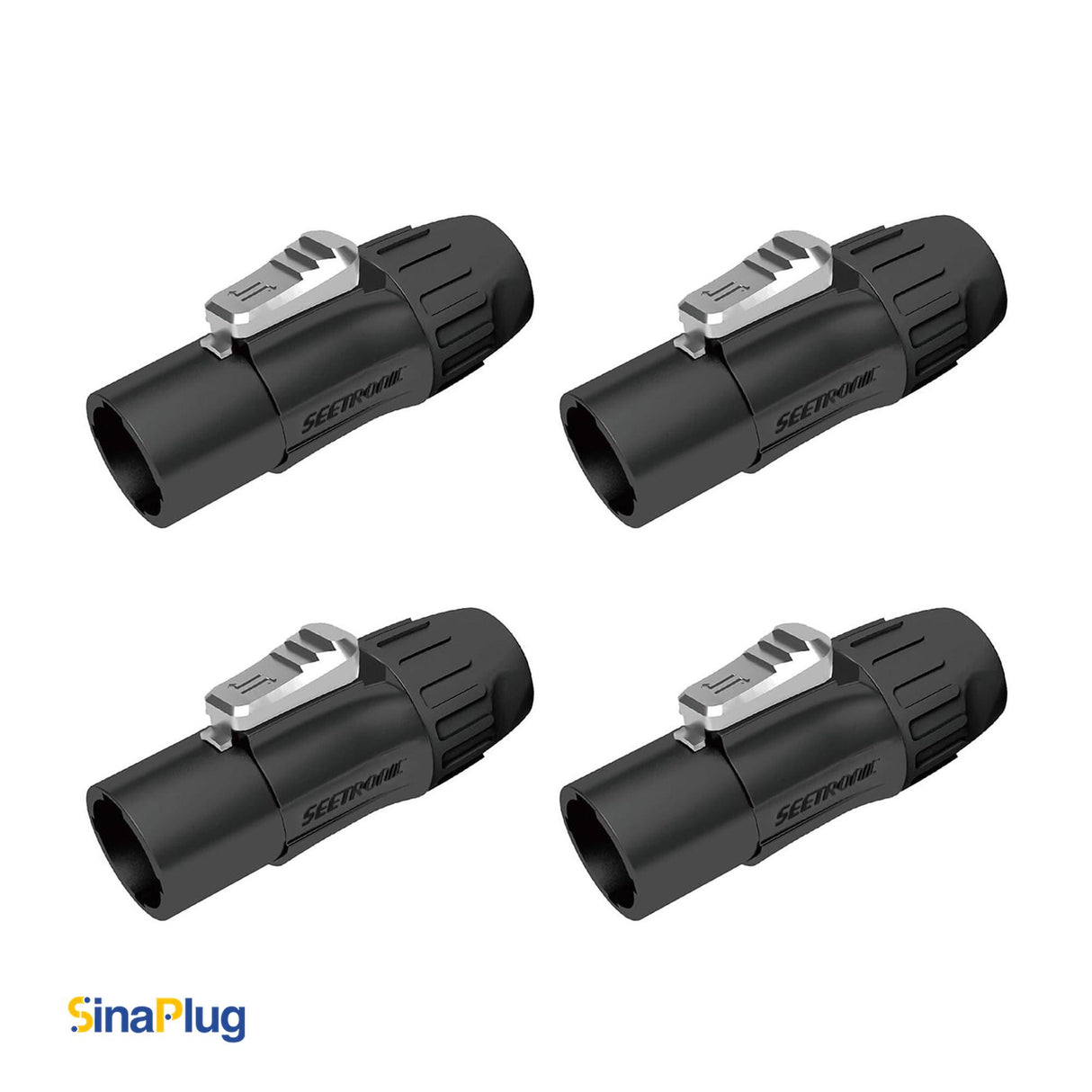

At Azar Pixel, we bring you The Seetronic SAC3MX; a cost-effective waterproof power connector capable of handling outdoor electrical connections up to 20A at 300V AC. The lockable three-core male power cable connector ensures a secure connection for line (L), neutral (N), and safety grounding (PE).

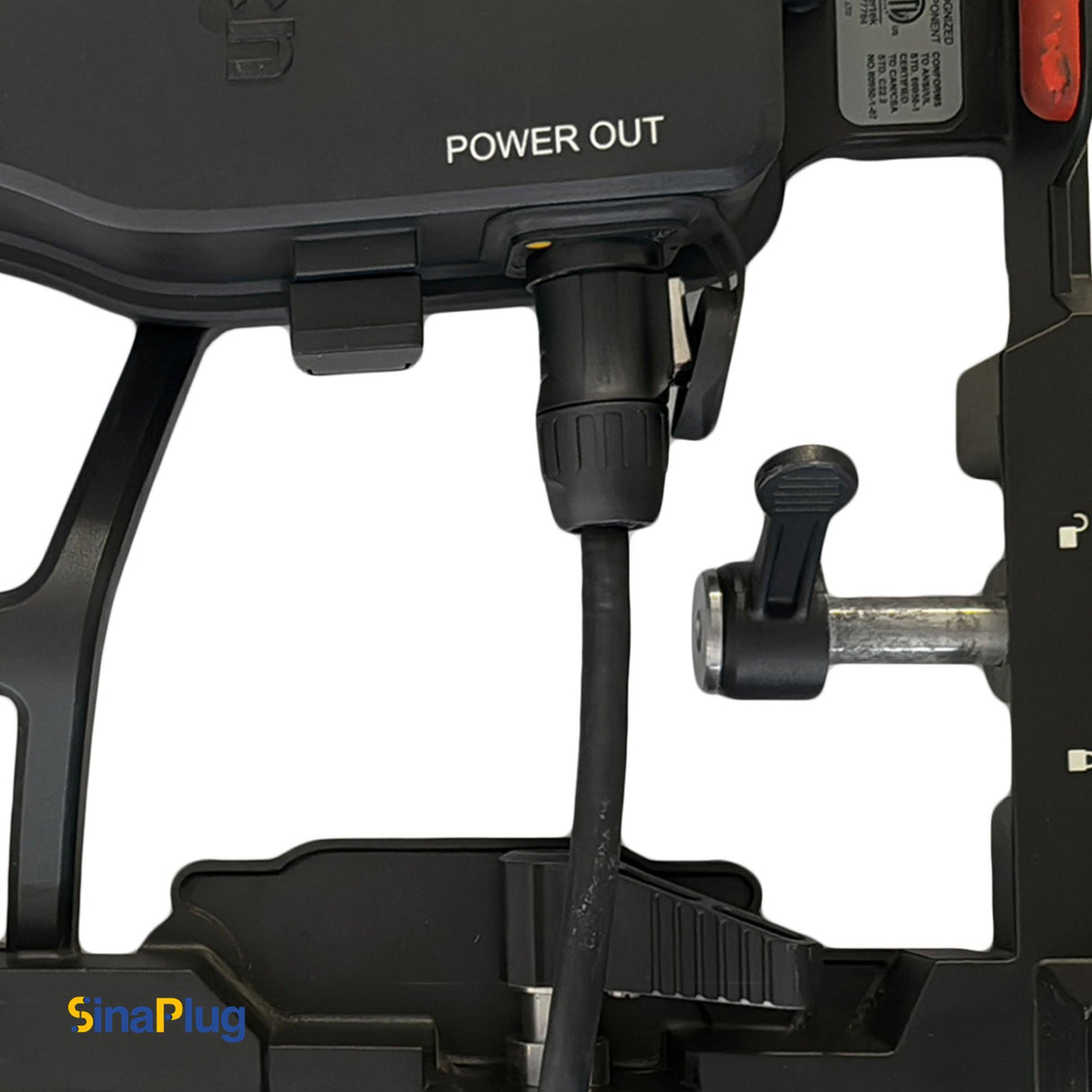

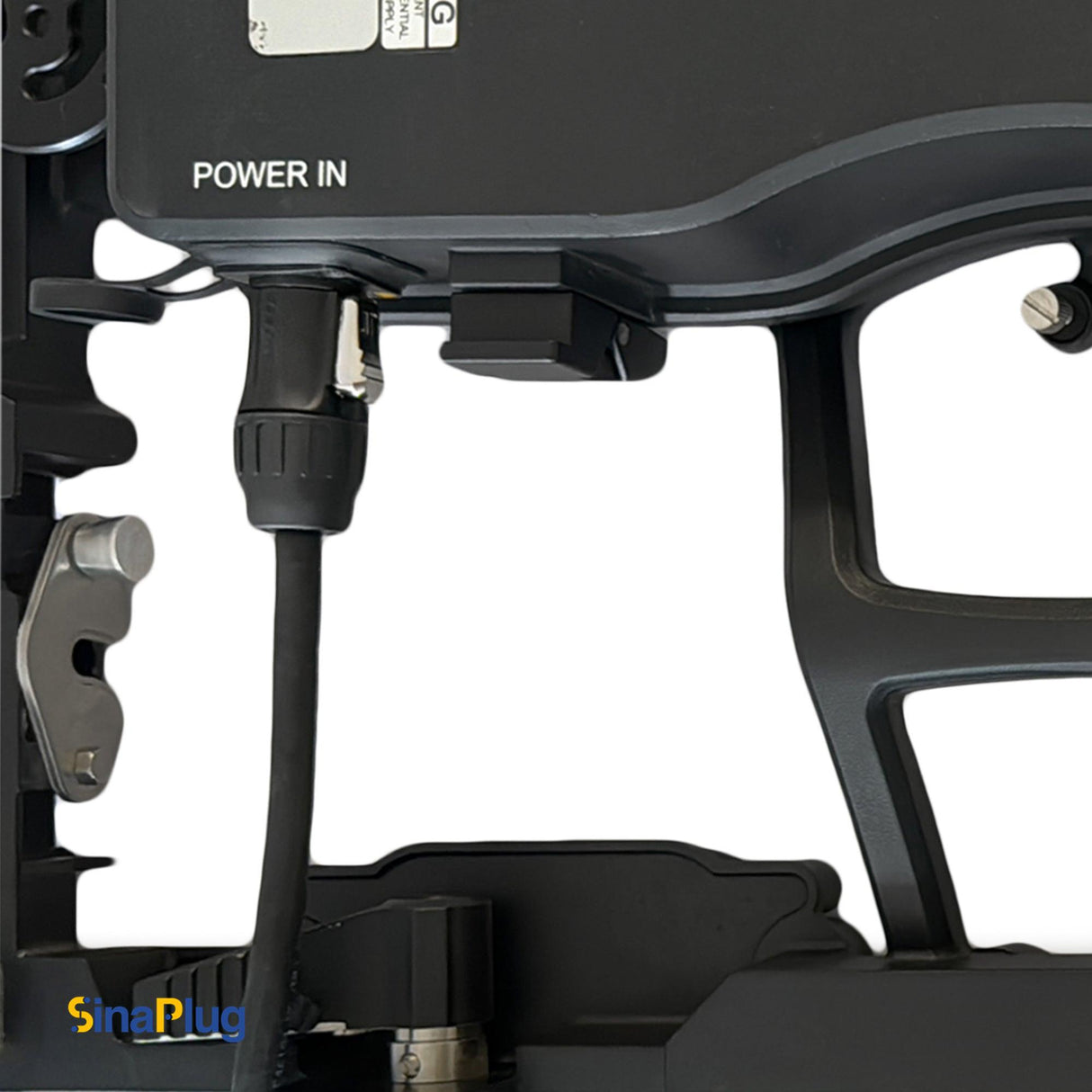

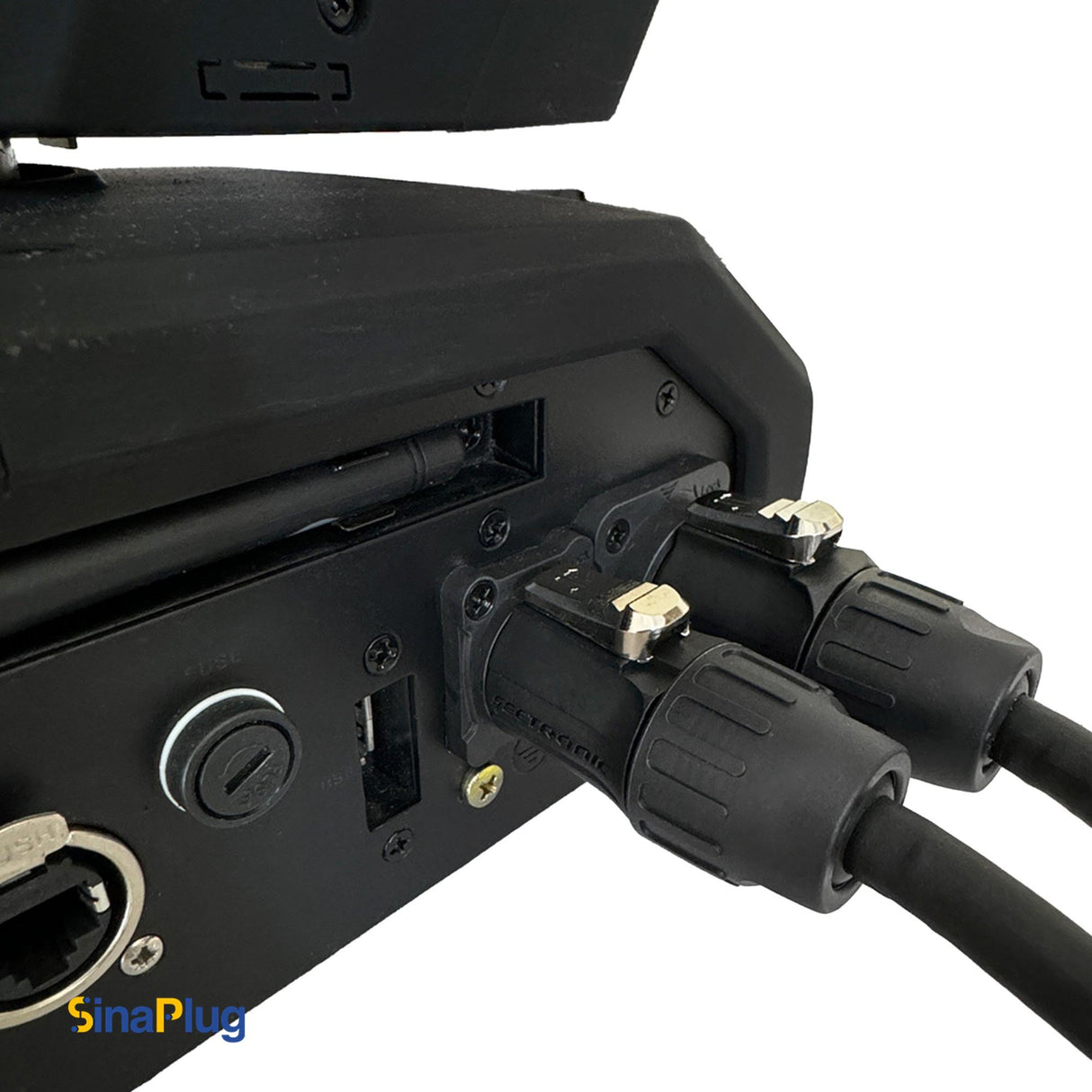

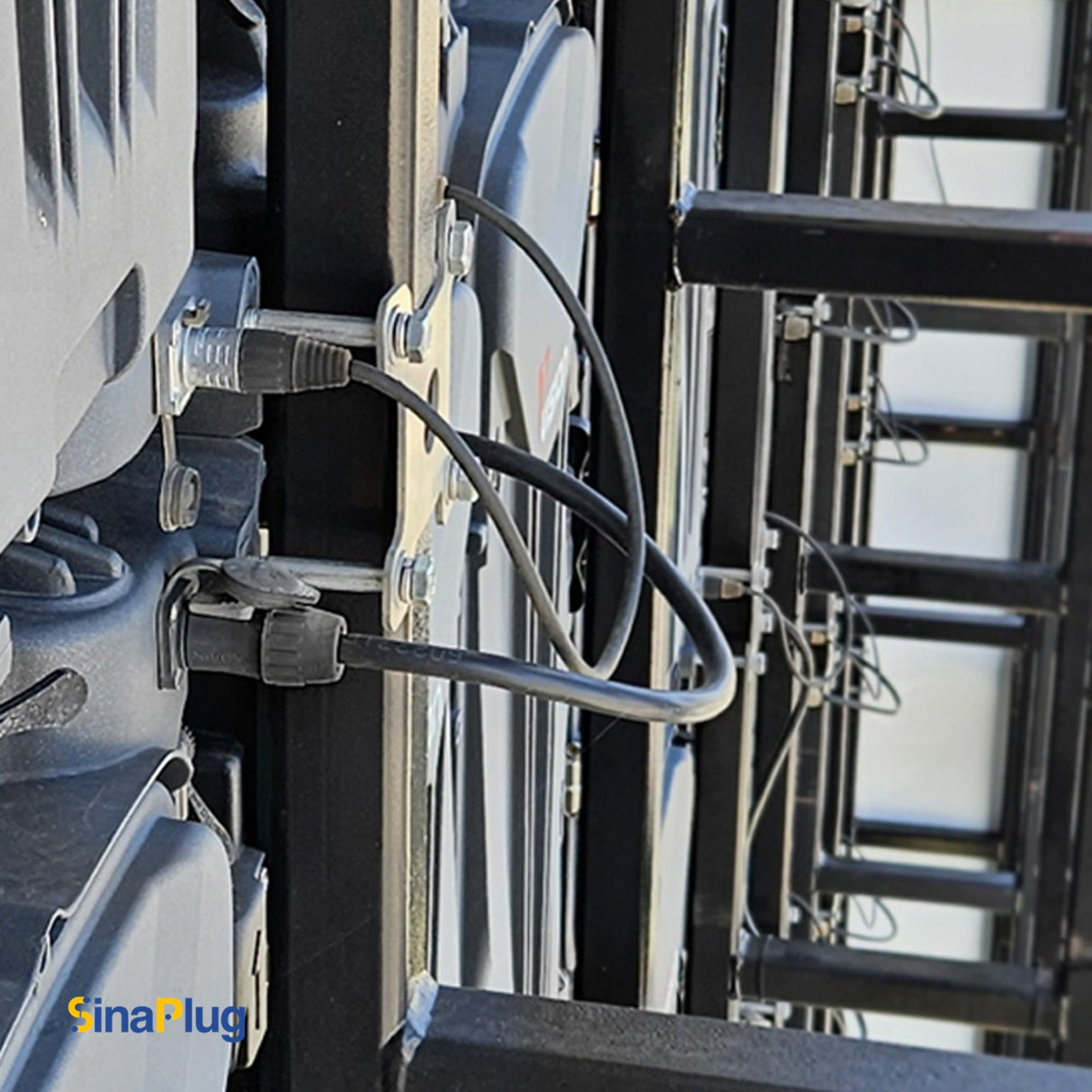

This versatile connector (with approximate length of 70mm and outer diameter of 27.6mm) is compatible with SAC3FX cable plugs and other socket models including SAC3FPX, SAC3FPX-20, SAC3MPX-LY, and is a perfect replacement for Neutrik NAC3MX-W used in LED digital signage setups, or audio/video equipment.

This power plug is engineered for durability and safety thanks to its UL498, UL50E, IEC61984, IEC60320-1, and GB/T 34989 standards, making it ideal for applications in challenging ambient temperatures ranging from -30°C to +80°C.

As a trusted brand specializing in high-quality electronic connectors, Seetronic is renowned for its emphasis on durability, reliability, and precision engineering, with a strong focus on safety and performance.

Caution: For your safety and longevity of the connector, Do Not connect or disconnect the plug under load.

Key Features of SAC3MX

Electrical Specifications

  • Number of Contacts: 3 (Line, Neutral, PE)
  • Rated Current: 20A
  • Rated Voltage: 300V AC
  • Maximum Contact Resistance: 5 mΩ
  • Dielectric Strength: 4000V DC (1600V/min AC UL)
  • Insulation Resistance: 1000 MΩ
  • Certifications: E356932, VDE40044166, TUVN8A1083360002, JET7938-43001-1001, CQC23003410681

Mechanical Specifications

  • Service Life: Over 1000 mating cycles
  • Cable Size: 2.5 mm² (12 AWG)
  • Cable Outside Diameter (OD): 7 – 11 mm
  • Terminal Type: Screw type terminals

Material Parameters

  • Housing Material: PA (Polyamide)
  • Contact Material: Copper alloy with Silver plated surface

Environmental Parameters

  • Flame Retardant Rating: UL94-V0
  • Temperature Range: -30°C to +80°C
  • Protection class: IP65

Advanced Features

  • Quick and easy to lock by featuring a firm latch to prevent accidental disconnections
  • Compatibility with SAC3FX plugs and other socket models (SAC3FPX/-20, SAC3MPX-LY)
  • High rated power capacity up to 20A at 300V AC (UL certified)

Dimensions (L*W*H)

  • 70mm * 34.5mm * 28mm
