Seetronic SAC3MX Waterproof Power Plug (Male Cable Connector of SAC3FPX Socket)
Buy at discounted prices
Minimum Qty | Maximum Qty | Discount |
---|---|---|
10 | 49 | 7% off |
50 | 99 | 12% off |
100 | + | 15% off |
Seetronic SAC3MX Waterproof Power Plug (Male Cable Connector of SAC3FPX Socket) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Documents
Documents

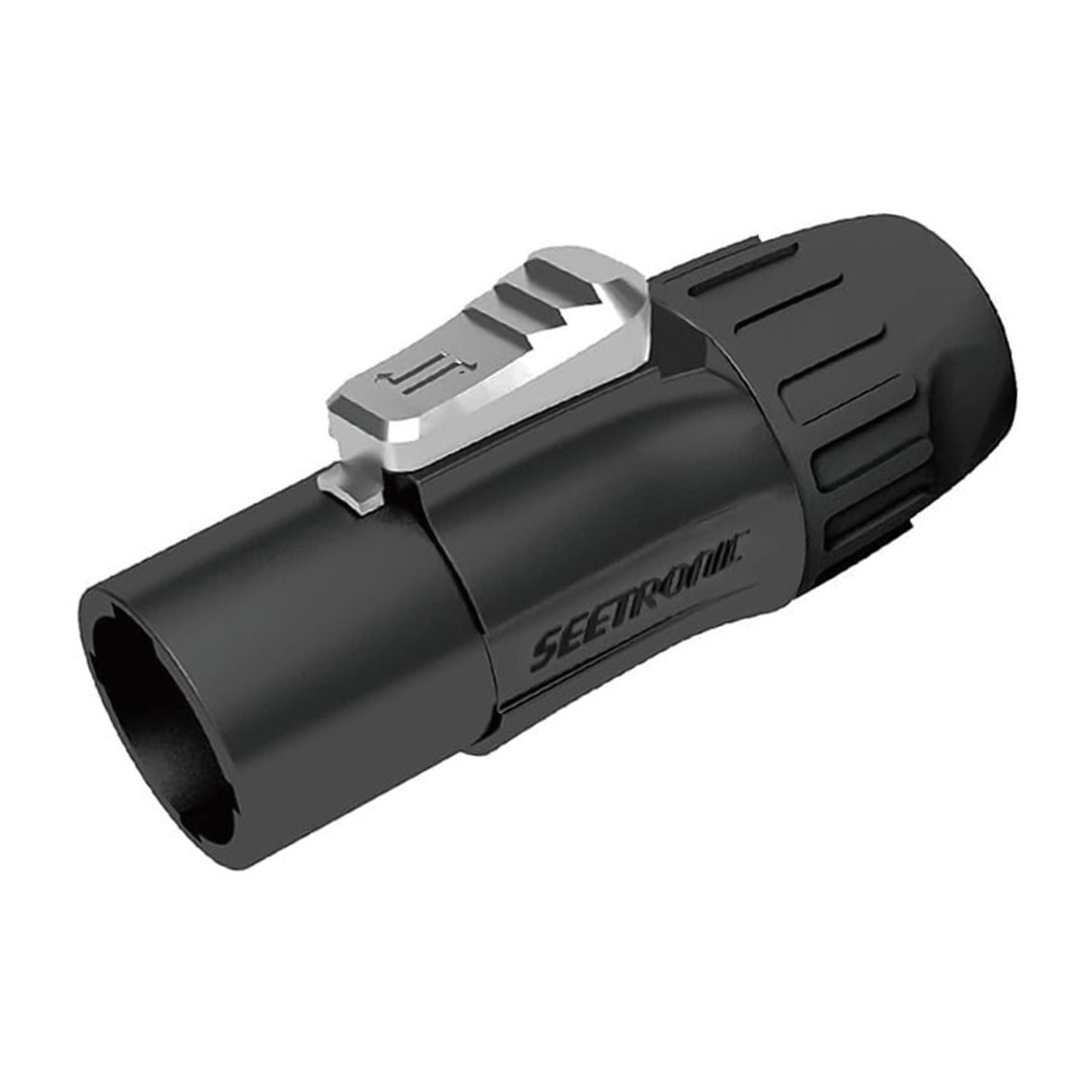

At Azar Pixel, we bring you The Seetronic SAC3MX; a cost-effective waterproof power connector capable of handling outdoor electrical connections up to 20A at 300V AC. The lockable three-core male power cable connector ensures a secure connection for line (L), neutral (N), and safety grounding (PE).

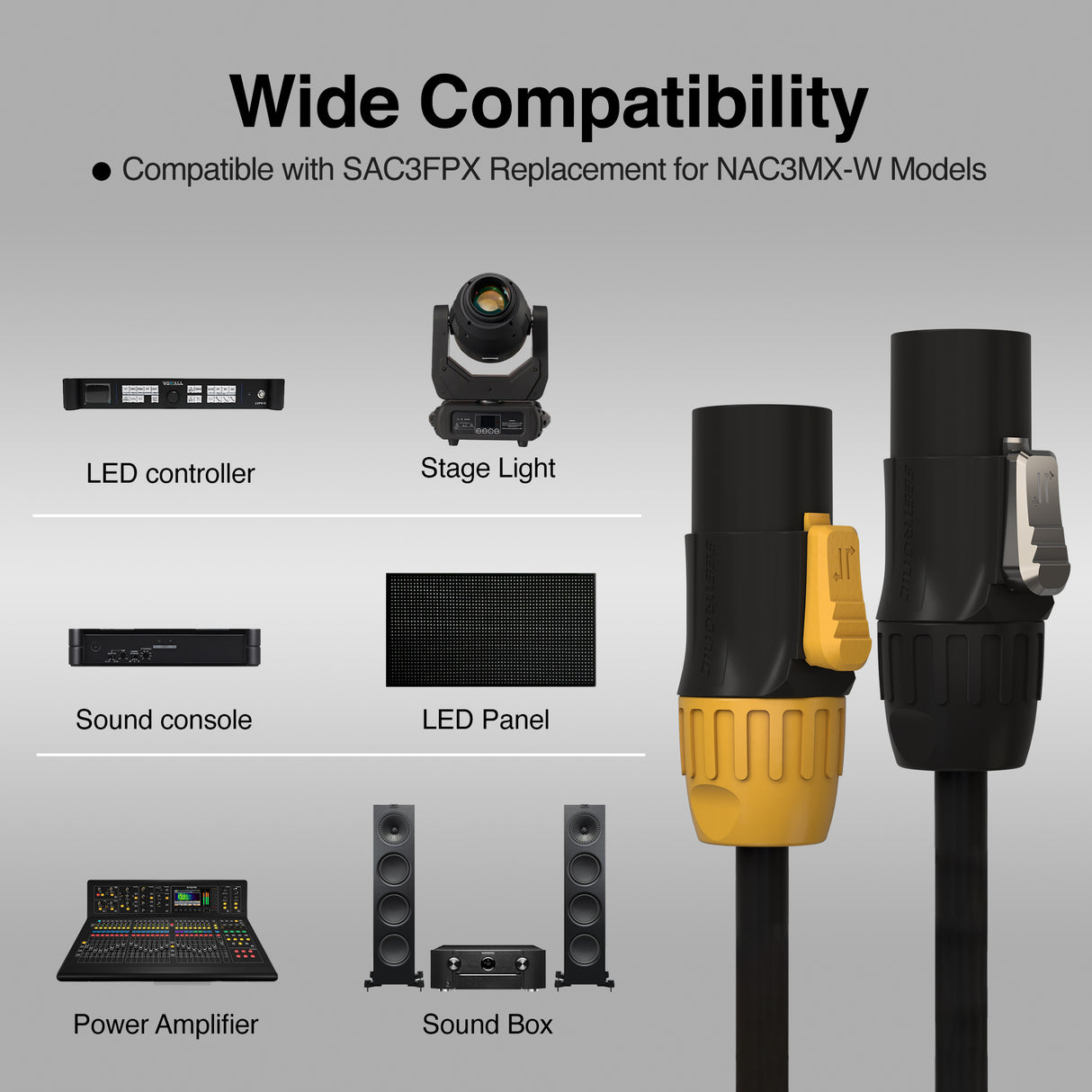

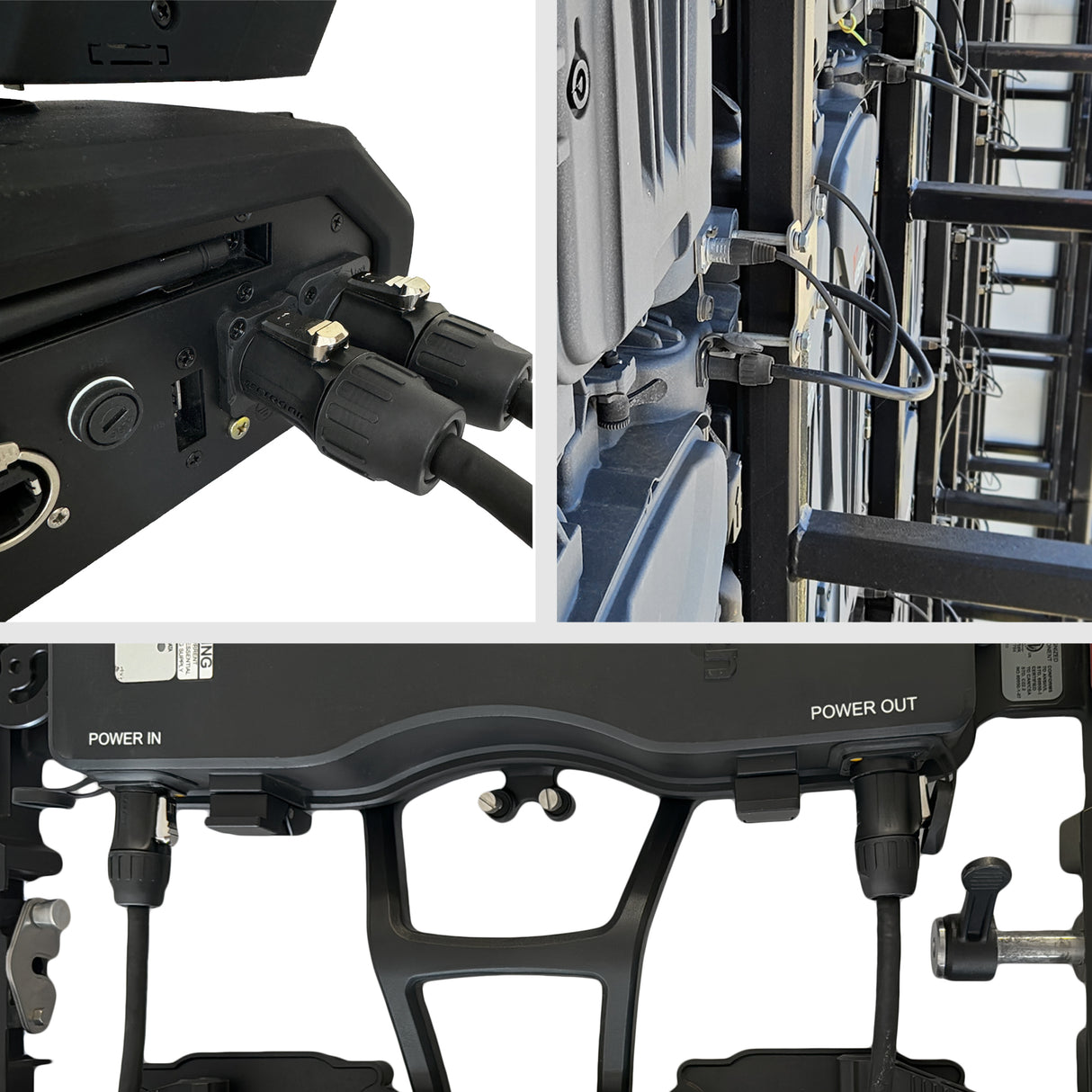

This versatile connector (with approximate length of 70mm and outer diameter of 27.6mm) is compatible with SAC3FX cable plugs and other socket models including SAC3FPX, SAC3FPX-20, SAC3MPX-LY, and is a perfect replacement for Neutrik NAC3MX-W used in LED digital signage setups, or audio/video equipment.
This power plug is engineered for durability and safety thanks to its UL498, UL50E, IEC61984, IEC60320-1, and GB/T 34989 standards, making it ideal for applications in challenging ambient temperatures ranging from -30°C to +80°C.
As a trusted brand specializing in high-quality electronic connectors, Seetronic is renowned for its emphasis on durability, reliability, and precision engineering, with a strong focus on safety and performance.
Caution: For your safety and longevity of the connector, Do Not connect or disconnect the plug under load.
Key Features of SAC3MX
- Electrical Specifications:
Number of Contacts: 3 (Line, Neutral, PE)
Rated Current: 20A
Rated Voltage: 300V AC
Maximum Contact Resistance: 5 mΩ
Dielectric Strength: 4000V DC (1600V/min AC UL)
Insulation Resistance: 1000 MΩ
Certifications: E356932, VDE40044166, TUVN8A1083360002, JET7938-43001-1001, CQC23003410681
- Mechanical Specifications:
Service Life: Over 1000 mating cycles
Cable Size: 2.5 mm² (12 AWG)
Cable Outside Diameter (OD): 7 – 11 mm

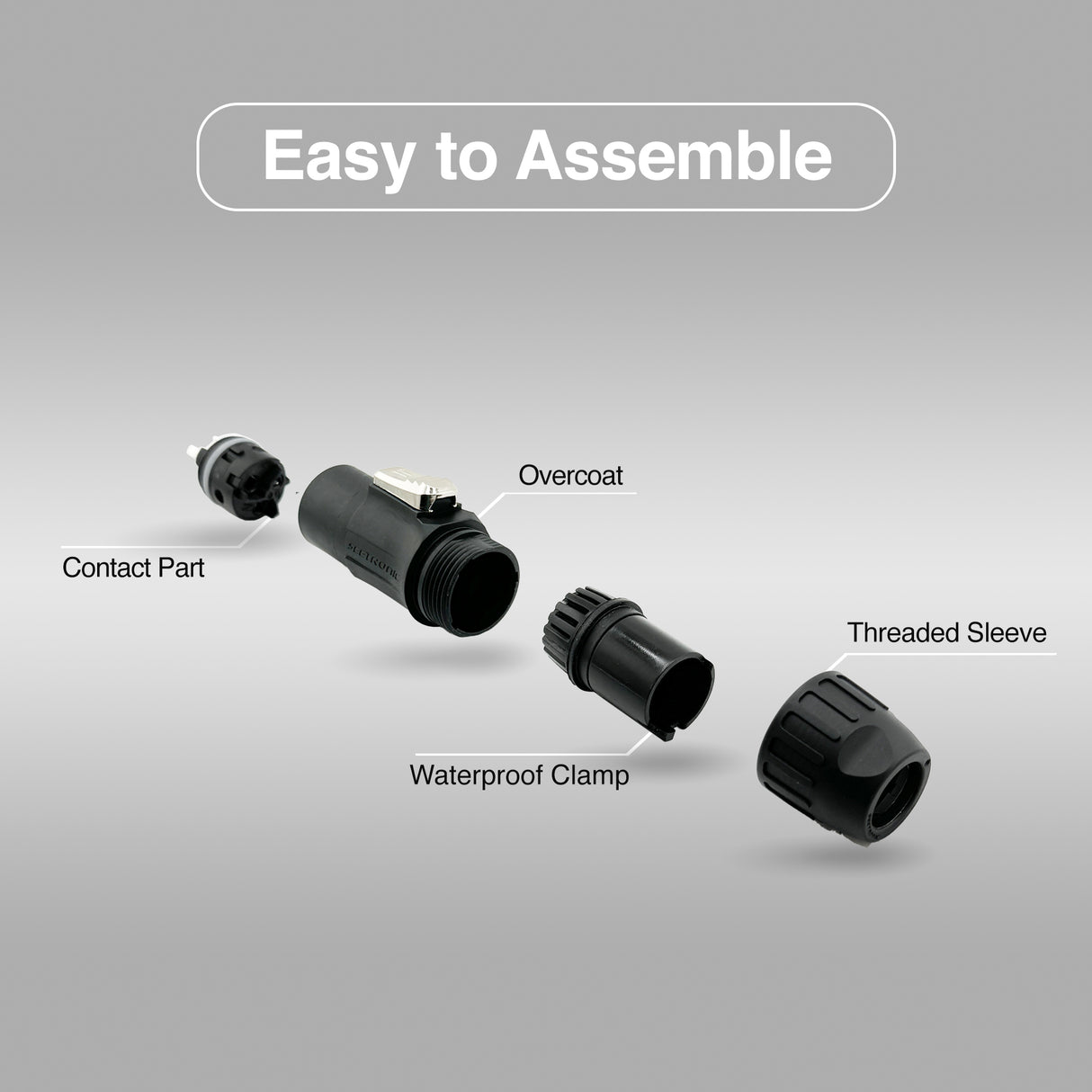

Terminal Type: Screw type terminals
- Material Parameters:
Housing Material: PA (Polyamide)
Contact Material: Copper alloy with Silver plated surface
- Environmental Parameters:
Flame Retardant Rating: UL94-V0
Temperature Range: -30°C to +80°C

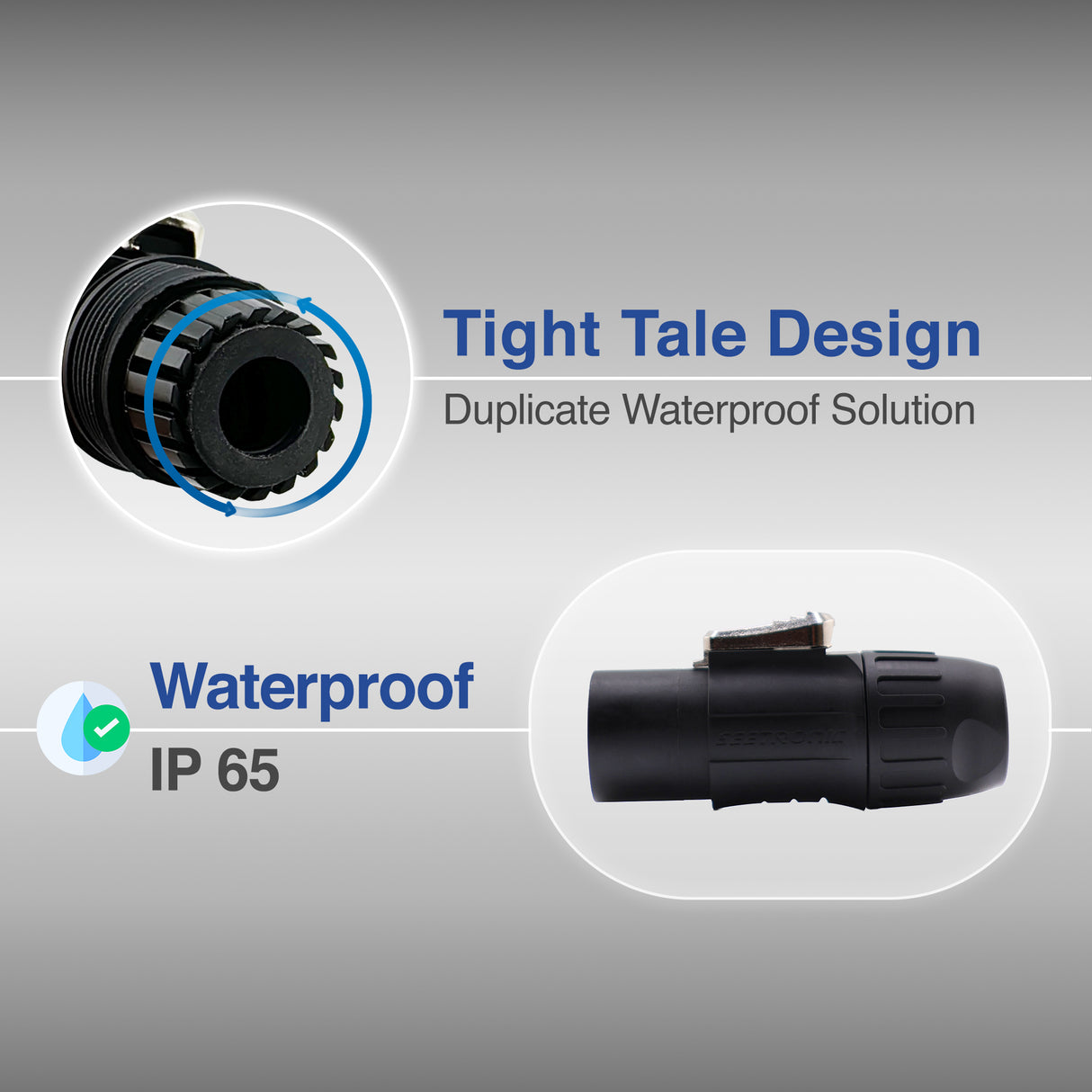

Protection class: IP65
- Advanced Features:

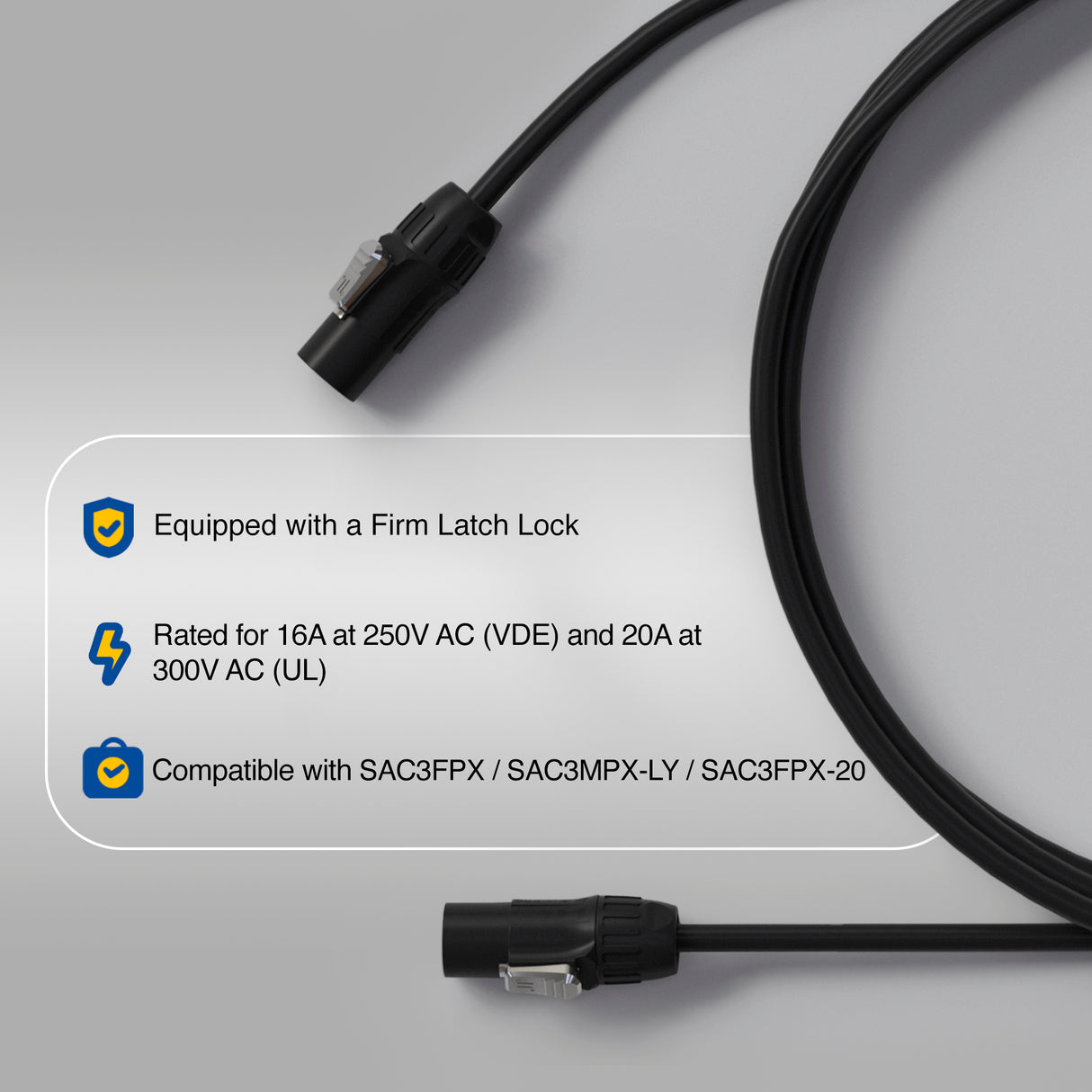

Quick and easy to lock by featuring a firm latch to prevent accidental disconnections
Compatibility with SAC3FX plugs and other socket models (SAC3FPX/-20, SAC3MPX-LY)
High rated power capacity up to 20A at 300V AC (UL certified)
- Dimensions (L*W*H): 70mm * 34.5mm * 28mm
