AzarPixel  |  SKU: PCB-AZP-IECC14SAC3-0

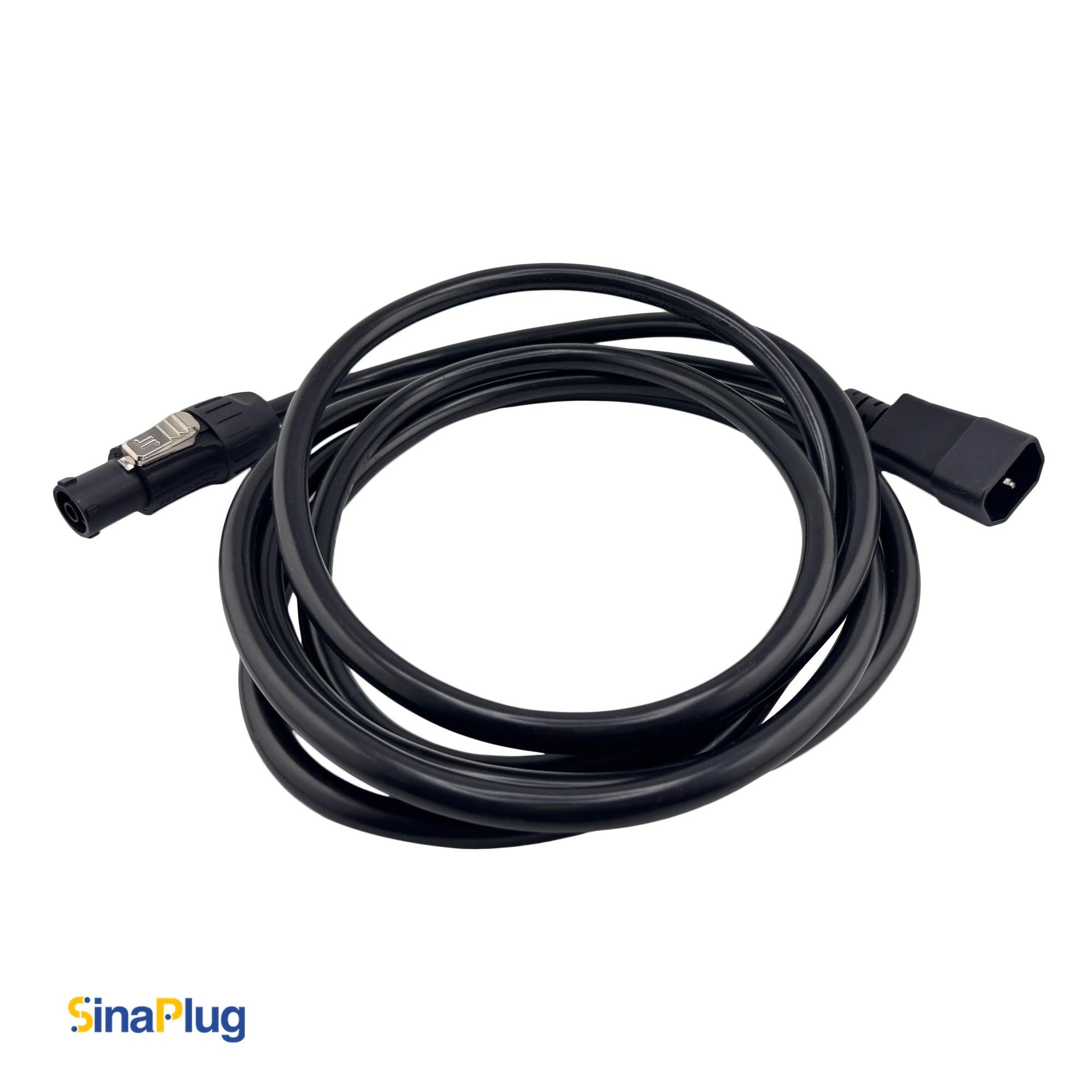

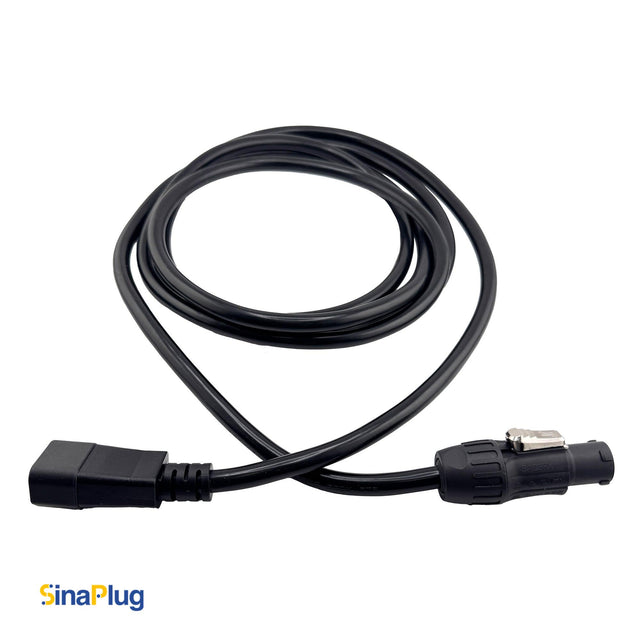

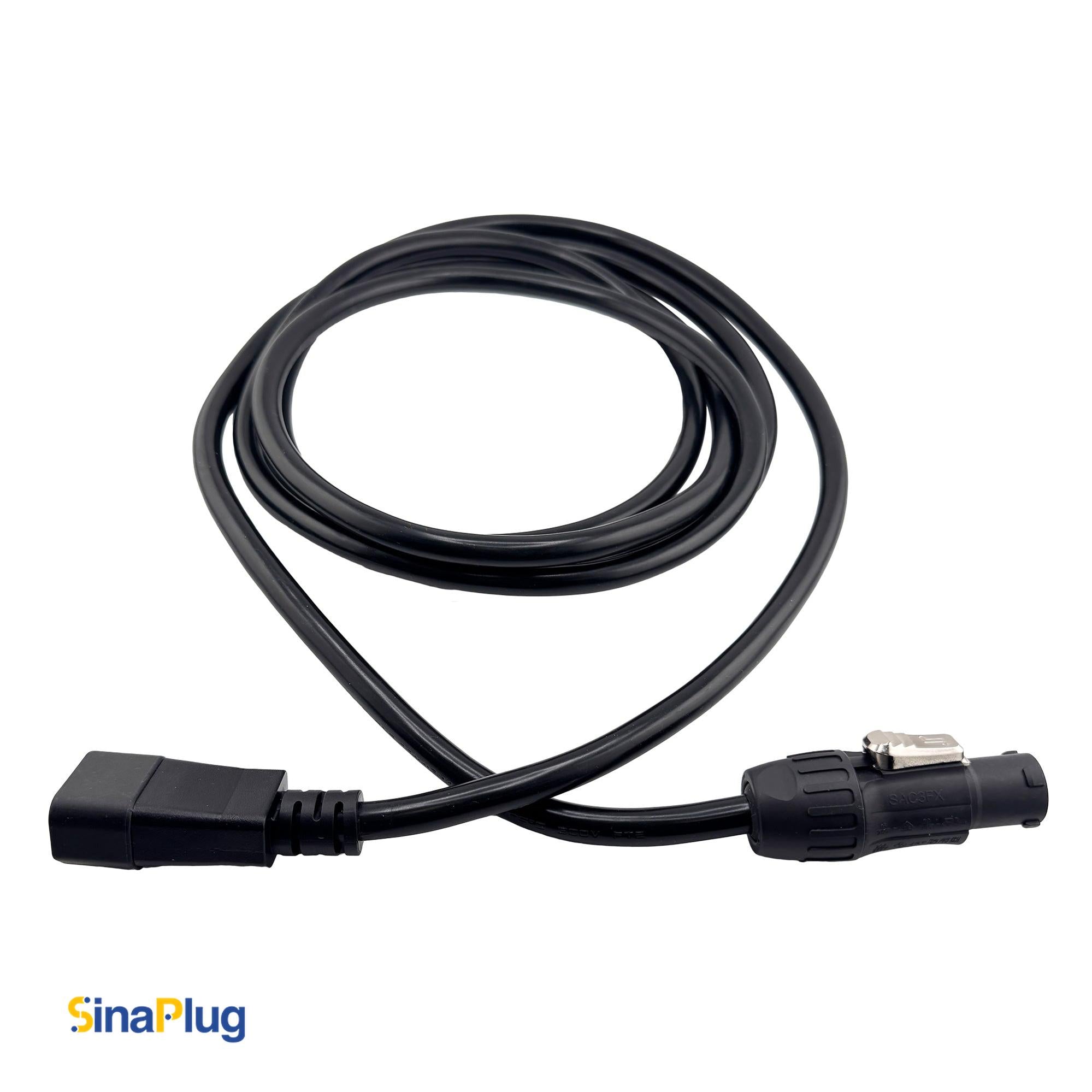

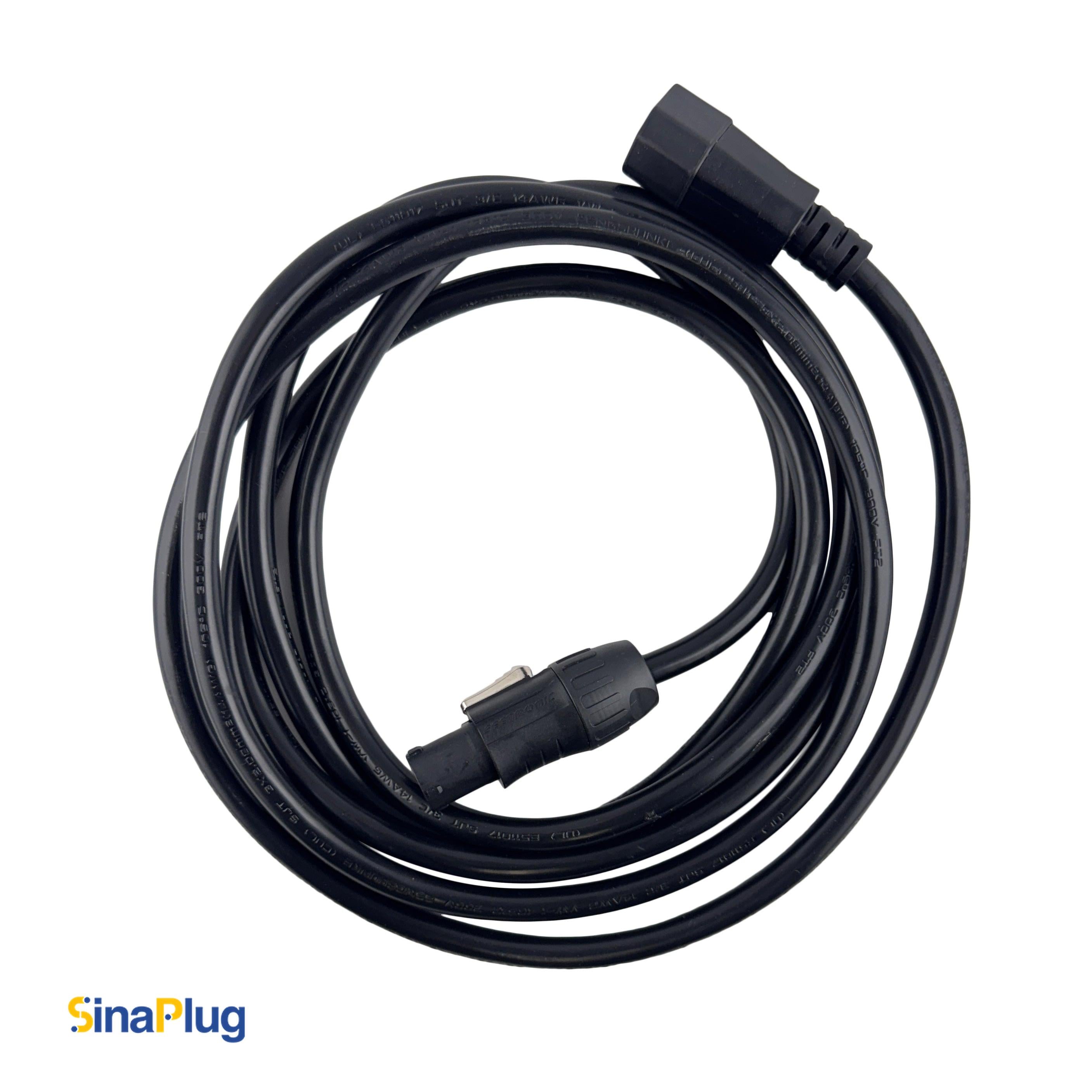

10 feet, 3-Pin Power Cable (14AWG): IEC C14 Male to Seetronic SAC3FX Connector

$23.00

AzarPixel introduces a highly reliable 3-Pin, 14AWG power cable with an IEC C14 male cable mount connector to a Seetronic SAC3FX connector designed for demanding power applications in harsh and industrial environments.

Thanks to the robust, heavy-duty 14AWG SJT cable, this solution ensures safe and stable power delivery, combining the global compatibility of the IEC C14 male connector with the waterproof, secure locking of the Seetronic SAC3FX power plug.

On one end, the IEC C14 male connector offers a widely accepted interface for AC power connection, making it ideal for devices like power distribution units, professional AV equipment, and commercial appliances. The opposite end features a Seetronic SAC3FX, a waterproof, twist-lock connector certified for tough outdoor and stage conditions.

This 10-foot (3-meter) cable withstands challenging physical environments, including temperature extremes (up to 105°C), high humidity, and dust, while ensuring maximum electrical safety and minimal signal or power loss.

Key Features of 3-Pin Power Cable Male IEC C14 to SAC3FX Seetronic Connector

Electrical Specifications

  • Cable Type: SJT 3×2×0.8mm², 14AWG, 105°C Rated, 300V
  • Length: 10ft (3m)
  • Number of Conductors: 3 (Line, Neutral, Ground)
  • Max Current Rating: 10A (IEC C14 side), up to 20A (SAC3FX side)
  • Max Voltage Rating: 250VAC (IEC C14), up to 300VAC (SAC3FX)
  • Operating Temperature: Up to 105°C (cable), -30°C to +80°C (SAC3FX)
  • Wire Standard: 14AWG

Cable Parameters

  • Cable Type: SJT 3×2×0.8mm²
  • Rated Voltage: 300V
  • Conductor Size: 14AWG
  • Cable Outer Diameter: ≈8.5mm
  • Length: 10ft (3m)
  • Operating Temperature: Up to 105°C
  • Conductor Material: Stranded Copper Wire

IEC C16 Connector Parameters

  • Number of Contacts: 3 (Line, Neutral, Ground)
  • Max Current Rating: 10A
  • Max Voltage Rating: 250VAC
  • Operating Temperature: 0°C to +70°C
  • Certifications: CE, UL, VDE
  • Dimensions (L*W*H): 78mm * 29mm * 21mm
  • General Specifications: Male, 3-pin, nylon-6 housing, screw termination

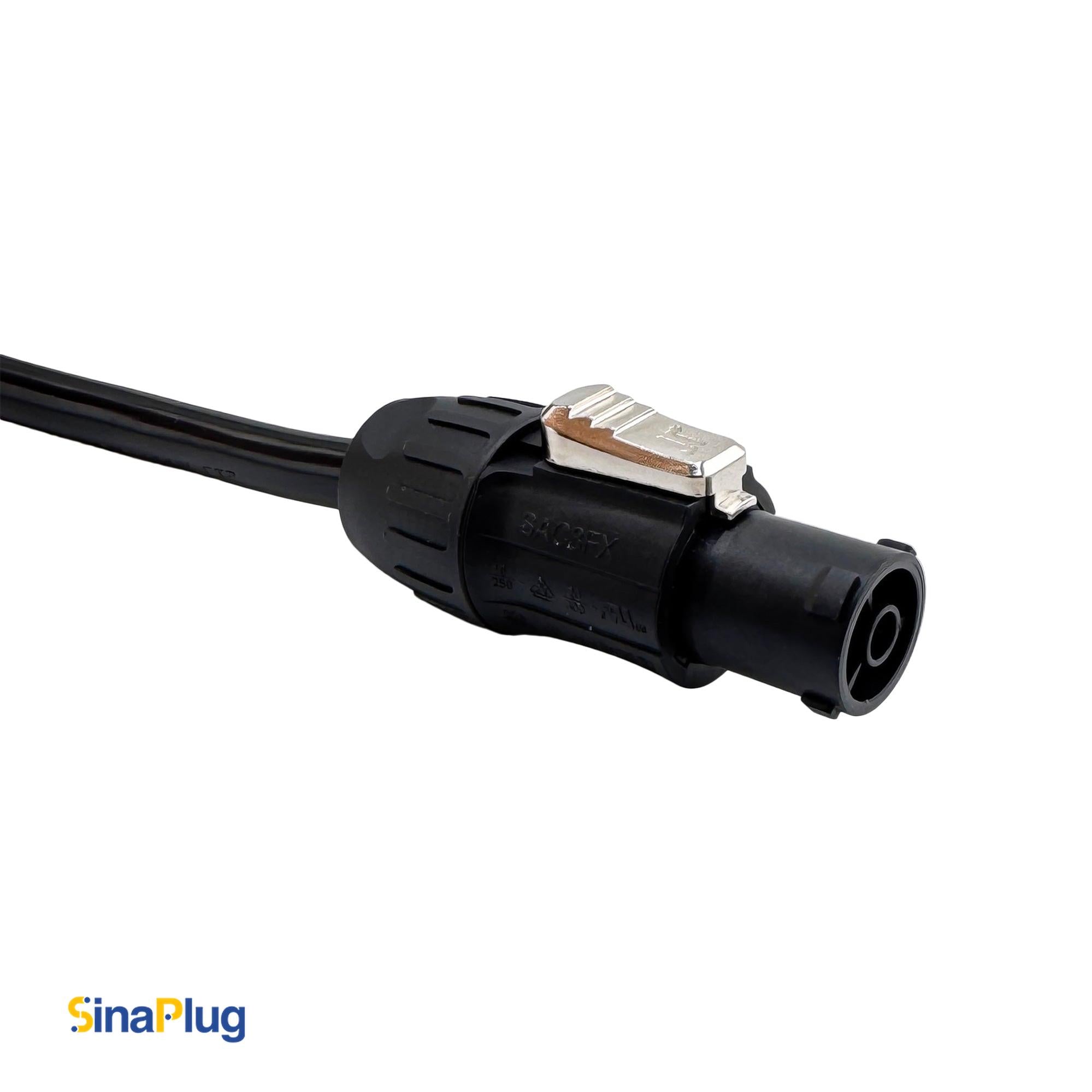

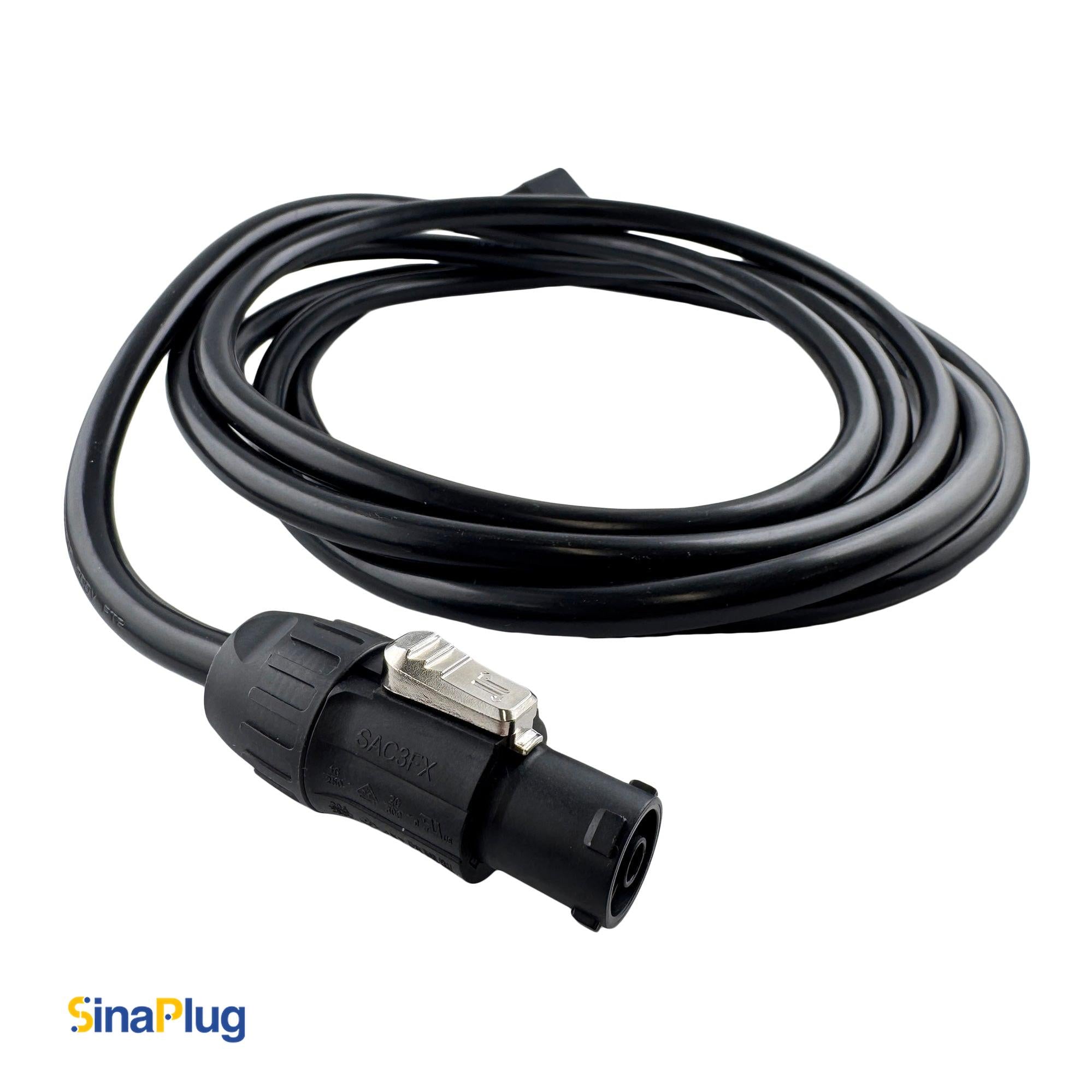

SAC3FX Connector Parameters

  • Number of Contacts: 3 (Line, Neutral, Ground)
  • Max Current Rating: 20A
  • Max Voltage Rating: 300VAC
  • Protection Class: IP65
  • Operating Temperature: -30°C to +80°C
  • Flame Retardant Rating: UL94-V0
  • Standards: UL498, UL50E, IEC61984, IEC60320-1, GB/T34989
  • Dimensions (L*W*H): 69.8mm * 31.4mm * 27.1mm
  • General Specifications: Female, Waterproof, lockable
