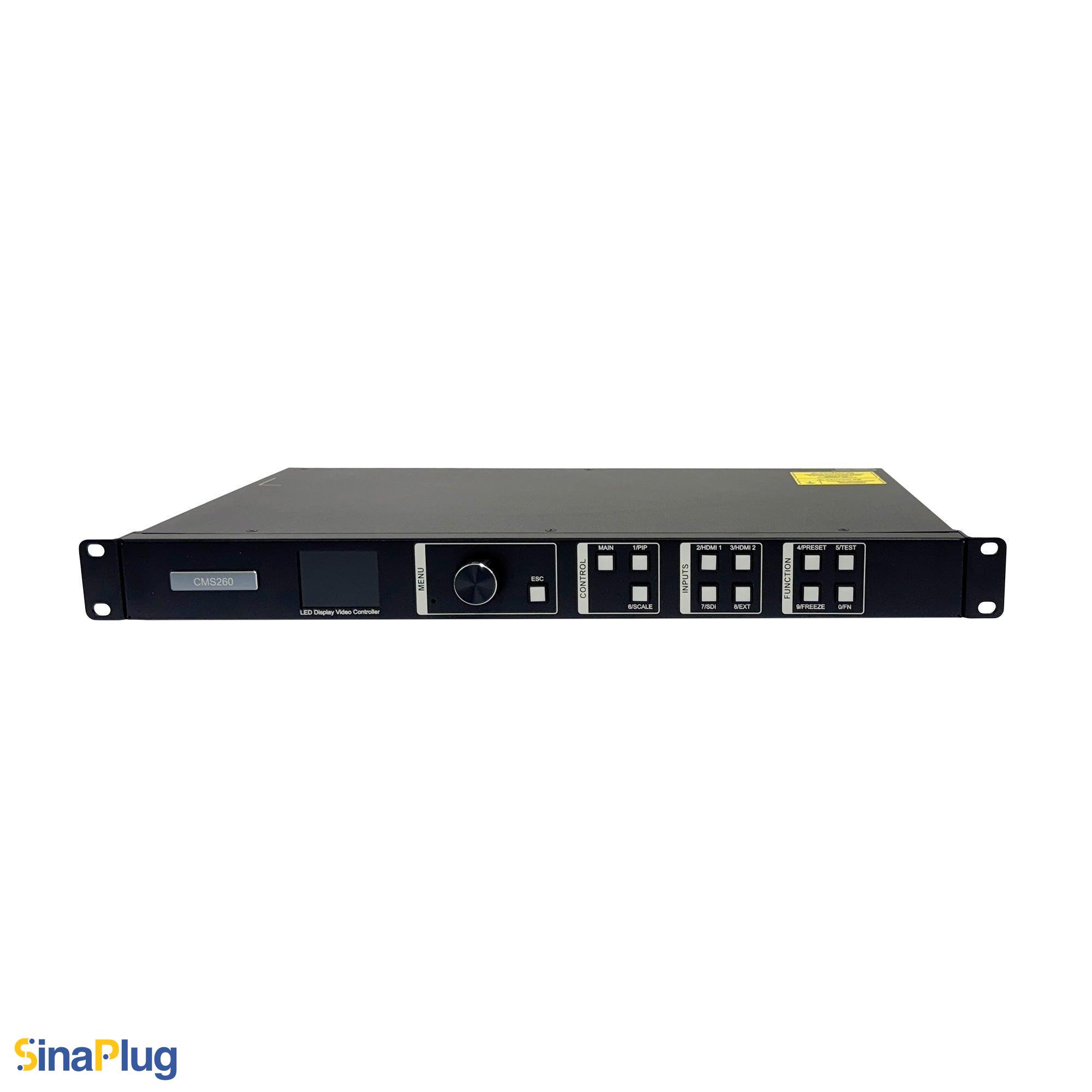

NovaStar CMS260 All-in-One LED Display Controller (Complete Equivalent of NovaStar VX400s-N)

While input resolution of 2K×1K@60Hz via both HDMI 1.3 ports (with HDMI Loop function) is supported, Its 4xGigabit Ethernet ports make CMS260 an ideal solution for expanded and large LED displays that require outstanding clarity and reliable operation.

It is a powerful video processor providing stepless output scaling (taking advantage of its advanced SuperView III image quality processing). Additionally, thanks to 2 provided USB ports (type A and B), it supports cascading up to 4 devices for image mosaic (to expand this processor's capabilities which will be essential to control extra-large, complex and wide-format LED display setups), with an internal input source ensuring synchronized output across all connected devices.

A user simply can adjust not only the priority but also the size and position of 2 layers and rest assured thanks to its multiple kinds of hot backup support (including device-level/output ports/Input source backups). It is good to note that one can investigate whether backup devices or ethernet ports function or the pre-saved images (up to 10 user-defined presets) take effect, without disconnecting the ethernet cables.

The CMS260 performs perfectly in extreme ambient temperatures from -20°C to +60°C. powering via a 100-240VAC input voltage, like the VX400s-N, it consumes maximum power of 28W. Given powerful video processing, capabilities and other outstanding features, it is a perfect choice for applications such as rental, stage control systems and fin-pitch LED screens.

Key Features of NovaStar CMS260

Up to 2,300,000 pixels

2x HDMI 1.3 with 2K×1K@60Hz maximum resolution (one functions as IN & LOOP)

1x 3G-SDI (IN & LOOP) with maximum 1920×1080@60Hz resolution

4x Gigabit Ethernet ports

1x USB Type-B port (Input port for cascading units, or connecting to a PC)

1x USB Type-A port (Output port for cascading units)

Powerful video processing (SuperView III)

Support audio input (with HDMI input source) and output (via a multifunction card) and output volume adjustment

2 layers adjustment

Brightness and Chroma Calibration

Cascading up to 4 units for image mosaic (with Output synchronization)

Multiple kinds of hot backup support (between devices, Ethernet ports, and input sources)

Up to 10 user-defined presets can be saved and loaded easily
