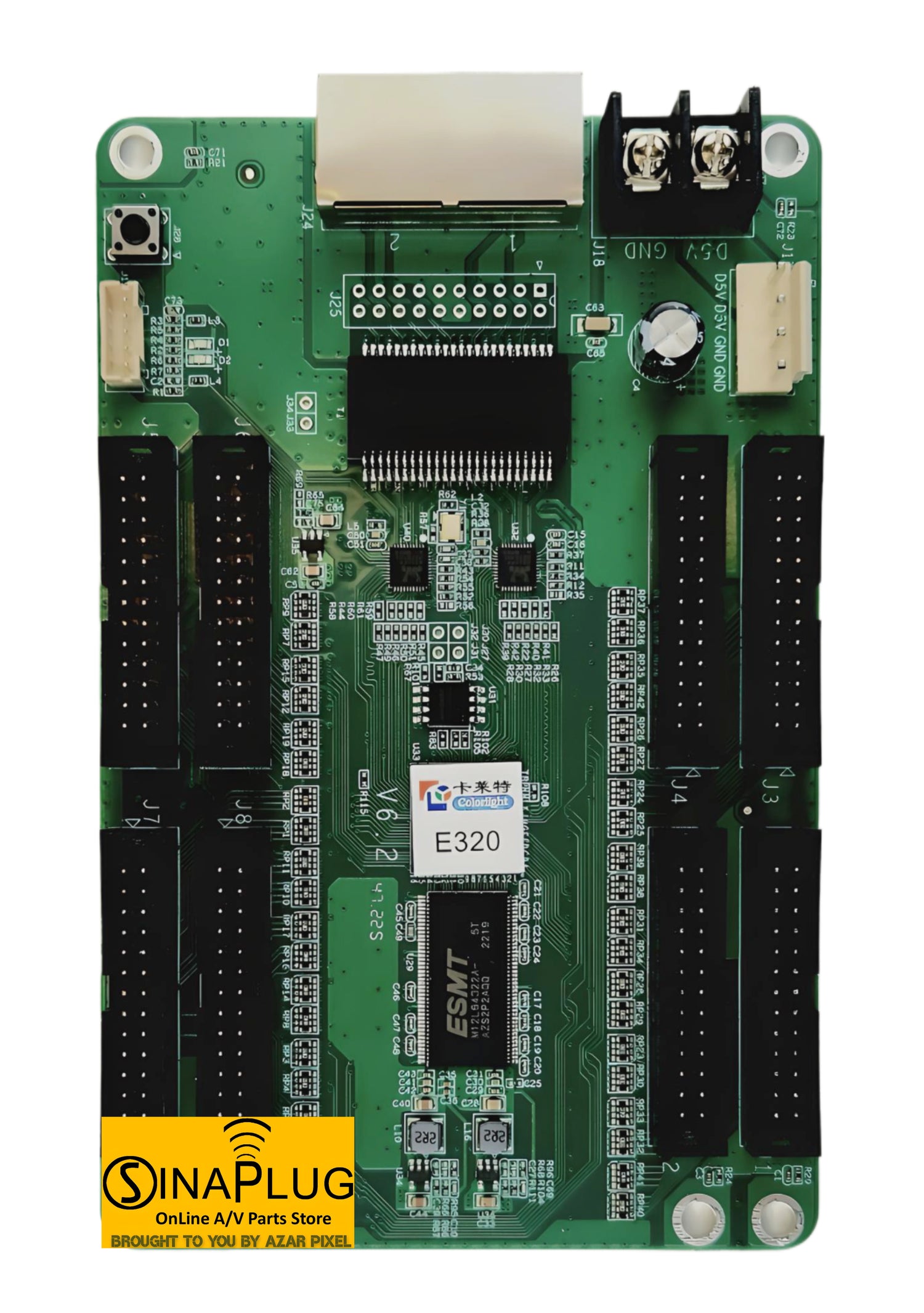

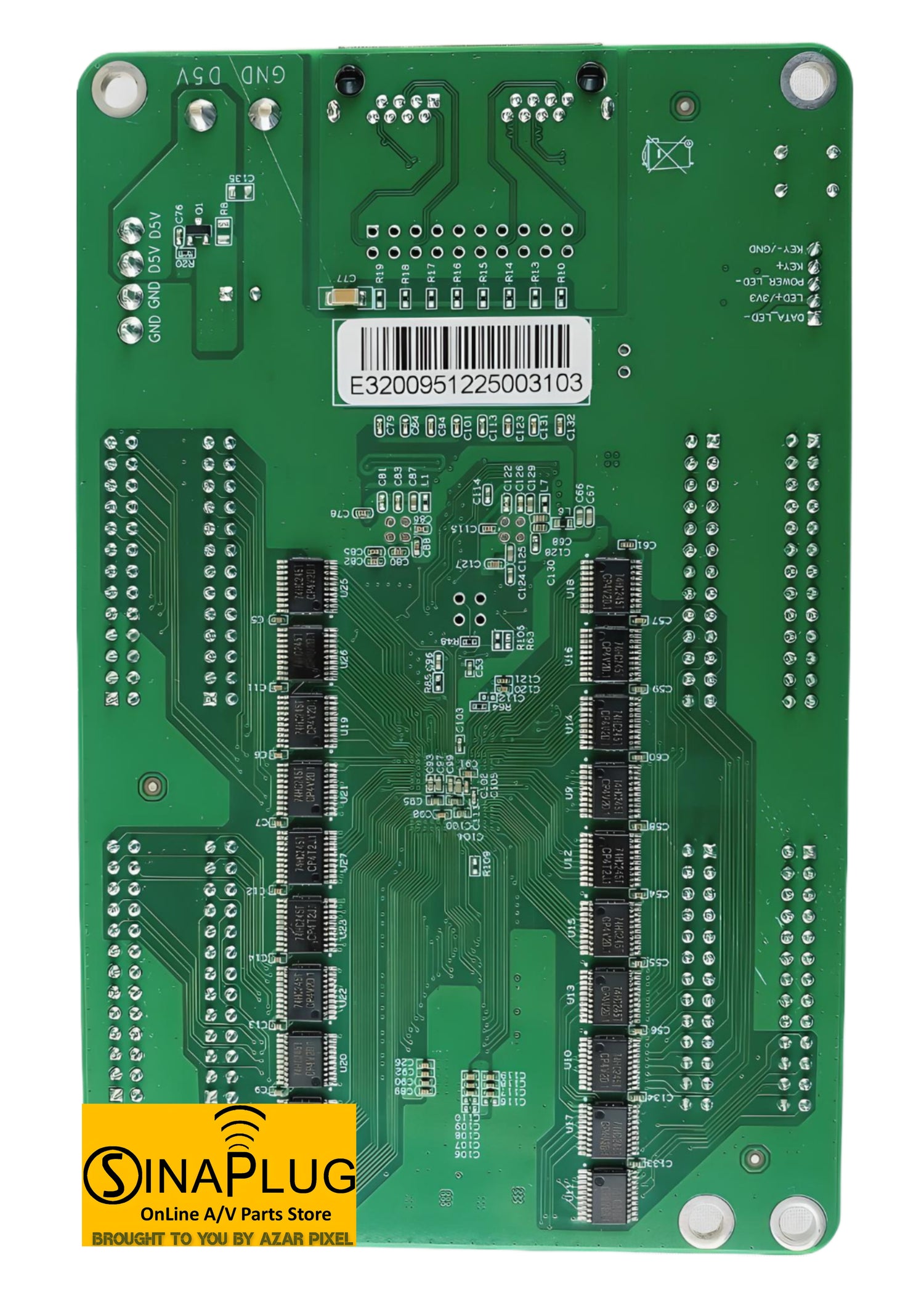

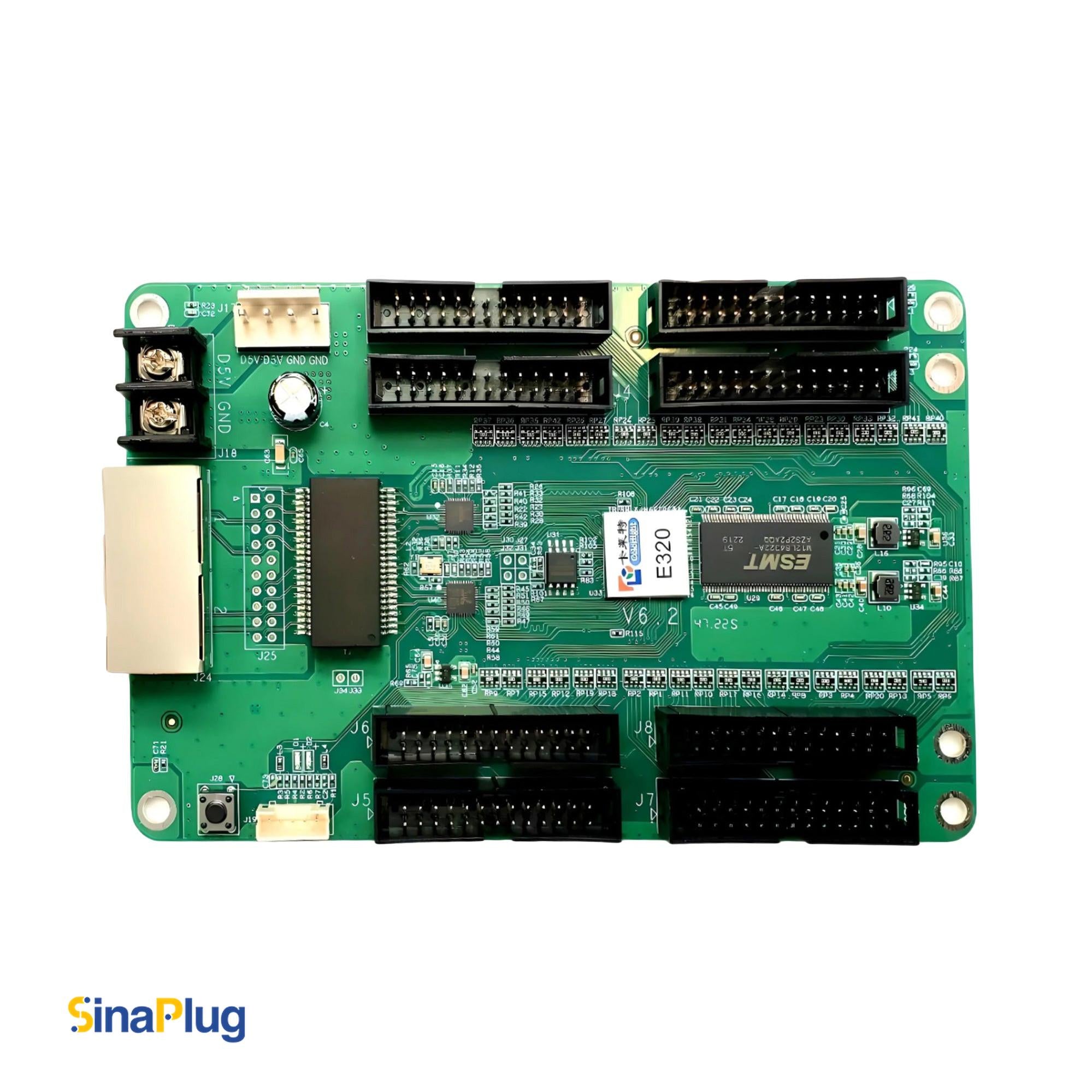

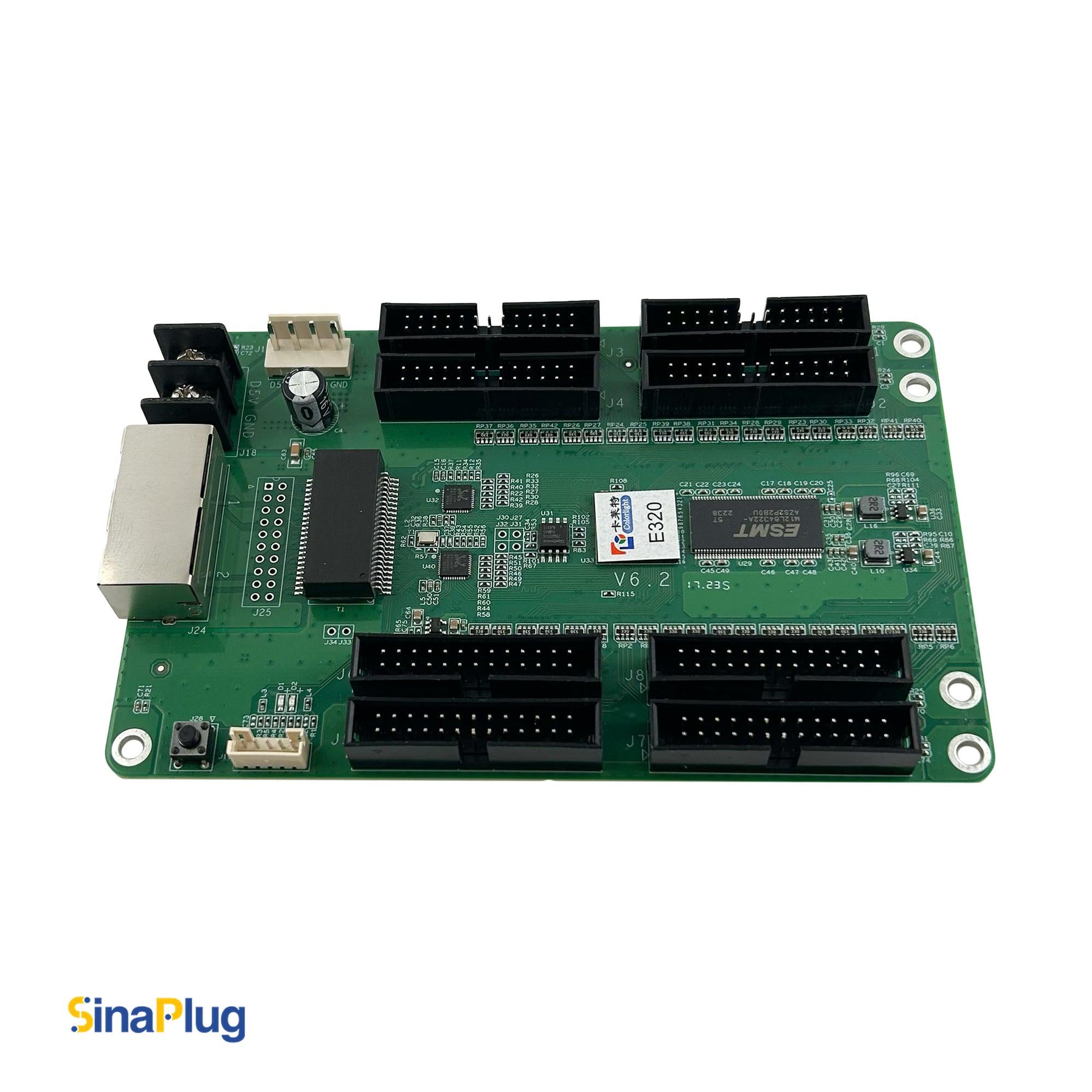

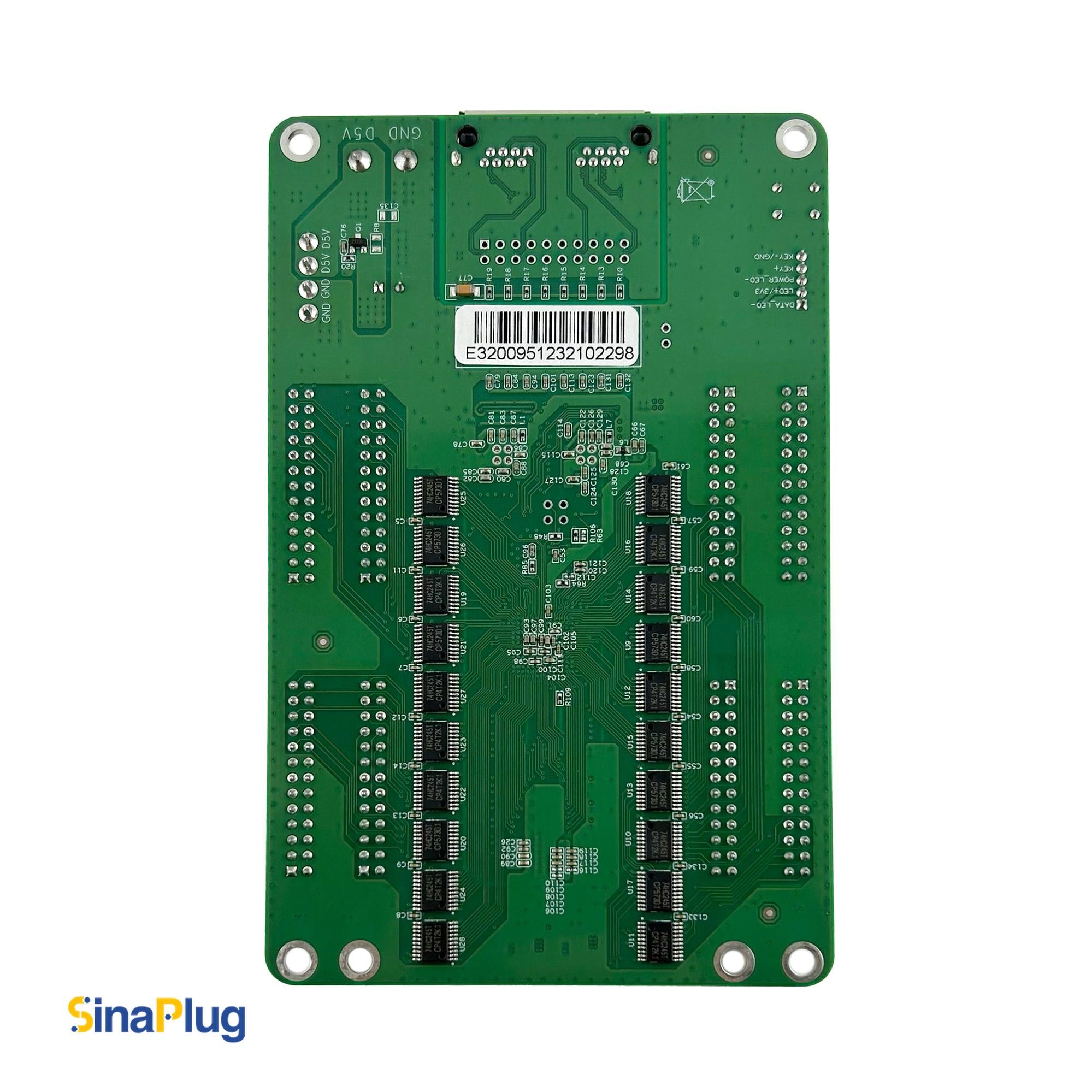

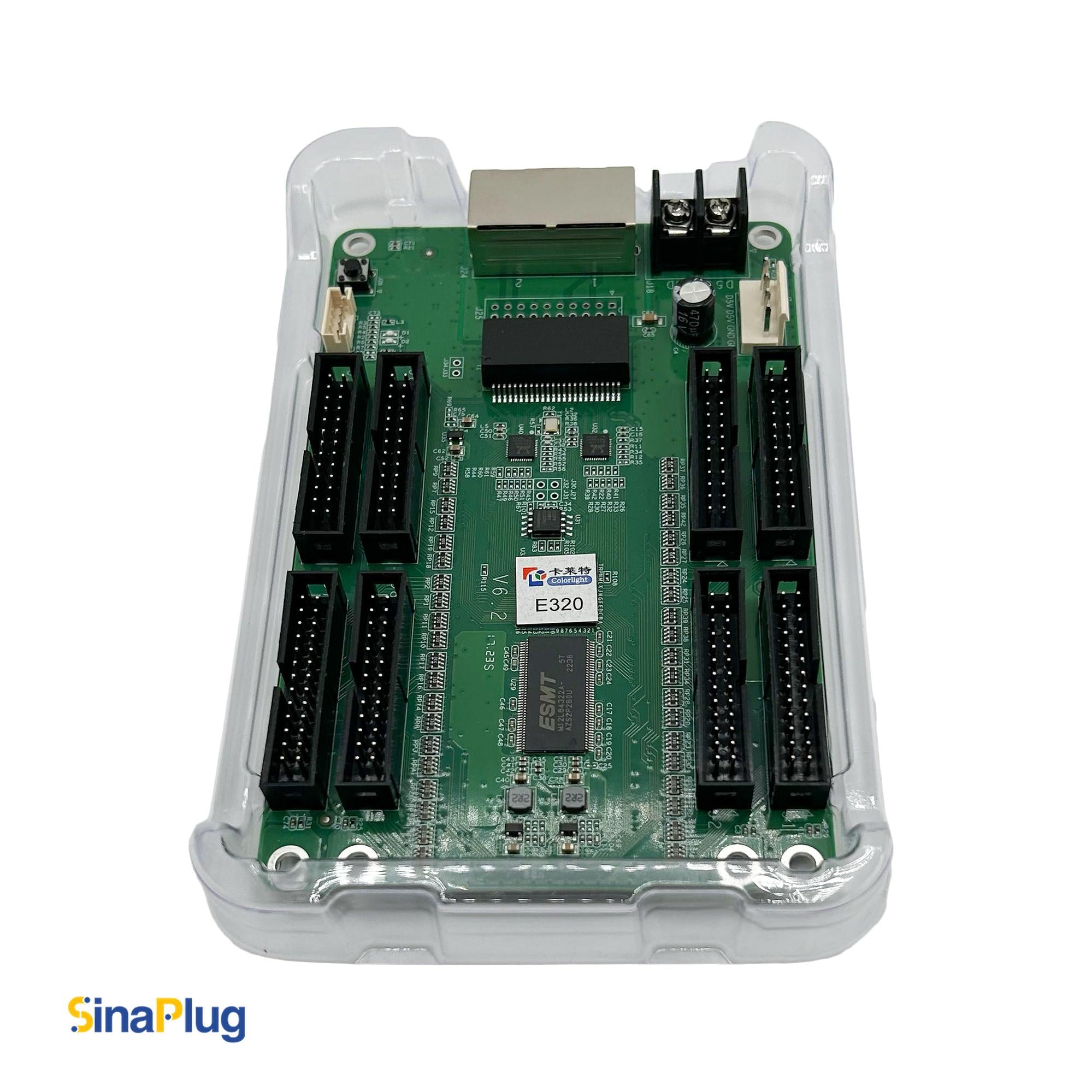

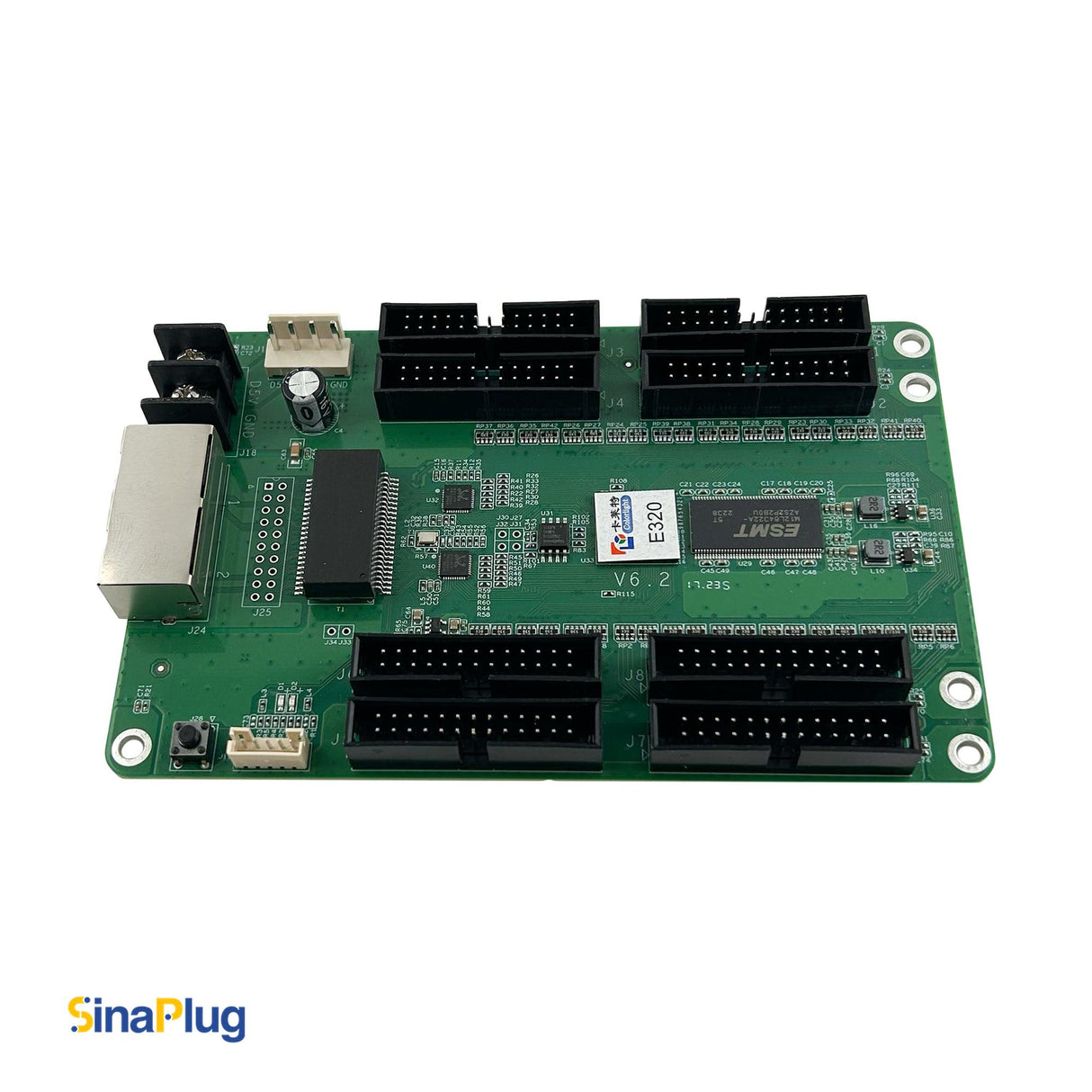

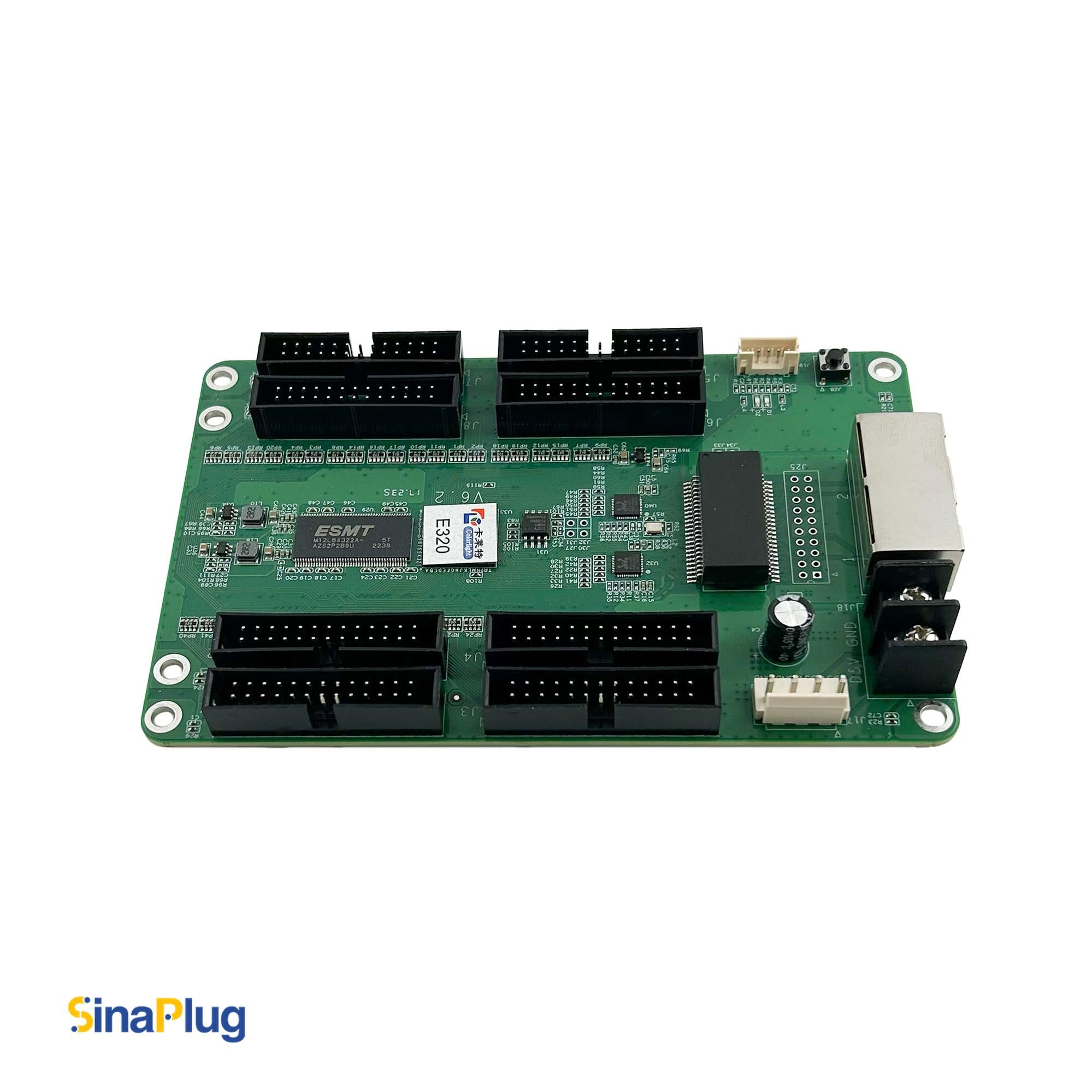

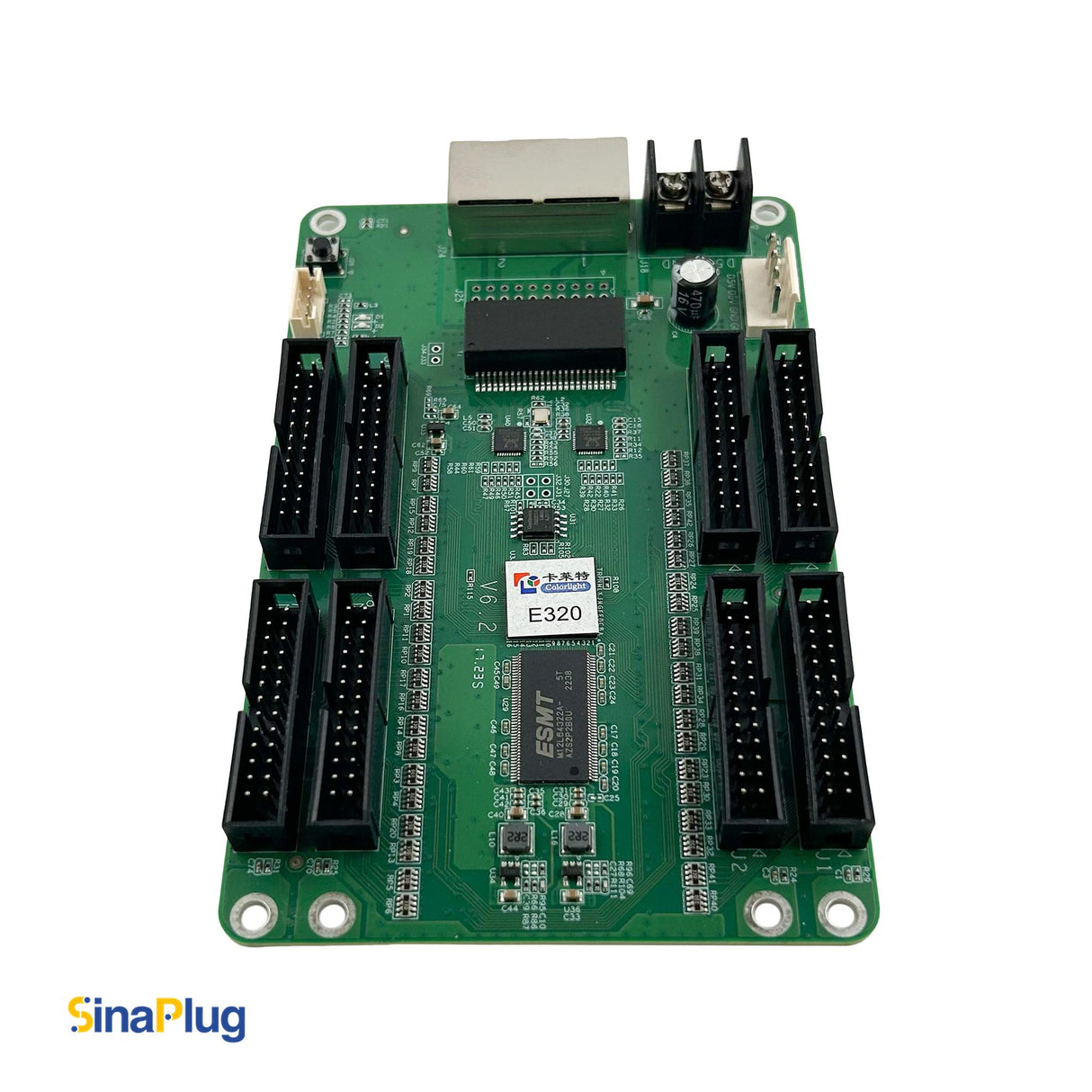

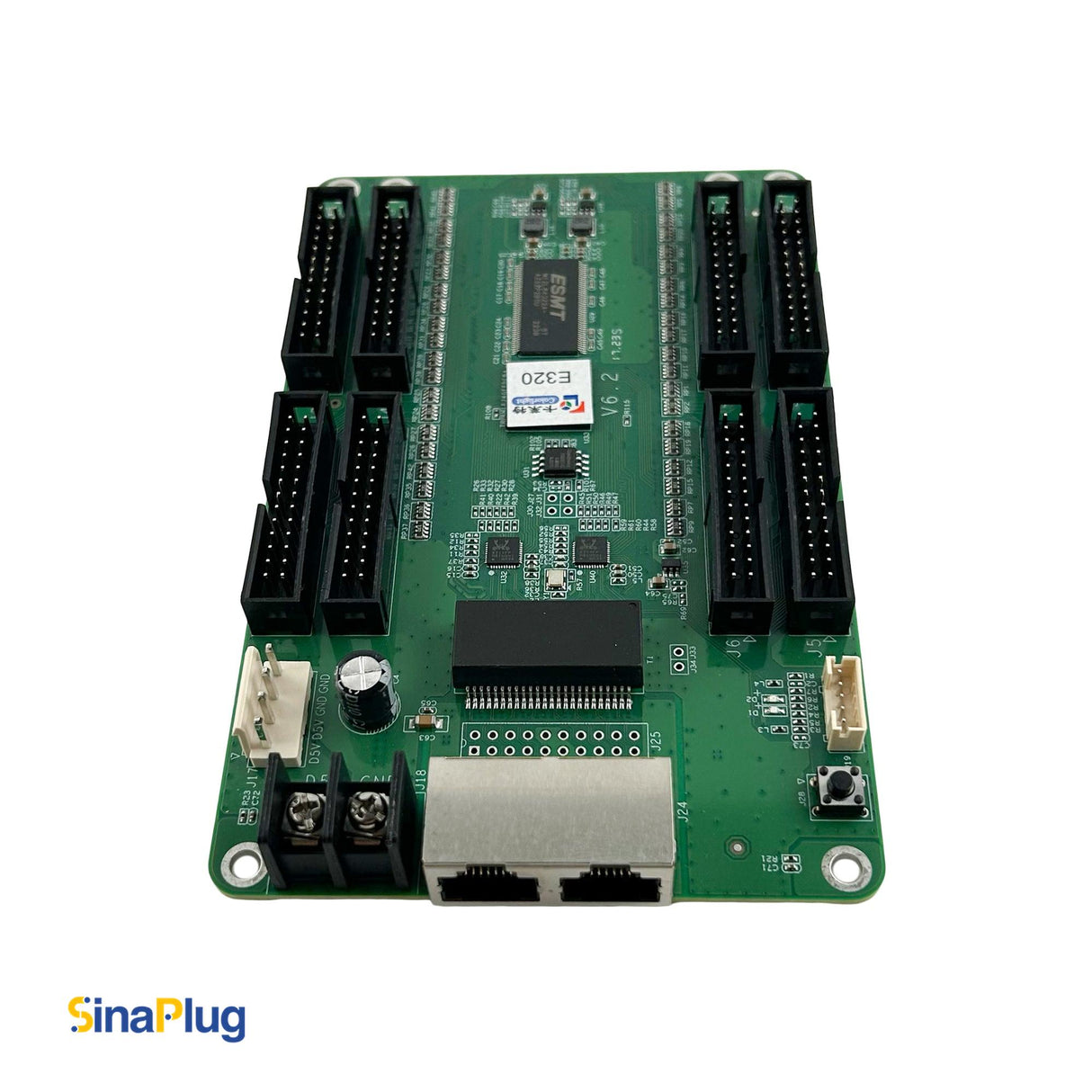

Colorlight E320 Receiving Card
Colorlight E320 Receiving Card is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Discover the renowned, superior receiving card presented by Azar Pixel; The Colorlight E320 is crafted to deliver dependable performance and high-fidelity visuals for a broad spectrum of LED display applications.
This high-performance card designed for larger, high-density LED displays compared to the advanced 5A-75E card, as it can handle up to 256×1024 pixels, supports 32 groups of parallel or serial data, in addition to its eight HUB320 interfaces which allows for more efficient data handling and makes it better suited for high-resolution LED cabinets.
Enjoy smooth images with minimal motion blur as the display supports both standard and high frame rates up to 240Hz, powered by advanced color temperature adjustment and adaptive frame rate technology. Furthermore, experience a better level of image details with 256 shades of grayscale and 16.7 million kinds of mixed colors generated from an 8-bit color depth source. This ensures not only dependable and secure transmission but also fantastic grayscale performance, even in lower brightness environments, thanks to an optimized gamma meter algorithm.
Engineered for reliability in demanding environments, it operates smoothly in temperatures ranging from -25°C to +75°C. in addition to the RoHS certification which ensures compatibility with environmental standards, it’s powered efficiently by an input voltage of 3.8 V to 5.5 V DC and has a rated power consumption of just 3.0 W.
It also guarantees seamless interaction with gigabit switches, fiber converters, and fiber switches, furthermore its Firmware backup and readback functions make upgrades simple and secure by minimizing risks from unexpected cable loss or power failure.
Users can detect connection failures quickly thanks to the Ethernet cable (CAT5e and less than 100 meters) status monitoring and bit error detection feature, and the redundant Ethernet port (supporting loop-line connections) guarantees continuous operation even if one of the connections fails
In summary, the E320 stands out as a remarkable, versatile, and reliable solution for commercial LED display systems and high-resolution LED cabinets, offering advanced features and stable performance.
Ready to expand your capabilities? Explore our cutting-edge Colorlight controllers and processors, including the X6, X4s, X3, X2m, and S4 models, plus the reliable S2 sending box.
Key Features of Colorlight E320
Loading Capacity
- 256×1024 pixels (modules with PWM chips)
- 162×1024 pixels (modules with Shixin chips)
- 128×1024 pixels (modules with Normal chips)
Input:
- 1x Gigabit Ethernet Port
Output
- 8x standard HUB320 interfaces (32x groups of RGB parallel data or 32x groups of serial data (which can be expanded to 128 groups of serial data)
- 1x Gigabit Ethernet Port
Performance
- Supports adaptive frame rates
- Supports up to 120/240Hz frame rates
- 8bit color depth video source input and output
- Supports up to 1/128 scan
- 8-bit Pixel Level brightness and chromaticity calibration
Other Features
Maintainability:
- Image rotation in 90° increments
- Quick firmware upgrade and quick release of correction coefficients
- Data group offset (suitable for simple special-shaped screens)
- Compatible with: Gigabit switches, Gigabit fiber converters, and Gigabit fiber switches
Reliability:
- Program firmware redundancy and readback
- Bit error detection
- Ethernet cable status monitoring
- Loop (Ethernet) redundancy
Dimensions (L*W*H)
- 145.2mm * 91.7mm * 18.4mm
