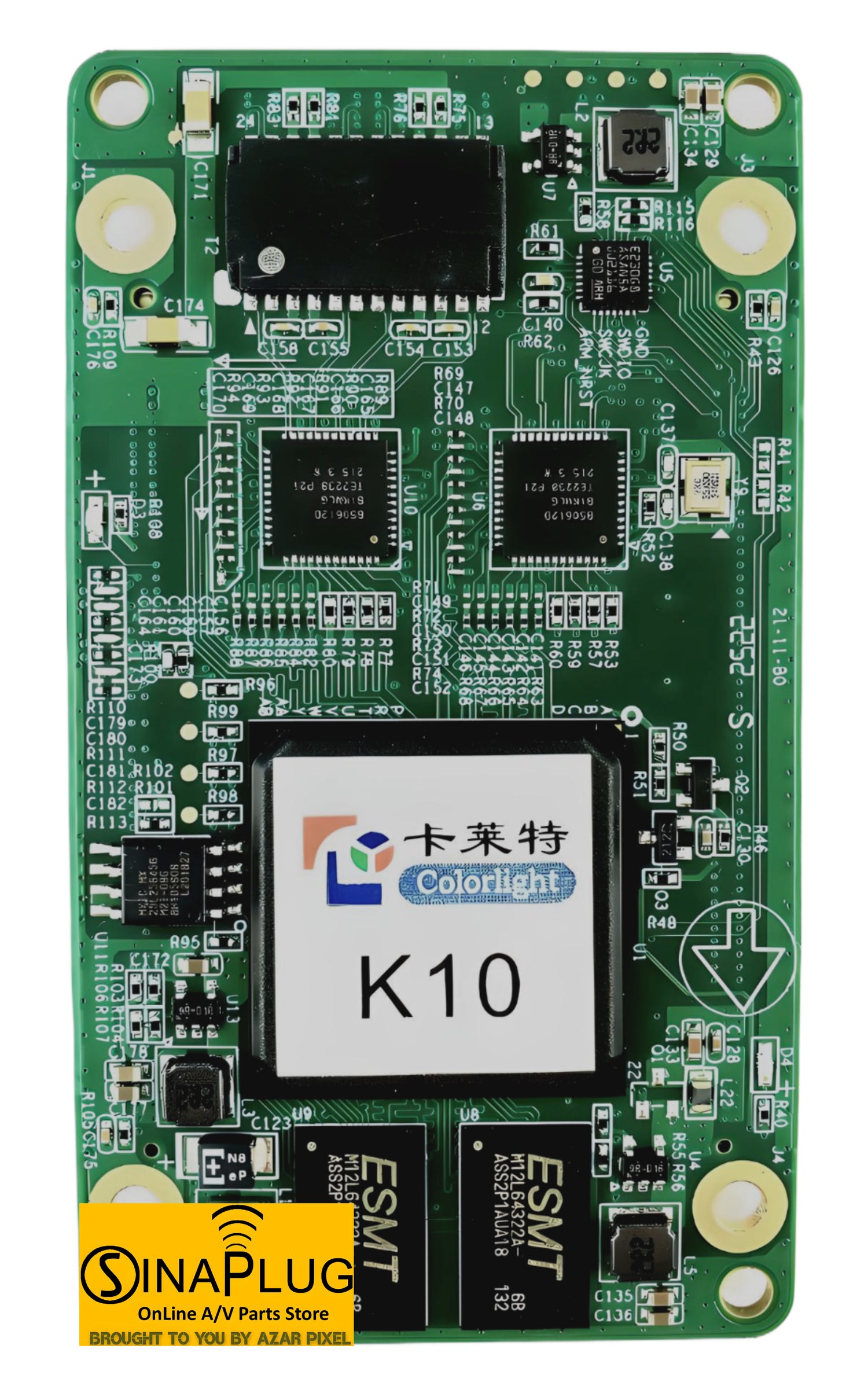

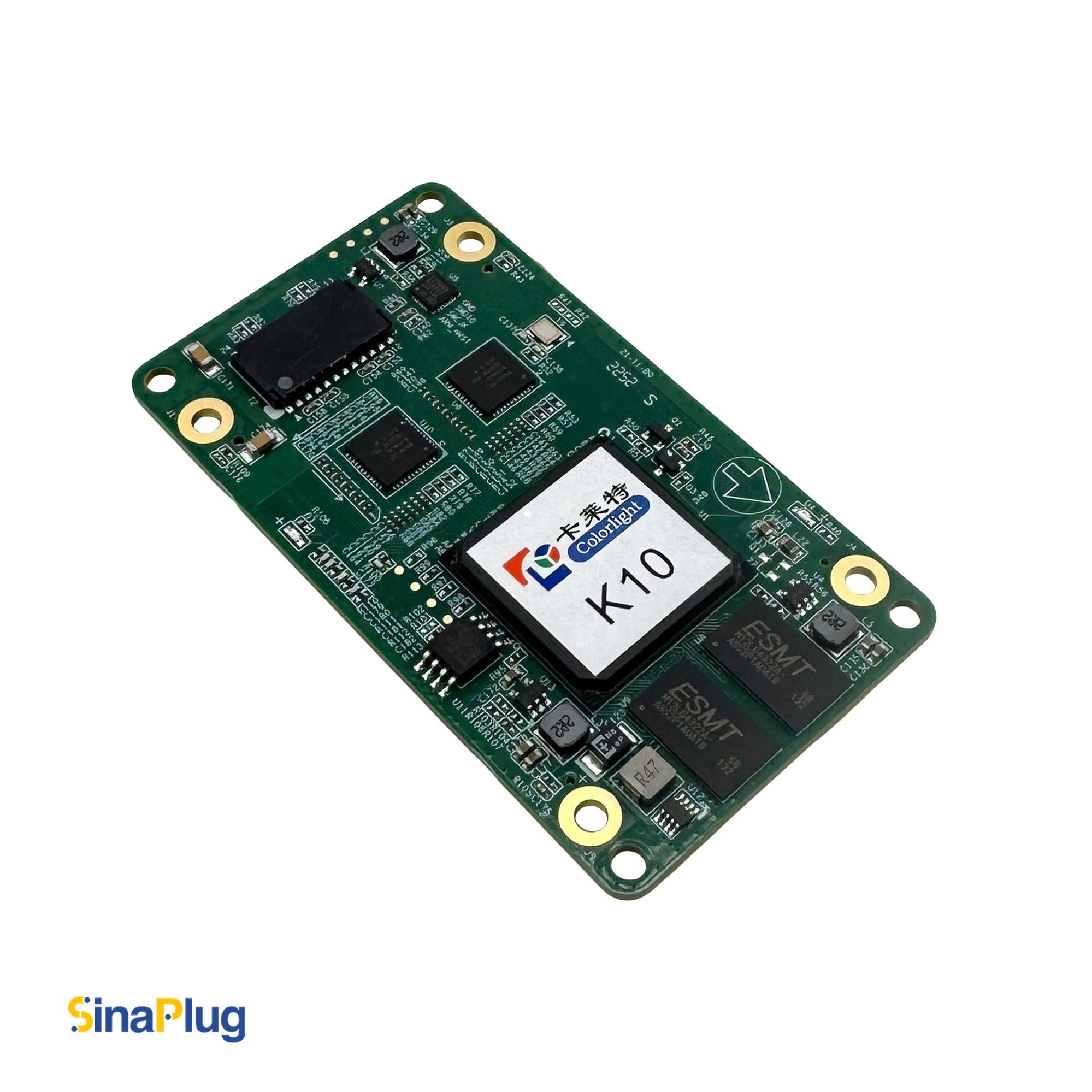

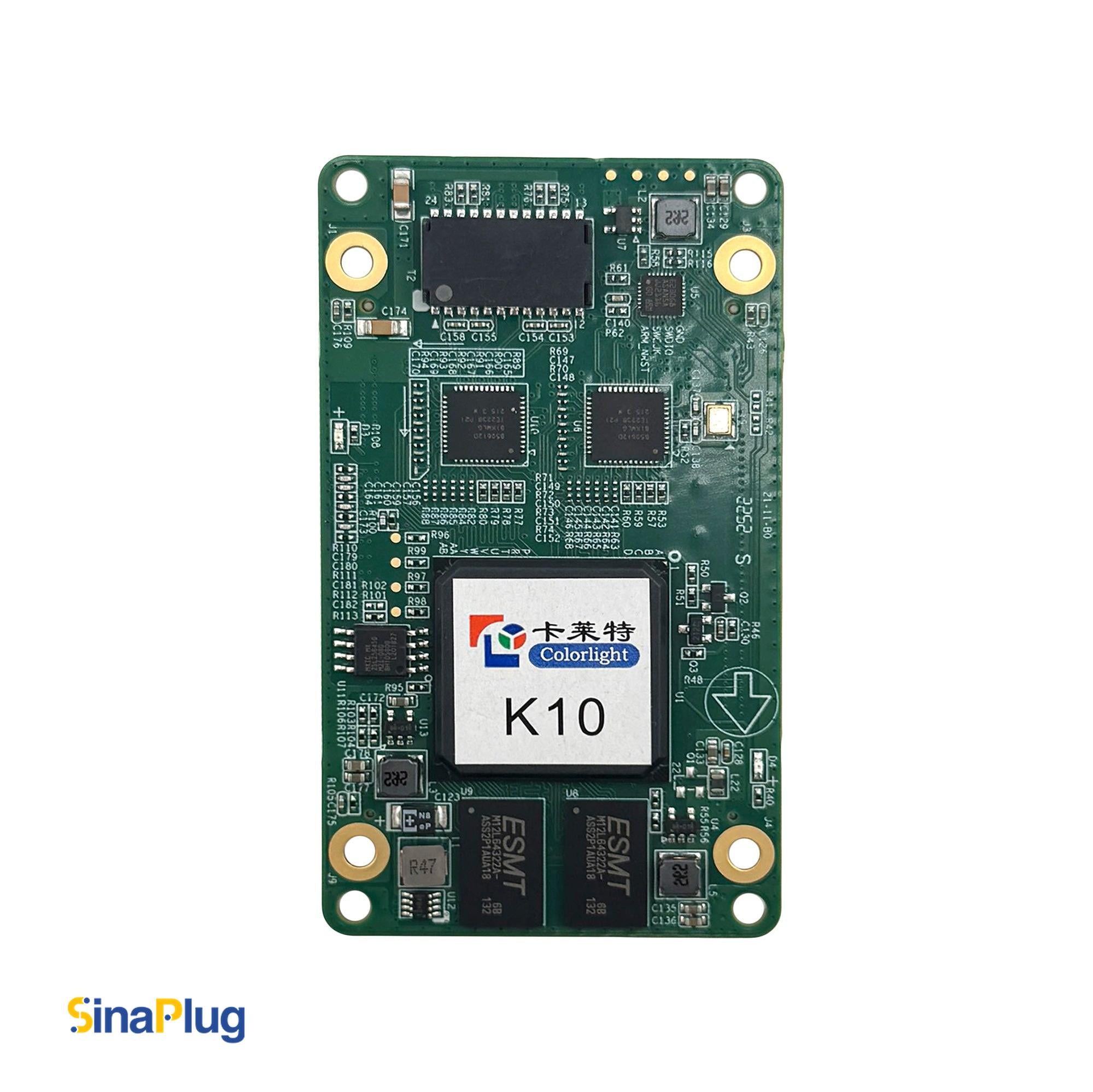

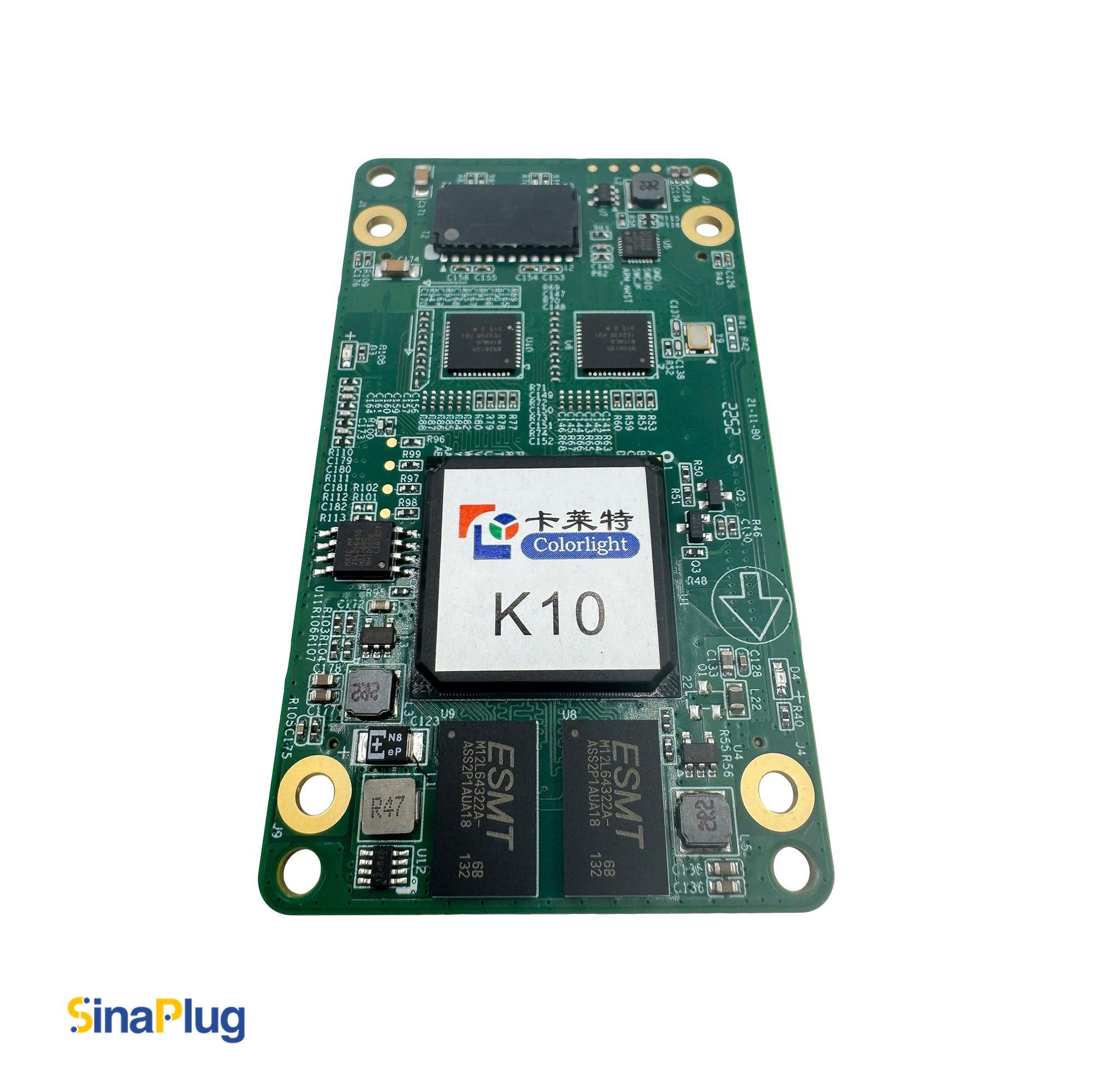

Colorlight K10 Receiving Card

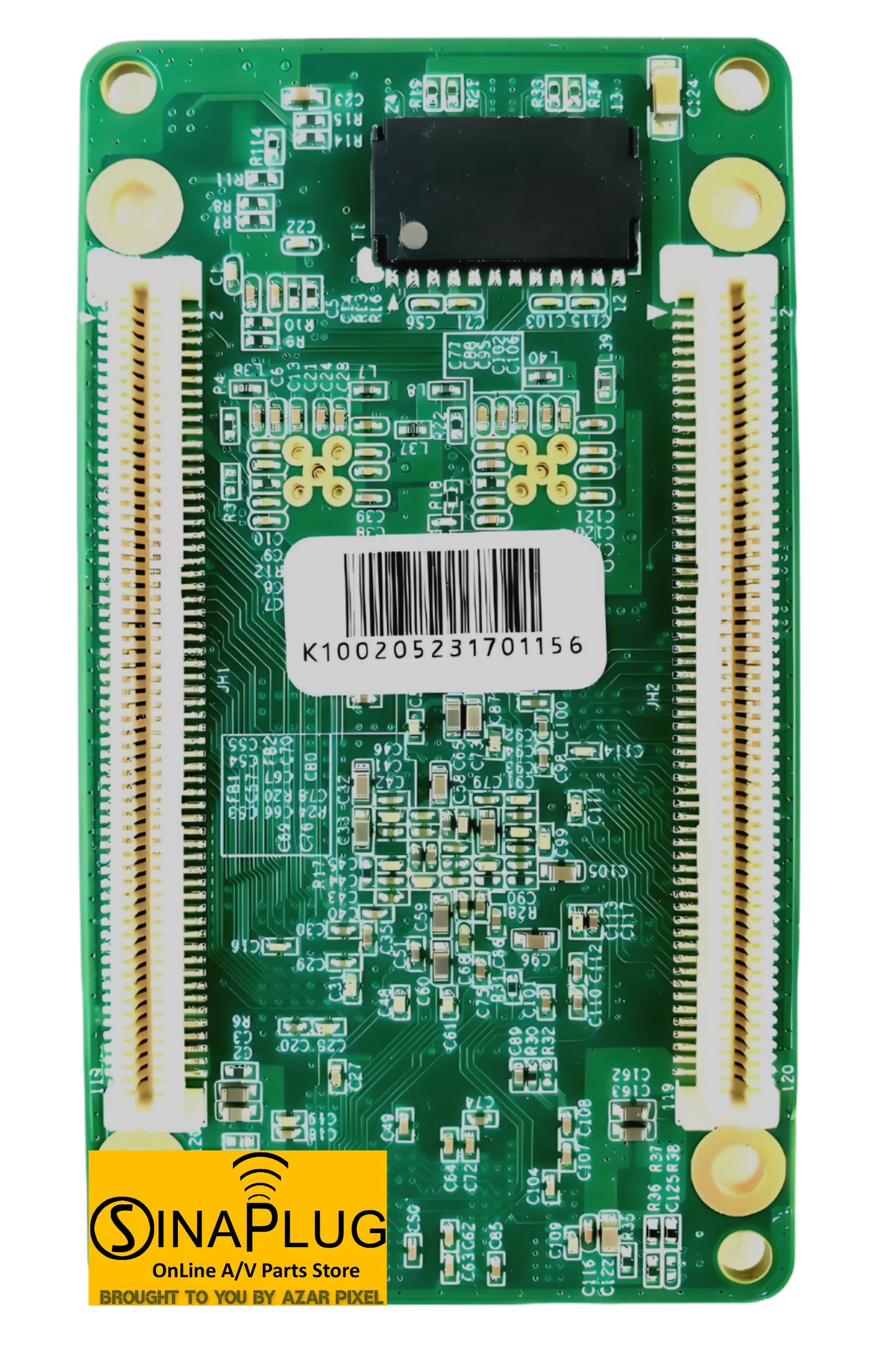

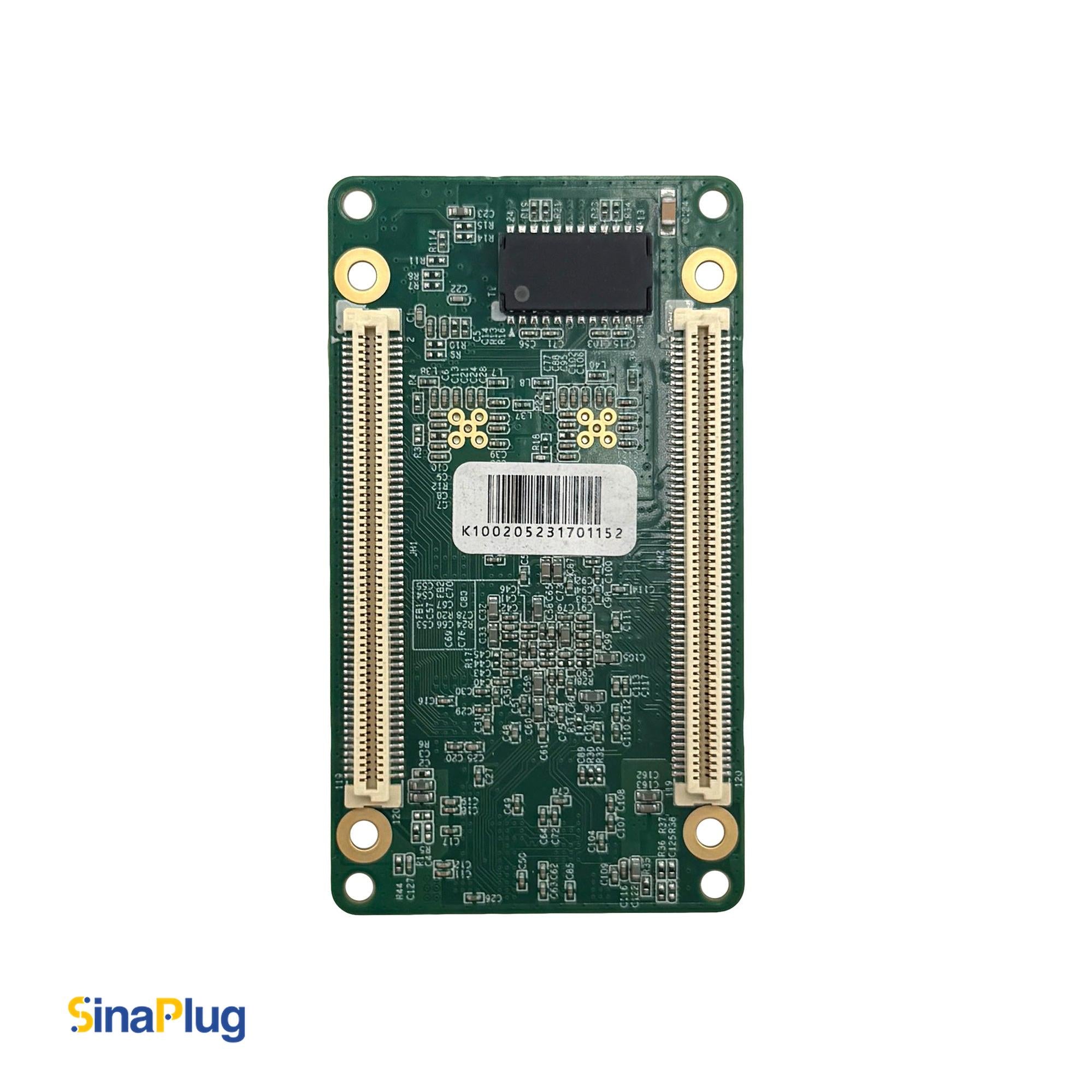

Azar Pixel presents the Colorlight K10, a compact, high-performance receiving card designed for fine-pitch LED displays. With its high-density connectors and compact size, it fits seamlessly into HUB boards and tight cabinet spaces, making it ideal for both rental and fixed installations.

This card handles up to 32 groups of parallel RGB data and 64 groups of serial RGB data (expandable to 128), supporting a maximum load of 512×512 pixels. It supports 8-bit, 10-bit, and 12-bit video input, delivering advanced color processing with full gamma adjustment, color temperature control, and HDR10/HLG support for stunning clarity and wide color gamut.

This card features precise per-pixel brightness and chromaticity calibration with 14-bit accuracy, in addition to multi-layer calibration, ensuring uniformity and excellent grayscale performance even at low brightness. Additionally, Adaptive frame rates up to 240Hz reduce motion blur for smooth, vivid visuals.

Comprehensive monitoring (including temperature, humidity, voltage, power status, and bit error detection) can be displayed on the cabinet’s LCD screen when paired with compatible modules.

Maintenance is simplified with OSD for hardware identification, screen rotation at 90°/180°/270°, and support for up to 16 intelligent modules for calibration data. The K10 also supports irregular module wiring for versatile display configurations.

Reliability is ensured through loop redundancy, dual-card hot backup, PSU redundancy, firmware and configuration parameter redundancy, and comprehensive hardware monitoring. This card is designed for stable 24/7 operation in demanding environments and is certified for RoHS and EMC Class B (with proper cabinet design).
