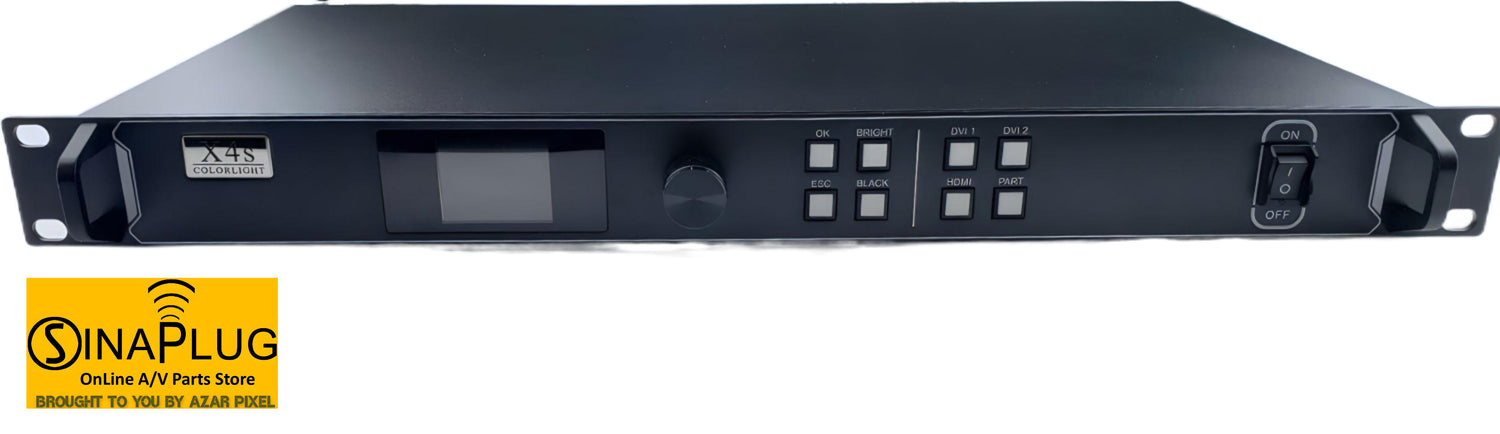

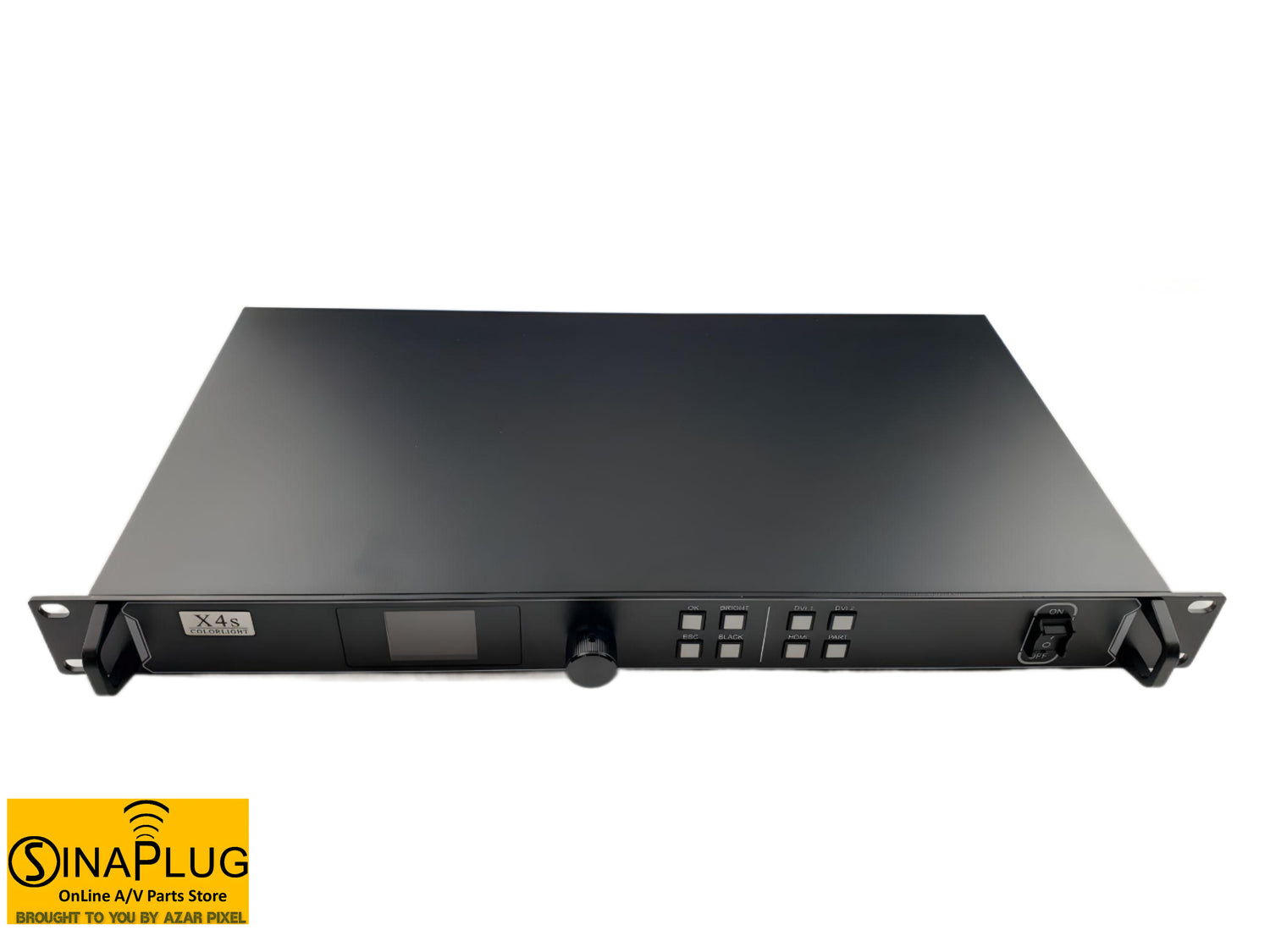

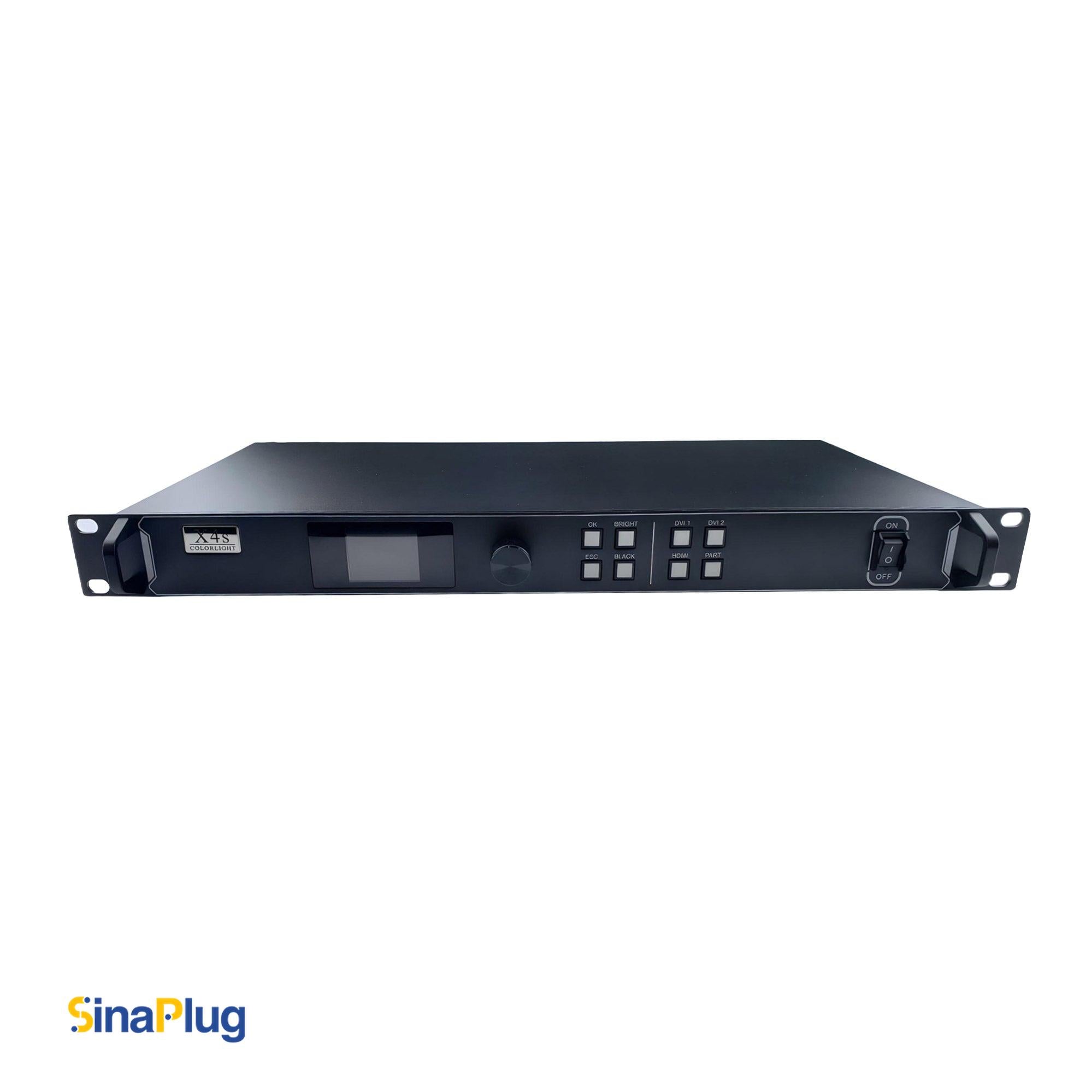

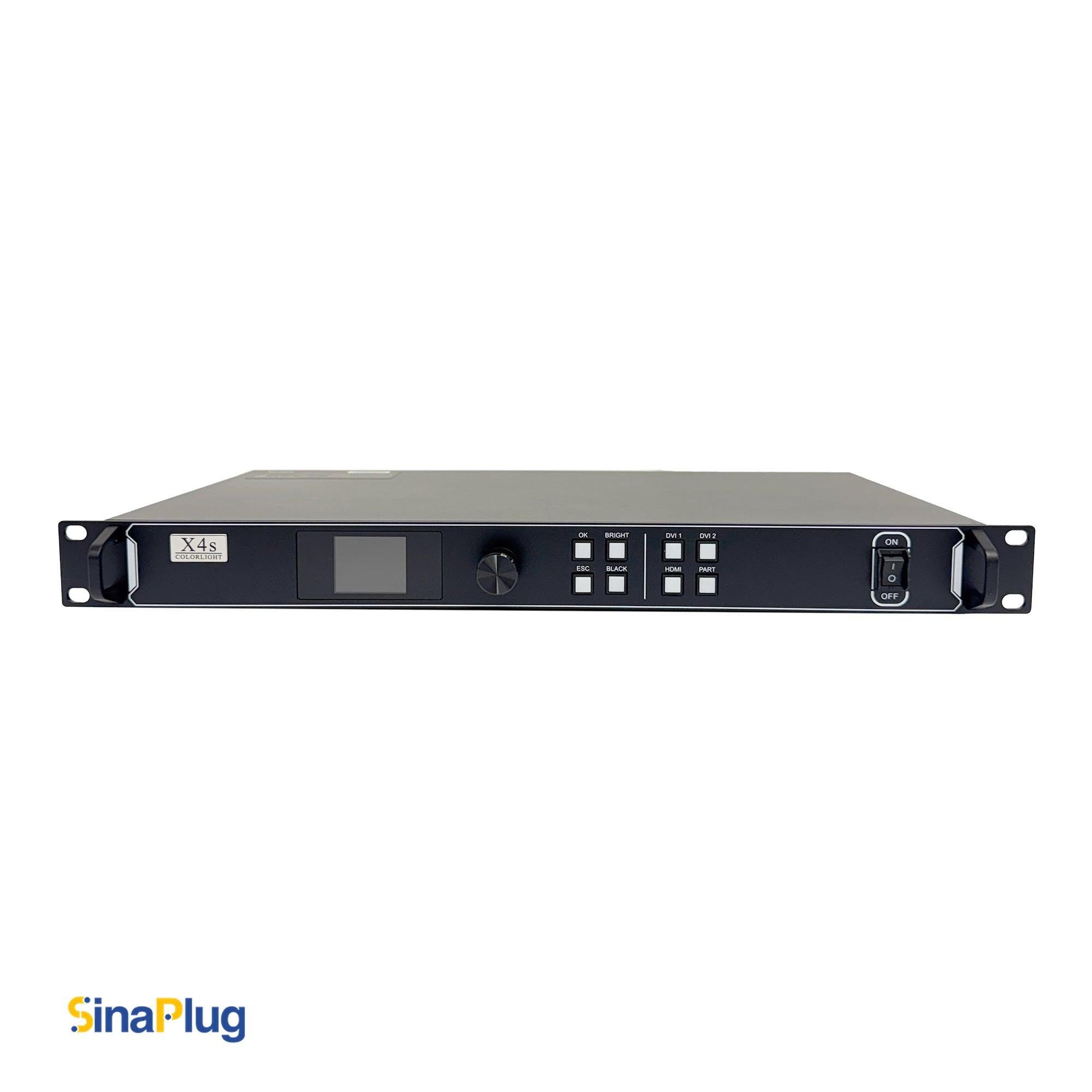

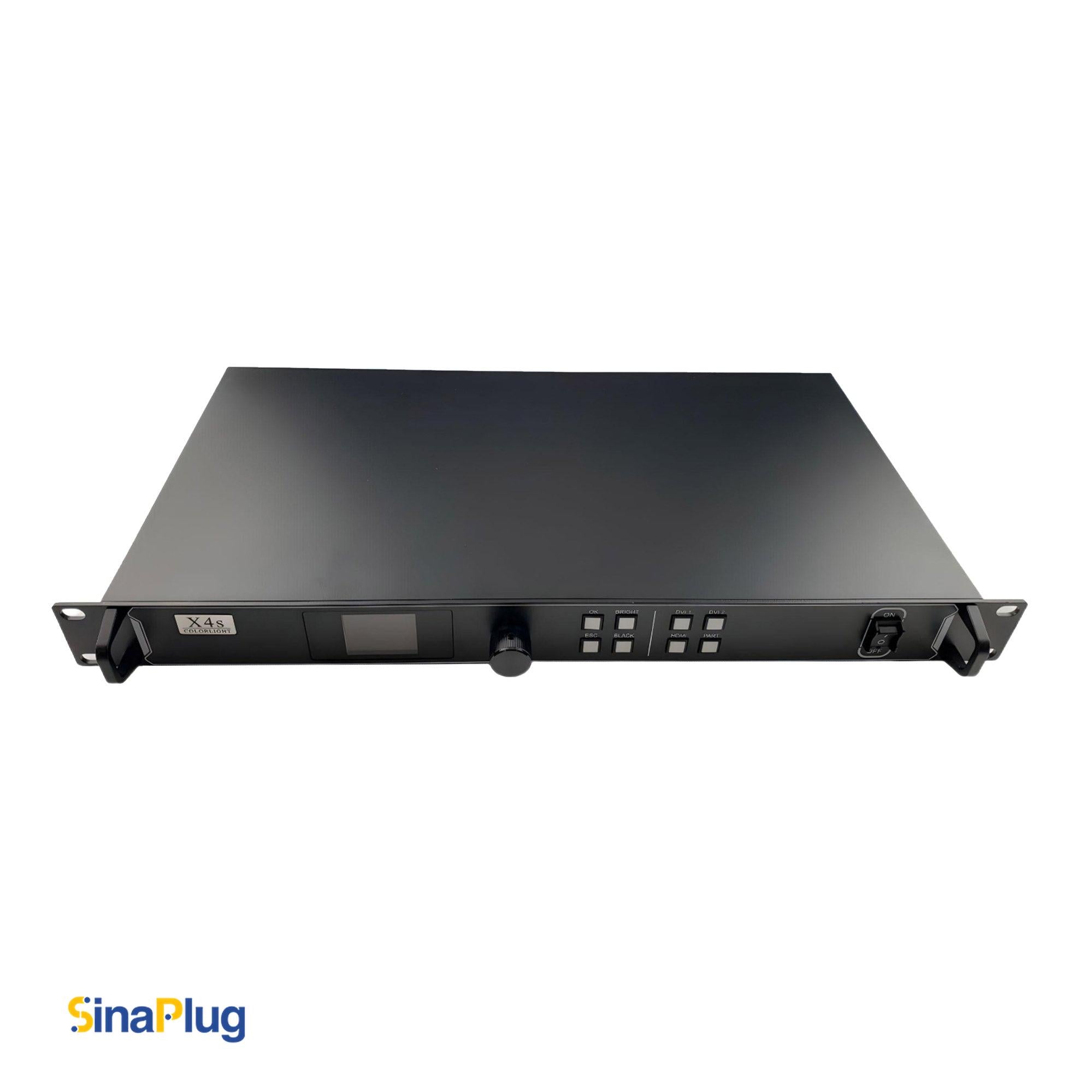

Colorlight X4s LED Video Controller
Colorlight X4s LED Video Controller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Documents
Documents
AzarPixel proudly presents the Colorlight X4S; a professional LED display controller with a 2.6 million pixel loading capacity for digital signage environments. It has four Gigabit Ethernet ports and will accept custom resolutions of up to 4096 pixels in width and 2560 pixels in height.
It is an efficient solution for small LED display applications due to its exceptional video transmission and processing capabilities, which include support for multiple signal inputs and complex control options. It supports an HDMI 1.4 and two DVI inputs and handles maximum resolutions of up to 1920×1200@60Hz. Additionally, the audio input integrates audio signals into an LED display system while using a multi-functional card, synchronizing audio and visual content and improving the overall experience.
This controller is engineered for demanding applications, thanks to advanced features including image scaling and cropping, better gray level at low brightness, brightness and color temperature adjustments, supporting decimal frame rates, and arbitrary video source switching. It operates efficiently across a wide temperature range with a maximum power consumption of 10W and an input voltage of 100-240VAC.
It's USB IN (Type-B) and USB OUT (Type-A) ports enable high-speed configuration to the control computer and device cascading of up to 64 controllers, making it perfect for setting up a large-scale display installation.
The X4s is dependable, strong, robust, and committed to giving users the best possible visual experience. It is mostly suitable for small-scale installation applications, including traffic and parking assistance systems, store window displays, conference and seminar backgrounds, and a variety of sports facilities.
Key Features of X4s
Loading Capacity
- Up to 2,600,000 pixels

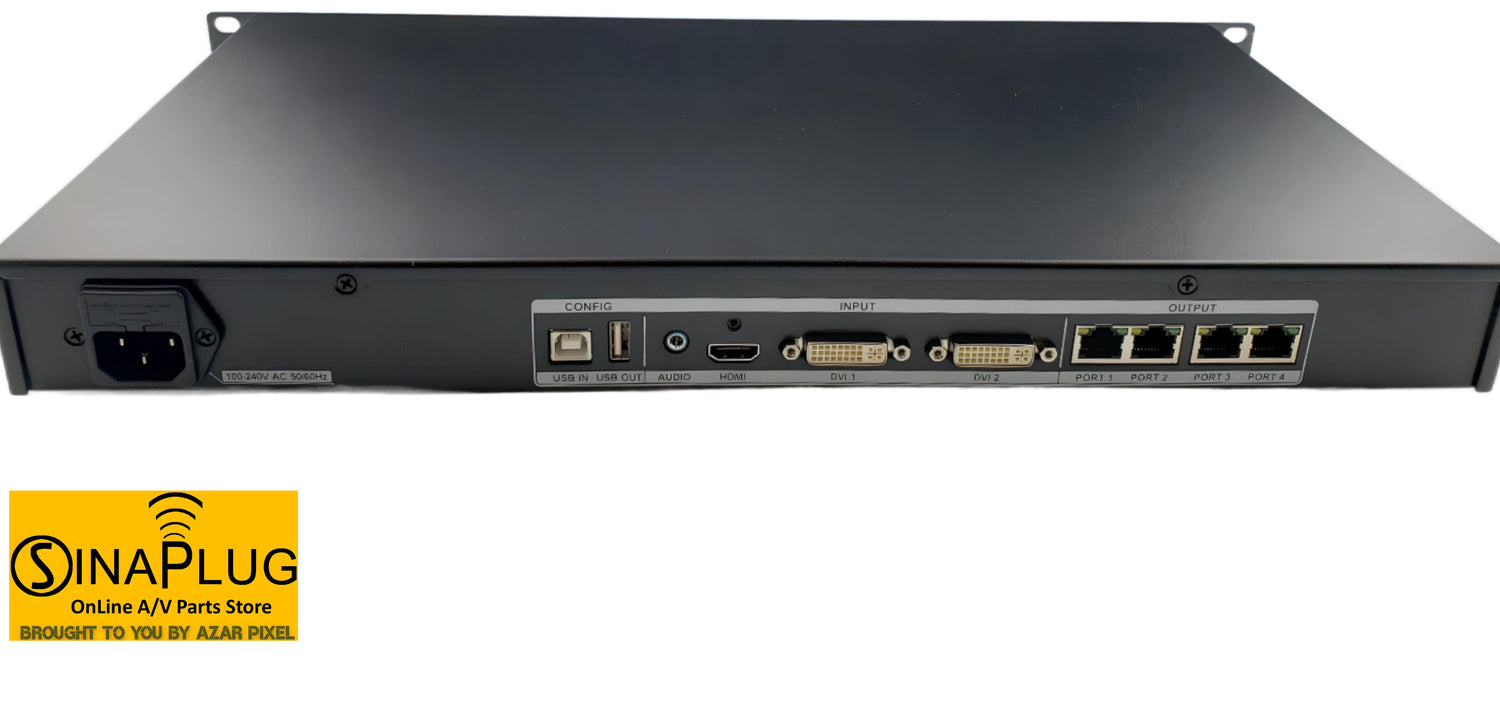

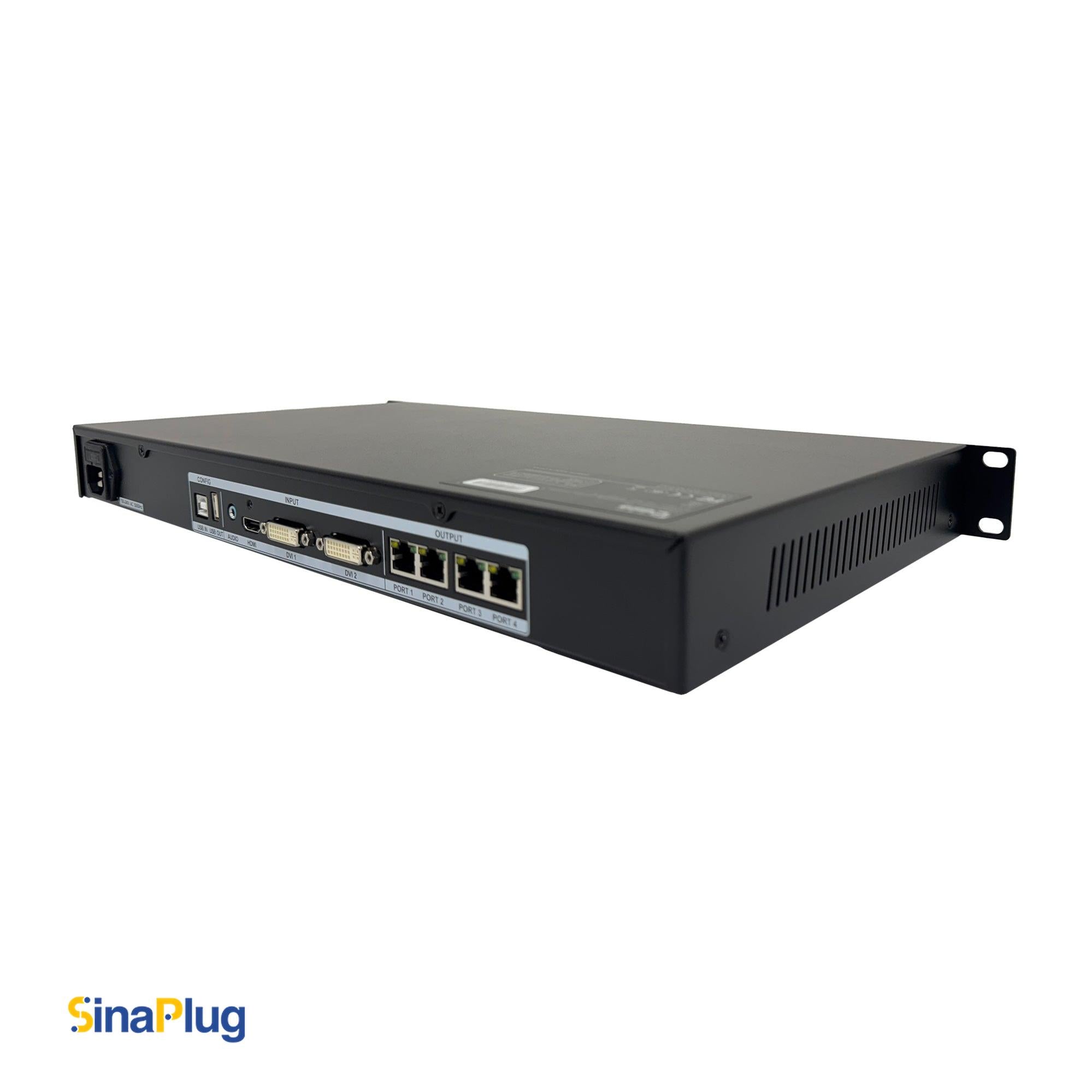

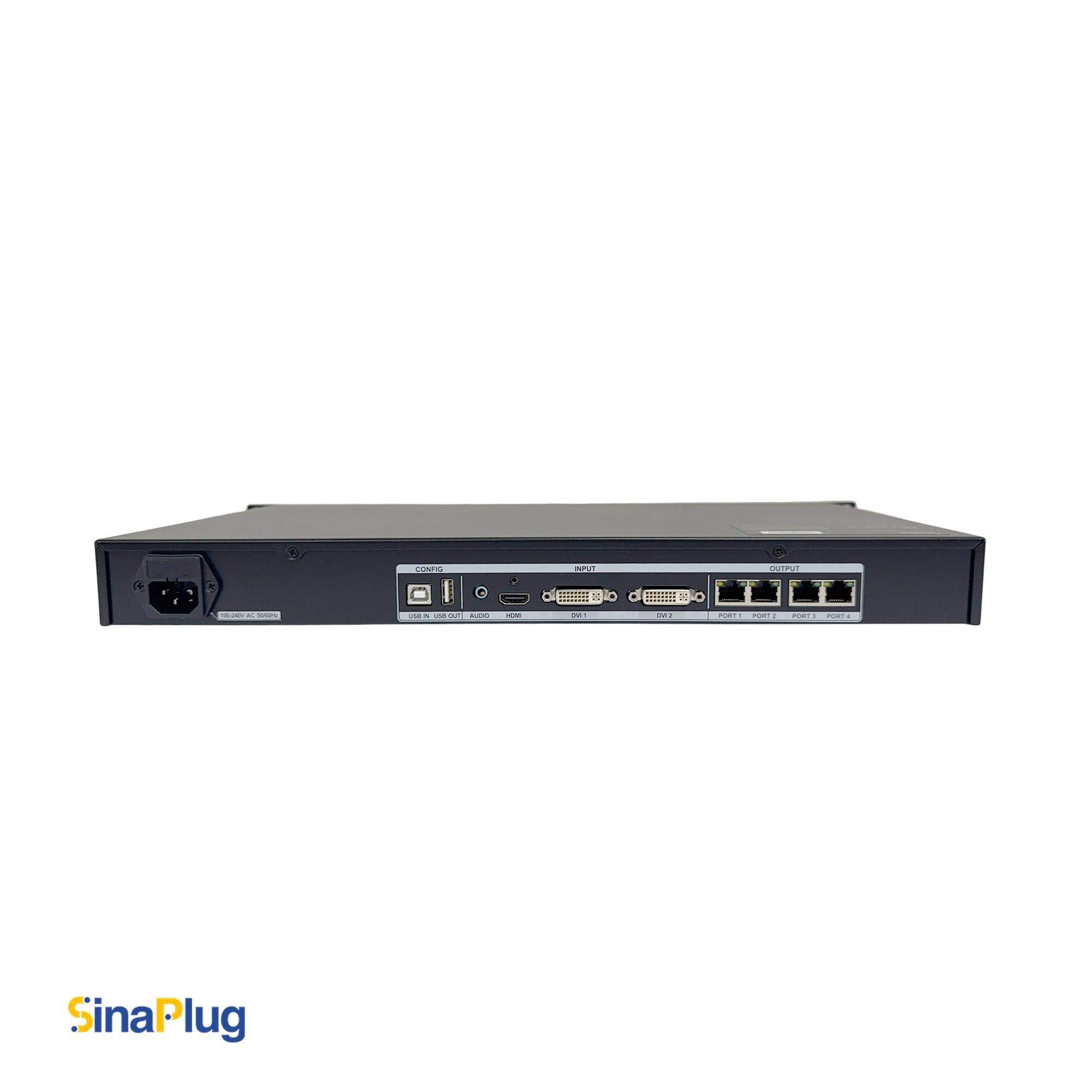

Input
- 1x HDMI 1.4 (maximum resolution: 1920×1200@60Hz)
- 2x DVI (maximum resolution: 1920×1200@60Hz)
- 1x Audio input (used with multi-function card)
Output
- 4x Gigabit Ethernet ports
Control
- 1x USB 2.0 IN Type-B port (connecting to a PC for configuration)
- 1x USB 2.0 OUT Type-A port (for cascading)
Advanced Features
- Single device or dual devices redundant backup
- Supports for screen offset adjustment
- Free switching, and scaling and cropping of video sources
- User-defined presets can be saved and loaded
- Adaptive to inputs with decimal frame frequencies
- Brightness and color temperature adjustment
- improved gray-scale performance at low brightness
- Cascading (up to 64 units via USB interfaces)
Dimensions (L*W*H)
- 483mm * 262mm * 44mm
