TDK LAMBDA  |  SKU: PSU-LAM-S250S1xxxx-0

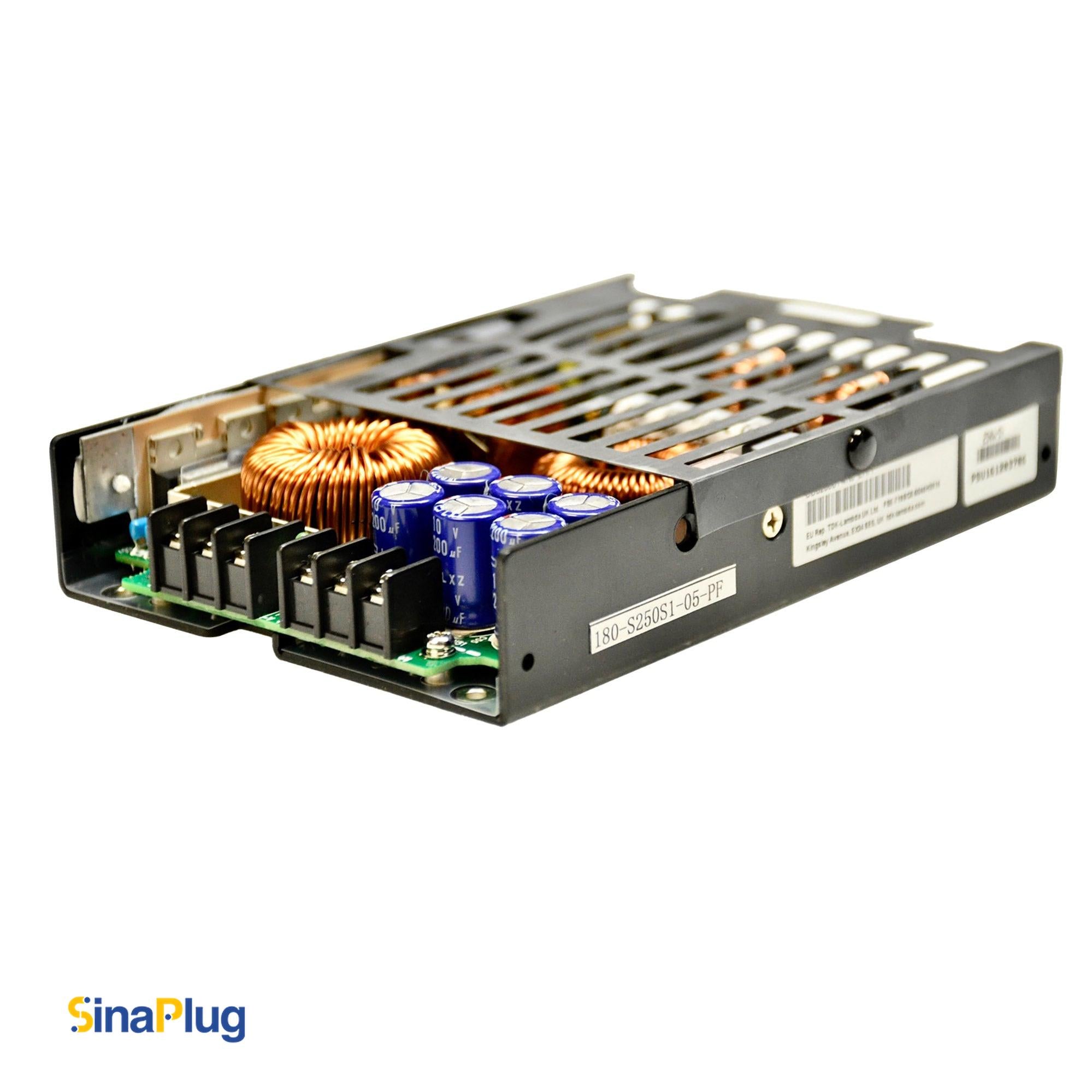

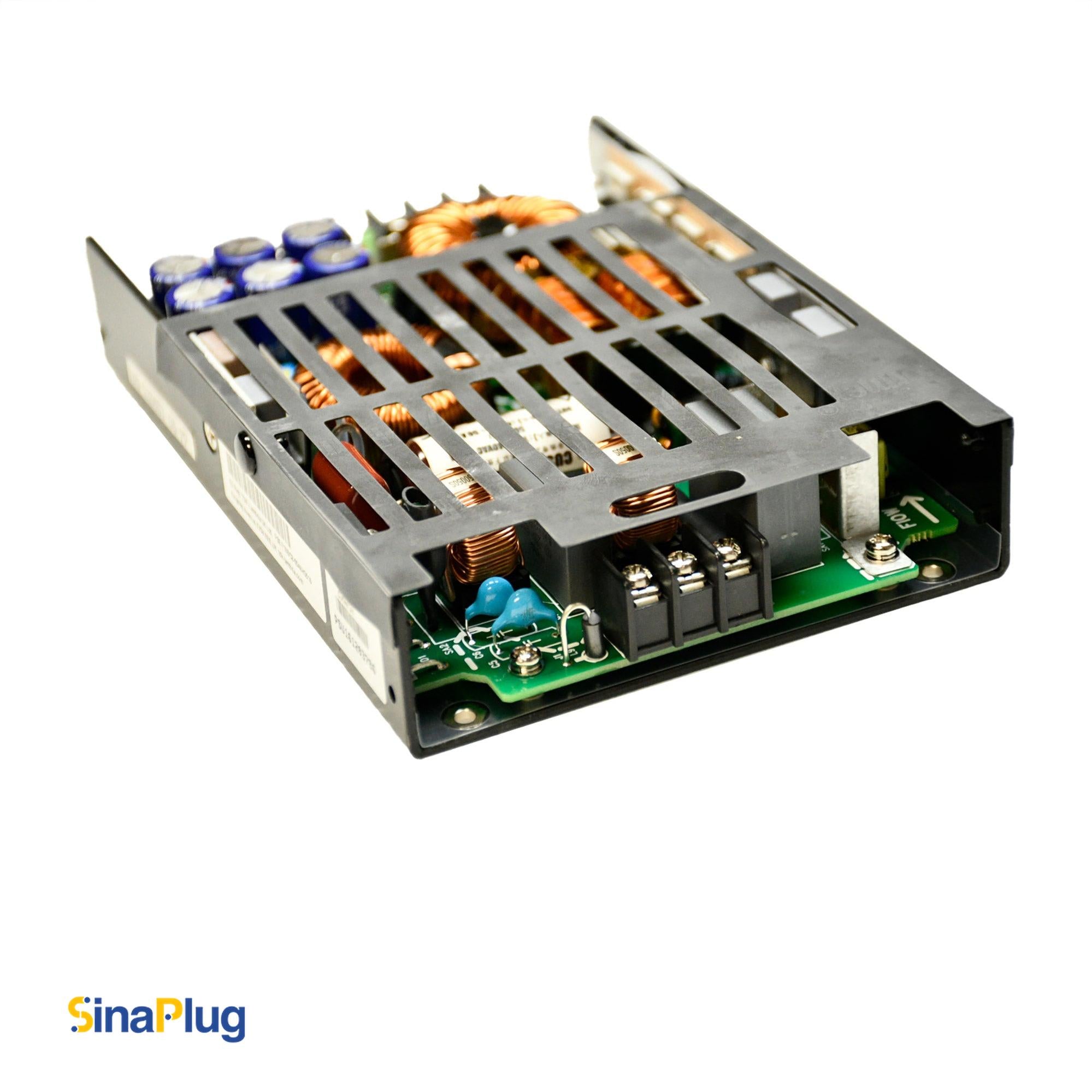

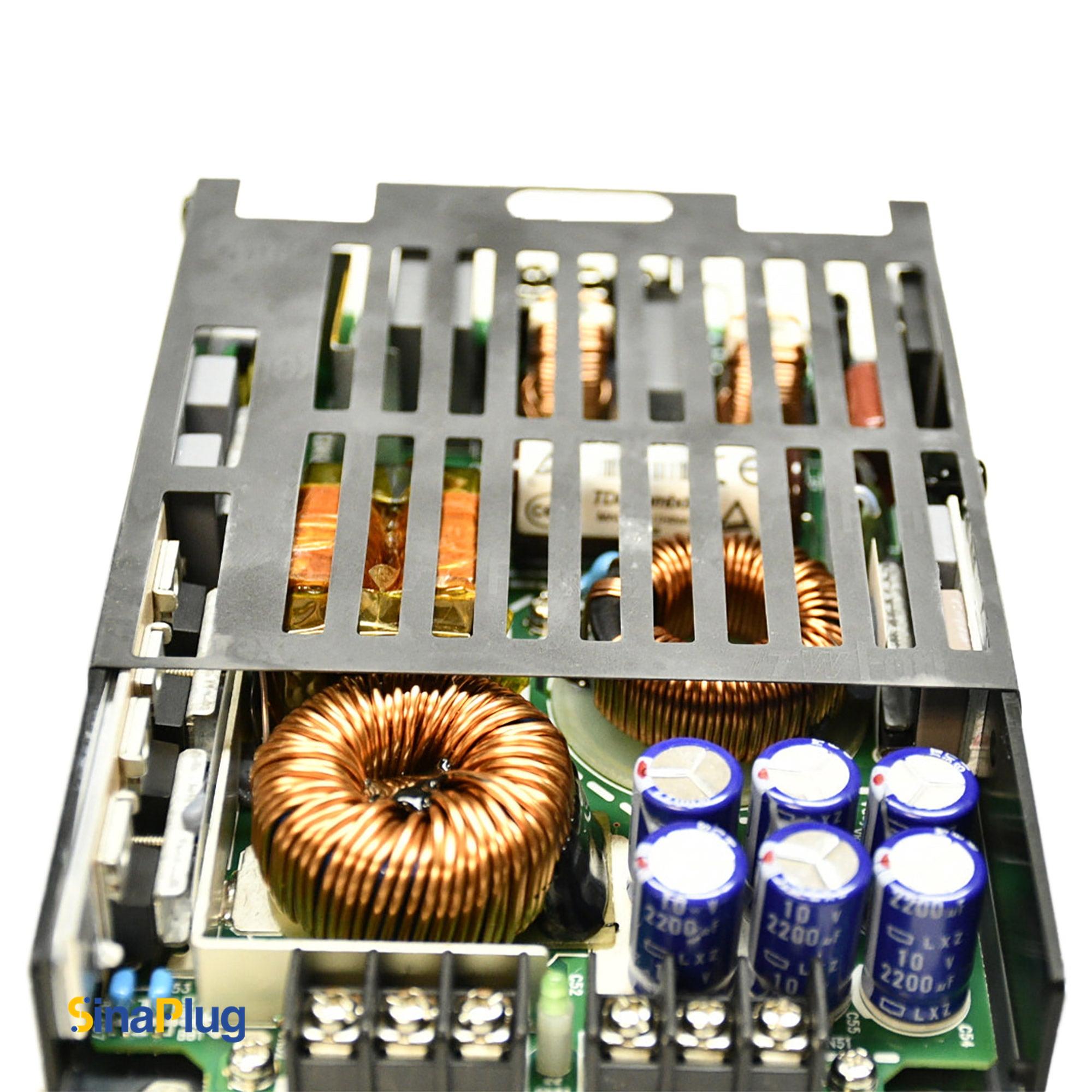

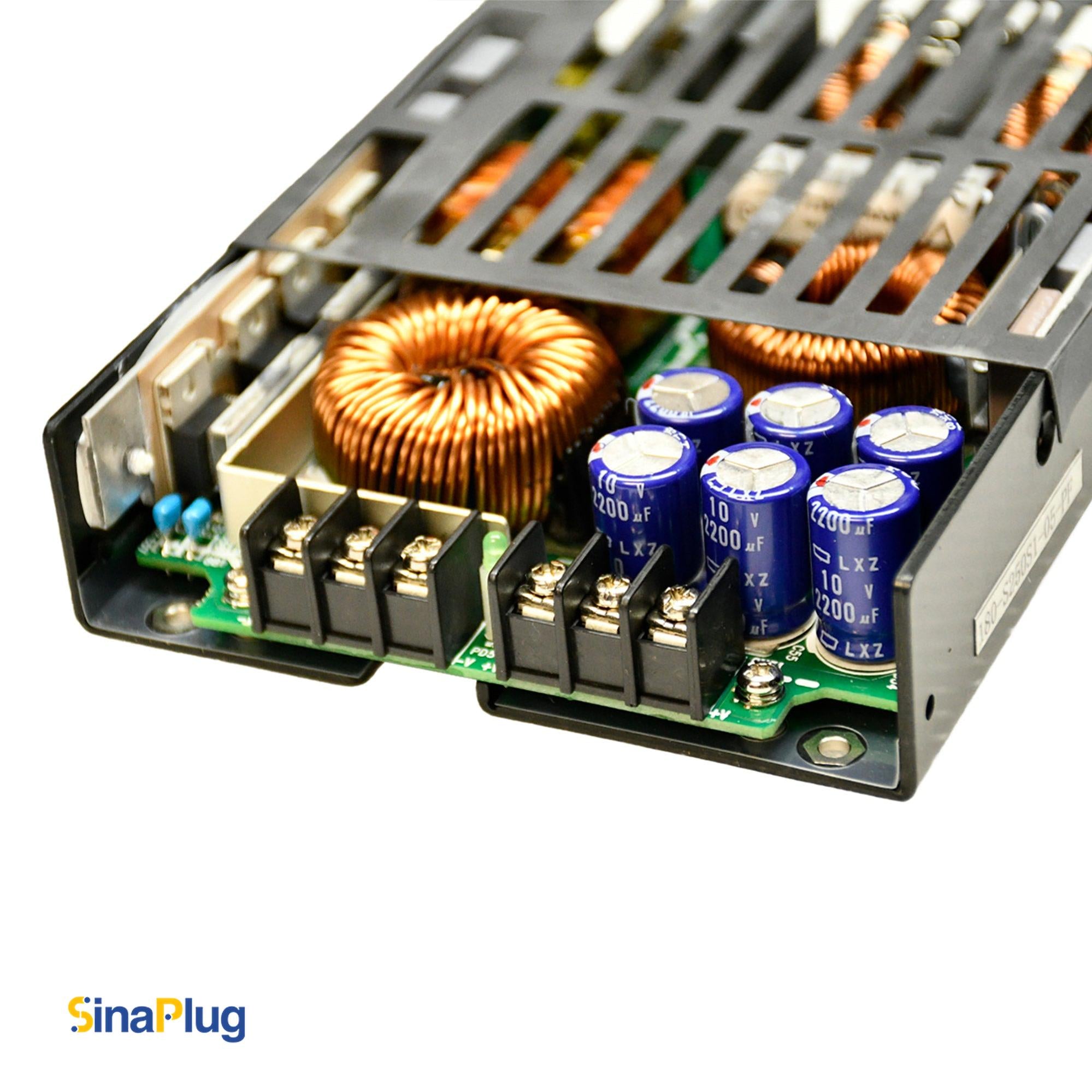

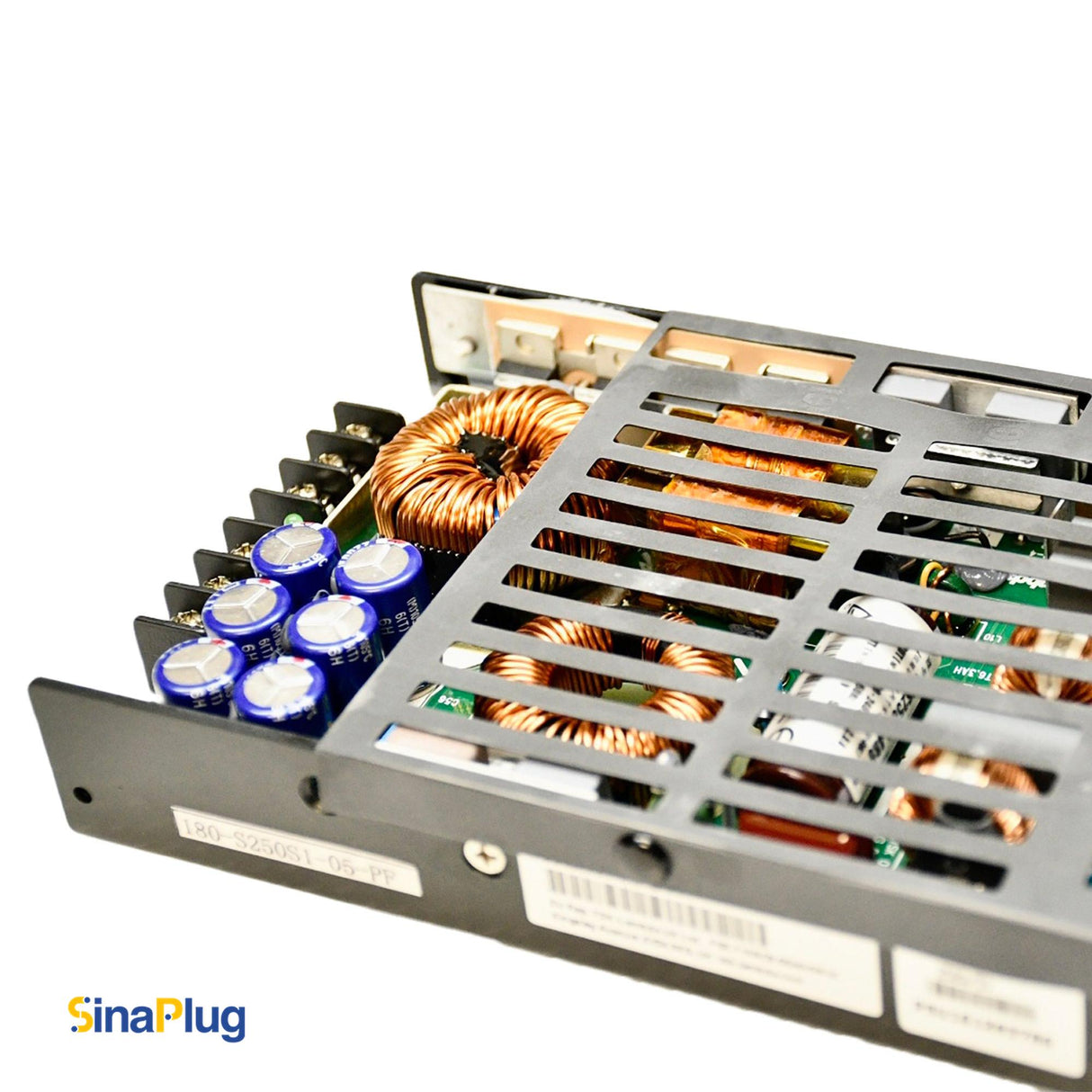

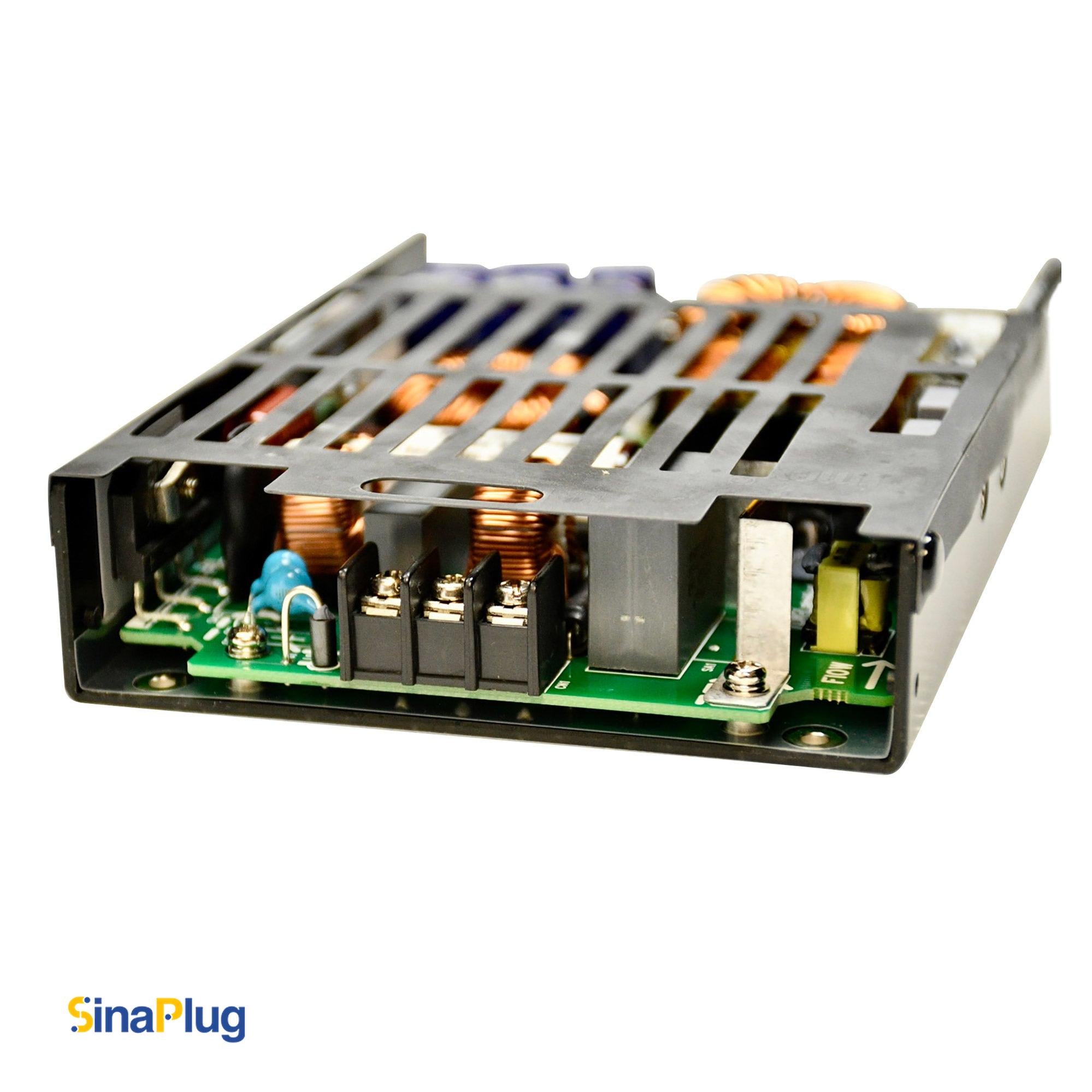

TDK LAMBDA S250S1 Switching Power Supply Output 5Volts, 50Amps (CUS250S1-4R6)

$141.05

Documents

No files available.

TDK LAMBDA S250S1

Features

- High Efficiency, up to 90%

- 1.18” high

- Wide Range AC Input

- Convection Cooled

- Coated pcb as standard

key market and applications:

LED.TEST, COMM, BROADCAST.



TYPE

DESCRIPTION

CATEGORY

POWER SUPPLIES-EXTERNAL/INTERNAL (OFF/BOARD) AC DC CONVERTERS

MFR

TDK LAMBDA Americas Inc

SERIES

CUS250OLD (250W)

PACKAGE

BULK

PART STATUS

ACTIVE

TYPE

OPEN FRAME, CONFORMAL COATED

NUMBER OF OUTPUTS

1

VOLTAGE INPUT

85~ 265 VAC

VOLTAGE-OUTPUT-1

5V

VOLTAGE-OUTPUT-2

-

VOLTAGE-OUTPUT-3

-

VOLTAGE-OUTPUT-4

-

CURRENT-OUTPUT(MAX)

50A

POWER (WATTS)

250W

APPLICATIONS

ITE(Commercial)

VOLTAGE-ISOLATION

3 kV

EFFICIENCY

90%

OPERATING TEMPERATURE

-25°C ~70°C (with Derating)

FEATURES

Adjustable output, DC Input Capable, Universal input

MOUNTING TYPE

Chassis mount

SIZE/DIMENSION

7.80" L x 4.00" W x 1.18" H (198.0mm x 102.0mm x 30.0mm)

APPROVAL AGENCY

CE

MINIMUM LOAD REQUIRED

-

BASE PRODUCT NUMBER

CUS250
