DBStar  |  SKU: REC-DBSHRV11-01

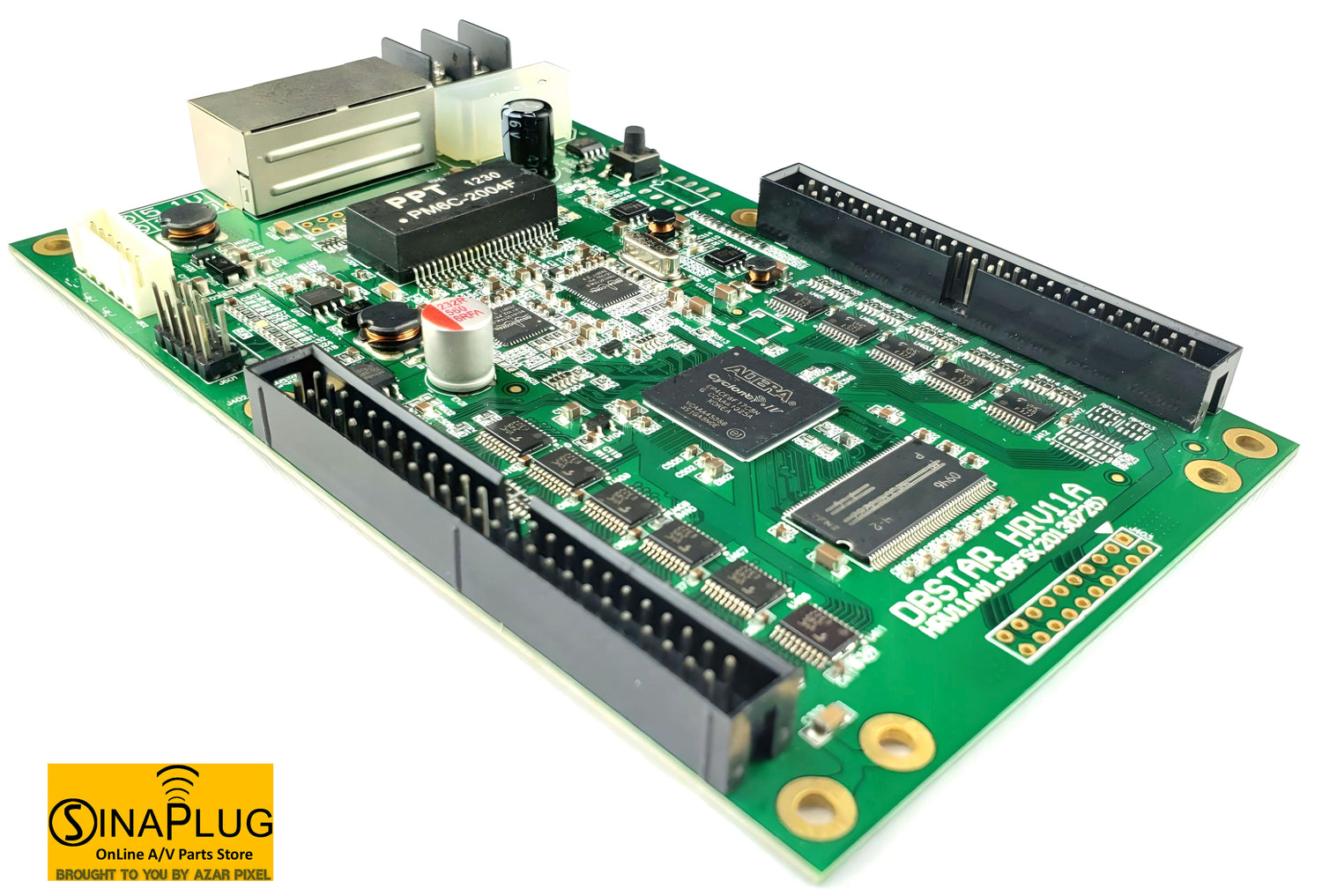

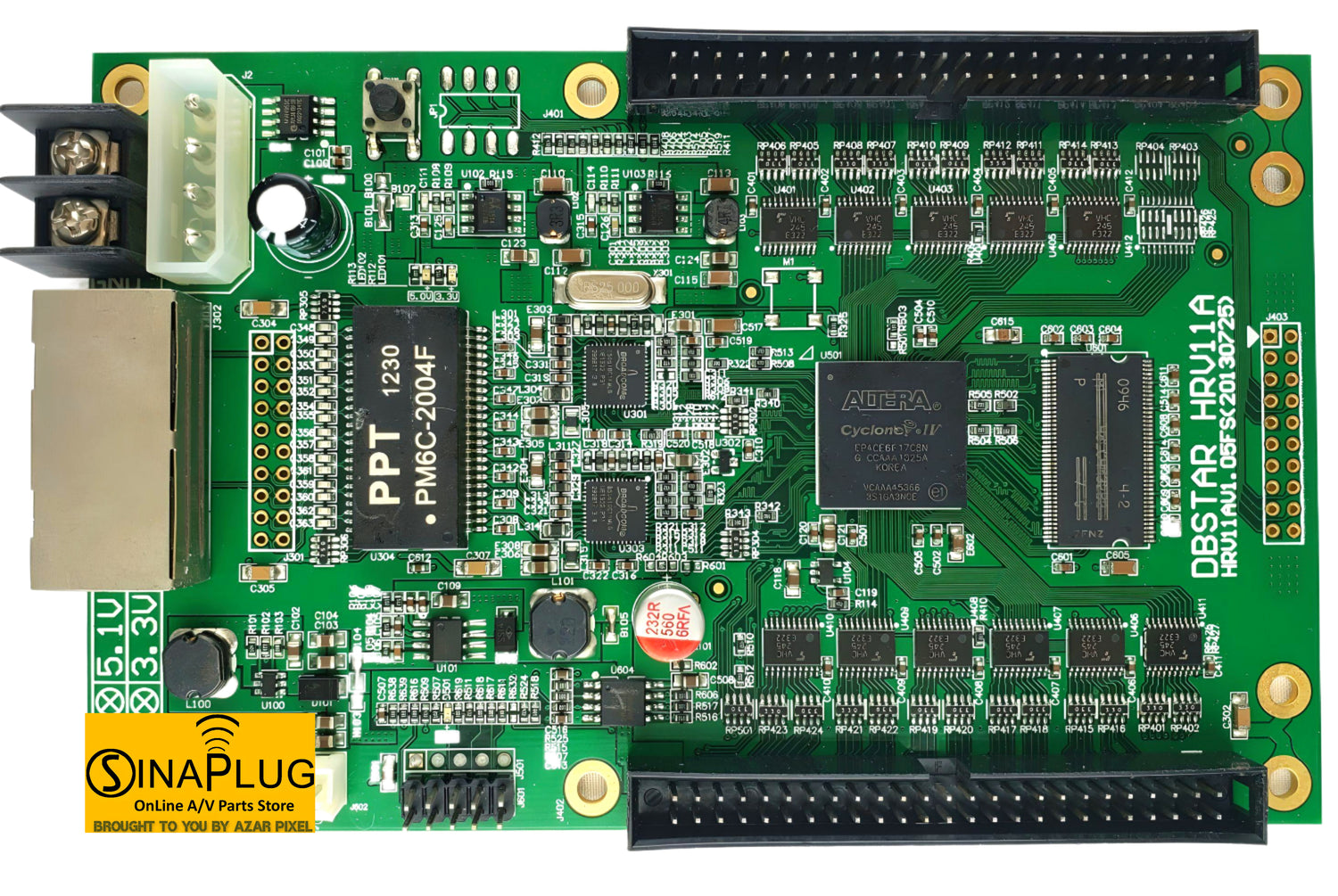

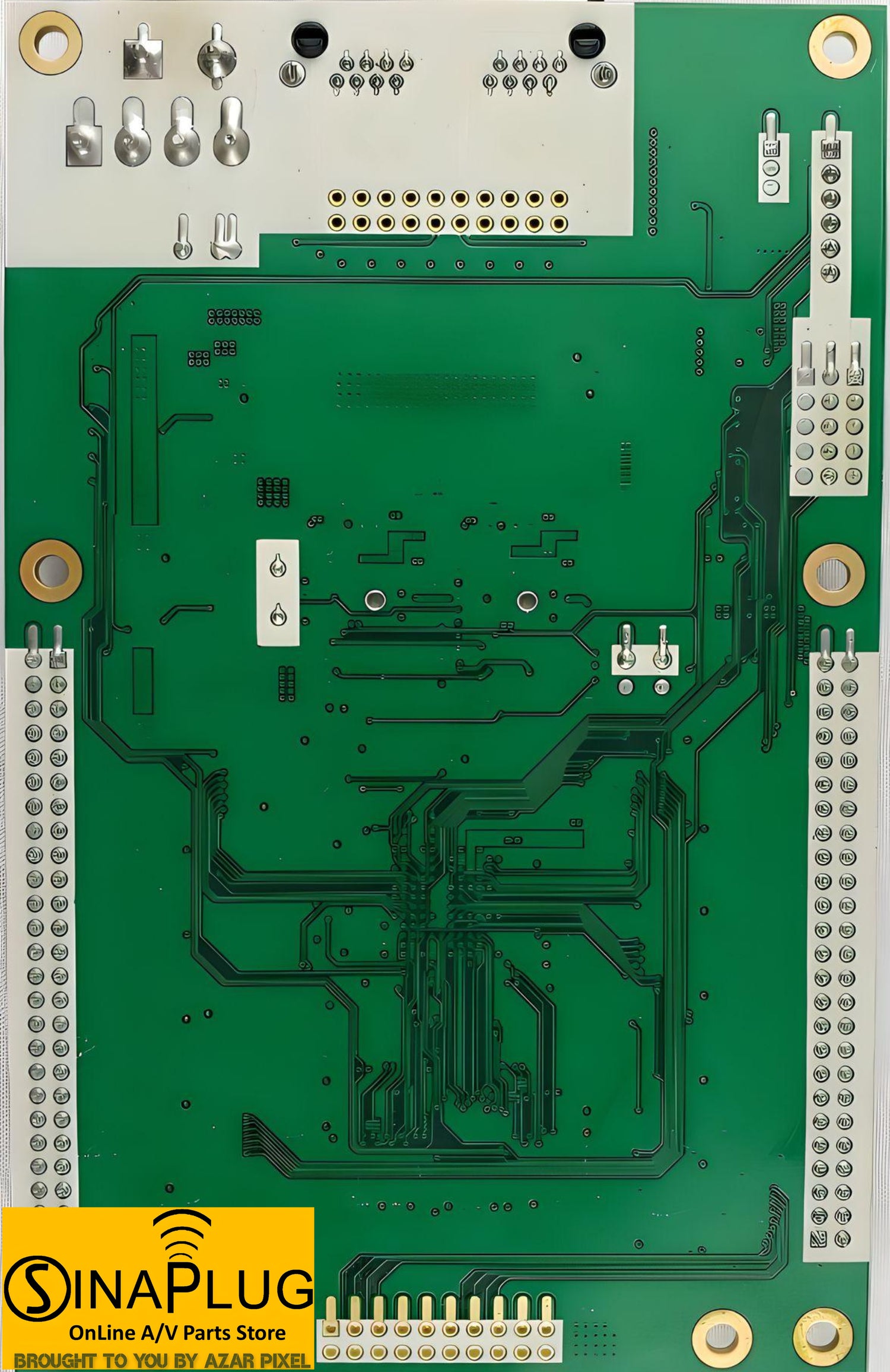

DBStar DBS-HRV11A Receiving Card

$45.00


Description

Features of DBStar DBS-HRV11A LED Panel Receiving Card:

1, self-test function: all red, all green, all blue, horizontal, vertical, diagonal, grid;
2, the power input voltage conventional 3-5V, can be customized to 2.5-18V;
3, support for brightness correction (16bit), color correction (16bit).
4, support screen rotation;
5, support dropped stored screen, support for multi-function cards and automatically adjusts the brightness sensor;
6, support the current mainstream market constant current source chip.

Technical Parameters of DBStar DBS-HRV11A LED Panel Receiving Card:

1.Supported Screen Type: monochrome / color / full color real pixel / virtual pixels
2. support of the LED driver chips: MBI5030/5036/5039/5041/5042/5224/5050/6020/6030/6024/5224 / and
LPD6803/DM413/SUM2030/29/32/17/18/19/MY9266/68 / 69/SM16157/TB62D722RFT3630/SD16749/P2502
3.single network cable cascade received cards: typically <100, maximum 255
4.single block receives cassette containing the pixel size: 256 * 128 (full color), 256 * 192 (full color plus expansion port),
1024 * 512 (color) 512 * 384 (full color), 512 * 512 (full color plus expansion port ), 1280 * 512 (color)
5 .Single receiving card RGB data groups: typical 16 to 24, maximum 24
6. a group RGB Rows: Supports 1 to 32 or less arbitrary scanning
7.gray levels: typ 4096 (4K), max 65536 (64K)
8.data clock frequency: typical 15.62MHZ, max 31.25MHZ
9. Refresh rate: 180HZ to 3600HZ (eg MBI5050)
10 .brightness adjustment series: 256 (can support brightness sensor automatically adjust the brightness)
11.Current Gain brightness adjustment series: 64/128/256 (depending on LED driver chips may be)
12.Based on PWM Brightness Correction Pixel Pixel Size: 128 * 128 (16 color correction), 256 * 128 (16 brightnesscorrection)
