DH7508 Receiving Card
$27.00
30 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

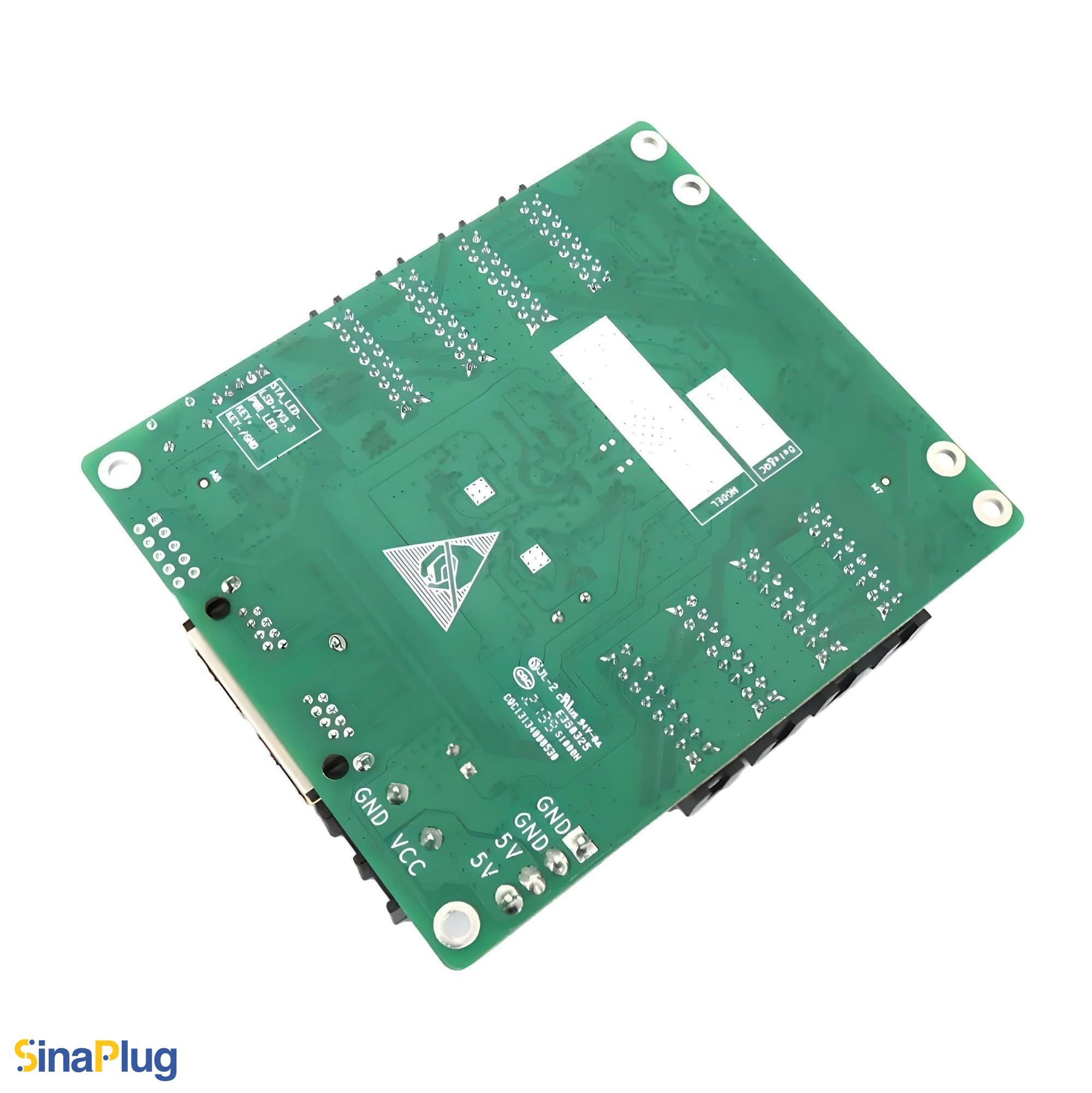

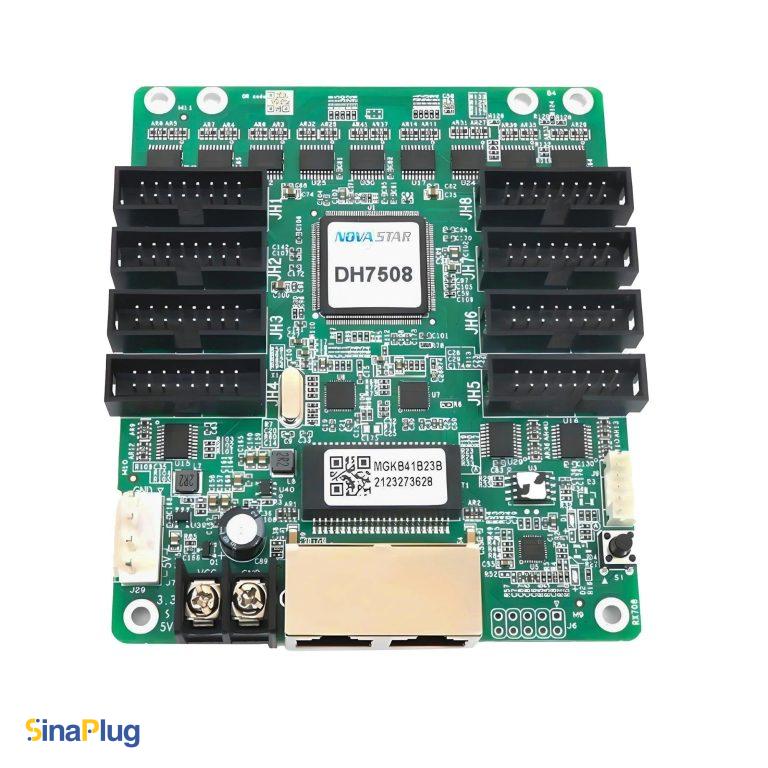

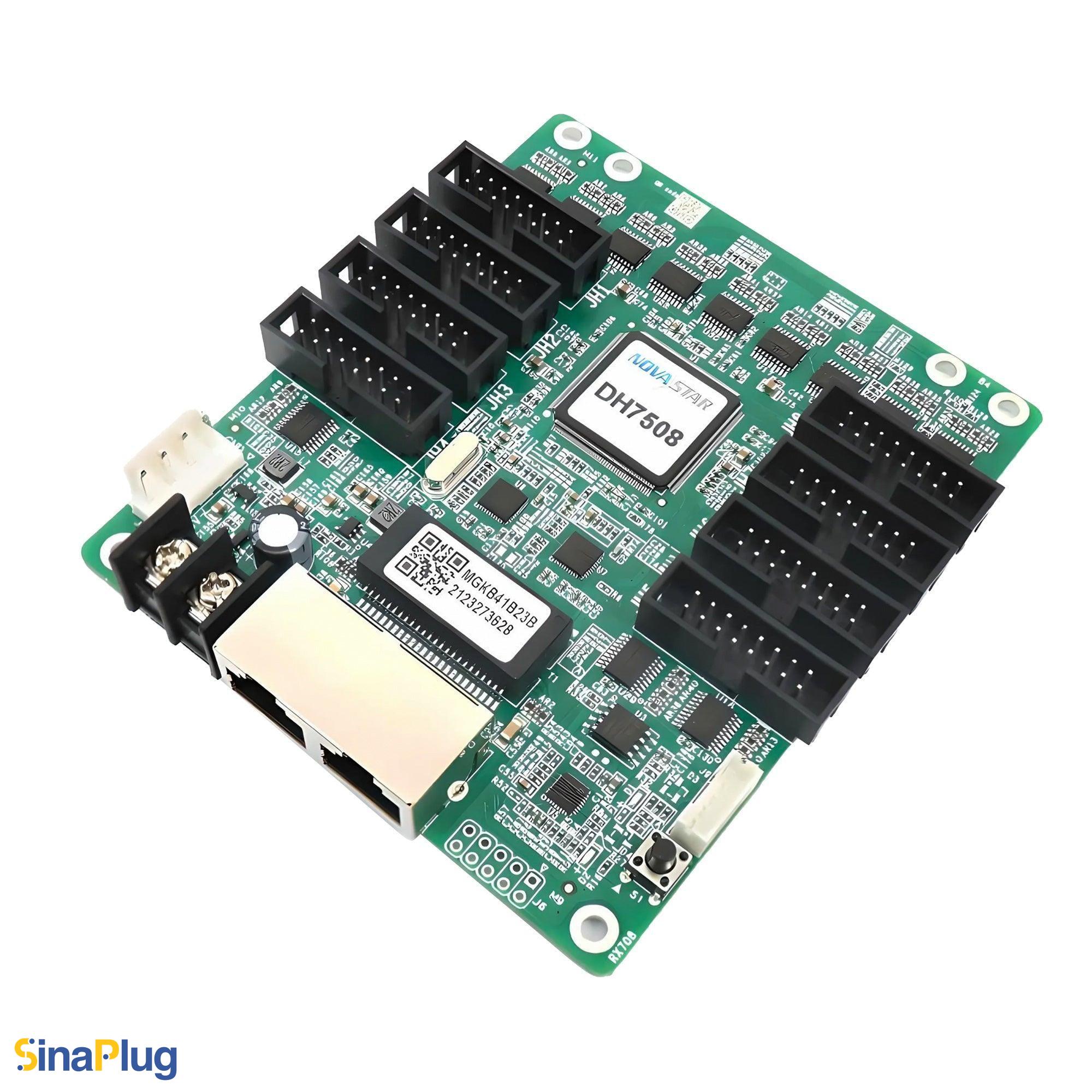

DH7508 is a cost-effective and demanding receiving card designed to deliver high-quality images for a wide range of LED display applications. Please note: As production of this model has been discontinued for a long time, Novastar offers two similar updated and compatible replacement models: Novastar DH7508-S and Novastar MRV208-1 receiving cards. SinaPlug (powered by Azar Pixel) is pleased to recommend and supply these alternatives to meet your requirements.
In addition to supporting a maximum loading capacity of 256×256 pixels, it also offers 3D functionality as an additional bonus. While powered on by DC 3.3 to 5.5 Volts (2.5W) input voltage, it also ensures optimum performance in demanding ambient conditions from -20°C through +70°C.
The DH7508 complies with RoHS and EMC Class A certifications, meeting stringent industry standards for environmental safety and electromagnetic compatibility.

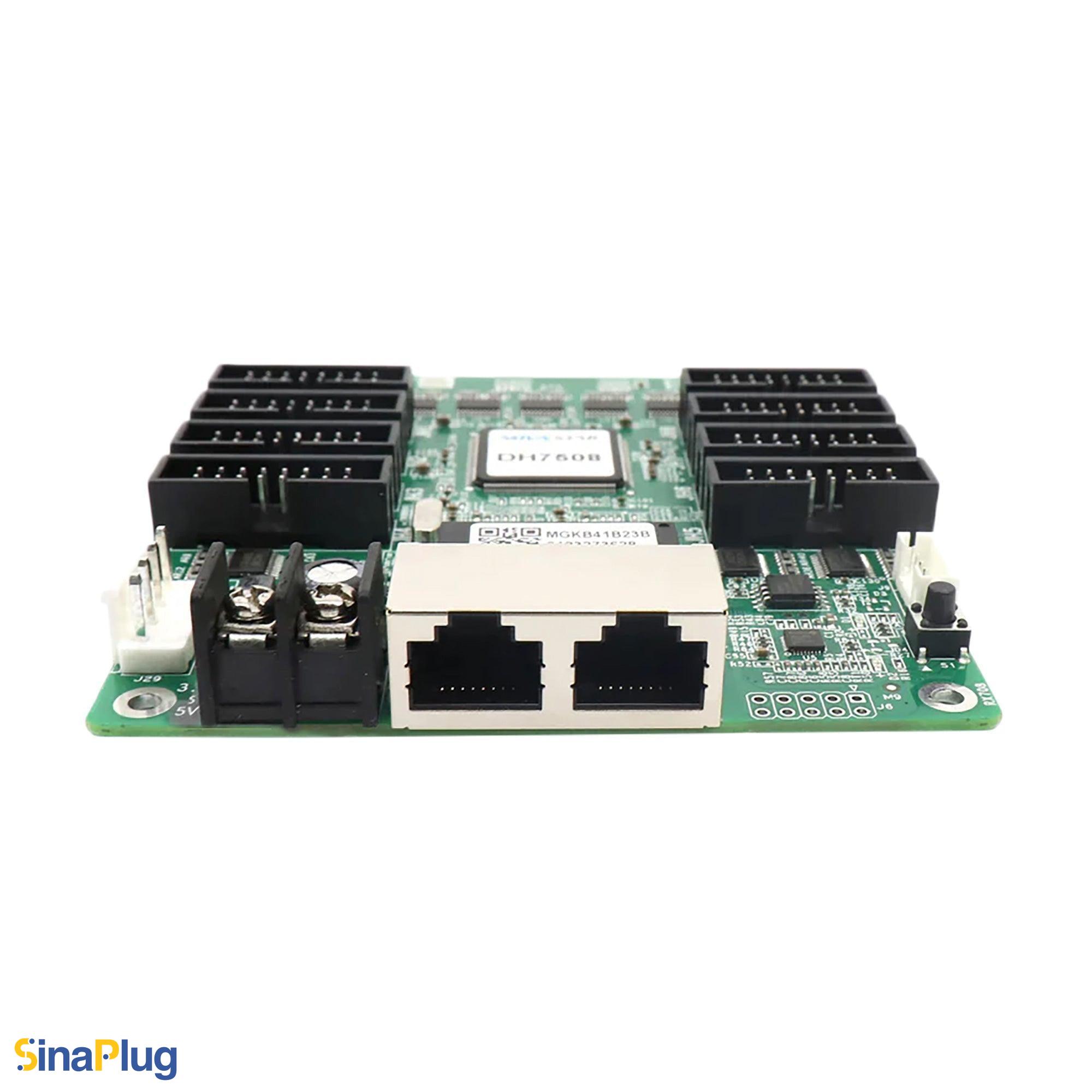

Equipped with 8 standard HUB75E interfaces, the DH7508 achieves stable communication with LED module and supports up to 16 sets of RGB parallel data. Two Gigabyte ethernet ports (one can operate as Input & the other as Output) provide stable performance and high transmission reliability in the connection with sending card or the cascaded DH7508.
With its advanced capabilities, the NovaStar DH7508 is a stable and reliable option as an essential part rolling in controlling systems of LED displays in various scenarios such as outdoor advertising screens, public information displays, chain store screens, and other commercial applications requiring dependable performance.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of Novastar DH7508 Receiving Card
Input
- 1x Gigabyte Ethernet Port (data from sending card or previous cascaded card)
Output
- 8x standard HUB75E interfaces
- 1x Gigabyte Ethernet Port (provides data for the next card)
Performance
- Maximum load of 256×256 pixels
- Supports 3D function
Power
- input voltage: 3.3 – 5.5VDC
- power consumption: 2.5W
Others
- supports up to 16 sets of RGB parallel data
Dimensions (L*W*H)
- 95.5mm * 109.1mm * 18.4mm
| Weight | 0.18 lbs |
|---|---|
| Dimensions | 8.07 × 6.1 × 0.98 in |
| Max PWM IC Pixel Capacity | 256×256 |
| Output Interface (QTY) | 8 |
| Max Parallel RGB Data Groups | 16 |
| Ethernet Port | 2 |
| Brightness and Chroma Calibration | Supported |
| 90° Image Rotation | Supported |
| Loop Backup | Supported |
| Bit Error Detection | Supported |
| Dual Configuration Parameters Backup | No |
| Firmware Redundancy and Readback | Supported |
| Input Voltage Range | 3.38-5.5VDC |
| Max Power Consumption | 2.5W |
| Working Temperature Range | -20 °C to +70 °C |
| Standard Certification | EMC Class A, RoHS |
