A5s Plus LED Receiving Card
$20.40
76 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 9 | 3% |
| 10 - 19 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

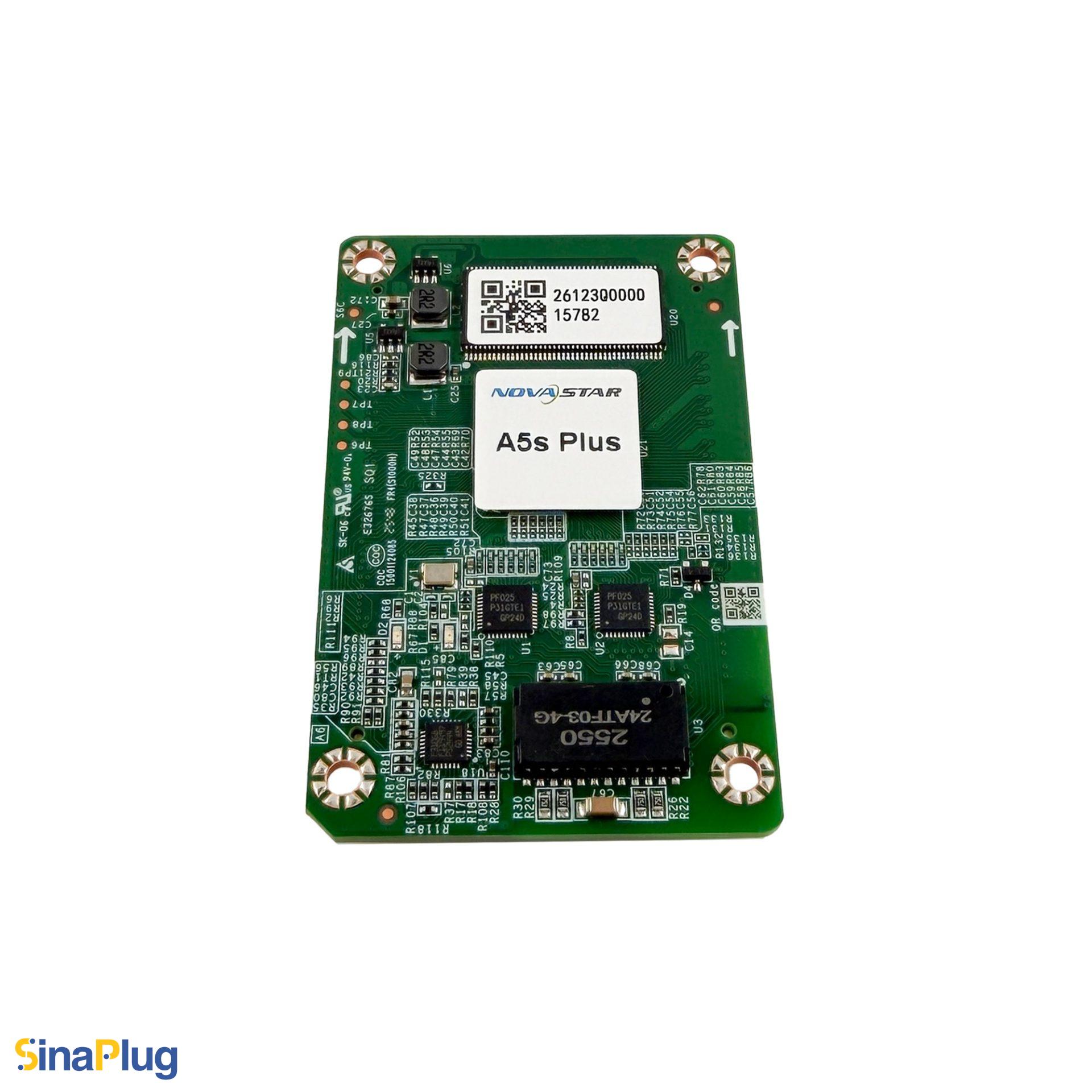

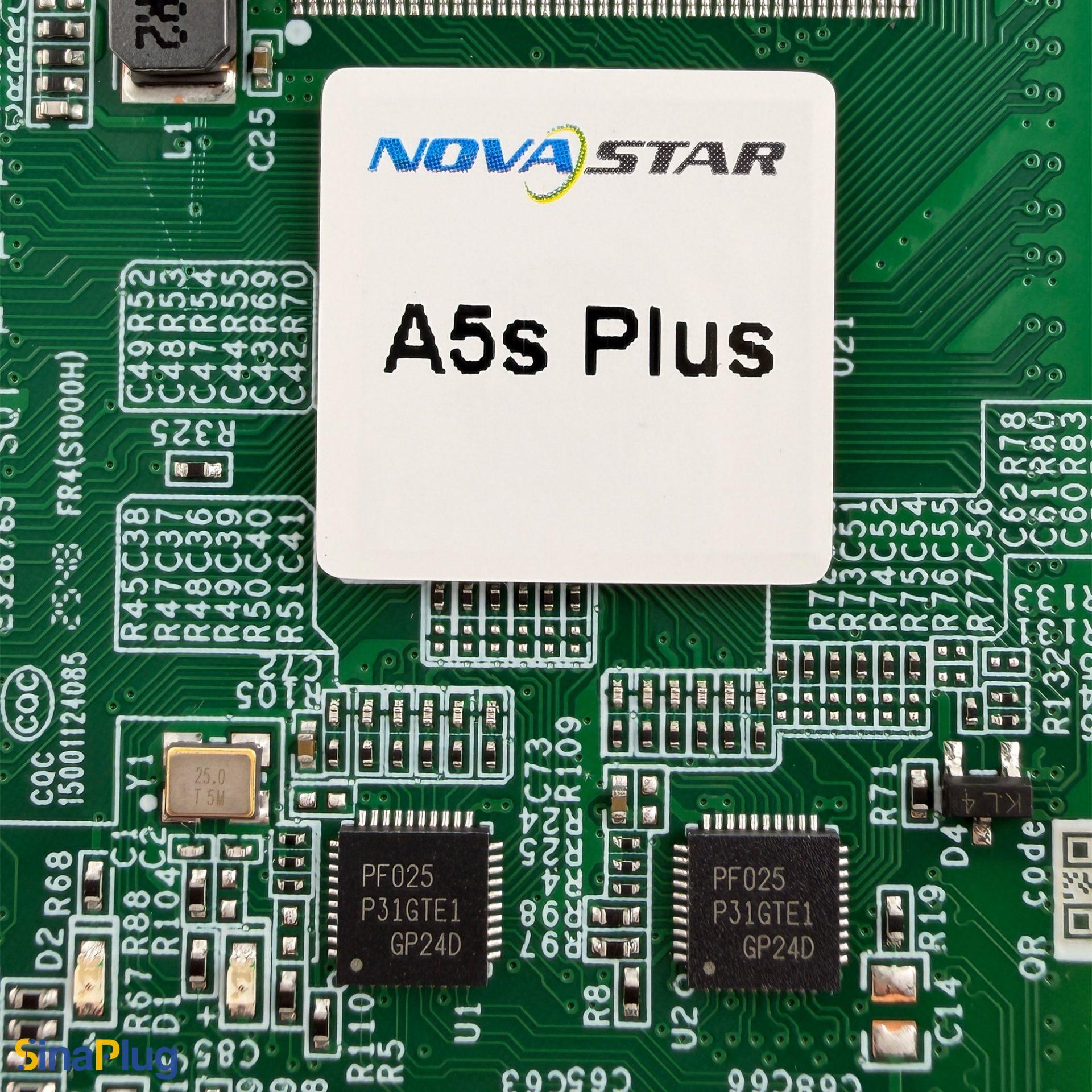

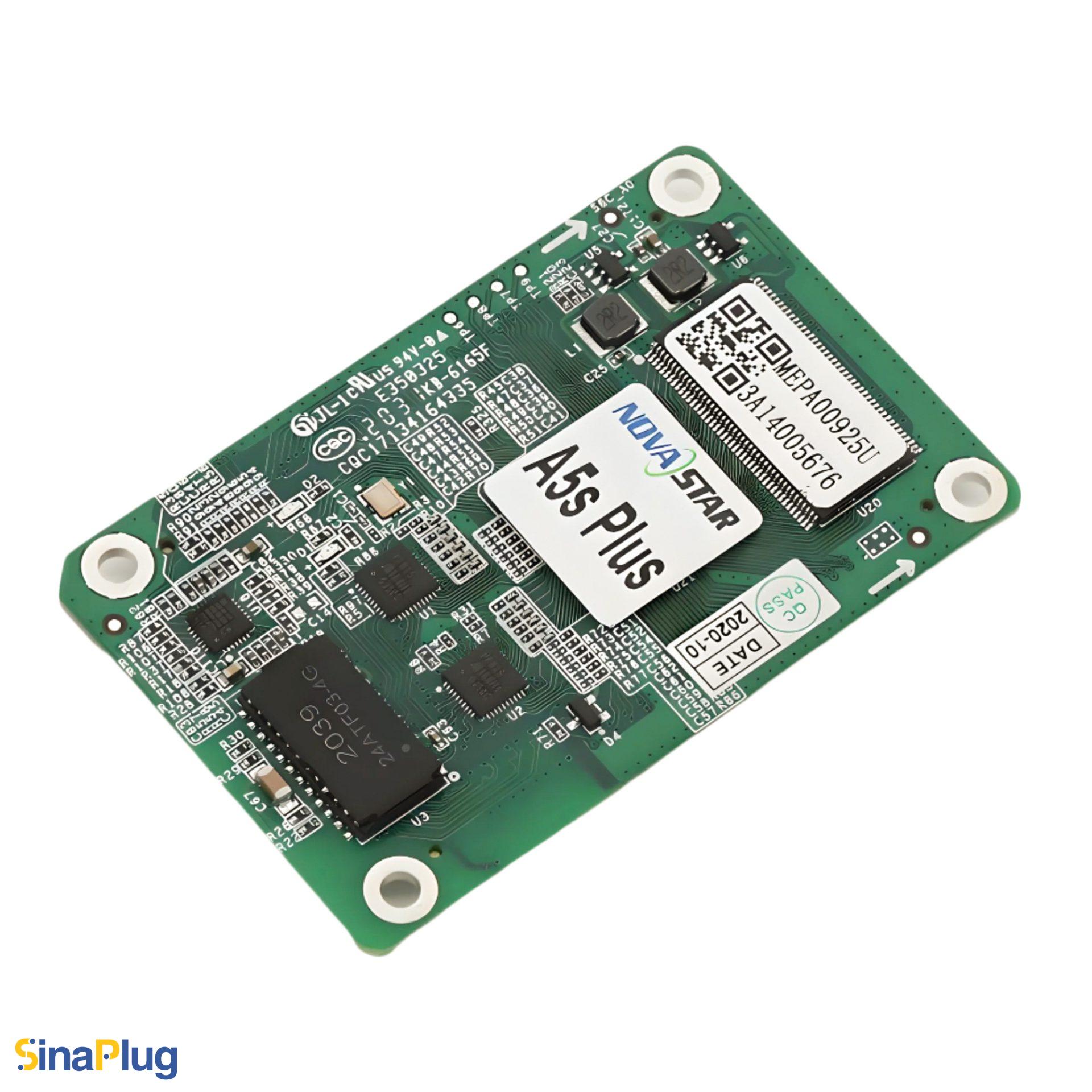

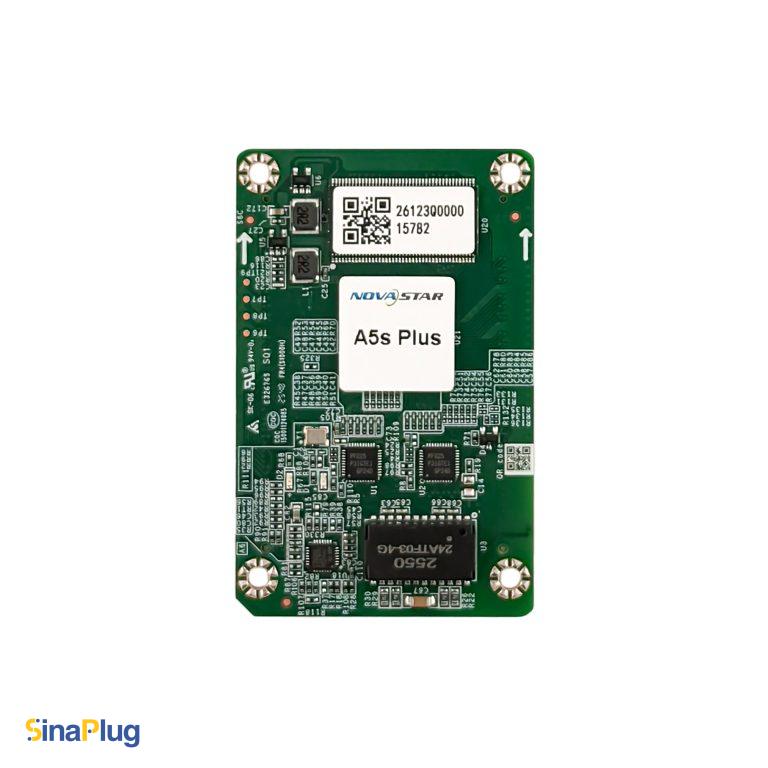

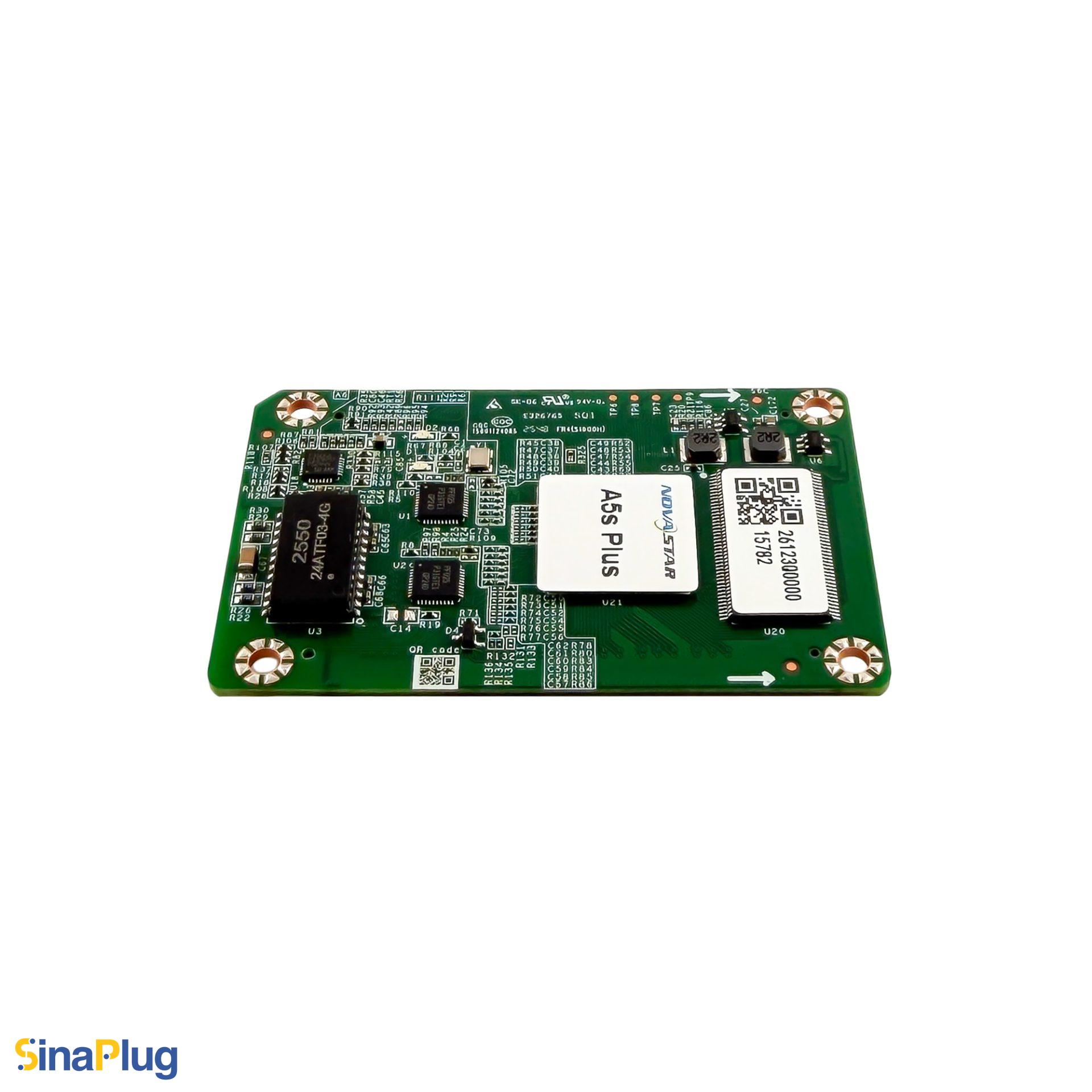

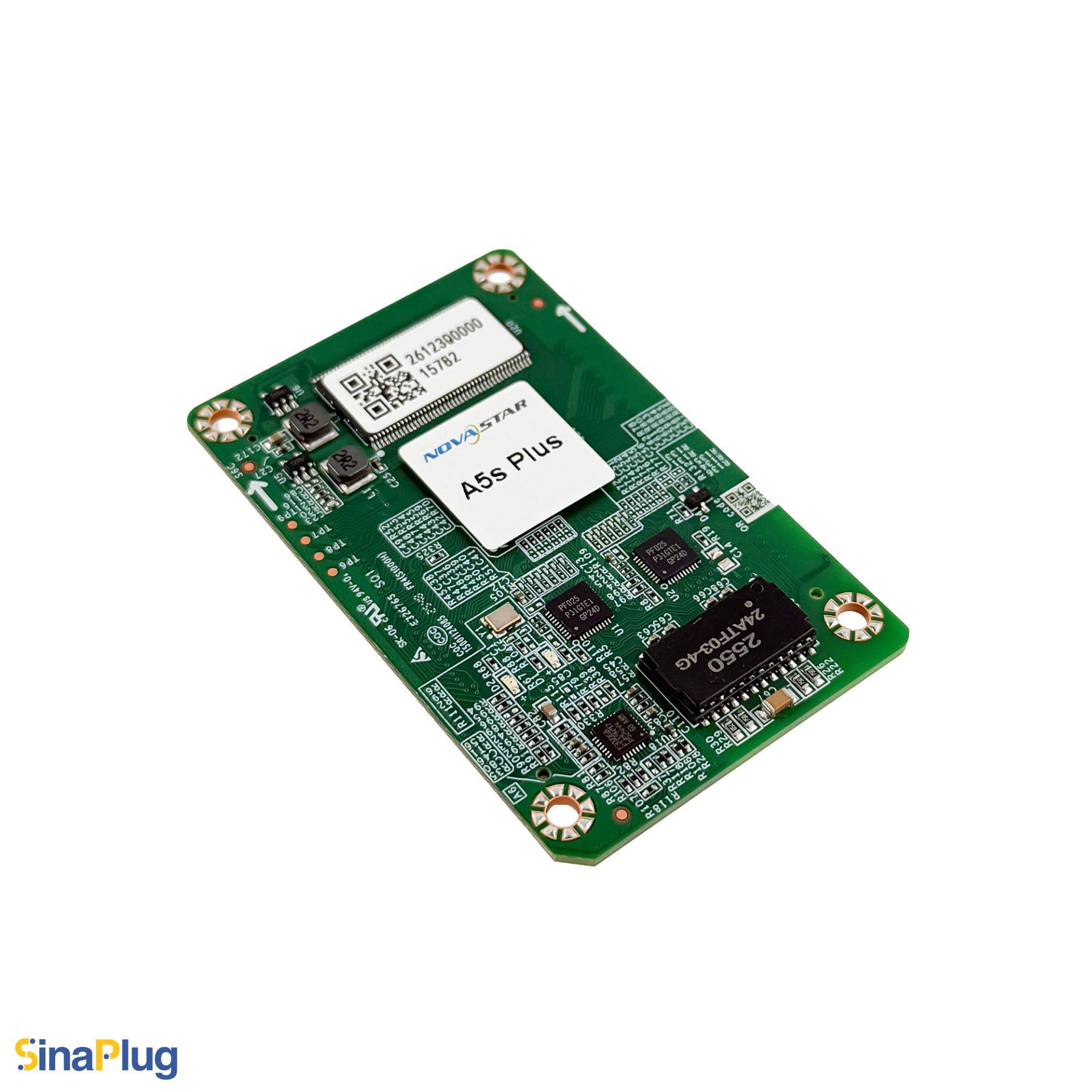

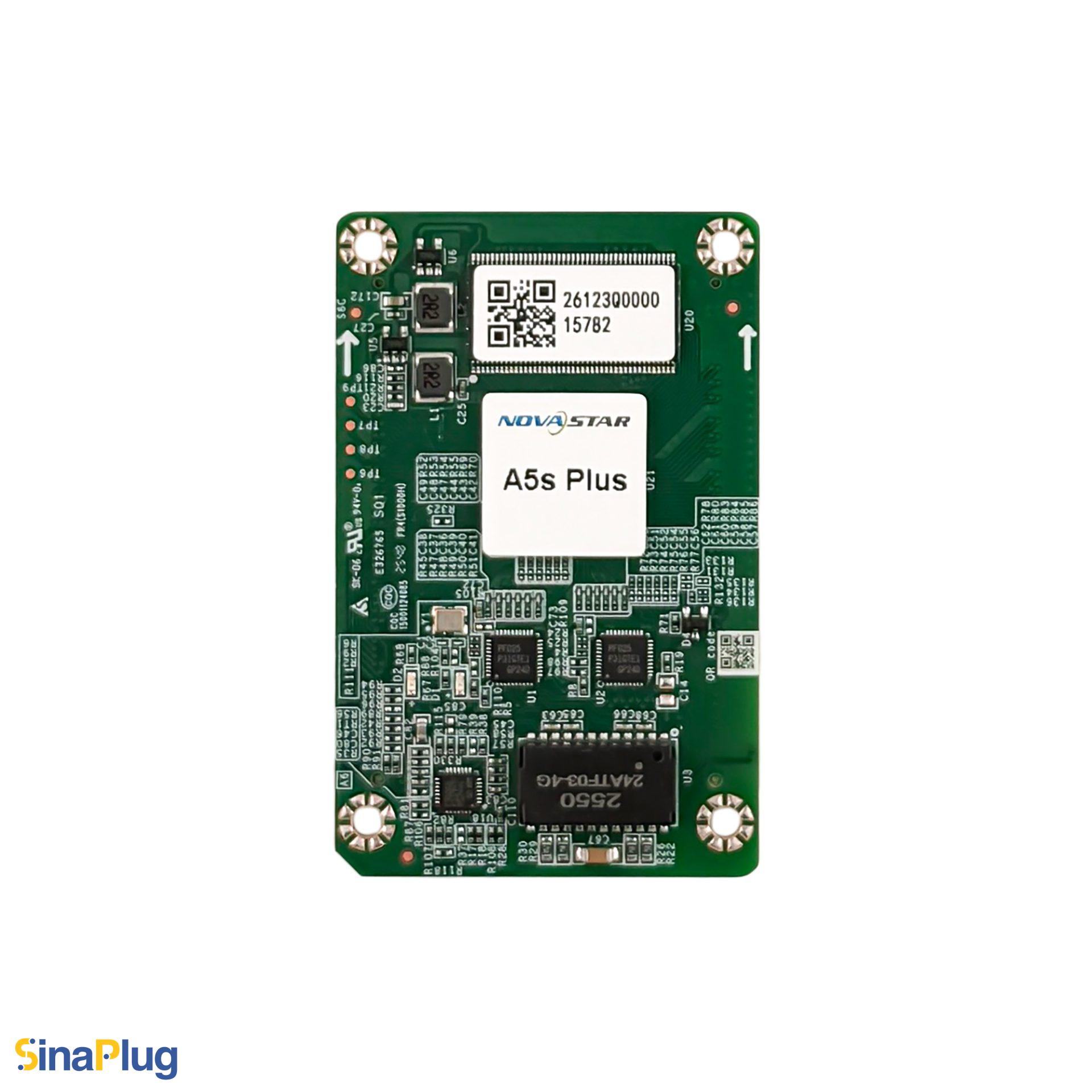

Sourced by AzarPixel, the NovaStar A5s Plus Receiving Card is a versatile, small-size receiving card engineered to enhance display performance for LED screens. For modules with PWM driver ICs, it supports resolutions up to 512 × 384 @ 60Hz for 8-bit video sources and 256 × 384 @ 60Hz for 10- and 12-bit video sources. For common driver ICs, it supports 384 × 384 @ 60Hz (8-bit) and 192 × 384 @ 60Hz (10- and 12-bit).
The NovaStar A5s Plus supports 3D functionality, quick correction of dark or bright lines, seam correction using mobile phones, pixel-level brightness and chroma calibration, and 90° image rotation. Additionally, its low latency of as little as 1 frame, RGB Individual Gamma Adjustment, Color Management, and 18-bit+ grayscale provide precise image processing and consistent visual performance.

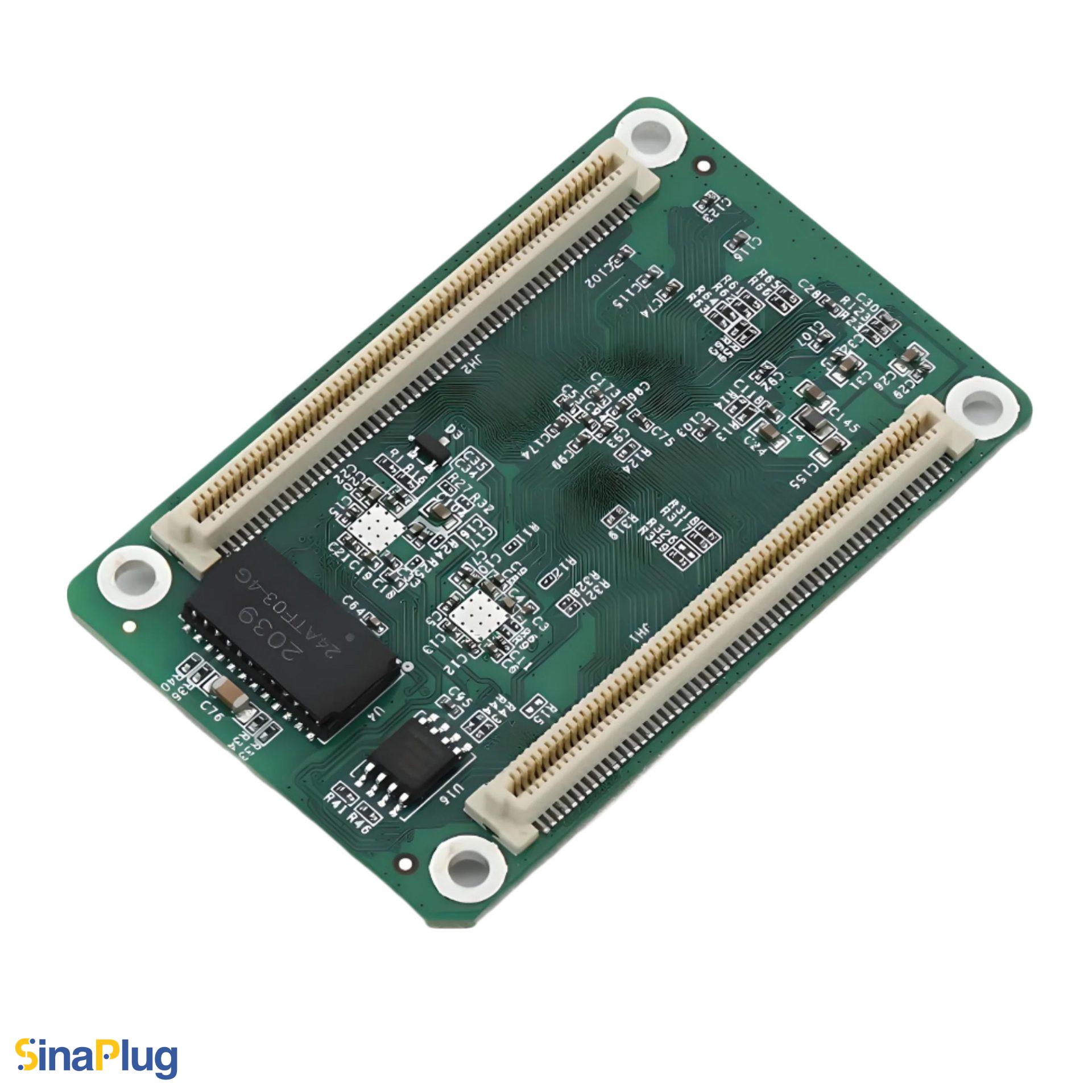

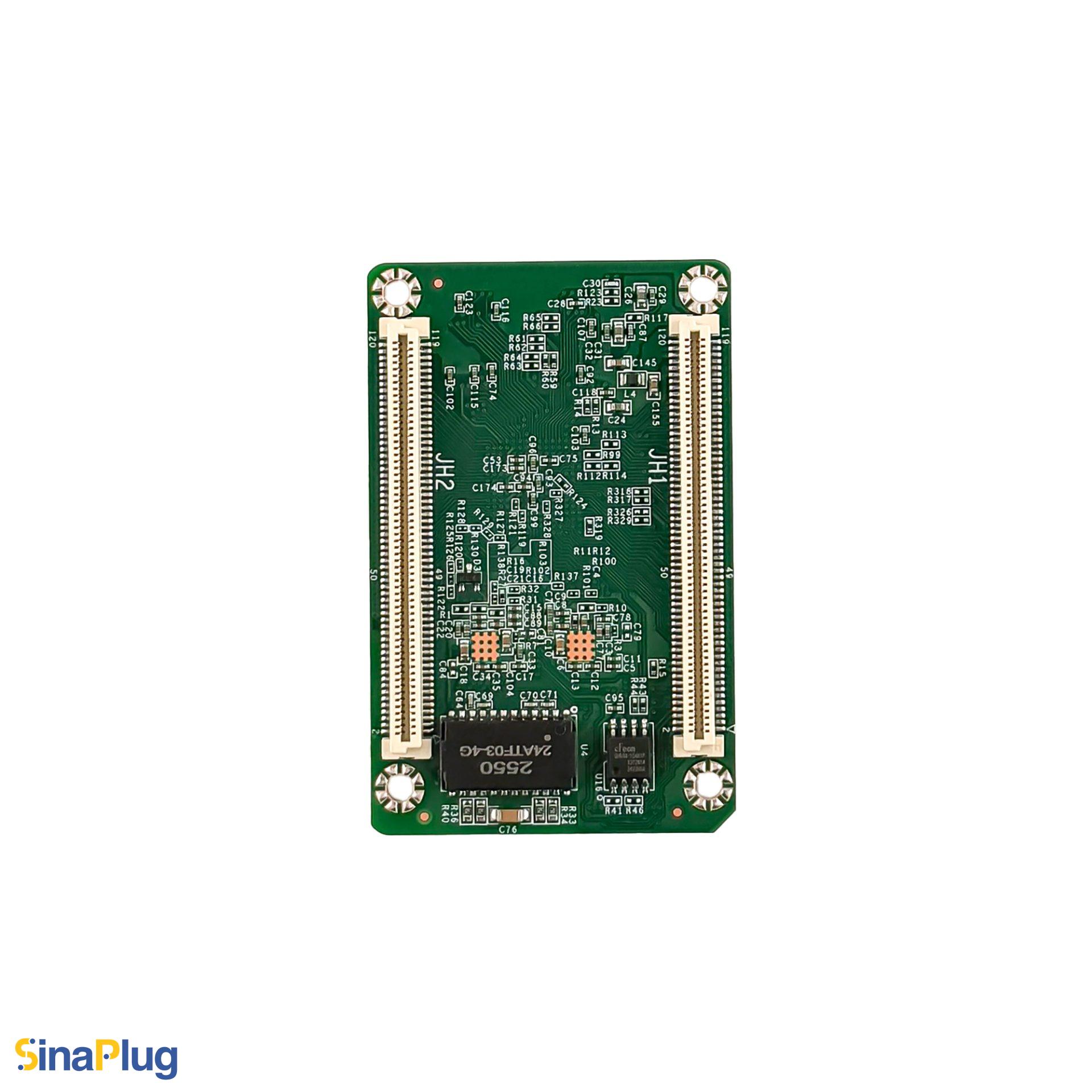

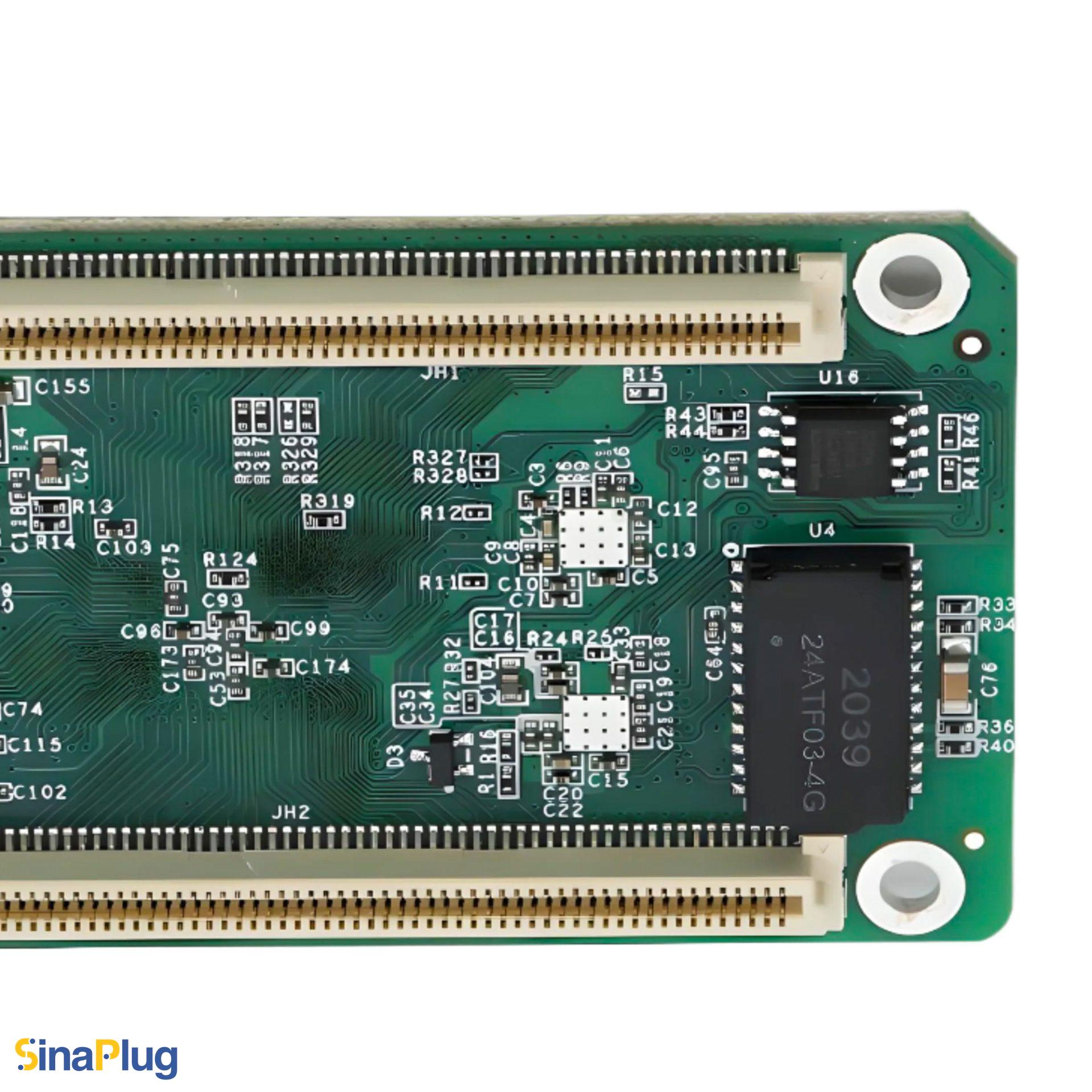

Instead of common RJ45 Ethernet ports and IDC connectors functioning as the input and output interfaces, the NovaStar A5s Plus utilizes high-density board-to-board connectors to minimize the effects of dust and vibration and provide stable communication. In addition to reserved pins available for custom functions, it provides up to 64 groups of serial data, with expansion to 128 groups, or 32 groups of parallel RGB data.
Being RoHS certified and compliant with EMC Class B standards, the NovaStar A5s Plus provides electromagnetic compatibility and meets applicable environmental compliance requirements.
Designed for durability, the A5s Plus operates within a temperature range of -20°C to +70°C. It operates with an input voltage range of DC 3.8 V to 5.5 V and consumes a rated power of 3.0 W. Its maintenance features include smart module support, automatic module calibration, and quick uploading of calibration coefficients. These features make the NovaStar A5s Plus suitable for LED display applications such as retail signage, public displays, commercial LED screens, and other installations requiring consistent image quality.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar A5s Plus Receiving Card
Input
- 1× Gigabit Ethernet board-to-board (to Hub/Adapter board) connector
Output
- 32× sets of RGB parallel data or 64× groups of serial data (expandable to 128 groups of serial data)
- 1× Gigabit Ethernet board-to-board (to Hub/Adapter board) connector
Performance
- 512 × 384 @ 60 Hz (8-bit video, PWM driver ICs)
- 256 × 384 @ 60 Hz (10/12-bit video, PWM driver ICs)
- 384 × 384 @ 60 Hz (8-bit video, common driver ICs)
- 192 × 384 @ 60 Hz (10/12-bit video, common driver ICs)
- Color Management (Rec.709, DCI-P3, Rec.2020, Custom)
- 18-bit+ grayscale enhancement
- Seam Correction with Mobile Phones
- Pixel-level brightness and chromaticity calibration
- Low Latency (1 frame for PWM driver ICs)
- Supports 3D function
- RGB Individual Gamma Adjustment
- Quick adjustment of dark or bright lines
- Image rotation in 90° increments
Reliability
- Dual card backup (redundancy support) and primary/backup status monitoring
- In-line loop backup
- Double backup of configuration parameters
- Dual program backup
Maintainability
- Smart module
- Automatic module calibration
- Module Flash management
- One-click application of calibration coefficients in Module Flash
- Fast upload of calibration coefficients
- Status detection of dual power supplies
- Mapping 1.1
- Pre-saved screen settings
- Temperature and voltage monitoring
- Cabinet LCD
- Bit error detection
- Firmware program readback
- Configuration parameter readback
Dimensions (L*W*H)
- 70.0mm * 45.0mm * 8.3mm
| Weight | 0.04 lbs |
|---|---|
| Dimensions | 5.71 × 3.54 × 0.59 in |
| Max PWM IC Pixel Capacity | 512×384 |
| Max Common IC Pixel Capacity | 384×384 |
| Output Interface (QTY) | 1 |
| Max Parallel RGB Data Groups | 32 |
| Max Serial RGB Data Groups | 64 |
| Expandable Up To | 128 |
| Supported Video Source Bit Depth | 8bit, 10bit, 12bit |
| Brightness and Chroma Calibration | Supported |
| 90° Image Rotation | Supported |
| Loop Backup | Supported |
| Bit Error Detection | Supported |
| Dual Configuration Parameters Backup | Supported |
| Firmware Redundancy and Readback | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 3W |
| Working Temperature Range | -20 to +70 °C |
| Standard Certification | EMC Class B, RoHS |
| Others | 18bit+ grayscale enhancement, Color Management, Fast upload of calibration coefficients, Low Latency (1 frame for PWM driver ICs), Module Flash management, Pixel Level brightness and chroma calibration, Pre-saved screen settings”, RGB Individual gamma adjustment, Seam Correction with Mobile Phones, Supports temperature, voltage, and cabinet LCD monitoring |
