A8s Receiving Card
$55.45
30 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

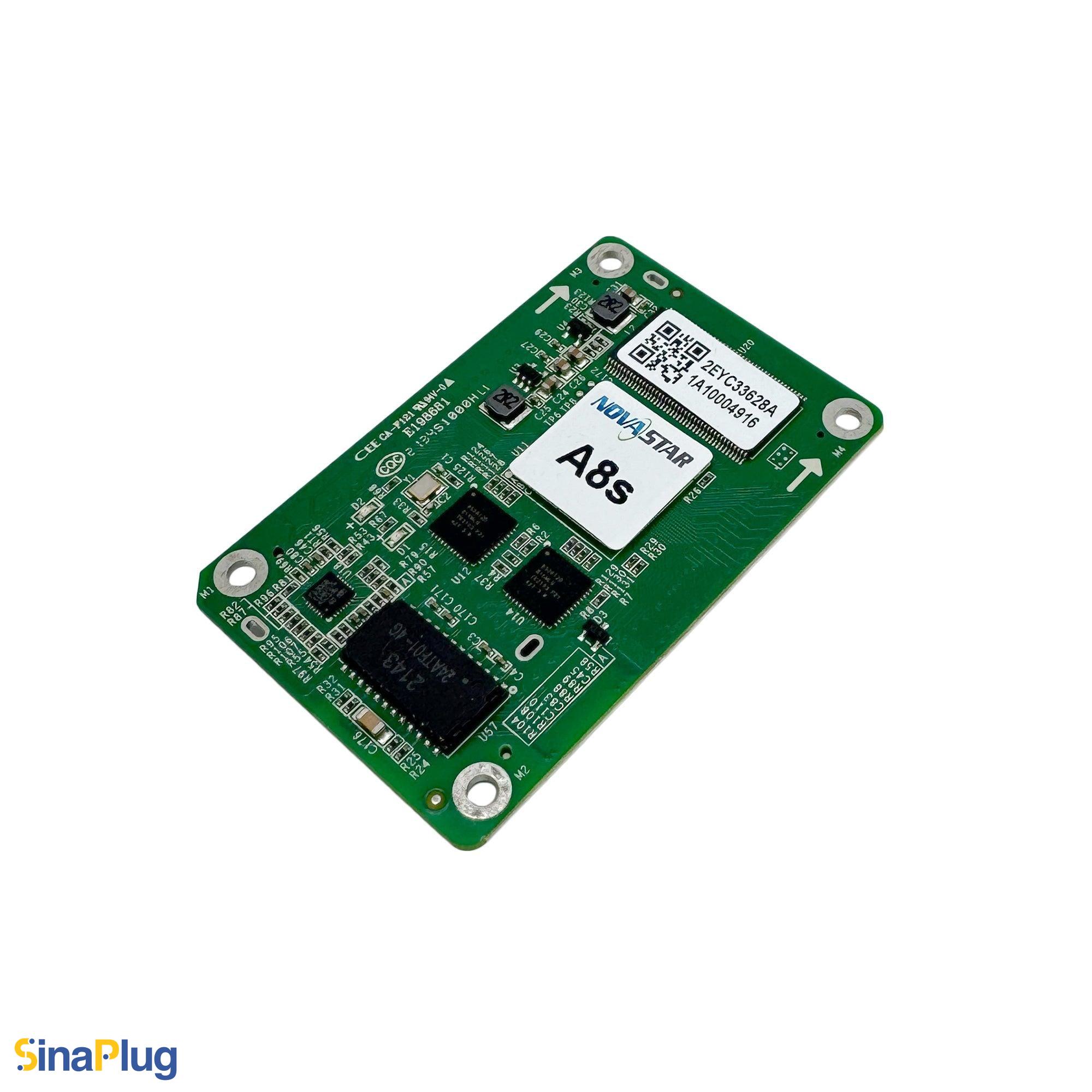

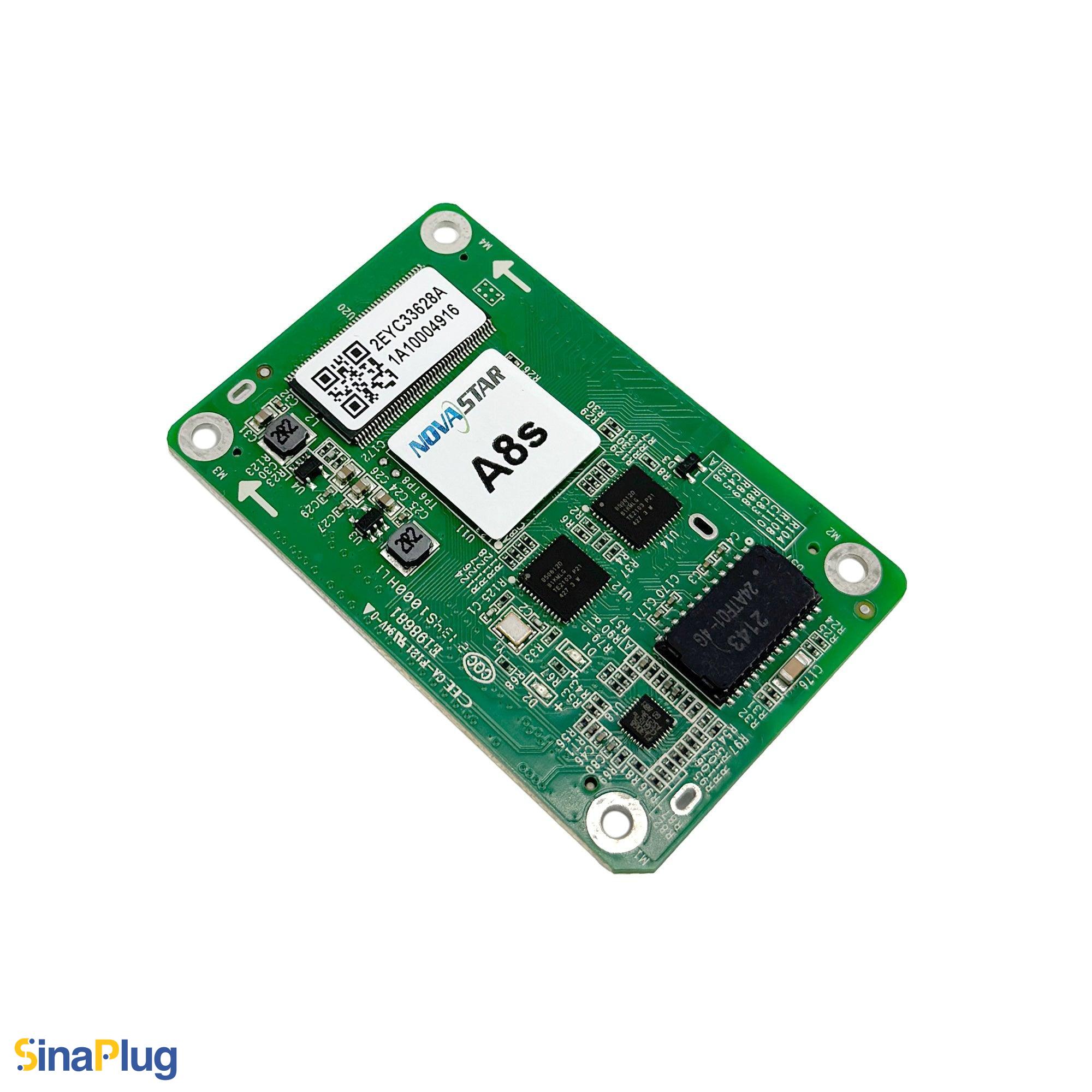

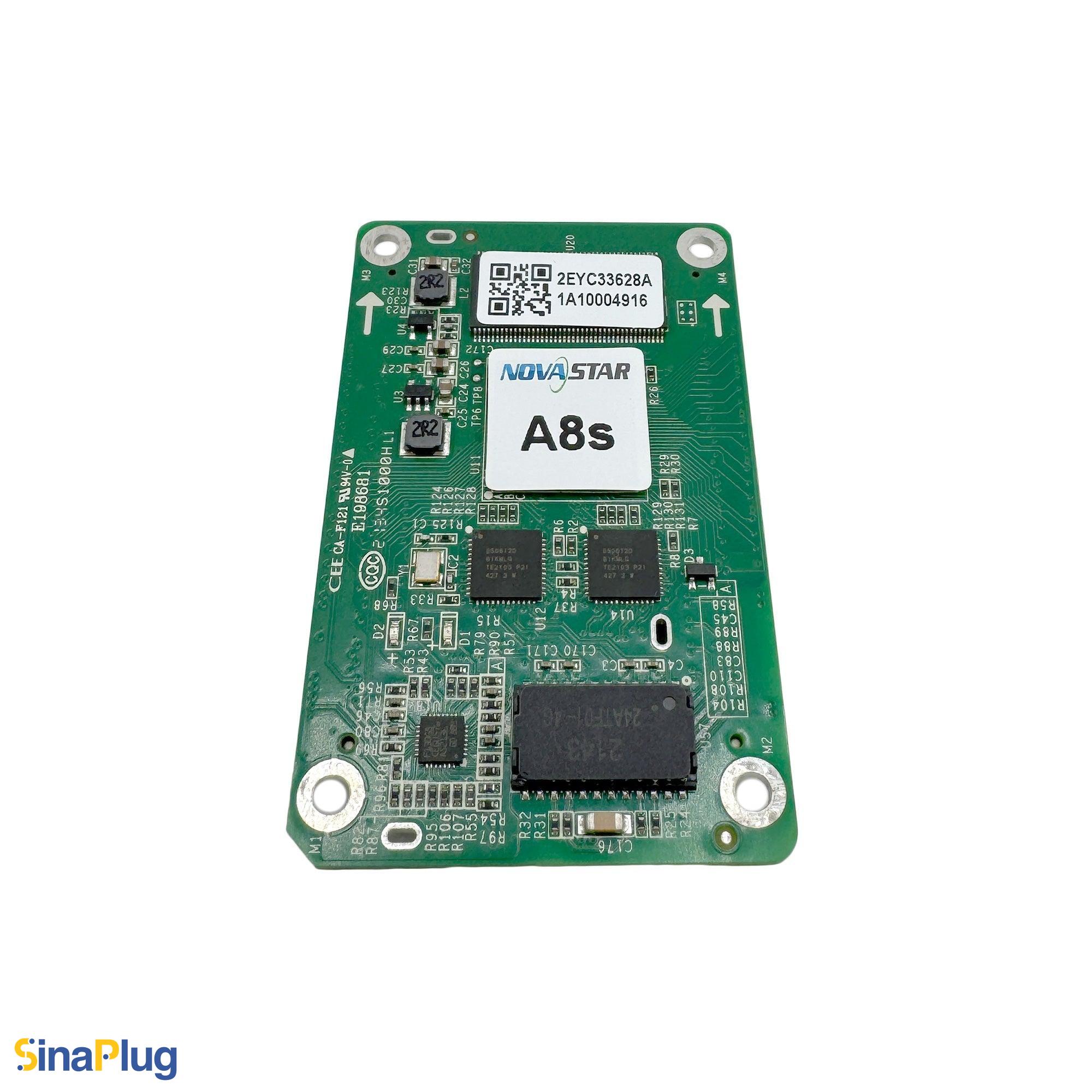

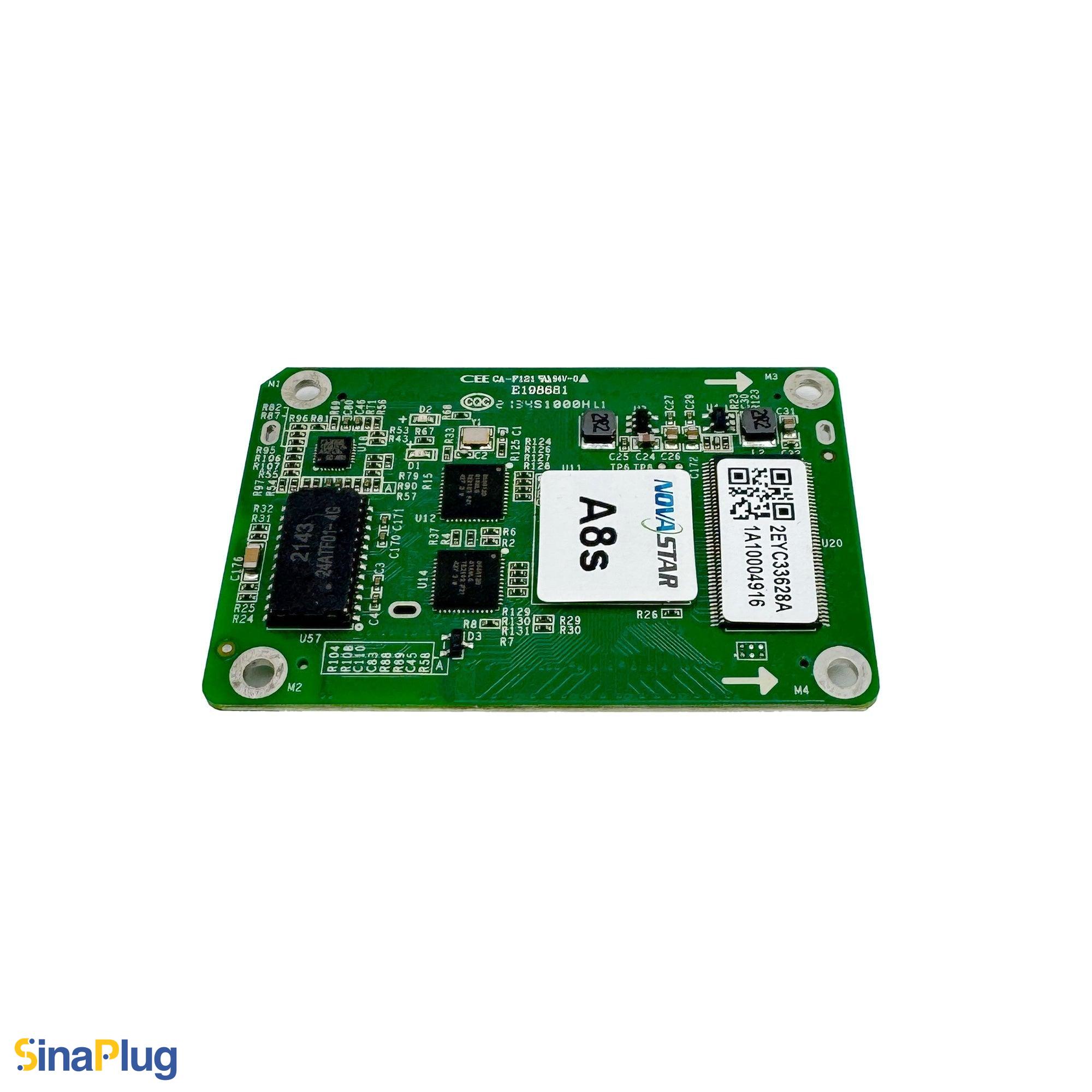

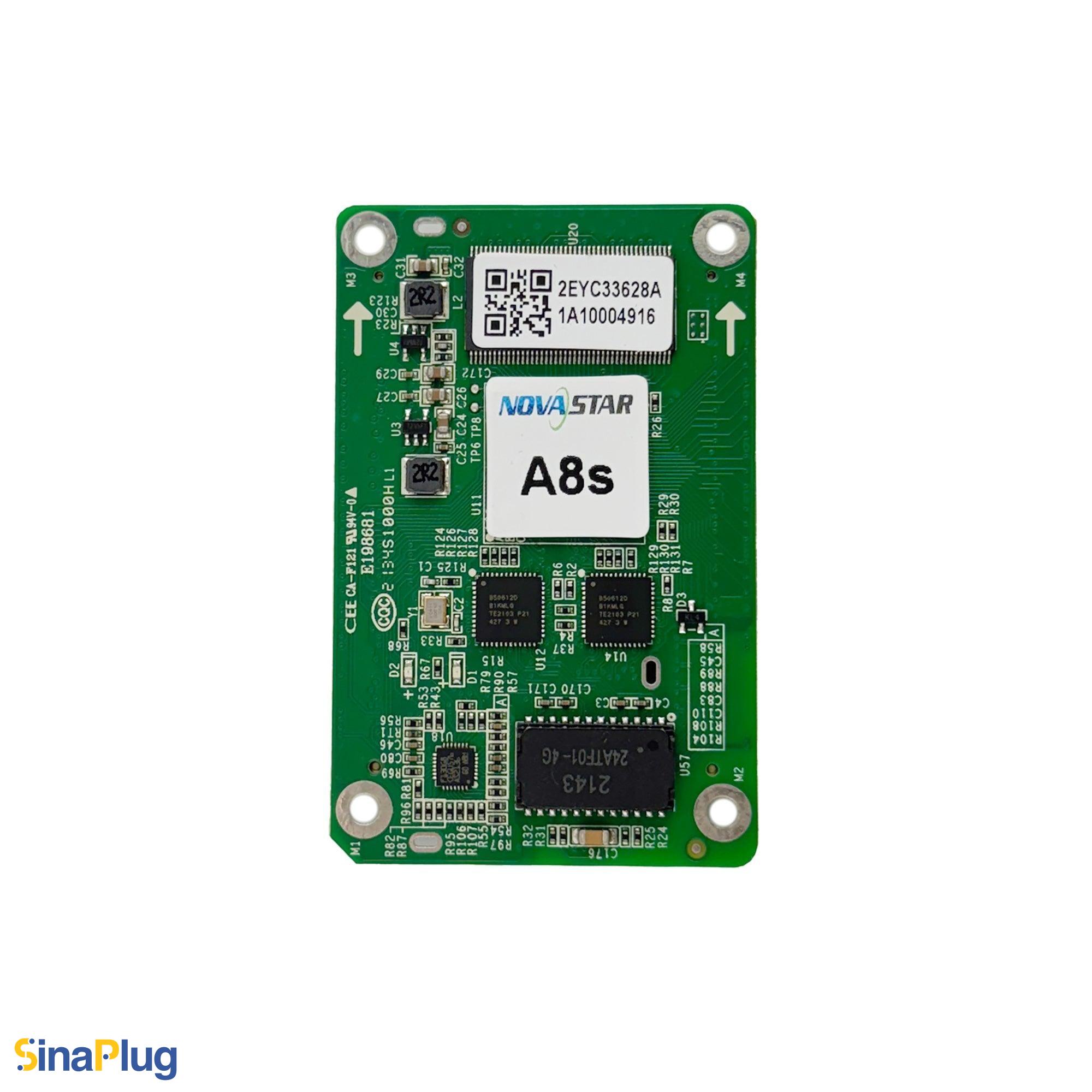

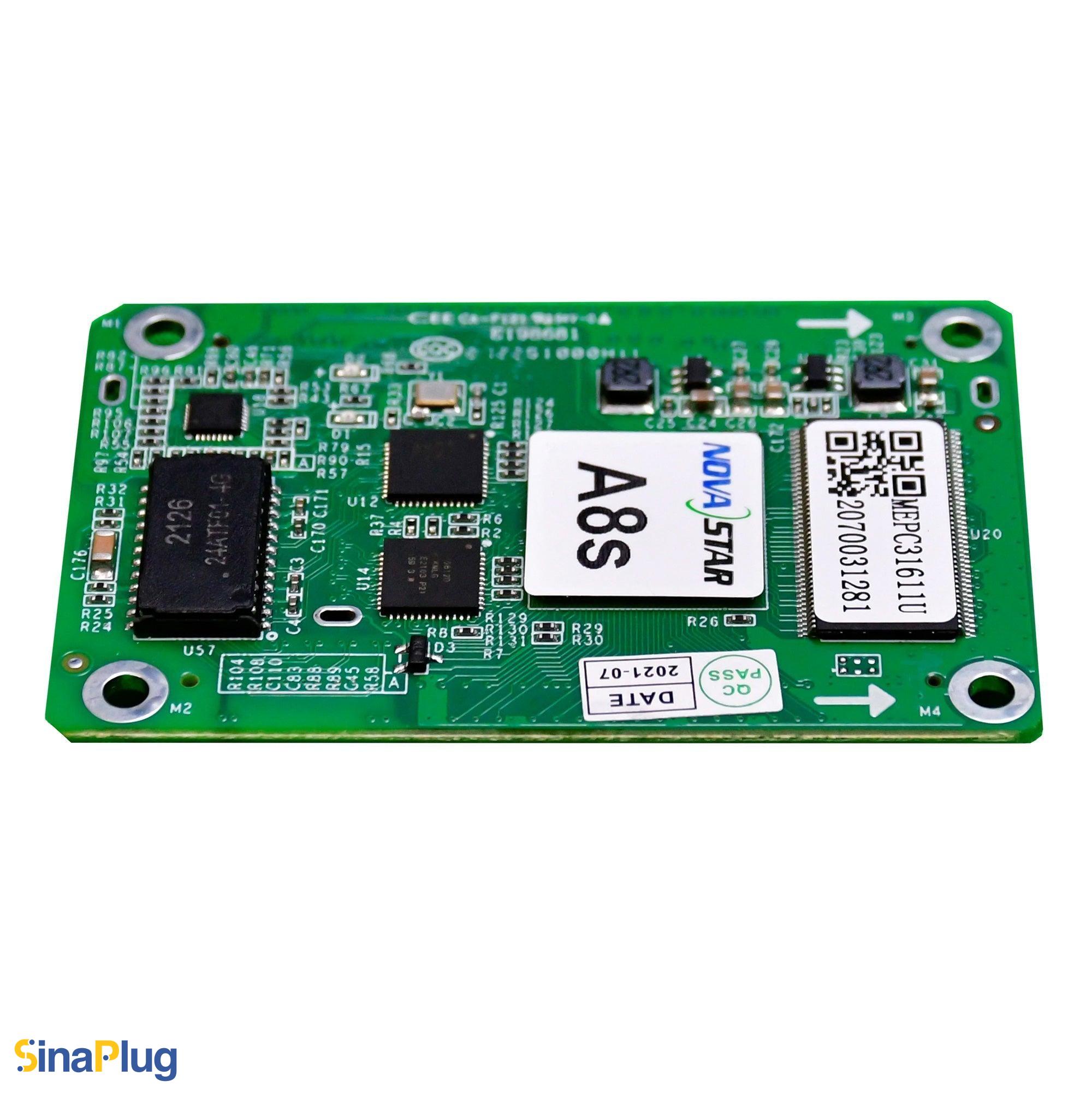

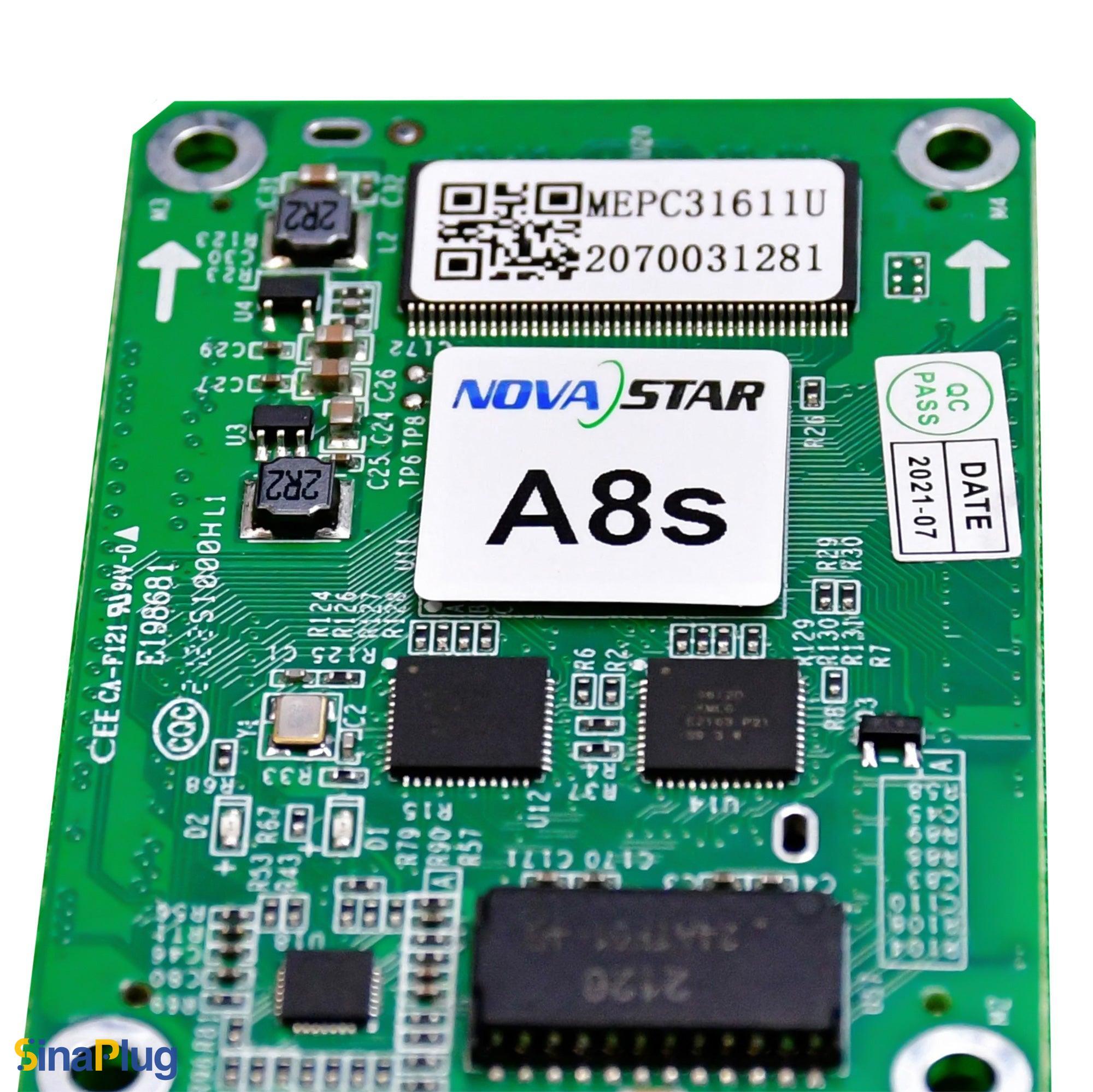

Trusted by professionals and offered by Azar Pixel; The NovaStar A8s Receiving Card is a high-end, fully equipped, compact receiving card designed to deliver exceptional performance and reliability for LED display systems, that’s what makes this receiving card a top choice for LED industry expert users.
Supporting resolutions of up to 512×384 pixels @60Hz (for modules driven by PWM ICs) or 384×384 pixels @60Hz (with conventional driver ICs), it gains the NovaStar’s exclusive Image Booster technology to optimize color gamut, grayscale (22bit+), and image quality. This technology enables precise grayscale correction (16bit level correction), brightness and chromaticity calibration of each single pixel, Independent 3-color (Red/Green/Blue) gamma adjustment, and advanced features such as easy splicing dark or bright lines adjustment, HDR (HDR10 and HLG), low latency, 3D functionality, and free image rotation at any angles. These innovations ensure smooth, lifelike visuals with consistent brightness and color uniformity.

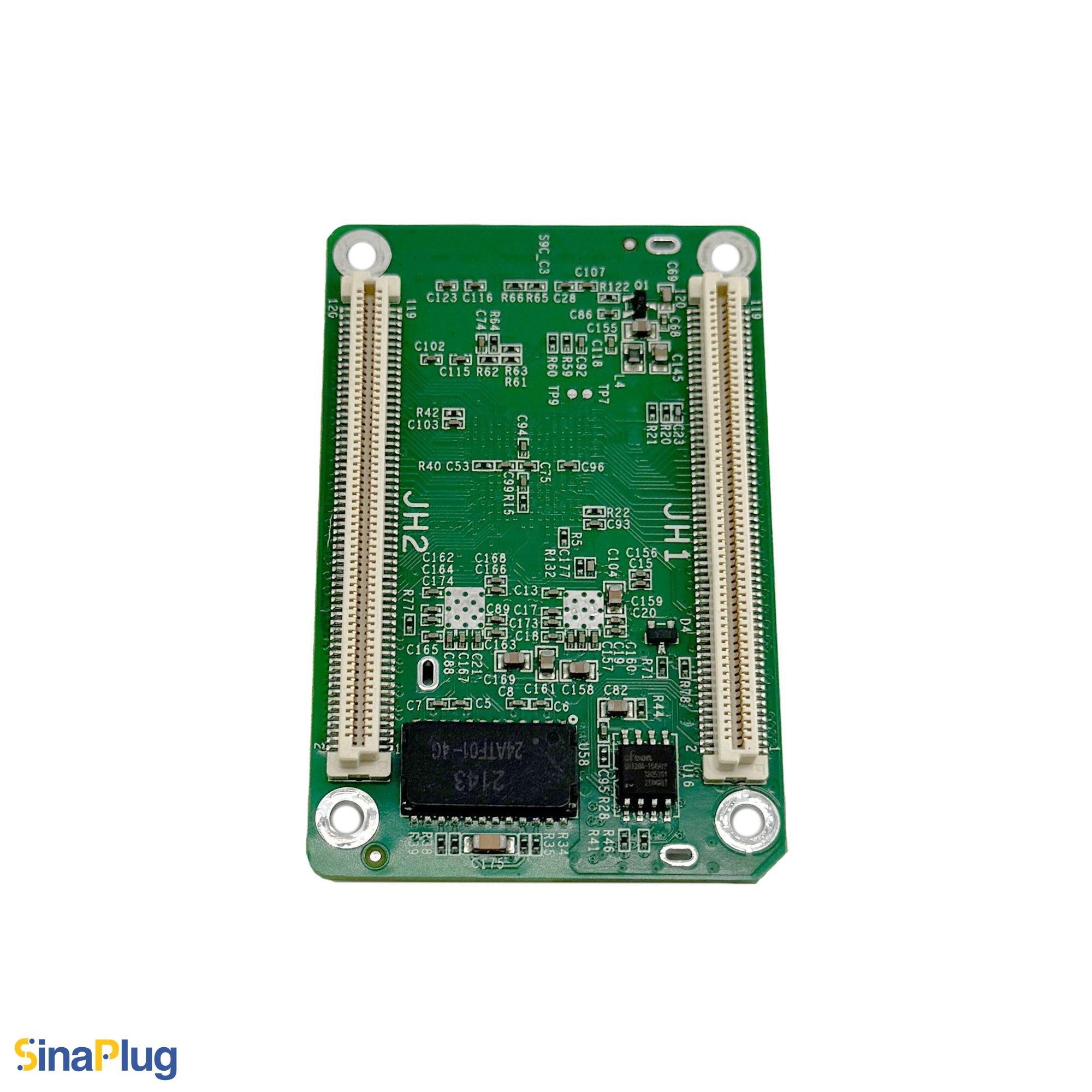

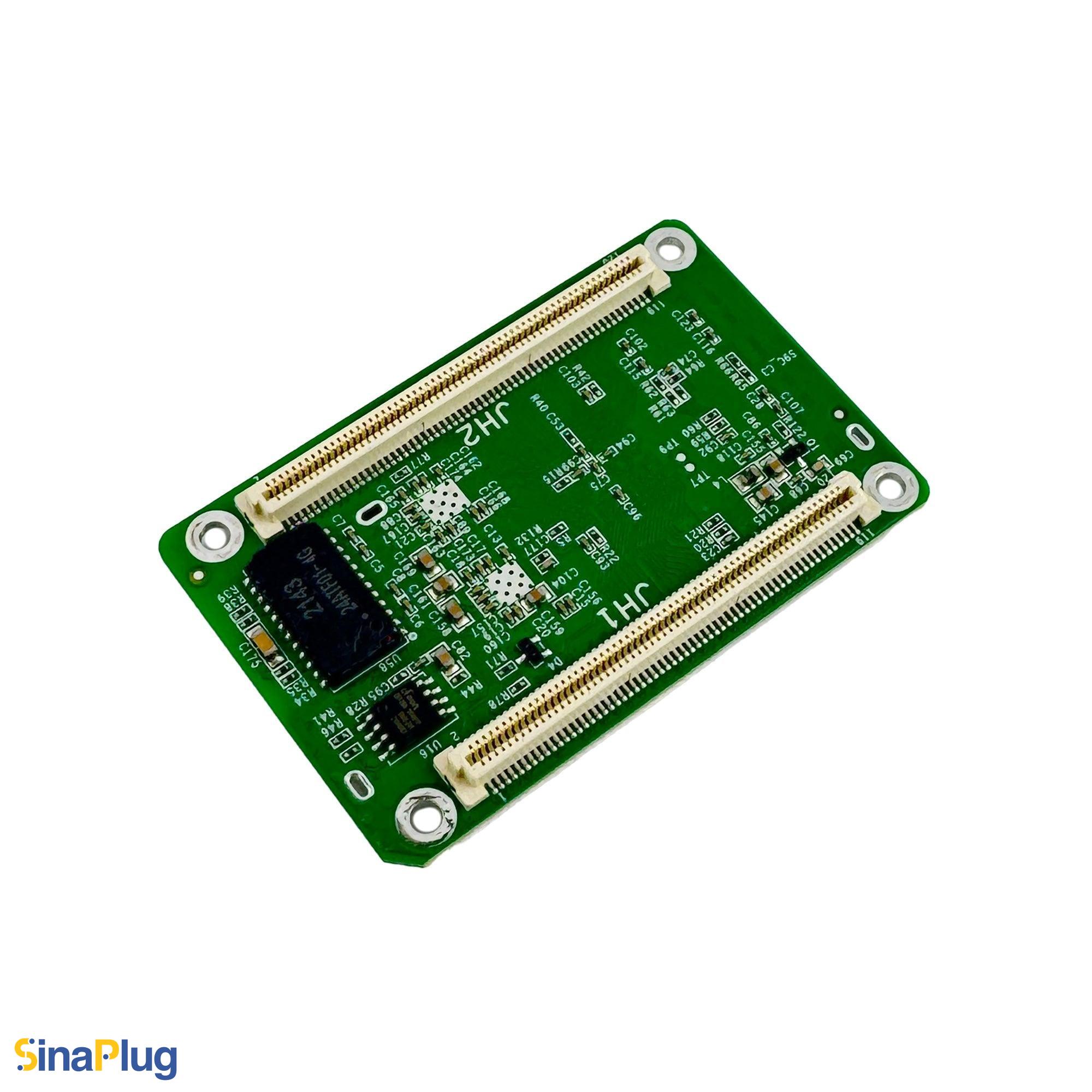

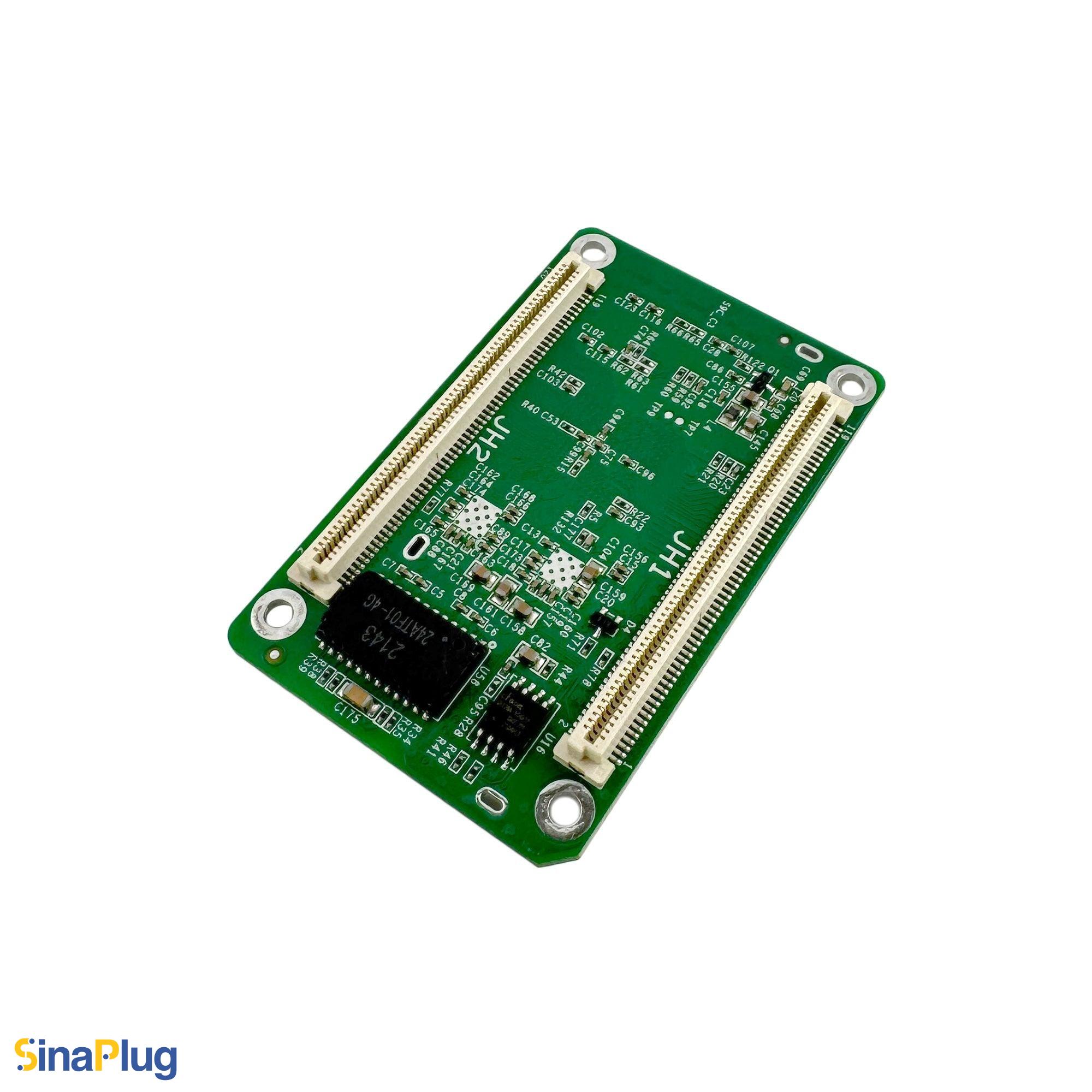

This high-demand product engineered with high-density connectors to minimize the effects of dust and vibration, ensuring robust communication stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups) while maintaining compliance with EMC Class B standards for electromagnetic compatibility. Certified for RoHS compliance, this incredible card is environmentally friendly and adheres to stringent industry standards.
Designed for versatility and durability, the novastar A8s operates across a wide temperature range of -20°C to +70°C, making it suitable for challenging environments. With an input voltage range of DC 3.8 V to 5.5 V and a rated power consumption of 3.0 W, it ensures efficient power usage without compromising performance.
Its advanced maintainability features include automatic module calibration, real-time monitoring of temperature and voltage (even without any additional devices), complete set of hardware and software protections (card and loop backup, program and firmware backup) for uninterrupted operation. These capabilities make this NovaStar LED controlling unit an ideal solution for outdoor advertising displays, public information boards, chain store displays, and other high-performance commercial installations demanding reliability and visual excellence.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar A8s Receiving Card
Loading Capacity
- 512×384 pixels @60Hz (Modules with PWM ICs)
Input
- 1x Gigabit Ethernet Port (Board-to-Hub)
Output
- 32x groups of RGB parallel data or 64x groups of serial data (expandable to 128 groups)
Performance
- Immediate adjustment of dark or bright lines
- Independent gamma adjustment for RGB
- Pixel Level brightness and chromaticity calibration
- HDR support (HDR10 and HLG)
- 3D function Supports
- Image rotation in 90° increments
- With MCTRL R5 free rotation is supported
- Low latency (as low as one frame for PWM driver ICs)
Maintainability
- Mapping 1.1 function
- Bit error detection
- Smart module (dedicated firmware required)
- Automatic module calibration
- Module Flash management
- One Click calibration coefficients in module Flash
- Fast upload of calibration coefficients
- Pre-stored image support
- Temperature and voltage monitoring
- Cabinet LCD compatibility
- Dual power supplies status detection
Reliability
- Redundant card support (Both cards working status monitoring)
- Loop Line backup (cards and controller)
- Configuration parameters backup (2x copies stored)
- Calibration coefficients backup (2x copies stored)
- Program firmware backup (2x copies stored)
Dimensions (L*W*H)
- 70.0mm * 45.0mm * 8.2mm
| Weight | 0.04 lbs |
|---|---|
| Dimensions | 5.12 × 3.54 × 0.39 in |
| Max PWM IC Pixel Capacity | 512×384 |
| Max Common IC Pixel Capacity | 384×384 |
| Output Interface (Type) | High density Connectors |
| Output Interface (QTY) | 1 |
| Max Parallel RGB Data Groups | 32 |
| Max Serial RGB Data Groups | 64 |
| Expandable Up To | 128 |
| HDR Function | Supported |
| 90° Image Rotation | Supported |
| Loop Backup | Supported |
| Bit Error Detection | Supported |
| Dual Configuration Parameters Backup | Supported |
| Firmware Redundancy and Readback | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 3W |
| Working Temperature Range | -20 °C to +70 °C |
| Standard Certification | EMC Class B, RoHS |
| Others | Automatic module calibration uploading of module calibration coefficients, Fast upload of calibration coefficients, HDR10 and HLG support, Low latency (as low as one frame for PWM driver ICs), Module Flash management, Pre-stored image support, Redundant card support (Both cards working status monitoring), Smart module (dedicated firmware required), Supports temperature, voltage, and cabinet LCD monitoring |
