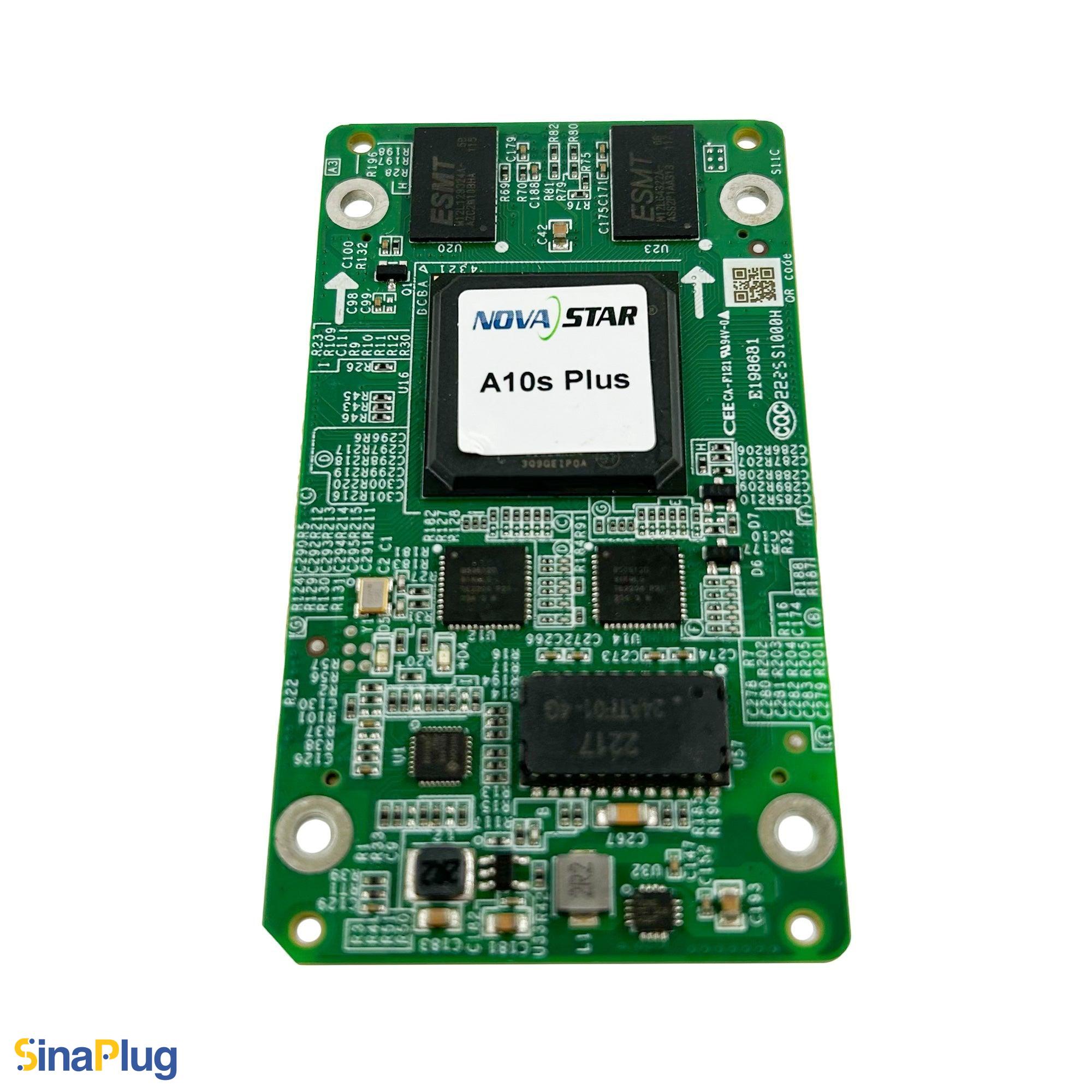

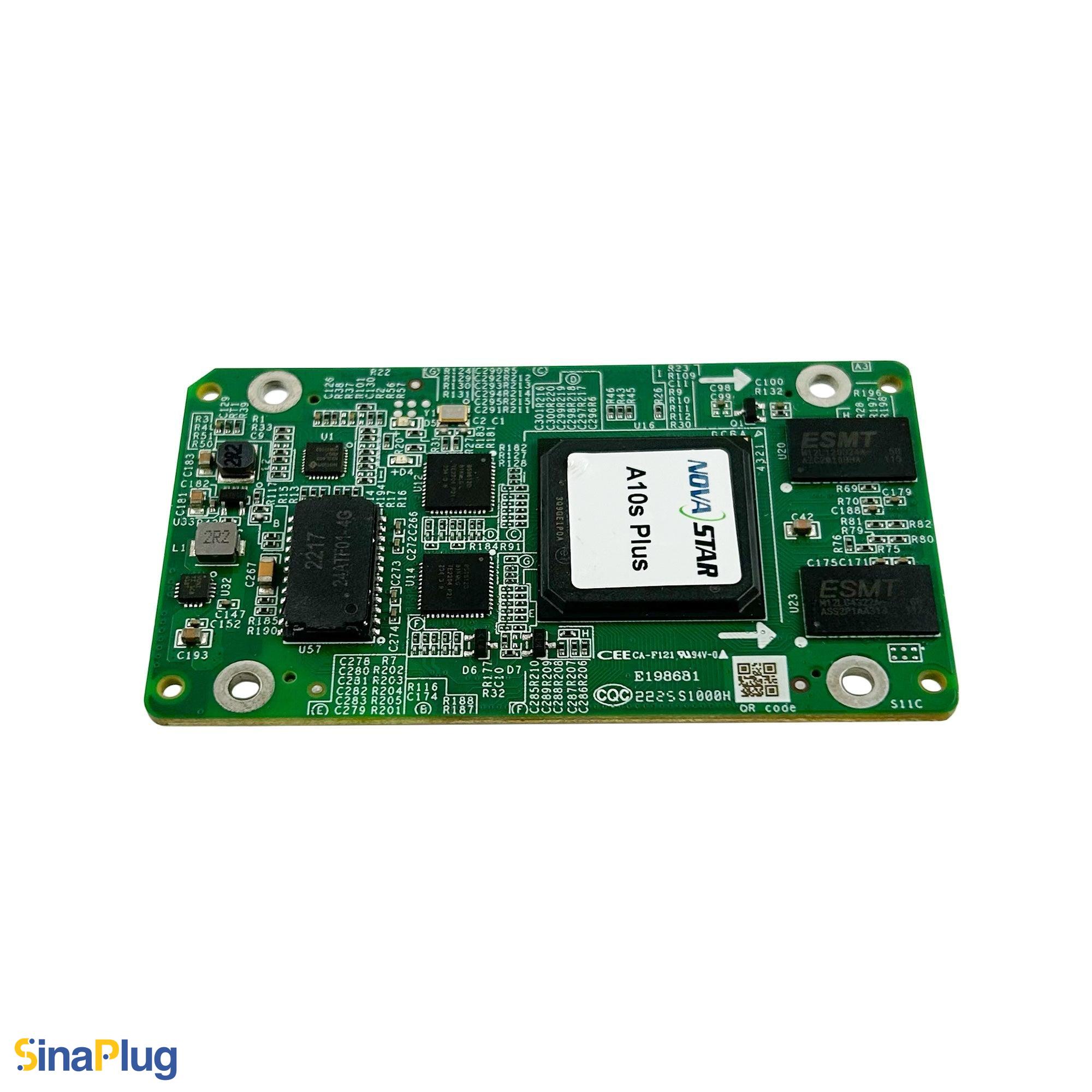

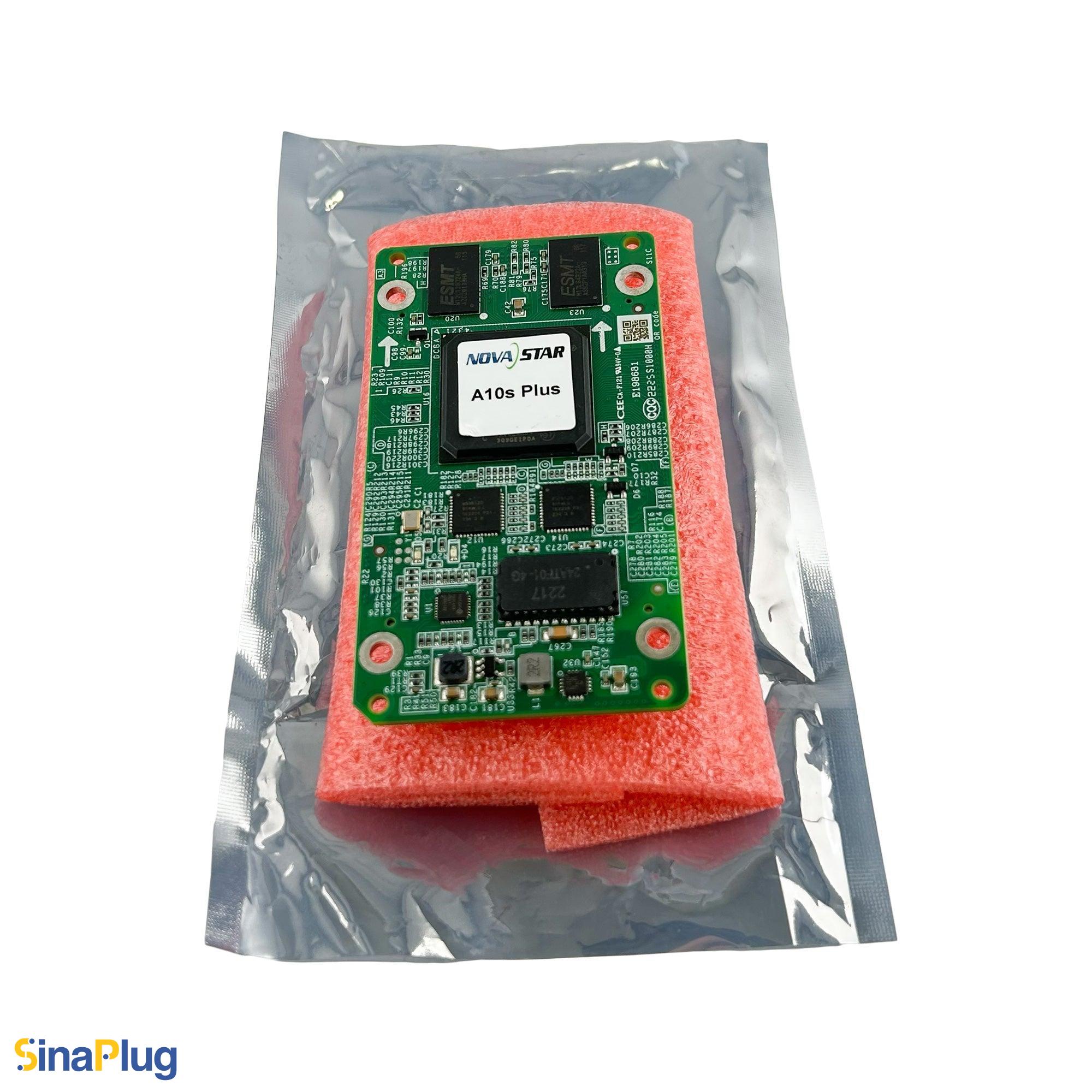

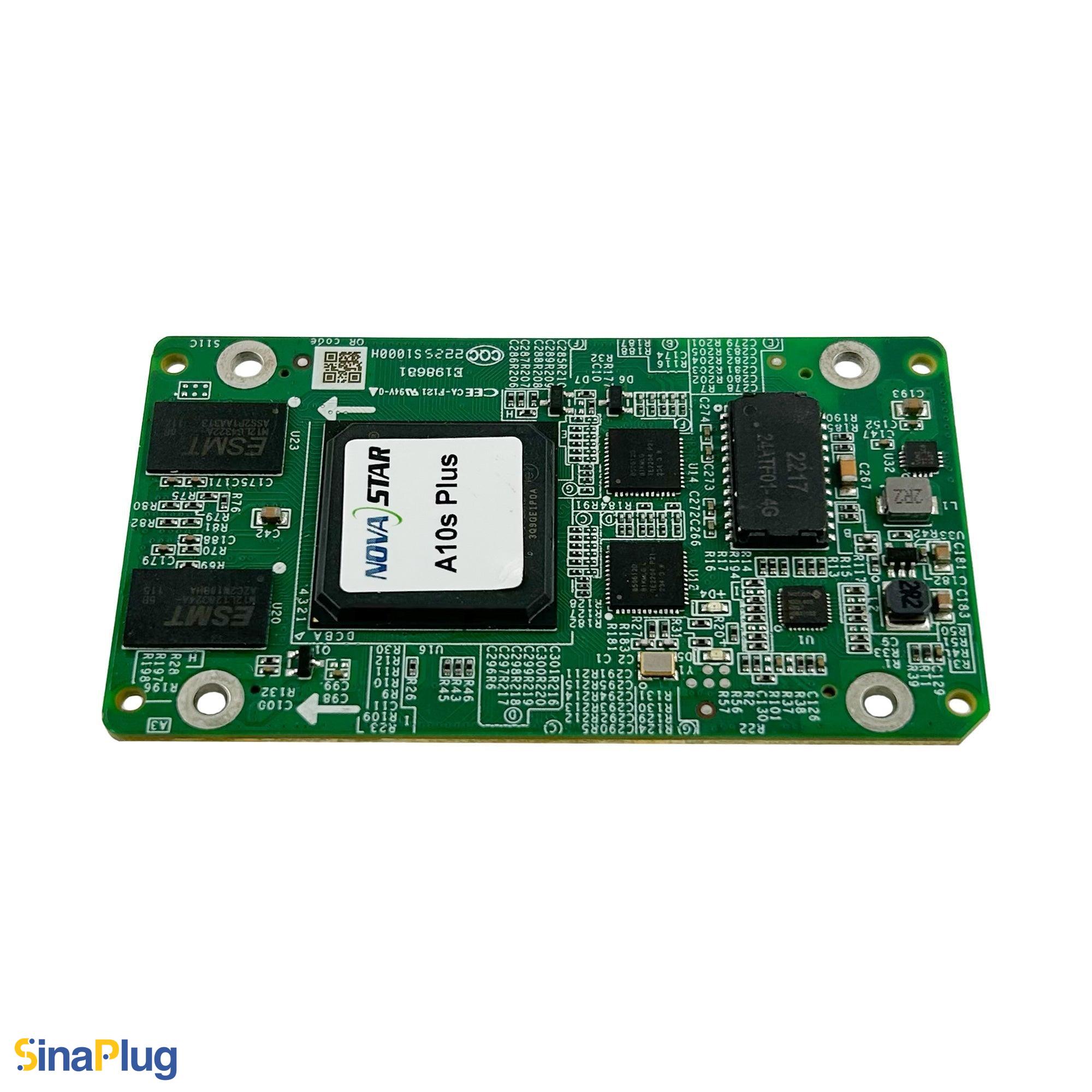

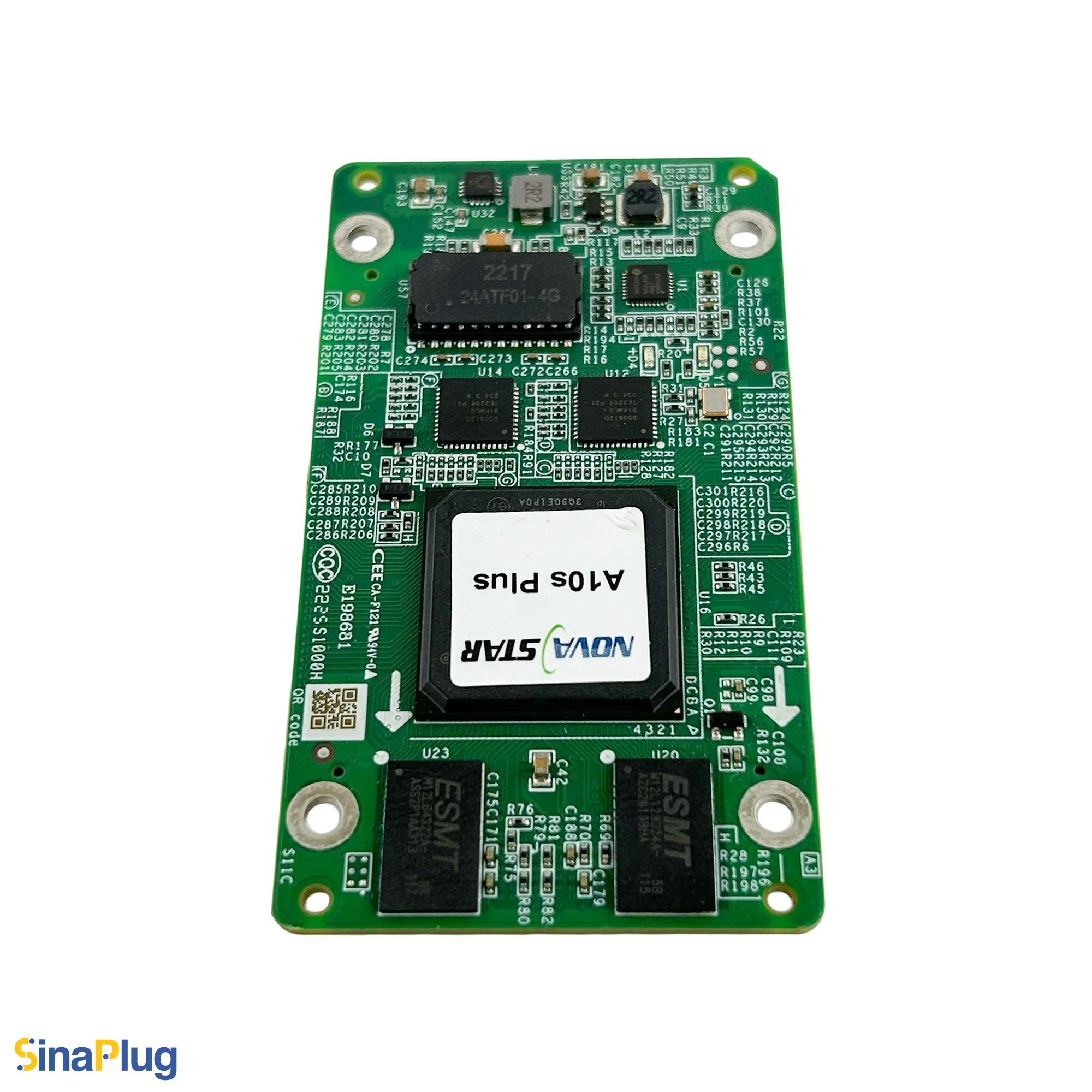

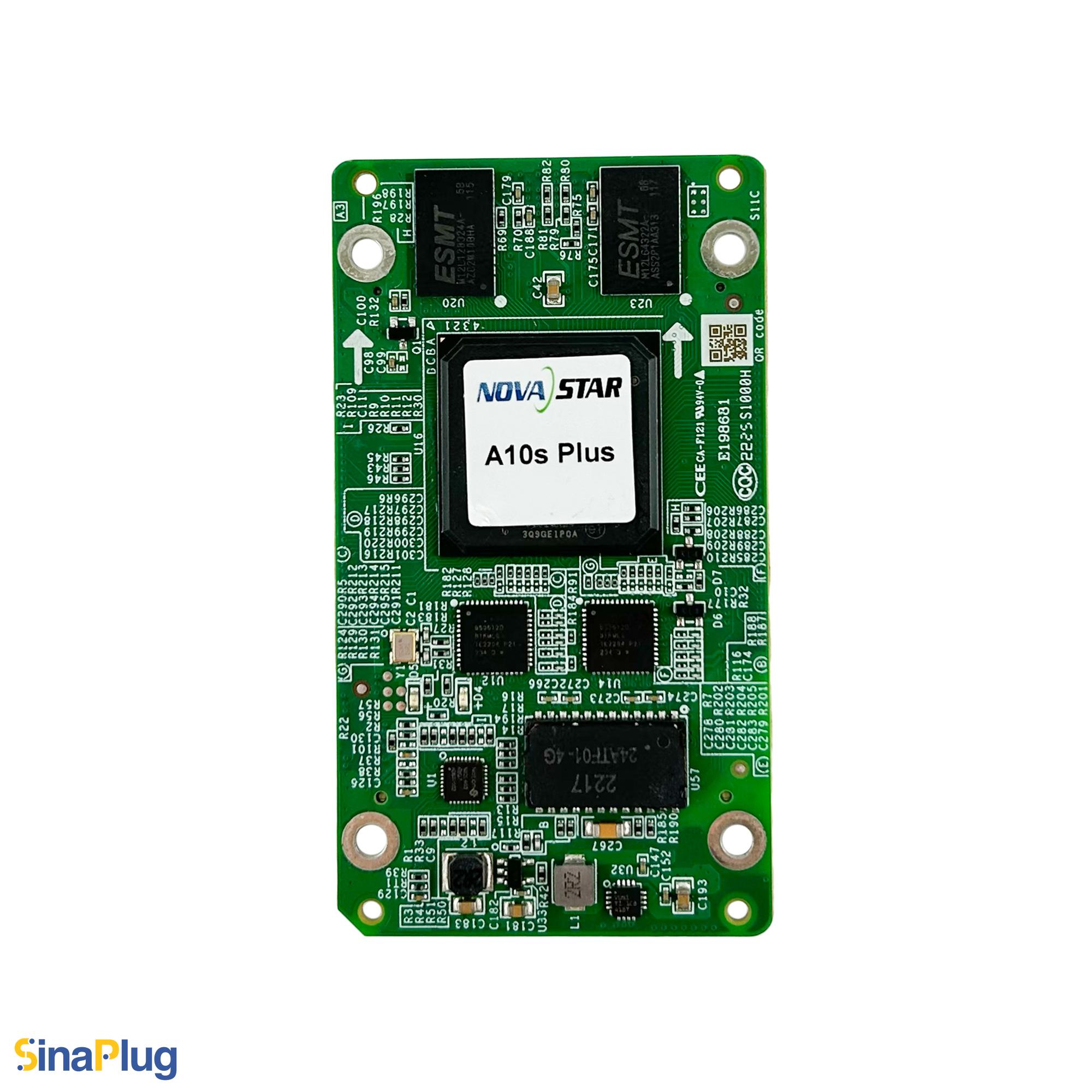

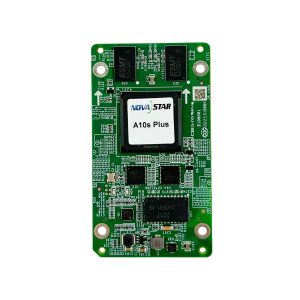

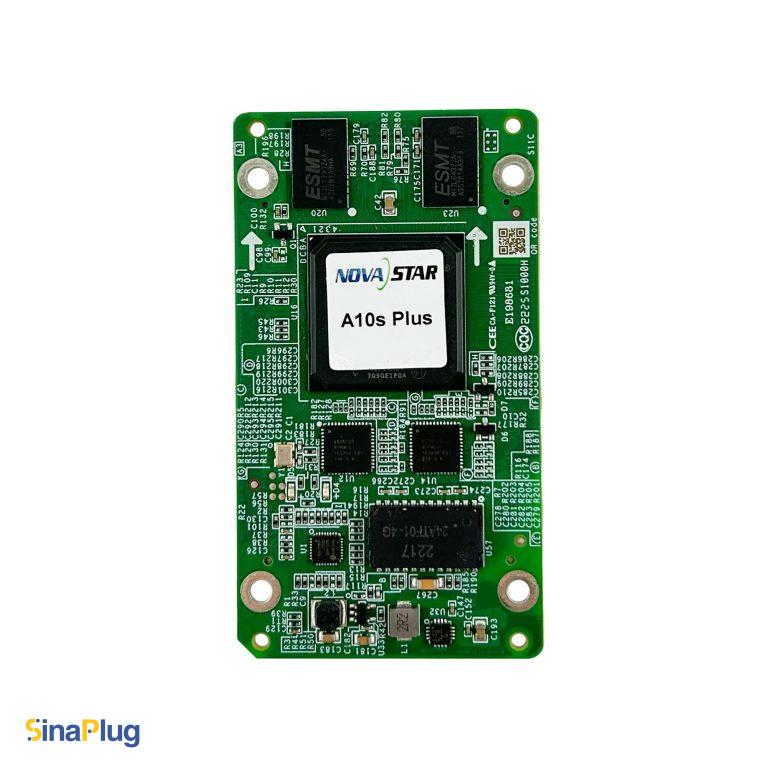

A10s Plus Receiving Card

Achieve a precise, eye-catching LED display with A10s Plus, supplied by AzarPixel. This advanced receiving card (like its family: A10s Pro and A10s Plus-N) is designed for professional LED displays, ensuring extraordinary image quality and reliability. Its high stability makes it suitable for any construction on site.

The product will still run at its peak even at temperatures ranging from -20°C to +70°C and loads resolutions up to 512×512@60Hz. It meets the requirements for environmental issues and electromagnetic compatibility on the international scale thanks to its RoHS certification and EMC Class B compliant standards.

NovaStar’s Image Booster Engine delivers Color Management, 16-Bit grayscale optimization, RGB Individual Gamma Adjustment, and 64x grayscale improvement for 22-bit+ displays. Additionally, this card provides 3D functionality, low latency, multiple 90-degree image rotations, pixel-level brightness and Chroma calibration, enabling users to create a clear and precise visual experience.

This unmatched card supports HDR10 and HLG video sources and works seamlessly with controllers that support HDR functionality, like MCTRL4K and MX30 to provide lifelike visuals.

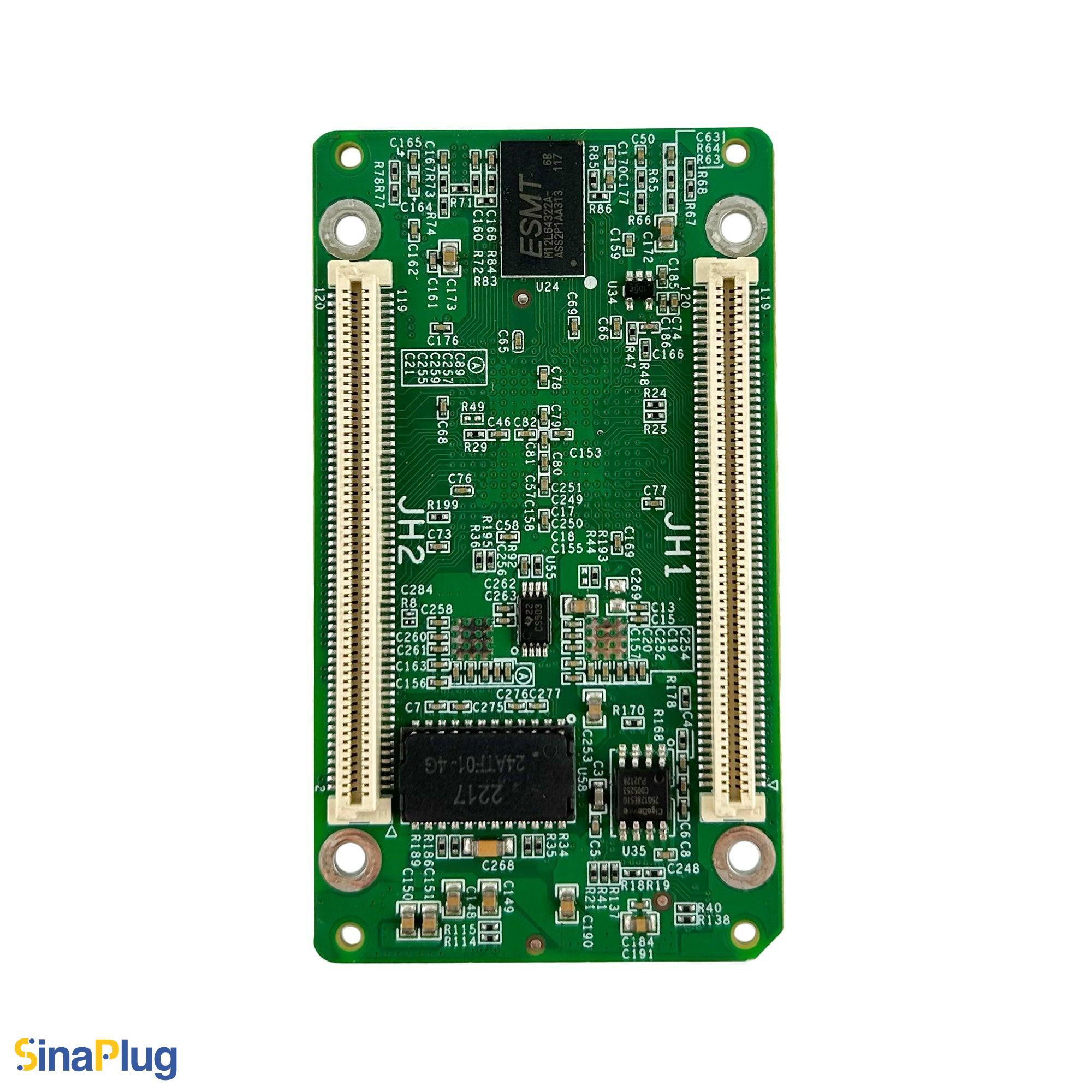

This card supports 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups) via its high-density board-to-board connectors instead of using RJ45 Ethernet ports and IDC connectors, which minimize the effects of dust and vibration on signal transmission. Additionally, its LVDS transmission features significantly reduces data cabling, enhances transmission quality and improves electromagnetic compatibility, providing flexibility within a big-scale project.

In addition to card redundancy and Loop backup, the A10s Plus features dual-card backup of its program, configuration, and calibration parameters to prevent failures and ensure a consistent user experience. The device has an input voltage range of 3.3 to 5.5 VDC and consumes a rated power of 2.5 W.

Its maintenance features include automatic module calibration, and temperature/voltage monitoring, which makes it suitable for the most demanding LED display applications.
