Taurus T60 Control Card
$500.10
7 in stock
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
Here we present to you T60 LED display control card by Azar Pixel, which is specifically designed for all system builders, integrators, and everyone who needs a high-performance, compact control card to help them customize their installations.

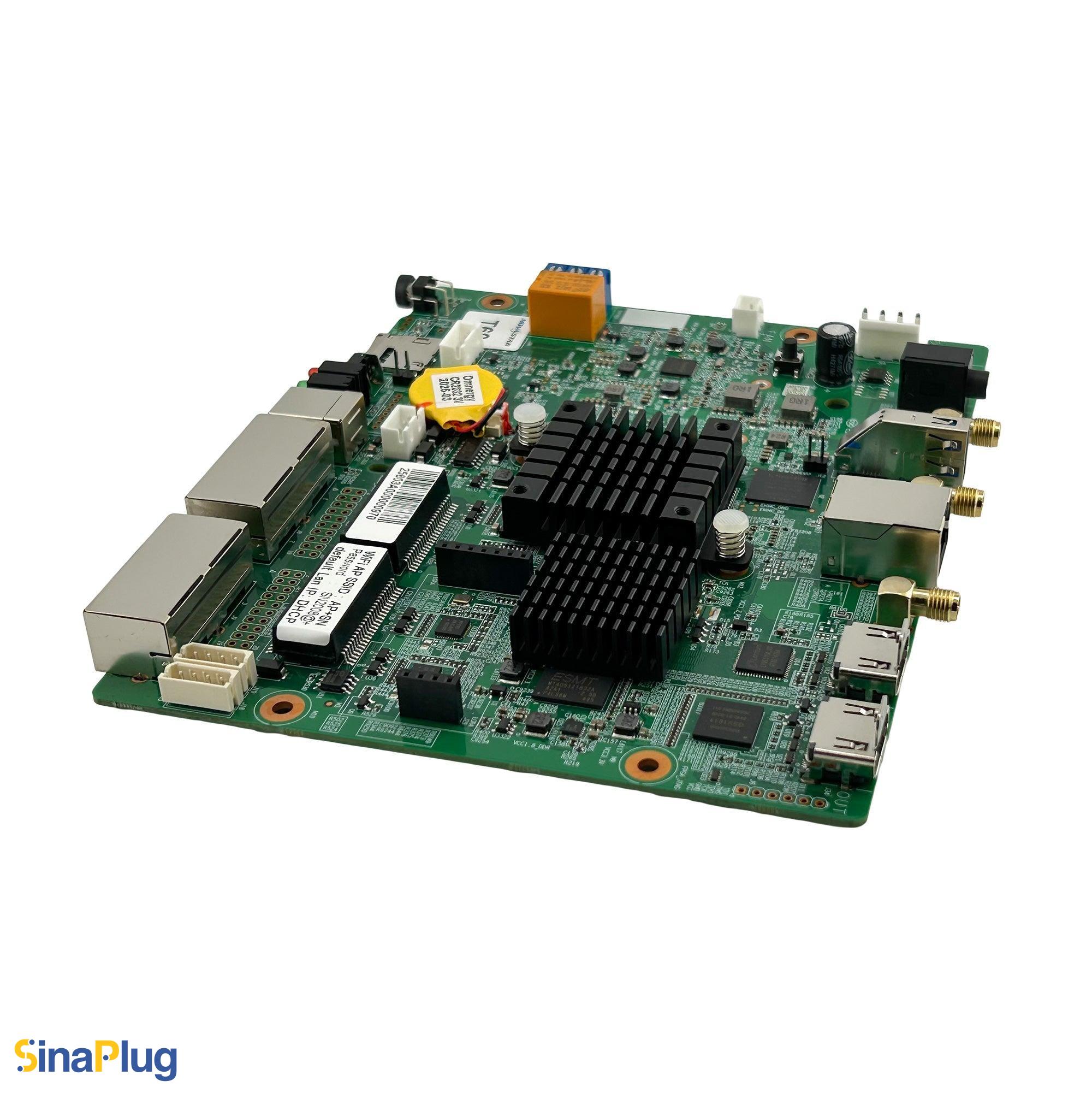

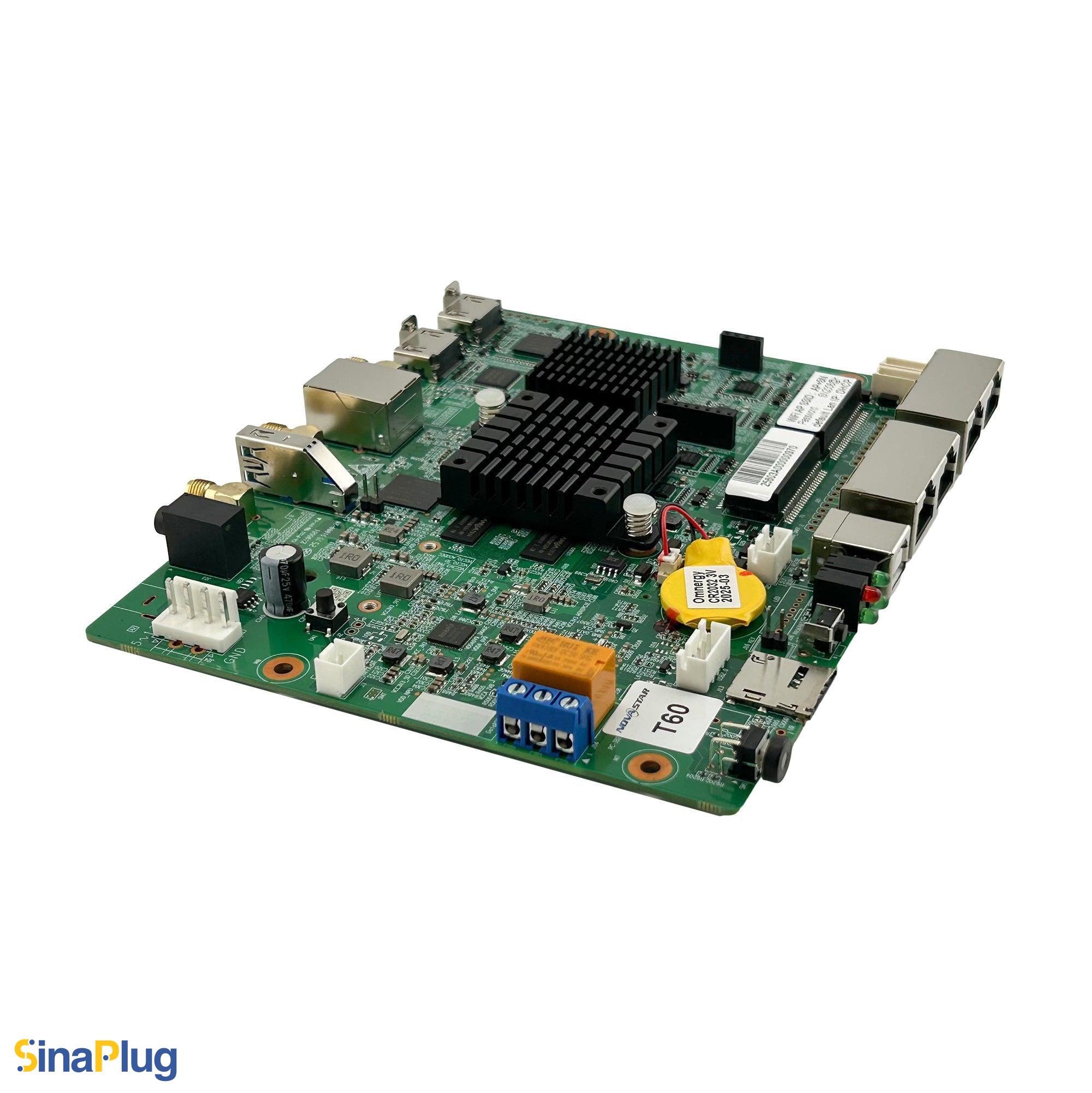

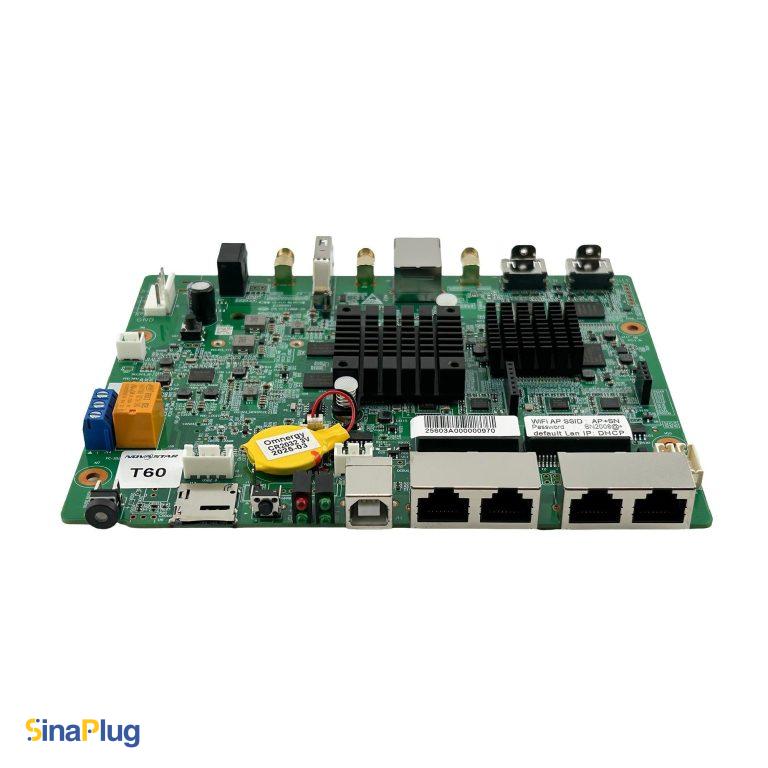

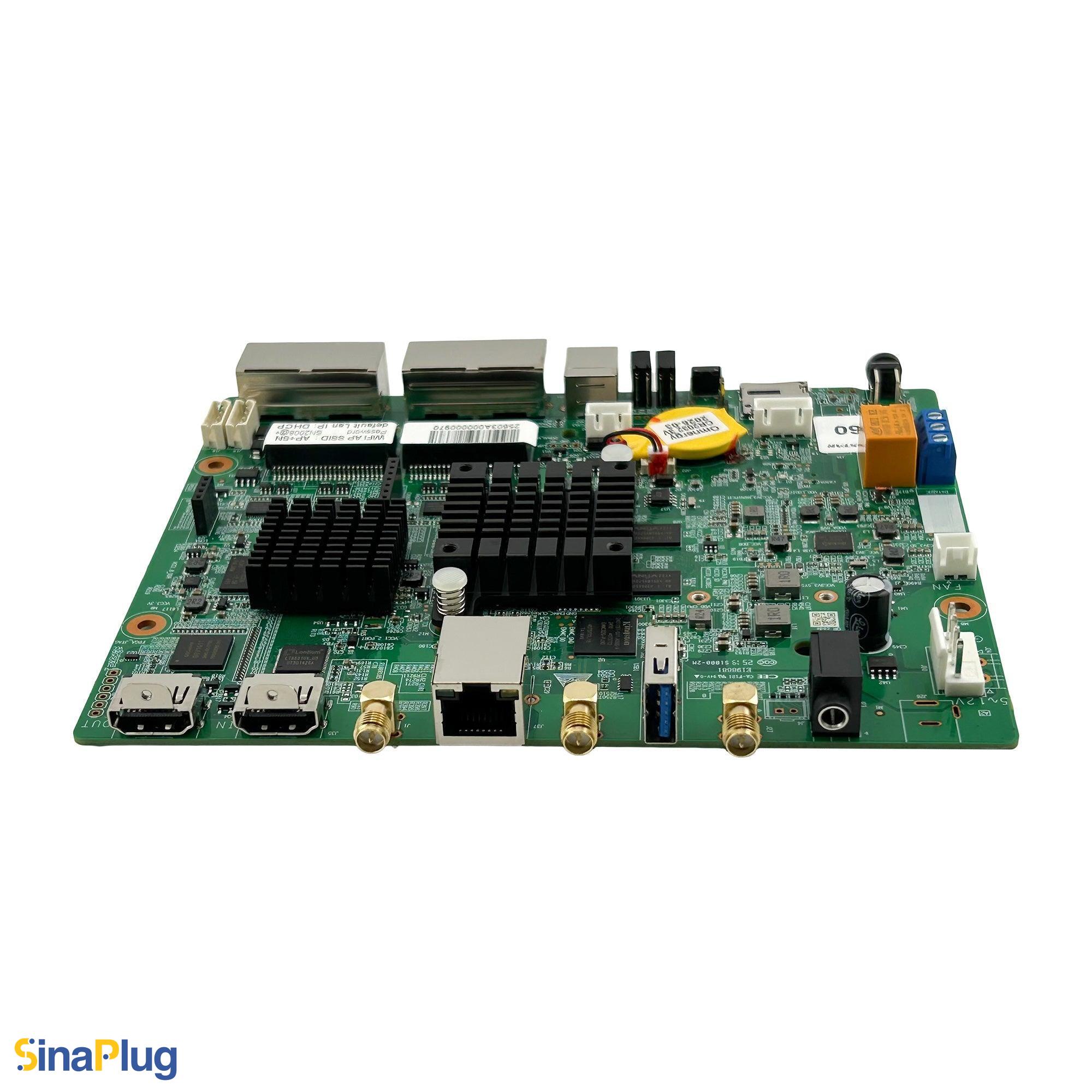

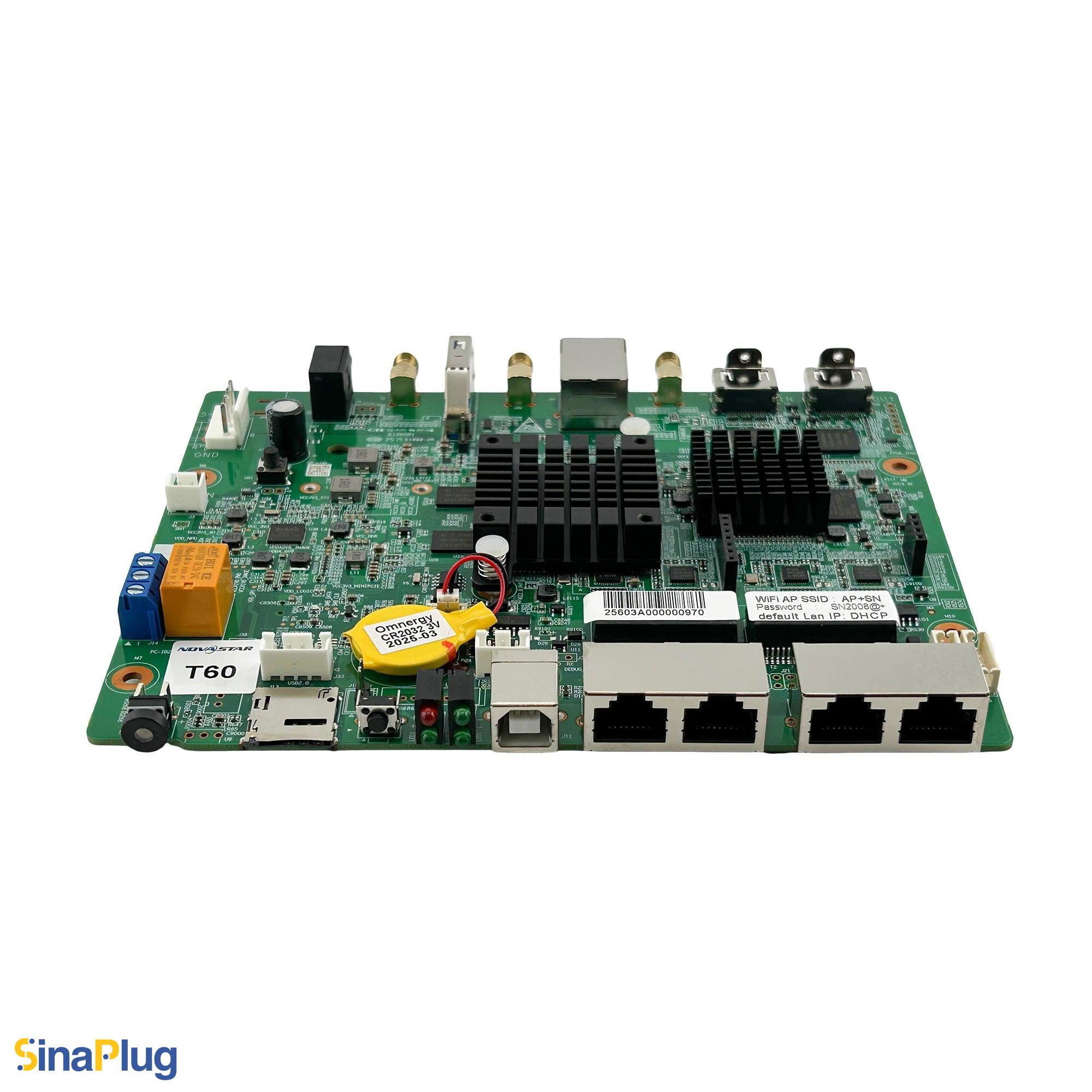

The T60 is the main board inside the TB60 (updated version of TB8) with identical capabilities, which comes without any enclosure, making it perfect for embedding into LED cabinets and display systems.
With a 1.8 GHz quad-core ARM A55 CPU, 1 GB RAM, and 32 GB storage, the T60 offers ultra-smooth 4K video playback and supports up to 2.3 million pixels. It makes both synchronous and asynchronous playback possible, ensuring professional-grade visuals across all LED screen configurations.
Connectivity options include: 4x Gigabit Ethernet outputs, HDMI input and output supporting Loop, USB 3.0, and Wi-Fi antenna with support for optional 4G/5G modules. The T60 also supports cloud-based management via ViPlex Express, ViPlex Handy, and VNNOX, offering total remote-control flexibility.
One optional feature worth mentioning is that after connecting sensors for temperature, humidity, and brightness, the T60 control card will automatically adjust its settings for optimal performance. It’s fully certified for professional 24/7 operation and withstands temperatures ranging from −20°C to +60 °C.
T60 control card from Azar Pixel is a reliable choice if you want to create an impressive LED display while having a control solution that is easy to integrate and manage. It offers powerful features, smart functionality, and flexibility that make customizing signage straightforward.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar Taurus T60
Highlights and Advantages
- Compact control card version of TB60
- Ideal for system integration and custom LED installations
- Supports 4K, H.265 and H.264 video decoding
- Flexible network options: Ethernet, Wi-Fi, optional 4G/5G
- Seamless integration with ViPlex and VNNOX platforms
Loading Capacity
- Up to 2,300,000 pixels (maximum width of 4096 pixels or maximum height of 4096 pixels)
Output
- 4× Gigabit Ethernet LED output ports (all can serve as primary; two can be set as backup pairs)
- 1× Stereo audio connector (48 kHz internal sample rate)
- 1× HDMI 1.3 output (supports 1920×1200@60Hz, HDMI loop)
Input
- 1× HDMI 1.3 input for synchronous mode (video scaling)
- 2× Sensor connectors (brightness, temperature, humidity)
- 1× USB 3.0 (Type A) port for USB playback and firmware upgrades
Control
- 1× USB (Type B) port for control computer connection and screen control
- 1× Gigabit Ethernet port for control computer, LAN, or network connection
Performance
- Quad-core ARM A55 processor @1.8 GHz
- 1 GB RAM
- 32 GB internal storage
- Hardware H.265/4K/FHD video decoding
- Flawless playback up to 1× 4K, 2× 1080p, 4× 720p, 4× 480p, or 6× 360p videos
Decoding
- Image formats: JPG, JPEG, BMP, GIF, PNG, WEBP
- Video formats: DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, WMV, ASF
Functionality
- All-round content publishing and screen control
- Multiple connection solutions (Ethernet, Wi-Fi, optional 4G/5G)
- Wi-Fi AP/STA dual-mode (Wi-Fi AP, Wi-Fi STA, Wi-Fi AP+STA)
- Synchronous/asynchronous playback
- Multi-screen synchronization (NTP, GPS, RF options)
- Ethernet redundancy and flexible scheduling
Dimensions (L×W×H)
- 165 mm × 135 mm × 21 mm
| Weight | 0.82 lbs |
|---|---|
| Dimensions | 21.5 × 11.02 × 2.52 in |
| Input Voltage Range | 5V-12V DC |
| Max Power Consumption | 18W |
| Ram Capacity | 1GB |
| Internal Storage | 32GB |
| HDMI In | 1 |
| Ethernet LAN | 1 |
| USB Port Type B | 1 |
| WiFi STA AP | Yes |
| SIM Slot | 1 |
| Sensor Connectors | 2 |
| Time Synchronization | NTP (Optional GPS and RF) |
| Working Humidity Range | 0-80% |
| Storage Temperature Range | -40 to +80 °C |
| Video Decoding | DAT/MPG/VOB/TS/AVI/ MKV/MP4/MOV/3GP/FLV/WEBM |
| Standard Certification | CE, FCC, IC, MIC |
| Others | “4x Gigabit Ethernet LED out 1x Gigabit Ethernet port 3-pin relay control switch 2x RS485 sensor connector (brightness / Temperature / humidity)” |
