A10s Pro Receiving Card
$58.10
50 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance

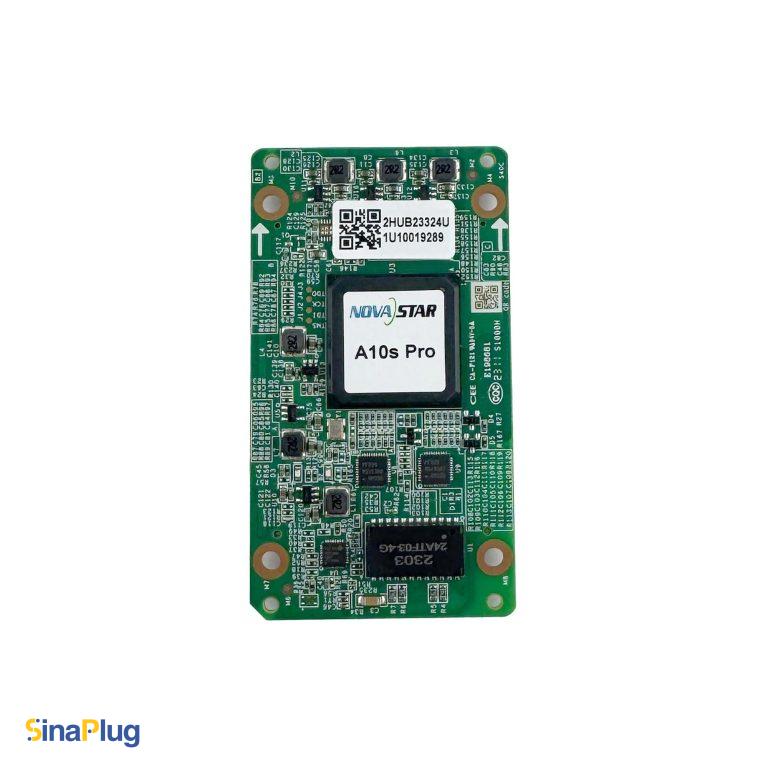

Listed and offered by Azar Pixel, the NovaStar A10s Pro Receiving Card, is a compact size high-end solution (from A-series likeA10s Plus and A10s Plus-N) designed to improve LED display performance through several innovative features and the stable operation. It is an engineer-specified board compatible with 8-bit and 10-bit video sources for modules with PWM driver ICs up to 512×512@60Hz resolution. Additionally, a single card can handle 512×256@60Hz resolution for 12-bit video sources as well.
This card is the preferred option to attain the highest visual output for any LED screen application. The receiving card highlights some special NovaStar’s features, such as: Adaptive Thermal Compensation, Dynamic Booster, Full-Grayscale Calibration, and Image Booster for overall visual fidelity to deliver a consistently high-quality viewing experience.
This receiving card is compatible with MX20, MX30, MCTRL4K, MCTRL660, and so many other powerful NovaStar controllers.
Additionally, combining with features like HDR (just supported in A8s, A8s-N and A10s series), Multi-Mode, Brightness Overdrive, Frame Rate Adaptive 3.0, HDR, Pixel Level Brightness and Chroma Calibration, quick adjustment of dark or bright lines, Low Latency, 3D, and 90° Image Rotation, the A10s Pro provides users the most magnificent images across diverse applications.
This product has been engineered for robust, convenient use, and reliable communication. It extends up to 32 groups of parallel RGB data or 64 groups of serial data, expandable to 128 groups for custom applications. Its reliance on high-density board-to-board connectors (instead of RJ45 Ethernet ports and IDC connectors) contributes significantly to this reliability. Complementing this, the card’s spare pins provide flexibility for assigning customized commands as needed by the user.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar A10s Pro
Input
- 1x Gigabit Ethernet Board-to-Board (to Hub/Adapter board)
Output
- 1x Gigabit Ethernet Board-to-Board (to Hub/Adapter board)
- 32x groups of parallel RGB data or 64x groups of serial data (expandable to 128 groups of serial data)
Performance
- Maximum Resolution: 512×512@60Hz (for 8bit and 10bit video sources, PWM driver ICs)
- 512×256@60Hz (12-bit video sources)
- Multi-Mode (optimal image quality in different scenarios)
- Brightness Overdrive
- Frame Rate Adaptive 3.0 (23Hz to 240Hz)
- Shutter Fit
- Pixel level brightness and chroma calibration
- Quick adjustment of dark or bright lines
- Low latency (1 frame only for modules with built in RAM driver IC)
- Supports 3D function
- Image rotation in 90° increments (0°/90°/180°/270°)
- Support HLG and HDR10 (comply with the SMPTE ST 2084 and SMPTE ST 2086 standards)
Maintainability
- Calibration Coefficient Management
- Automatic Module Calibration
- Quick uploading of calibration coefficients
- Module Flash management
- Mapping 1.1
- Settings of a Stored Image in the Receiving Card
- Temperature and voltage monitoring
- Bit error detection
- Status detection of dual power supplies
- LVDS transmission (dedicated firmware required)
Reliability
- Dual card backup (redundancy support) and primary/backup status monitoring
- In-line Loop backup
- Dual backup of configuration parameters
- Dual program backup
- Dual backup of calibration coefficients
Dimensions (L*W*H)
- 80mm x 45mm x 8.6mm
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 5.12 × 3.54 × 0.39 in |
| Max PWM IC Pixel Capacity | 512×512 |
| Scan Type | 1/64 |
| Output Interface (QTY) | 1 |
| Max Parallel RGB Data Groups | 32 |
| Max Serial RGB Data Groups | 64 |
| Expandable Up To | 128 |
| Supported Video Source Bit | 8bit/ 10bit/ 12bit |
| HDR Function | Supported |
| Brightness and Chroma Calibration | Supported |
| 90° Image Rotation | Supported |
| Mapping | Supported |
| Bit Error Detection | Supported |
| Loop Backup | Supported |
| Dual Configuration Parameters Backup | Supported |
| Firmware Redundancy and Readback | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 4W |
| Working Temperature Range | -20 °C to +70 °C |
| Standard Certification | EMC Class B, RoHS |
| Others | Automatic module calibration uploading of module calibration coefficients, Frame Rate Adaptive 3.0 (23Hz to 240Hz), improve Individually 65,536 levels of grayscale (16bit), Improve the 22bit+ LED displays grayscale by 64 times, Low latency (1 frame only for modules with built in RAM driver IC), LVDS transmission (dedicated firmware required), Module Flash management, Quick uploading of calibration coefficients, Settings of a Stored Image in the Receiving Card, Support 65,536 levels (16bit) of grayscale (Improve the 22bit+ LED displays grayscale by 64 times), Support HLG and HDR10 (comply with the SMPTE ST 2084 and SMPTE ST 2086, Support Shutter Fit function, Supports temperature and voltage monitoring |
