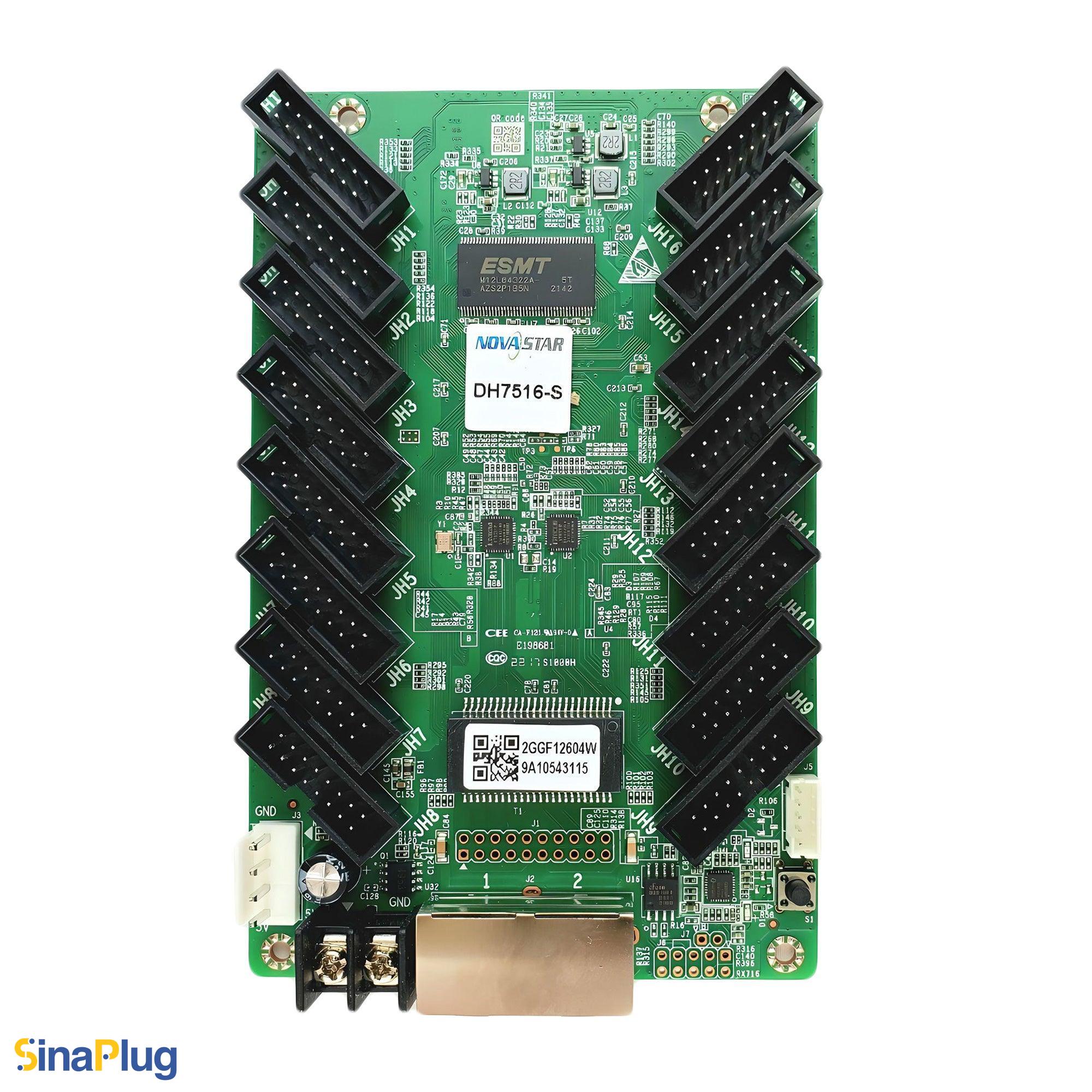

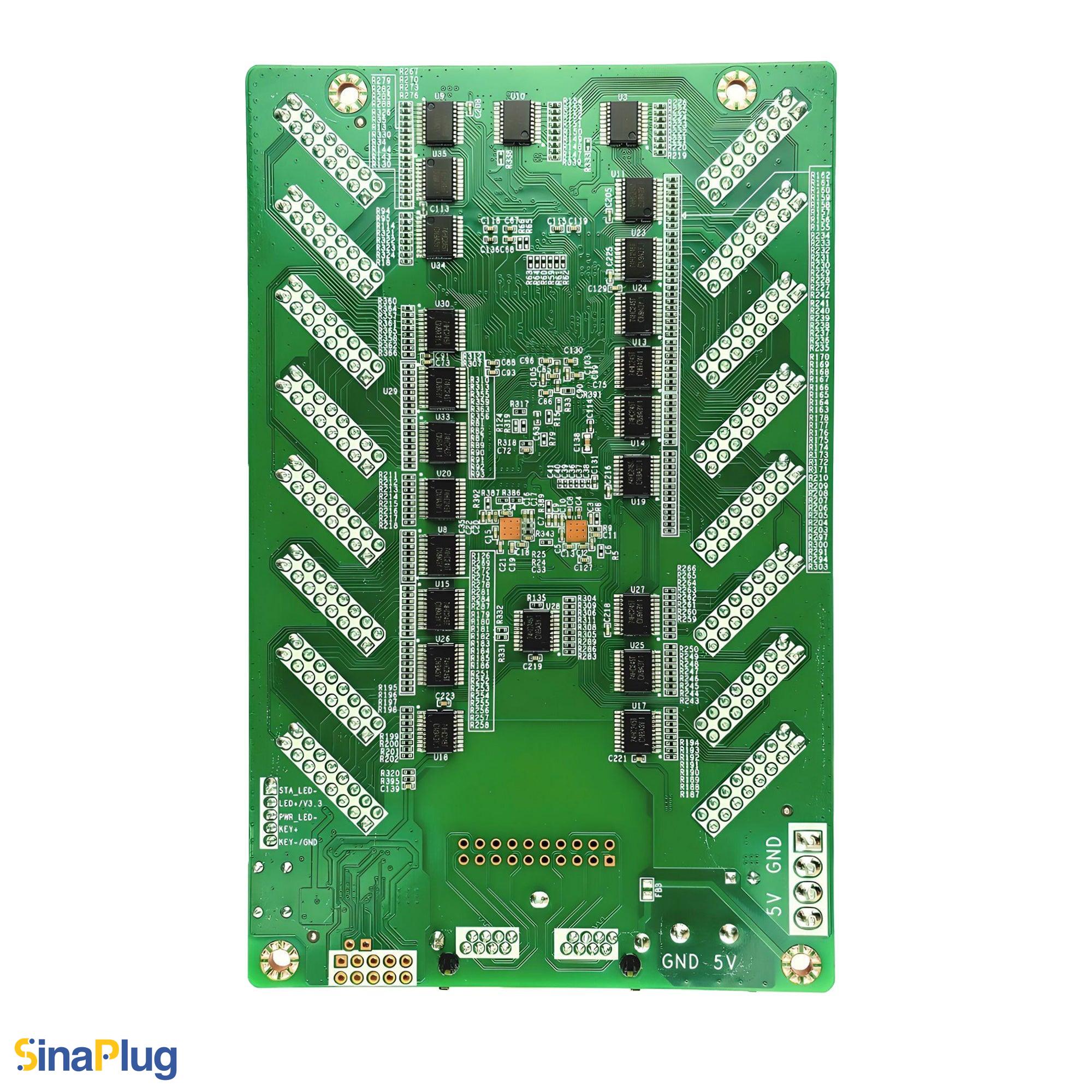

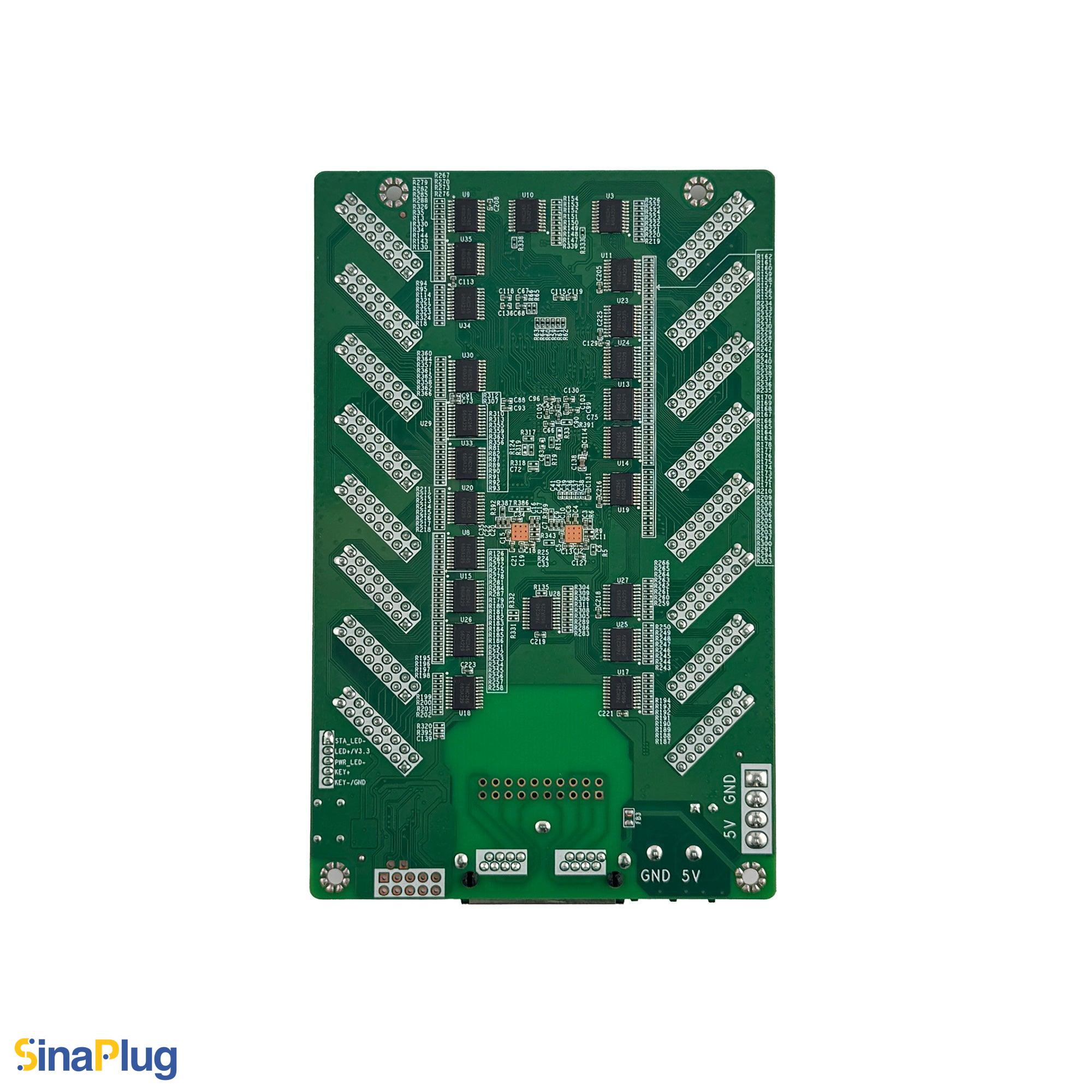

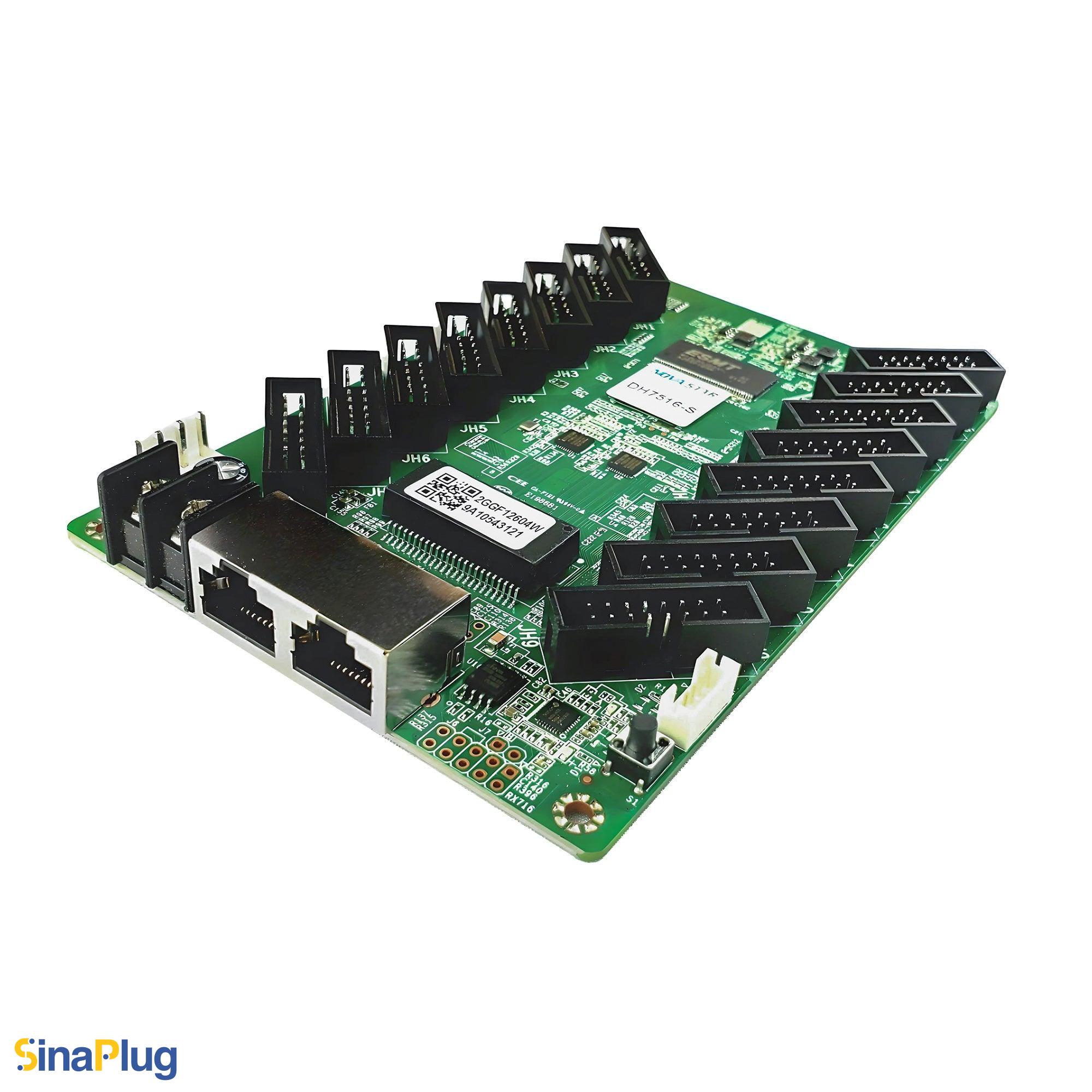

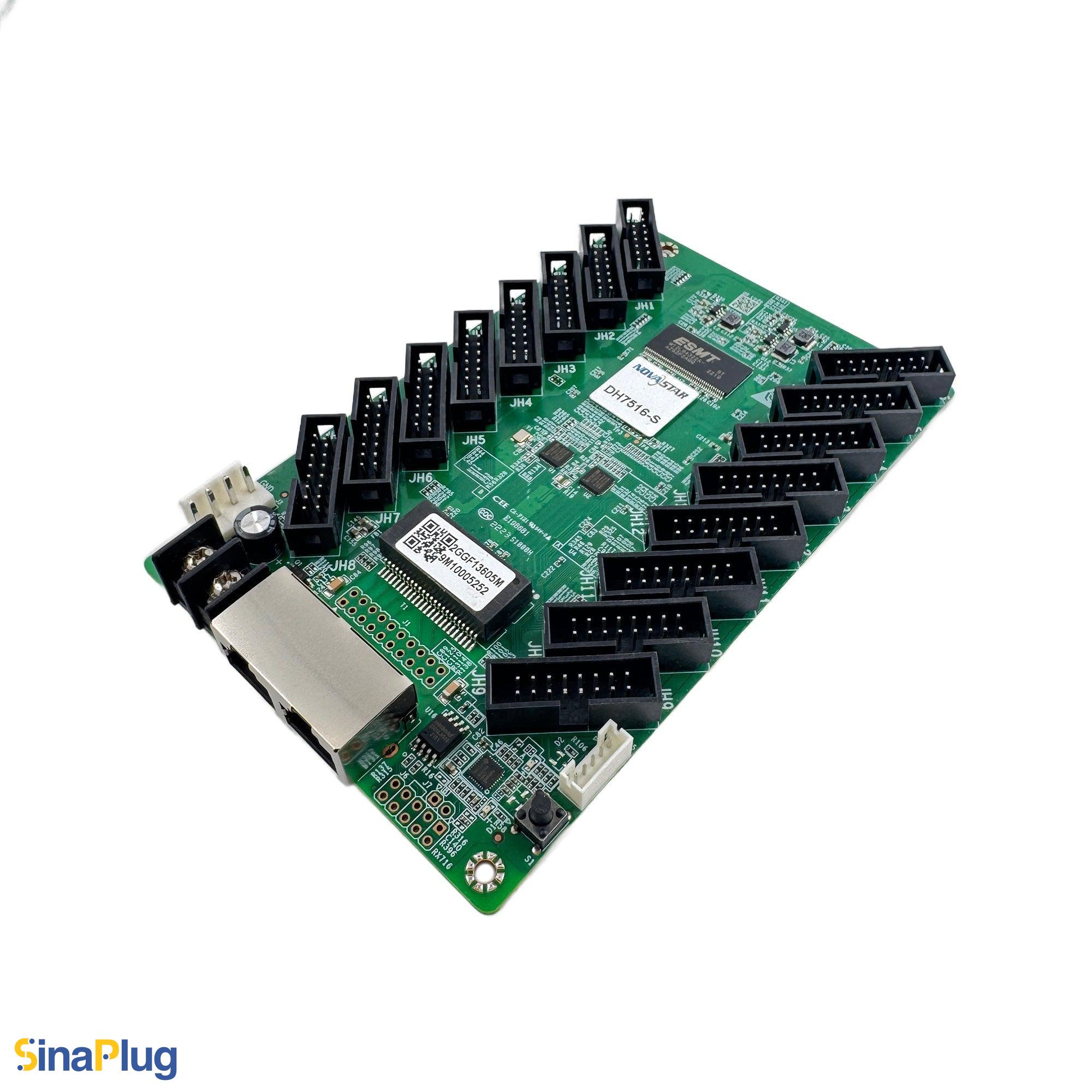

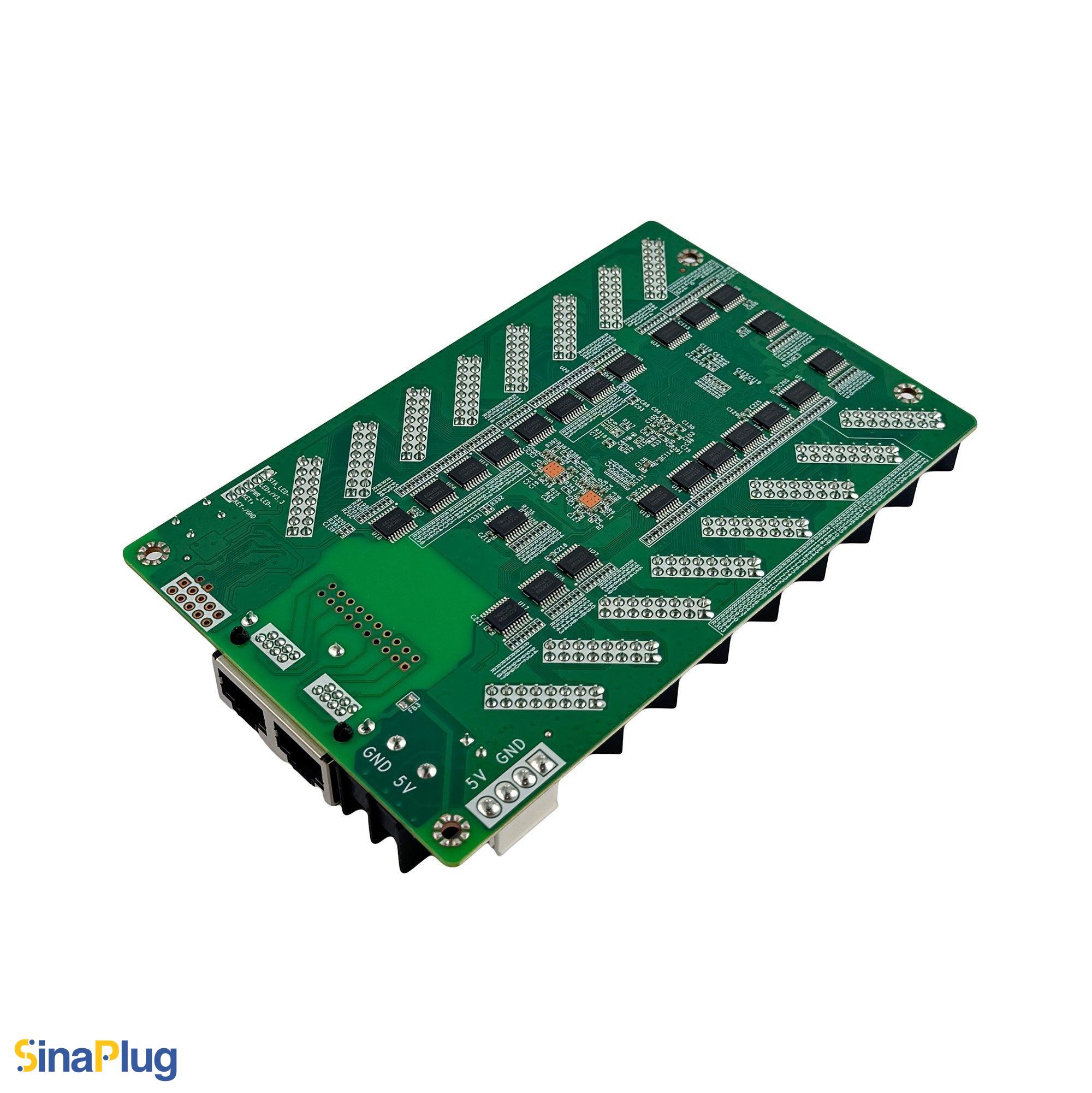

DH7516-S LED Receiving Card
$36.42
20 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
Available for order at Azar Pixel, the NovaStar DH7516-S is a robust and high-performance receiving card designed to elevate LED display systems with advanced features and reliable operation.
Supporting resolutions of up to 512×512@60Hz for modules designed with PWM driver ICs and 512×384@60Hz for common driver ICs, it delivers exceptional visual quality through features such as 3D function, multiples of 90° Image Rotation, easy and fast Dark or Bright Lines adjustment, automatic and manual edge Correction with smartphones, high-precision Brightness Calibration, RGB Individual Gamma Adjustment.
These capabilities ensure seamless visuals, and realistic image reproduction along with delivering a user-friendly experience.
Equipped with 16 standard HUB75E connectors, this receiving card supports up to 32 groups of parallel RGB data, providing robust communication and compatibility with various LED modules. Its hardware design complies with EMC Class A standards, ensuring improved electromagnetic compatibility for diverse on-site setups. Certified for RoHS compliance, it adheres to stringent environmental protection standards.
Designed for efficiency and durability, this upgraded version of NovaStar DH7516-S receiving card operates within a temperature range of -20°C to +70°C. It features an input voltage range of DC 3.8 V to 5.5 V and consumes a rated power of 2.5 W, making it energy-efficient without sacrificing performance. With advanced maintainability features like real-time temperature and voltage monitoring, firmware readback, and quick uploading of calibration coefficients, the NovaStar DH7516-S simplifies setup and maintenance while ensuring uninterrupted operation through reliability features such as loop backup and dual program backup.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar DH7516-S LED Receiving Card
Input
- 1x Gigabit Input Ethernet Port
Output

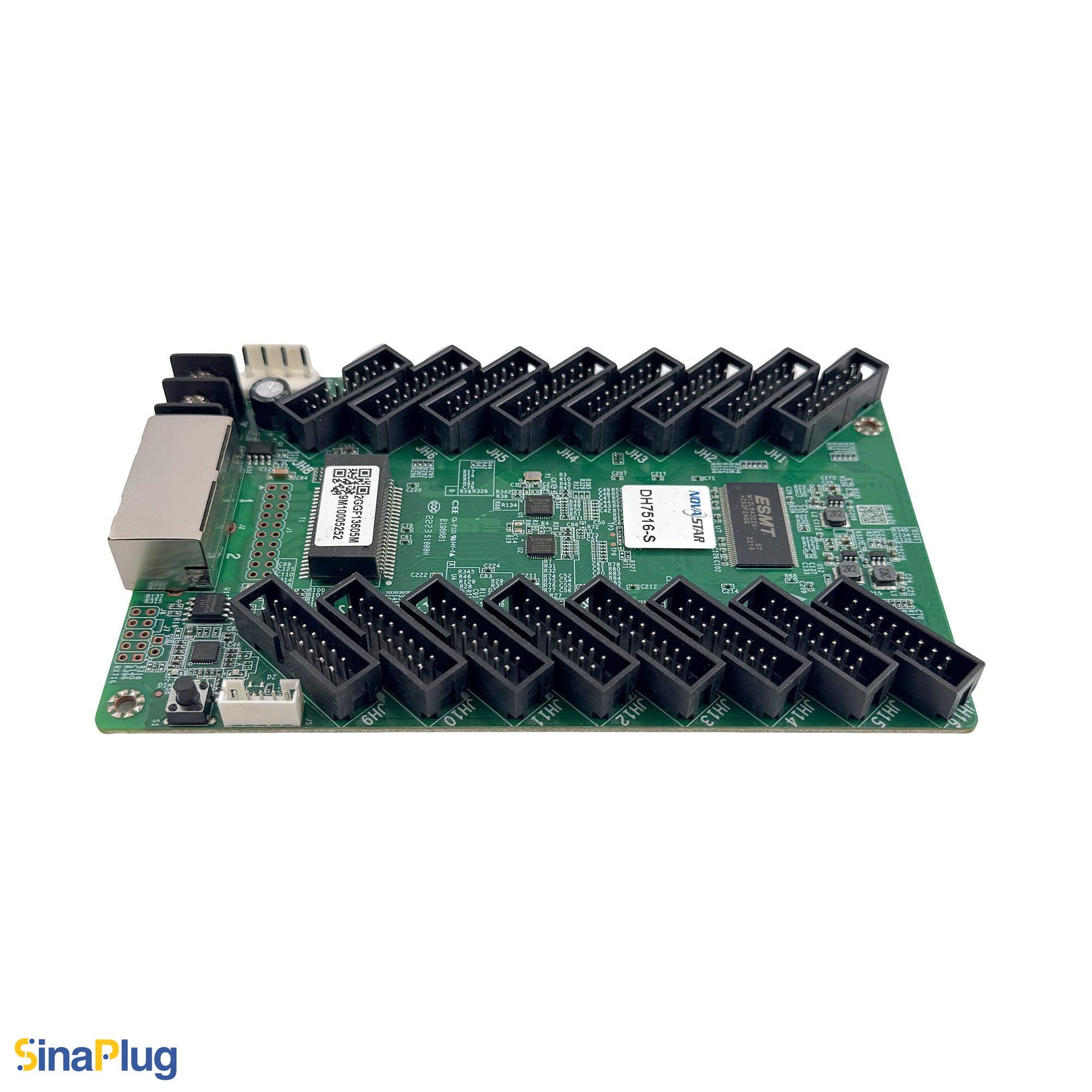

- 16x standard HUB75E connectors (to LED modules)
Performance
- 512×512@60Hz (PWM driver ICs)
- 512×384@60Hz (Common driver ICs)
- Pixel Level brightness and chromaticity calibration
- Seam Correction with Mobile Phones (requires TU series products)
- Quick adjustment of dark or bright lines
- Supports 3D function
- Image rotation in 90° increments
- Individual gamma adjustment for RGB
Improvements to Maintainability
- Quick uploading of calibration coefficients
- Mapping 1.1 (displays controller number, receiving card number, and Ethernet port information)
- Real-time temperature and voltage monitoring
- Compatible with Cabinet LCD (displays temperature, voltage, single run time, and total run time)
- Bit error detection (monitors Ethernet communication quality)
- Firmware program readback
- Configuration parameter readback
Improvements to Reliability
- Loop backup (ensures uninterrupted operation in case of line faults)
- Dual program backup (two copies of firmware stored at the factory)
Dimensions (L*W*H)
- 145.7mm * 91.5mm * 18.3mm
| Weight | 0.22 lbs |
|---|---|
| Dimensions | 7.87 × 5.91 × 0.79 in |
| Max Common IC Pixel Capacity | 512×384 |
| Output Interface (QTY) | 16 |
| Max Parallel RGB Data Groups | 32 |
| Ethernet Port | 2 |
| 90° Image Rotation | Supported |
| Loop Backup | Supported |
| Bit Error Detection | Supported |
| Dual Configuration Parameters Backup | No |
| Firmware Redundancy and Readback | Supported |
| Input Voltage Range | 3.8-5.5VDC |
| Max Power Consumption | 2.5W |
| Working Temperature Range | -20 °C to +70 °C |
| Standard Certification | EMC Class A, RoHS |
| Others | Individual Gamma Adjustment for RGB, Pixel level brightness calibration, Quick uploading of calibration coefficients, Seam Correction with Mobile Phones (requires TU series products), Supports temperature, voltage, and cabinet LCD monitoring |
