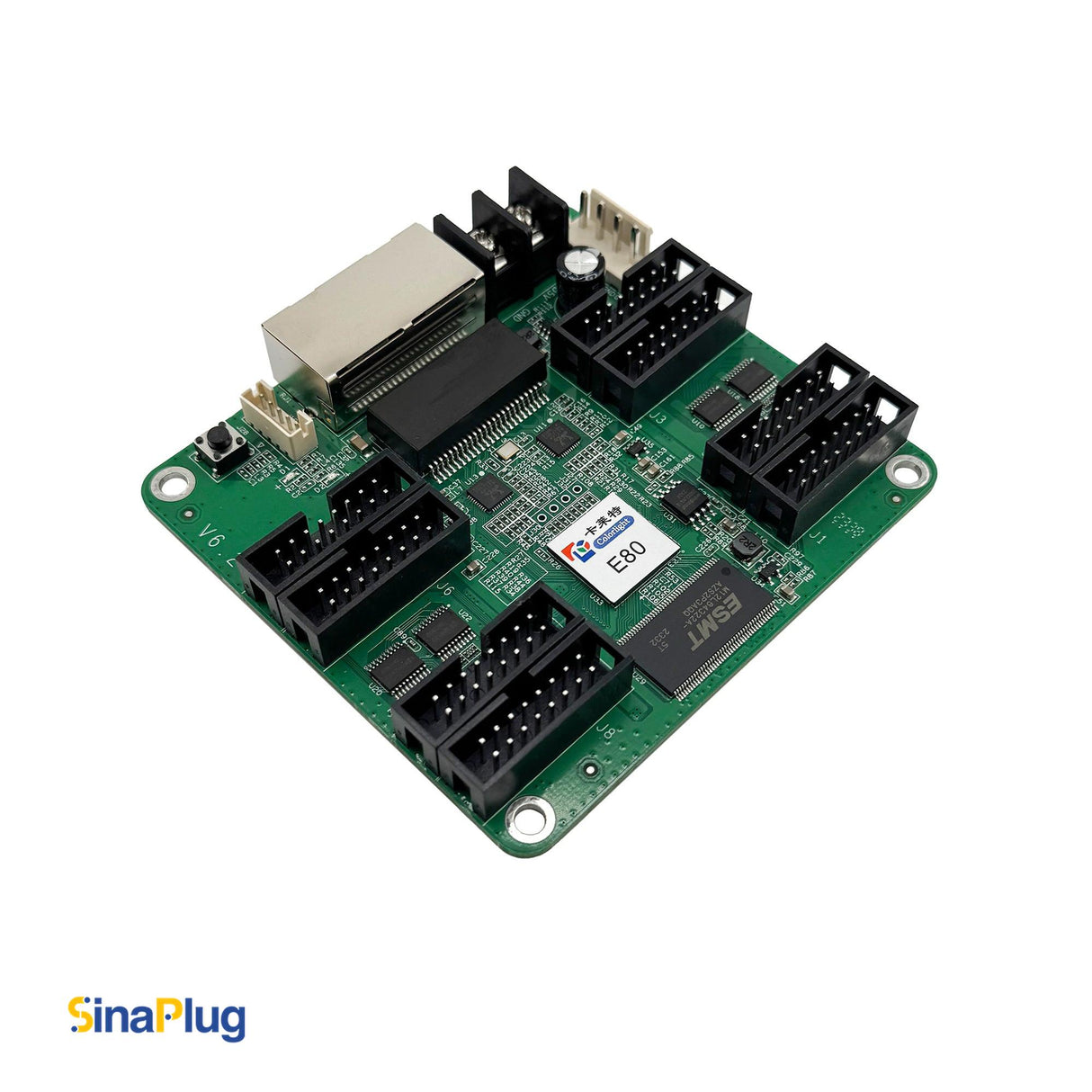

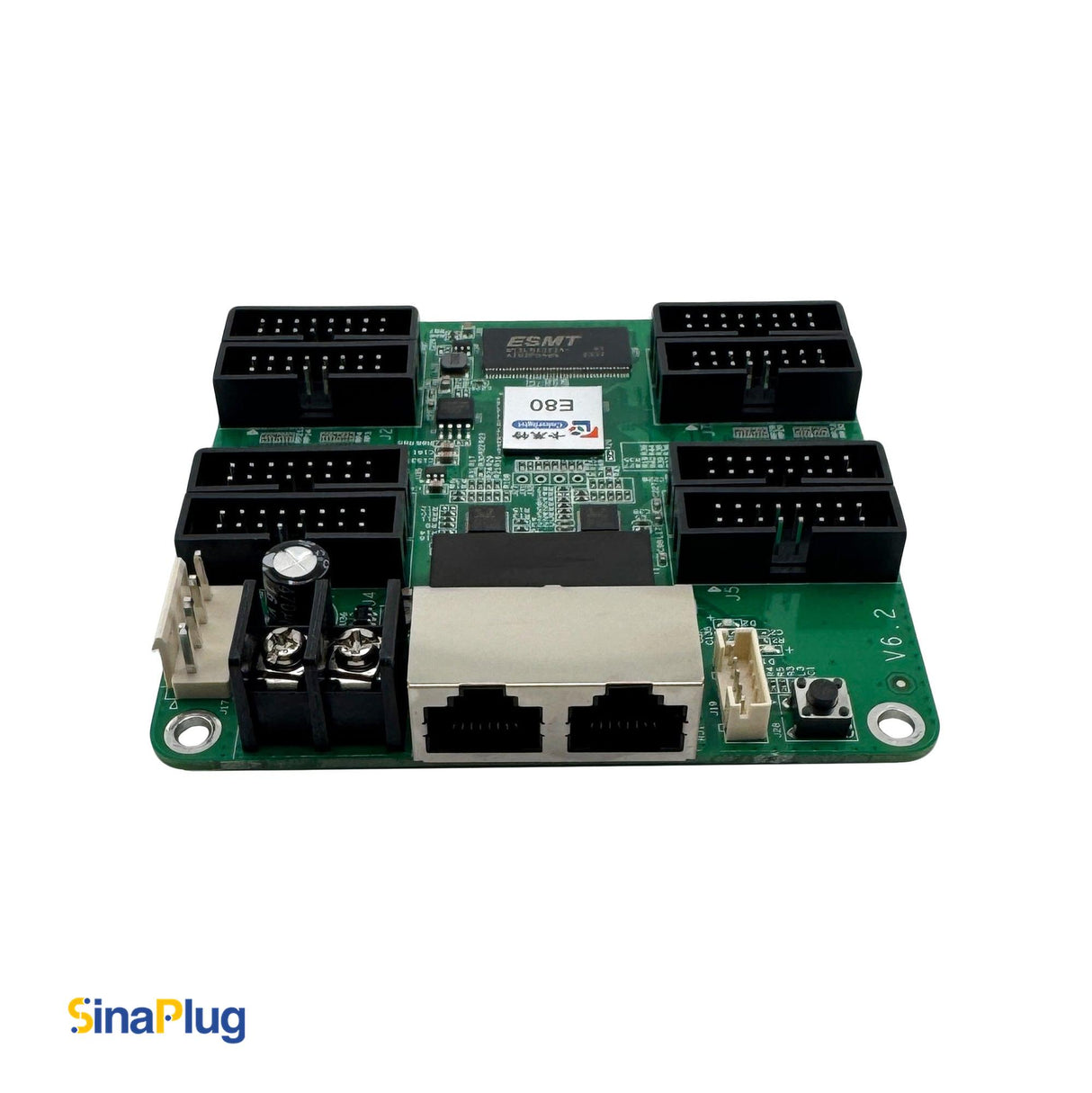

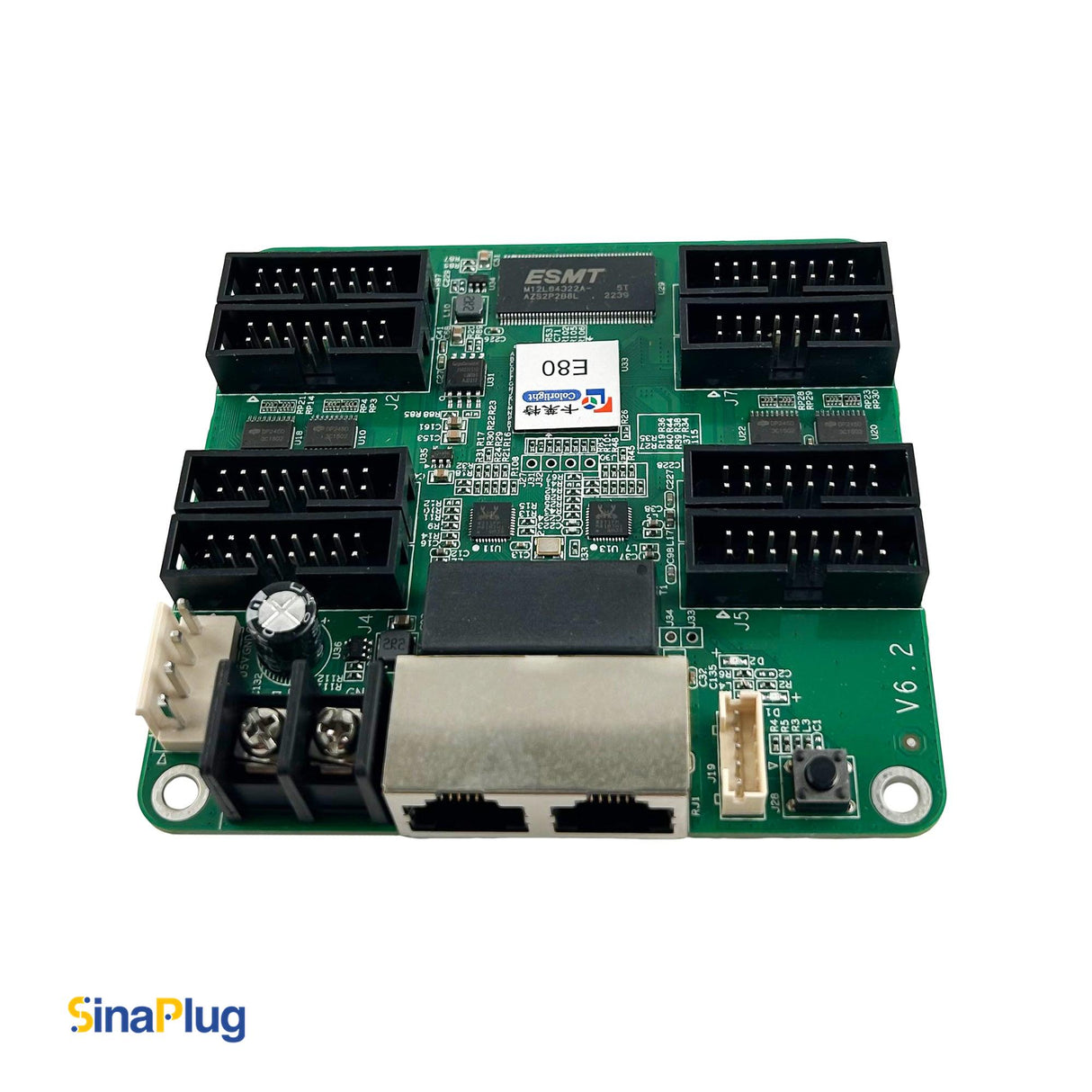

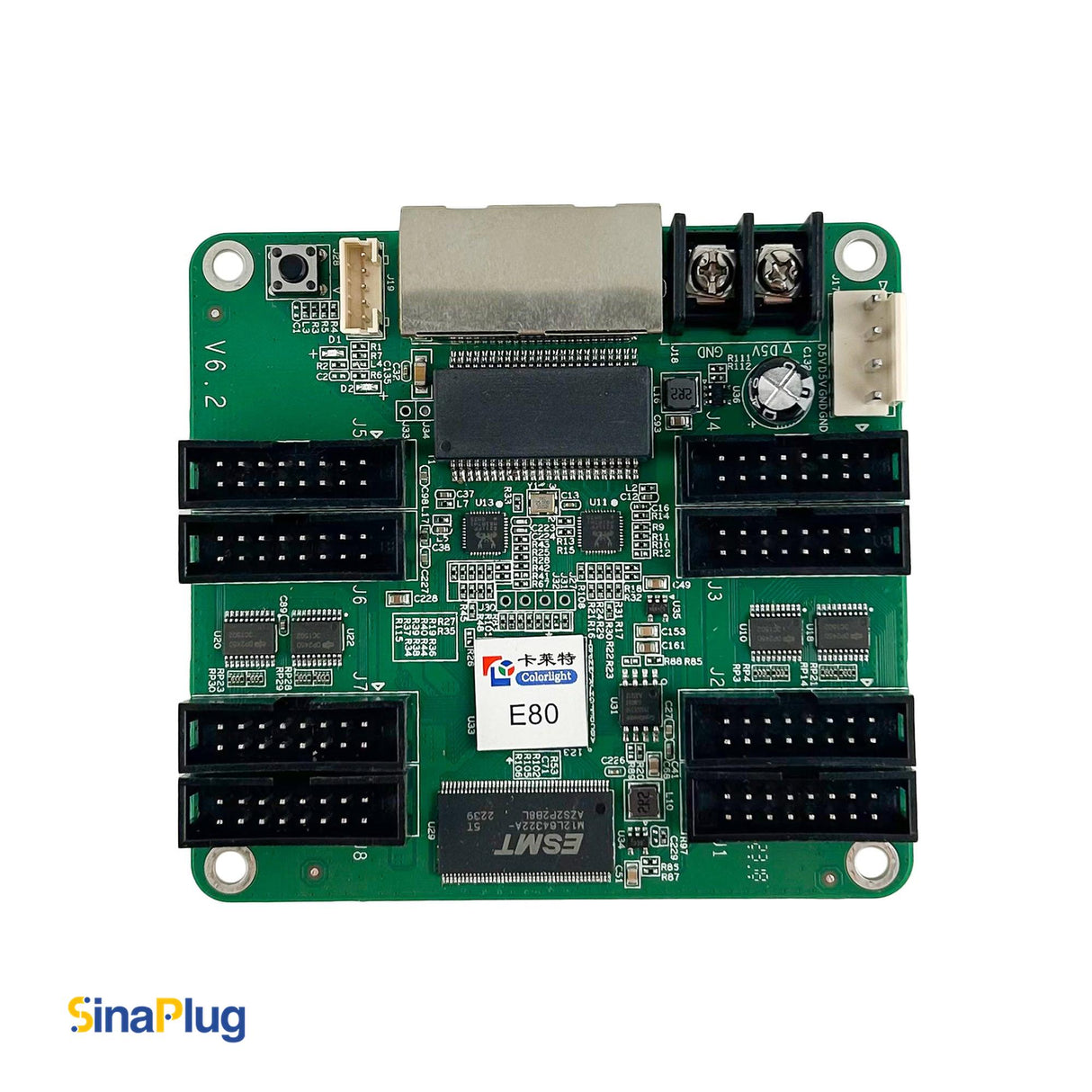

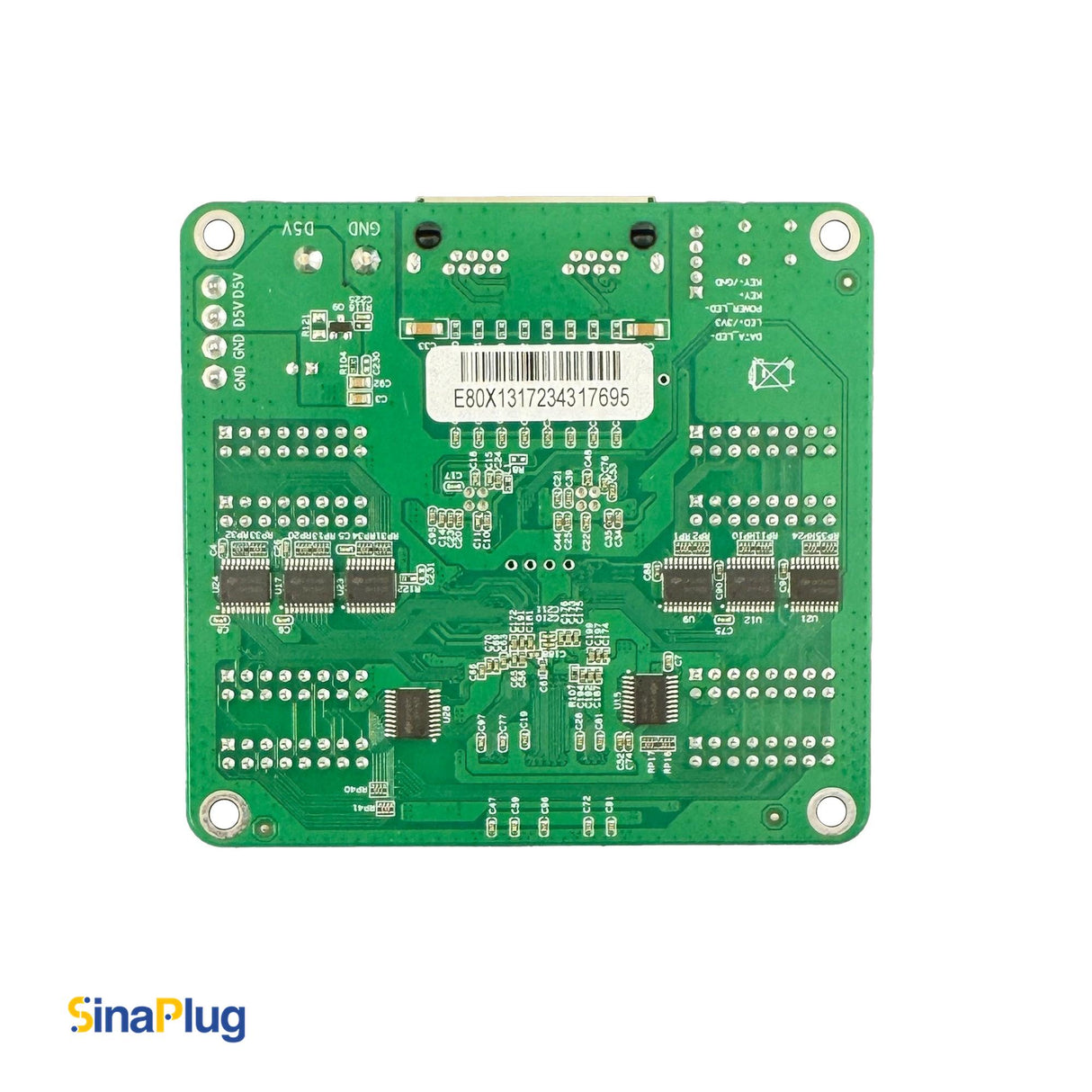

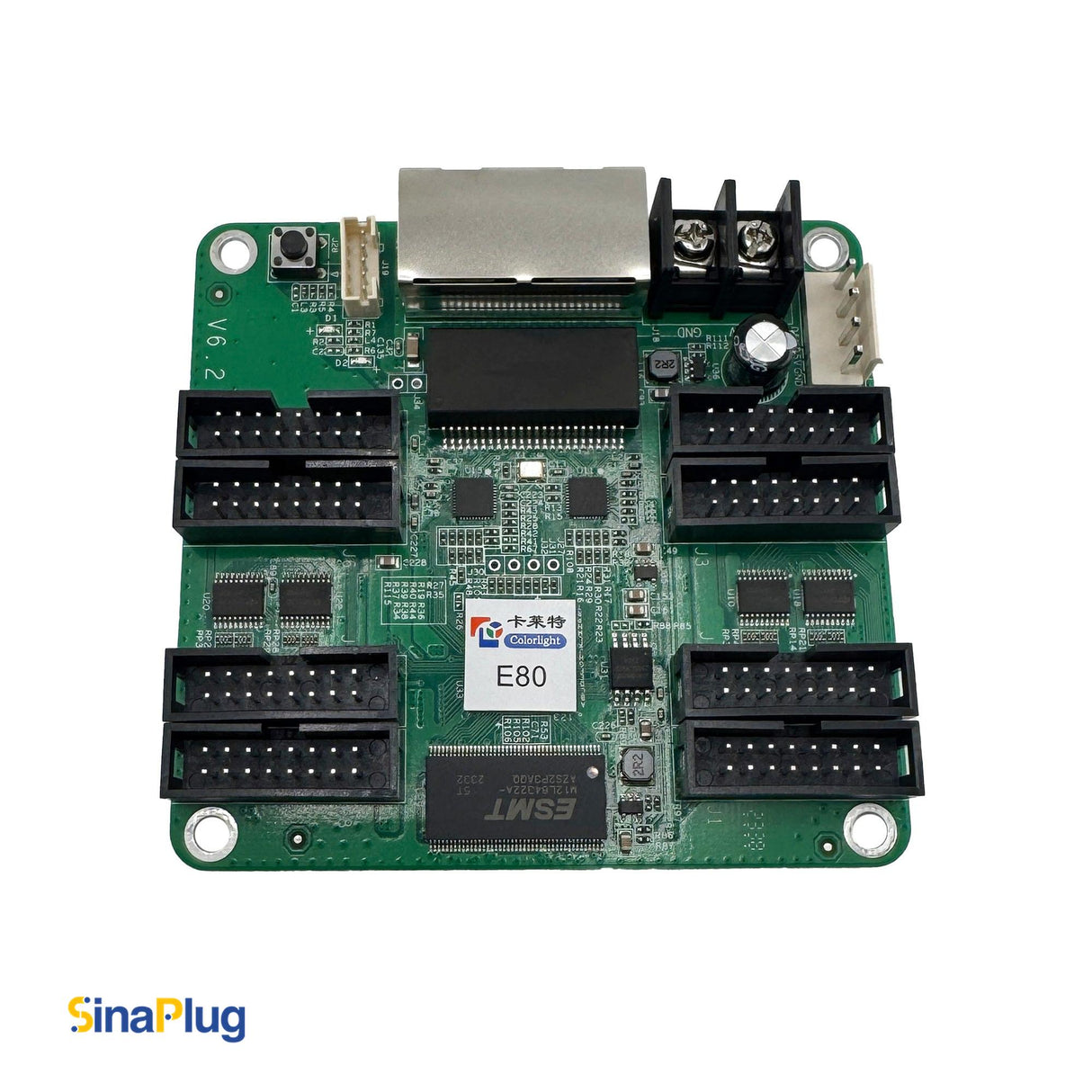

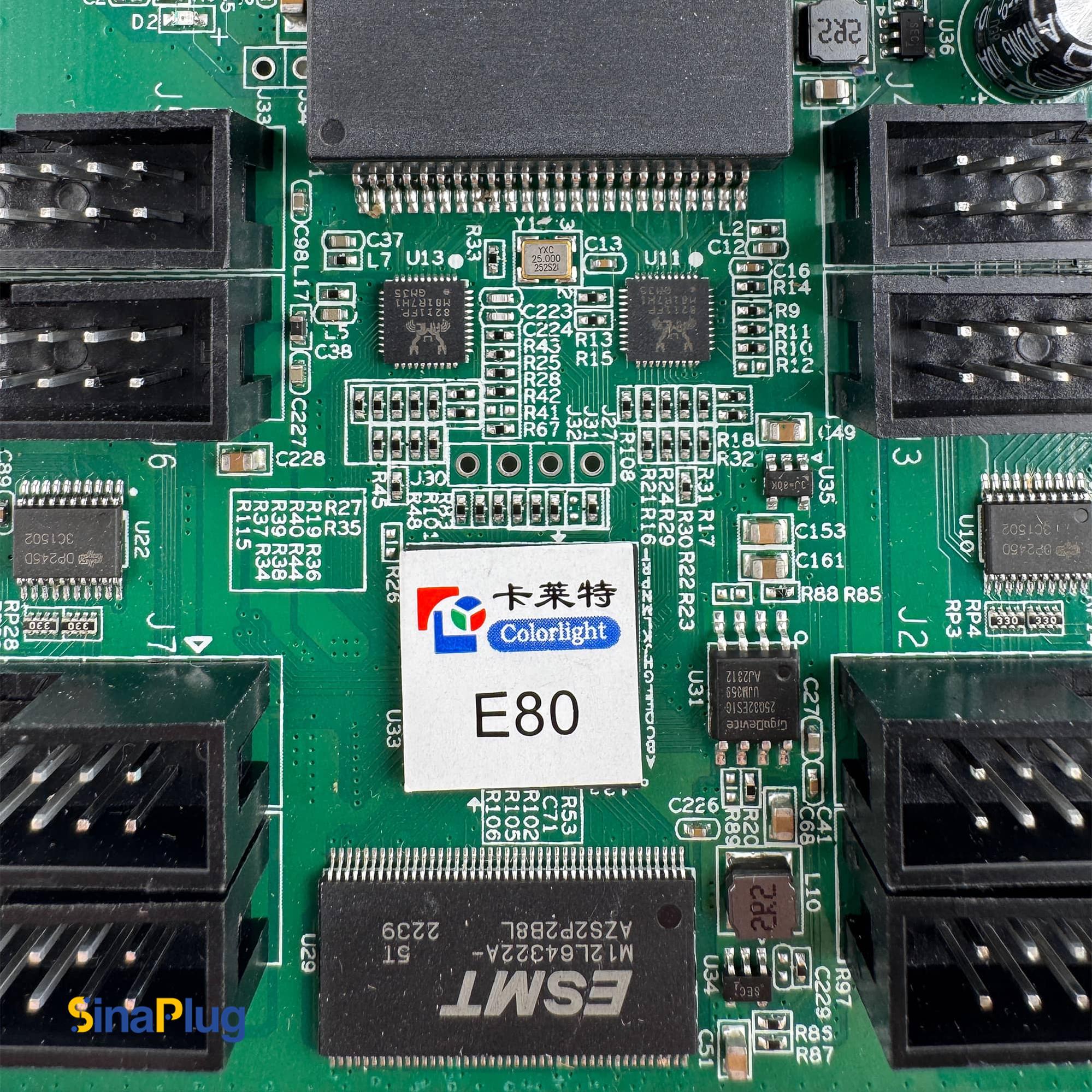

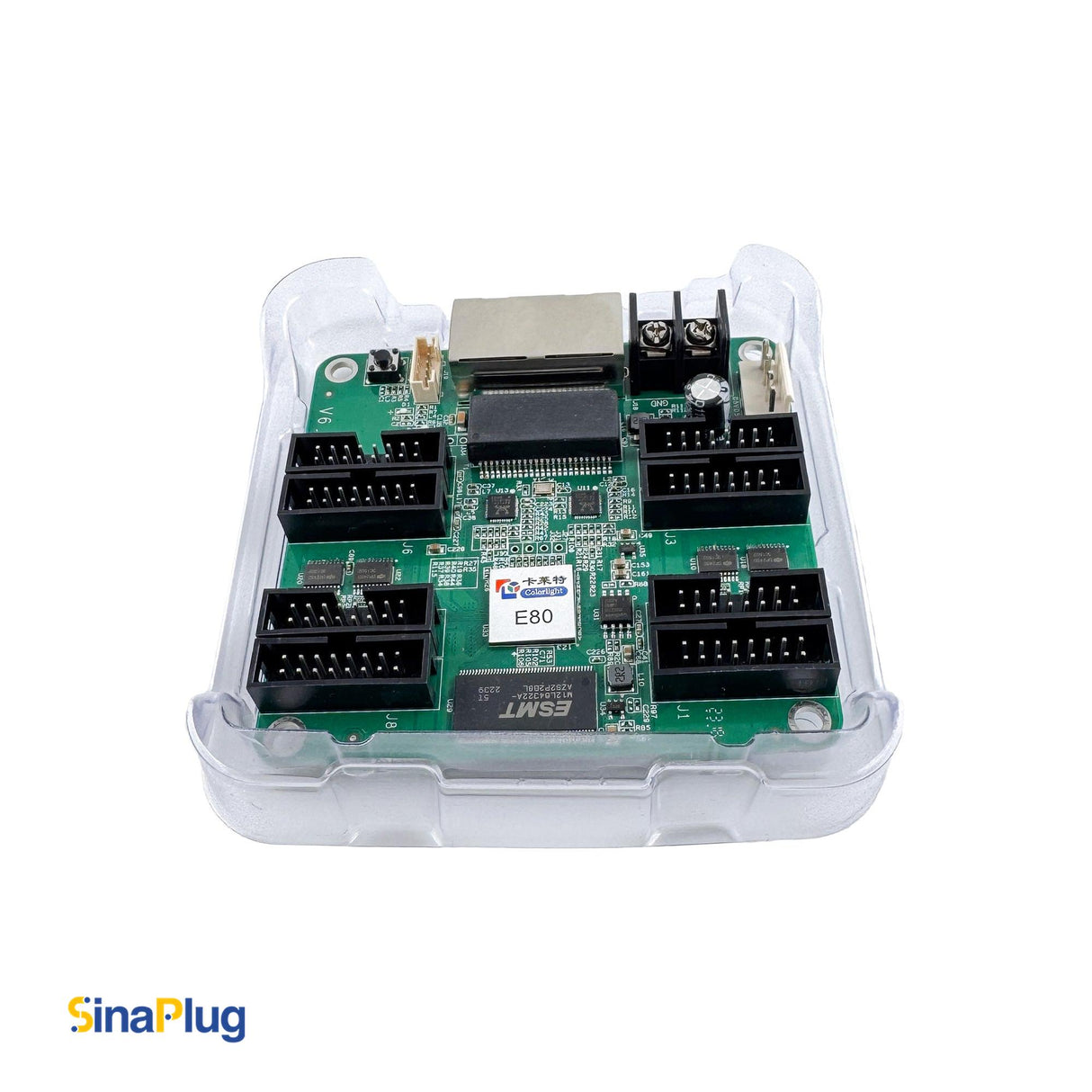

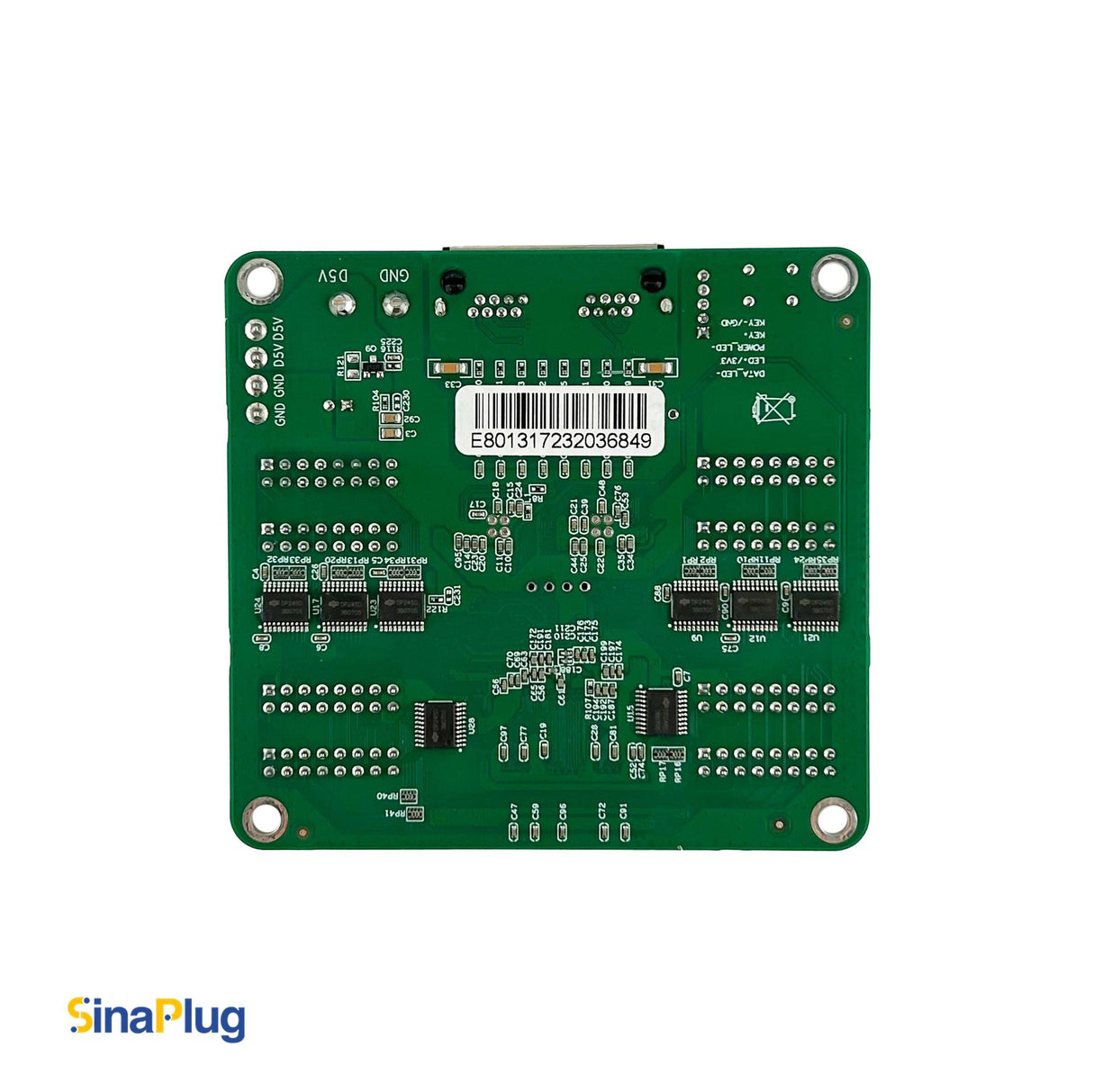

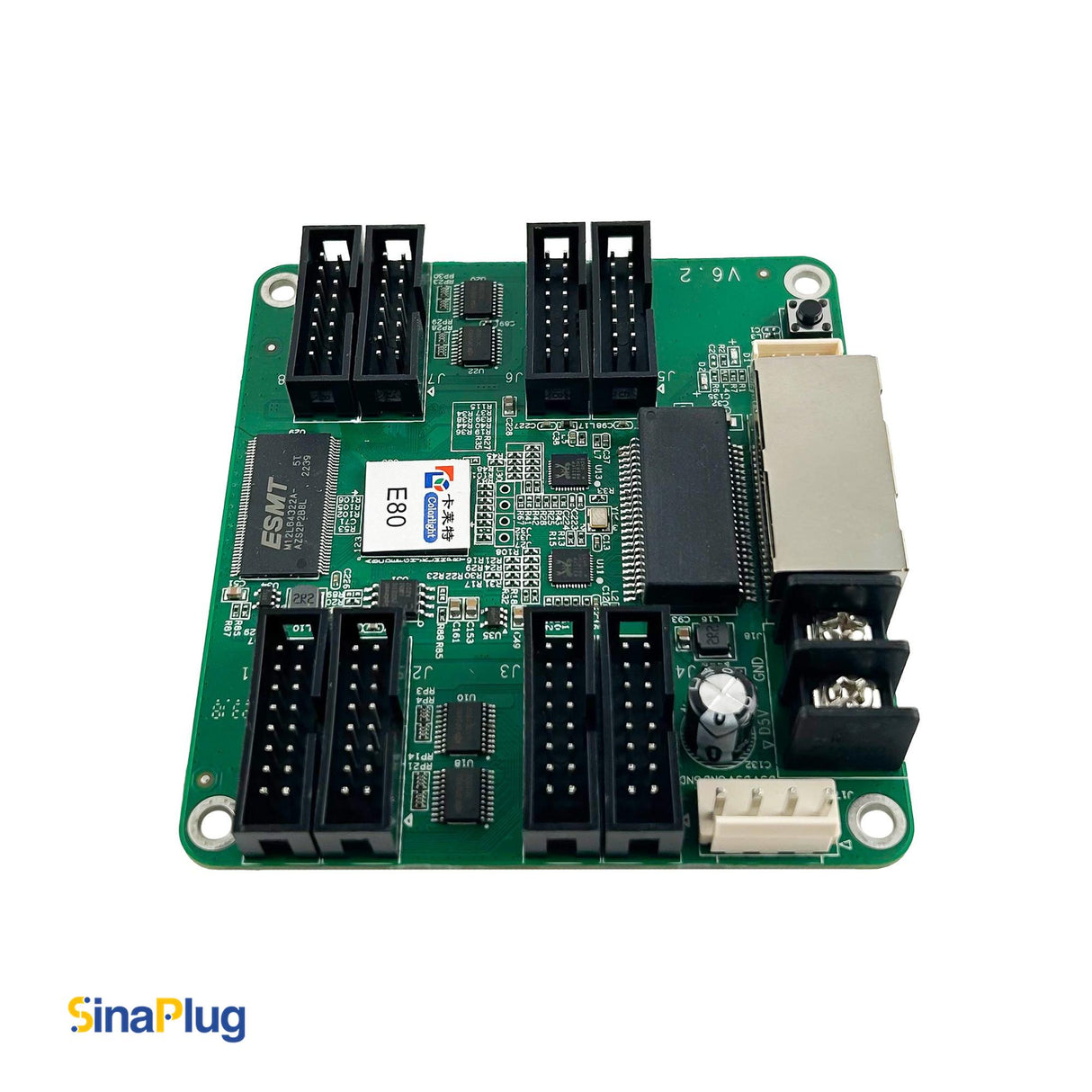

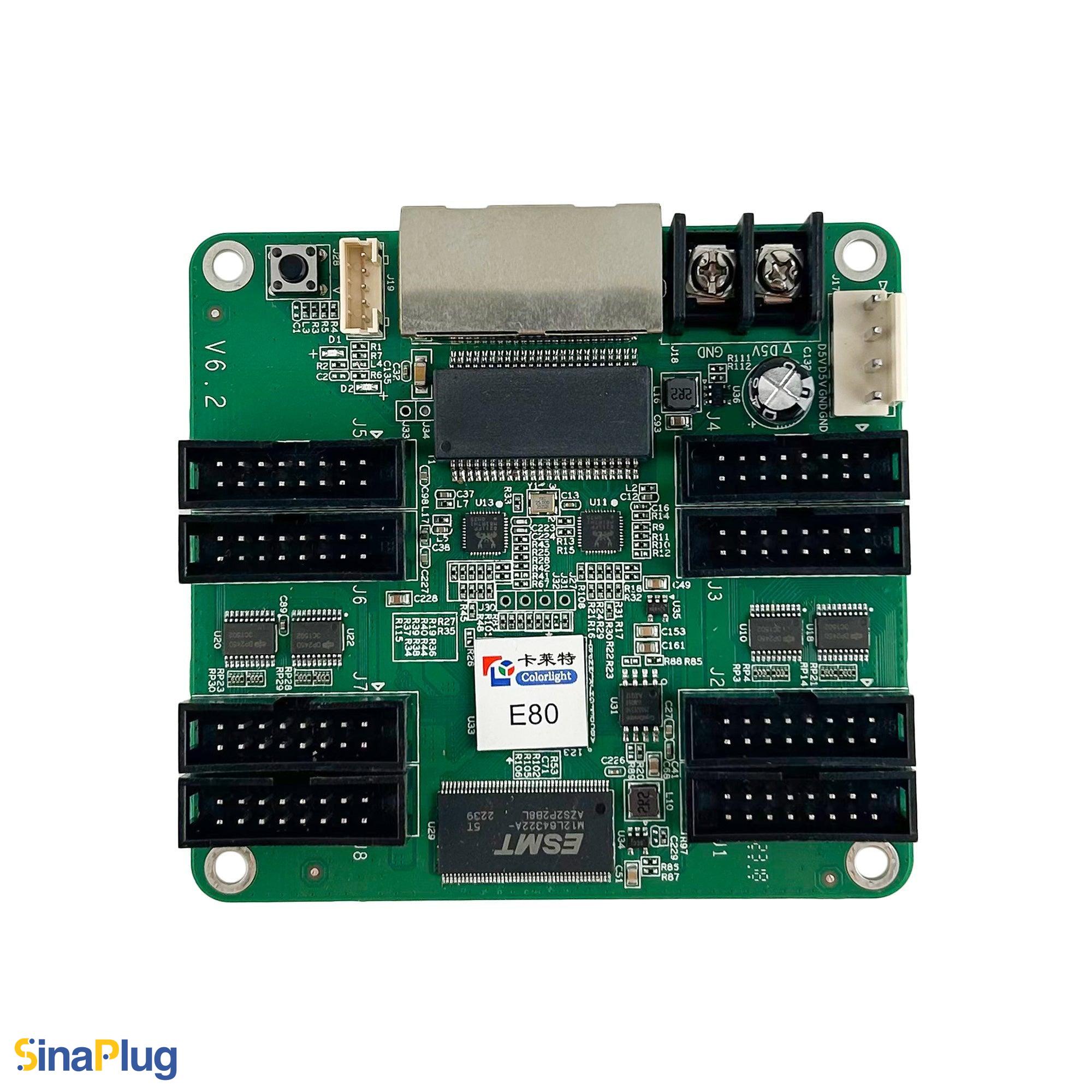

Colorlight E80 Receiving Card
Buy at discounted prices
Minimum Qty | Discount |
---|---|
5 + | 3% off |
10 + | 6% off |
20 + | 9% off |
Colorlight E80 Receiving Card is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
We are pleased to introduce the cost-effective and dependable Colorlight E80 receiving card offered by Azar Pixel. Built to deliver stable performance and uniform image quality, this receiving card is perfect for LED display projects that prioritize cost-effectiveness and reliability.
This card supports a maximum resolution of 128×1024 pixels, featuring 16 groups of parallel data or 32 groups of serial data and equipped with 8 HUB75 interfaces that provide strong and reliable connection to modules directly, which guarantees efficient data handling and consistent visual output.
The E80 is a cost-effective and reliable solution for small to medium-sized displays. It offers a simpler, more affordable alternative to advanced models like the E320 and E120, with higher loading capacity and advanced or additional HUB interfaces. In fact, it focuses on delivering essential high-quality features without the added cost of unnecessary capacity or complexity.
It supports 8-bit color depth with 256 grayscale levels and 16.7 million color combinations for vivid visuals, enhanced by color temperature adjustment and an optimized gamma algorithm to maintain excellent low-brightness gray scale performance. It delivers smooth motion with support for both standard and high frame rates up to 240Hz, benefiting from adaptive frame rate technology to reduce motion blur.
This card works reliably through wide temperature ranges from -25°C to 75°C and complies with RoHS environmental standards. Its firmware supports safe backup and readback, ensuring secure upgrades without interruptions during power or connection failures. it’s powered efficiently by an input voltage of 3.8 V to 5.5 V DC and has a rated power consumption of just 3.0 W.
Network connection reliability is boosted with Ethernet cable status monitoring and bit-error detection, alongside loop redundancy for a fail-safe, continuous operation when used in cascade.
In summary, the Colorlight E80 receiving card offers a balanced combination of efficiency, stability, and display quality suited for commercial LED systems where cost-conscious, reliable operation is paramount.
For expanded capabilities, explore compatibility with our Receiving Card, the X6, X4s, X3, and X2m controllers and processors, as well as versatile S4 controllers and the S2 sending box.
Key Features of Colorlight E80
Loading Capacity
- 128×1024 pixels (modules with PWM chips)
- 81×1024 pixels (modules with Shixin chips)
- 64×1024 pixels (modules with Normal chips)
Input
- 1x Gigabit Ethernet Port (supporting up to 1Gb/s transmission)
Output
- 8x standard HUB75 interfaces (16x groups of RGB parallel data or 32x groups of serial data, expandable to 128 groups of serial data)
- 1x Gigabit Ethernet Port
Performance
- Supports adaptive frame rates and high frame rates of 120/240Hz
- 8-bit color depth video input and output
- Supports up to 1/128 scan
- 8-bit pixel-level brightness and chromaticity point-by-point calibration
Other Features
Maintainability:
- Image rotation in 90° increments
- Quick firmware upgrade and quick release of correction coefficients
- Data group offset (suitable for simple special-shaped screens)
- Compatible with: Gigabit switches, Gigabit fiber converters, and Gigabit fiber switches
Reliability:
- Firmware program redundancy with backup and readback
- Bit error detection
- Ethernet cable status monitoring
- Loop (Ethernet) redundancy
Dimensions (L*W*H)
- 92mm * 87mm * 18.5mm
File Name | Download |
---|---|
Product Datasheet | Download |
