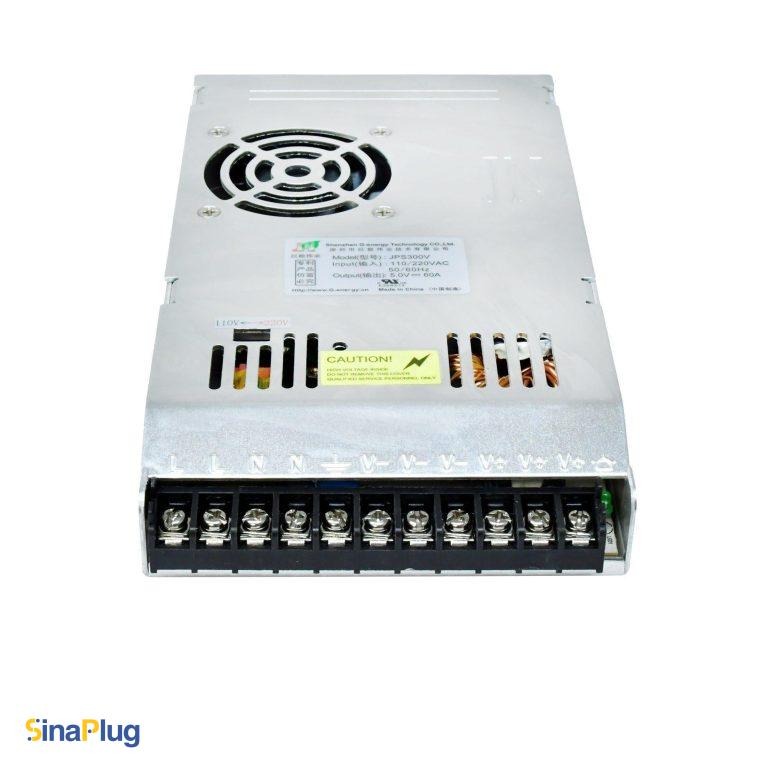

G-ENERGY JPS300V Switching Power Supply (5V, 60A)
$40.40
12 in stock
| Minimum Qty | Discount |
|---|---|
| 15 + | 3% |
| 30 + | 5% |
| 45 + | 7% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The G-energy JPS300V (also known as JPS300V 5.0V) is a renowned, enclosed power supply that uses two selectable (manual select) 110 VAC and 220 VAC inputs to provide 0-60A at 5V with an adjustable 4.9-5.1V range in three consistent output channels. It offers rated 300W output power.
The compact JPS300V can be utilized in A/V and LED equipment, industrial applications, and electronics instruments that require constant and reliable performance. It ensures long-term operation performance with a built-in cooling fan in demanding situations, making it fault-free in challenging ambient conditions from -30°C through +50°C.
In addition to the advanced protections such as overload (with auto recovery), under-voltage, and short circuit protections, it is certified by GB4943, EN60950, GB9254, EN55022, and GB8898 allows the equipment to meet the worldwide energy requirement.
Key Features of JPS300V
- Type of Power Supply: AC to DC
- Packaging: Enclosed
- Input Voltage Range: 110 / 220VAC
- Adjustable Output Voltage: Yes (4.9 – 5.1V)
- Output Voltage: 5V
- Output Rated Current: 60A
- Output Rated Power: 300W
- Protections: under-voltage Protection, Over-Current Protection, Short-Circuit Protection
- Dimensions (L*W*H): 217mm * 117mm * 30mm
| Weight | 1.39 lbs |
|---|---|
| Dimensions | 8.54 × 4.61 × 1.18 in |
| Input Voltage Range | 110/220V |
| Input Frequency Range | 47-63Hz |
| Input Current | ≤5A |
| Efficiency | 78% |
| Output Voltage | 5V |
| Adjustable Output Voltage | Yes |
| Output Rated Current | 60A |
| Output Rated Power | 300W |
| Max Ripple And Noise | 150 mVp-p |
| Output Voltage Tolerance | 2% |
| Short Circuit Protection | Yes |
| Over Temperature Protection | No |
| Over Current Protection | Yes |
| Over Voltage Protection | No |
| Under Voltage Protection | Yes |
| Working Temperature Range | -30 to +50 °C |
| Working Humidity Range | 10-90% |
| Storage Temperature Range | -40 to +80 °C |
| Standard Certification | EN55022A, EN60950, GB4943, GB8898, GB9254 |
