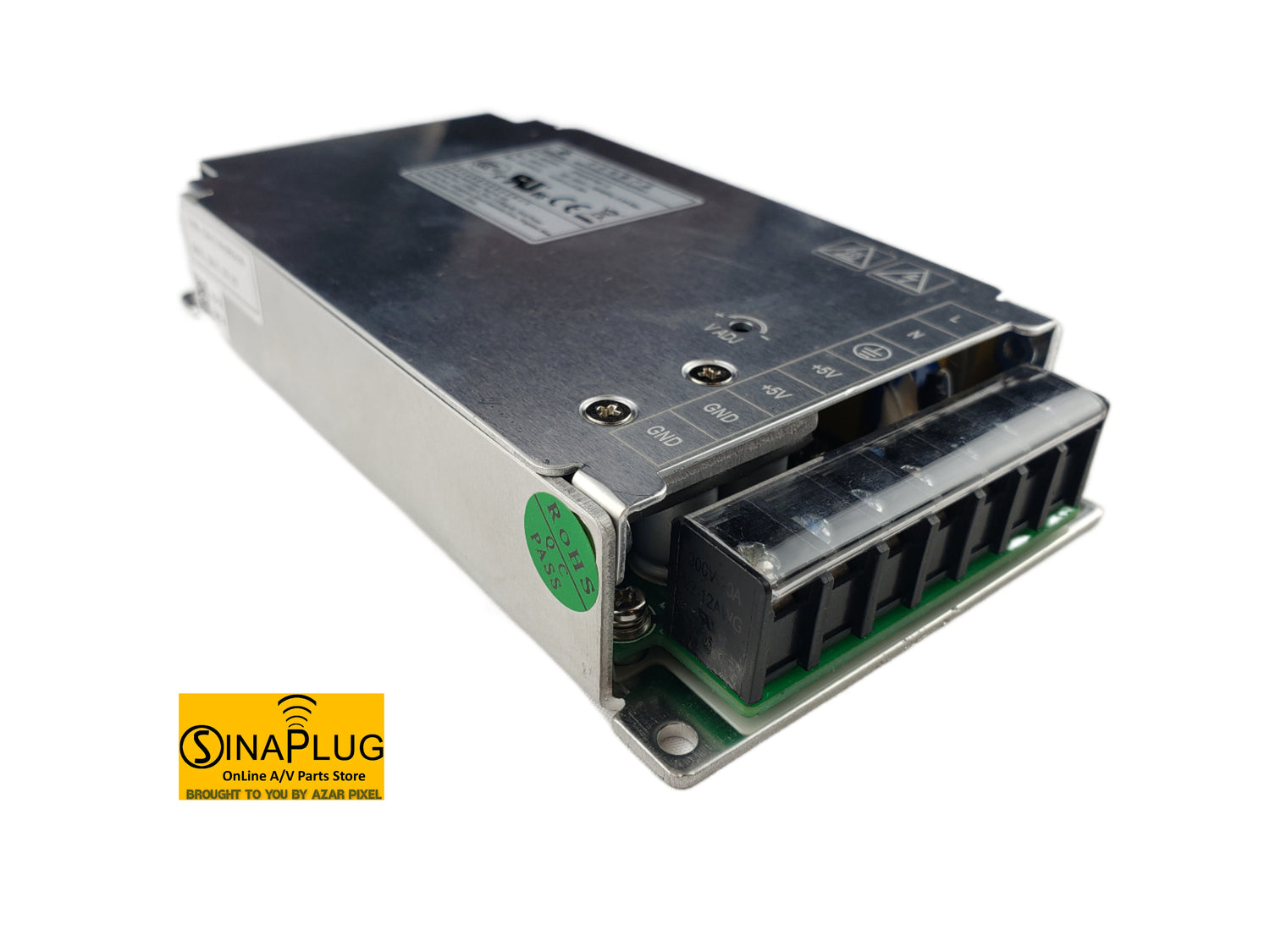

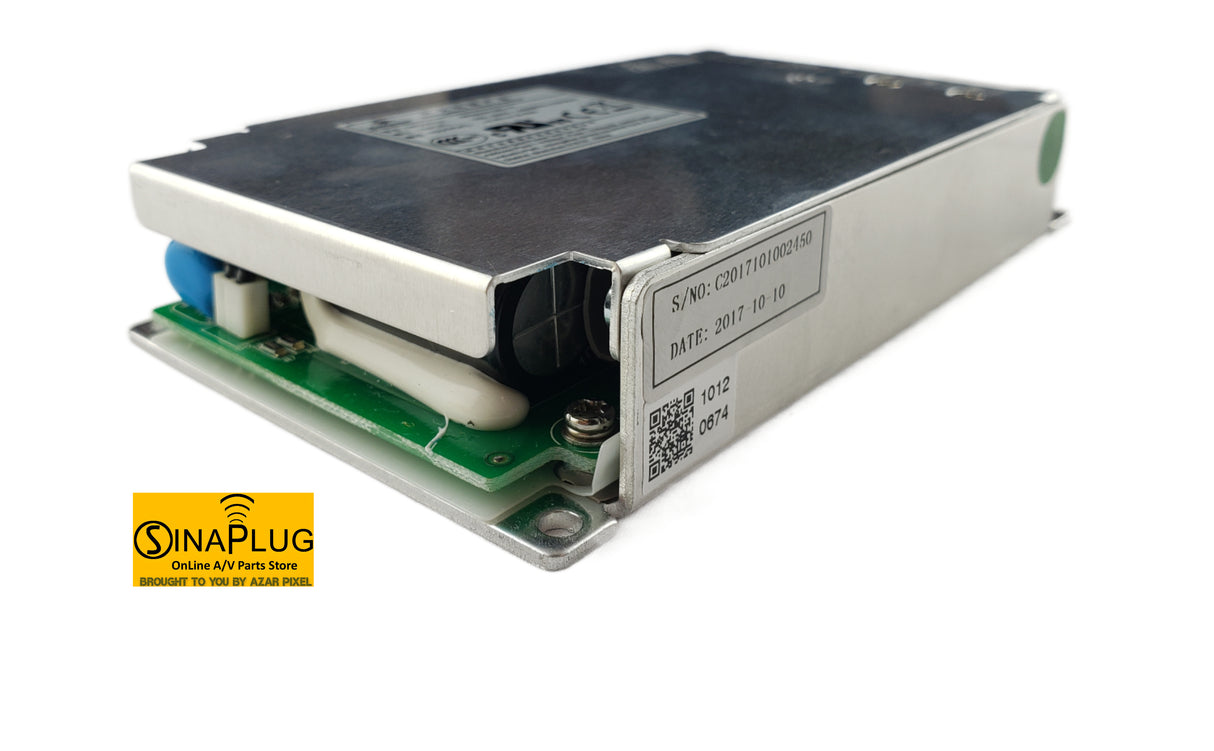

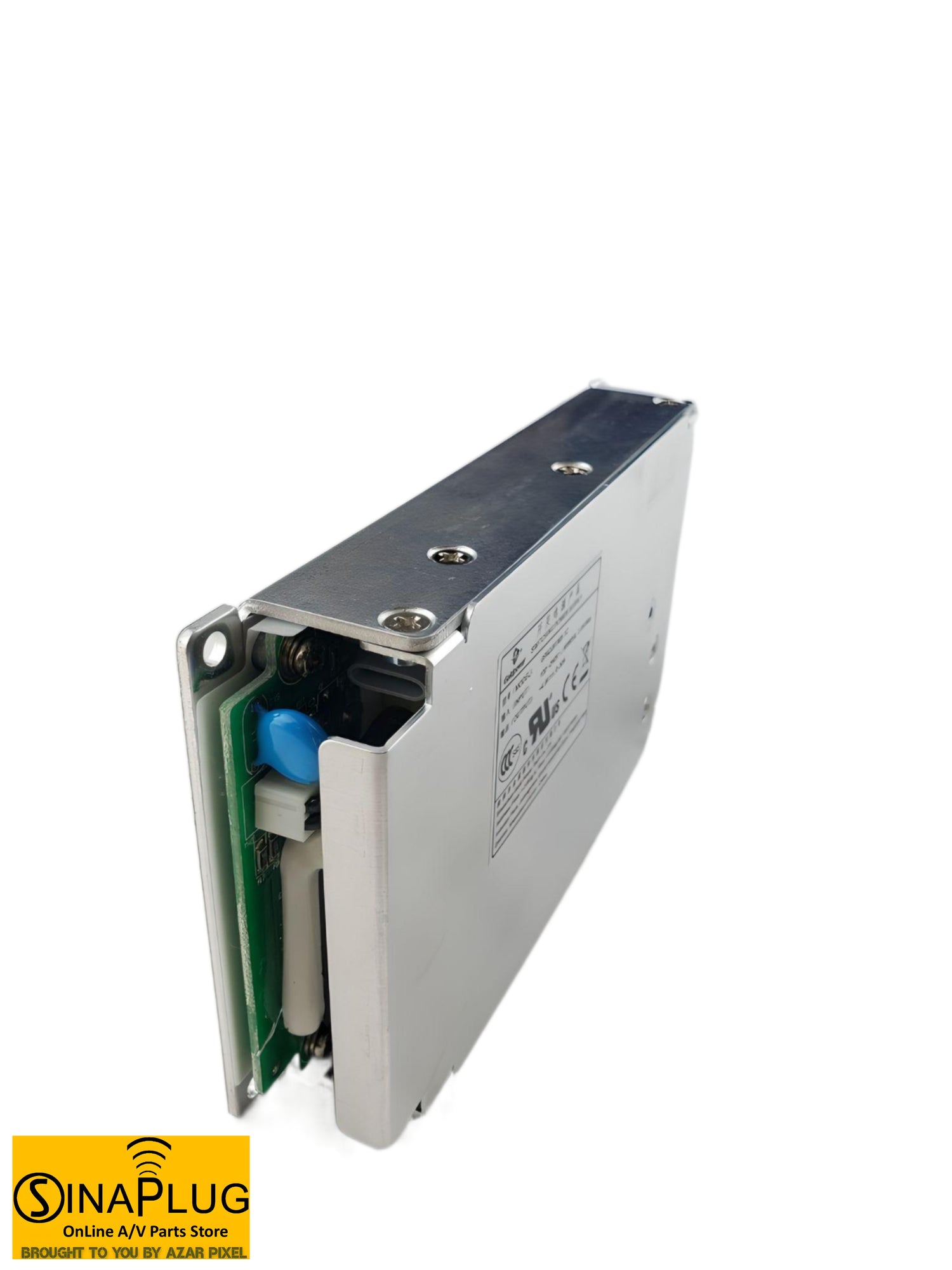

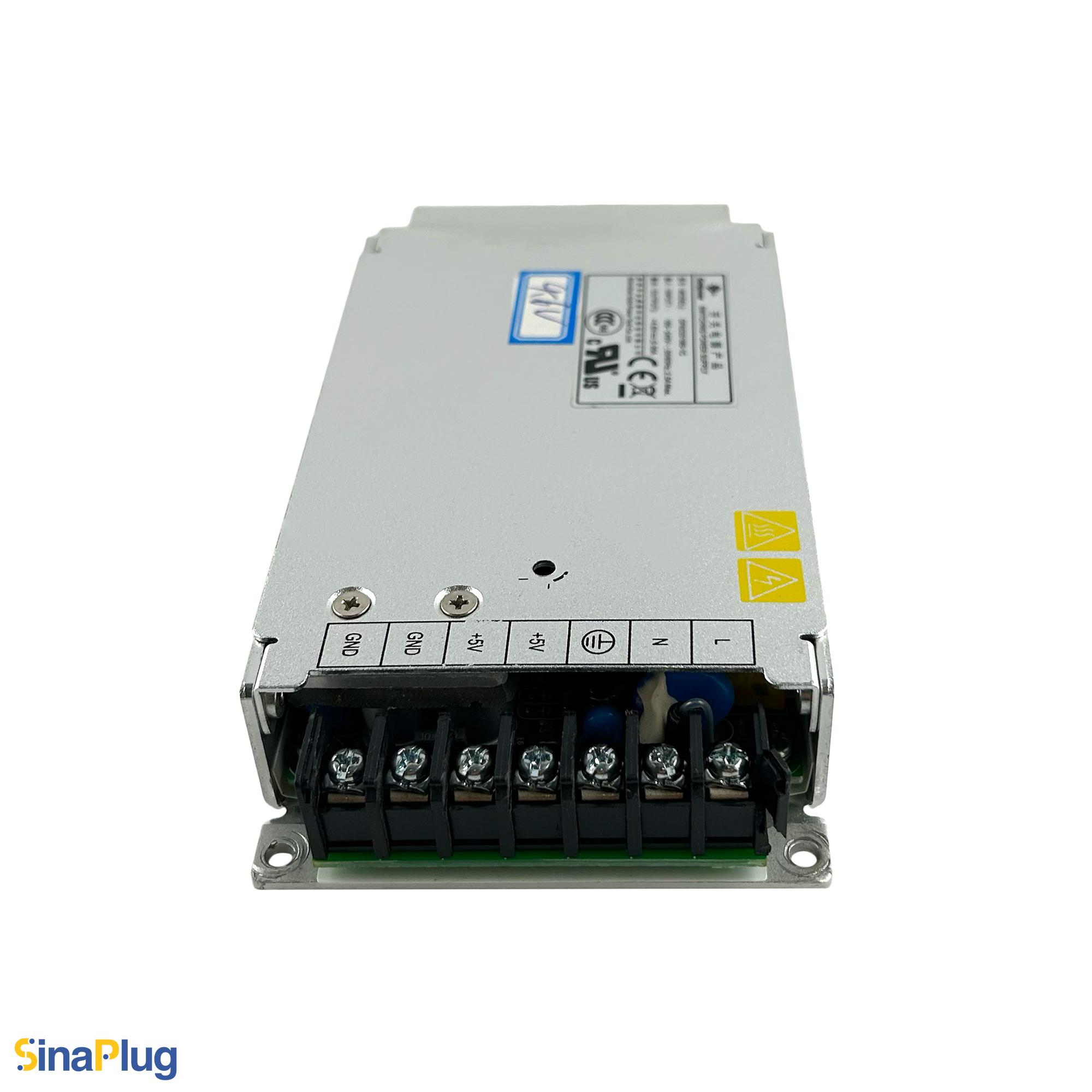

GOLDPOWER GPAD201M5-1C 4.6v POWER SUPPLY

$79.00

Description

The GPAD201M5-1C is a customized power supply with a wide input voltage range of 90-264Vac. It features single output, overcurrent protection, output short circuit protection, and meets safety standards for IT equipment. It is designed for reliable and efficient power supply needs.

The GPAD201M5-1C is a single-output, customized power supply designed and manufactured by our company. It has a wide input voltage range of 90-264Vac, making it suitable for various applications. This power supply features overcurrent protection, output short circuit protection, and output overvoltage protection.

The GPAD201M5-1C power supply is designed in strict accordance with safety requirements and meets safety standards for information technology equipment. It is a reliable and efficient solution for various power supply needs.

With an adjustable output voltage range of 4.2-5Vdc, the GPAD201M5-1C power supply is suitable for various applications. It has load regulation of ±1%, voltage stabilization accuracy of ±5%, and source adjustment rate of ±0.5%. The power supply has a noise + ripple of 200mV (peak-to-peak) within the full input voltage and load range.

This power supply has other output characteristics that include an output power of 200W, an output efficiency of 86-88% at 220Vac input and full load, and dynamic response overshoot of ±5% for 25%-50%-25% or 50%-75%-50% load change. The GPAD201M5-1C power supply has overvoltage protection point of 6-6.5V and output current limiting protection point of 58-70A. It also has output short circuit protection and over-temperature protection with a test point at the center of the power supply enclosure point.

The GPAD201M5-1C power supply has passed various EMC and safety tests, including radiated emission, conducted interference, electrostatic discharge, radiated immunity, conducted immunity, surge, fast transient burst, vibration, impact, voltage fluctuation and flicker, and current harmonic emission. It also meets safety regulations and insulation levels.

In summary, the GPAD201M5-1C is a reliable and efficient customized power supply with a wide input voltage range, single output, and various protection features. It is suitable for various applications and meets safety standards for information technology equipment.

GOLDPOWER GPAD201M5-1C LED PANEL POWER SUPPLY

Input Voltage: 90-264VAC - 3A, 60/50Hz

Output Voltage: 4.6V 30A

Dimensions:  145*78*26mm



Environment
Parameter Minimal Typical Max Unit Comment
Operating temperature(Casing center point temperature) -25 65 80 °C
Storage temperature -25 25 100 °C
Relative humidity 5 95 % No condensation
Altitude 0 4000 m Wherein, the high temperature drop under the service condition of 3000-4000 m, Decrease by 1 ℃ for every 200 m increase
Heat dissipation mode Natural conduction and heat dissipation
Input
Parameter Minimal Typical Max Unit Comment
AC input voltage range 90 110/220 264 Vac
AC input voltage frequency 47 50/60 63 Hz
Power factor 0.95 220Vac full load
Input rush current 50 A 220Vac full load/cold
AC input system Single-phase input L、N Supports single phase
Basic output characteristics
Parameter Minimal Typical Max Unit Comment
Output voltage range 4.2 4.6 5 Vdc Adjustable output voltage
Output setting voltage 4.55 4.6 4.65 Vdc
Output current range 0 40 A Full voltage input range
Load regulation ±1 % Rated voltage input, full load variation
Voltage stabilization accuracy ±5 % Full voltage input range/full load output
Source adjustment rate ±0.5 % Rated current output, full voltage range variation
Noise + Ripple (peak-to-peak) 200 mV The test is carried out within the full input voltage and load range, and a 0.1uF ceramic capacitor or a gold film capacitor and a 10uF electrolytic capacitor are added at the output end during the test, and the bandwidth of the oscilloscope is 20 MHz
Other output characteristics
Parameter Minimal Typical Max Unit Comment
Output Power 200 W
Output efficiency 86 88 % 220Vac input, output full load, normal temperature test
Dynamic Response Overshoot ±5 % 25% -50% -25% or 50% -75% -50% load change,
Current change rate 0.1A/us, period 4ms
The output suddenly applies 100% load from no load, and the output jumps back and forth from full load to no load (the jump time is 5ms, and it can be maintained for several cycles after the jump). Measure the output voltage waveform. The module shall not have output oscillation, and the overshoot of output voltage shall not exceed 10% of the setting value of output voltage.
Dynamic Response Overshoot ±10 %
Temperature coefficient ±0.02 %/℃ Rated output voltage and output current, full operating temperature range
Power-on output delay 2 S Full load test at 220Vac
Startup and shutdown overshoot ±10 % Full voltage input range, full load output
Output Voltage Rise Time 100 ms Rated input/rated output
With capacitive load 4700 10000 uF Full voltage full load range
Protect
Parameter Minimal Typical Max Unit Comment
Output overvoltage protection point 6 6.5 V Output is locked
Output current limiting protection point 58 70 A Overcurrent hiccup, output 4.6V test
Output short circuit protection Long-term short circuit and self-recovery
Over-temperature protection 80 95 ℃ Over temperature shutdown, recoverable. The test point is the center of the power supply enclosure point
EMC and others
Parameter Standard requirements
Radiated Emission (CE) EN55022 - Class A
Conducted interference (RE) EN55022 - Class A
Electrostatic discharge (ESD) EN61000-4-2 Contact discharge: ± 4 KV, air discharge: ± 8 KV. (Criterion B)
Radiated immunity (RS) EN61000-4-3 LEVEL 3; Criteria A; 10V/m field strength
Conducted Immunity (CS) EN61000-4-6 (the output end of the power module shall also be tested) LEVEL 3; Criterion A: 10V
Surge (SURGE) EN61000-4-5 Input: line-to-line 1 KV, line-to-ground 2 KV
Fast Transient Burst （EFT/B） ± 2KV, LEVEL 3, Criterion B IEC61000-4-4
Frequency 1-4Hz, acceleration spectral density 0.0001 G2/Hz; Frequency 4-100Hz, acceleration spectral density 0.01 G2/Hz; Frequency
Vibration 100-200Hz, acceleration spectral density 0.001 G2/Hz; Total RMS acceleration: 0.781 Grms; Test axial direction: 3 axial directions. Test time: 30 min in each axial direction.
Impact Impulse waveform: half sine wave; Peak acceleration: 300m/S2; Pulse width: 6ms; Axial direction of impact: 6 directions; Impact Times: 3 times in each direction
Voltage fluctuation and flicker Pst≤1.0 dc≤3%
P1t≤0.65 dmax≤4% D (t) value exceeds 3.3% ≤ 200ms
Current harmonic emission CLASS A IEC61000-3-2 {6}
Acoustic noise 55dB(A); Test distance 1m
MTBF MTBF≥200,000h
Odor requirements Do not produce peculiar smell and smell harmful to health.
Safety regulations and insulation level
Parameter Standard requirements Comment
Input-output 3000Vac/10mA//1min No flashover, no breakdown
Input-Earth 1500Vac/10mA//1min No flashover, no breakdown
Output-Earth 500Vdc/10mA//1min No flashover, no breakdown
Insulation resistance ≥10MΩ Under normal atmospheric pressure, relative humidity < 90%, test voltage 500 Vdc, power input vs. output, input Insulation resistance to ground and output to ground ≥ 10 MΩ
Leakage current ＜1mA
Mechanical properties
L * W * H 145*78*26mm
Weight (kg) ≤1Kg
