GREAT WALL  |  SKU: PSU-GWL300QX-01

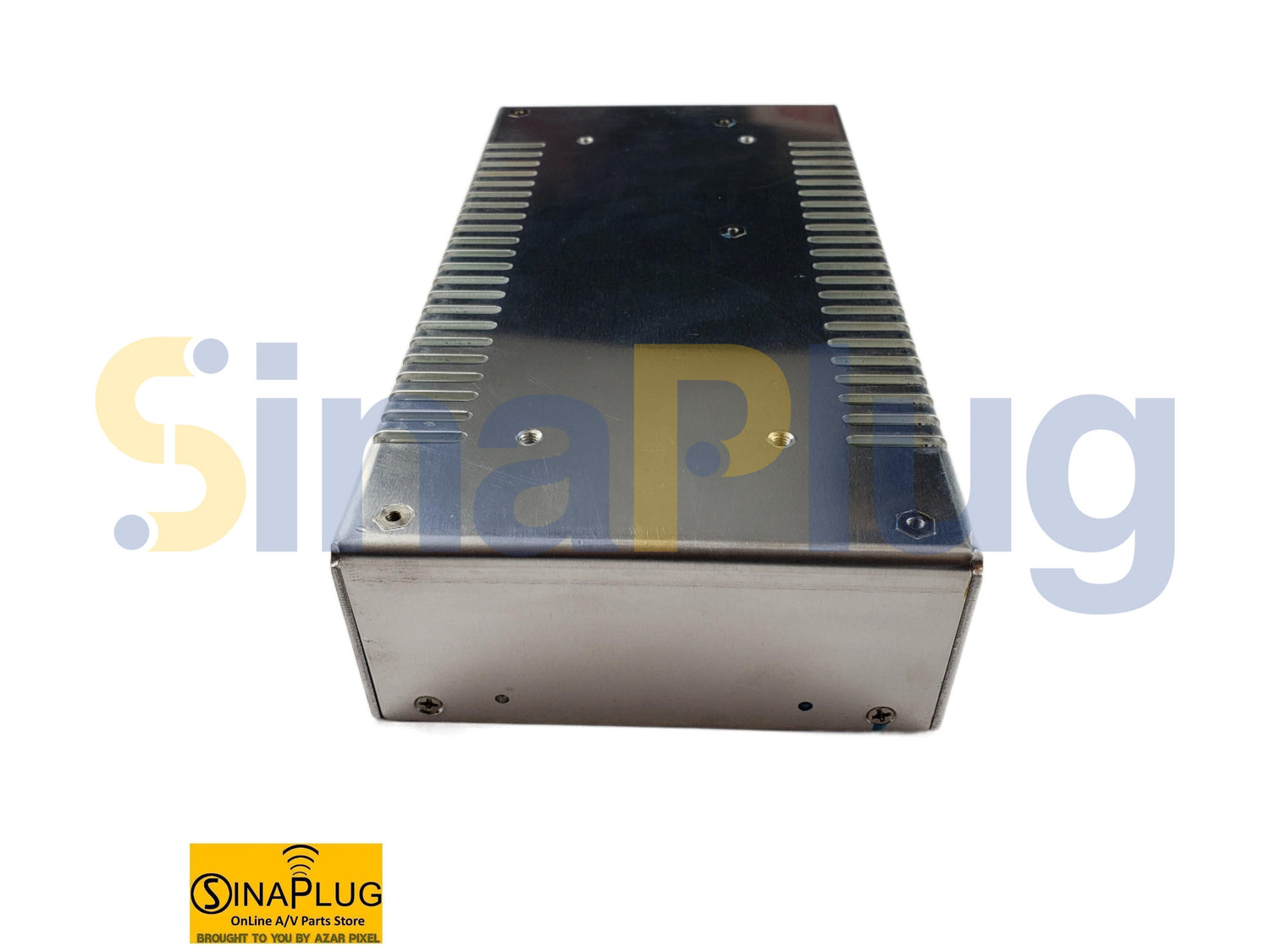

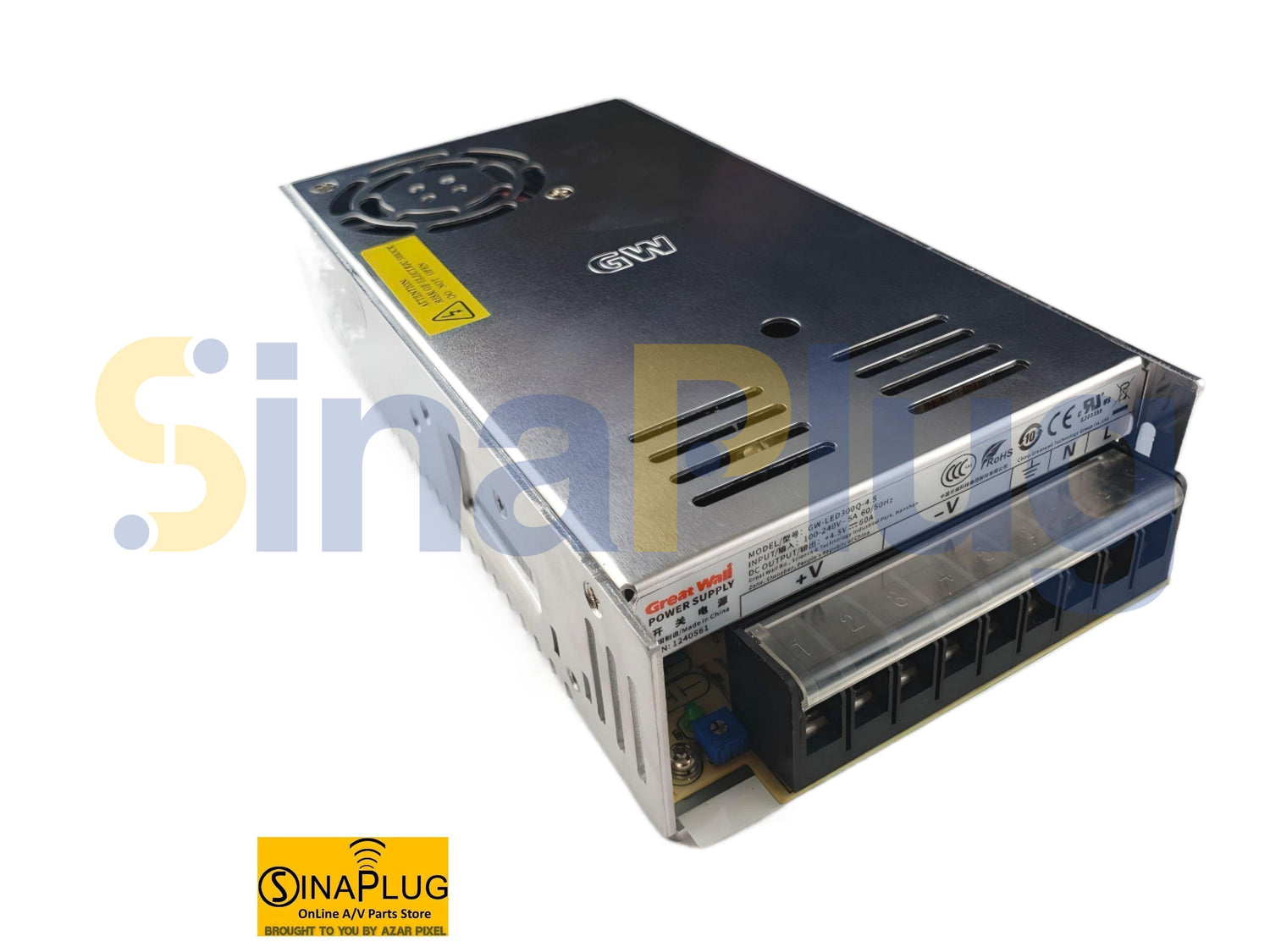

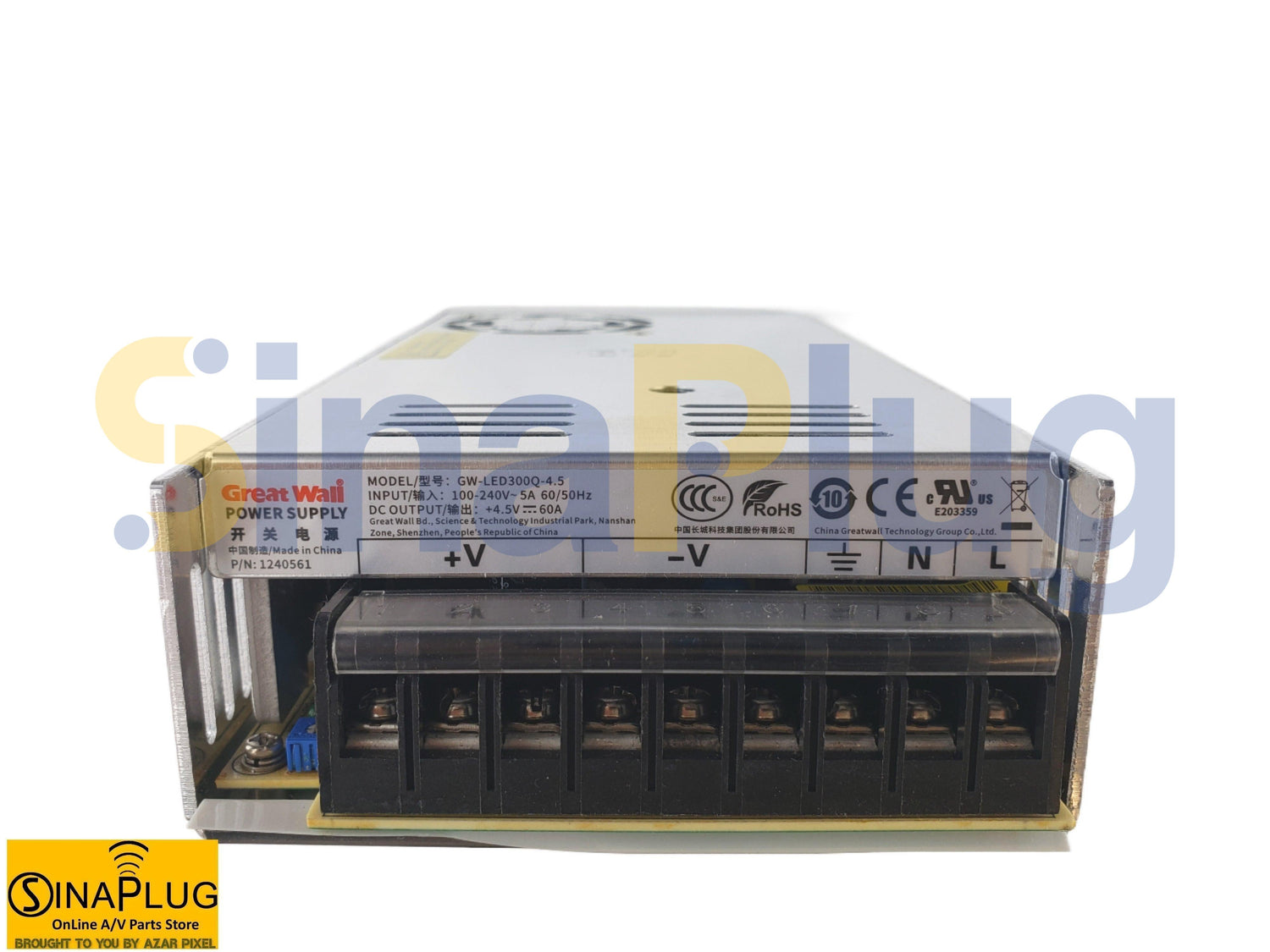

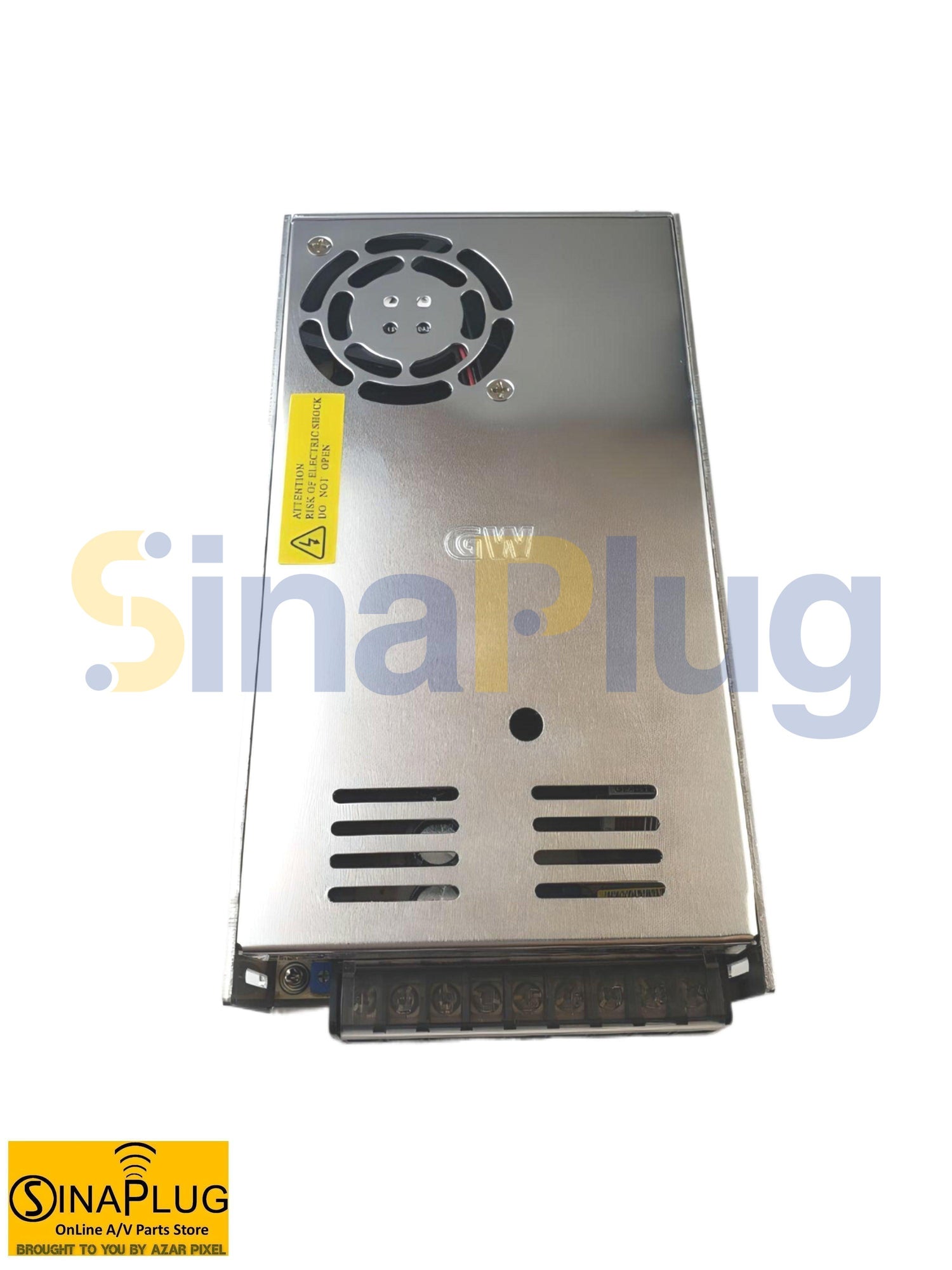

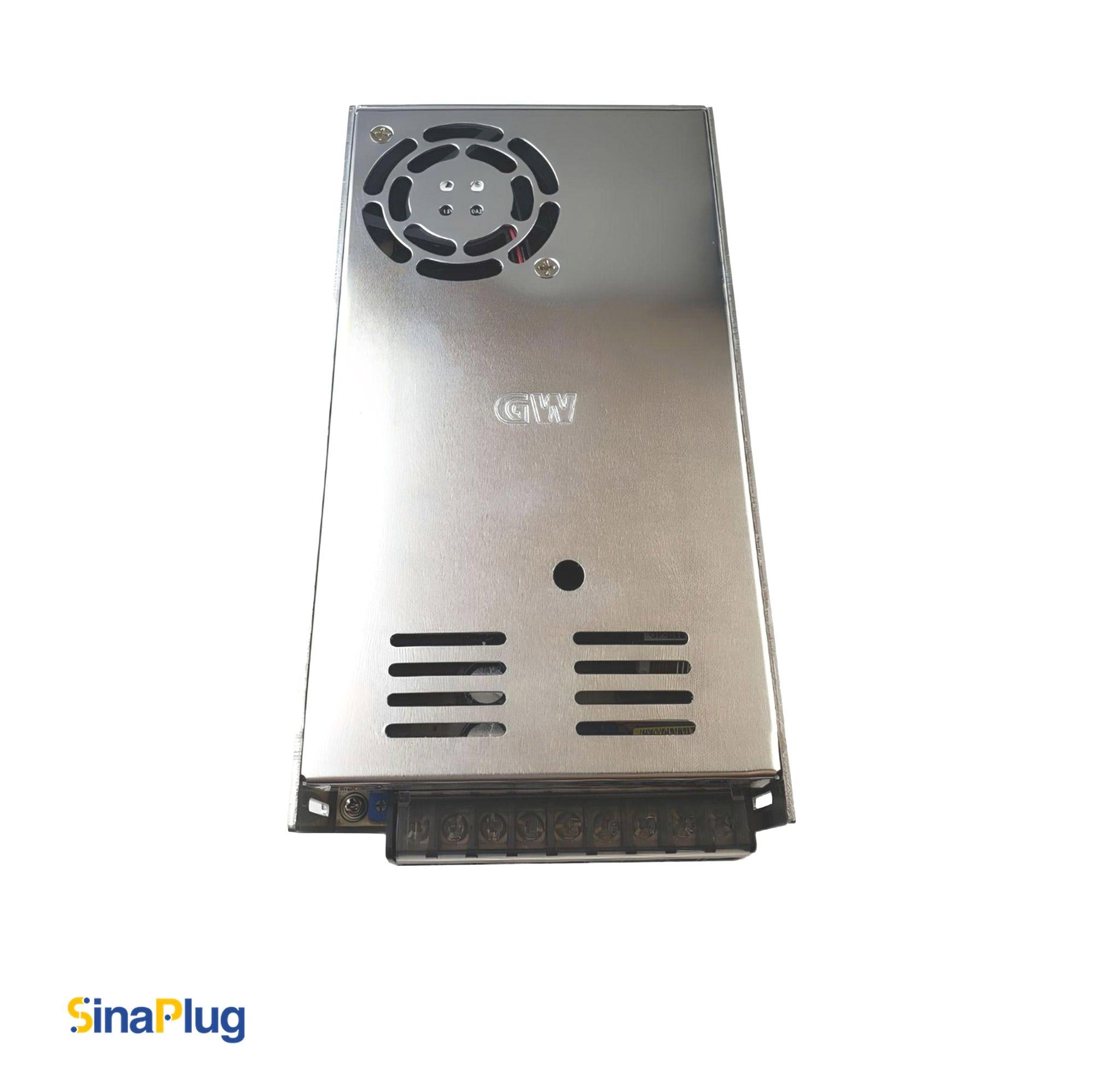

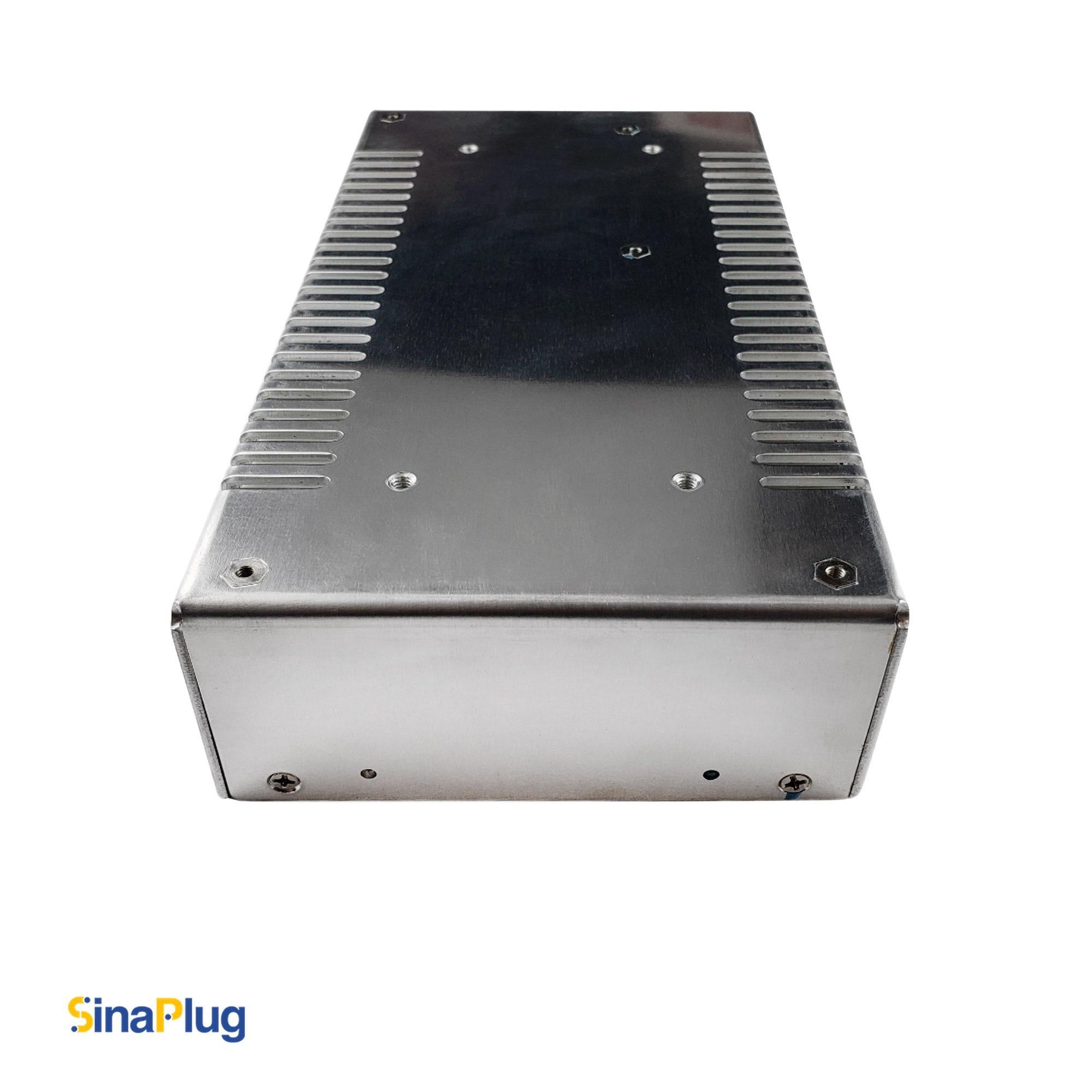

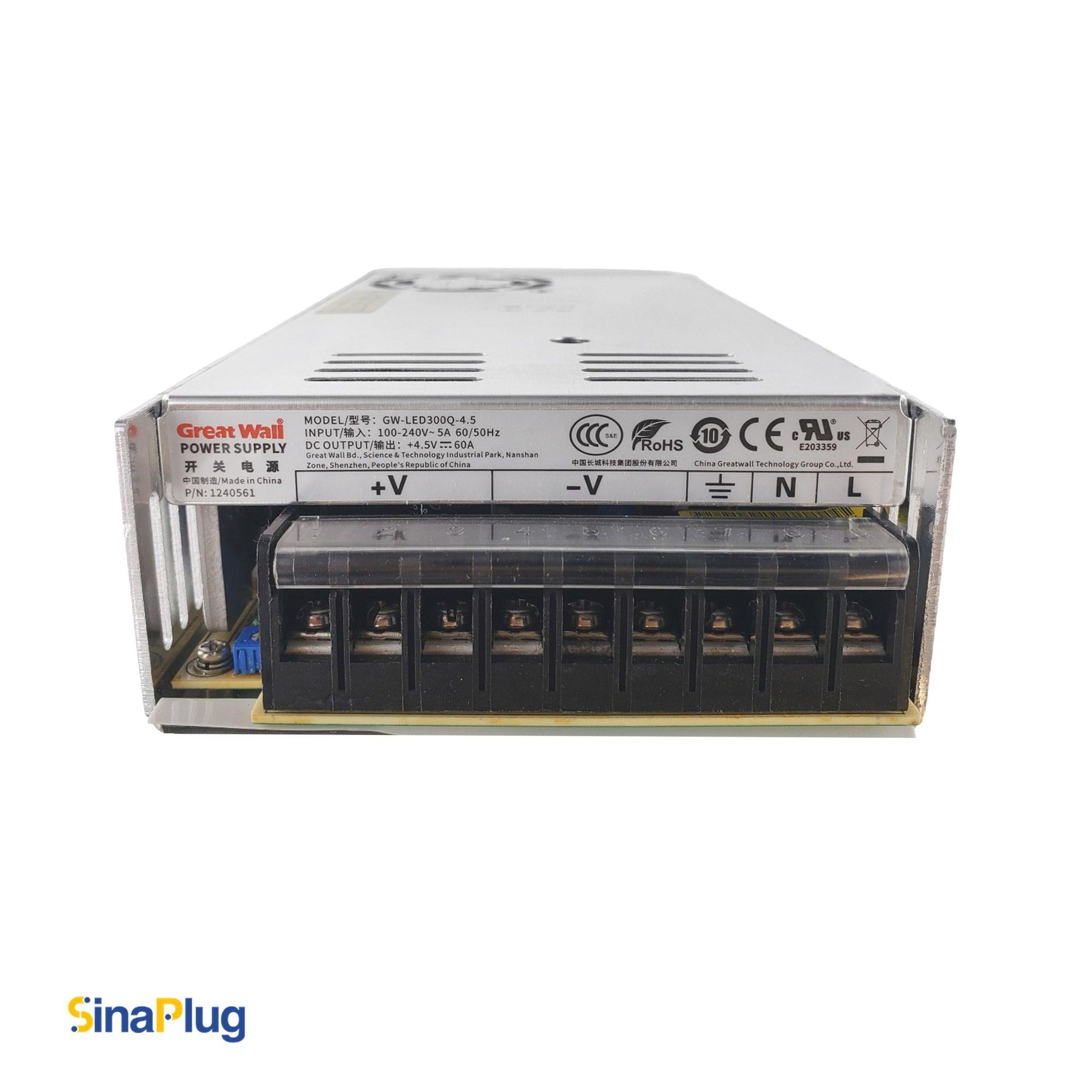

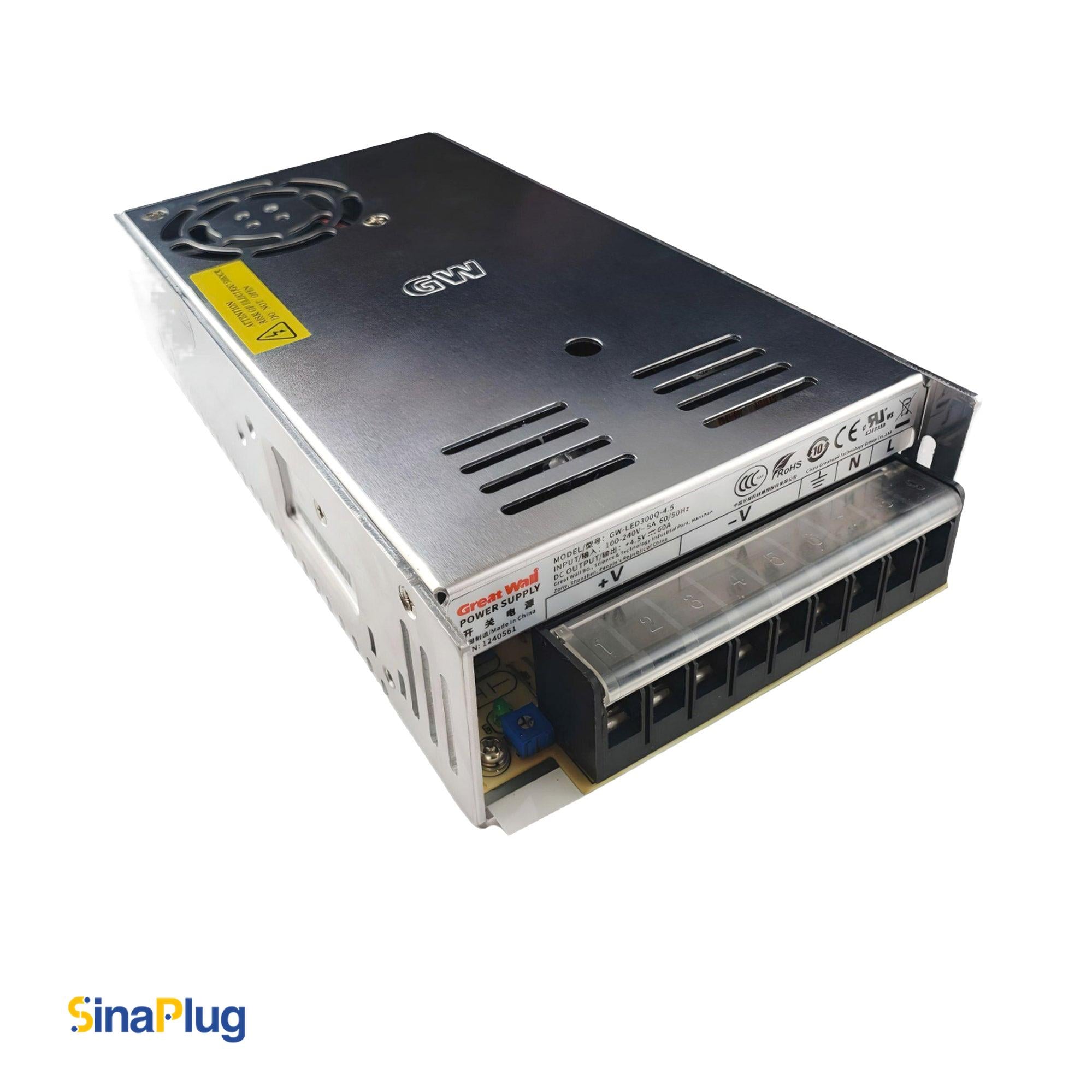

GREAT WALL GW-LED300Q-4.5 Switching Power Supply Output, 4.5Volts, 60Amps

$128.38

Documents

No files available.
Description

Power: 300W
Size: 215×125×50mm
AC input voltage range: 88-132VAC/ 176-264VAC selected by switch
Input frequency: 47-63Hz
AC inrush current: Cold start，60A/230VAC
DC adjustment range: ±10% rated output voltage
Line regulation full load: ≤0.5%
Output overload protection: 110%-150% hiccup mode, auto-recovery
Rise hold up time: 50mS，20mS at full load, typical
Withstand voltage: I/P-O/P, I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature: 10~+40℃@100%，+60℃@60% load
Storage temperature: 20℃~+85℃，20%~95%RH (non-condensing)
Safety standards:  Design refer to GB4943，UL60950-1, EN60950-1
EMC standards: Design refer to GB9254，EN55022 class A
Cooling method:  Free air-cooling convection
