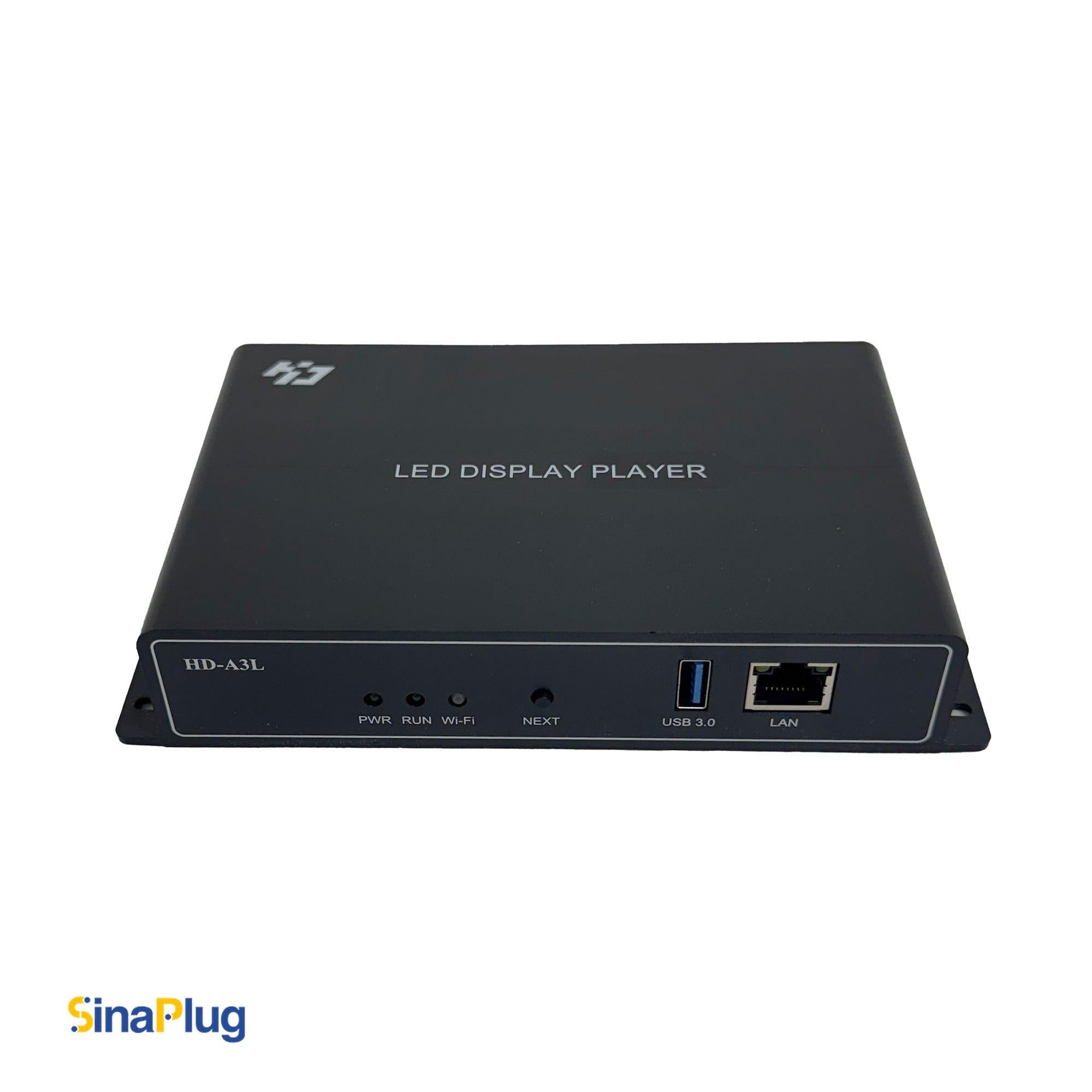

Huidu HD-A3L Multimedia Player

Azar Pixel provides Huidu HD-A3L; an LED multimedia player designed for full-color LED displays, allowing users to easily publish content and manage LED displays via local or remote (wired/wireless) devices.

With 1 GB of RAM and 16 GB of internal storage (expandable via both USB 3.0 and USB 2.0 ports, in addition to their functionality for updating and loading programs), this device offers powerful performance, handling a maximum resolution of up to 655,360 pixels with a maximum width of 8192 pixels and a maximum height of 3840 pixels through its output Gigabit Ethernet port which is compatible with all HD-R series Huidu receiving cards like: HD-R708, HD-R712, HD-R716.

It offers a wide range of connectivity options, supporting a 100M network input port (LAN or Internet) and a 2.4G Wi-Fi frequency band with Wi-Fi STA for diverse program management scenarios. Furthermore, it supports LedArt mobile phone control, facilitating internet remote cluster management on the XiaoHui Cloud Platform.

This energy-efficient Huidu A3L card operates on 5V 3A or 12V 1.5A DC power with a power consumption of less than 18W and it features a 3.5mm 2-channel audio out interface and a Wi-Fi connector. through its external sensor interface it can monitor temperature, humidity, brightness, wind speed, wind direction, noise, PM2.5, PM10, and CO.

Its simple software operation and comprehensive functions make it an ideal and reliable solution for continuous 24/7 digital signage operation in extreme ambient temperatures ranging from -40°C to +70°C in various commercial displays, smart displays, and other fields.

Key Features of HD-A3L

Up to 655,360 pixels (max width: 8192, max height: 3840)

1x Gigabit Ethernet LED out port

1x TRS 3.5mm audio interface

1x USB 3.0 (Type A) port

1x USB 2.0 (Type A) port

1x Sensor port

1x 100M Ethernet RJ45 network port

Wi-Fi (wireless) + LAN (wired) + U-disk (USB)

1 GB RAM

16 GB internal storage

Multi-channel window playback up to 1x 4K, 2x 1080p, 4x 720p, or 6x 360p videos

Supports following file formats:

Image: BMP, GIF, JPEG, PNG, WEBP

Video: AVI, WMV, MP4, 3GP, ASF, MPG, FLV, MKV, MOV, DAT, VOB, TS, WEBM

Support Wi-Fi STA mode, mobile App wireless and network cluster remote management

U-disk expansion program

Multiple connection solutions (wired and wireless)
