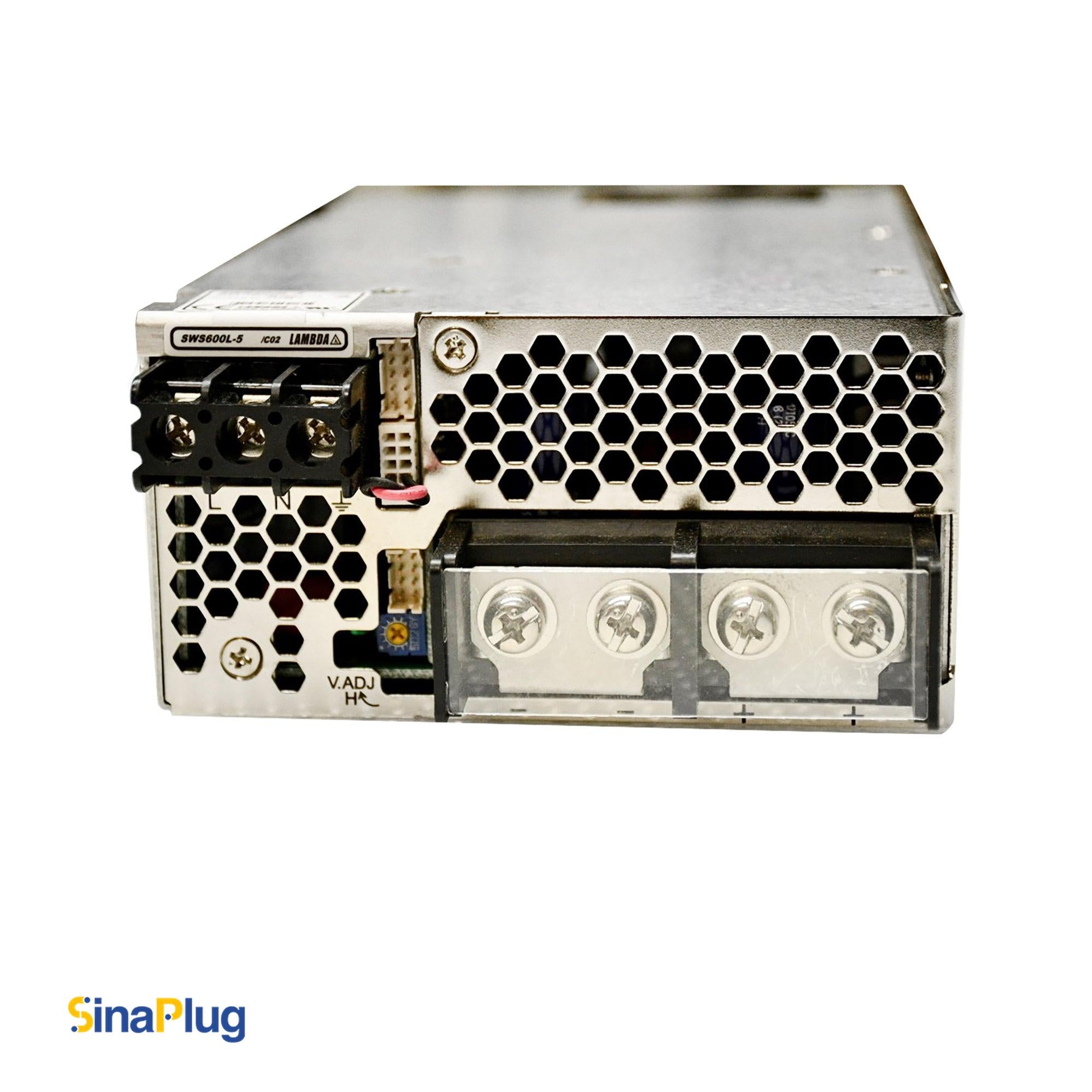

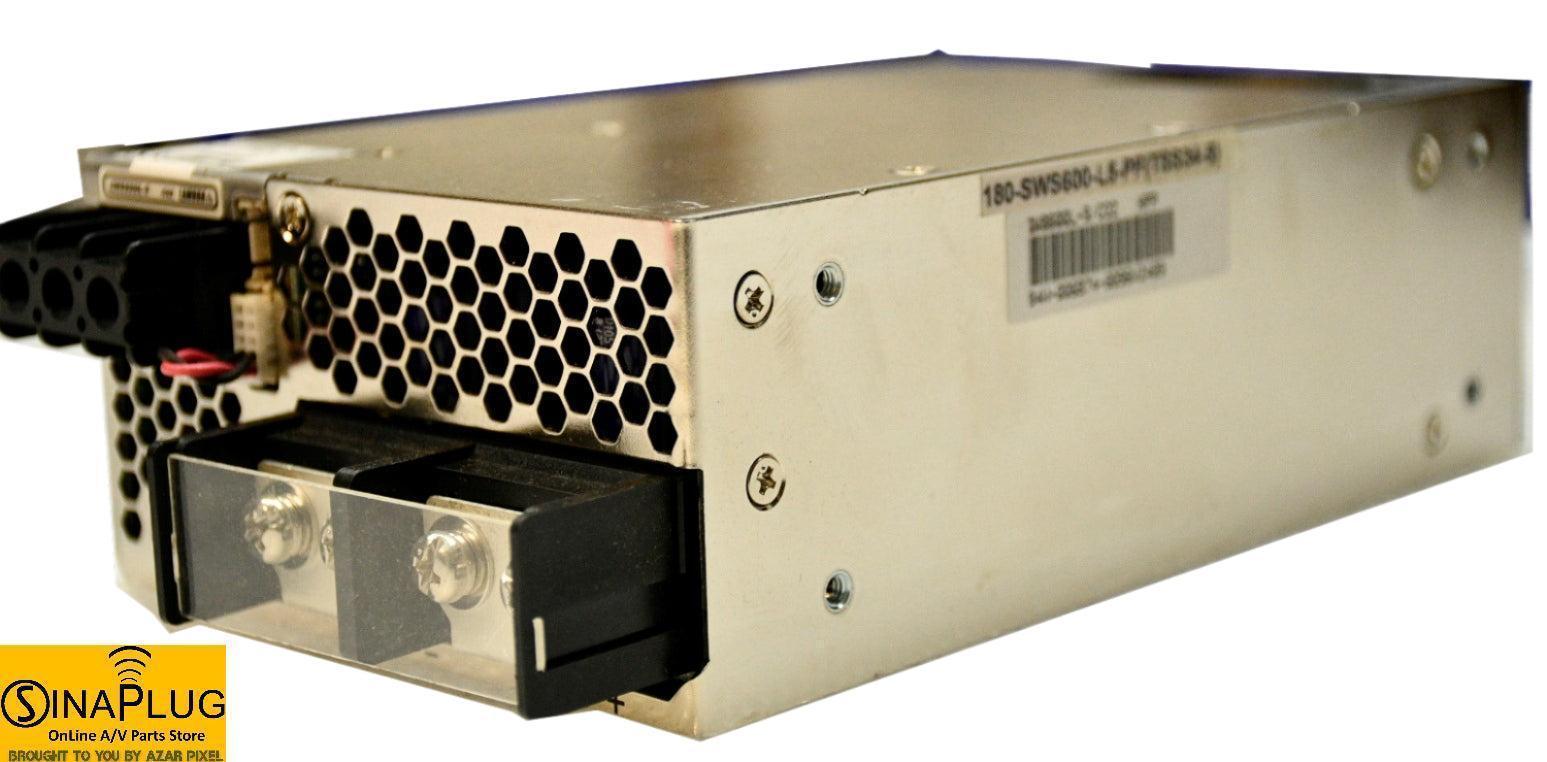

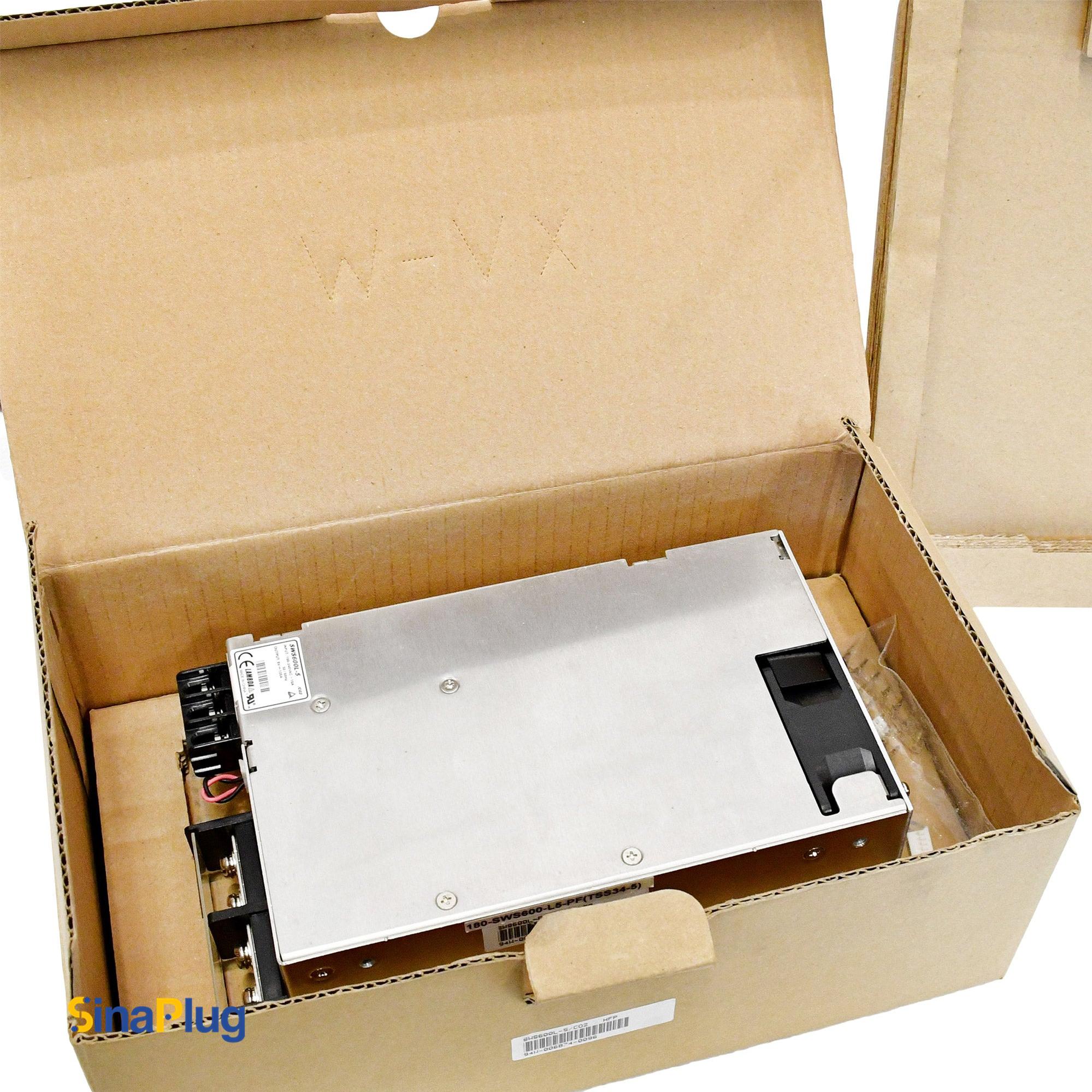

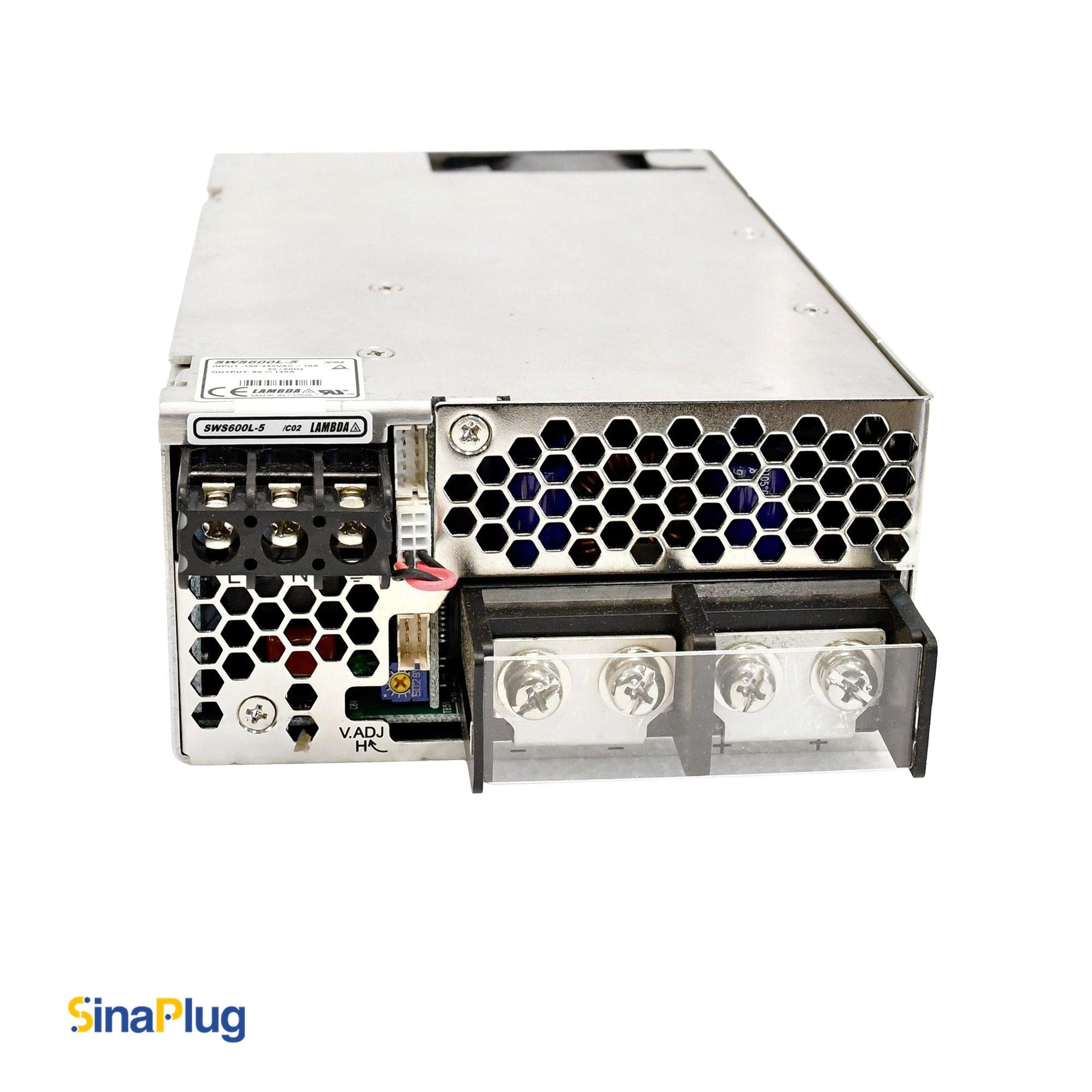

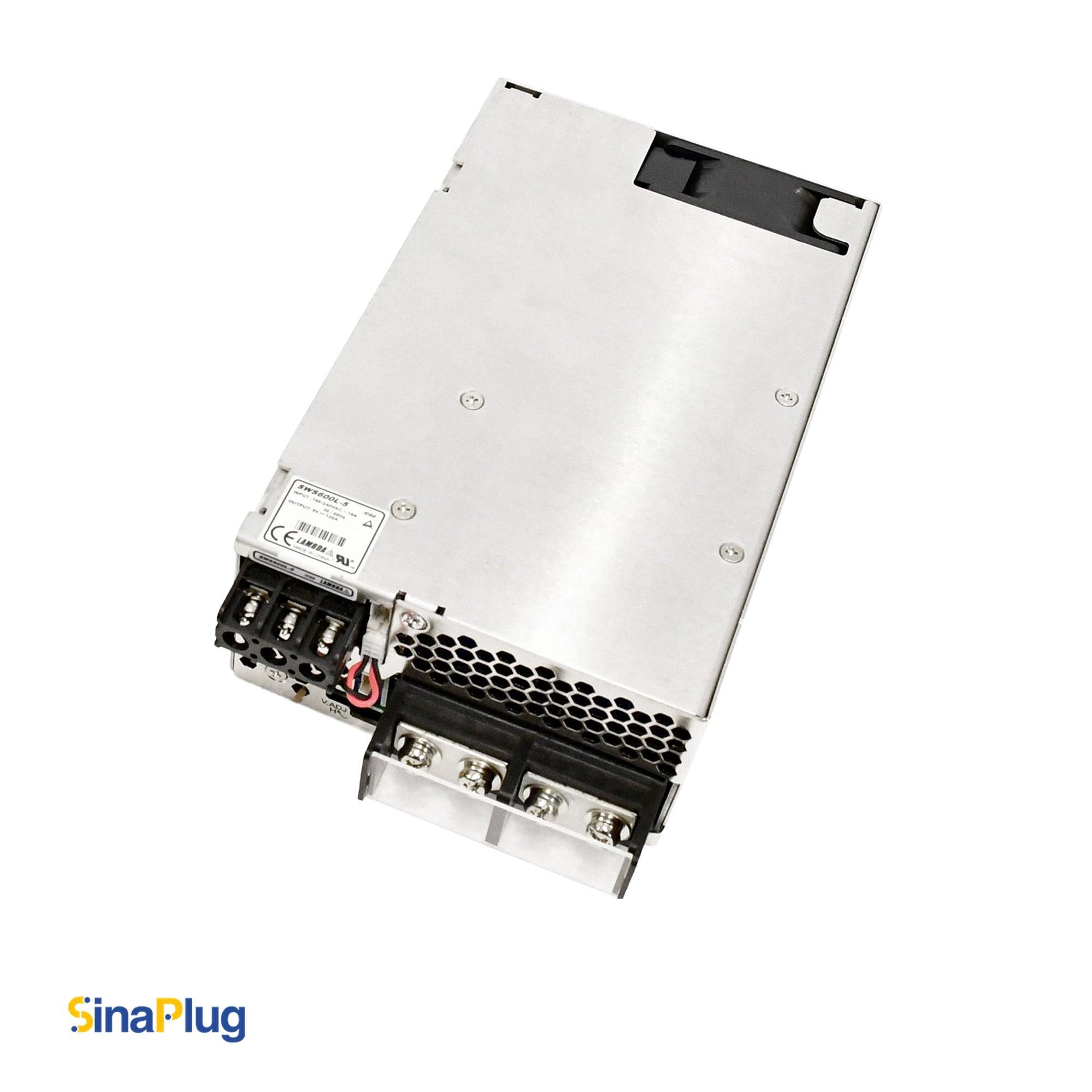

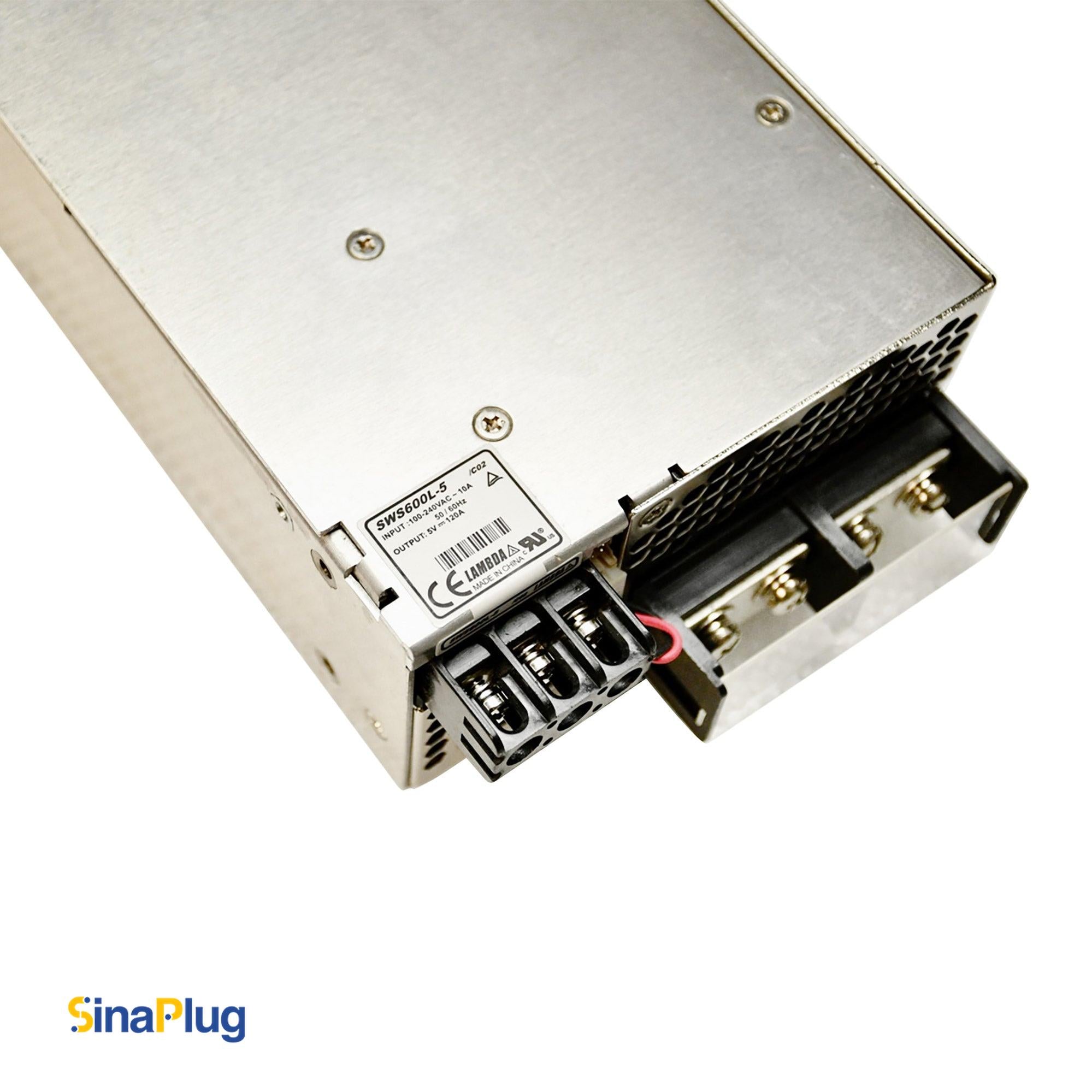

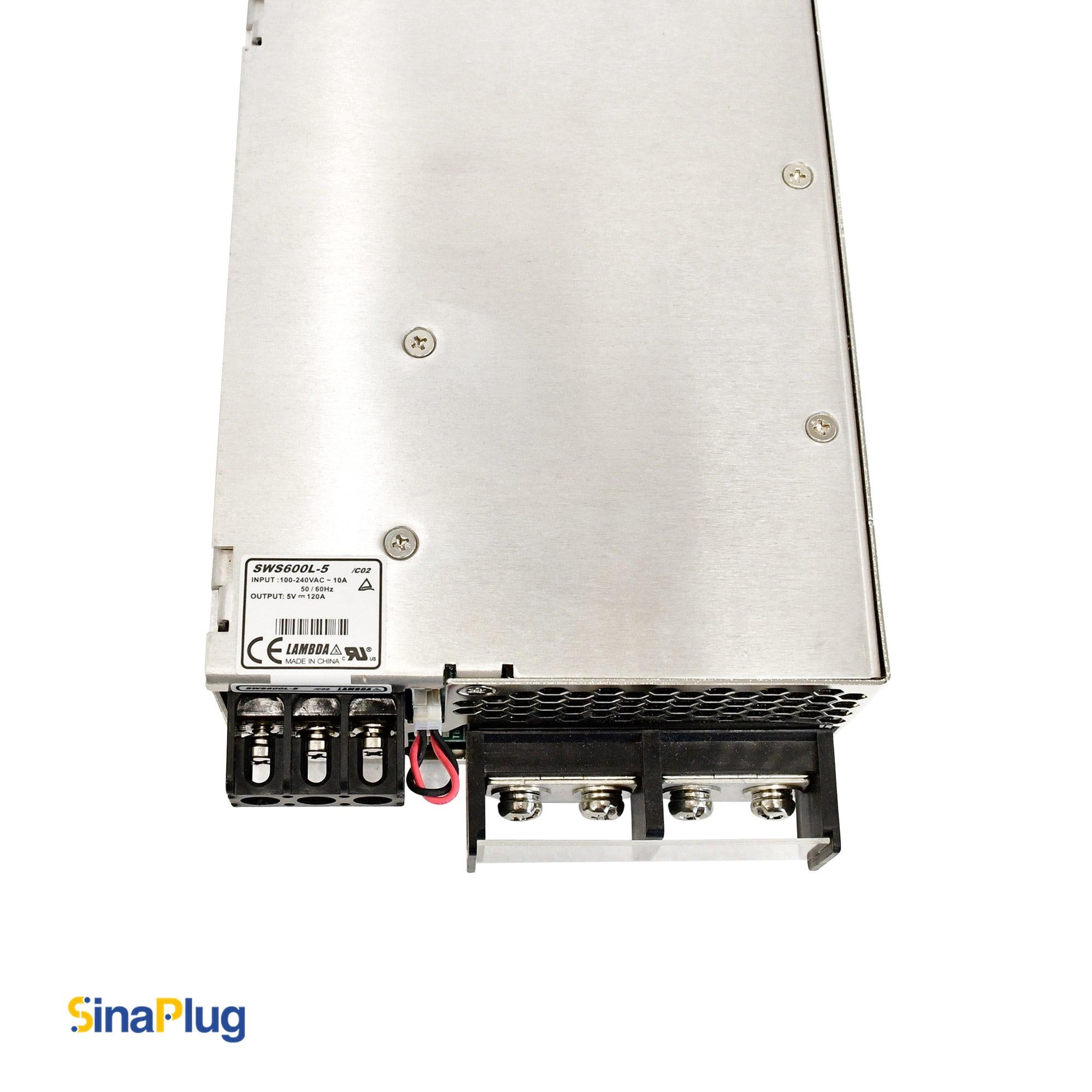

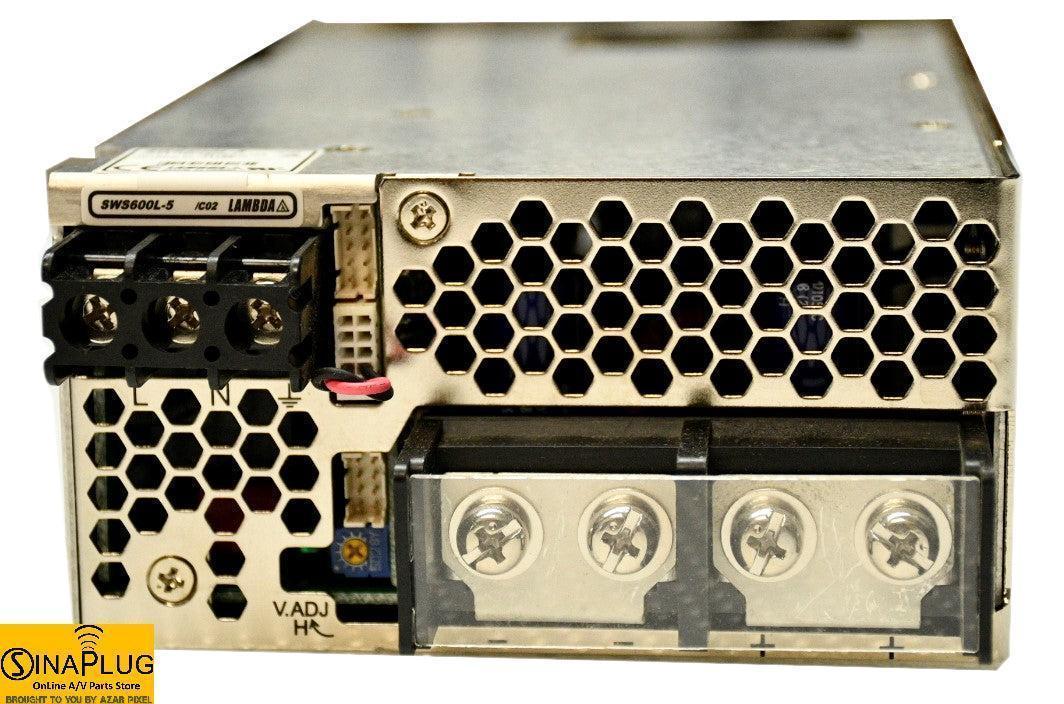

LAMBDA SWS600L-5/CO2 Switching Power Supply 5V 120A

LAMBDA SWS600 L-5

Features:

-Lower cost

-Low profile

-Active power factor correction

-Universal input(85-265VAC)

-Input transient protected IEC61000-4

-Low acoustical noise

-Medical Certifications (SWS1000L)

-Global safety approvals

-Variable speed fan

Key market segments and applications: industrial, comm, Led, test, medical .

Specifications:

• Input Voltage range (1): 85 - 265VAC (47 - 63Hz) or 120 - 350VDC
• Inrush Current (115 / 230VAC): 20 / 40
• Power Factor: Meets EN61000-3-2 Class A
• Input Current (100/200VAC): 7.1 / 3.6 (3.3V: 5 / 2.5)
• Temperature Coefficient: <0.02%/°C
• Overcurrent Protection: >105%, Constant current style
• Overvoltage Protection: 125% -145%
• Overtemperature Protection: Yes, cycle AC or Remote On/Off to rese
• Hold Up Time (Typ): 20ms at 115/230VAC
• Leakage Current (max): <0.75mA
• Remote Sense: yes
• Parallel Connection: yes
• Remote On/Off(CNT): yes
• Voltage programming(1) : yes
• DC Good & Fan Fail Signal: Yes, open collector output
• Auxiliary Output: 12V 0.1A
• LED Indicator: Green LED = On
• Operating Temperature: -40°C start up. -20 to 74°C, derating linearly to 50% load above 50°C
• Storage Temperature: -40 to +85°C
• Humidity (non-condensing): 20 - 90% RH operating, 10 - 95%RH non operating

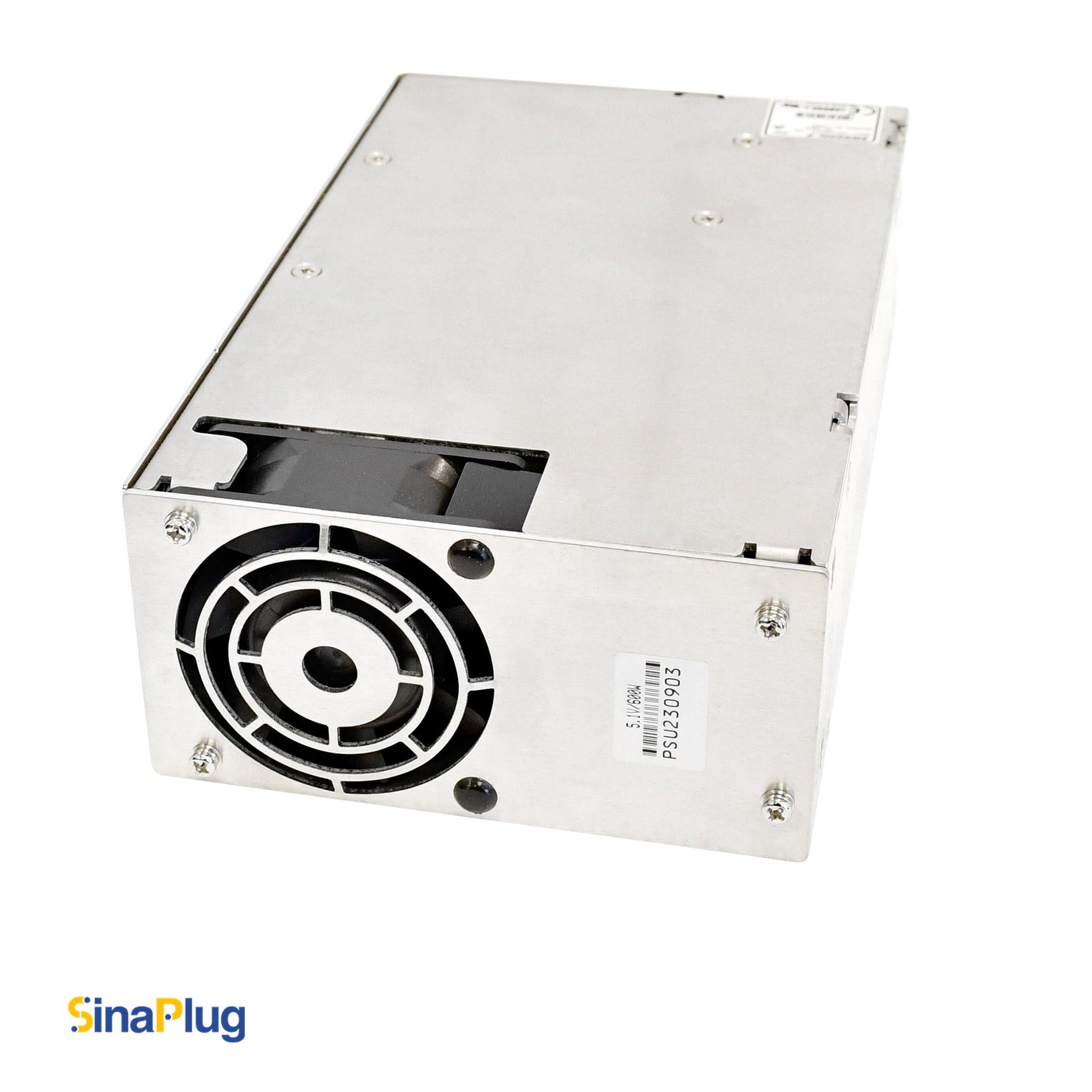

• Cooling: variable speed internal fan
• Withstand Voltage: I/P to Grnd 2kVAC, I/P to O/P 3kVAC, O/P to Grnd 500VAC, O/P to CNT 100VAC
• Isolation Resistance: >50M at 25C & 70%RH, Output to Ground 500VDC
• Vibration (non-operating): MIL-STD-810F 514.5 Cat. 4,10
• Shock (in packaging): MIL-STD-810F 516.5 Procedure I, VI
• Immunity: EN61000-4-2, -3, -4, -5, -6, -8, -11
• safety Agency certification: UL, CSA, EN60950-1, UL60601-1 (1000W only), IEC61010-1 (600W only), EN50178, CE Mark
• Conducted & Radiated EMI: EN55011 / EN55022-B, FCC Class B
• Weight (Typ): 2 lbs
• Size (WxHxD): 2.4 x 4.72 x 7.48”

Model selector:

-voltage: 5V

-Adjust range: 4-6 V

- Curr. (A): 120A

-Max power (w): 600W

-Mx Reg(mV): 30

-Line noise(mV): 1 20

-Ripple Eff .(3) (typ)% : 75/77
