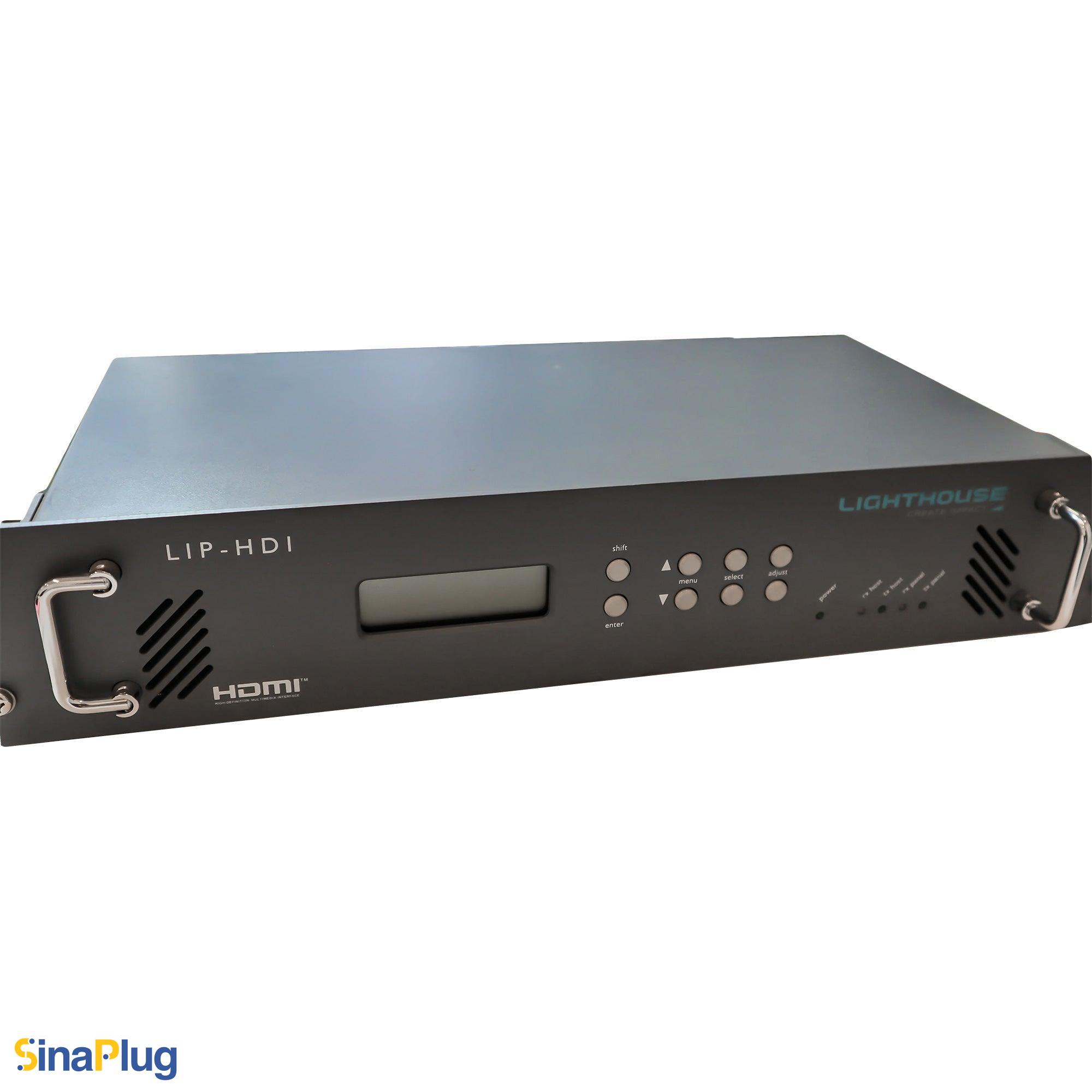

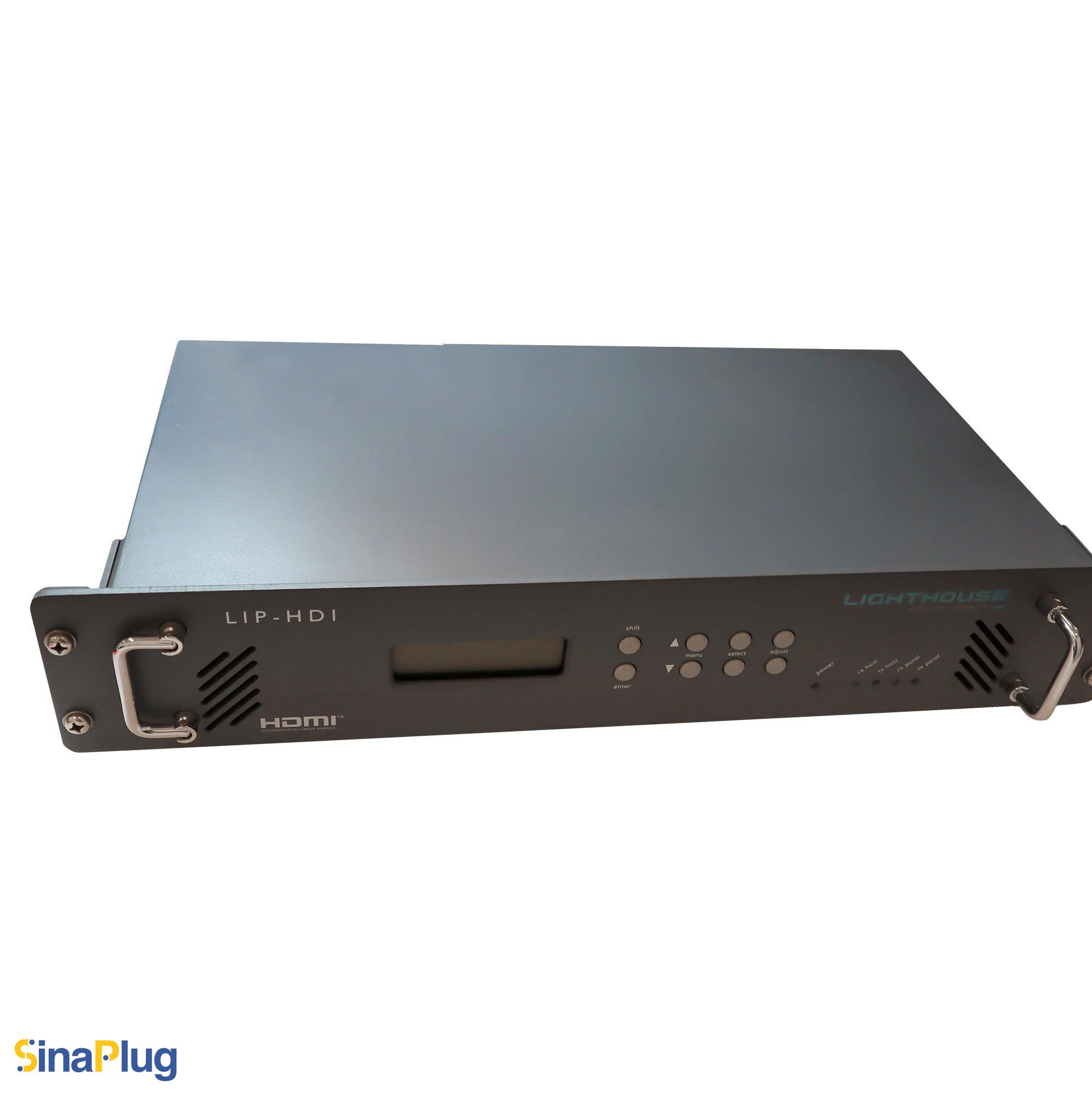

Lighthouse LIP-HDI LED Processor
$190.00
4 in stock
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
The Lighthouse LIP-HDI is a dependable and versatile LED processor designed for fixed installation platforms, offering seamless connectivity from various HD sources including HDMI 1.3 and DVI-D interfaces. It supports resolutions up to 1920×1080@60Hz and processes multiple signal standards such as VGA, SVGA, XGA, SXGA, and UXGA. Equipped with five SDI serializer outputs, it provides stable video transmission to LED panels.
The processor features advanced control options with RS232 Daisy-chain cascading and an auto brightness controller interface, enabling flexible system expansion and precise brightness management. it operates efficiently within a wide 100-240VAC input range and consumes only 25W, ensuring reliable performance in ambient temperatures from 0°C to +40°C.
This processor offers a reliable and advanced solution for demanding large-scale LED displays that need to operate continuously with remarkable clarity to the indoor/outdoor applications, such as professional sports stadiums, TV studios and control rooms.
Key Features of LIP-HDI

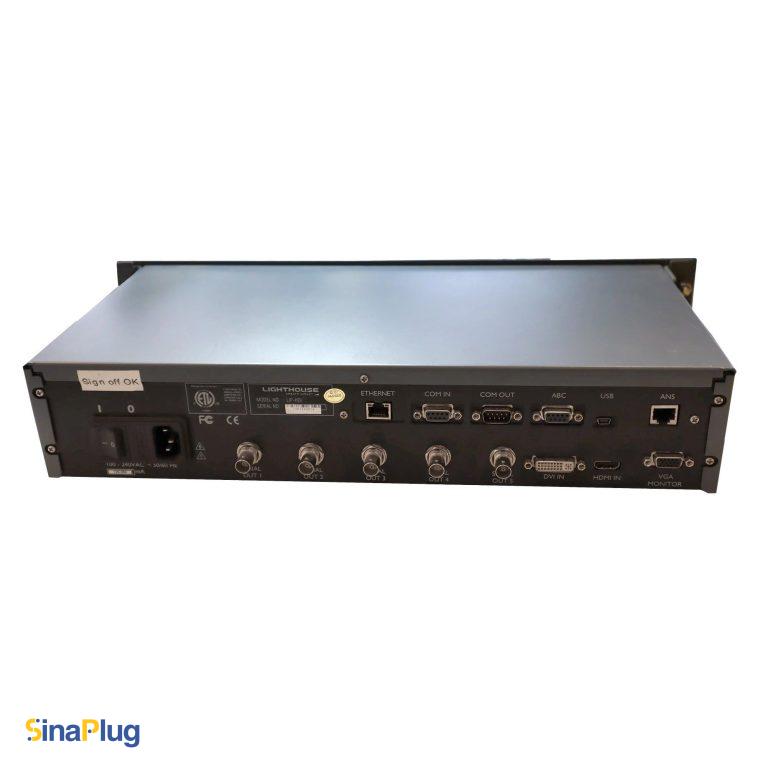

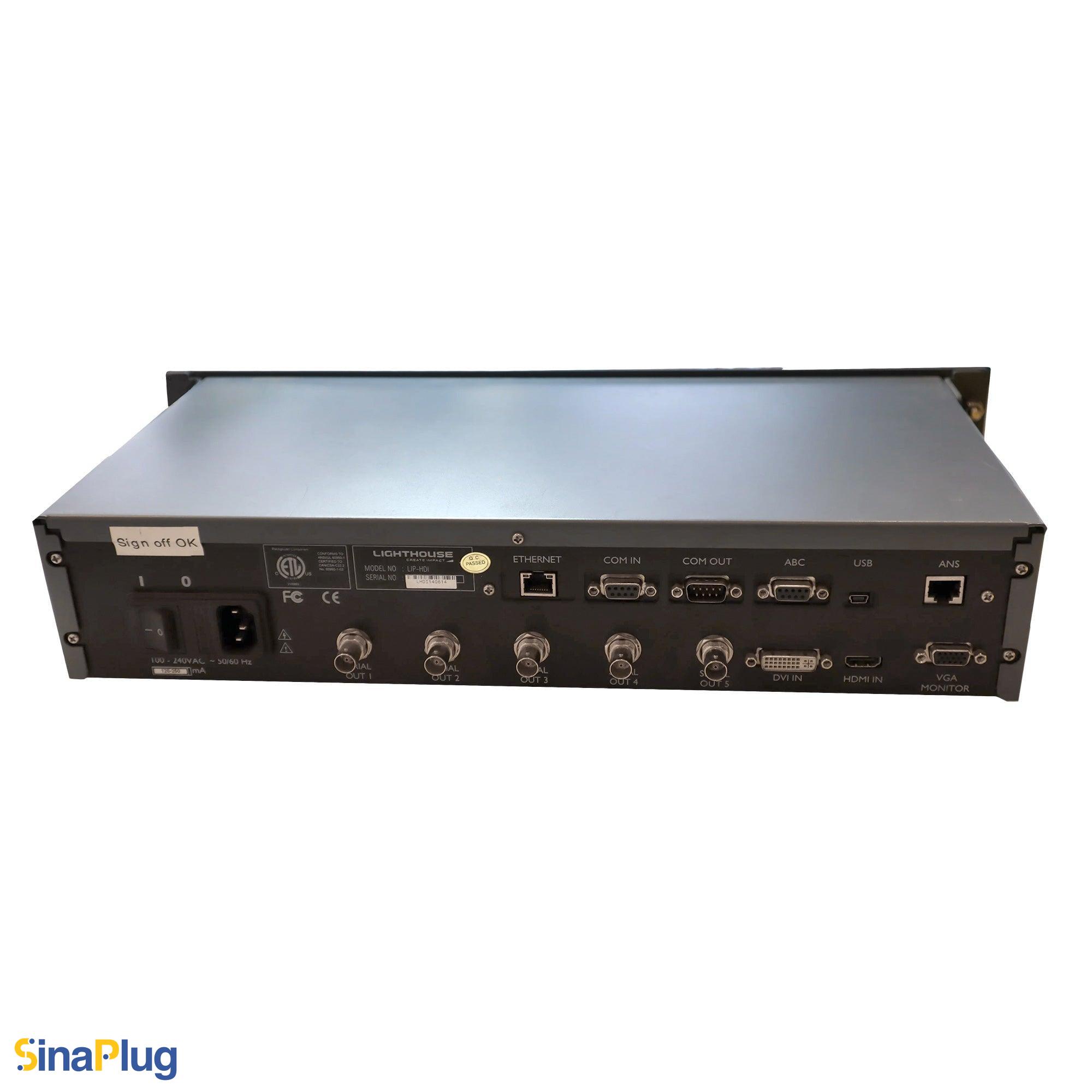

Input
- 1x DVI-D input with 1920×1080@60Hz maximum resolution
- 1x HDMI 1.3 with 1920×1080@60Hz maximum resolution
Output
- 5x SDI 75ohm BNC connector
- 1x VGA interface (for monitoring)
Control
- 1x RS232 9-pin D-sub Female connector (ABC for attaching auto brightness controller)
- 1x RS232 9-pin D-sub Female connector (COM IN for daisy-chain cascading)
- 1x USB Mini-B port (used for firmware upgrade)
- 1x Ethernet port for remote control software (Optional)
Advanced Features
- 96 Levels of Brightness control
- 8 Levels of Gamma control
- 7 Settings of Color Temperature adjustment
- 9 LIP Test Patterns and 79 Panel Test Patterns
- 12 Bit Deep Color
- 2 Banks for Color Uniformity
- Supports Cascading (COM IN/OUT)
- Processes VGA, SVGA, XGA, SXGA & UXGA signals and supports SMPTE standards
Dimensions (L*W*H)
- 485mm * 220mm * 88mm
| Weight | 7.17 lbs |
|---|---|
| Dimensions | 16.93 × 8.66 × 3.54 in |
| Max Input Resolution | 1920×1080@60Hz |
| Supported Resolutions For Input | 1280×720@60Hz, 1920×1080@60Hz, 720×480@60Hz, 720×576@60Hz |
| Pixel Capacity | 2.000.000 |
| DVI In | 1 |
| HDMI In | 1 |
| VGA Out | 1 |
| Ethernet LED Out | 4 |
| Ethernet LAN | 1 |
| RS232 | 3 |
| Control USB Port | 1 |
| Cascading | Supported |
| Net Weight Kg | 8 |
| Input Voltage Range | 100-240VAC |
| Max Power Consumption | 25W |
| Working Temperature Range | 0 °C to +40 °C |
| USB Playback | NO |
| Others | 12-bit Deep Color, 2 Banks for Color Uniformity, 5x SDI 75ohm BNC Output connector, 7 Color Temperature Settings, 8 Levels of Gamma Control, 9 LIP Test Patterns, 96 Levels of Brightness Control, RS232 9-pin connector (ABC for attaching auto brightness controller), Supports Cascading |
