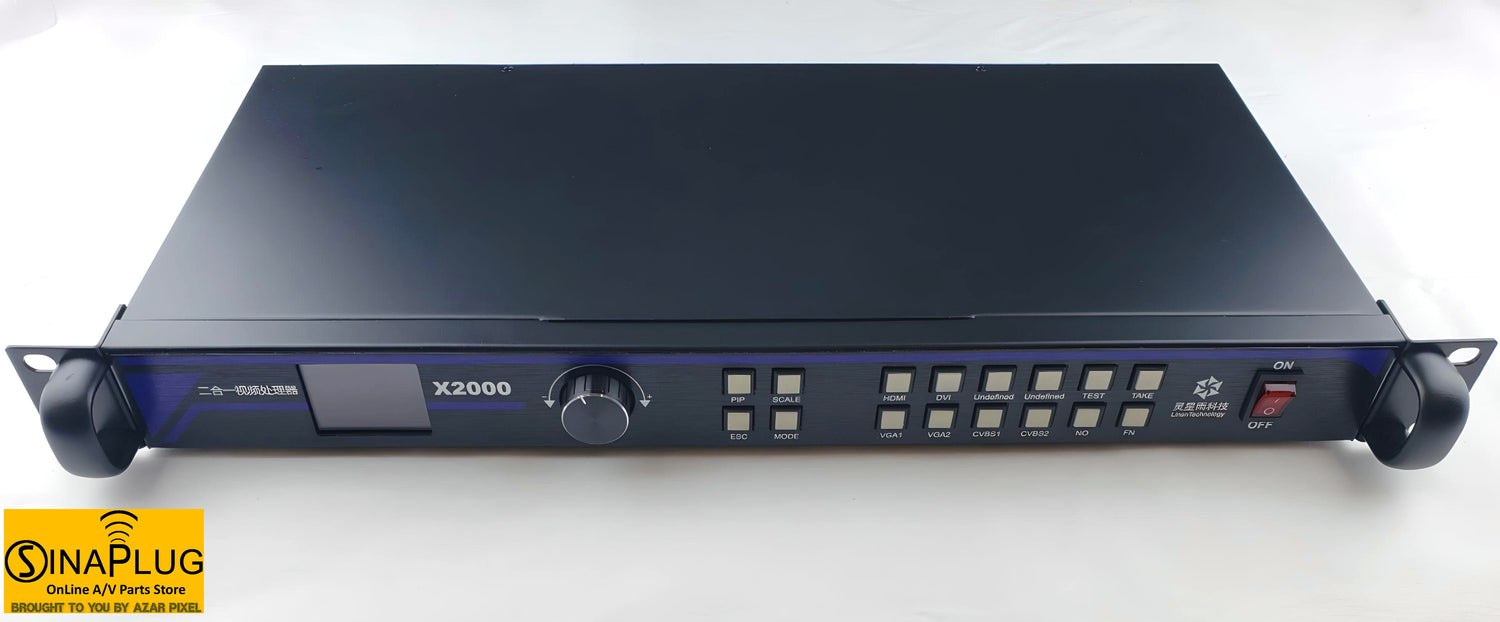

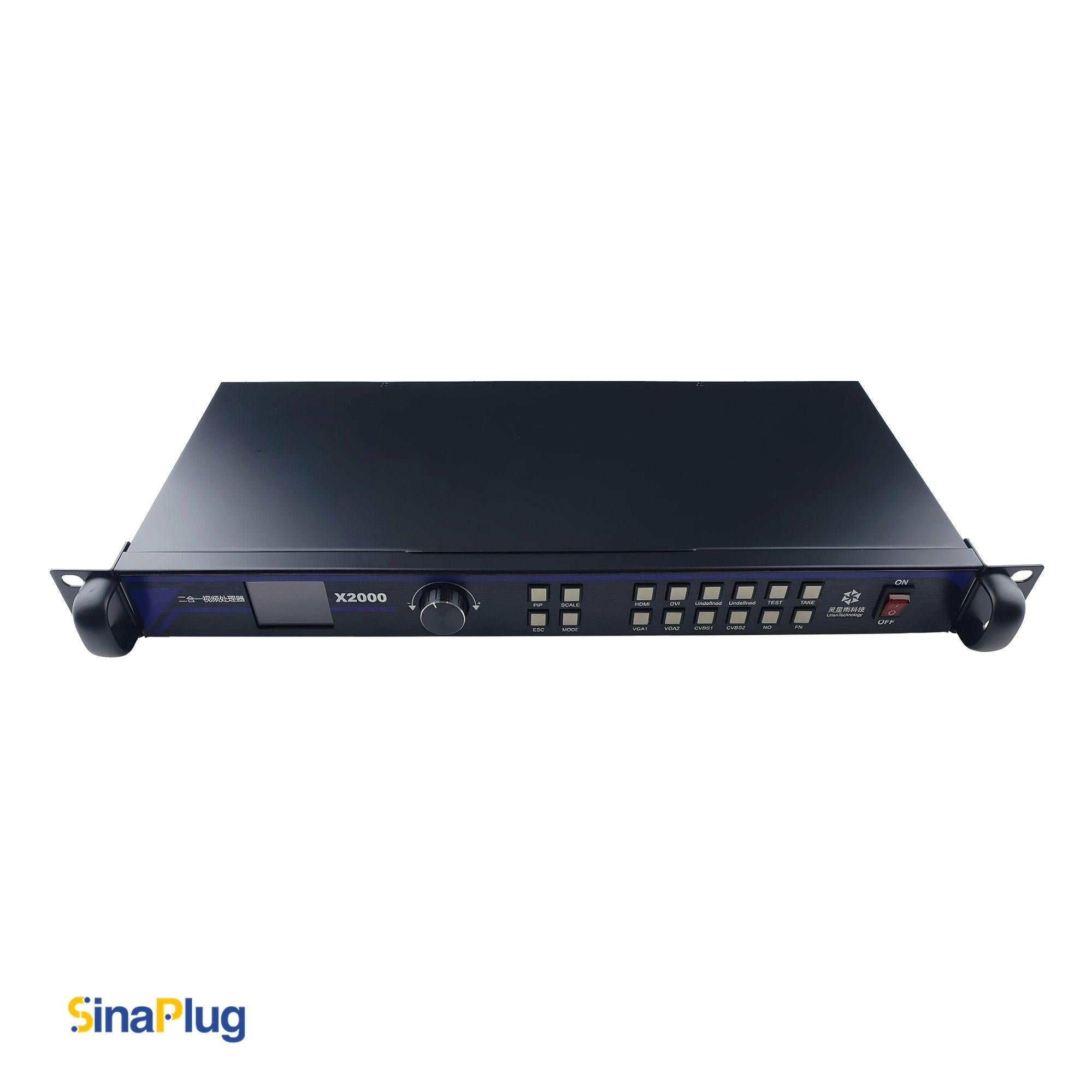

Linsn X2000 Two-in-One Video Processor

The Linsn X2000 has been listed by AzarPixel as a professional LED display controller and video processing equipment with built-in sender. It can handle resolutions up to 1920×1080@60Hz through HDMI 1.3, SDI, CVBS, and DVI interfaces and has flexible signal switching capabilities, allowing for broadcast level scaling and multi-picture displays.

This advanced controller features four LED outputs with a maximum loading capacity of 2,300,000 pixels supporting a maximum output width of 3840 pixels or 1920 pixels in height, DVI and VGA interfaces are located as well for monitoring, guaranteeing that visuals will be delivered smoothly.

The X2000 uses full-screen, and Pixel-to-Pixel Scaling, and image quality processing capabilities, in addition to PIP and fade-in and fade-out effects to create captivating visual experiences with unmatched precision and flexibility. It operates properly in aggressive ambient temperatures between -20°C and +70°C when provided by a 100-240VAC input voltage, consuming maximum power of 19W.

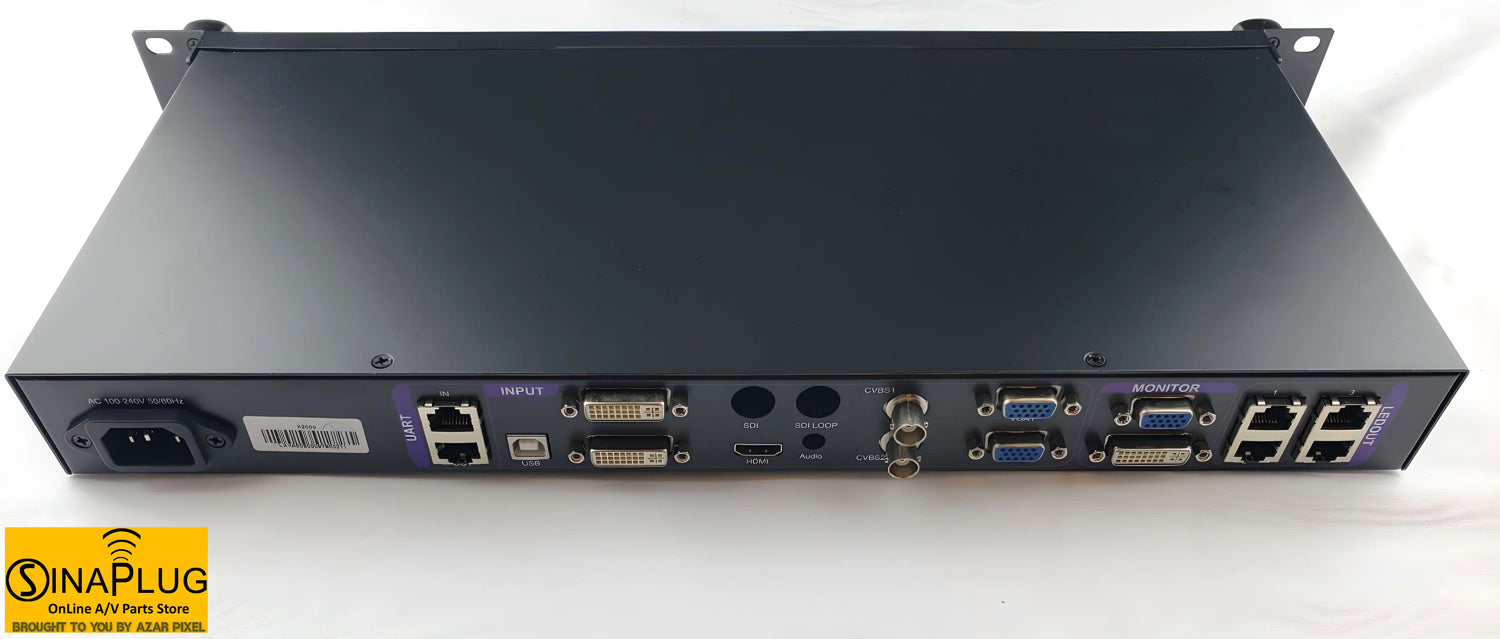

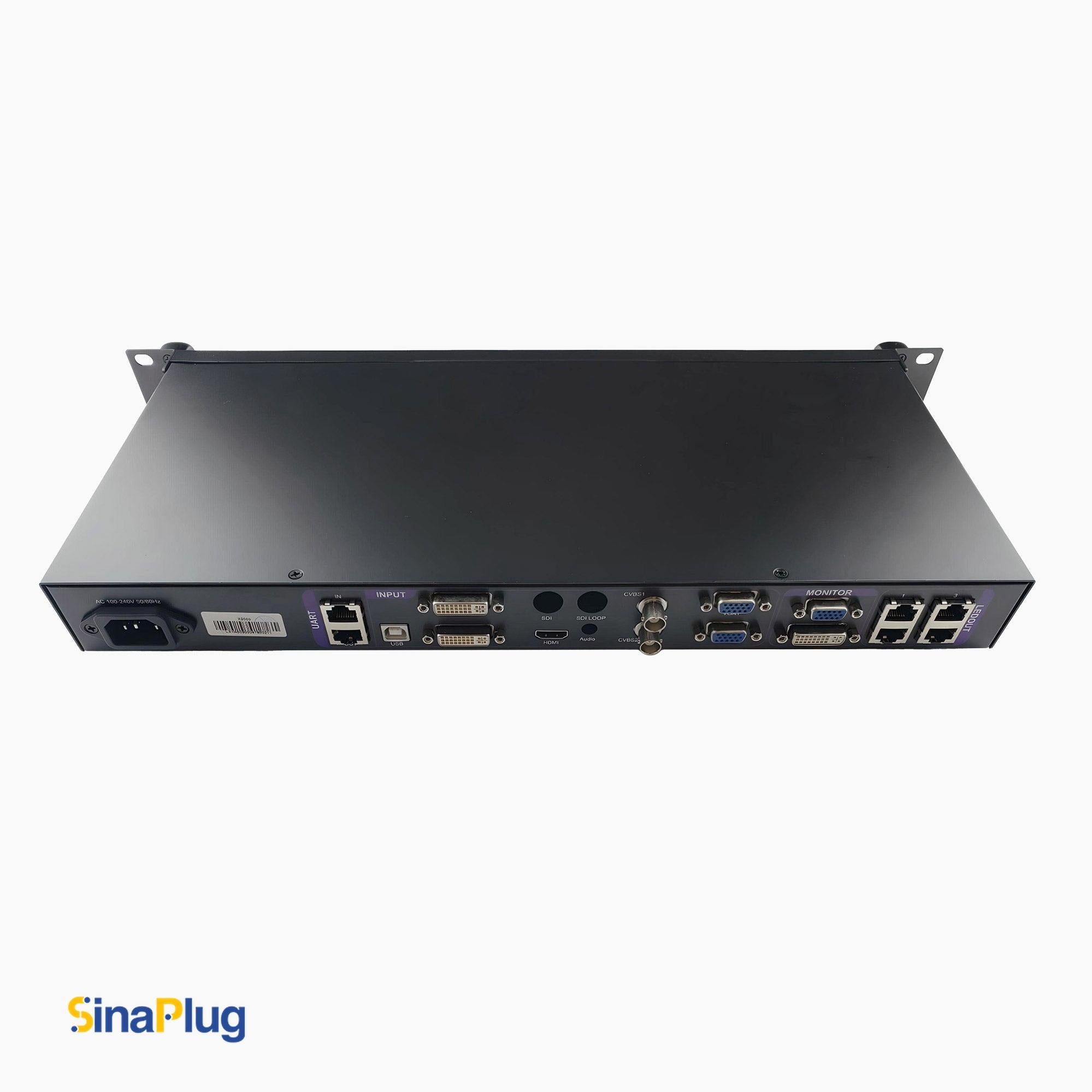

The UART IN/OUT ports support cascading and USB Type-B port allows the device to connect to the control PC, enabling communication with LEDSET software for setup and upgrade, making it easier to handle complicated LED displays.

Key Featuresof X2000
