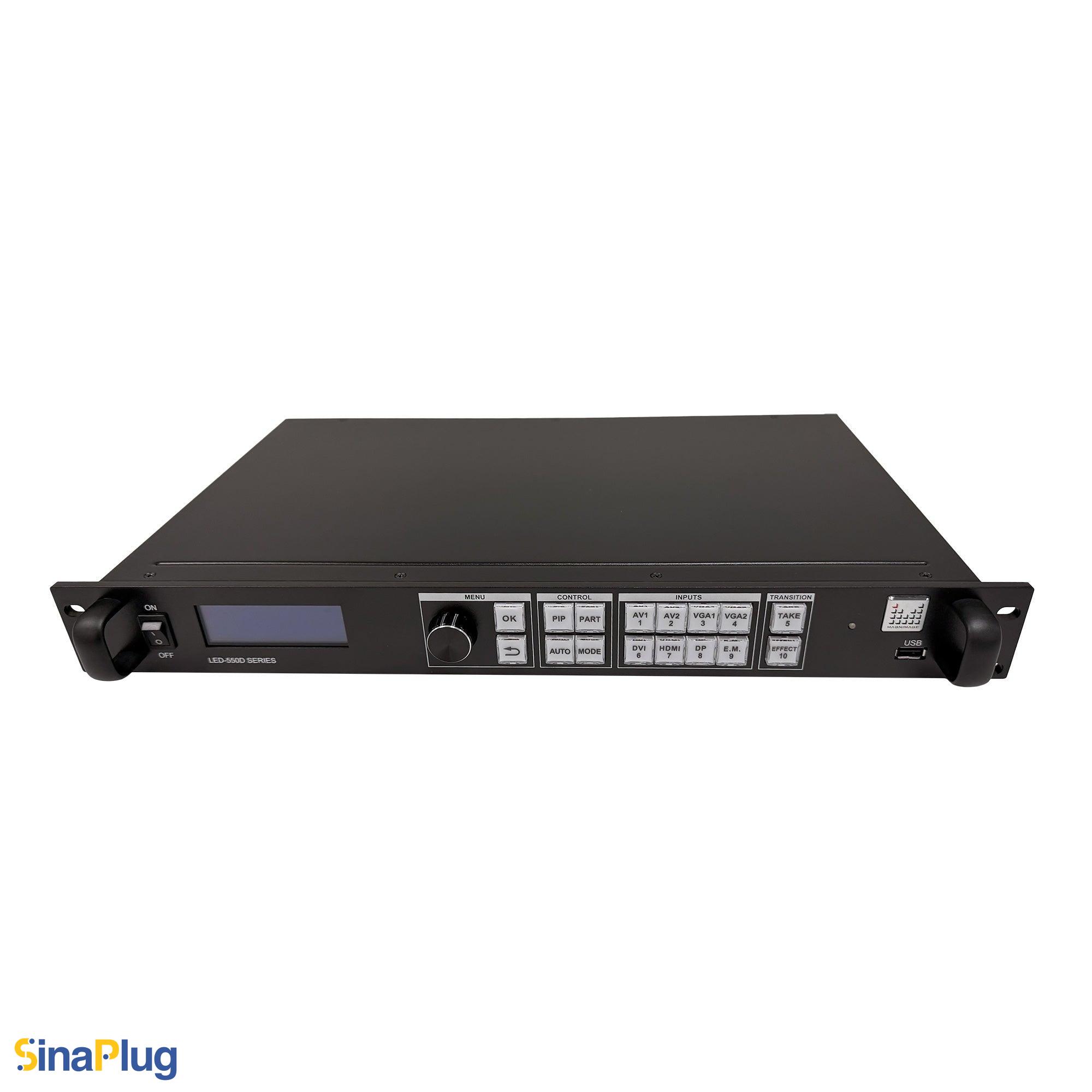

Magnimage LED-550D LED Video Processor
$648.60
1 in stock
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
Elevate your visual experience with the Magnimage LED-550D, available now from AzarPixel. This high performance LED video processor delivers unmatched visual quality thanks to its 12 bits processing, advanced image processing chips, seamless splicing technique, and unique synchronized motion technology which ensures a flawless display on high speed video rendering, eliminating motion blur.
This versatile device offers 20 switching effects including seamless switching, fade-in/fade-out, and cuts. Additionally, by offering image splicing and pixel-to-pixel scaling, users can easily adjust content size and positioning to achieve their exact desired output. When multiple units are cascaded, it enables seamless video splicing and unequal mosaic (DVI loop) to deliver sharp and detailed media on large-scale signage.
A single LED-550D equipped with two DVI and one VGA output interface which supports a maximum refresh rate of 120Hz (for 1024×768 resolution) as well as customized resolutions of up to 3840 pixels in width or 1920 pixels in height. It offers a comprehensive suite of input ports including two VGA, one DP, one DVI, two video (PAL/NTSC), and an HDMI to handle diverse multimedia resources, making it a perfect choice for live events and various sports centers.
This economic unit offers Input hot backup function, ensuring uninterrupted performance even in the event of a sudden input signal loss and ensures reliable operation in extreme ambient temperatures ranging from 0°C to +45°C all while maintaining a low power consumption of just 20W.
Key Features of LED-550D

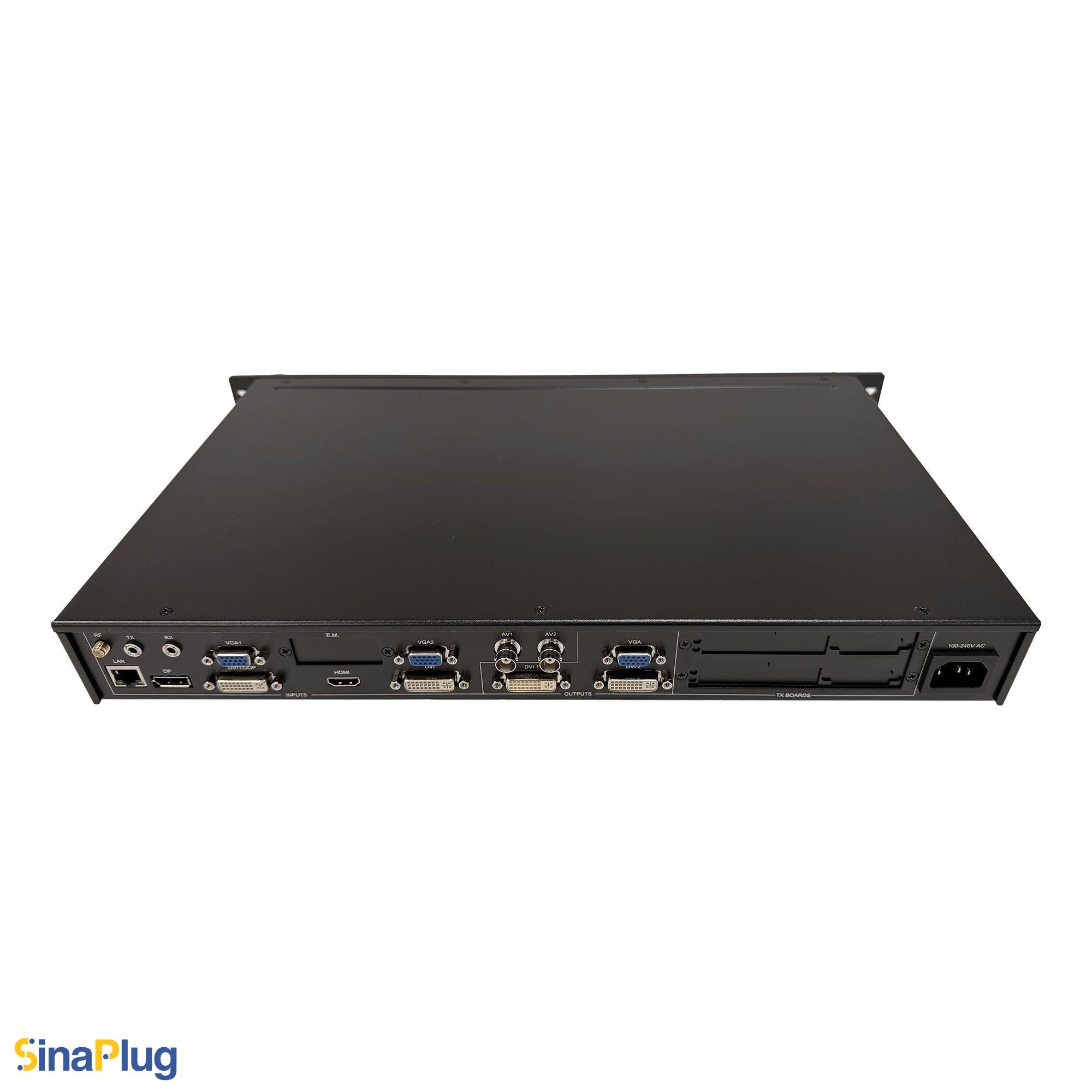

Input
- 1x DP Interface
- 1x HDMI Interface
- 1x DVI Interface
- 2x VGA Interfaces
- 2x AV (PAL, NTSC resolutions) Interfaces
Output
- 2x DVI interfaces
- 1x DVI LOOP (consistent with DVI input)
- 1x VGA interfaces
Control
- 1x 3.5mm TX interface (For communication output signals)
- 1x 3.5mm RX interface (For communication input signals)
- 1x USB port (Connect to the control computer)
- 1x LAN Interface
Advanced Features
- 12-bit Processing
- Superior image processing chips
- Synchronized motion technology
- Video splicing and unequal Mosaic Mode
- Up to 20 switching effects (Seamless switching, Fade-in / Fade-out, cuts, …)
- Adjustable input signal size and position
- Input signal hot backup
- Monitoring and control by Display menu, Operations keys, and Knob
Dimensions (L*W*H)
- 483mm * 288mm * 55mm
| Weight | 8.11 lbs |
|---|---|
| Dimensions | 21.5 × 15.83 × 5 in |
| Max Width Resolution | 3840 |
| Max Height Resolution | 1920 |
| DVI In | 1 |
| DVI Loop | 1 |
| Dp | 1 |
| HDMI In | 1 |
| VGA Out | 1 |
| CVBS | 2 |
| Ethernet LAN | 1 |
| Cascading | Supported |
| Net Weight Kg | 2.6 |
| Gross Weight Kg | 4.1 |
| Input Voltage Range | 100-240VAC |
| Max Power Consumption | 20W |
| Working Temperature Range | 0 °C to +45 °C |
| USB Playback | NO |
| Others | 12-bit Processing, Image processing chips, Supports Video Splicing, Synchronized Motion Technology, Unequal Mosaic Function |
