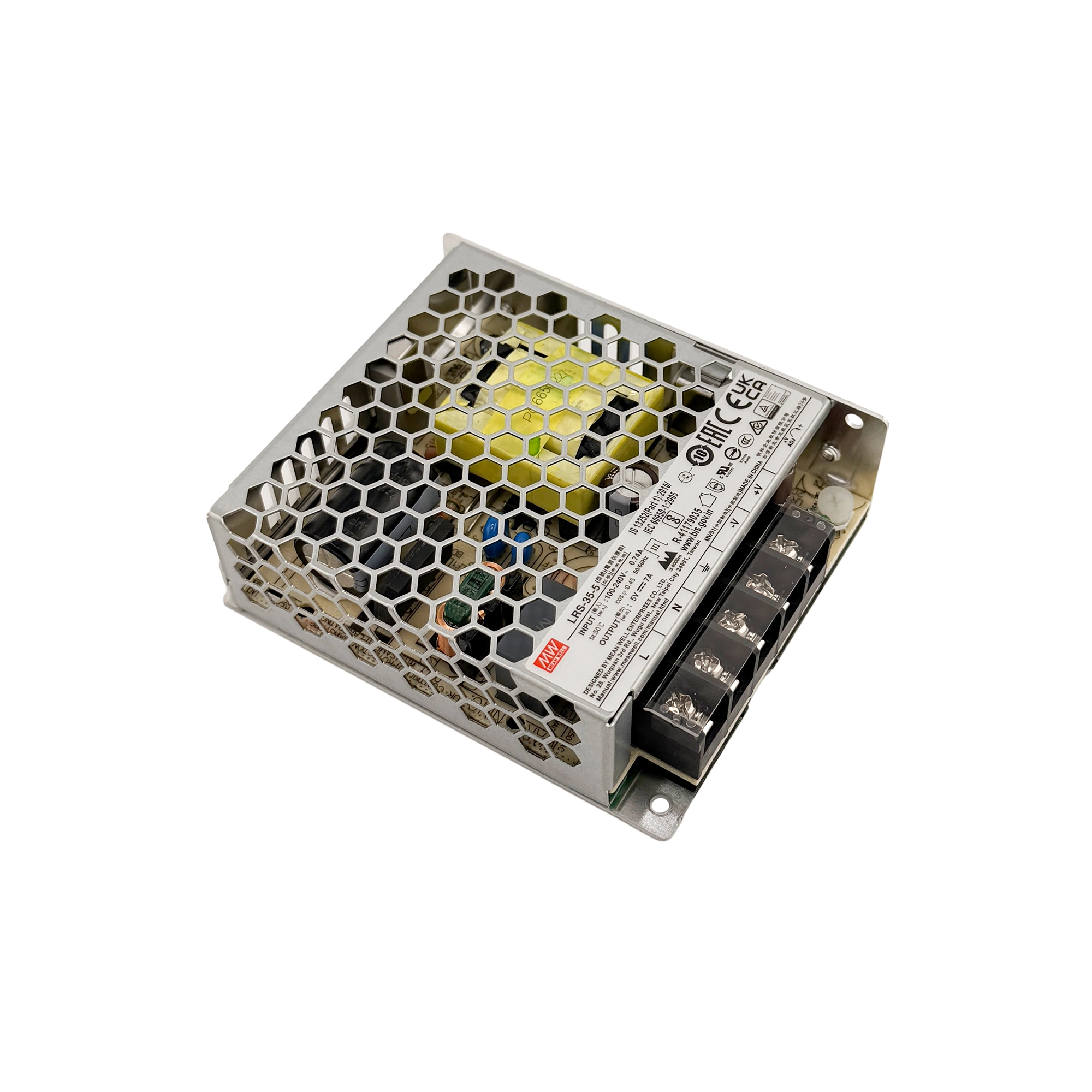

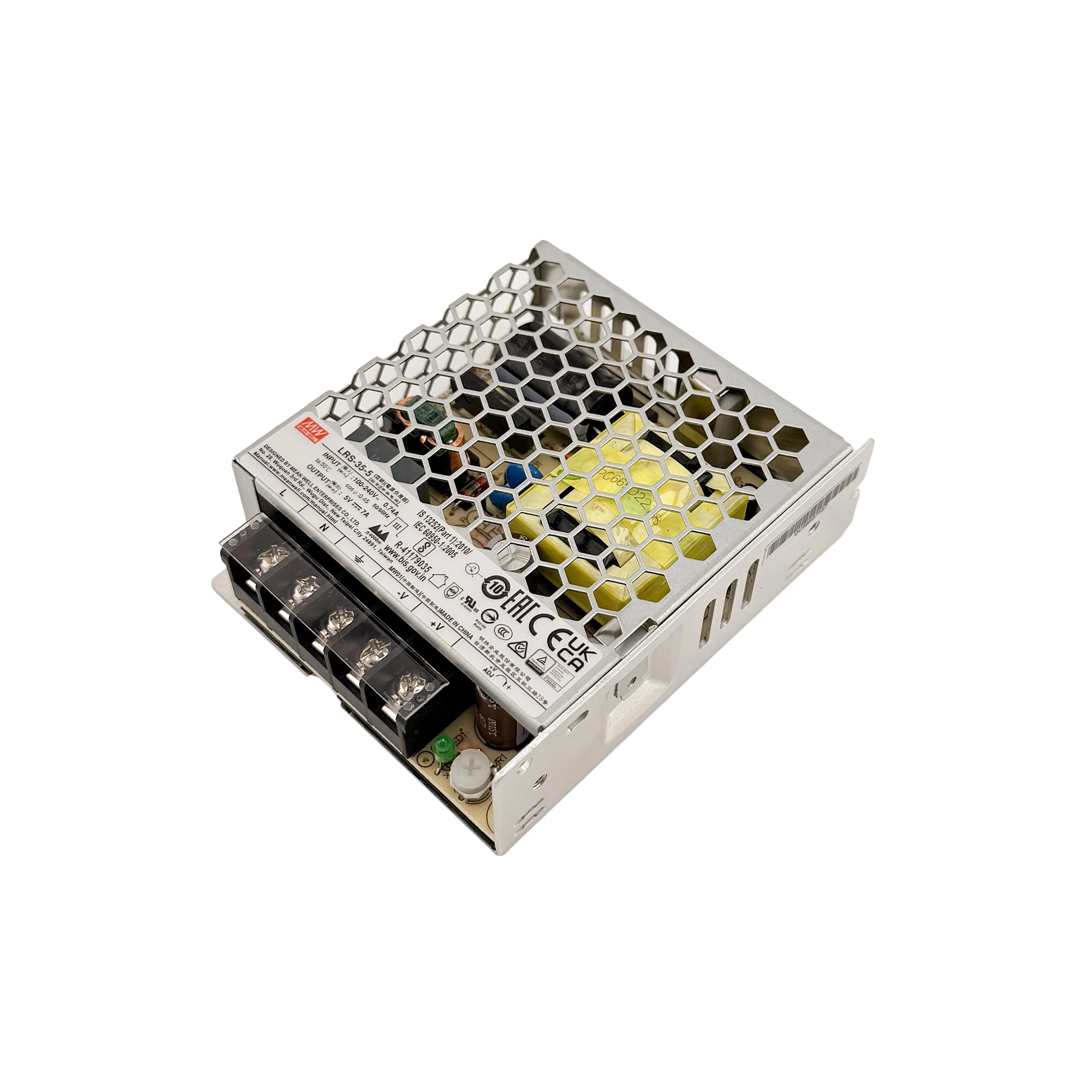

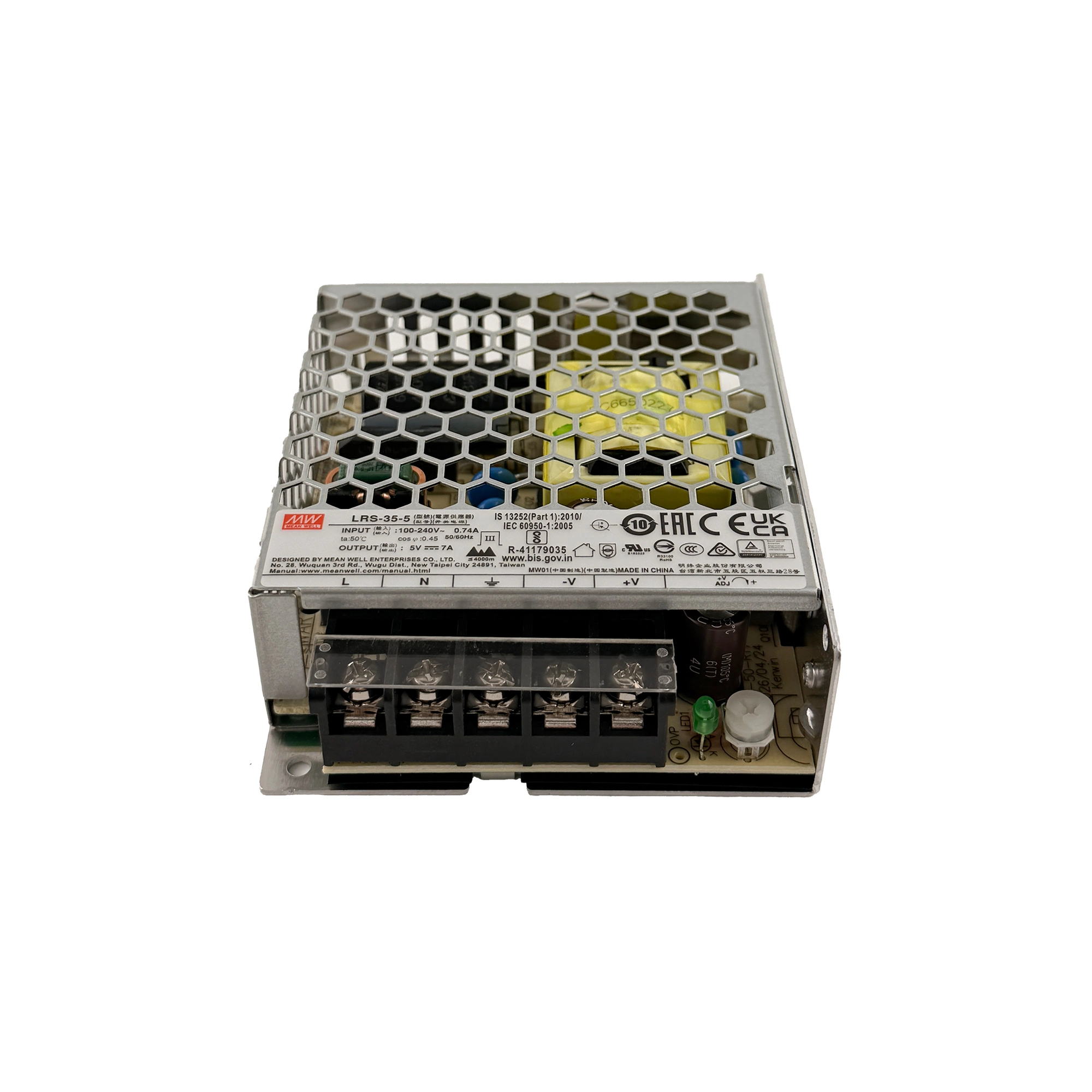

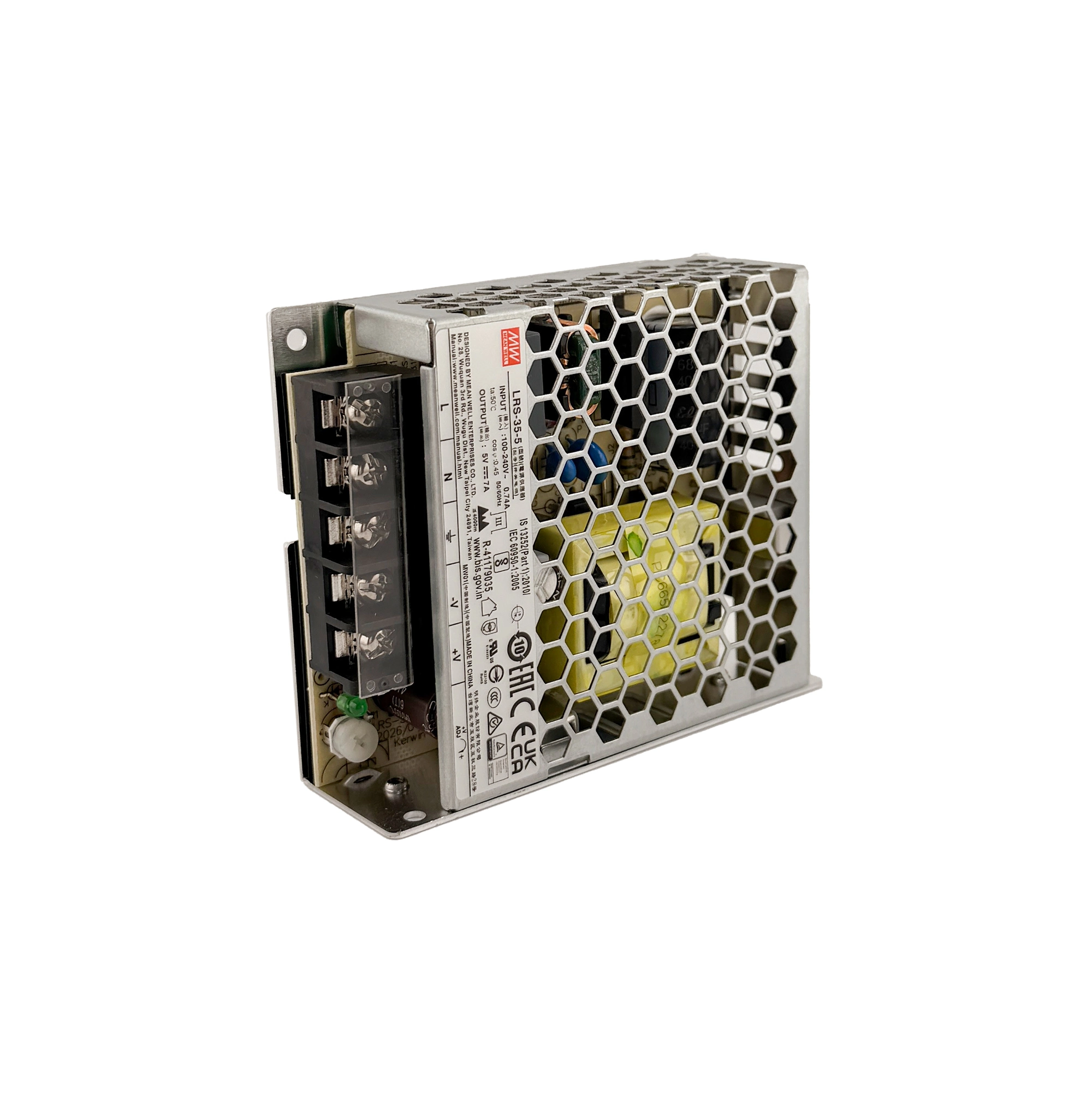

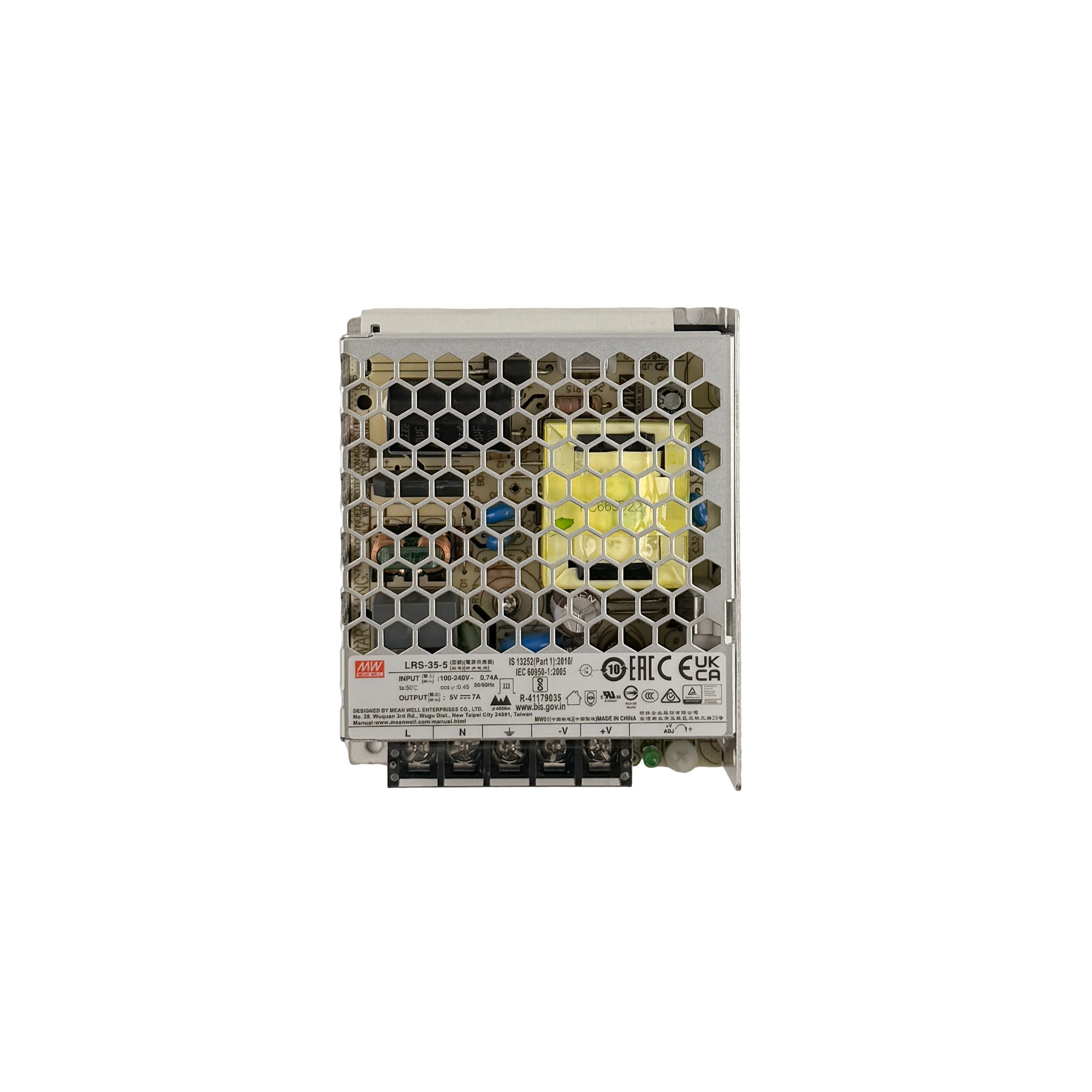

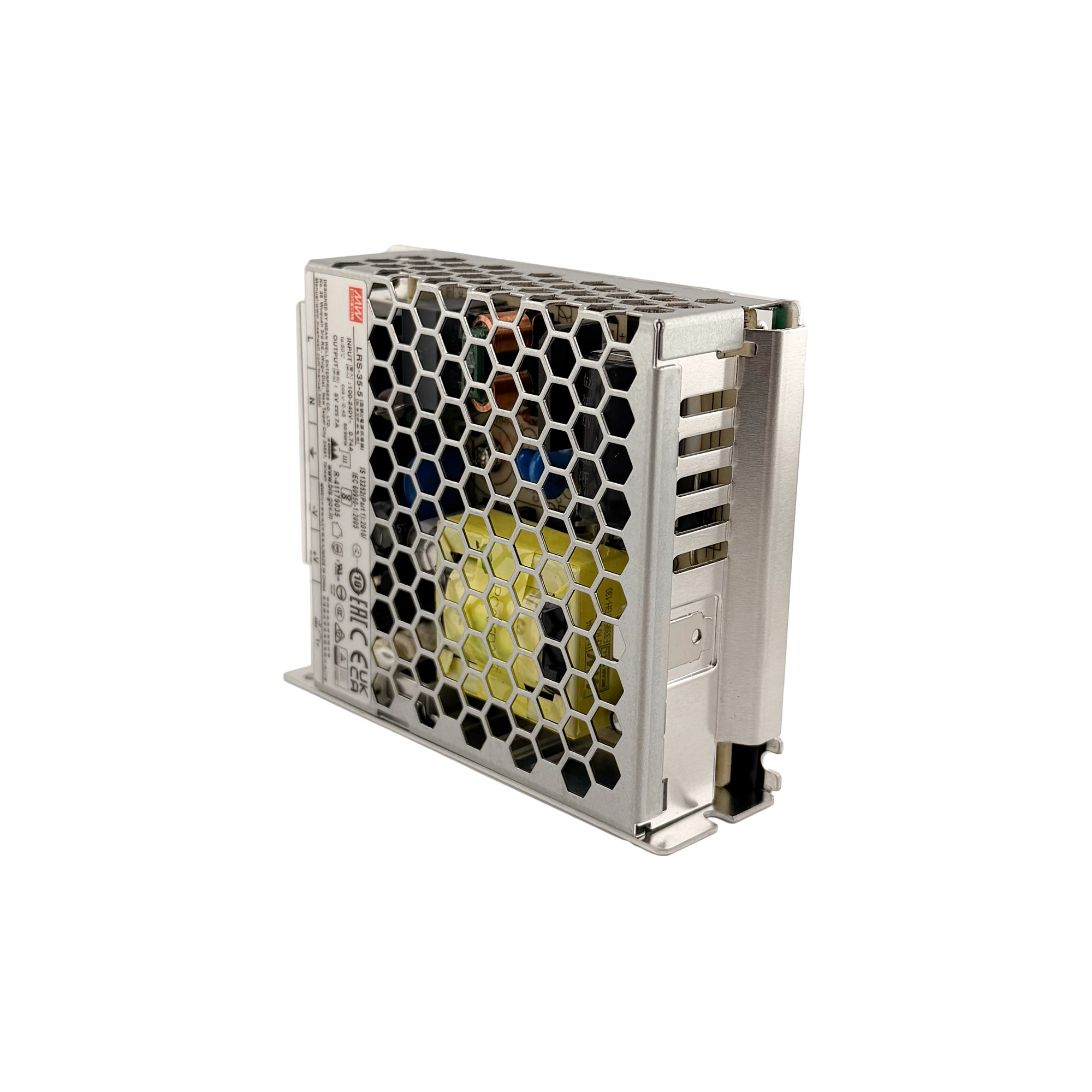

MEAN WELL LRS-35-5 Switching LED Power Supply (5V, 7A)

SinaPlug suggests; If you’re looking to use a power supply in LED or industrial control panels, production lines and automation, security and monitoring systems, and home electrical wiring or DIY projects, the demanding MEAN WELL LRS-35-5 Switching LED Power Supply, is a suitable and excellent choice to use.

This single output power supply is capable of operating in the range of 100 to 240VAC without requiring any change to its mode, and has an otput current range of 0 to 7A, and a 5V DC output voltage that can operate at a rated power of 35W. This device has a trimmer potentiometer with which the output voltage range can be adjusted between 4.5 and 5.5V depending on need. This power supply has a line regulation of ±0.5% when the input city power voltage changes, which indicates its stability and reliability, and also has a load regulation of ±1%. It is also worth mentioning that this power supply, with high efficiency (up to 82%), converts most of the input energy into useful output power and minimizes energy loss and additional heat generation.

MEAN WELL LRS-35-5 power supply has protection against an over load of 110 to 150% of rated power, which protects the device due to a short circuit or excessive load addition and also has protection against overvoltage (5.75 to 6.9V), which immediately shuts down to prevent damage to the connected device.

This device is generally designed for use in harsh conditions and spaces that require small dimensions, since it has compact dimensions of (30×82×99mm). The device’s operating temperature (with full-load) is -25 to +50°C, and its temperature coefficient is ±0.03% per degree, within the temperature range of 0 to 50°C. This power supply withstands vibration with a frequency of 10 to 500Hz and an intensity of 5G, without causing any damage to any of its components, and this feature has been tested and confirmed on all three axes, for a duration of 60 minutes.

In terms of safety, this device maintains its stable output for a short period (12ms at 115VAC) even against very short-term city power outages, preventing sudden interruption or resetting of connected sensitive equipment.

Regrading the standards and compliance this device has obtained, UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1 and EN61558-2-16, GB4943.1, and BIS IS13252 standards, carries CE and UKCA marks for the European and UK markets, and also covers the EN55032 Class B and EN55014 standards related to low electromagnetic emissions.
