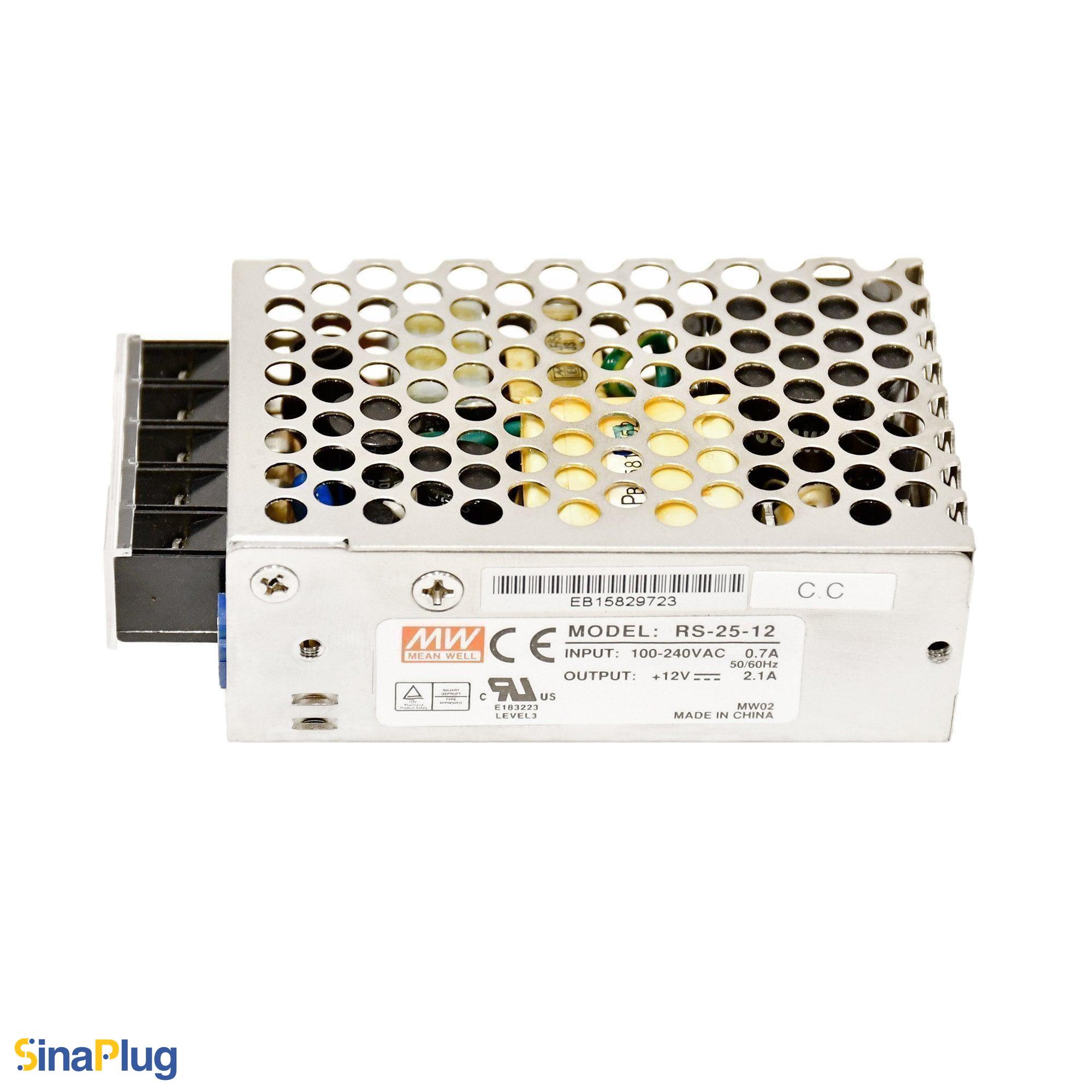

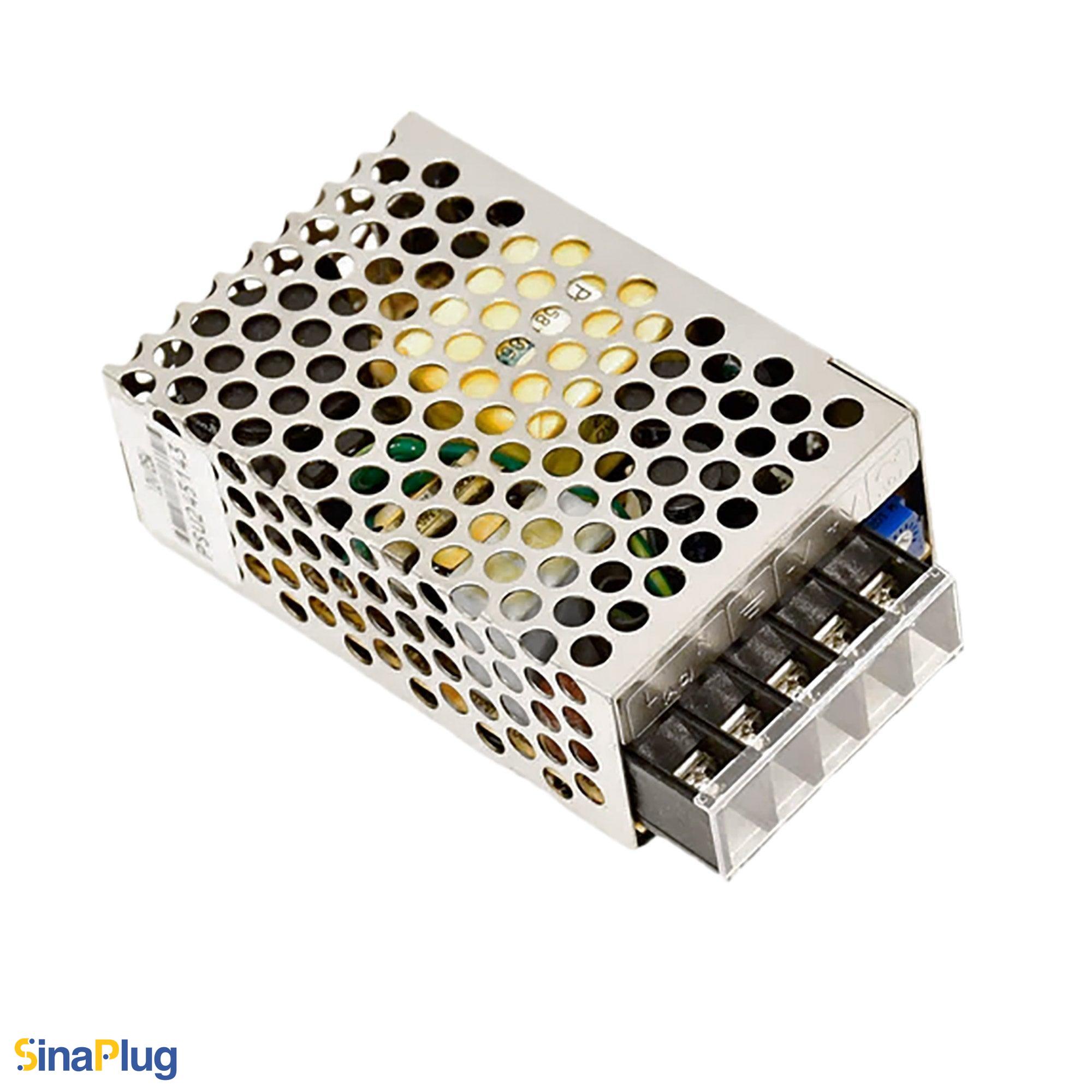

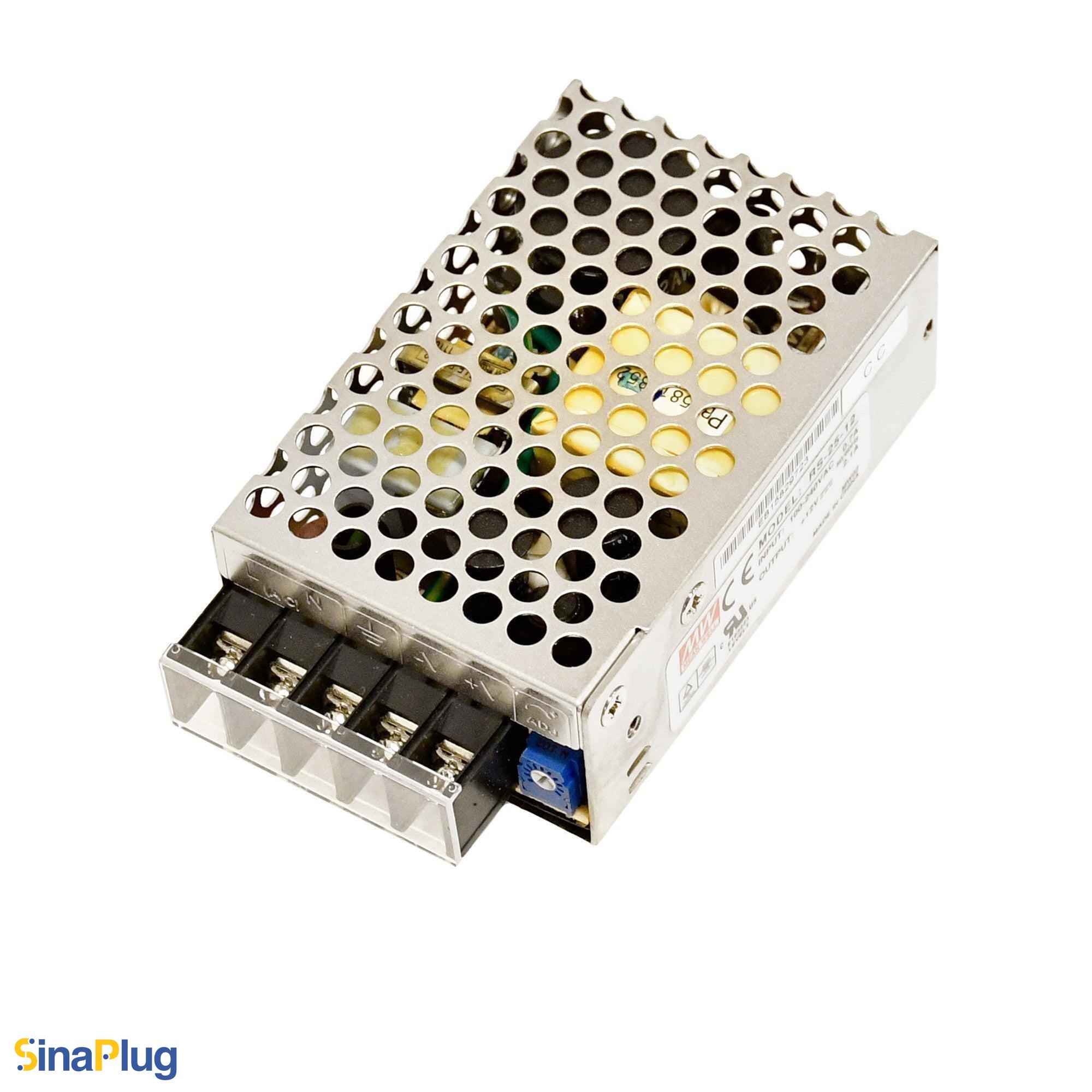

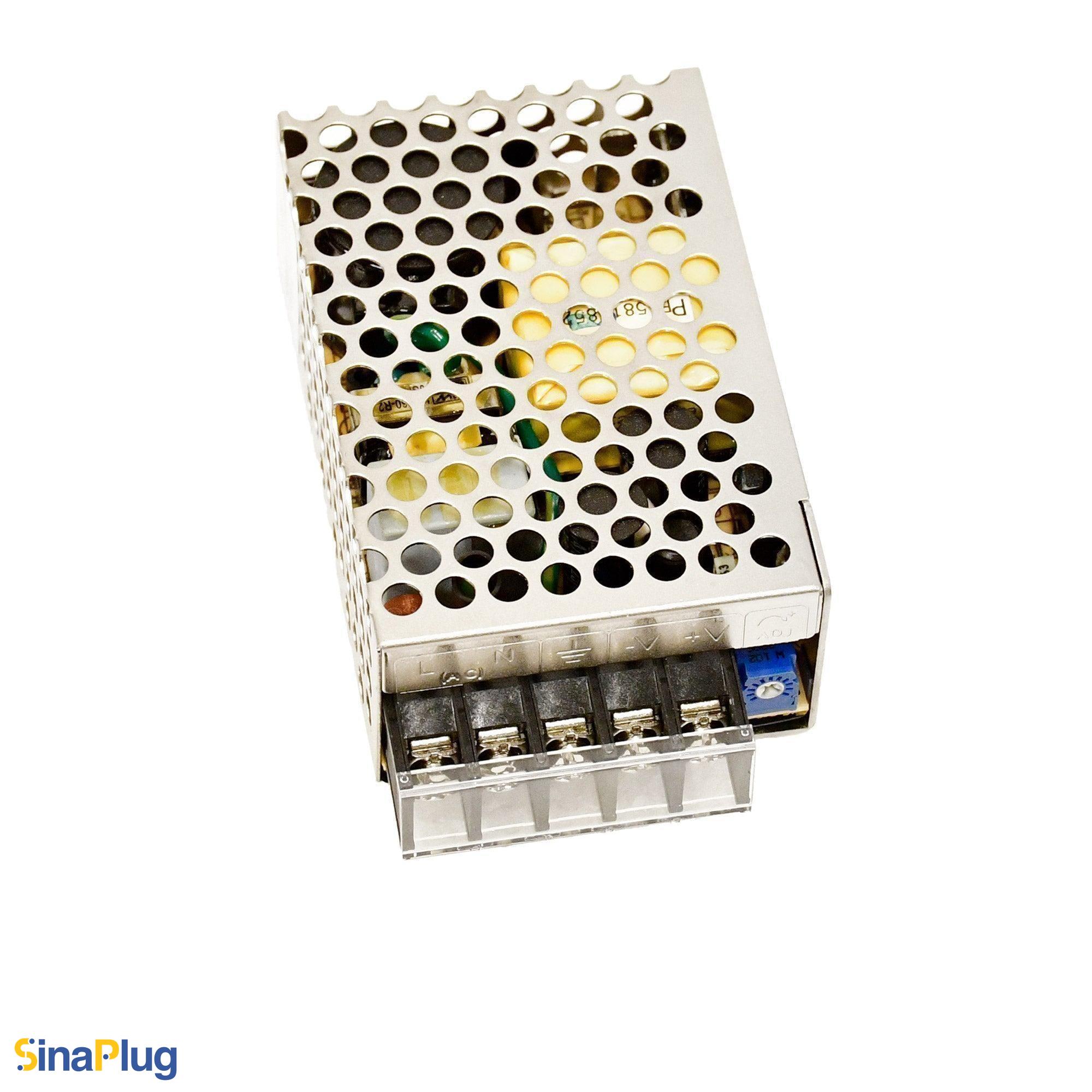

MEAN WELL RS-25-12 LED Switching Power Supply (12V, 2.1A)

The MEAN WELL RS-25-12 converts wide-range 100-240 VAC to 12V at 2.1A with an adjustable 10.8-13.2V range. It provides a rated 25.2W output power with 81.5% efficiency with no load power consumption<0.5W.

The AC/DC, compact RS-25 series is an economical, enclosed power supply suitable for small appliances, powering LED strips, and other low-power LED lighting systems designed to operate efficiently with lower power consumption.

In addition to the overload protection, and over-voltage and short circuit protections (all with automatic recovery), it is certified by RoHS Directive 2011/65/EU amended by 2015/863 Compliant, Safety Standards: UL62368-1, GB4943, IEC 60950-1, EN IEC61000-3, EN55032, GB9254, GB17625, EN55035 enabling it to meet global energy specifications.

The long-term operation and remarkable 3992 hours MTBF of this tiny MEAN WELL RS-25-12 LED Switching Power Supply is guaranteed by the design of its metallic mesh case, which enhances heat dissipation and functions properly in challenging temperatures ranging from -20°C to +70°C.

Meanwell’s AC/DC power supplies are a top brand and well-known for their high reliability and stable operation due to their excellent load regulation, long lifespan, and 5G anti-vibration capability (range of 10-500Hz) by considering their tiny and space-saving design promises suitable operation under various environments, all at an economical price.
