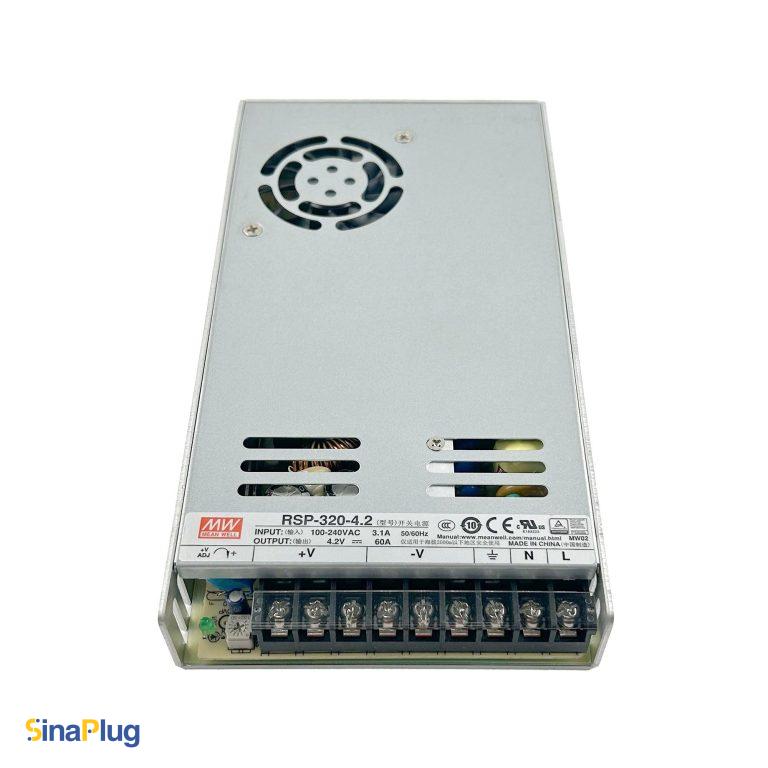

MEANWELL RSP-320-4.2 Power Supply (4.2V, 60A)

AzarPixel is proud to present the RSP-320-4.2, a powerful enclosed power supply that is a customized version of the standard RSP-320-4 model offered by MEAN WELL. It supports universal 100 ~ 240VAC input, while the LRS-350-4.2 uses a selectable AC input range. In terms of size, the RSP-320-4.2 is similar to the LRS-350-4.2, while the GW-LED300Q-4.2 is taller (by about 20mm). This power supply can replace the GreatWall GW-LED300Q-4.2 and MEAN WELL LRS-350-4.2.

This compact unit is ideal for demanding industrial, A/V, and LED equipment, as well as RF applications. It accepts a universal 100 ~ 240 VAC input and delivers a stable 60A output at 4.2V with an adjustable range. It provides a rated 252W output power and offers a constant and reliable performance thanks to its exceptional ±1% load regulation.

In addition to advanced protections such as overload and over temperature protection (with automatic recovery), overvoltage and short circuit protections, it contains the PFC function that improves the overall efficiency up to 81% for optimal operation. Furthermore, the built-in fan with speed control function also helps guarantee the maximum efficiency during long-term operation under harsh environments ranging from -30°C to +70°C.

The RSP-320 series is certified by RoHS, UL62368-1, IEC60950-1, EN61000-3-2, EN62368-1, GB17625.1, EN55032, and EN55035, permitting it to meet worldwide power standards.

The key advantages of Meanwell, a leading brand in AC/DC power supplies, include high reliability and stable operation, a compact and space-saving design, long lifespan, and vibration resistance, ensuring consistent performance in tough environments, all at a competitive price.

Key Features of MEANWELL RSP-320-4.2 Power Supply

• Type of Power Supply: AC to DC
• Packaging: Enclosed
• Input Voltage Range: 100 – 240VAC
• Adjustable Output Voltage: Yes
• Output Voltage: 4.2V
• Output Rated Current: 60A
• Output Rated Power: 252W
• Protections: Over Temperature, Over Voltage, Over Current Protection, Short Circuit Protection
• Dimensions (L*W*H): 215mm * 115mm * 30mm
