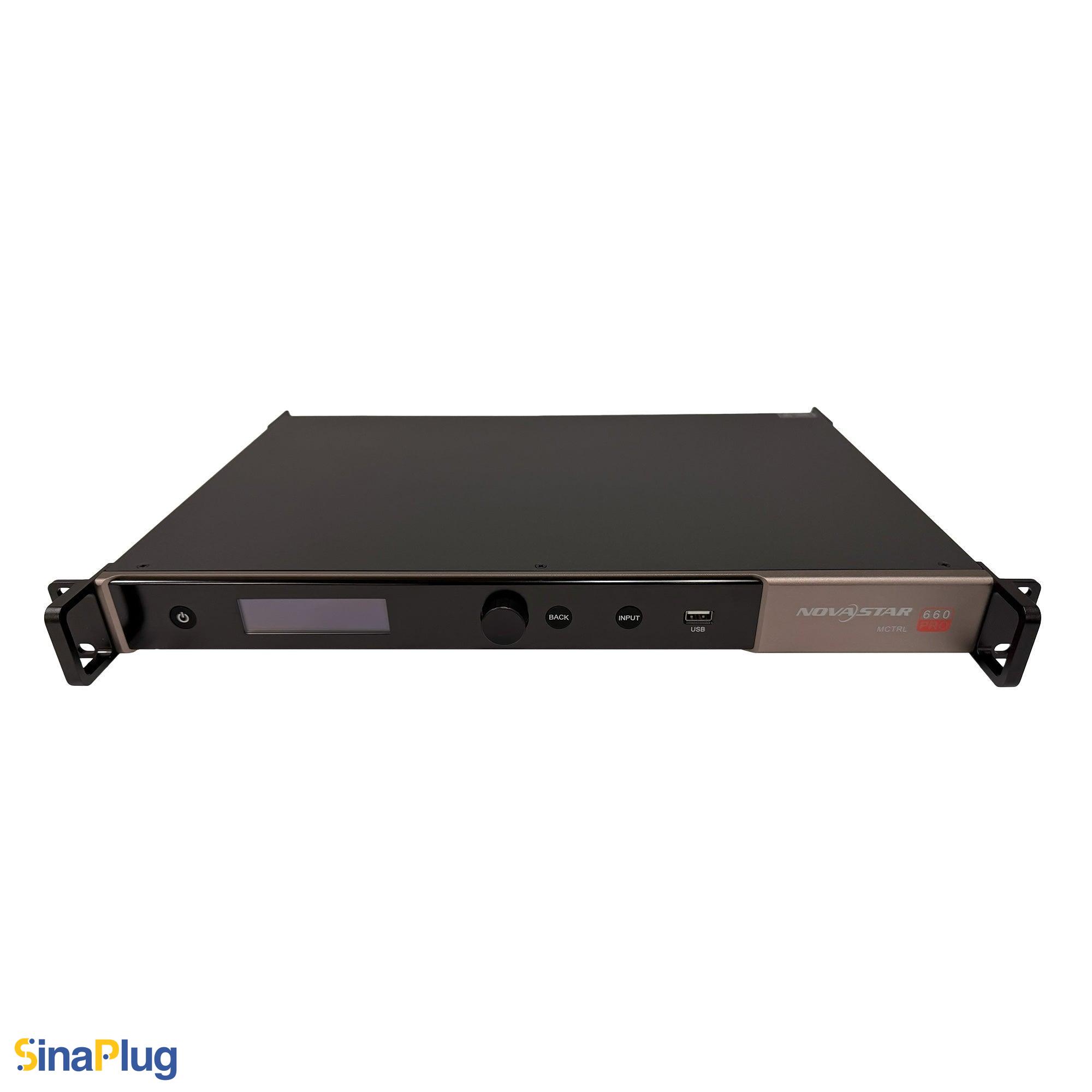

MCTRL660 Pro Independent LED Display Controller
$889.80
Can't find what you need or is it out of stock? Contact us!
We'll source whatever you need according to your timeline and provide our most competitive offer.
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
Transform your visual content with the NovaStar MCTRL660 Pro offered by AzarPixel. This advanced controller simplifies the management of complex displays by offering effortless screen configuration through a web page. It supports seamless cascading up to 8 units and thanks to the Genlock IN and LOOP ports, all cascaded devices remain precisely synchronized to deliver a flicker-free and flawless visual performance across the entire display.
It delivers unmatched performance and reliability in a single, compact chassis by functioning as both a professional controller and a fiber converter. In Sending Card Mode, it handles a maximum loading capacity of up to 3.9 million pixels via six Gigabit Ethernet ports. Simultaneously, it can switch and act as a Fiber Converter transmitting the same loading capacity over long distances without signal loss through its optical ports.
The MCTRL660 Pro offers unique Image Mirroring capabilities that can be applied to a single output or across all ports simultaneously, enabling designers to create dazzling, symmetrical stage effects. Furthermore, it supports up to 12-bit color depths, low latency, individual RGB Gamma adjustment and pixel-level brightness and chroma calibration, ensuring perfect uniformity across the entire display.
It offers three various input ports to handle diverse multimedia resources, making it ideal for rental and fixed installation applications, such as concerts, live events, security monitoring, stadiums, and various sports centers. It offers uninterrupted streaming by supporting a wide range of frame rates, from 24Hz to 120Hz, and supports input resolutions of up to 1920×1200@60Hz via DVI and HDMI. Additionally, 3G-SDI supports resolutions of up to 1920×1080@60Hz.
This reliable processor has FCC, CE, RoHS, IC, UL&CUL, CB, PSE, and RCM certifications, which ensure flawless and continuous operation. It operates with a low power consumption of 20W when powered by an input voltage of 100-240VAC.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of MCTRL660 Pro
Loading Capacity
- Up to 3,900,000 pixels
Input
- 1× HDMI 1.4a interface (up to 1920×1200@60Hz)
- 1× DVI interface (up to 1920×1200@60Hz)
- 1× 3G-SDI interface (up to 1920×1080@60Hz)

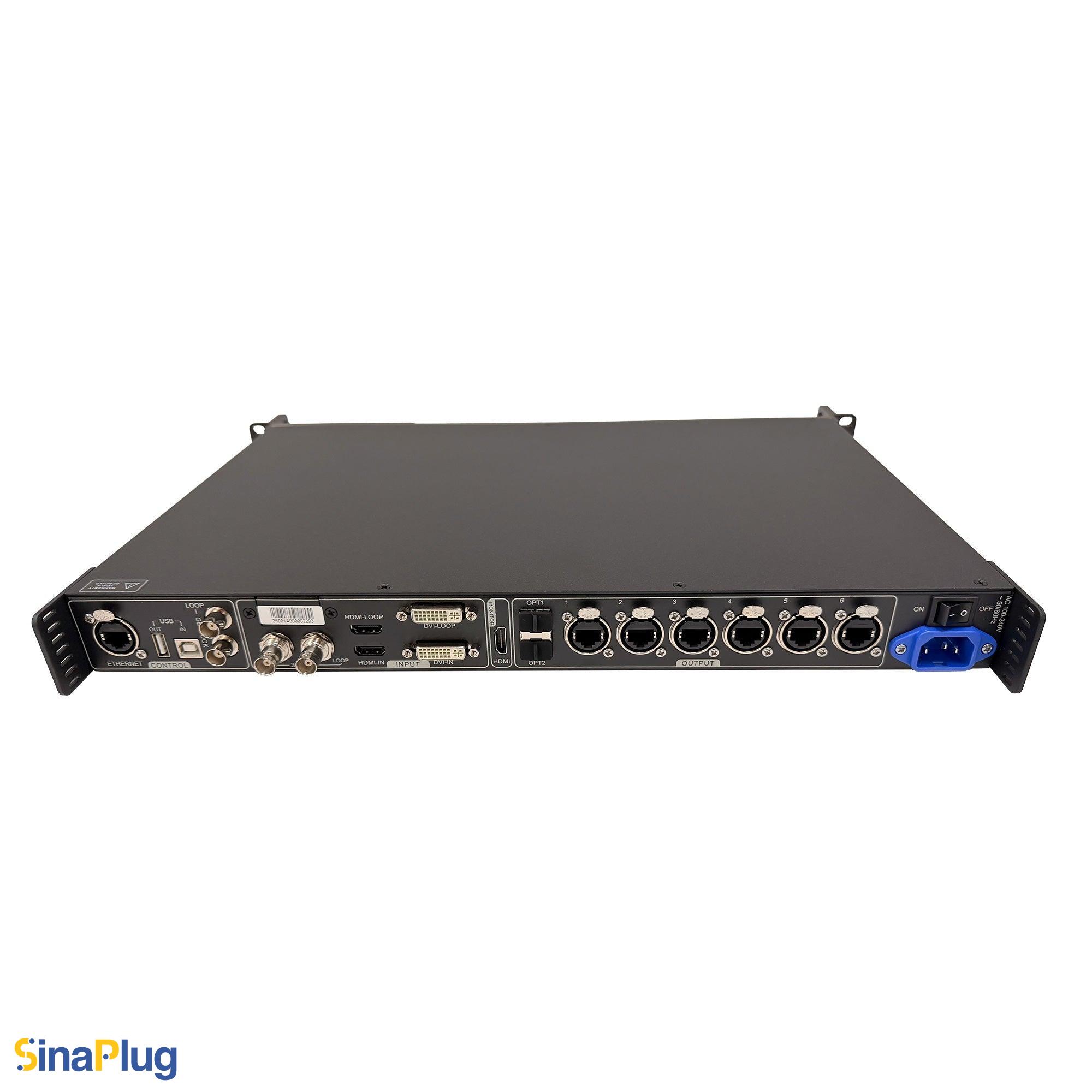

Output
- 6x Gigabit Ethernet interfaces
- 2x 10G optical ports (one for data transition for six Ethernet ports, one as the backup)
- 1x HDMI interface (for monitoring)
- 1× HDMI LOOP interface
- 1× DVI LOOP interface
- 1× 3G-SDI LOOP interface
Control
- 1x Ethernet port (Connect to the control computer)
- 1x USB IN Type-B port (Input port to cascade devices or connect to the PC for device debug)
- 1x USB OUT Type-A port (Output port to cascade devices)
- 1x GENLOCK IN-LOOP sync signal connector
Advanced Features
- Supports screen configuration on web page
- Image mirroring function (for one or all Ethernet output ports)
- Input monitoring
- High bit-depth inputs (8bit/10bit/12bit)
- Individual gamma adjustment for RGB
- Pixel Level Brightness and Chroma Calibration
- Supports quickly backup and restore of the system configuration files
Dimensions (L*W*H)
- 483mm * 356mm * 50mm
| Weight | 15.85 lbs |
|---|---|
| Dimensions | 21.5 × 17.01 × 6.81 in |
| Max Input Resolution | 1920×1200@60Hz |
| Supported Resolutions For Input | 1920×1080@60Hz, 1920×1200@60Hz |
| Pixel Capacity | 650,000 |
| Max Height Resolution | 3840 |
| Optic Fiber | 2 |
| DVI Out | 1 |
| HDMI Loop | 1 |
| SDI | 1 |
| Genlock In Loop | 1 |
| Ethernet LAN | 1 |
| Control USB Port | 1 |
| Cascading | Supported |
| Net Weight Kg | 4.6 |
| Input Voltage Range | 100-240VAC |
| Max Power Consumption | 20W |
| Working Temperature Range | -20 to +60 °C |
| USB Playback | NO |
| Standard Certification | CB, CE, FCC, IC, PSE, RCM, RoHS, UL/CUL |
| Others | 8-bit, 10-bit and 12-bit color depth inputs, Chroma Calibration, Image Mirroring, Low Latency, Pixel-Level Brightness Calibration |
