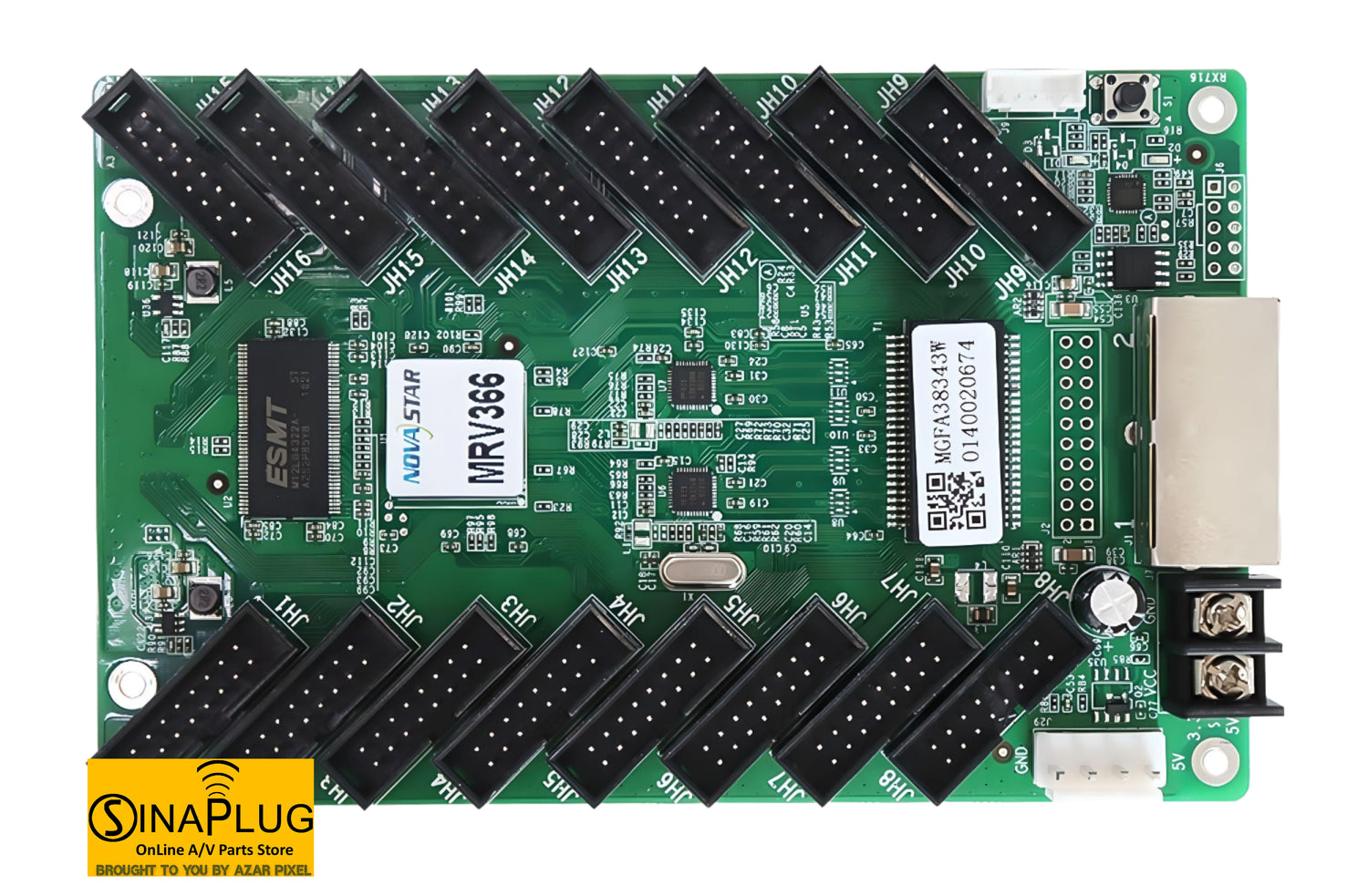

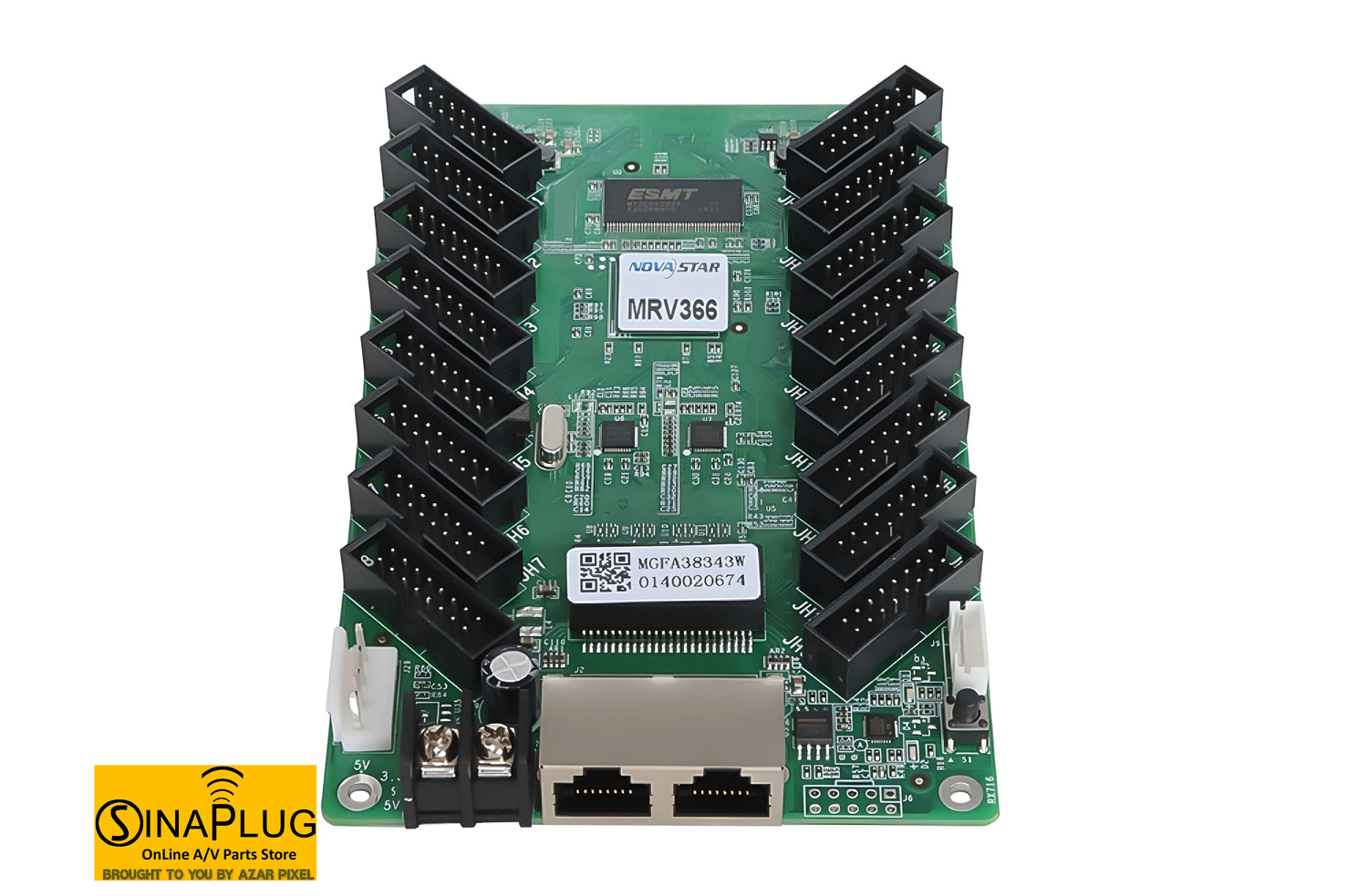

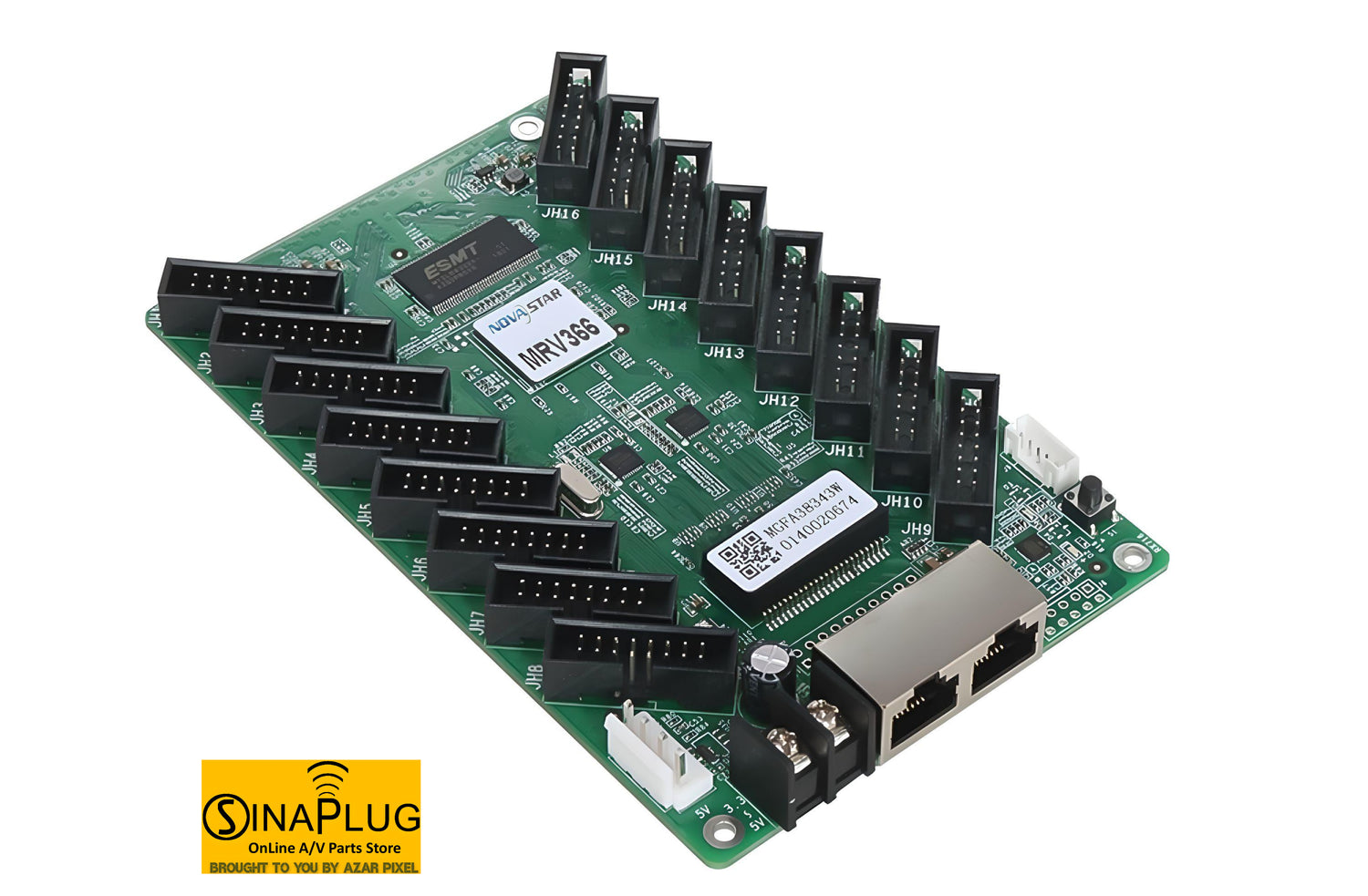

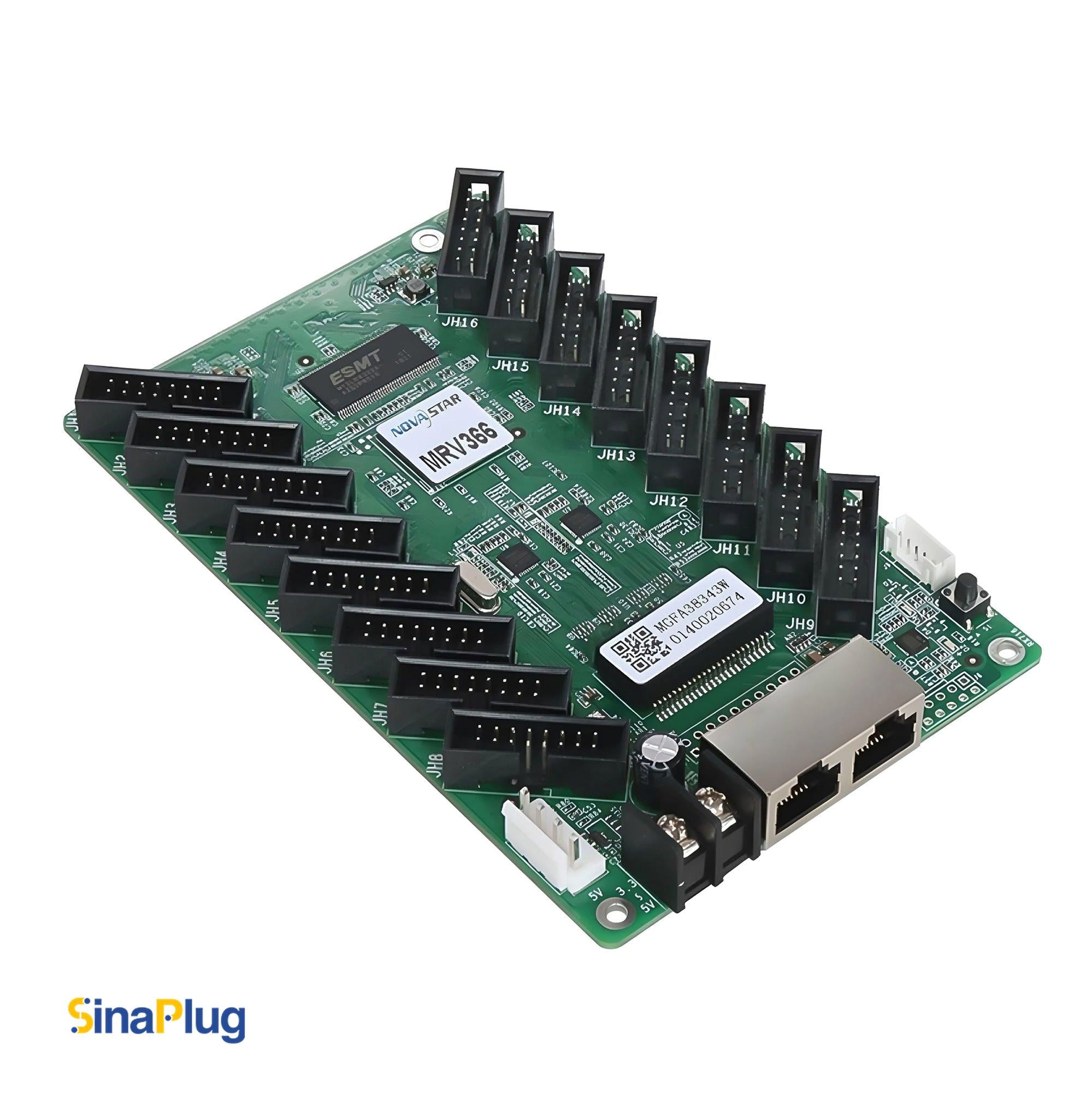

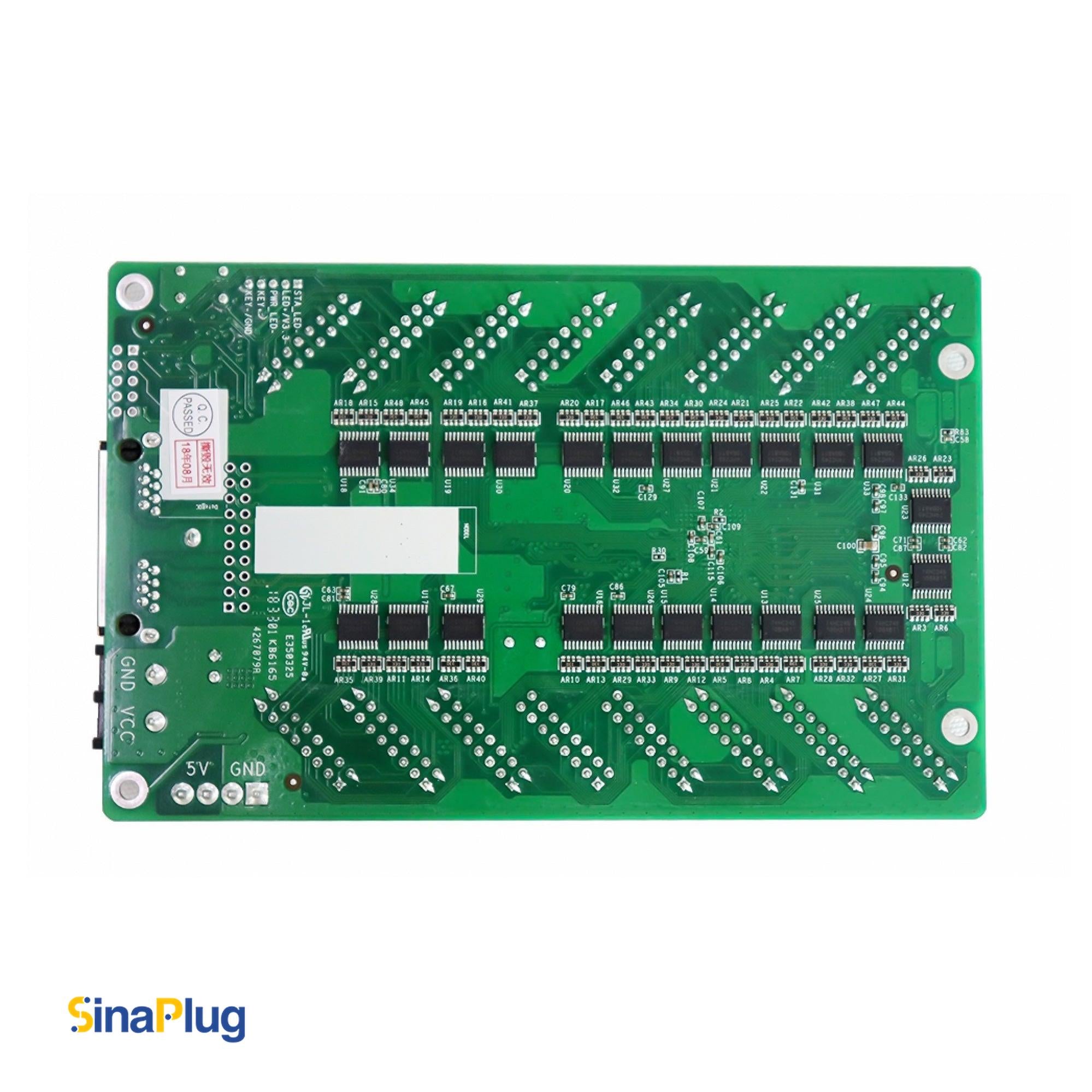

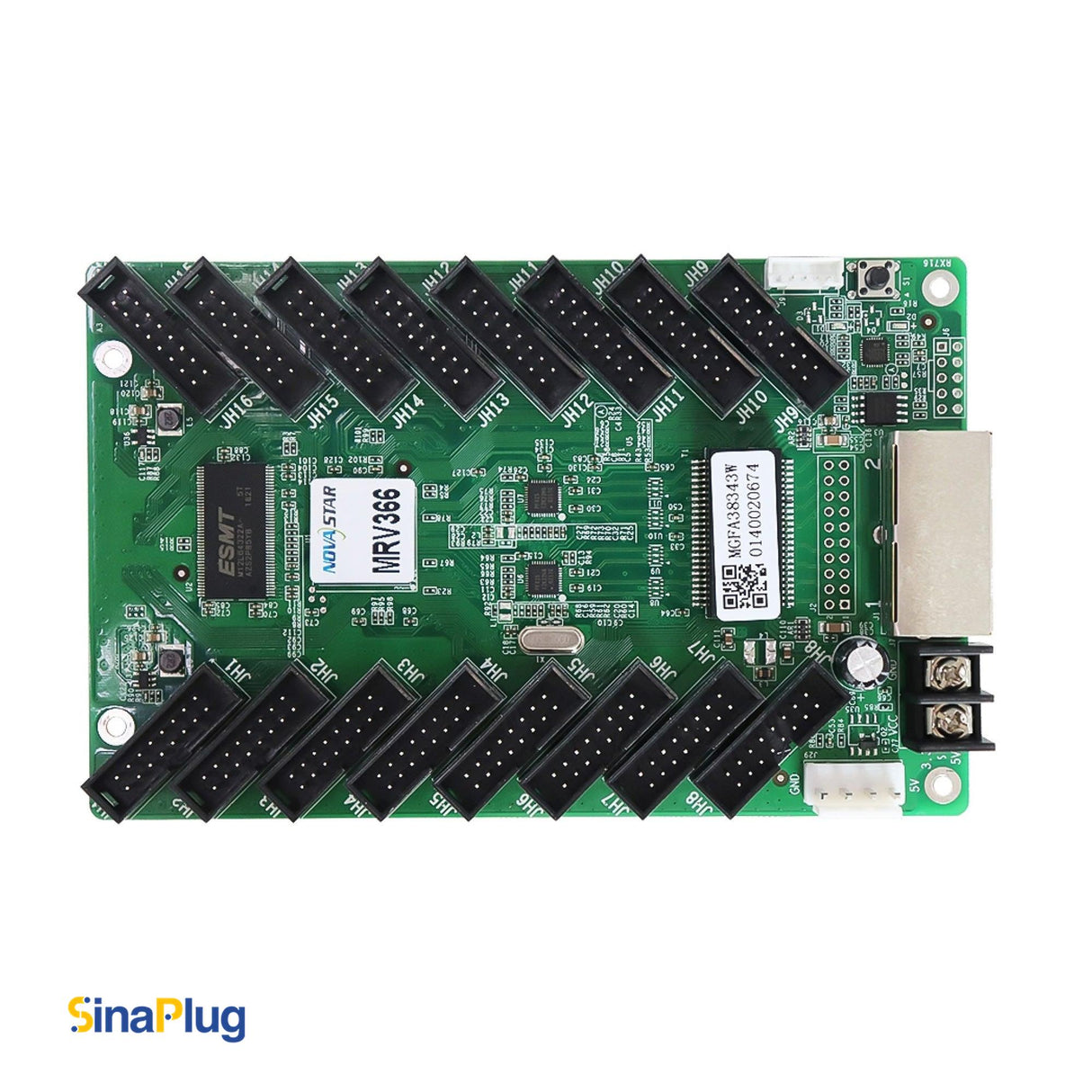

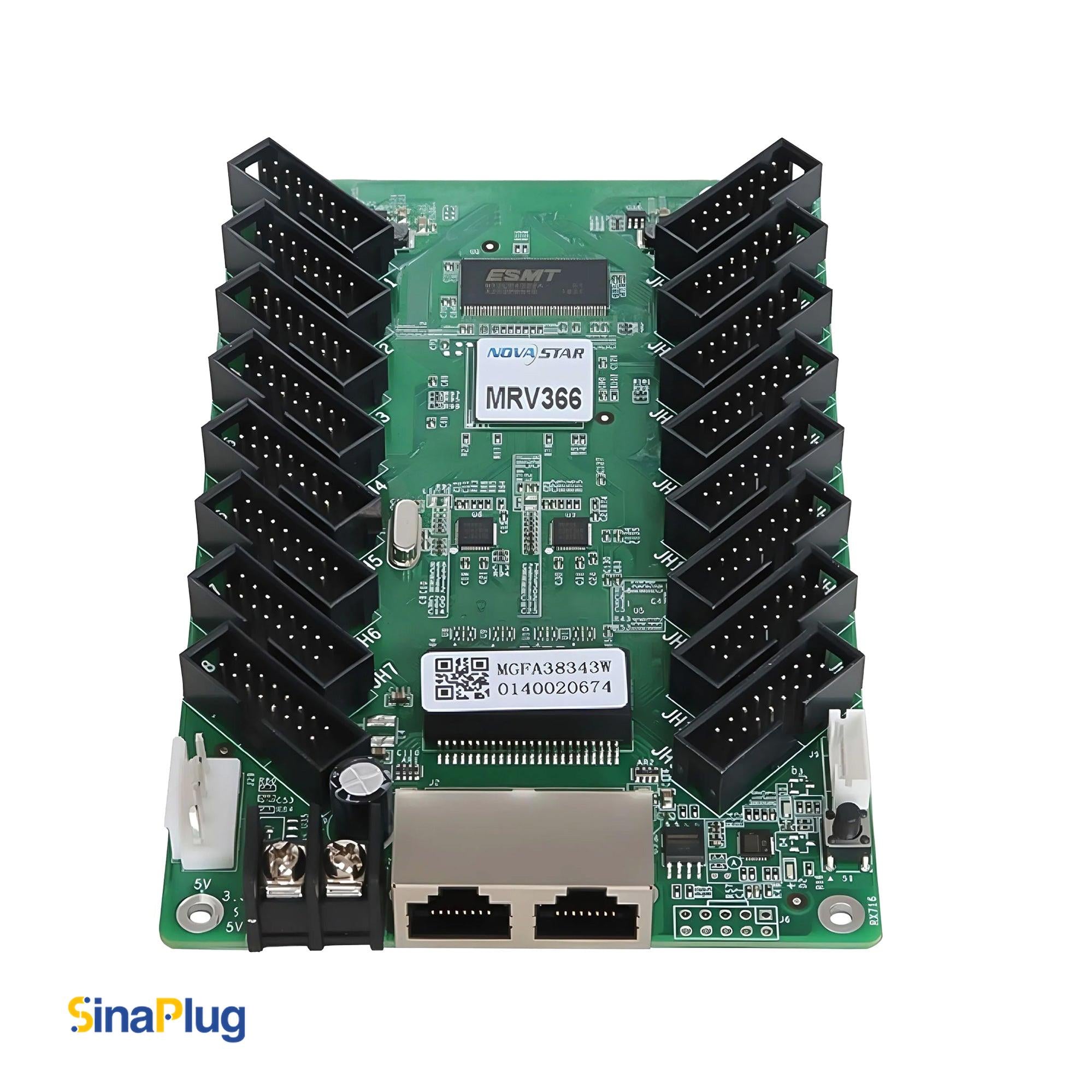

NOVASTAR MRV366 receiving card

One of the excellent choices for an LED receiving card, represented by Azar Pixel, is the NovaStar MRV366. It supports up to 1/64 scan and maximum output resolutions of 512×256 pixels for 8bit video sources while delivering 256×256 pixels for 10bit/12bit video sources.

Thanks to the 16 standard HUB75E connectors it supports up to 32 groups of parallel RGB data, Compliance with EMC Class A and RoHS standards makes it an adoptable choice in many applications owing to its improved electromagnetic compatible design.

With 12-bit precision pixel-level brightness and individual gamma adjustment for RGB, it provides consistent performance and better image quality for modern LED displays.

The operating temperature of this card is in the range of -20°C to +70°C, which ensures durability with efficiency in many cases. The rated power consumption of 2.5 W and input voltage range of DC 3.3 V to 5 V make it an energy-efficient receiving card.

It also supports improved features such as 3D function, Ethernet communication status in addition to temperature and voltage monitoring., the MRV366 is equipped with modern display calibration capabilities, reliable communication, and efficient power consumption for remarkable performance in various applications.
