Novastar A5s Plus Receiving Card

Sourced by Azar Pixel, the NovaStar A5s Plus is a versatile, small size receiving card engineered to enhance display performance and user experience for LED screens. For modules with PWM driver ICs it supports resolutions up to 512×384@60Hz for 8-bit video sources and 256×384@60Hz for 10 and 12-bit video sources. For common driver ICs, it supports 384×384@60Hz (8-bit) and 192×384@60Hz (10 and 12-bit).

Experts with A5s Plus not only can take advantage of the 3D function, but also, they can have a stunning experience with its quick adjustments for dark or bright lines, seam correction with mobile phones, pixel level brightness and chroma calibration, 90° image rotation. Additionally, thanks to its low latency (as short as 1 frame), RGB Individual Gamma Adjustment, Color Management, 18bit+ grayscale level, audiences can enjoy a live, precise, eye-catching display, turning heads with each single frame.

This upgraded NovaStar receiving card instead of using common RJ45 ethernet ports and IDC connectors (functioning as input and output of the card) utilizes high-density board-to-board connectors to minimize dust and vibration effects, ensuring stable communication. In addition to reserved pins (available for custom functions) It provides up to 64x groups of serial data (with expansion to 128 groups) or 32 groups of parallel RGB data.

Being RoHS certified and compliant with EMC Class B standards, it demonstrates enhanced electromagnetic compatibility, while also ensuring adherence to environmental protection standards.

Designed for durability, the A5s Plus operates within a temperature range of -20°C to +70°C. It operates with an input voltage range of DC 3.8 V to 5.5 V and consumes a rated power of 3.0 W. Its maintenance features include smart module support, automatic module calibration, and quick uploading of calibration coefficients. These features, coupled with reliable performance, make this on-demand card ideal for diverse applications requiring consistent and high-quality visuals.

Key Features of NovaStar A5s Plus

1x Gigabyte Ethernet Board-to-Board (to Hub/Adapter board) connector

32x sets of RGB parallel data or 64x groups of serial data (expandable to 128 groups of serial data)

1x Gigabyte Ethernet Board-to-Board (to Hub/Adapter board) connector

Maximum Resolution:

- 512×384@60Hz (8-bit video, PWM driver ICs)

- 256×384@60Hz (10/12-bit video, PWM driver ICs)

- 384×384@60Hz (8-bit video, common driver ICs)

- 192×384@60Hz (10/12-bit video, common driver ICs)

Color Management (Rec.709, DCI-P3, Rec.2020, Custom)

18bit+ grayscale enhancement

Seam Correction with Mobile Phones

Pixel Level brightness and chromaticity calibration

Low Latency (1 frame for PWM driver ICs)

Supports 3D function

RGB Individual gamma adjustment

Quick adjustment of dark or bright lines

Image rotation in 90° increments

Reliability:

- Dual card backup (redundancy support) and primary/backup status monitoring

- In-line Loop backup

- Double backup of configuration parameters:

- Dual program backup

 Maintainability:

- Smart module

- Automatic module calibration

- Module Flash management

- One Click to apply calibration coefficients in module Flash

- Fast upload of calibration coefficients

- Status detection of dual power supplies

- Mapping 1.1

- pre-saved screen settings

- Temperature and voltage monitoring

- Cabinet LCD

- Bit error detection

- Firmware program readback

- Configuration parameter readback

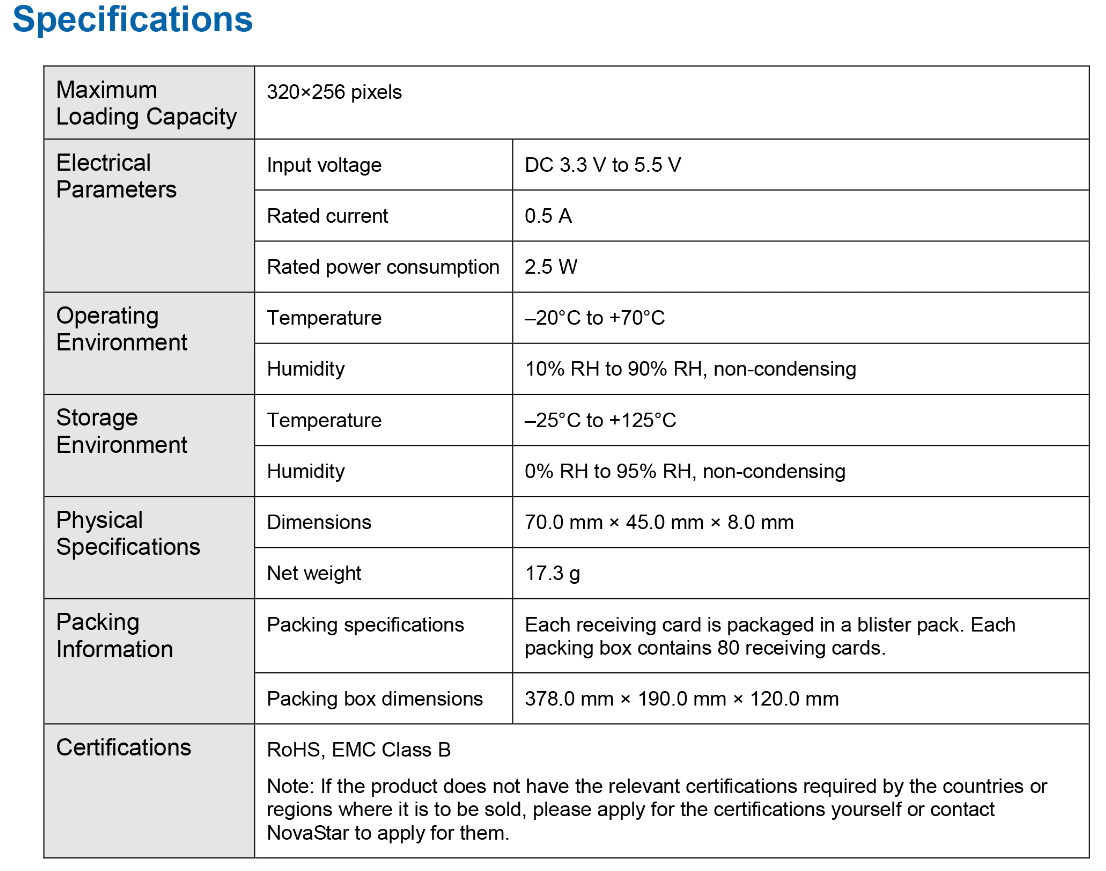

70. 0mm * 45.0mm * 8.3mm
