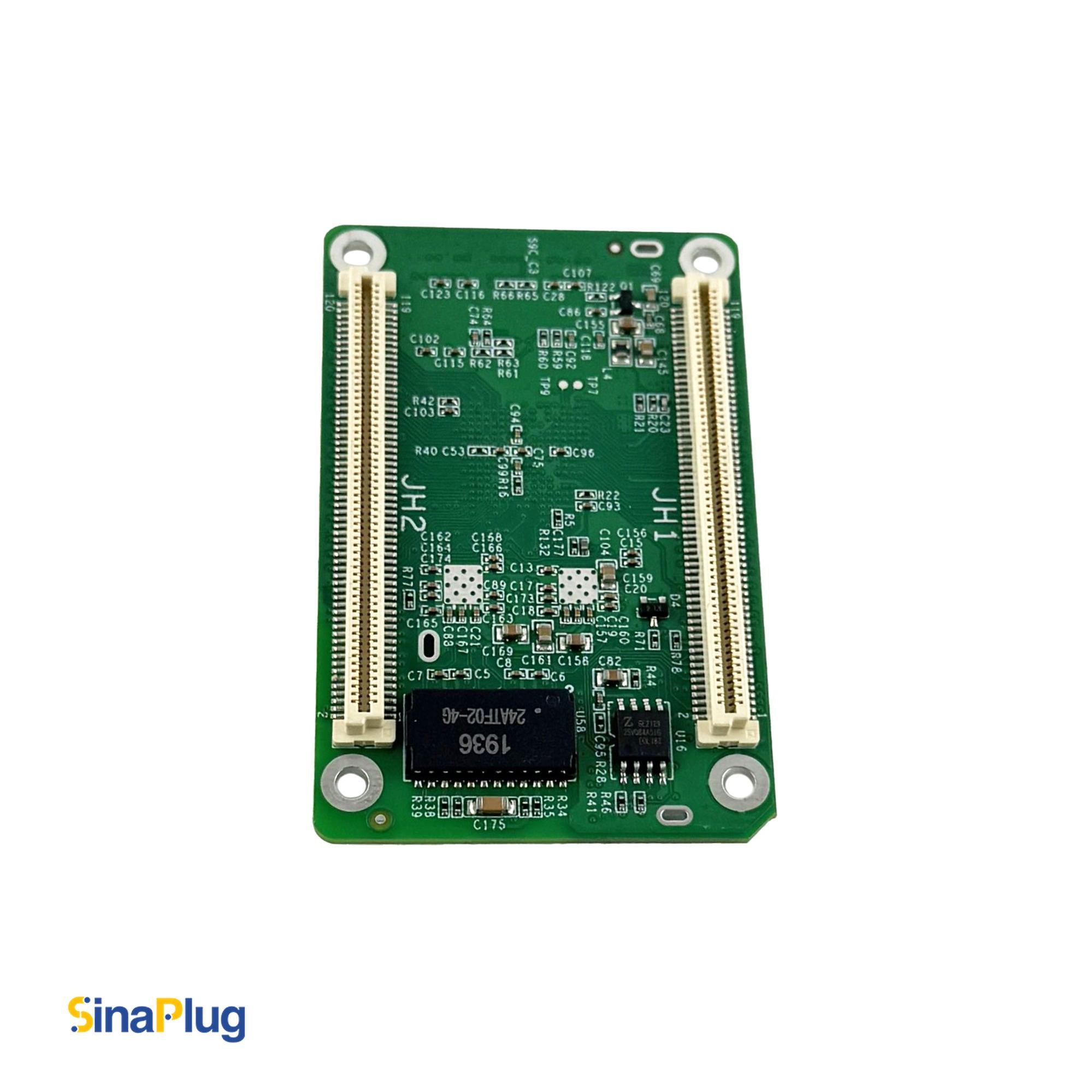

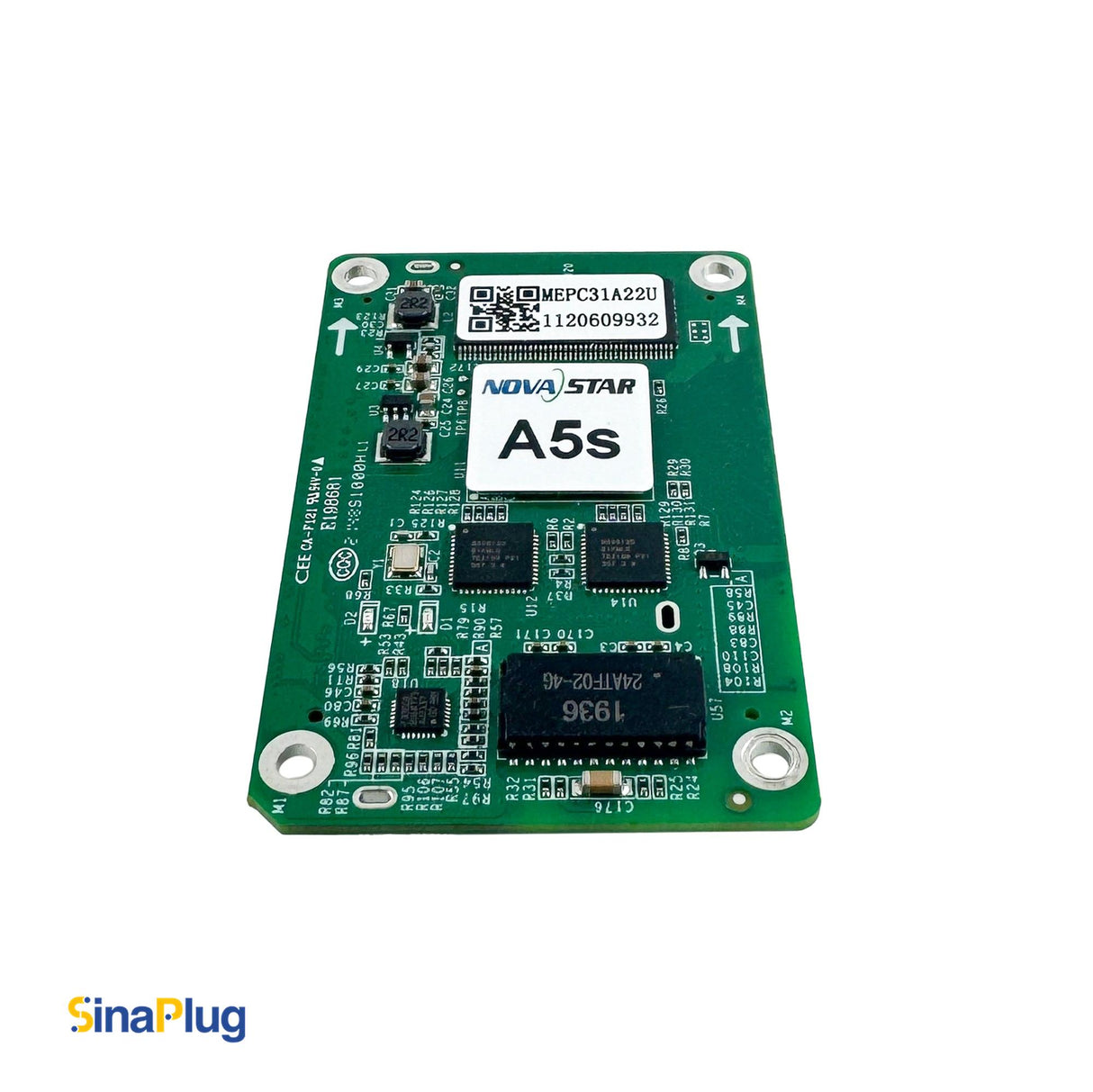

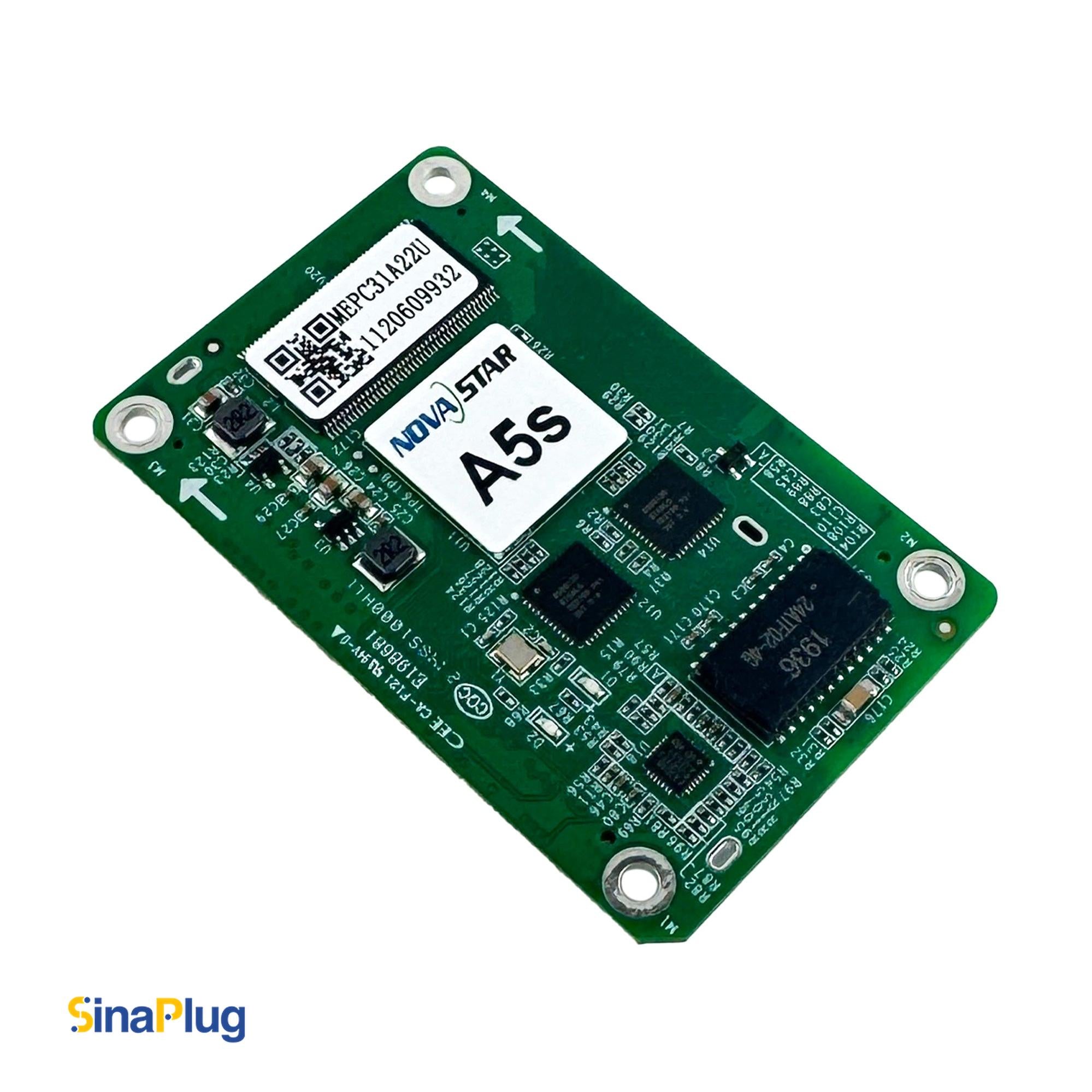

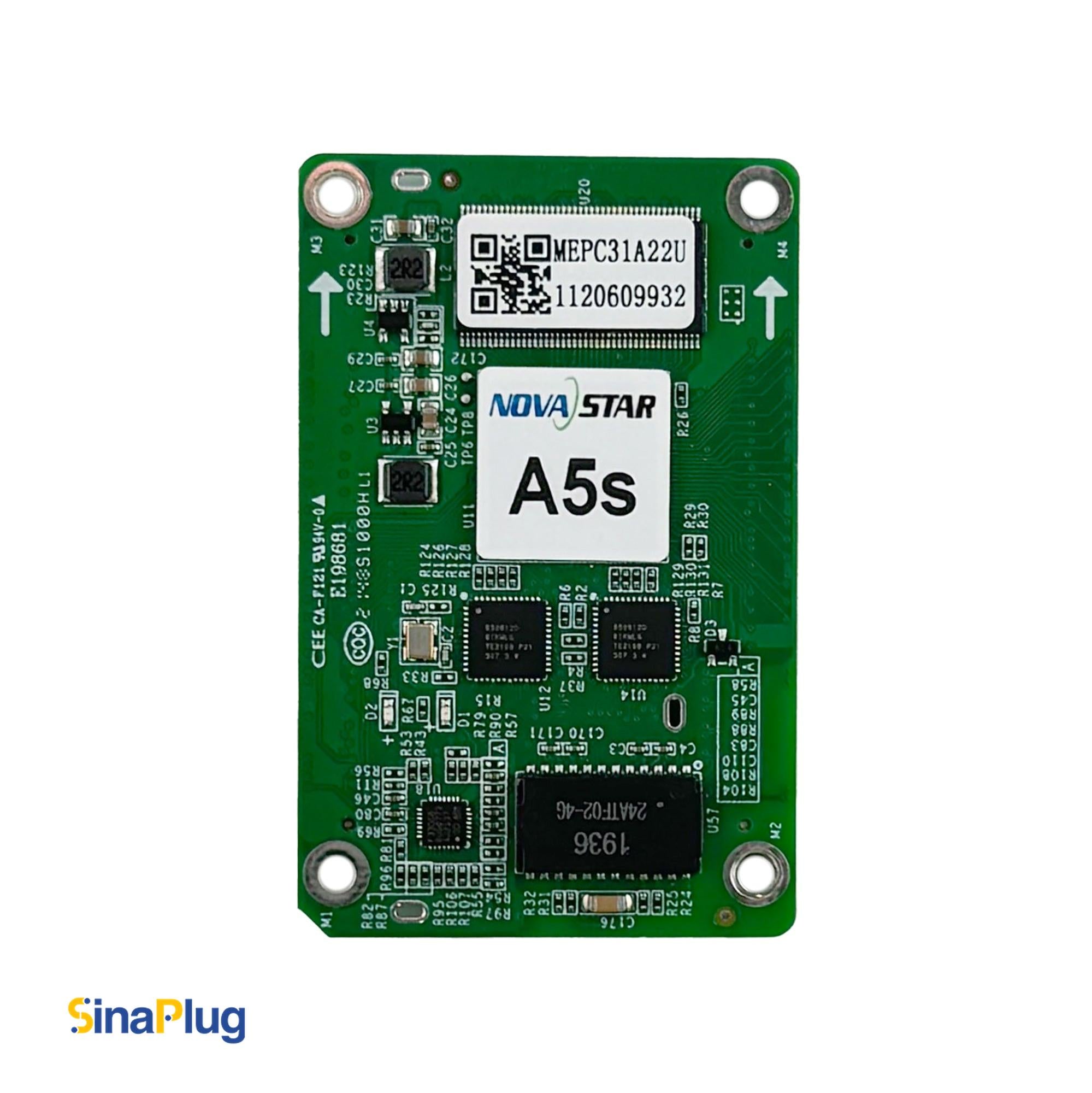

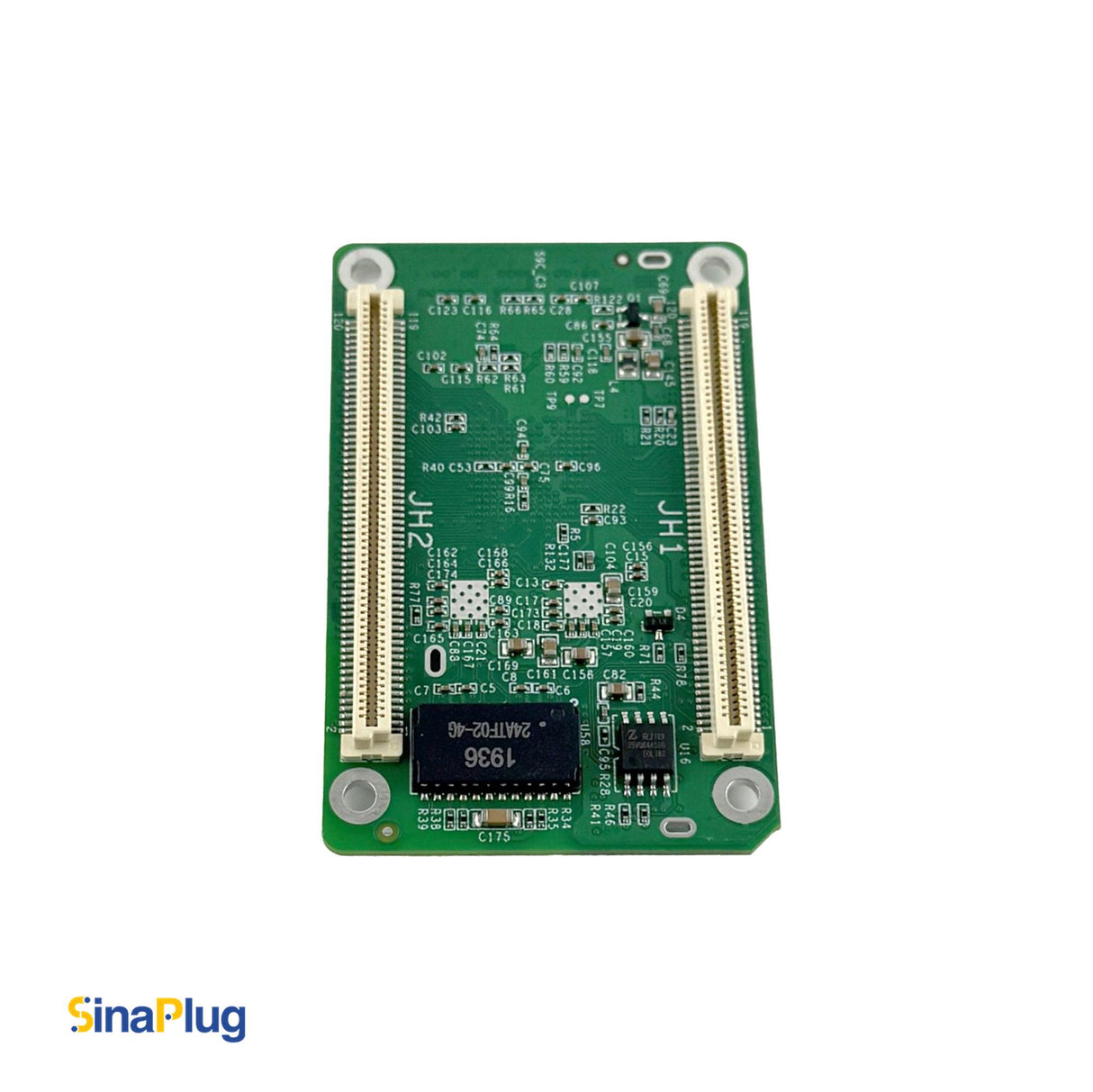

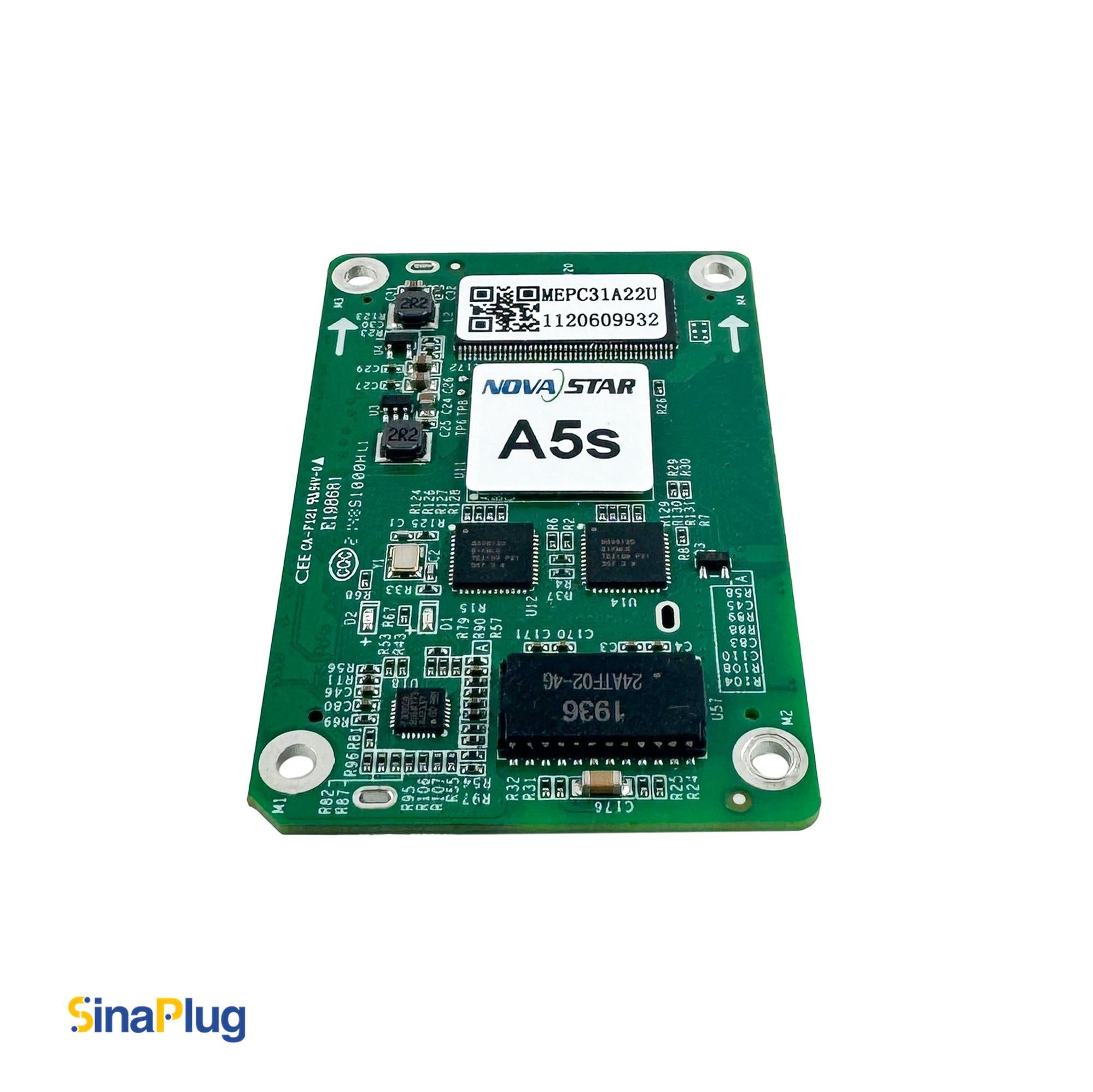

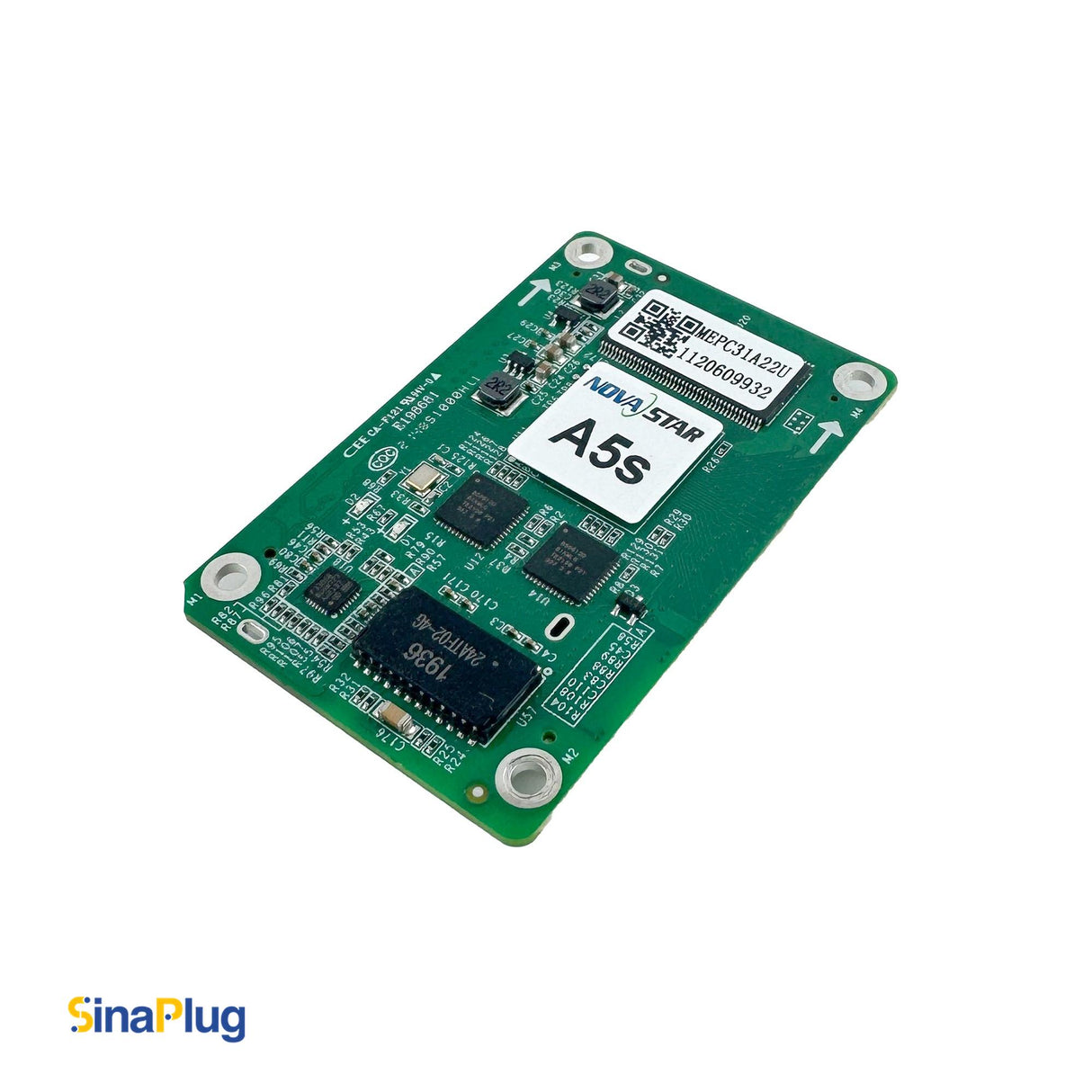

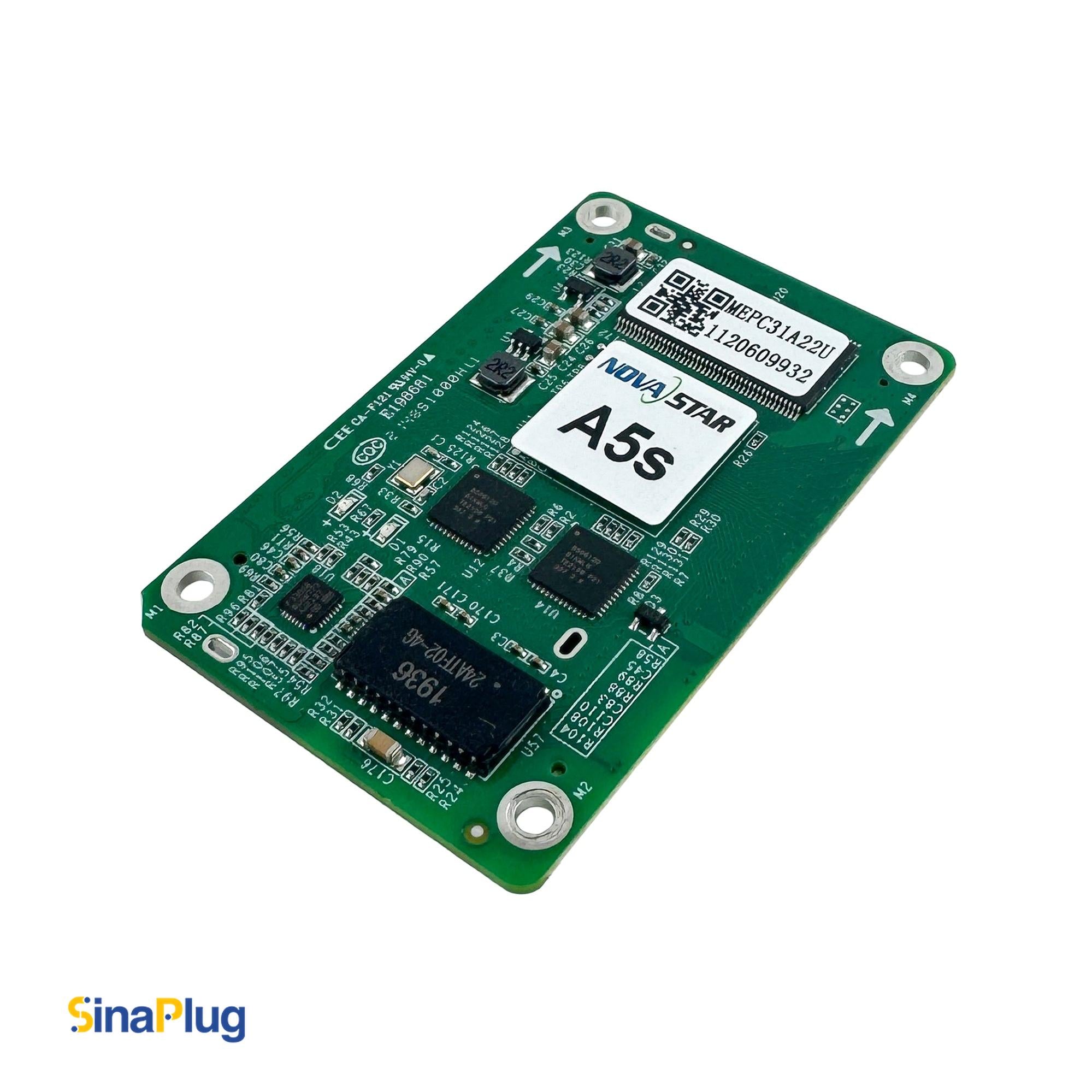

NovaStar A5s Receiving Card
NovaStar A5s Receiving Card is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Documents
Documents

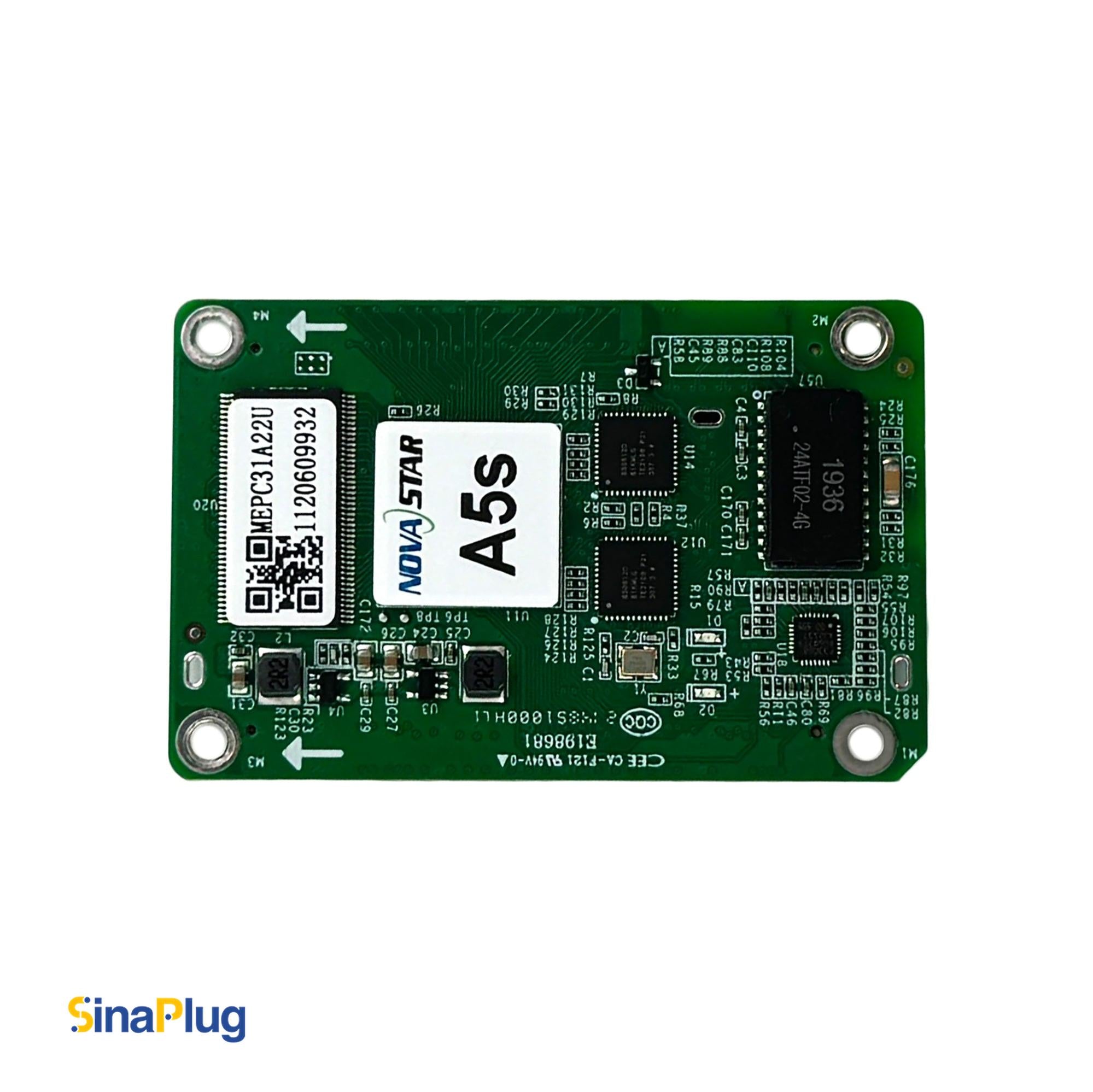

Although production has stopped, still Azar Pixel is your trusted supplier for the NovaStar A5s. This is an adaptable, multi-purpose receiving card manufactured to convey high-quality and appealing visuals, ensuring a pleasant user experience on LED screens. This low-cost solution is designed to support a maximum load of 320×256 pixels (@60Hz) with brightness and color adjustment.
This on demand receiving card features 3D functionality, as an extra advantage and RGB individual gamma adjustment, pixel-level brightness and chromaticity correction. Powered by a DC input voltage of 3.8 to 5.5 Volts (2.5W) and delivers optimal performance even in challenging environmental conditions range of -20°C to +70°C temperature.

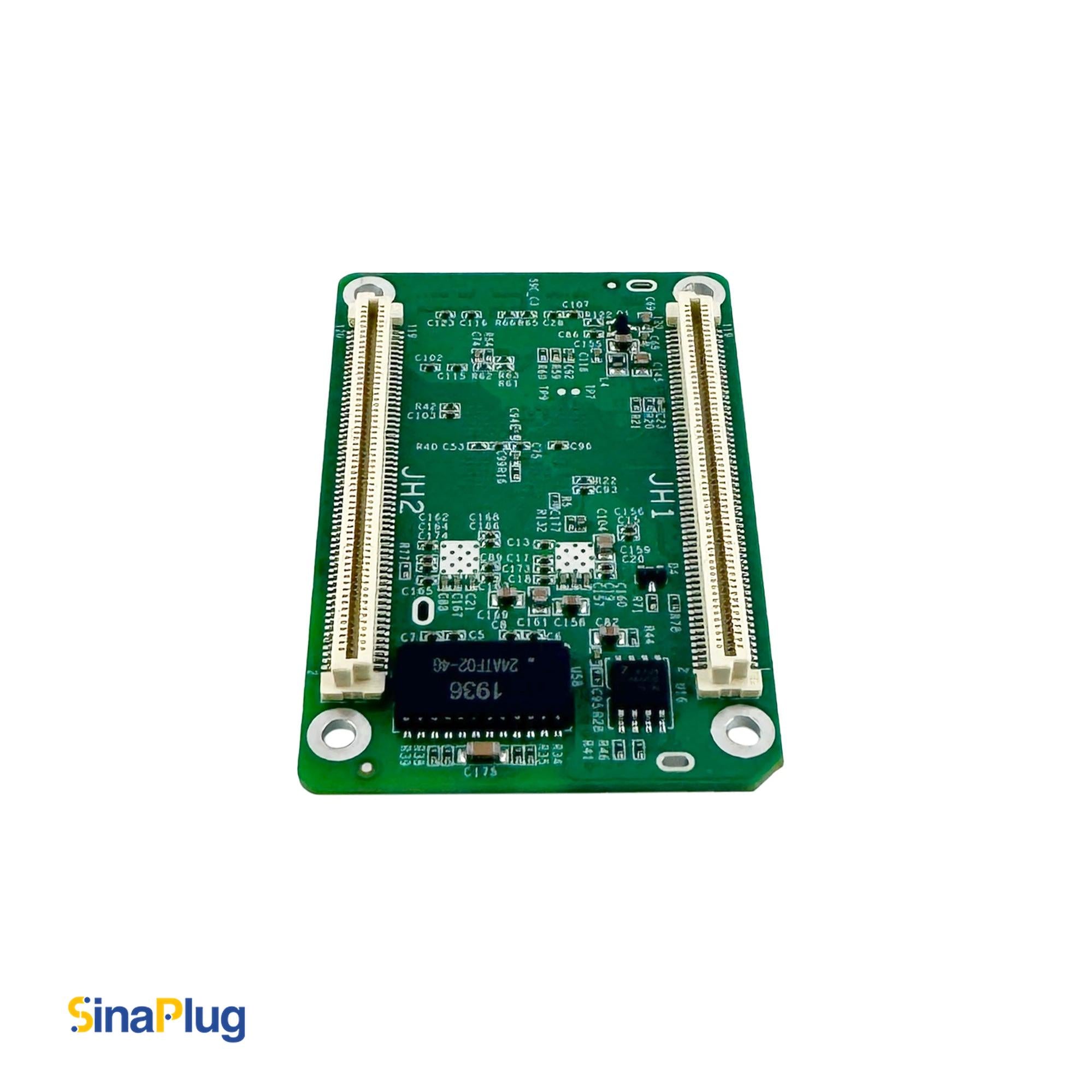

Additionally, the A5s comply with RoHS and EMC Class A certifications, engineered with high-density connectors to limit interference from dust and vibration, meeting stringent industry requirements.
Its stunning protection and failover support guarantees uninterrupted display visibility in the event of any kind of fault. It supports Dual card backup, Loop backup, configuration parameters and calibration coefficients backup, Dual firmware program backup.
It is designed to support 32 parallel RGB data channels or 64 serial data streams (with expansion up to 128), offering robust communication with LED modules. It monitors temperature, voltage, and network errors for effective maintenance and provides pre-saved screen configurations for scenarios like computer startup or video signal absence.
This NovaStar receiving card serves as a reliable and versatile solution for managing LED displays in a wide range of applications. These include outdoor advertising screens, public information boards, chain store displays, and other commercial uses that demand consistent performance and high-quality visuals.
Key Features of NovaStar A5s
- Input:
1x Gigabyte Ethernet Board-to-Board Port (from Hub/Adapter board)
- Output:
32x sets of RGB parallel data or 64x groups of serial data (expandable to 128 groups of serial data)
1x Gigabyte Ethernet Board-to-Board Port (to Hub/Adapter board)
- Performance:
Supports maximum load of 320x256 pixels (@60Hz)
Pixel Level brightness and chromaticity correction (calibration)
Supports 3D function
Individual gamma adjustment for RGB
Quick adjustment of dark or bright lines
- Other Features:
Maintainability:
- Smart module
- Automatic module calibration
- Module Flash management
- One Click to apply calibration coefficients in module Flash
- Fast upload of calibration coefficients
- Status detection of dual power supplies
- Mapping function
- pre-saved screen settings
- Temperature and voltage monitoring
- Supports Cabinet LCD
- Bit error detection
- Firmware program readback
- Configuration parameter readback
Reliability:
- Dual card backup and status monitoring
- Loop backup
- Dual backup of calibration coefficients
- Dual backup of configuration parameters:
- Dual program backup
- Dimensions (L*W*H):
70.0mm * 45.0mm * 8.3mm
