NovaStar  |  SKU: RCC-NOV-A8SNxxxxxx-0

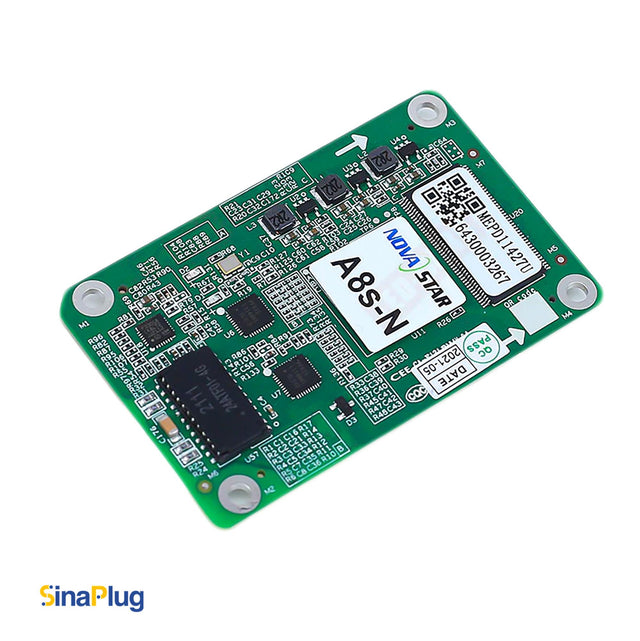

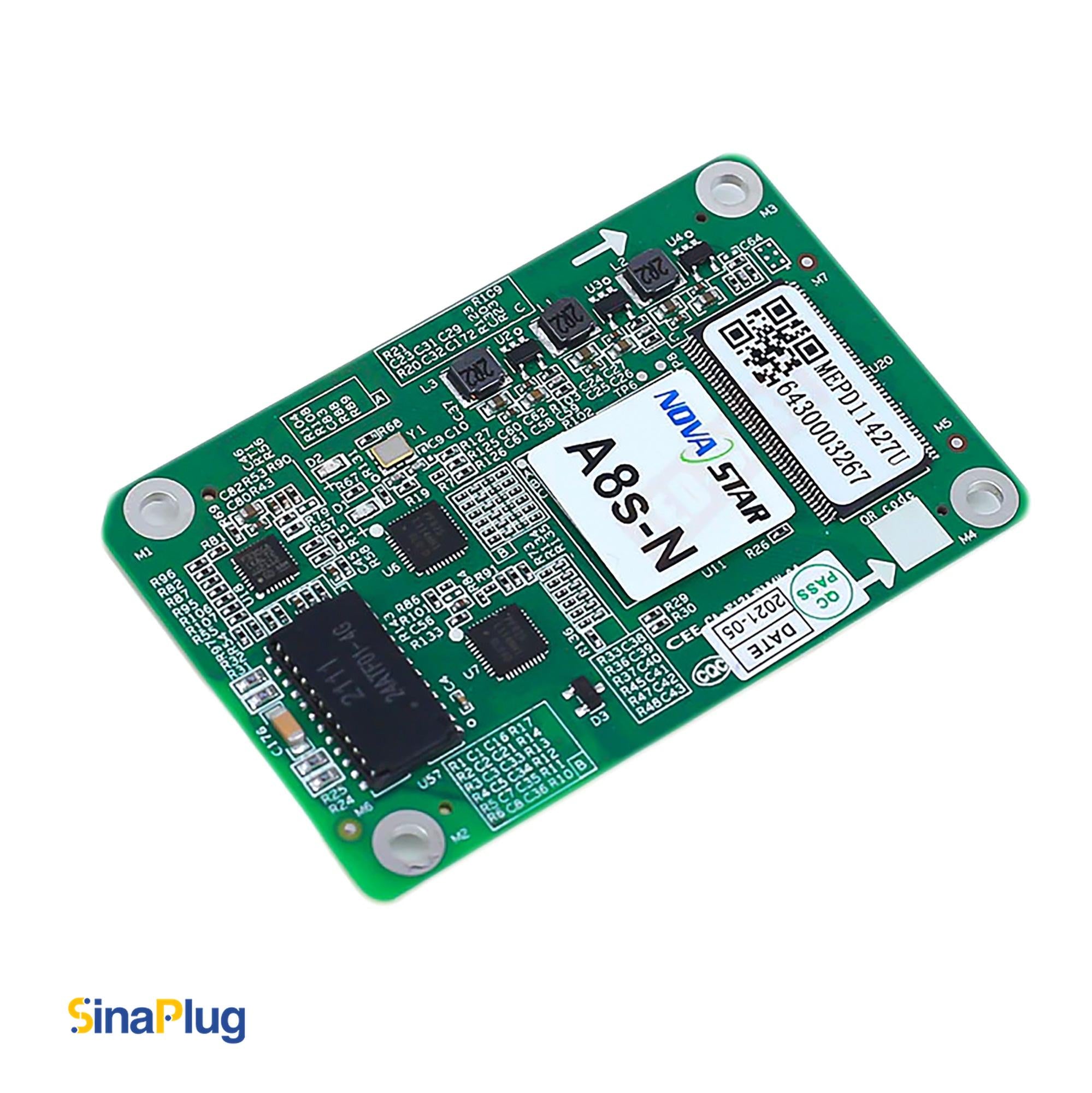

NovaStar A8s-N Receiving Card (updated version of A8s)

$40.24

Azar Pixel proudly supplies the NovaStar A8s-N, a feature-rich, compacted size receiving card made to provide exceptional performance and dependability for cutting-edge LED display systems. This is an updated version of the most popular NovaStar receiving card, A8s, featuring the exclusive Image Booster technology of NovaStar.

It provides accurate color gamut and grayscale calibration, which can increase grayscale performance by up to 64 times when compared to conventional alternatives. These features in addition to its support from free image rotation, HDR10, pixel-to-pixel Chroma and brightness calibration, separate Red-Green-Blue Gamma Adjustment, Low latency and 3D output, guarantee consistent, fluid, and realistic images with remarkable color fidelity and detail, especially in low-light settings.

It is designed for high stability and reliable communication, for modules running PWM driver ICs supporting maximum resolutions of up to 512×384 pixels @60Hz (for 8-bit videos) and achievable 512×256@60Hz for 10bit and 12bit video sources, also for modules with common driver ICs: 384×384 pixels @60Hz (for 8-bit video inputs) and 384×256@60Hz (for 10bit and 12bit video sources) are available.

It supports up to 32 groups of RGB data in parallel or 64 groups of serial data (expandable to 128 groups), and it takes advantage of high-density connectors to reduce the impacts of dust and vibration.

This card is appropriate for a variety of commercial and industrial applications because it complies with RoHS and EMC Class B regulations. With sophisticated maintainability features including smart module support (for more information, please refer to the datasheet), automatic module calibration, real-time monitoring, and extensive backup choices, it is built to function dependably in demanding environments. Because of these advancements, the A8s-N is perfect for demanding installations that need dependability and excellent image quality, such as chain shop signs, outdoor advertising, and public information displays.

Key Features of NovaStar A8s-N

Input

  • 1x Gigabit Ethernet Board-to-Board (11 pins of JH2 connector)

Output

  • 32x groups of RGB parallel data or 64x groups of serial data (expandable to 128 groups)
  • 1x Gigabit Ethernet Board-to-Board (11 pins of JH2 connector)

Performance

Maximum loading capacity:

Modules with PWM ICs

  • 512×384 (8-bit video inputs)
  • 512×256 (10bit / 12bit video inputs)

Modules with common ICs

  • 384×384 (8-bit video inputs)
  • 384×256 (10bit / 12bit video inputs)
  • Supports 3D function
  • Free Image rotation (with MCTRL R5)
  • Rotation in multiples of 90°
  • Low latency (down to 1 frame)
  • HDR10 support
  • Brightness an</div>
    d color calibration support
  • Quick bright or dark lines adjustment
  • Separate adjustment for RGB

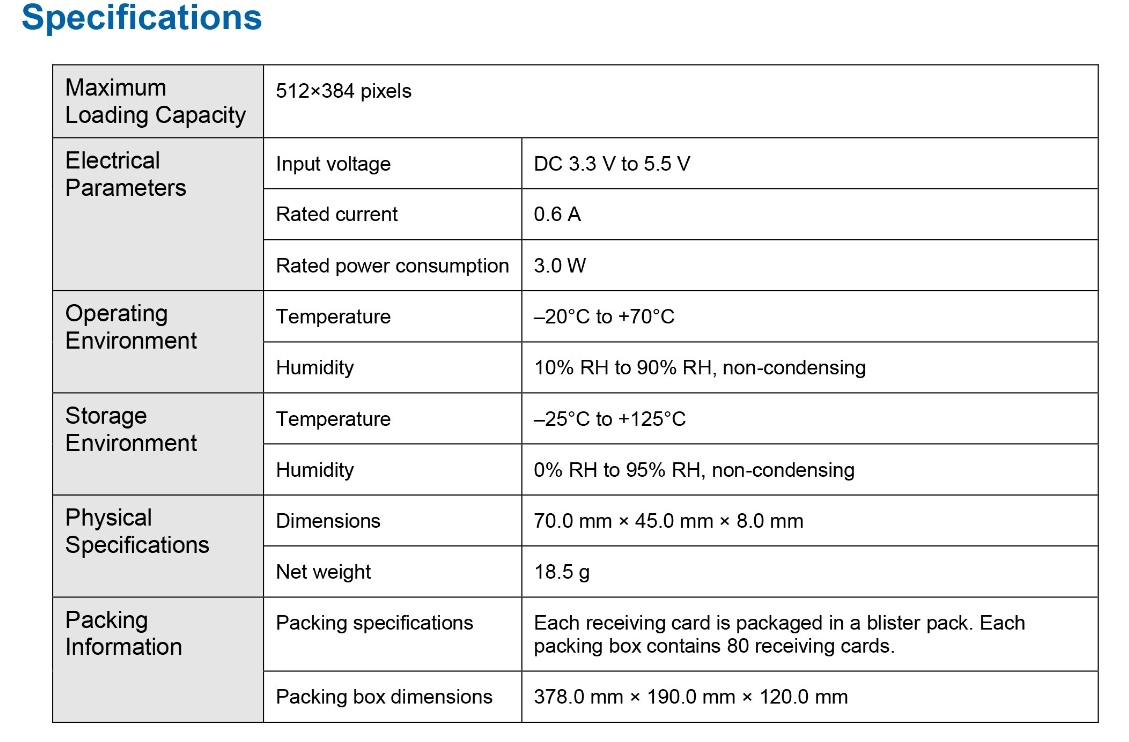

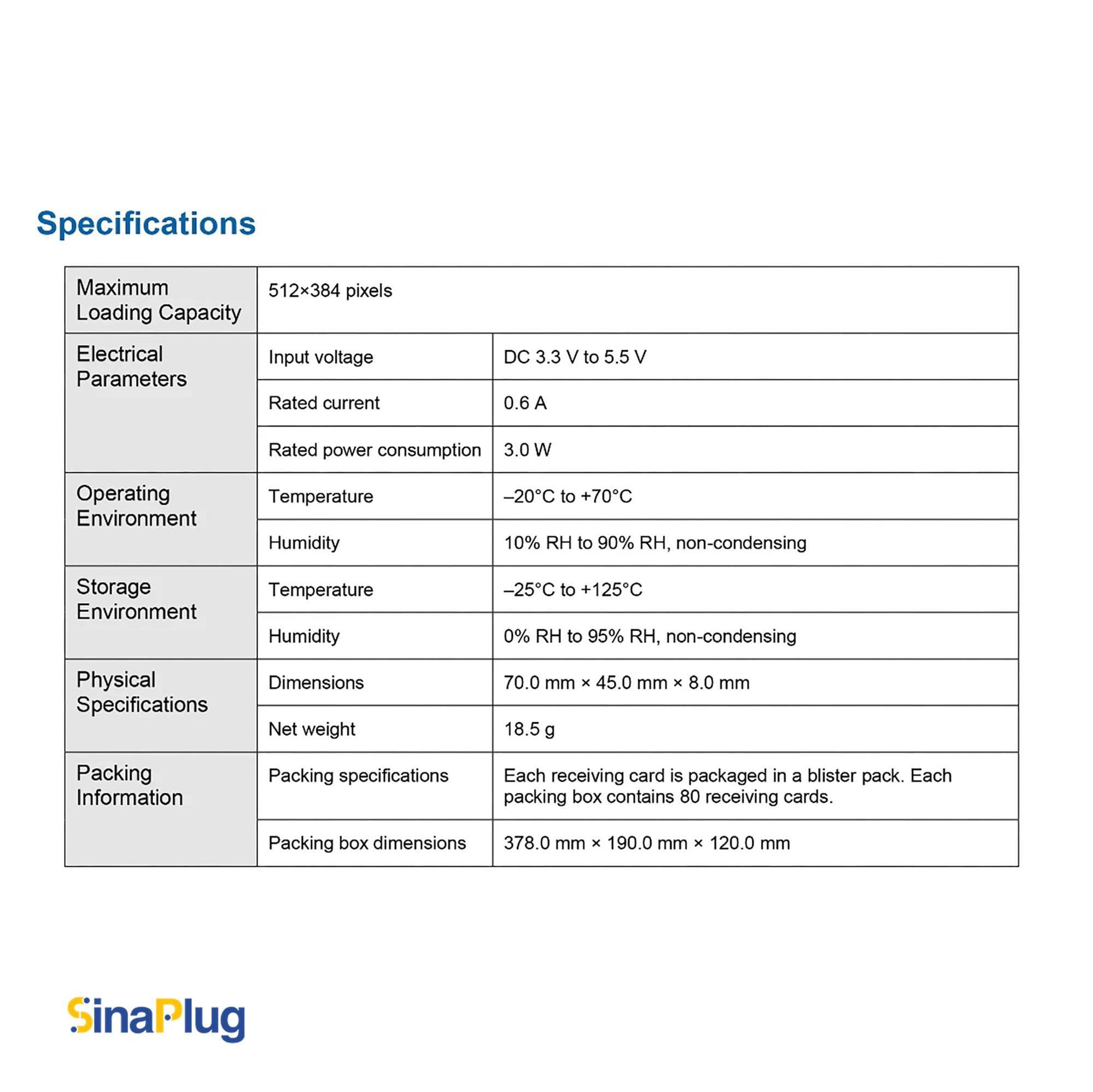

Power

  • input voltage: 3.8 – 5.5VDC
  • power consumption: 3W

Others

  • Loop backup (in case of line faults)
  • Dual program backup (2x copies of firmware stored)
  • Card Redundancy Support (with Status Monitoring of both cards)
  • Dual Back of Configuration Parameters and Calibration Coefficients
  • Bit error detection (monitors Ethernet communication quality)
  • Mapping 1.1 (displays controller number, receiving card number, and Ethernet port information)
  • Real-time temperature and voltage monitoring

Dimensions (L*W*H)

  • 70.0mm * 45.0mm * 8.1mm
