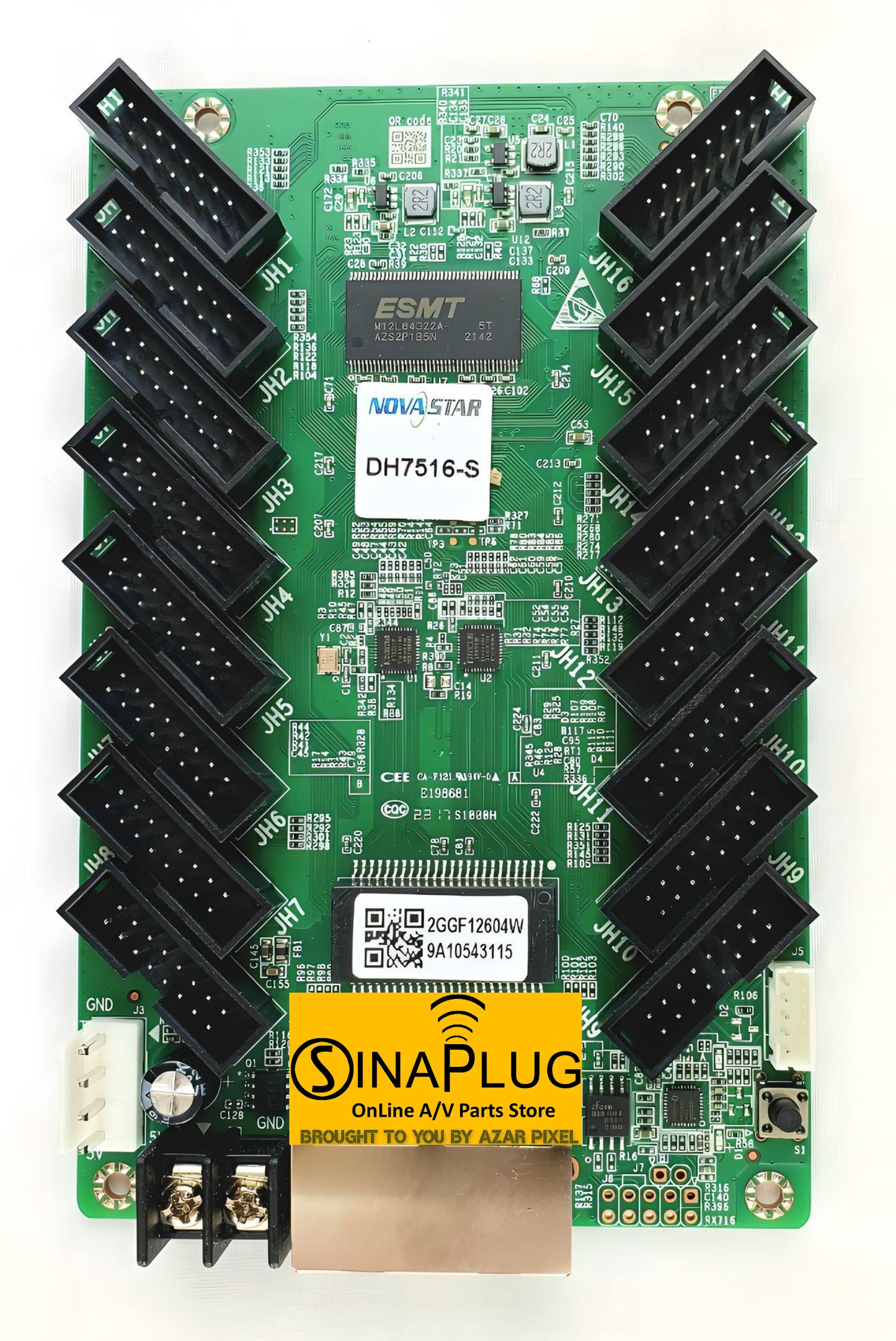

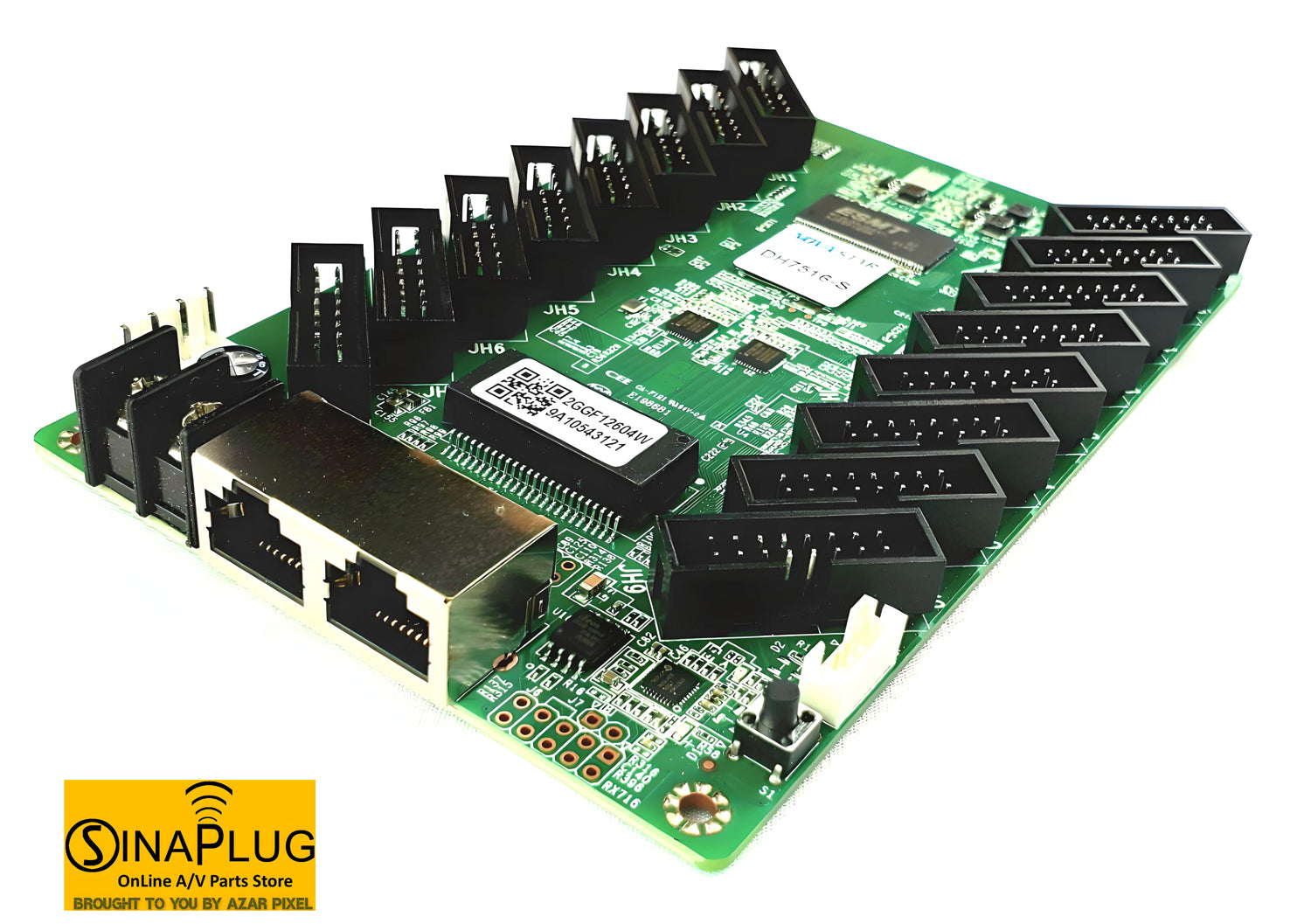

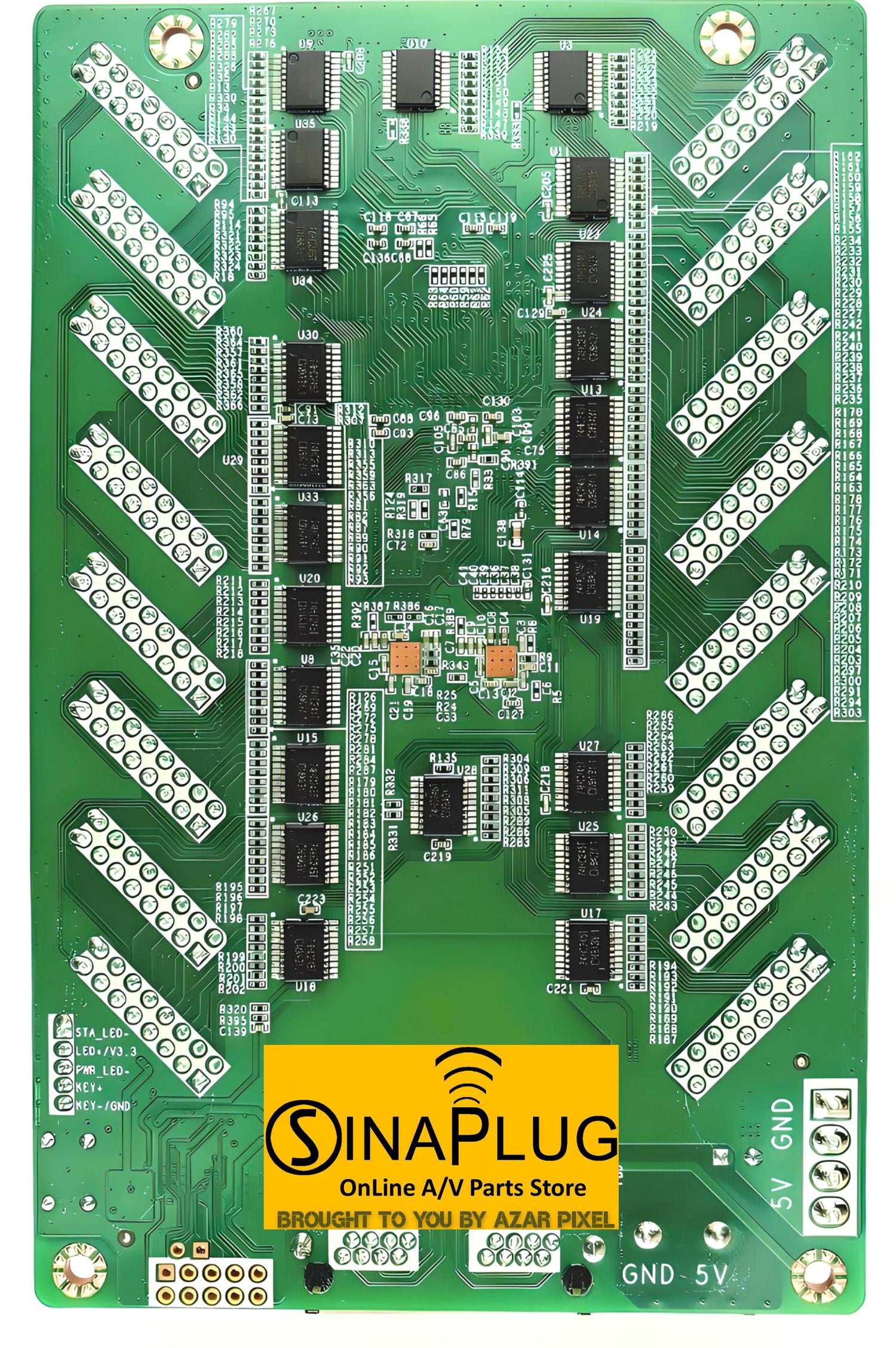

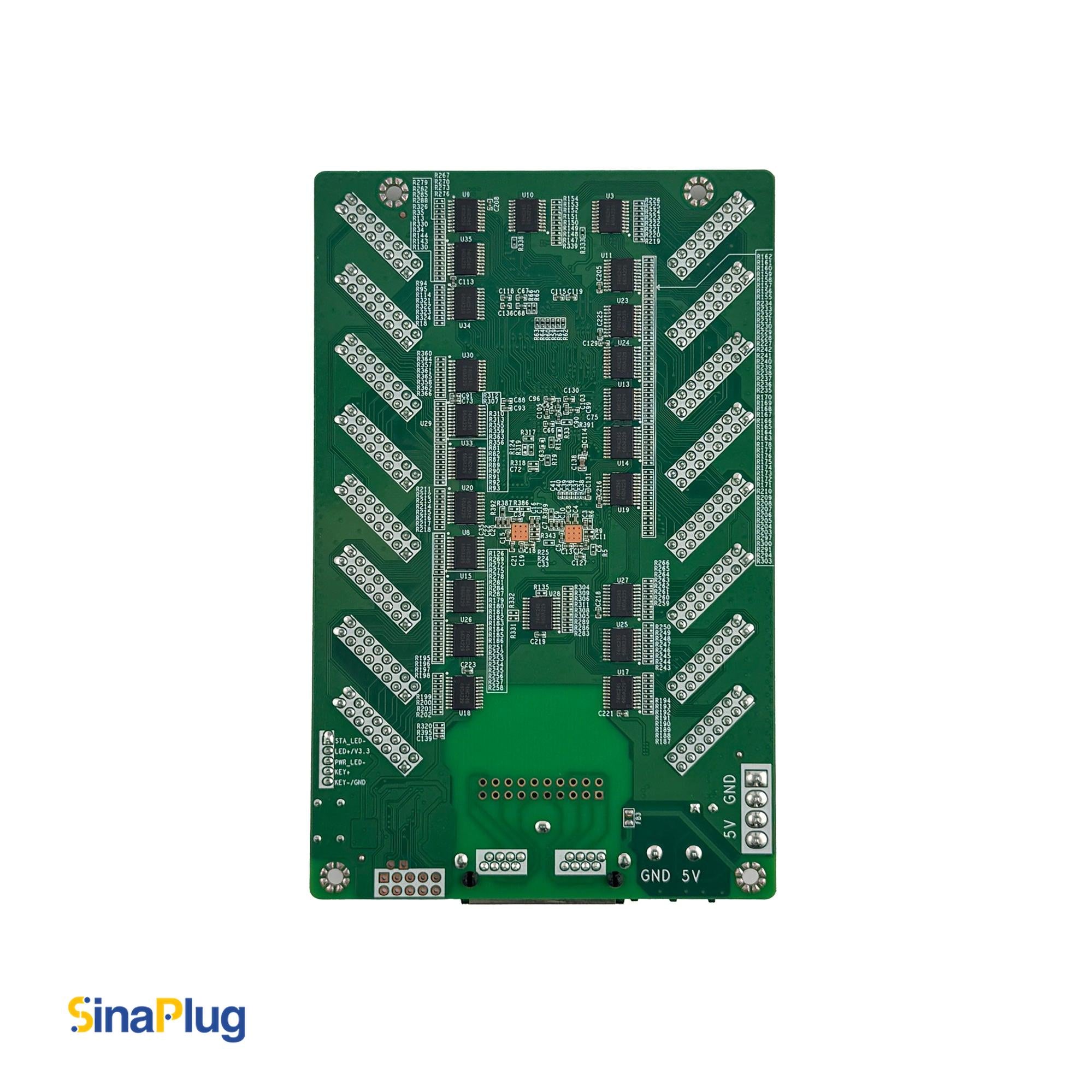

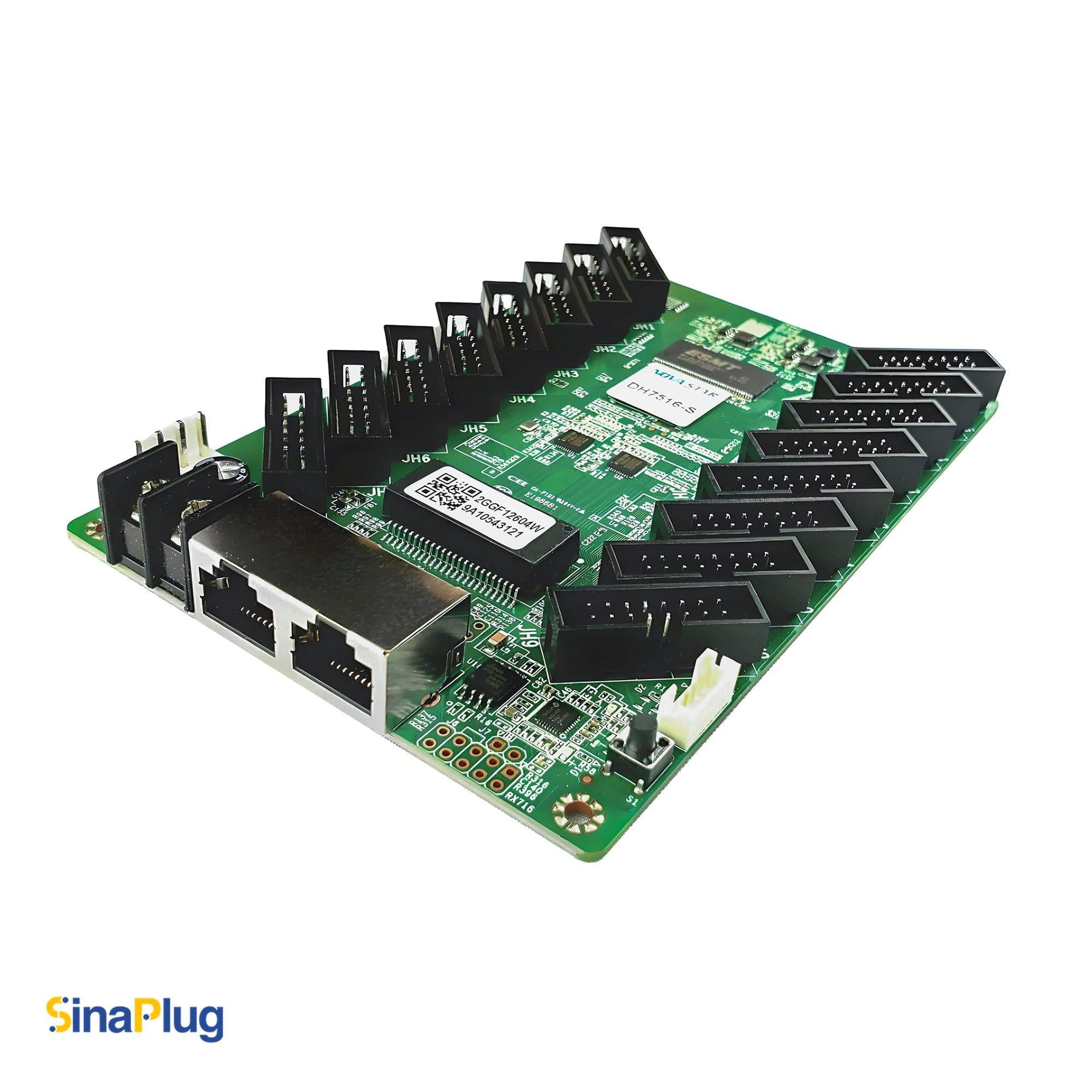

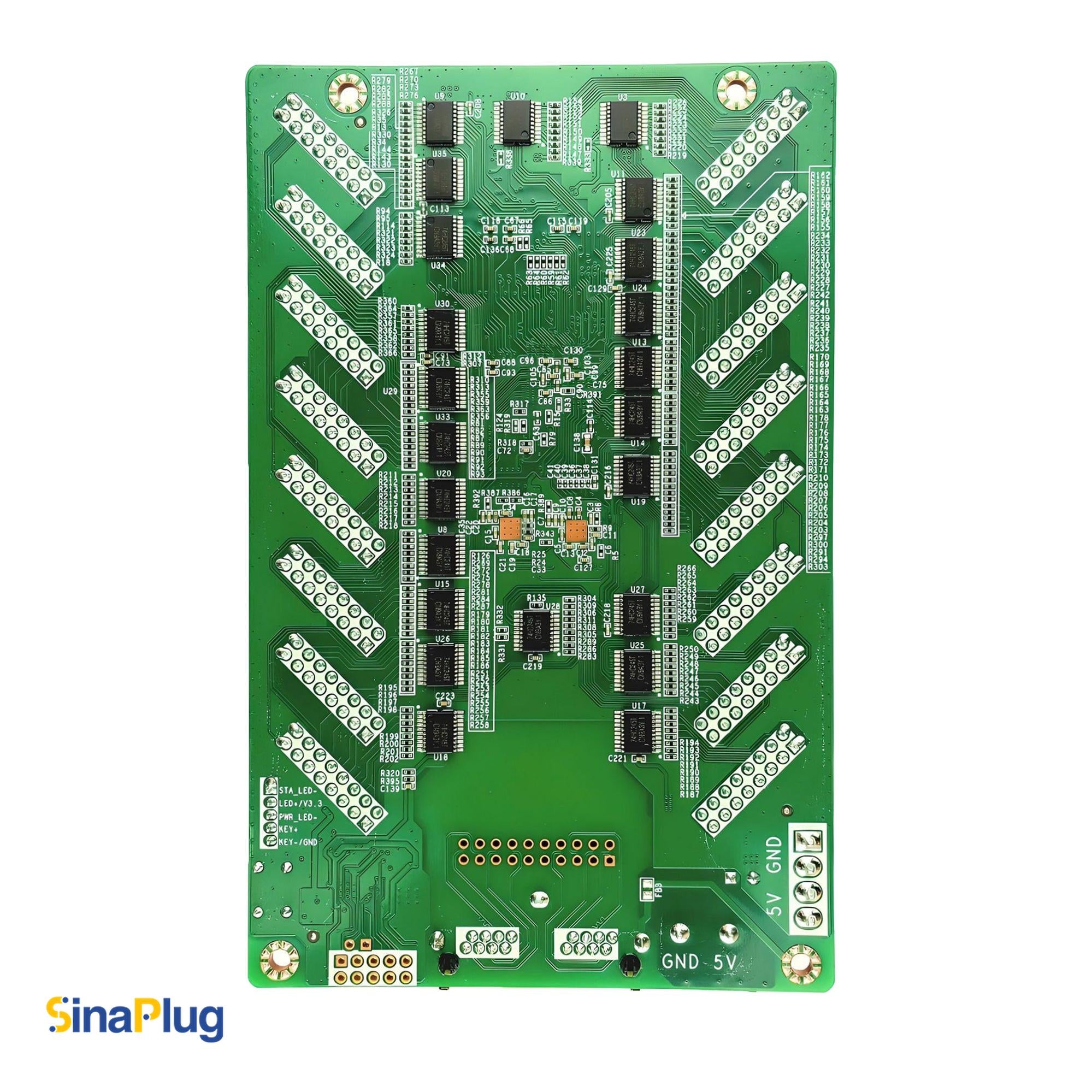

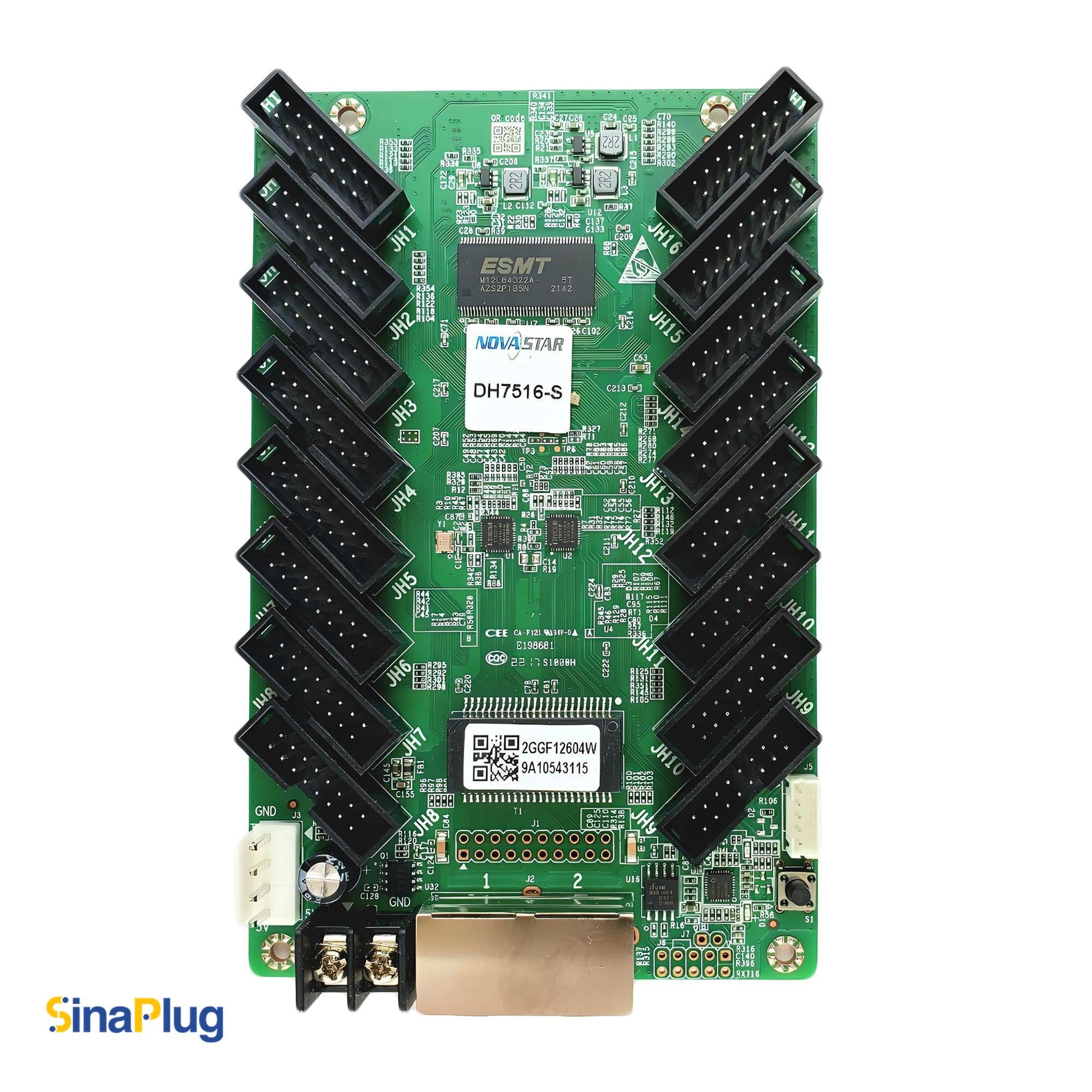

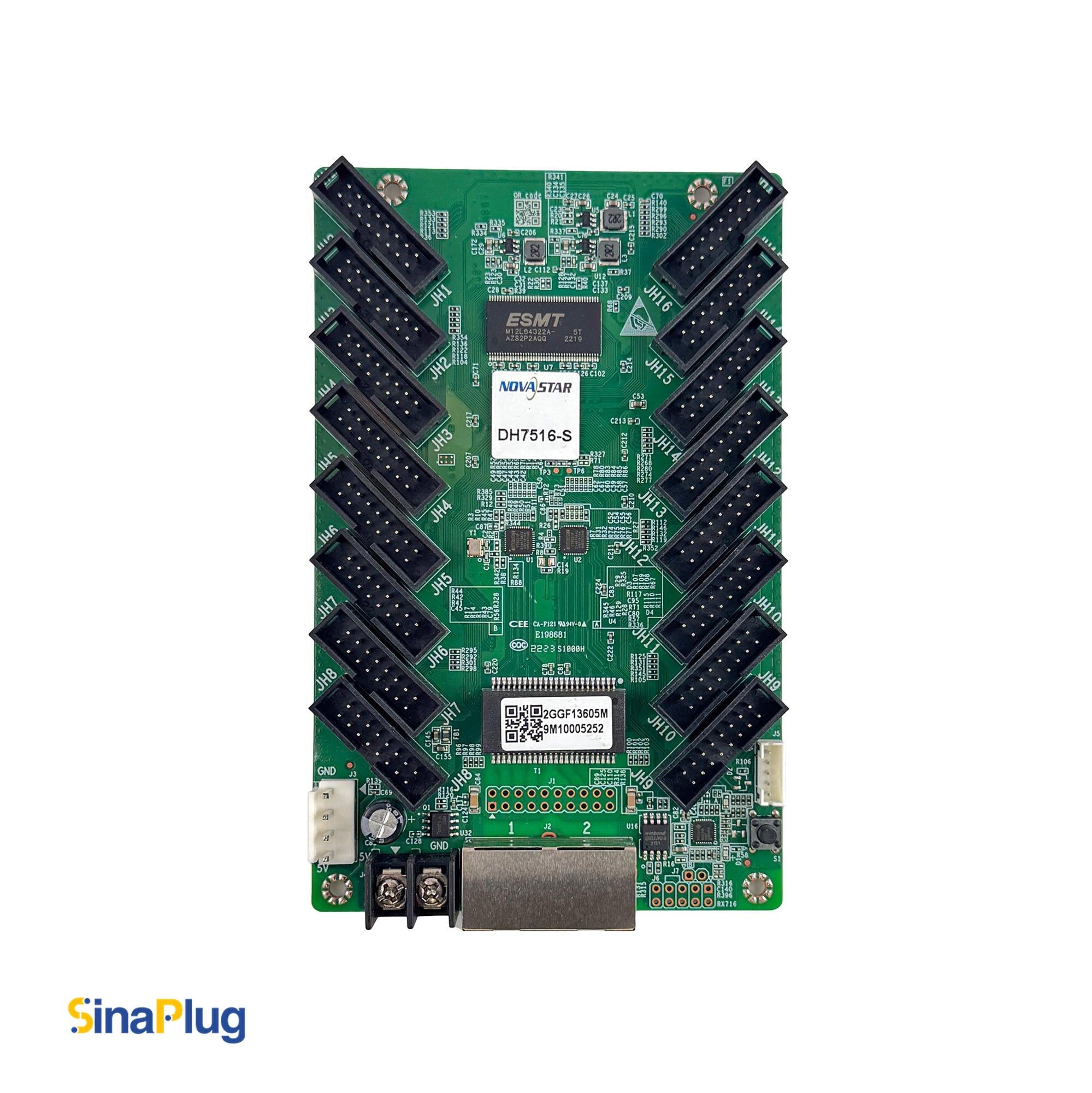

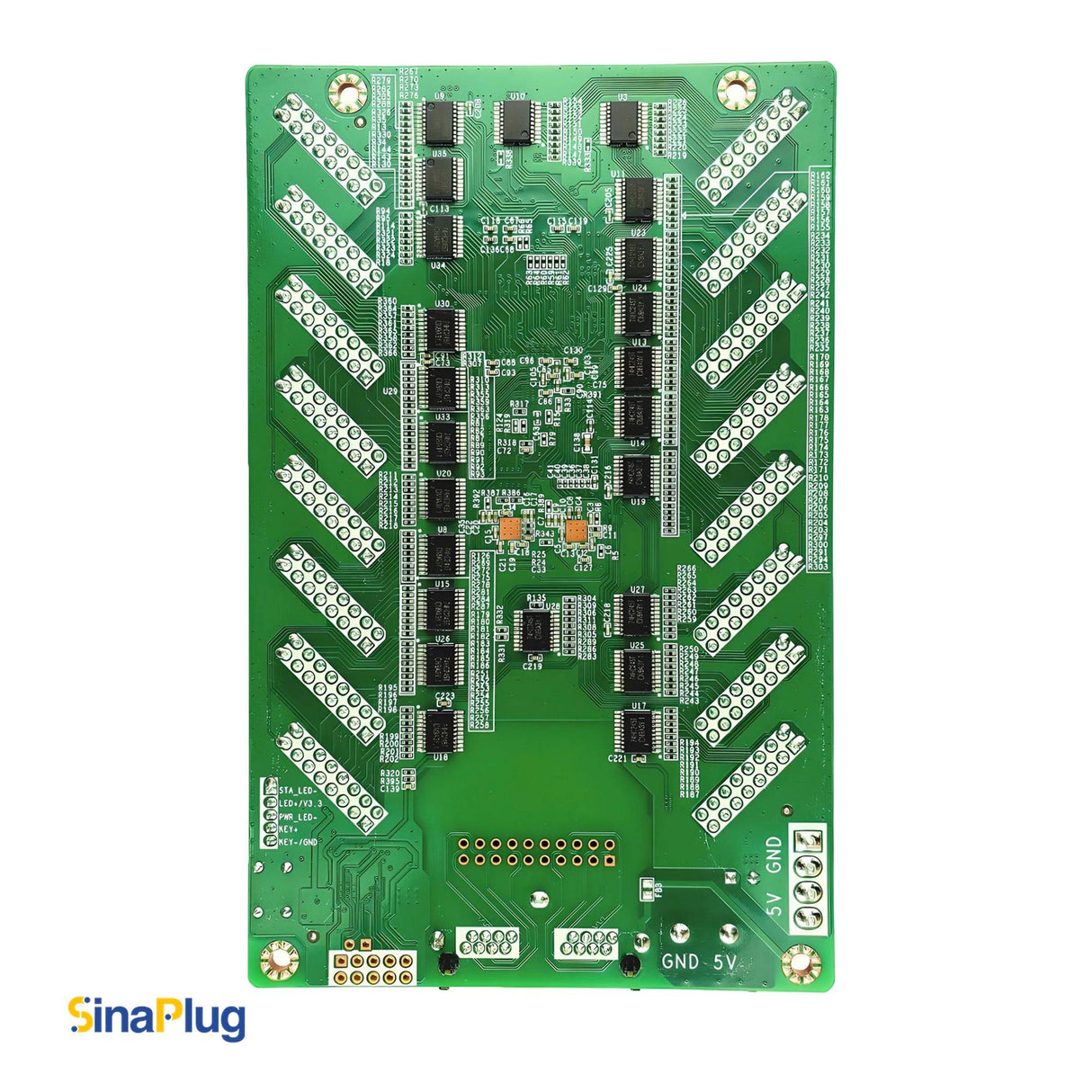

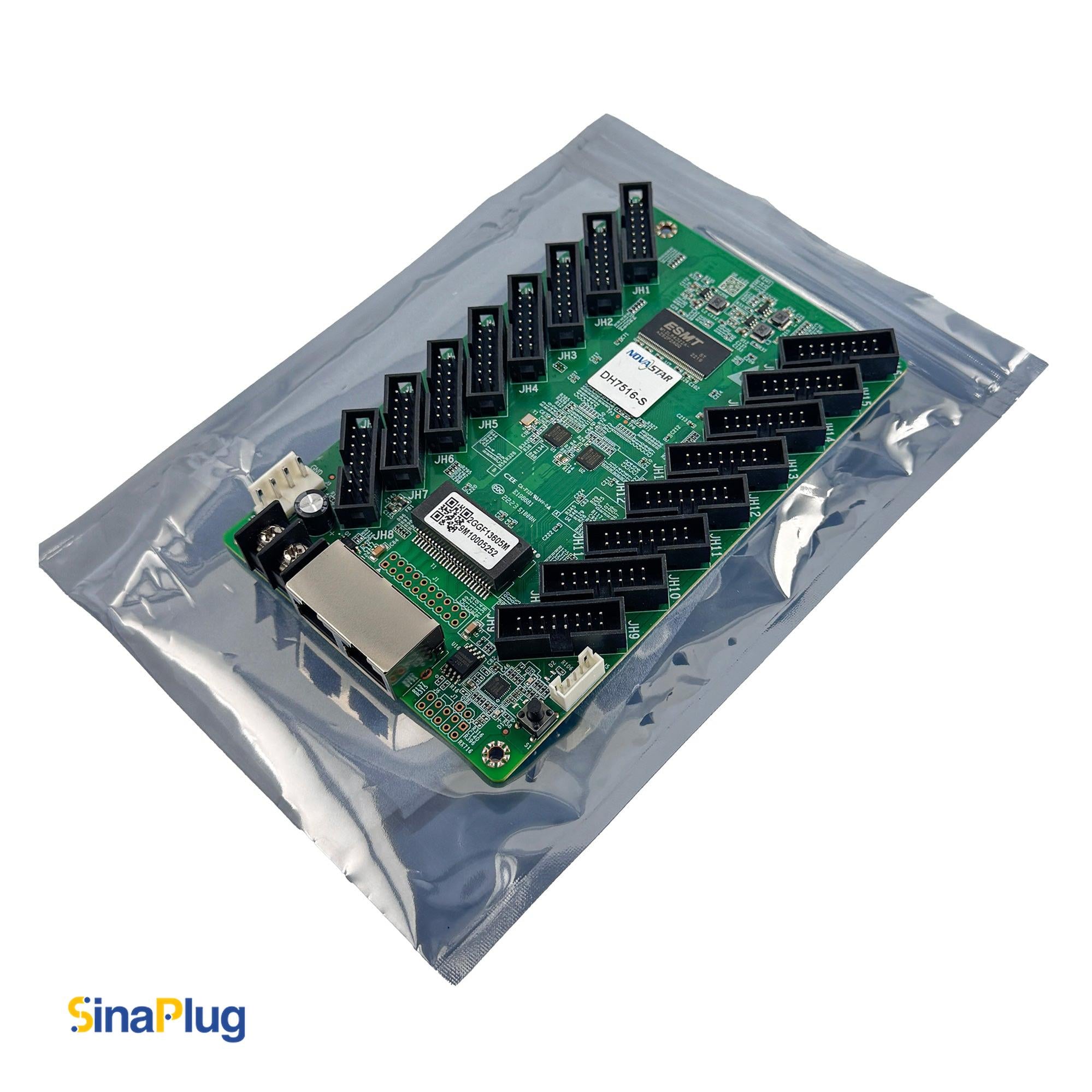

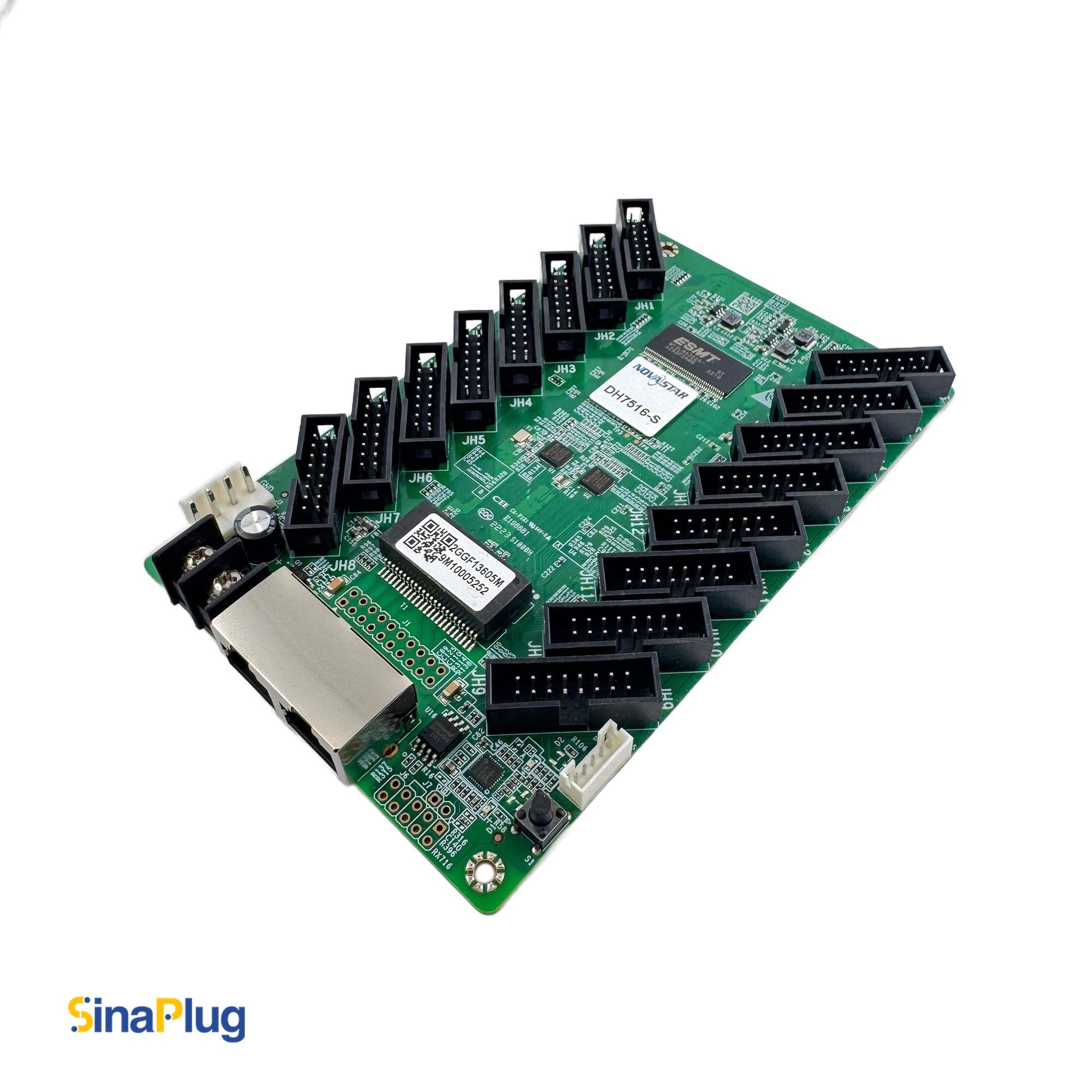

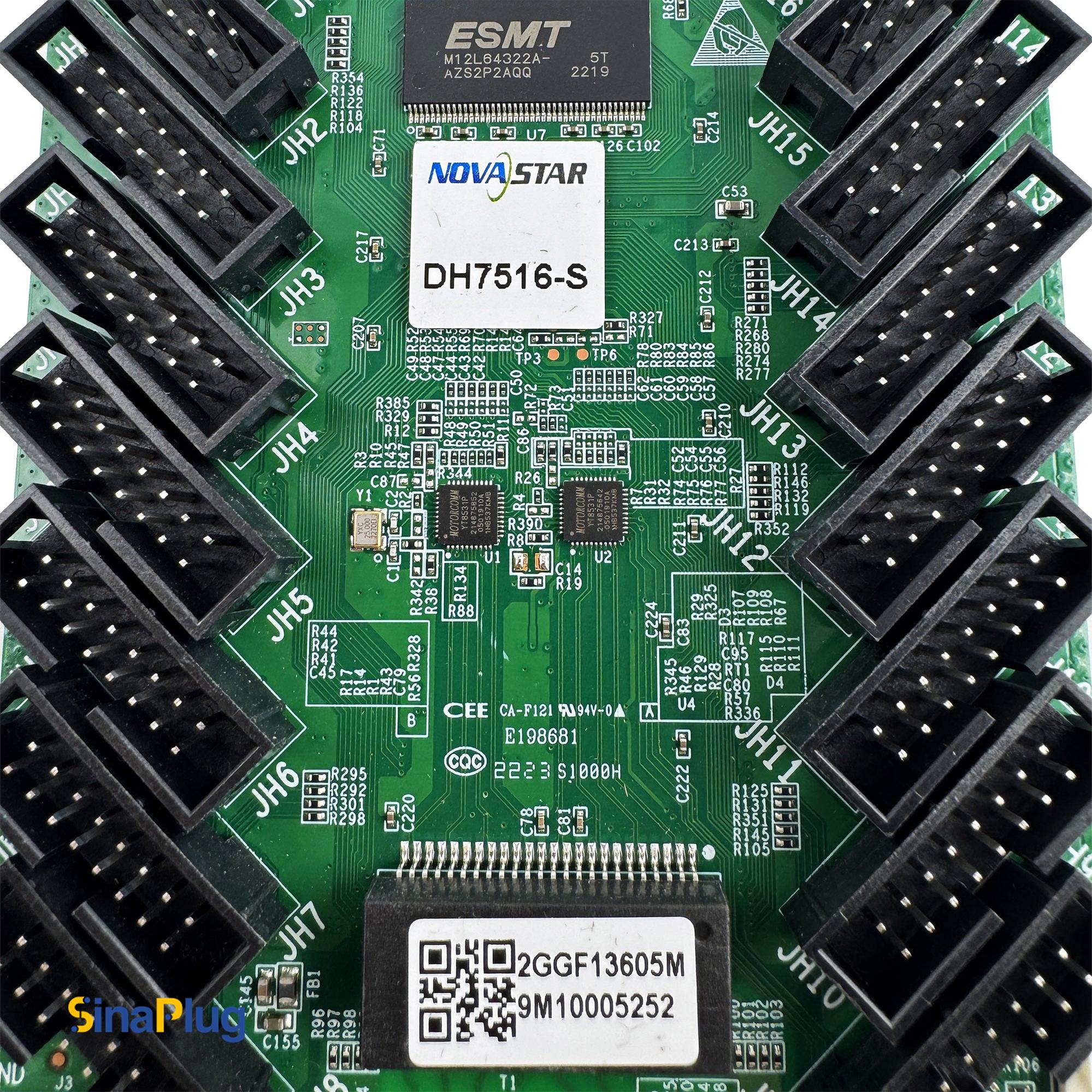

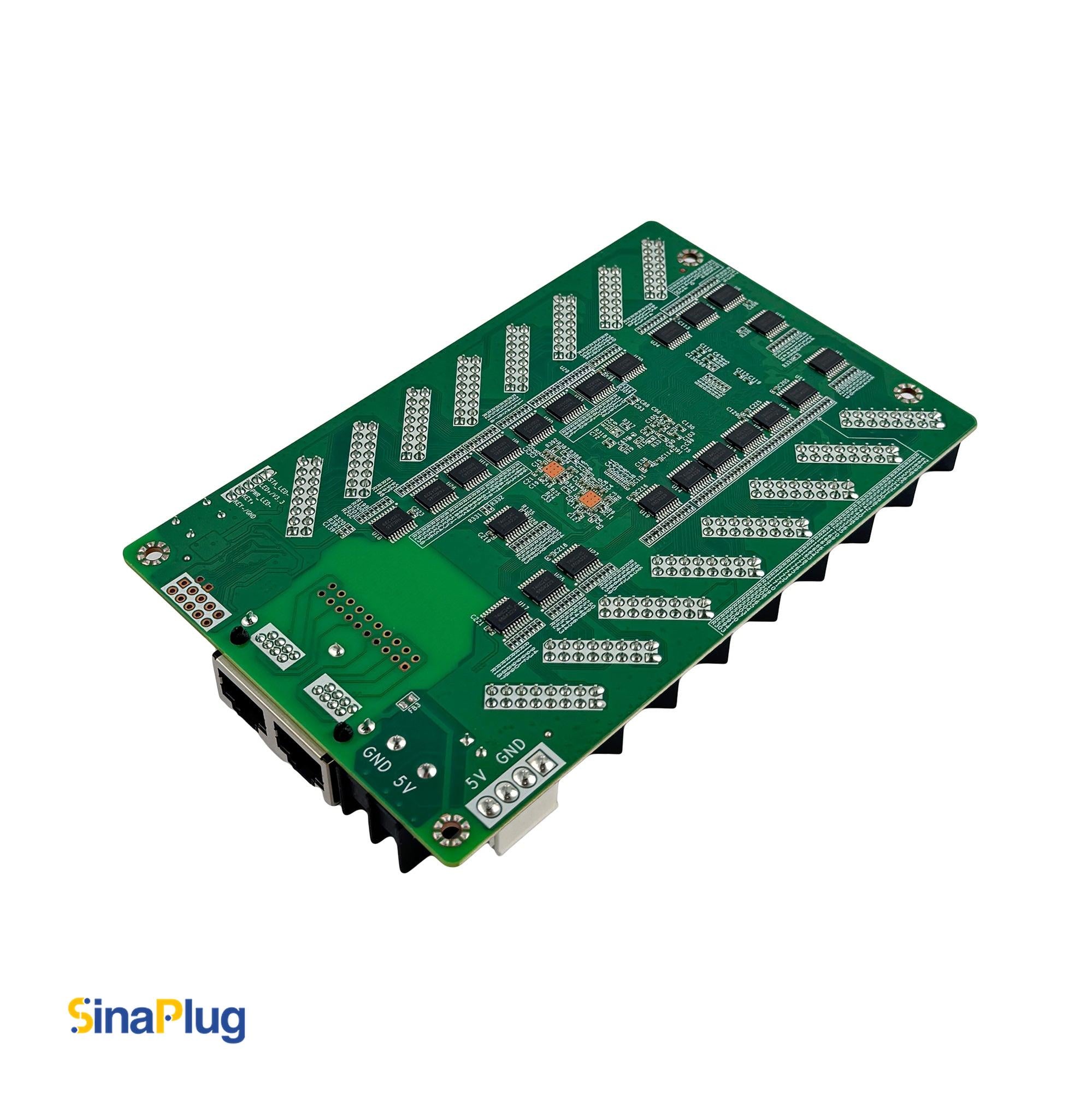

Novastar DH7516-S LED Receiving Card
Novastar DH7516-S LED Receiving Card is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Available for order at Azar Pixel, the NovaStar DH7516-S is a robust and high-performance receiving card designed to elevate LED display systems with advanced features and reliable operation. Supporting resolutions of up to 512×512@60Hz for modules designed with PWM driver ICs and 512×384@60Hz for common driver ICs, it delivers exceptional visual quality through features such as 3D function, multiples of 90° Image Rotation, easy and fast Dark or Bright Lines adjustment, automatic and manual edge Correction with smartphones, high-precision Brightness Calibration, RGB Individual Gamma Adjustment. These capabilities ensure seamless visuals, and realistic image reproduction along with delivering a user-friendly experience.
Equipped with 16 standard HUB75E connectors, this receiving card supports up to 32 groups of parallel RGB data, providing robust communication and compatibility with various LED modules. Its hardware design complies with EMC Class A standards, ensuring improved electromagnetic compatibility for diverse on-site setups. Certified for RoHS compliance, it adheres to stringent environmental protection standards.
Designed for efficiency and durability, this upgraded version of NovaStar DH7516 operates within a temperature range of -20°C to +70°C. It features an input voltage range of DC 3.8 V to 5.5 V and consumes a rated power of 2.5 W, making it energy-efficient without sacrificing performance. With advanced maintainability features like real-time temperature and voltage monitoring, firmware readback, and quick uploading of calibration coefficients, the DH7516-S simplifies setup and maintenance while ensuring uninterrupted operation through reliability features such as loop backup and dual program backup.
Key Features of NovaStar DH7516-S
Input

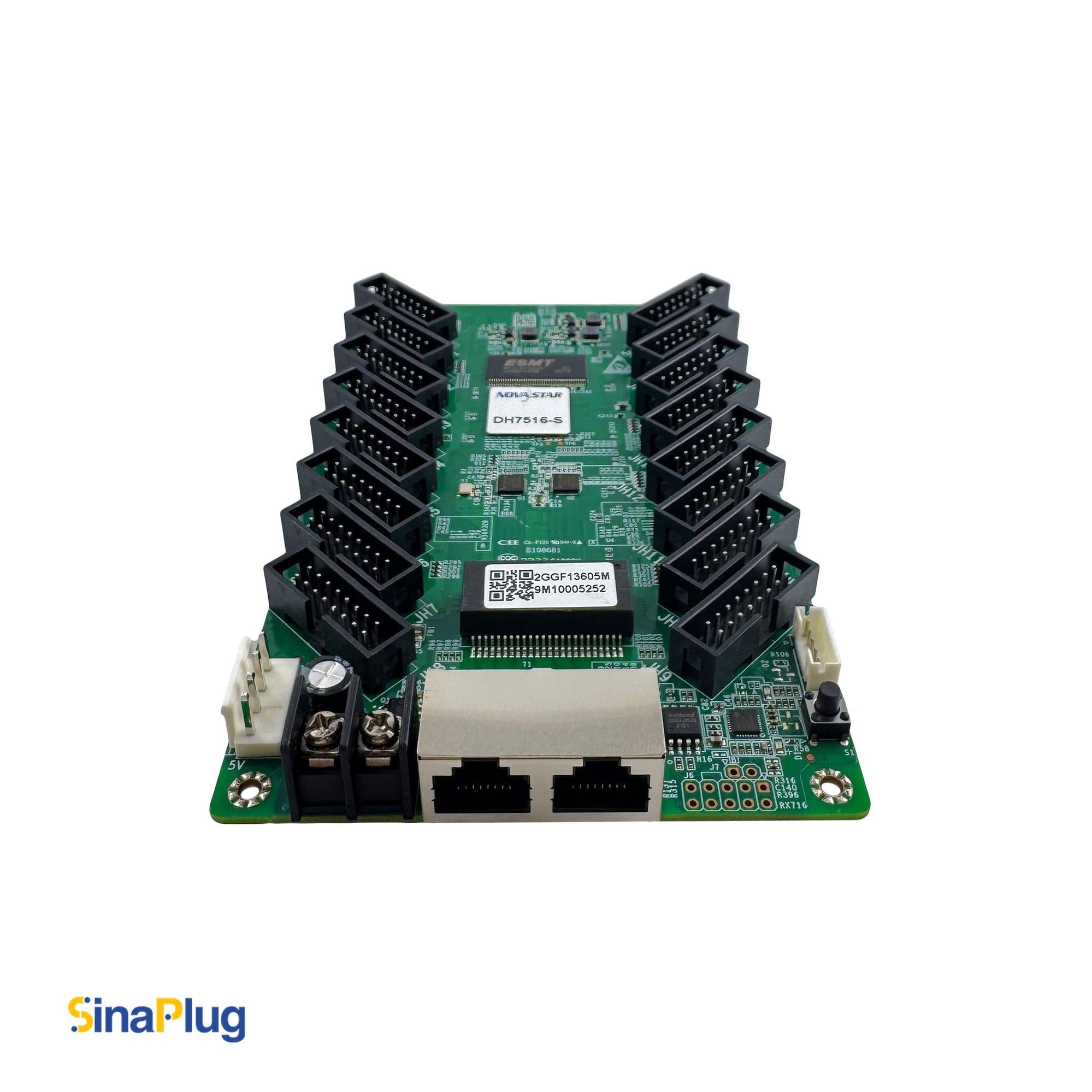

- 1x Gigabit Input Ethernet Port
Output

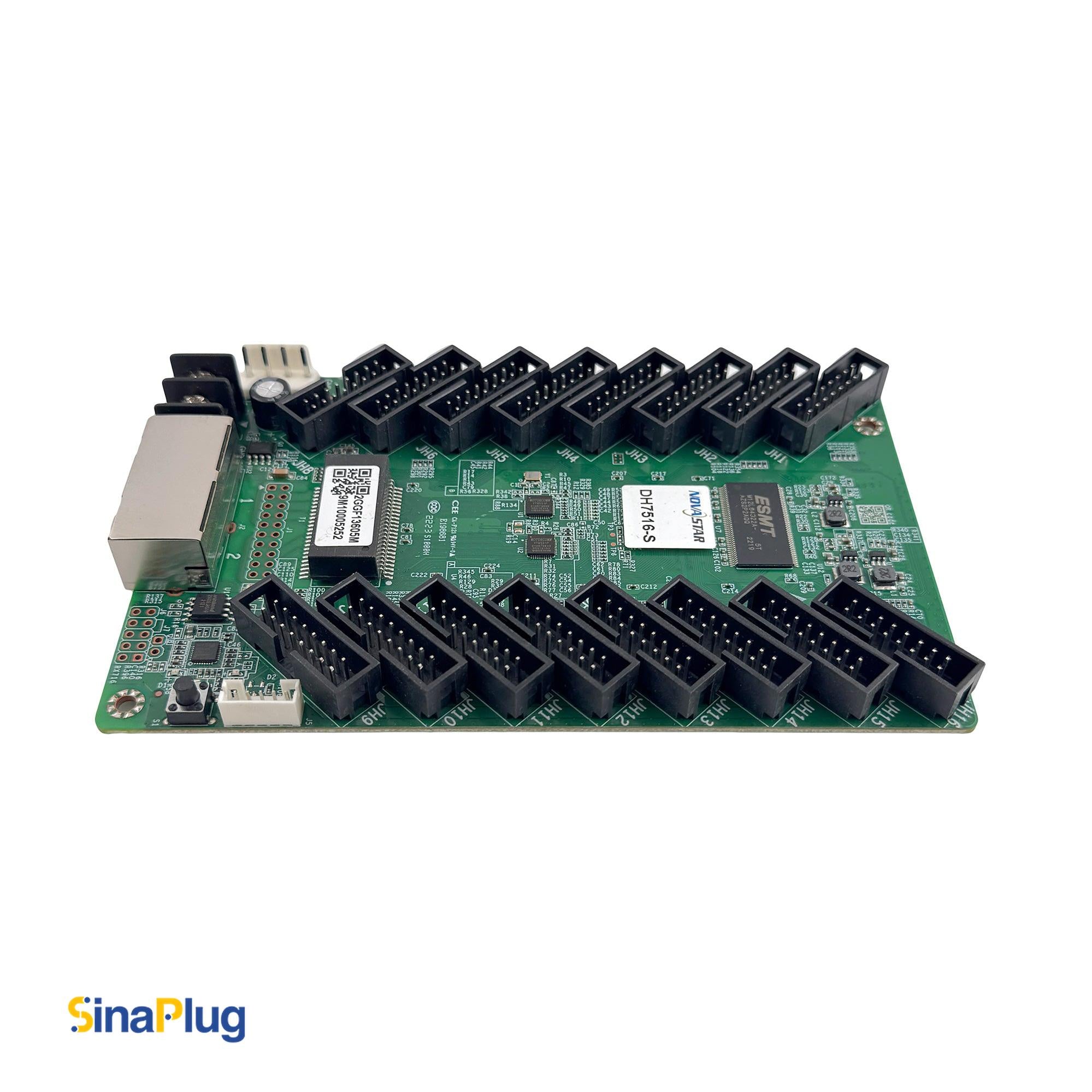

- 16x standard HUB75E connectors (to LED modules)
Performance
Maximum resolution
- 512×512@60Hz (PWM driver ICs)
- 512×384@60Hz (Common driver ICs)
- Pixel Level brightness and chromaticity calibration
- Seam Correction with Mobile Phones (requires TU series products)
- Quick adjustment of dark or bright lines
- Supports 3D function
- Image rotation in 90° increments
- Individual gamma adjustment for RGB
Other Features
Improvements to Maintainability
- Quick uploading of calibration coefficients
- Mapping 1.1 (displays controller number, receiving card number, and Ethernet port information)
- Real-time temperature and voltage monitoring
- Compatible with Cabinet LCD (displays temperature, voltage, single run time, and total run time)
- Bit error detection (monitors Ethernet communication quality)
- Firmware program readback
- Configuration parameter readback
Improvements to Reliability
- Loop backup (ensures uninterrupted operation in case of line faults)
- Dual program backup (two copies of firmware stored at the factory)
Dimensions (L*W*H)
- 145.7mm * 91.5mm * 18.3mm
