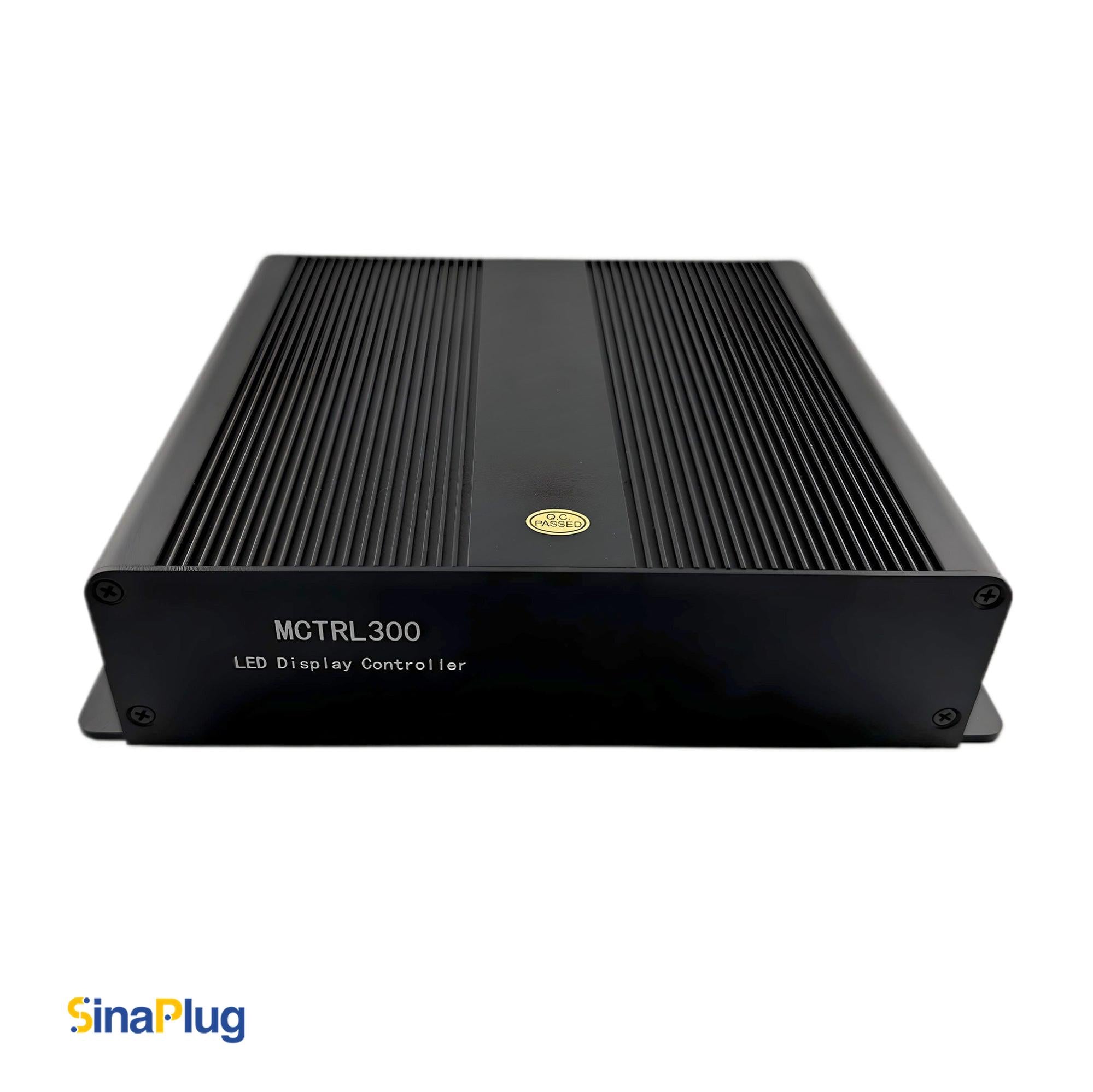

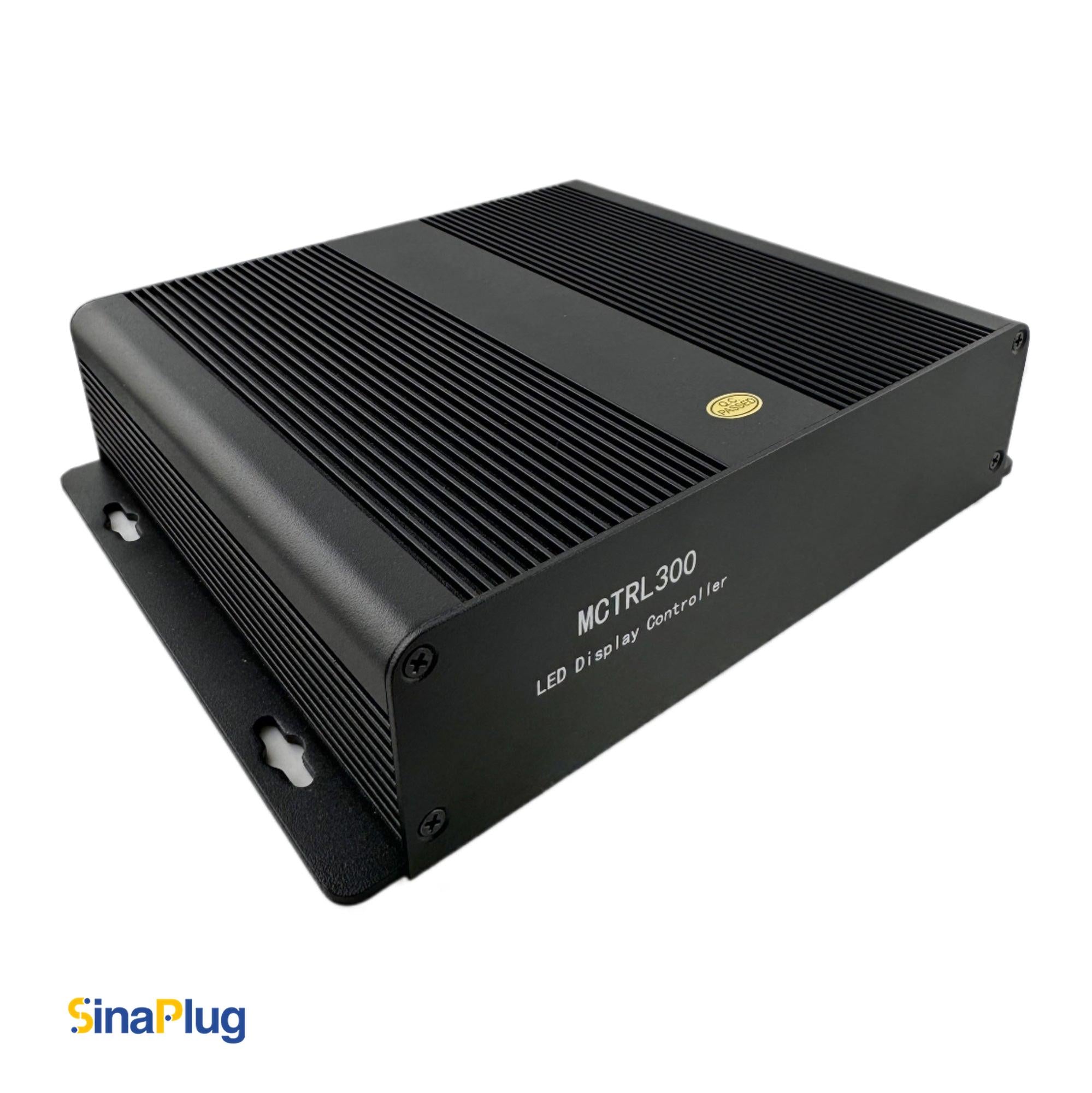

Novastar MCTRL300 LED Screen Sending Box

MCTRL300 is NovaStar’s independent control card from the M3 Series and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports a maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience.

• DVI video input
• Audio transmission
• Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
• USB port control, for cascading and control of multiple units

1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840; Maximum height:3840.

1 light sensor interface, adjust the screen brightness automatically.

Independent power supply

Certifications: CE, RoHS, EAC, FCC, IC

Features:

• 1 × DVI input
• 1 × audio input
• 1 × type-B USB control port
• UART control ports to cascade devices for uniform control.
• Dual Ethernet outputs.
• Supports the new generation of NovaStar calibration technology, which is fast and efficient.
• 1 × light sensor connector.
• Supports resolutions up to 2048×668@60Hz and downward compatibility.
• Supports a variety of video formats.

Specifications

Input (DVI)

• 1x SL-DVI input connector
• Resolutions up to 1920x1200@60Hz
• Custom resolutions supported
  • Maximum width: 3840 (3840x600@60Hz)
  • Maximum height: 3840 (548x3840@60Hz)
• DOES NOT support interlaced signal input.

Input (Audio)

• AUDIO: Audio input connector

Output

• 2x RJ45: Gigabit Ethernet ports
  • Capacity per port up to 650,000 pixels
  • Redundancy between Ethernet ports supported

Functionality

• LIGHT SENSOR: Connect to a light sensor to monitor ambient brightness to allow for automatic screen brightness adjustment.

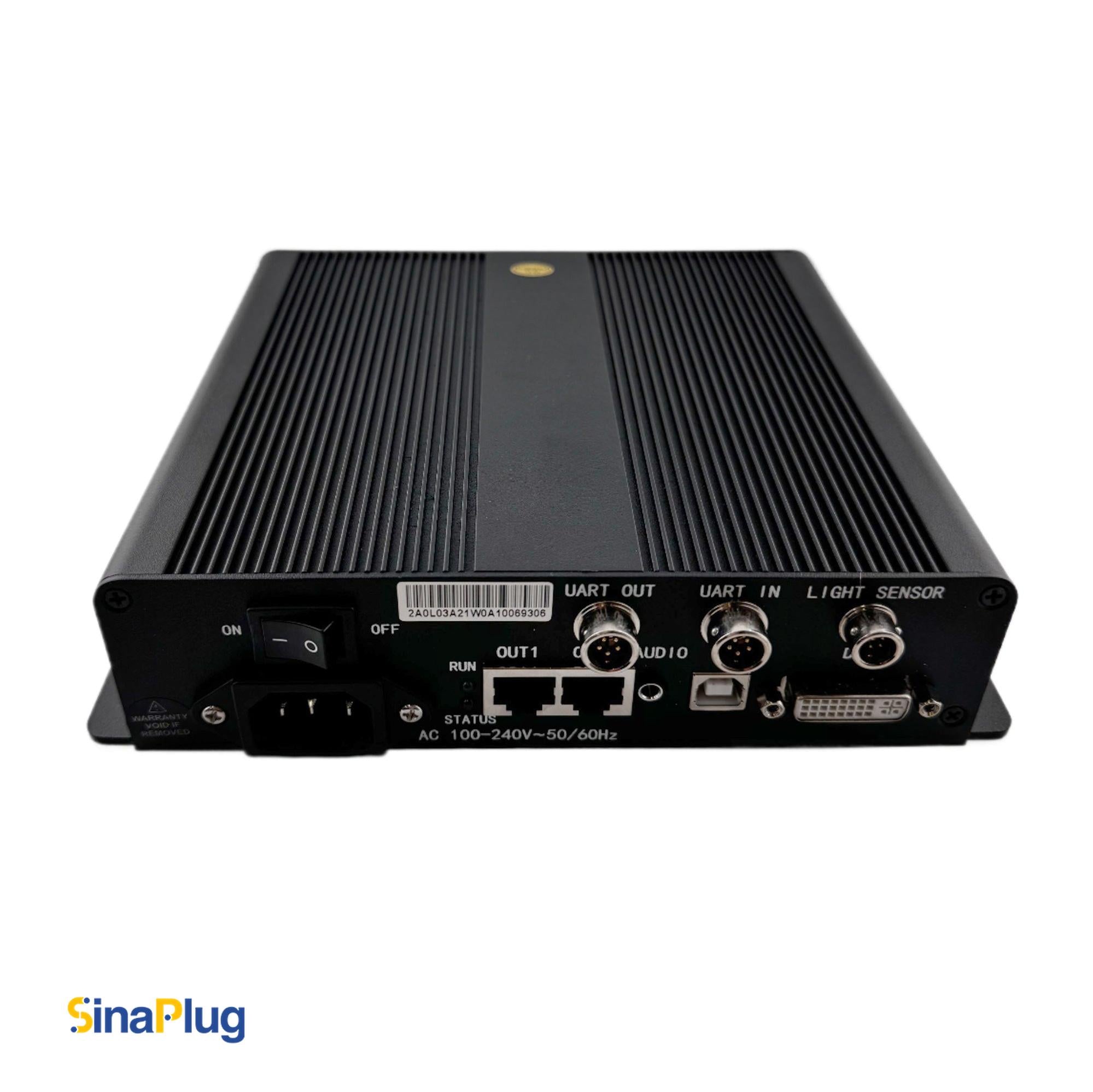

Control

• USB Type-B: USB 2.0 port to connect to PC
• UART IN/OUT: Input and output ports to cascade devices. Up to 20 devices can be cascaded.

Physical

• Input Voltage: AC 100V-240V~50/60Hz
• Rated Power Consumption: 3.0 W
• Operating Temperature: -20°C to +60°C
• Operating Humidity: 10% RH to 90% RH, non-condensing
• Dimensions: 204.0 mm x 160.0 mm x 48.0 mm
• Net Weight: 1.04 kg

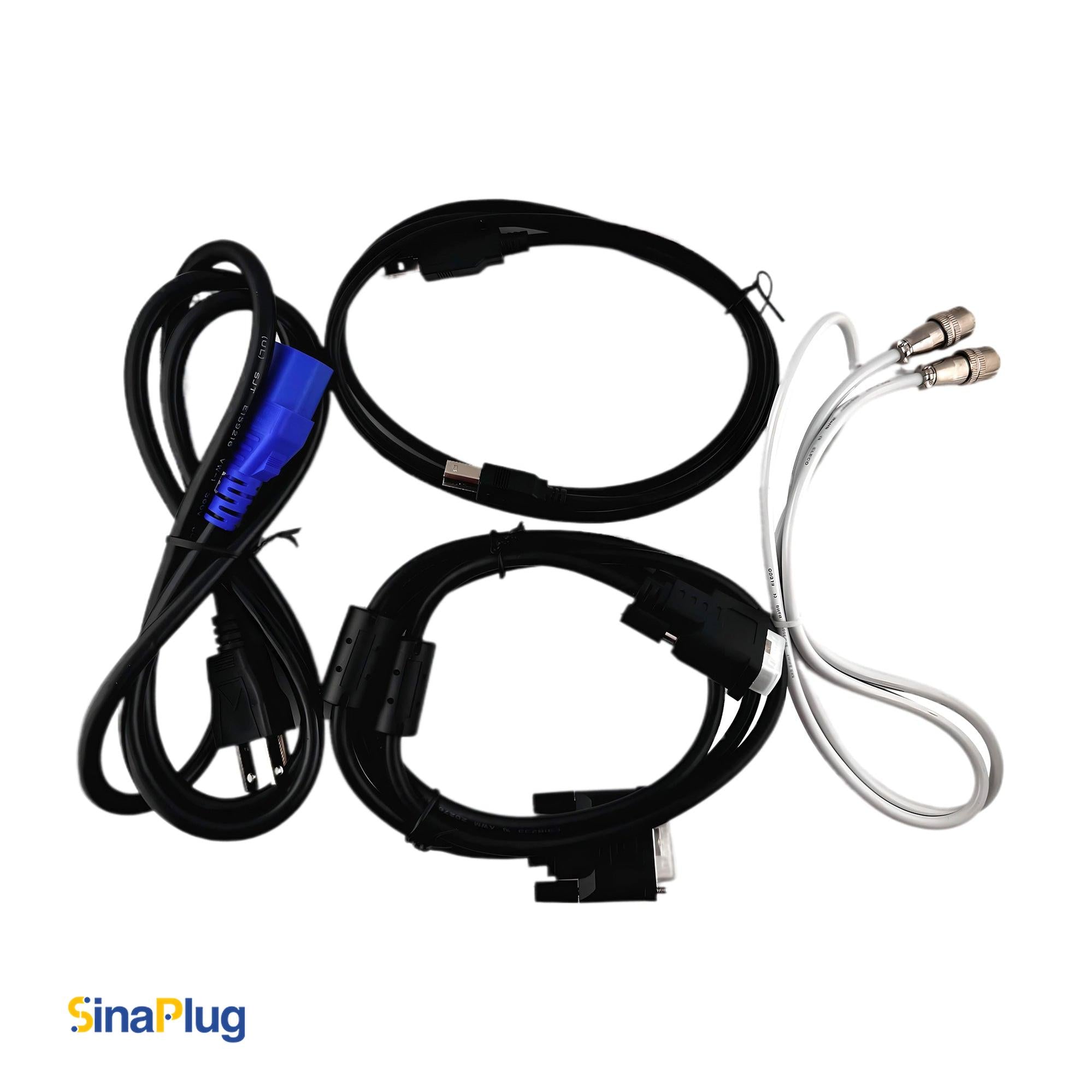

• Accessories: 1x Power cord, 1x Cascading cable (1 meter), 1x USB cable, 1x DVI cable
• Certifications: EAC, RoHS, CE, FCC, IC, PFOS, CB
