MFN300-B Multifunction Box

We at AzarPixel are honored to introduce a multifunctional and useful product we believe will be in high demand. This is the MFN300-B Multifunction Box engineered by the renowned Novastar company.

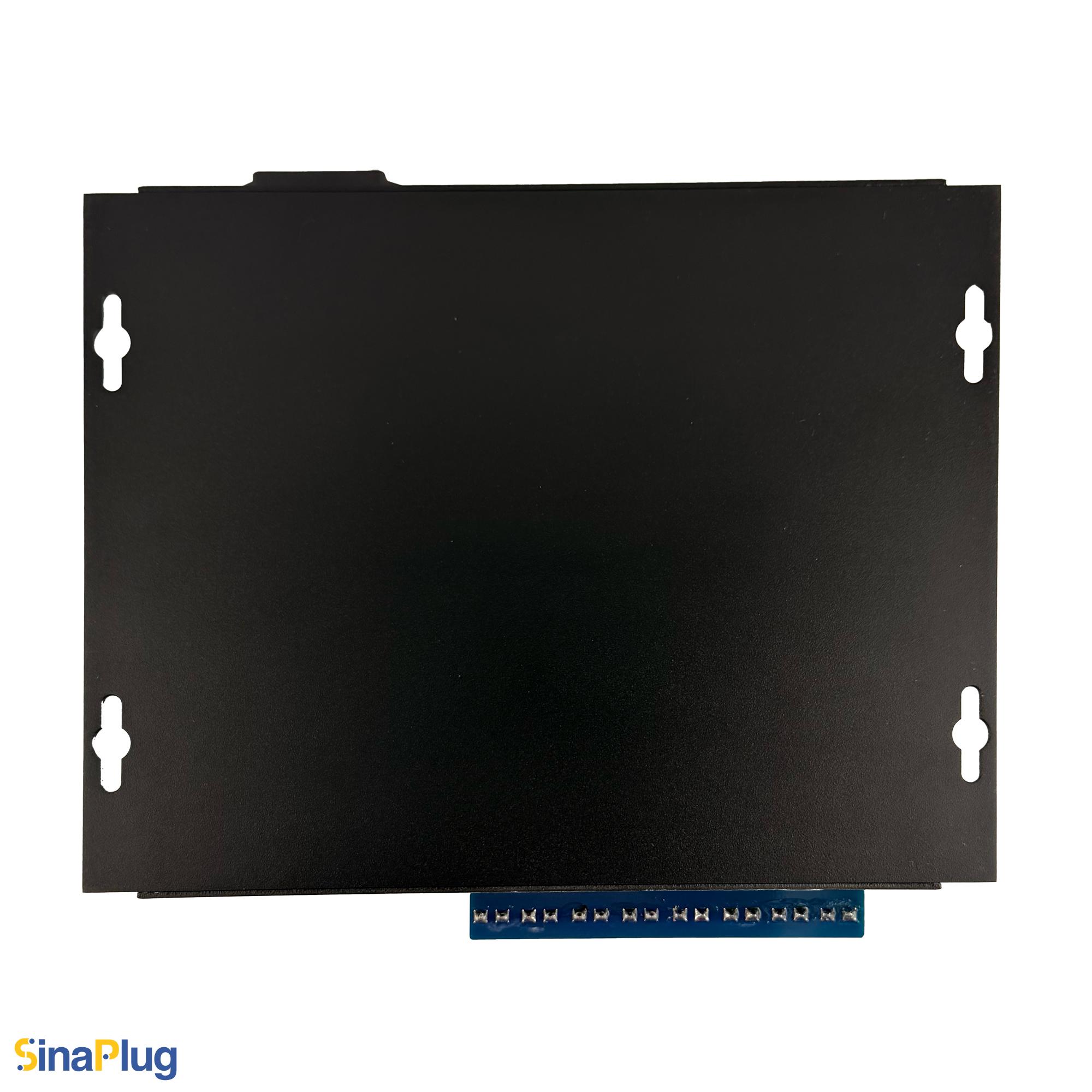

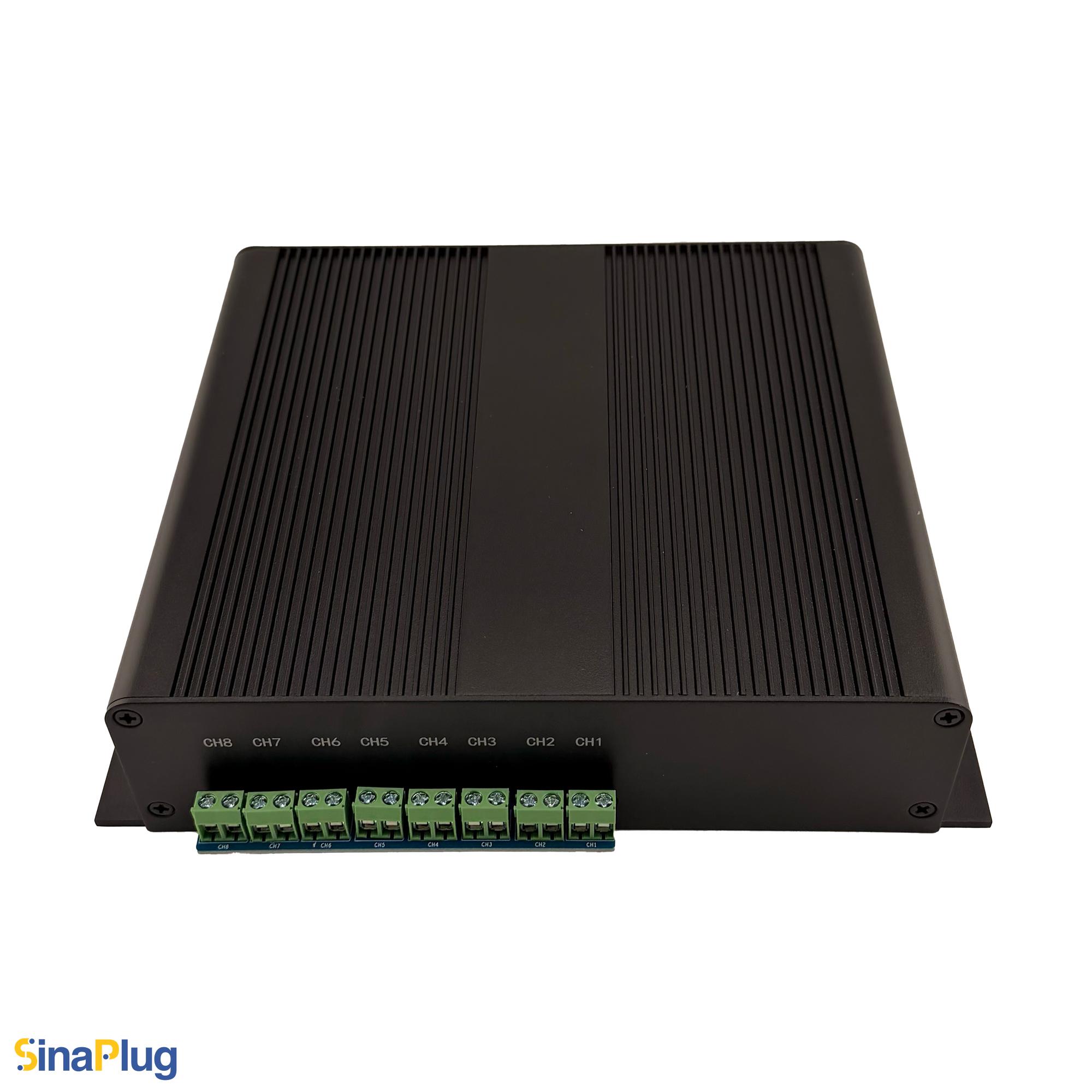

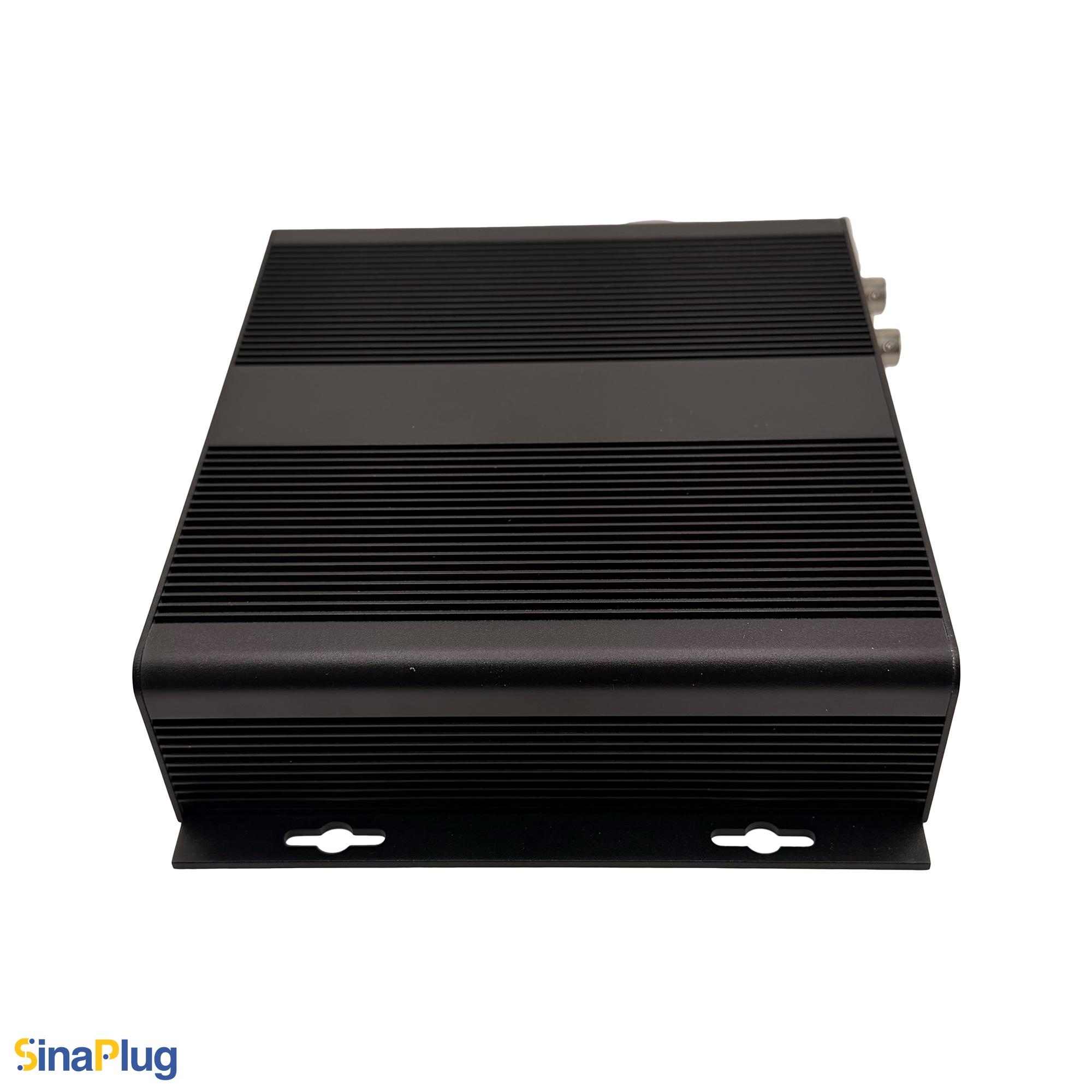

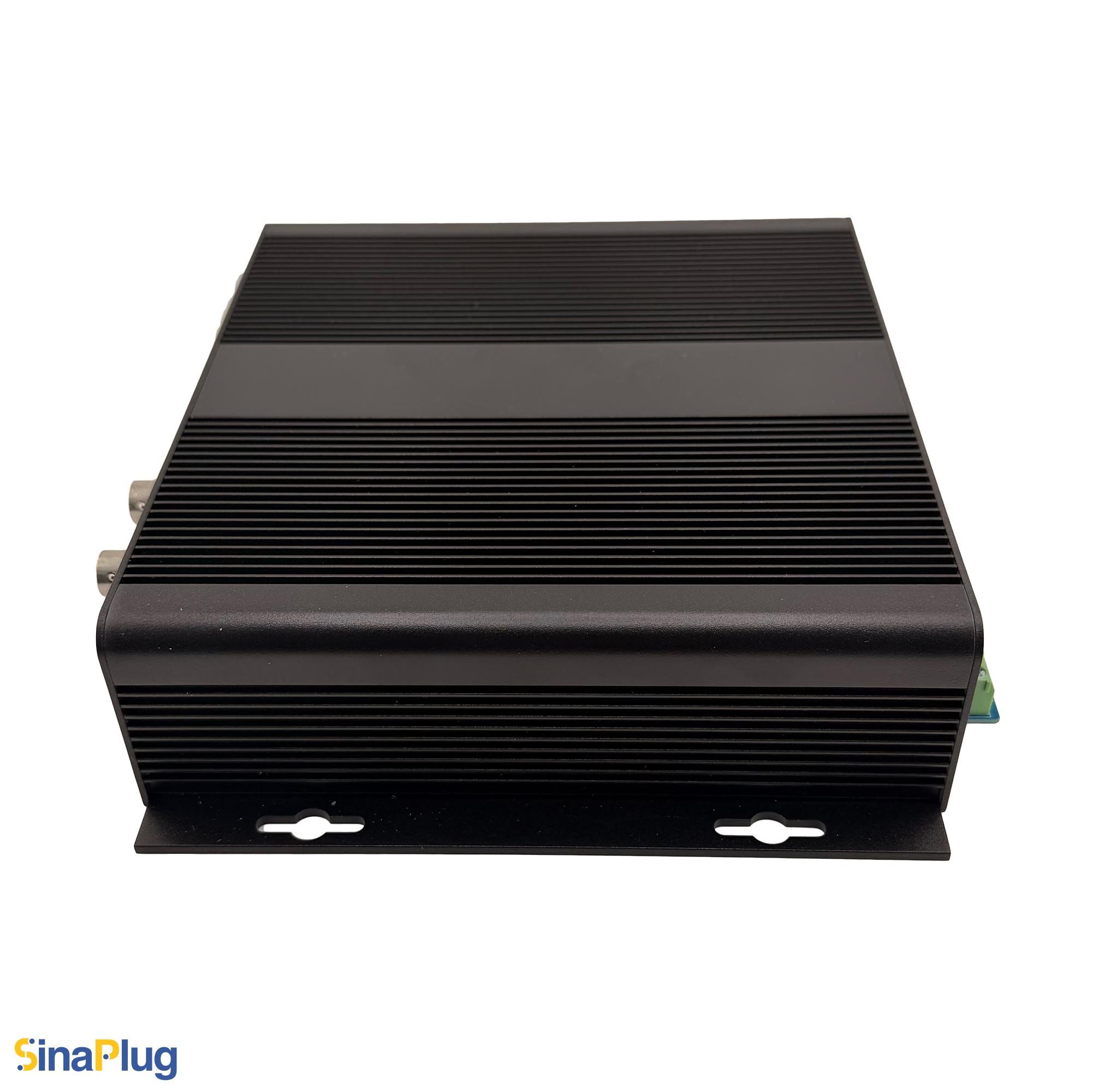

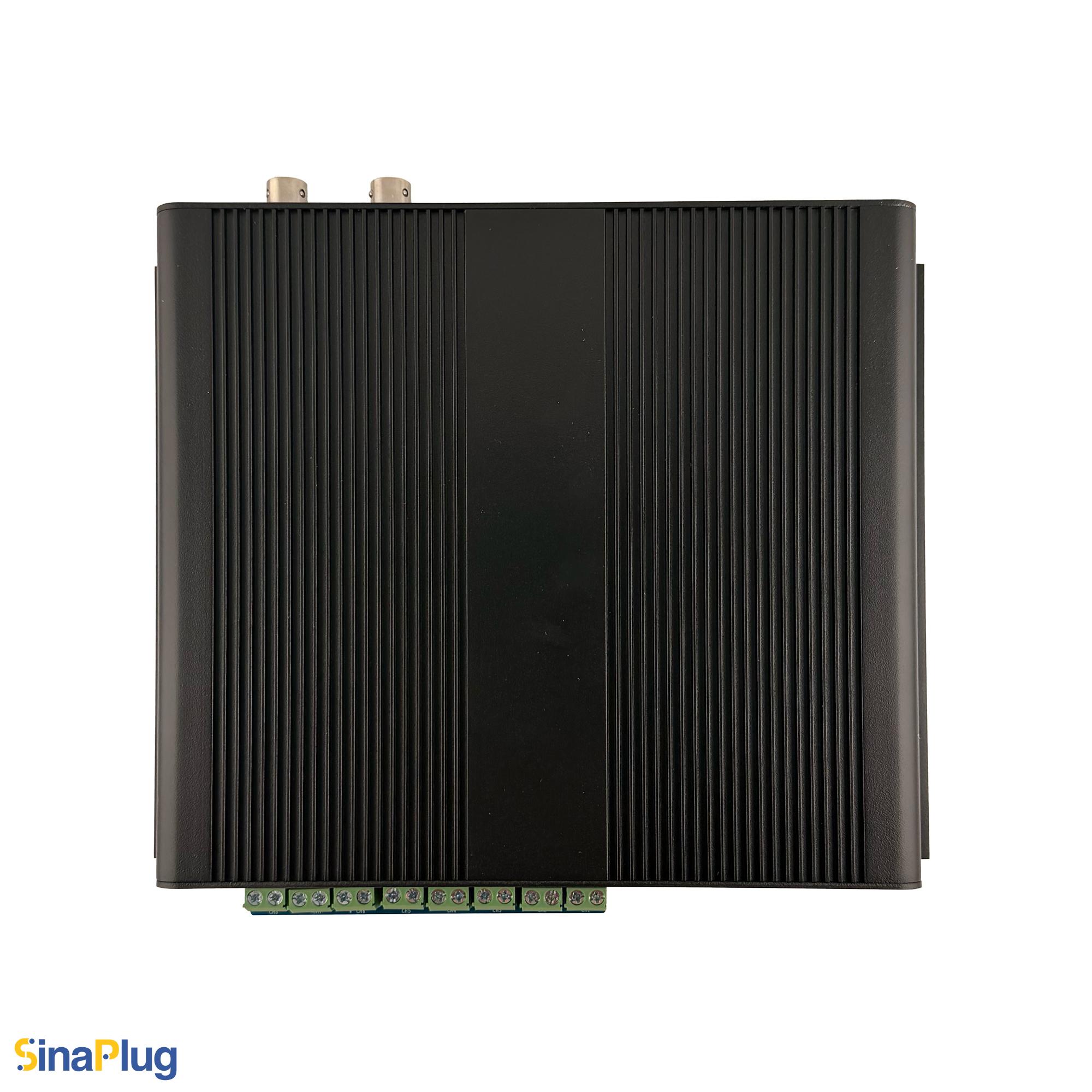

In fact, the MFN300-B is an improved version of the MFN300 multifunction card, which is housed in a robust box that not only protects the card inside (from dust and humidity) but also makes it easy to be placed or installed on a desk, wall or any desired surface. This product is a practical box providing various functions, such as power switch control, sensor connection, and audio output.

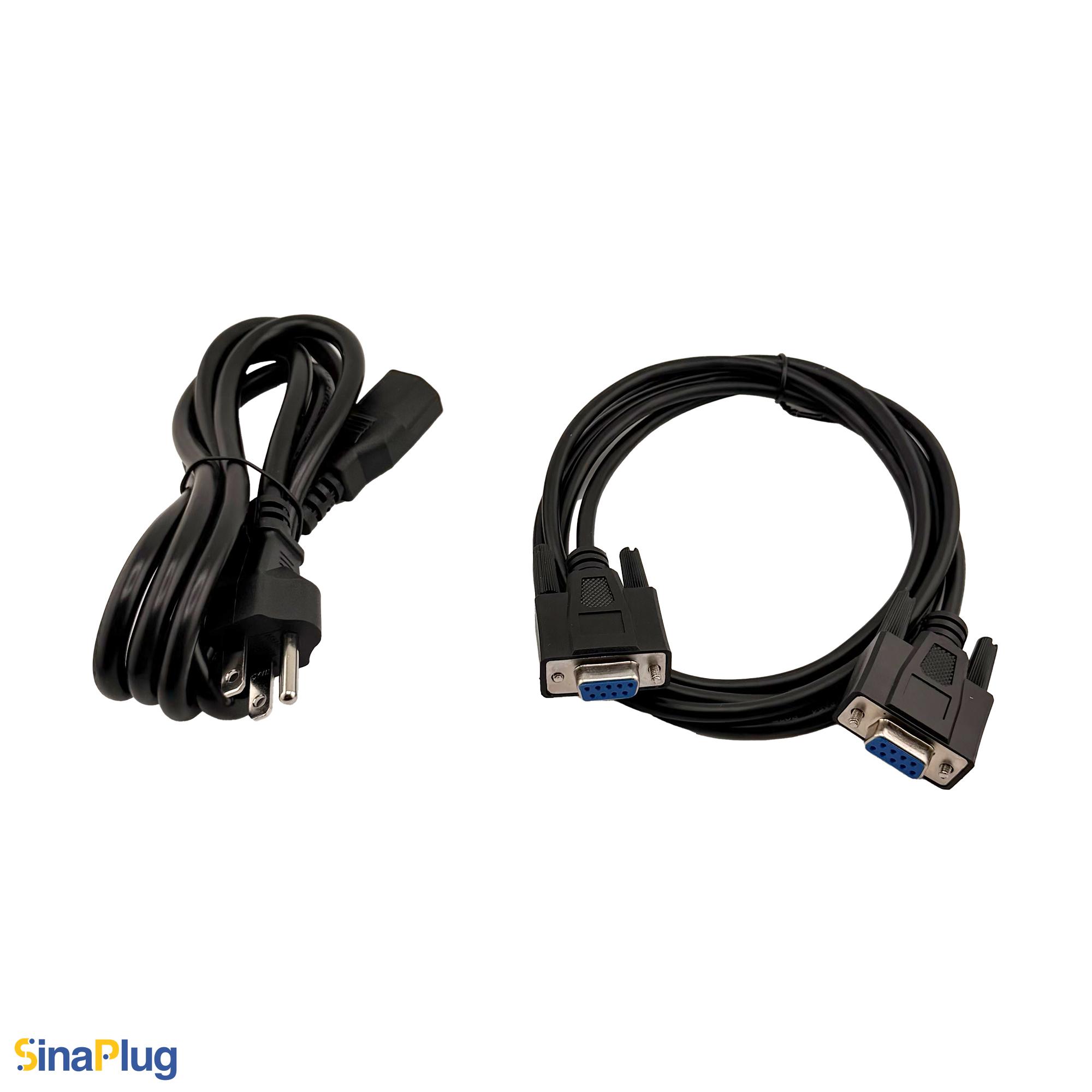

As the name suggests, this product offers several unique functions, applicable in three different modes of usage. A user can connect this box directly to a controlling computer unit via an RS232 serial cable, or an LED industry expert can place it between the first sending card and the receiving card or install it after the last receiving card.

This multifunction box provides a wide range of auxiliary features, including but not limited to communication via RS232 serial ports and Gigabit Ethernet. This cost-effective device can also operate as a timer or delayer, and thanks to its sensor ports it supports automatic brightness adjustment (an essential feature for outdoor LED display projects).

This box is compatible with NovaStar NS060 ambient light sensors (NS060-5A and NS060-10A), making automatic brightness adjustment effortless. These sensors are particularly useful when automatic brightness control is required in receiving card applications, allowing LED displays to automatically adjust their brightness according to ambient light conditions. As well as temperature detection and power management (making it a reliable and comprehensive solution for power control applications). Additionally, it provides an audio output port which can be particularly useful for A/V professionals.

This robust device operates between -20°C and +75°C, a specification which enables this product to be certified by FCC and IC standards. This is an efficient, light, universal product that turns on with 100-240V AC (50/60Hz) inputs and consumes only 5W of power. with a net weight of about 1155g; suitable for any applications or installation limitations.

We are an independent reseller of genuine NovaStar products. We are not the manufacturer, nor are we affiliated with, endorsed by, or sponsored by NovaStar Tech Co., Ltd. The NovaStar name and logo are trademarks of their respective owner and are used solely to identify the products being offered.
