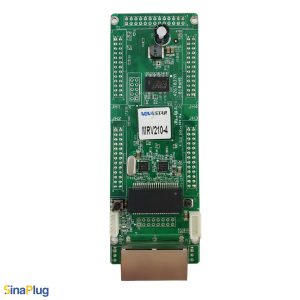

MRV210-4 Receiving Card
$55.20
32 in stock
| Minimum Qty | Discount |
|---|---|
| 5 - 10 | 3% |
| 11 - 20 | 6% |
| 20 - 99 | 9% |
| 100 + | 10% |
In Stock – Ships Today from Carrollton, TX
US Stock
Same-day shipping or store pickup
Easy Returns
60-day no-questions-asked return
Free Phone Support
Free online technical assistance
Sourced by AzarPixel the MRV210-4 is a remarkable receiving card, designed to enhance both the picture quality and reliability of your LED video walls. This receiving card produces high-quality images, maintaining color stability and sharpness, making your LED screens pop in any situation.

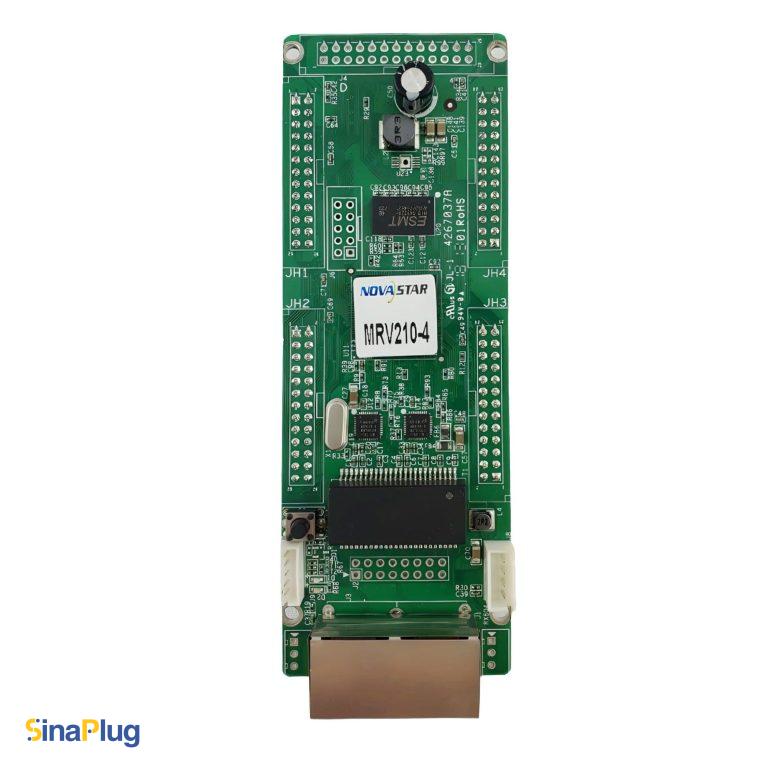

The primary difference between the MRV210 series is the location of their hub connectors. On the MRV210-4, the female hub connectors are at the bottom of the board, while other MRV210 versions have male or female hub connectors located at the top or bottom.
This card generates up to 256×256 pixels per card by 4 female hub connectors, accommodating virtually all pixel on an LED module. It can transmit 24 groups of RGB data simultaneously or 64 groups using serial transmission. It provides secure signal transfer to each module in most environments, due to its EMC Class A certificates.
It has pixel level brightness and chroma adjustment, 3D support, and loop and program backup to ensure accuracy and consistency with various video walls.
All of this technology is a tribute to the durability of the MRV210-4; it computes the signal in the ideal way for each LED module, regardless of challenging conditions.
Azar Pixel, LLC is an independent reseller and is not affiliated with, authorized by, sponsored by, or endorsed by NovaStar Tech Co., Ltd. NOVASTAR® is a registered trademark of its respective owner and is used solely for product identification purposes. This product is sold without a NovaStar U.S. manufacturer warranty. Any warranty, if offered, is provided solely by Azar Pixel, LLC.
Key Features of NovaStar MRV210-4
Input
- 1x Gigabit Ethernet Port
Output
- 4x female HUB (26-Pin) interfaces
- 24 groups of RGB parallel data or 64 groups of serial data
- 1x Gigabit Ethernet Port (24 groups of RGB parallel data or 64 groups of serial data)
Performance
- Maximum resolution: 256×256 pixels
- Pixel Level brightness and chroma calibration
- RGB Individual gamma adjustment
- 3D function support (with applicable sending card or controller)
Improvements to Maintainability
- User-configurable pre-stored images for no-signal and startup scenarios
- Real-time temperature and voltage monitoring without extra peripherals
- Cabinet LCD
- Support for configuration parameter and firmware readback
Improvements to Reliability
- Loop backup for secure communications
- Dual backup of program
Dimensions (L*W*H)
- 139mm * 48mm * 23mm
| Weight | 0.14 lbs |
|---|---|
| Dimensions | 8.07 × 6.1 × 0.98 in |
| Max PWM IC Pixel Capacity | 256×256 |
| Scan Type | 1/4 |
| Output Interface (QTY) | 4 |
| Max Parallel RGB Data Groups | 24 |
| Max Serial RGB Data Groups | 64 |
| Ethernet Port | 2 |
| Brightness and Chroma Calibration | Supported |
| 3D Function | Supported |
| Loop Backup | Supported |
| Input Voltage Range | 3.3-5.5VDC |
| Max Power Consumption | 2.5W |
| Working Temperature Range | -20 °C to +70 °C |
| Standard Certification | EMC Class A, RoHS |
| Others | Settings of a Stored Image in the Receiving Card, Supports temperature, voltage, and cabinet LCD monitoring |
