NovaStar  |  SKU: MED-NOV-TRST50xxxx-0

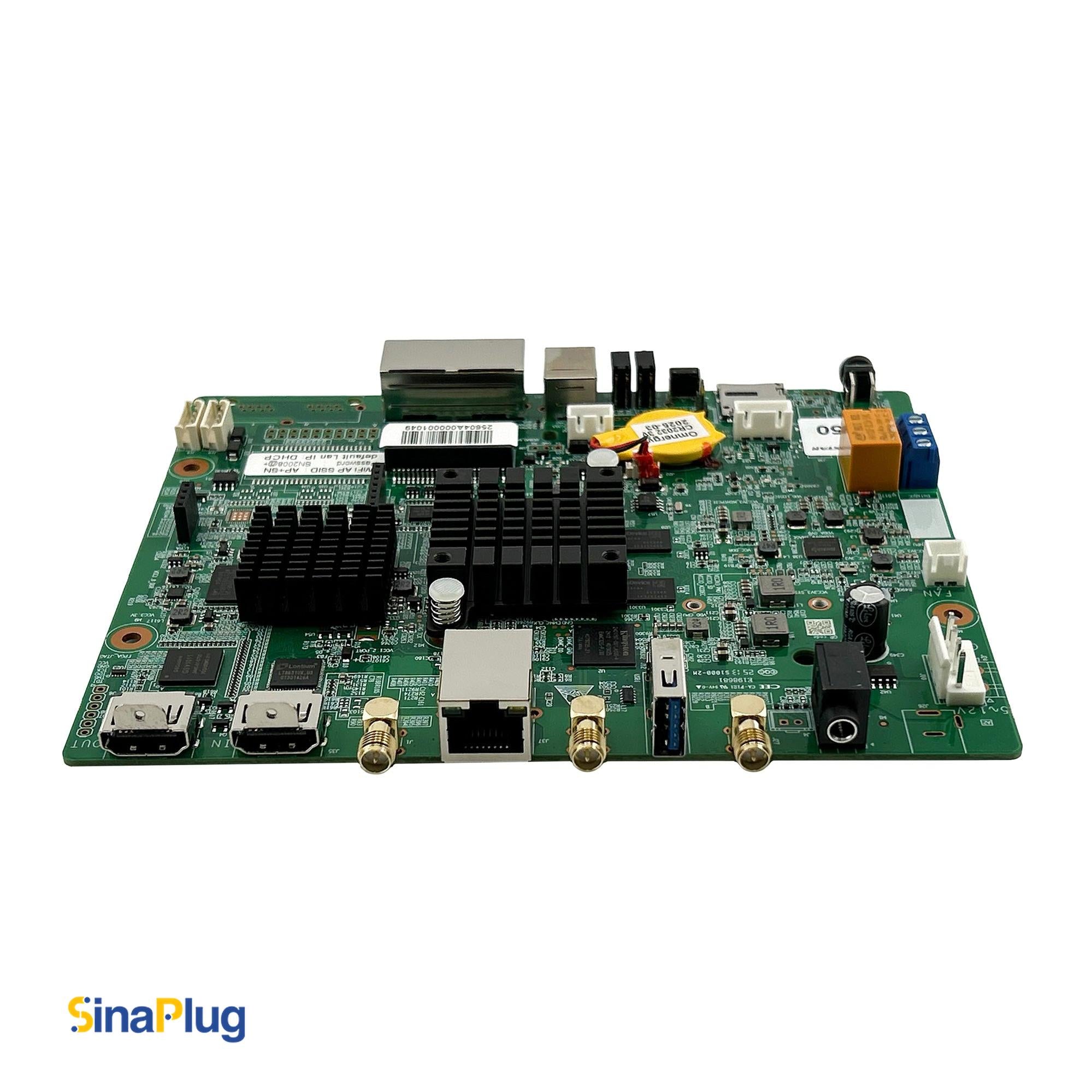

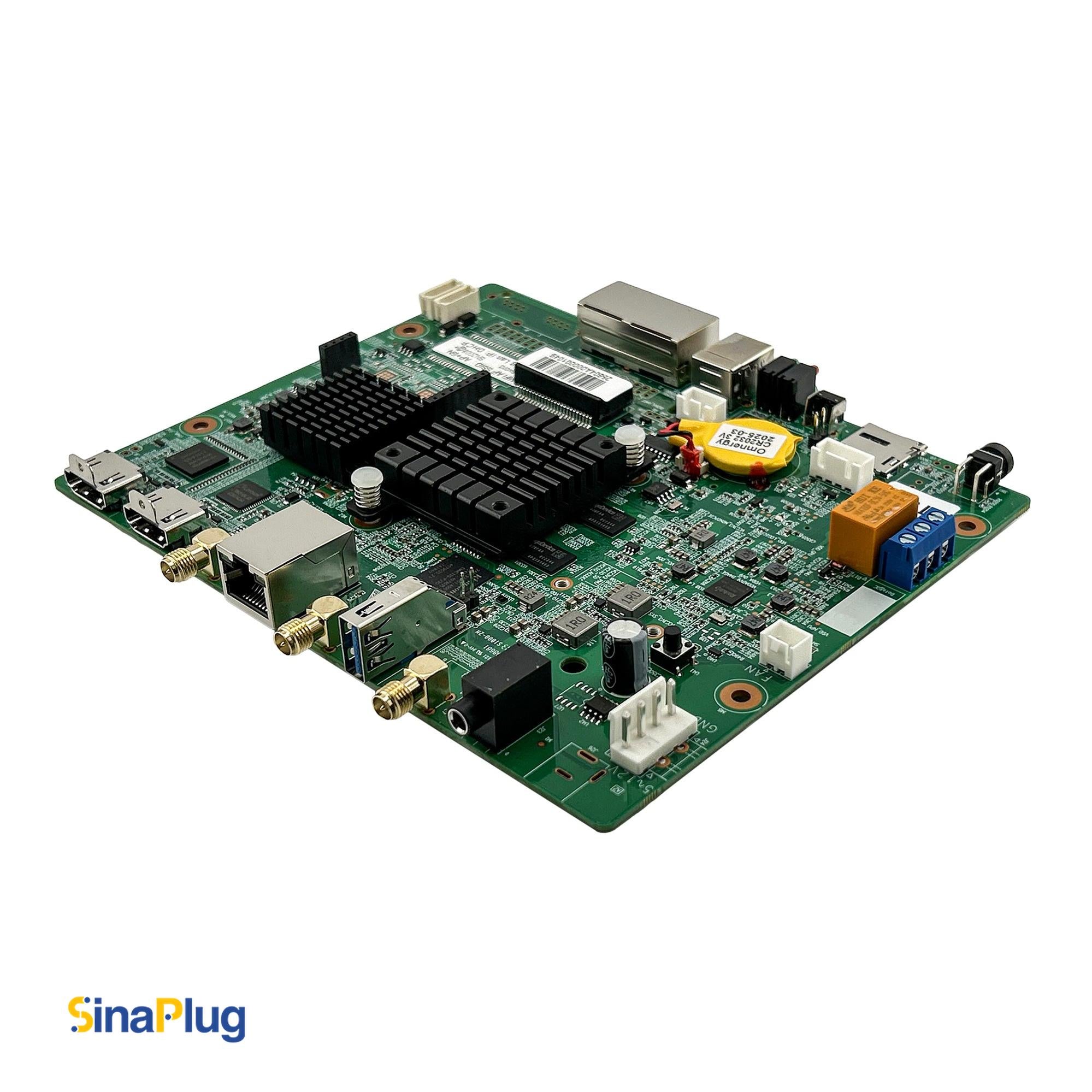

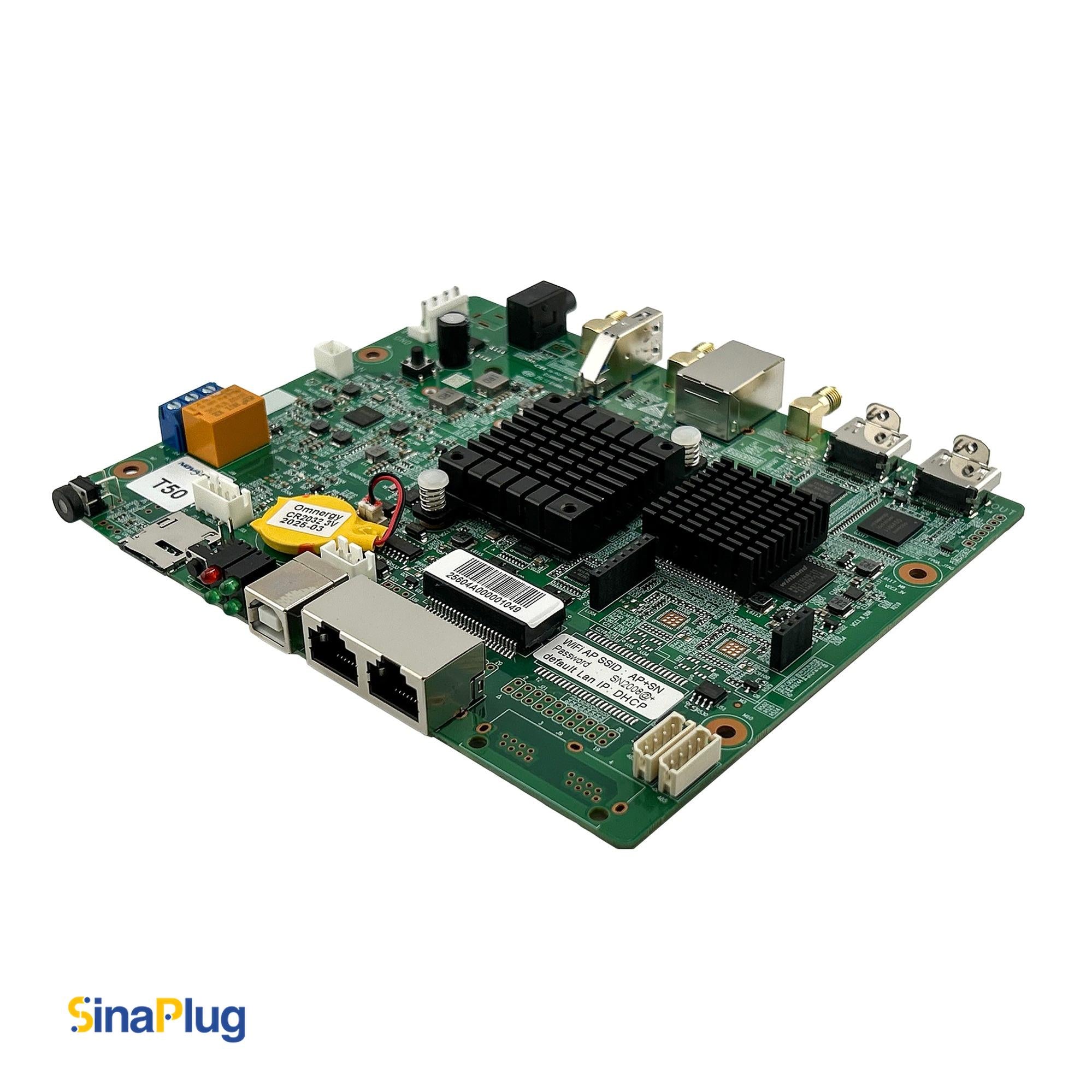

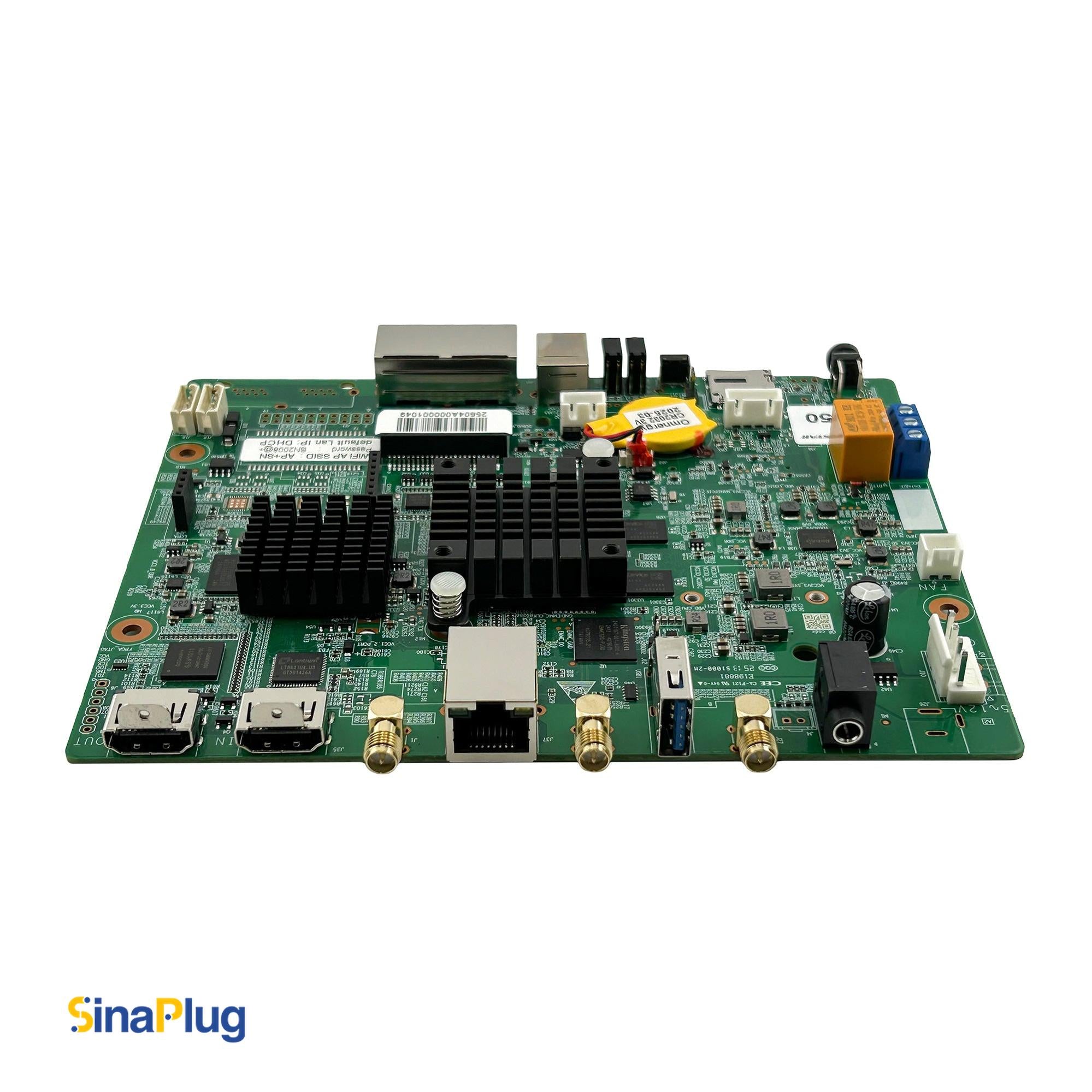

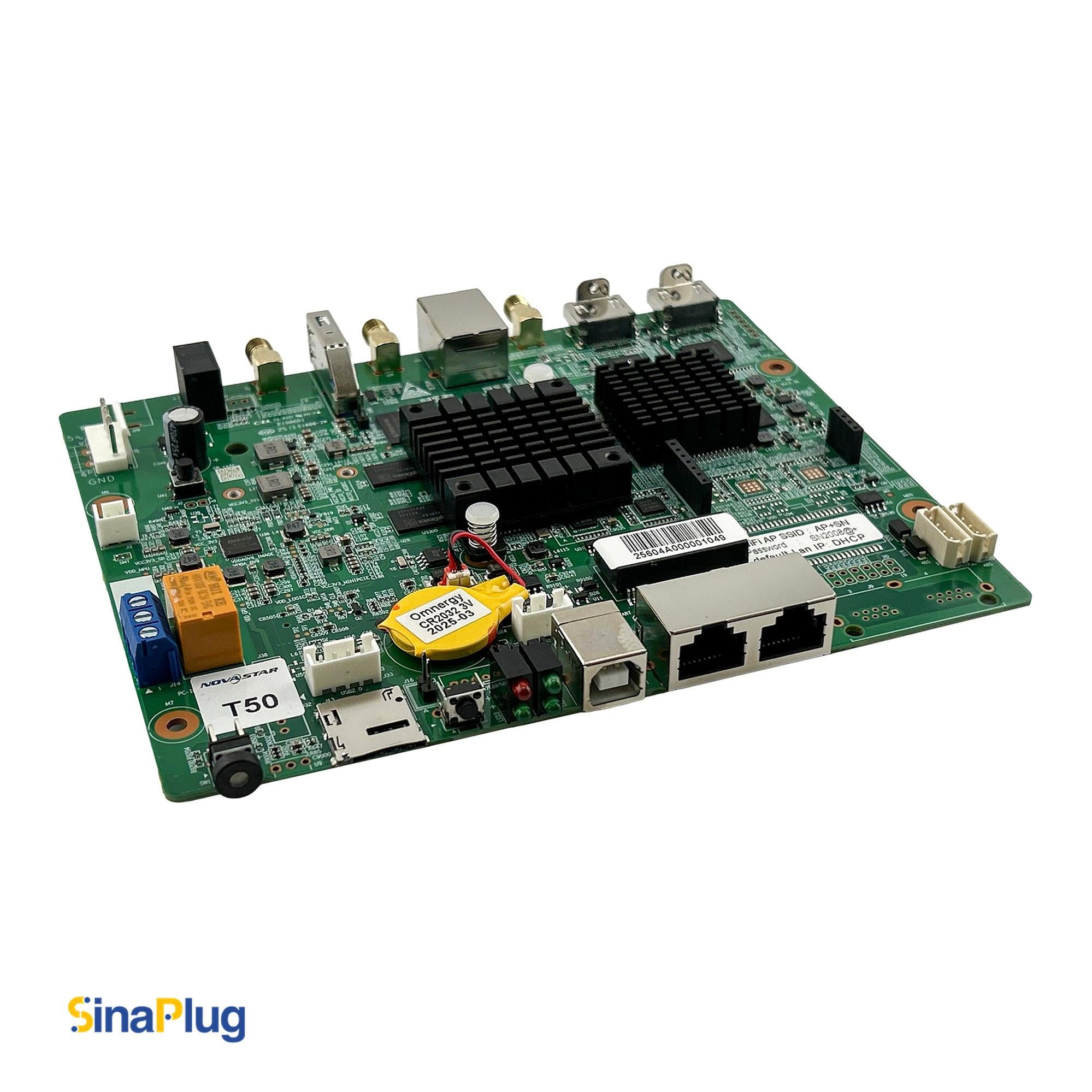

NovaStar Taurus T50 Multimedia Player (Main Board of TB50)

$405.90

Azar Pixel is proud to present the Taurus T50, the main control card inside TB50, which is a professional, new-generation multimedia player (upgraded version of TB6).

Its significant 1.8 GHz quad-core ARM A55 processor and 1 GB of RAM allow it to present impactful details through two Gigabit Ethernet ports (one of which can be manually configured as a backup) with a maximum loading capacity of 1,300,000 pixels. It contains an HDMI 1.3 input (synchronized mode) and offers expandable storage via USB 3.0, in addition to its internal 32GB of storage, for upgrading the firmware or importing content. Smooth 4K/H.265/H.264 video decoding and flawless playback of up to 1x 4K, 2x 1080p, 4x 720p, 4x 480p, or 6x 360p are made possible by this powerful combination.

This remarkable multimedia player offers both synchronous (with 1920x1200@60Hz HDMI input) and asynchronous modes, with local and cloud-based display management for program editing and publishing. The NovaCloud platform ensures a smooth user experience with various solutions designed for certain management needs, such as VNNOX, ViPlex Express, ViPlex Handy, and NovaLCT. 

T50 is certified to IC, CE, FCC, and MIC standards, ensuring flawless, continuous operation and compliance with regional regulations. It also operates reliably in extreme temperatures from -20°C to +60°C with a DC 5-12V input and a maximum power consumption of 18W. 

Also, as an option for T50, sensor connectors enable integration of brightness, temperature, and humidity, helping optimize display environments and making this a valuable addition.

Key Features of NovaStar Taurus T50

Highlights and Advantages

  • Professional multimedia player controlling card with the same features and specifications as the TB50
  • Certified to IC, CE, FCC, and MIC standards
  • Performs flawlessly in extreme temperatures ranging from -20°C to +60°C
  • Operates with a DC 5-12V input and consumes a maximum of 18W

Loading Capacity

  • Up to 1,300,000 pixels (maximum width of 4096 pixels or maximum height of 4096 pixels)

Output

  • 2× Gigabit Ethernet LED out ports (two primary or one primary / one backup)
  • 1× Stereo audio connector (48 kHz internal sample rate)
  • 1× HDMI 1.3 connector (supports 1920×1200@60Hz with HDMI loop)

Input

  • 1× HDMI 1.3 connector (for synchronous mode / video scaling)
  • 2× sensor connectors (for brightness, temperature, and humidity sensors)
  • 1× USB 3.0 (Type-A) port (USB playback and firmware upgrades)

Control

  • 1× USB (Type-B) port (for control computer connection and screen control)
  • 1× Gigabit Ethernet port (for control computer, LAN, or network connection)

Performance

  • Quad-core ARM A55 processor @1.8 GHz
  • 1 GB RAM
  • 32 GB internal storage
  • Hardware H.265 / H.264 / 4K video decoding
  • Flawless playback capability up to 1× 4K, 2× 1080p, 4× 720p, 4× 480p, 6× 360p videos

Decoding

  • Image: JPG, JPEG, BMP, GIF, PNG, WEBP
  • Video: DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, FLV, WEBM, WMV, ASF

Functionality

  • All-round control plans for content publishing and screen control from several devices
  • Multiple connection options: wired and wireless
  • Supports Wi-Fi AP, Wi-Fi STA, and Wi-Fi AP+STA modes
  • Synchronous and asynchronous modes between internal and HDMI video sources
  • Synchronous playback across multiple screens with NTP, GPS, and RF time synchronization methods (specified modules must be installed)
  • Supports optional 4G/5G and RF modules
  • Ethernet LED out redundancy

Dimensions (L×W×H)

  • 165 mm × 135 mm × 21 mm
