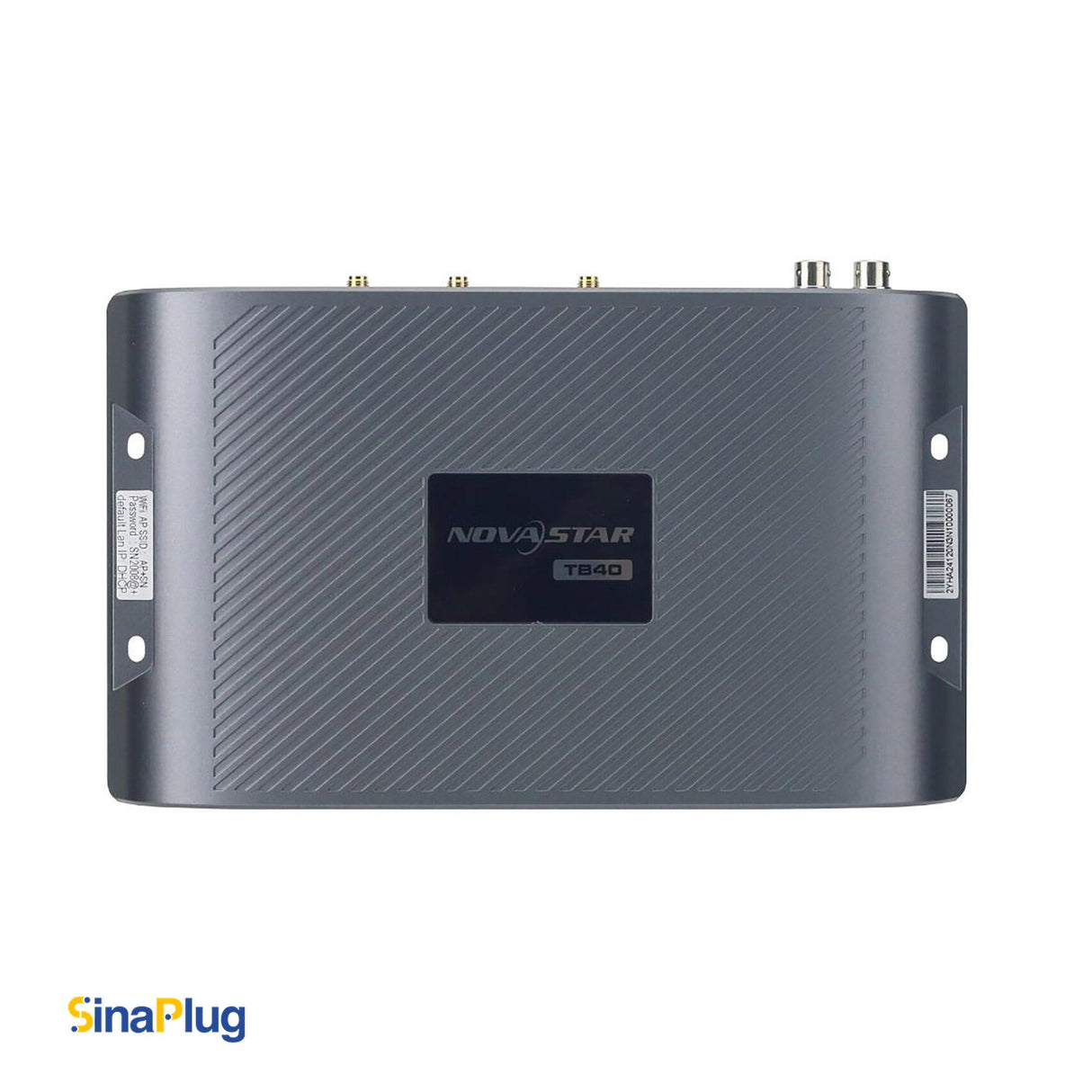

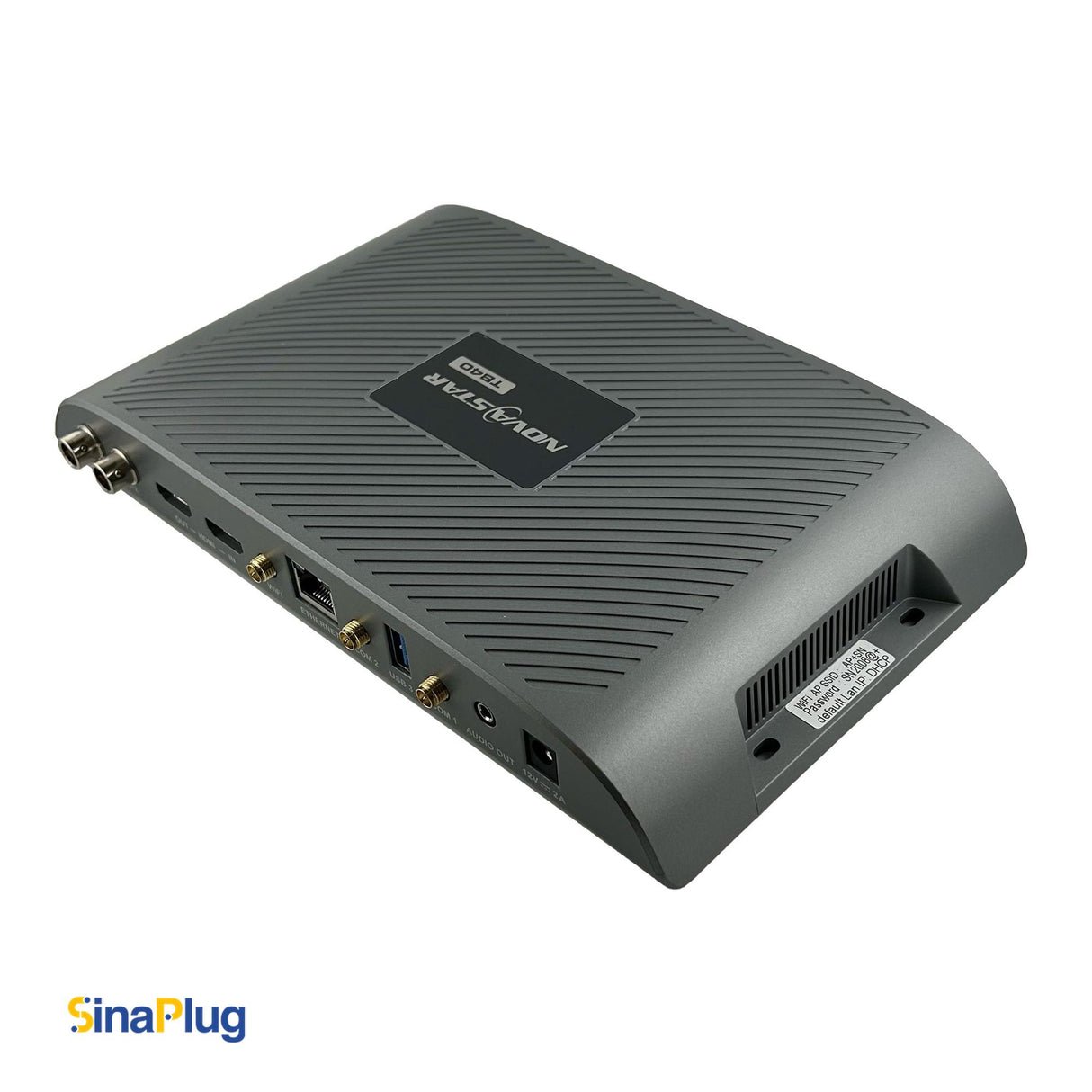

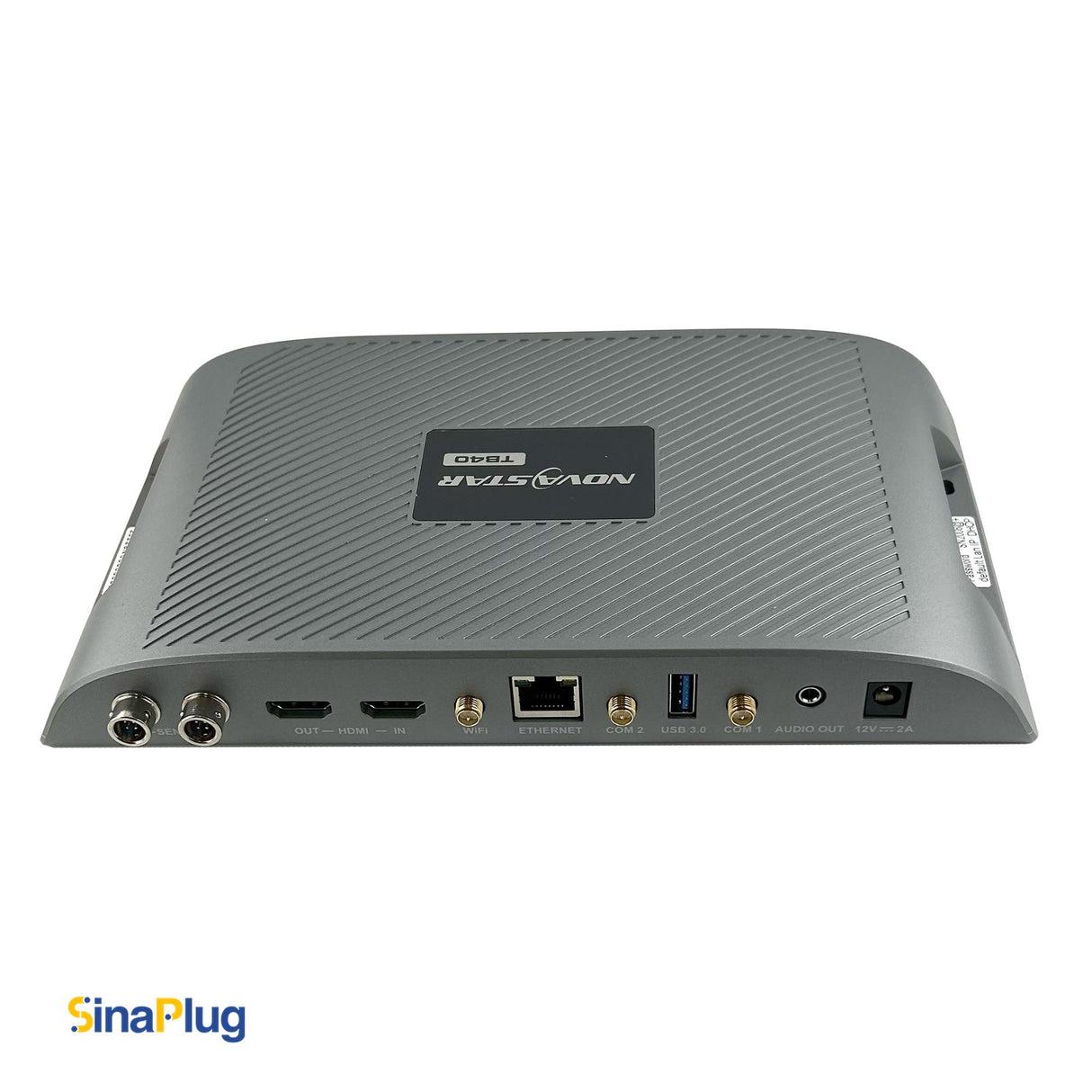

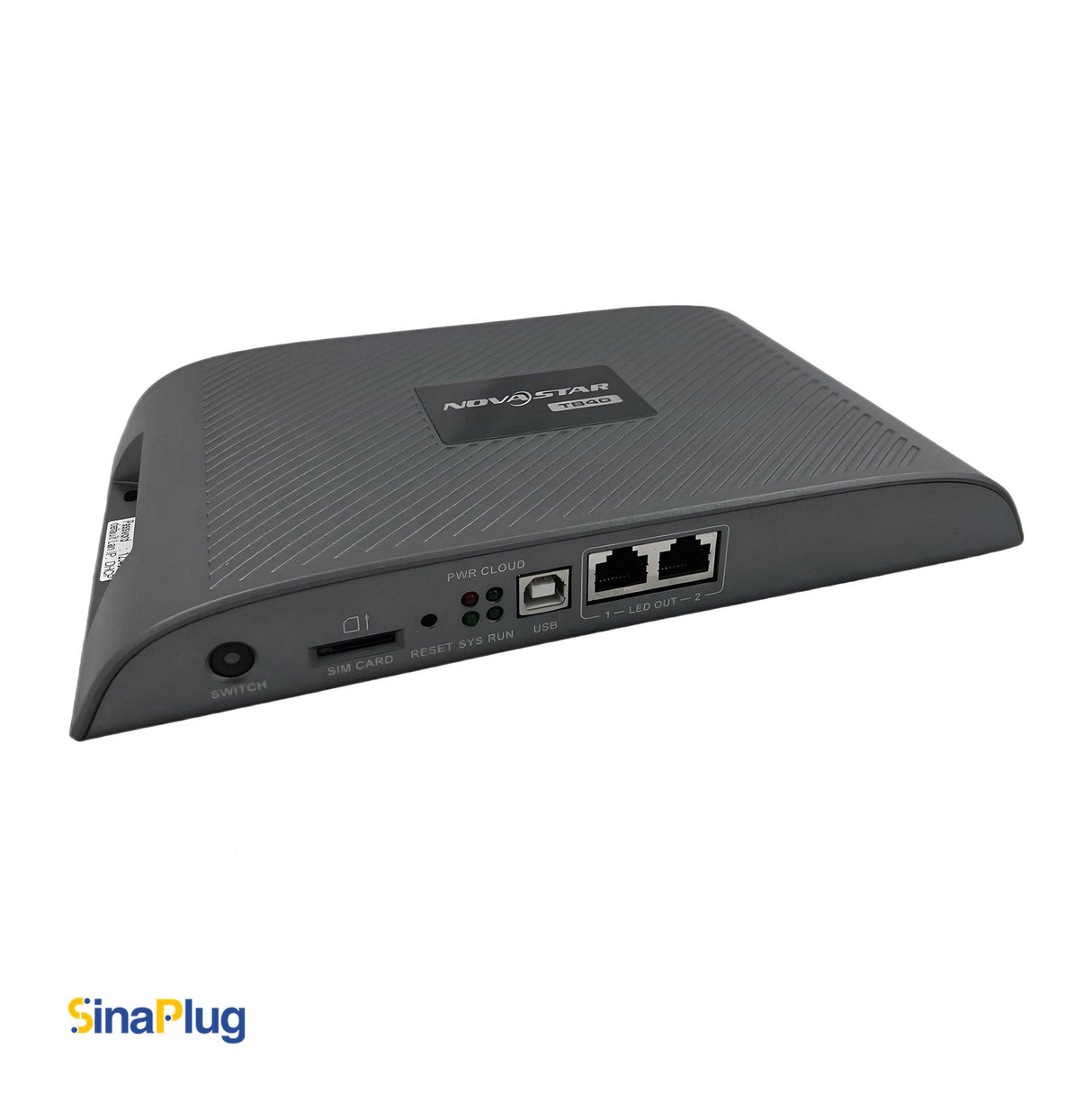

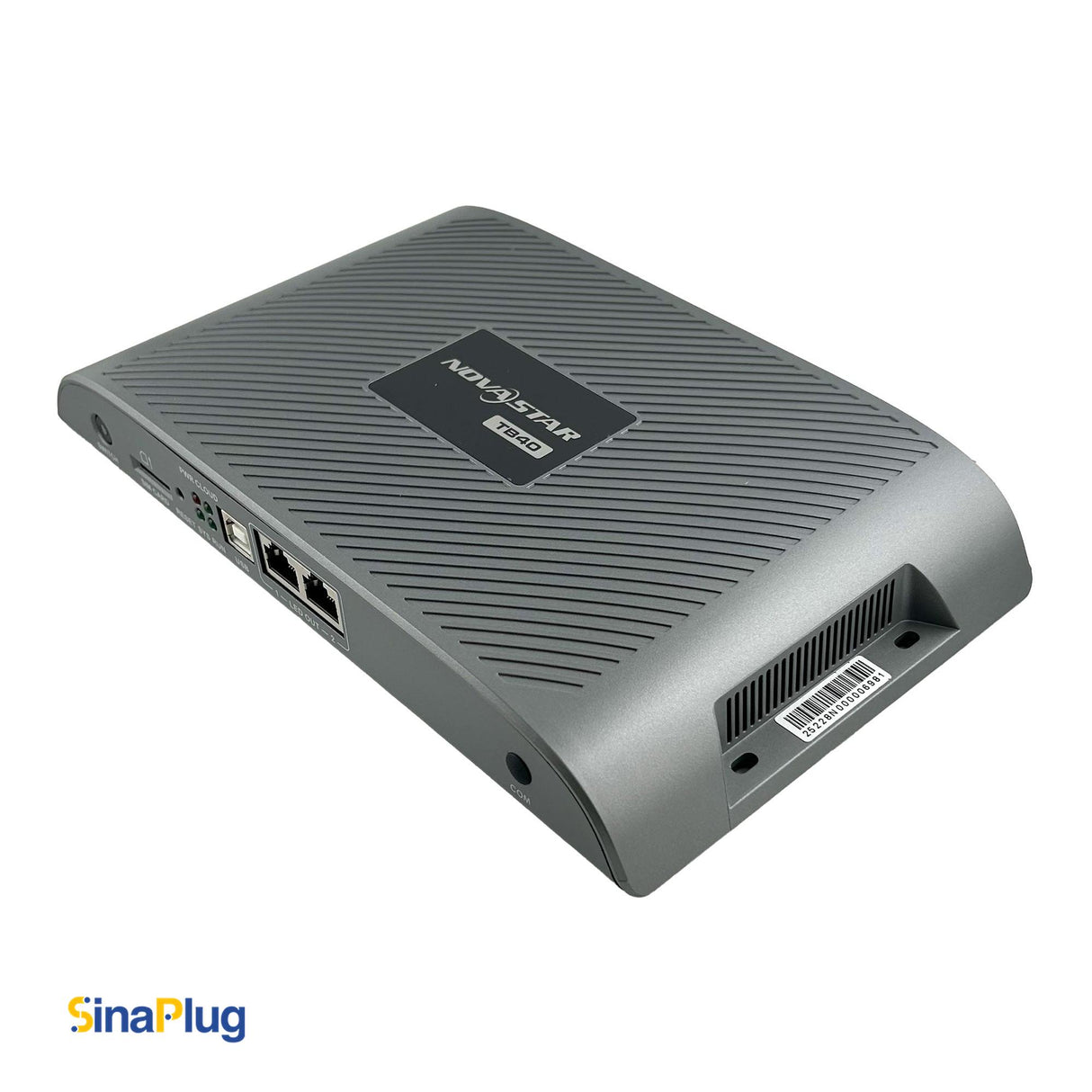

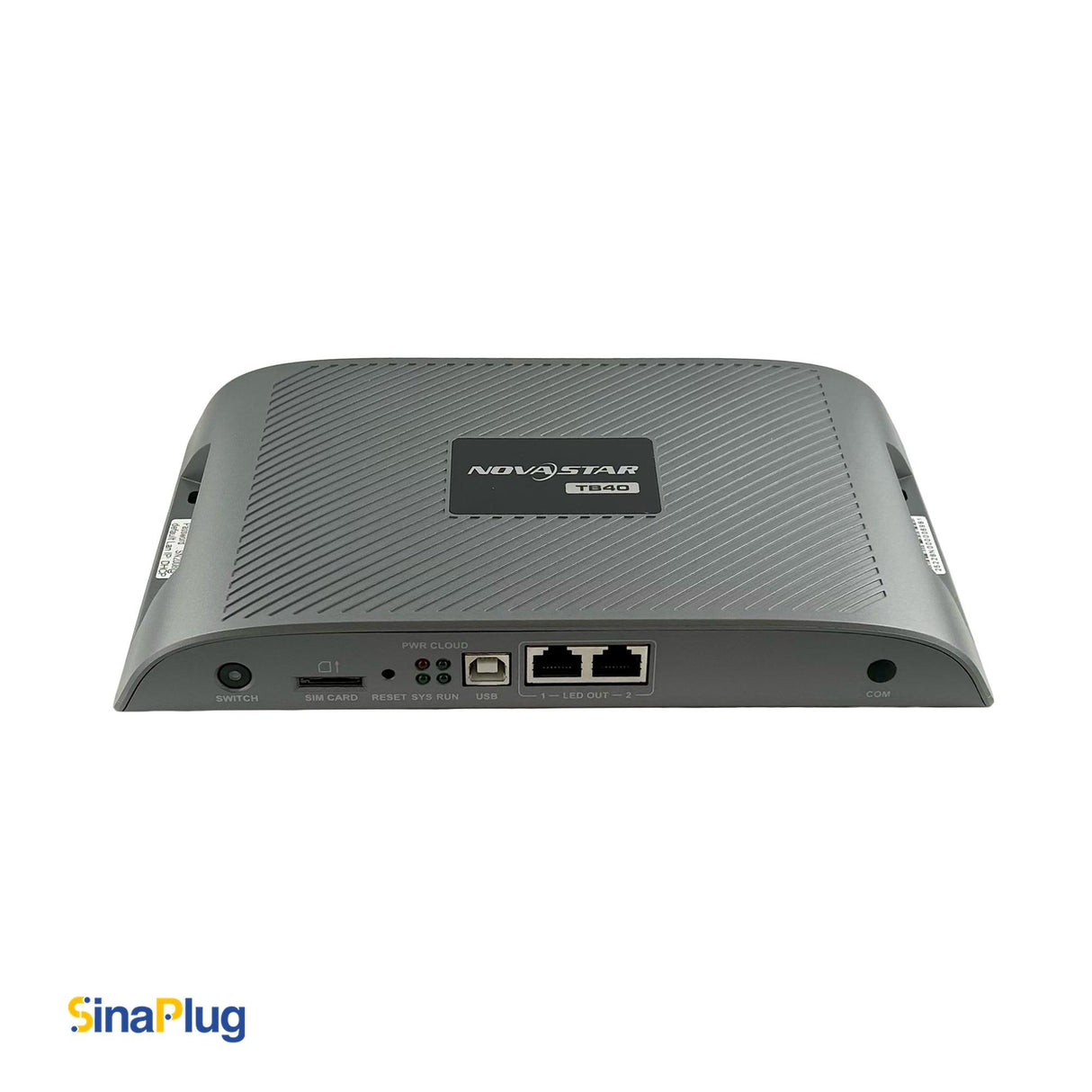

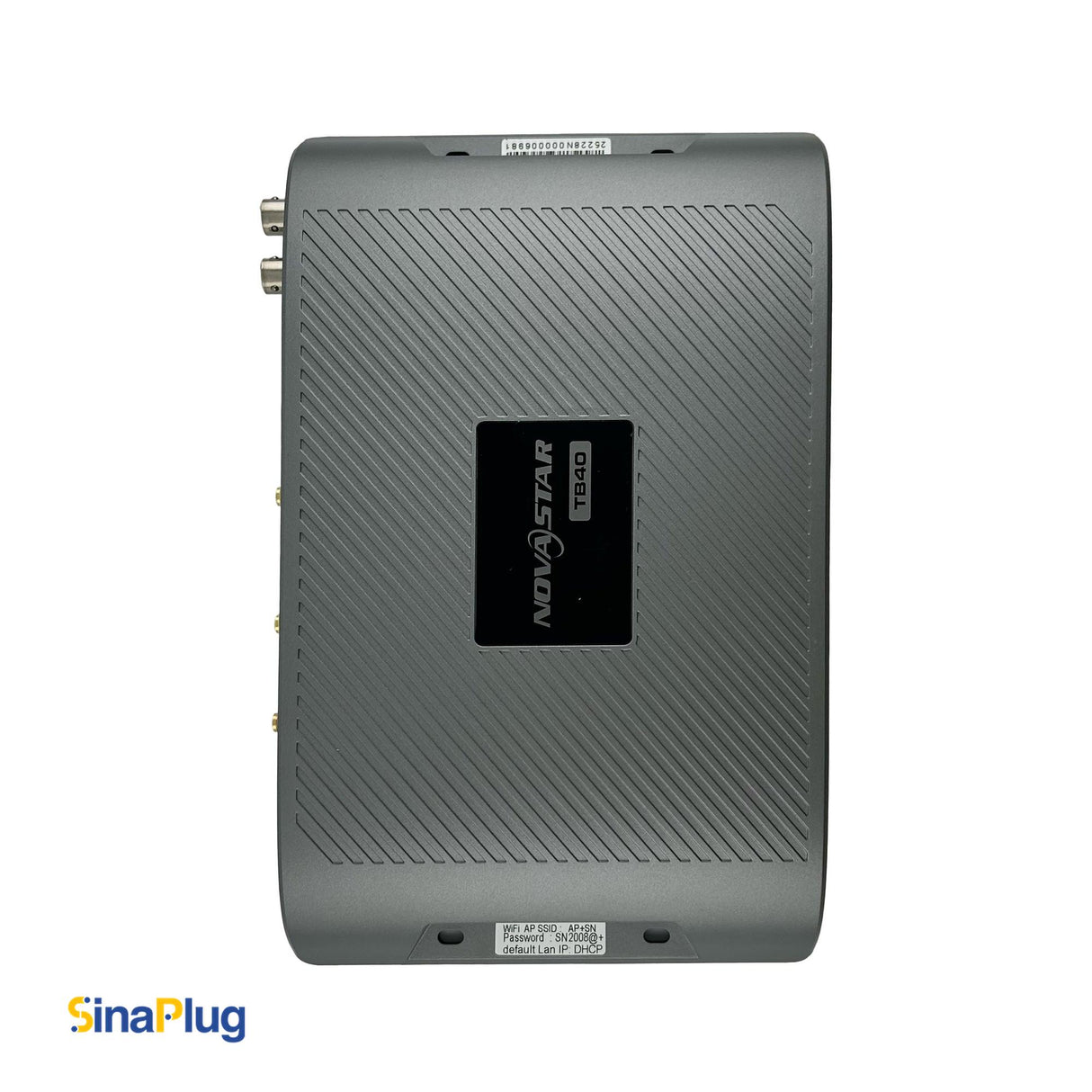

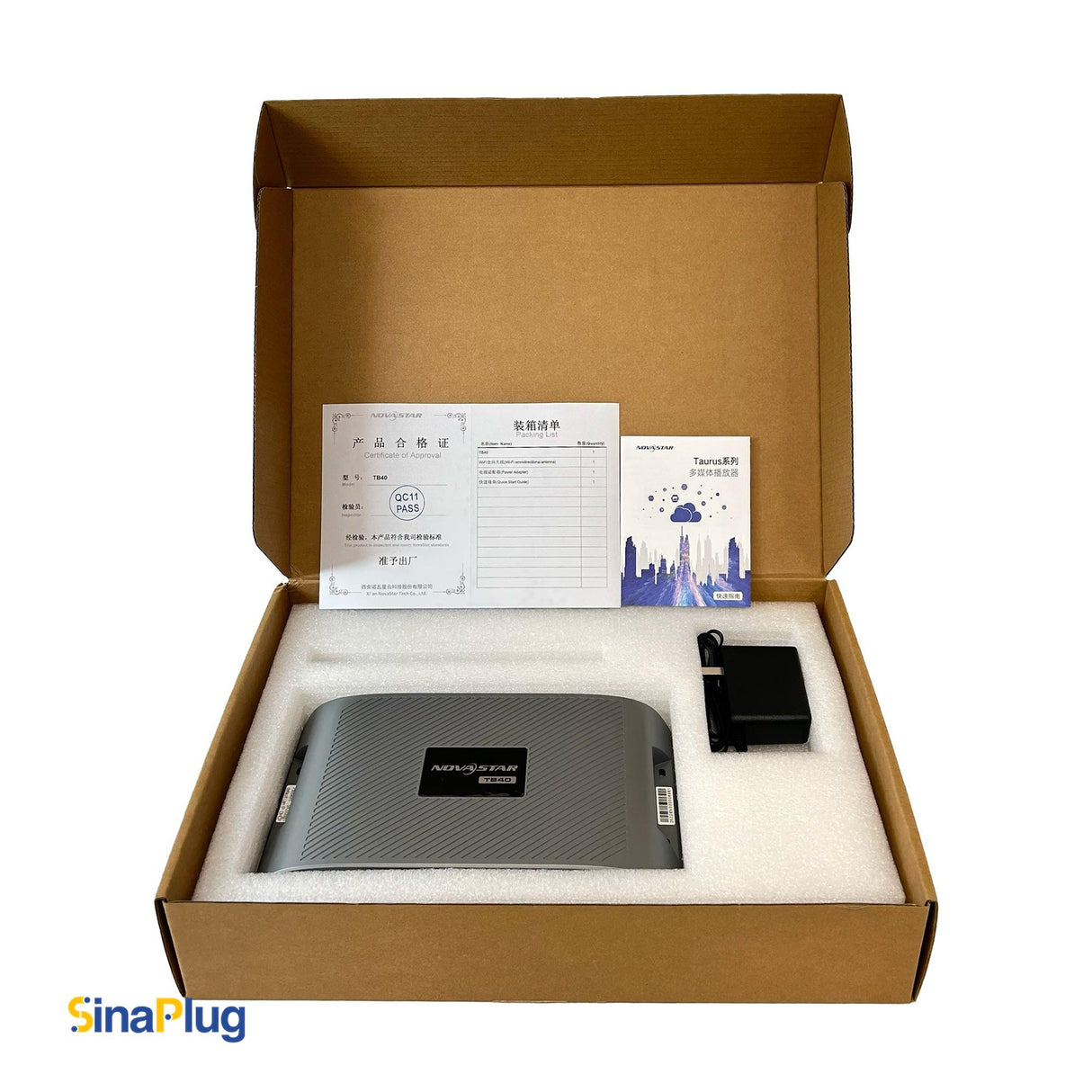

NovaStar Taurus TB40 Controller
NovaStar Taurus TB40 Controller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Documents
Documents
No files available.
Description
The NovaStar TB40 is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB40 enables users to manage LED displays from an Internet-connected device anywhere, anytime.
Support for multi-screen synchronous playback and synchronous and asynchronous modes makes this multimedia player a perfect fit for a wide range of applications.
Thanks to its reliability, ease of use, and intelligent control, the TB40 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, shelf displays, and much more.
-
- Loading capacity up to 1,300,000 pixels
Maximum width: 4096 pixels
Maximum height: 4096 pixels

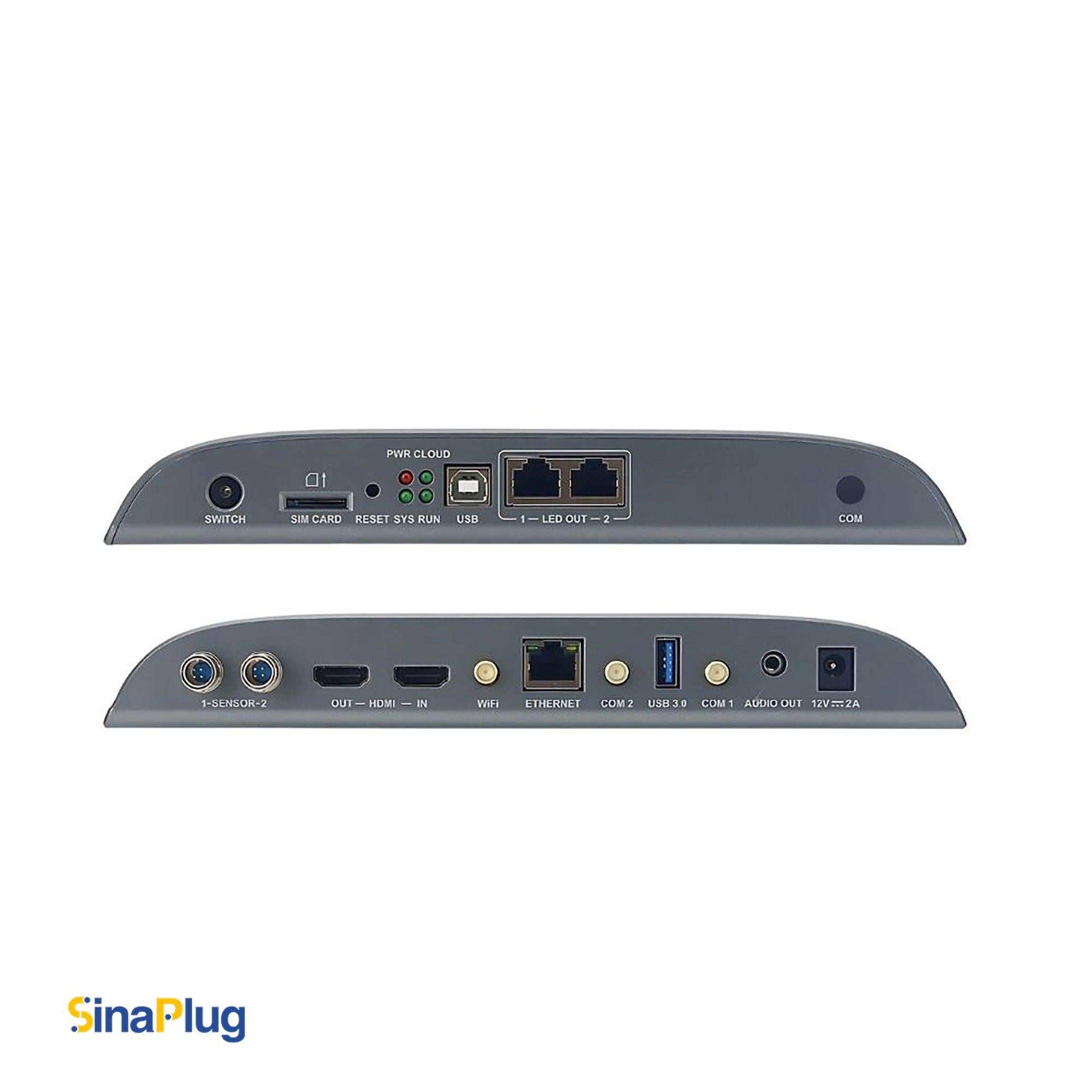

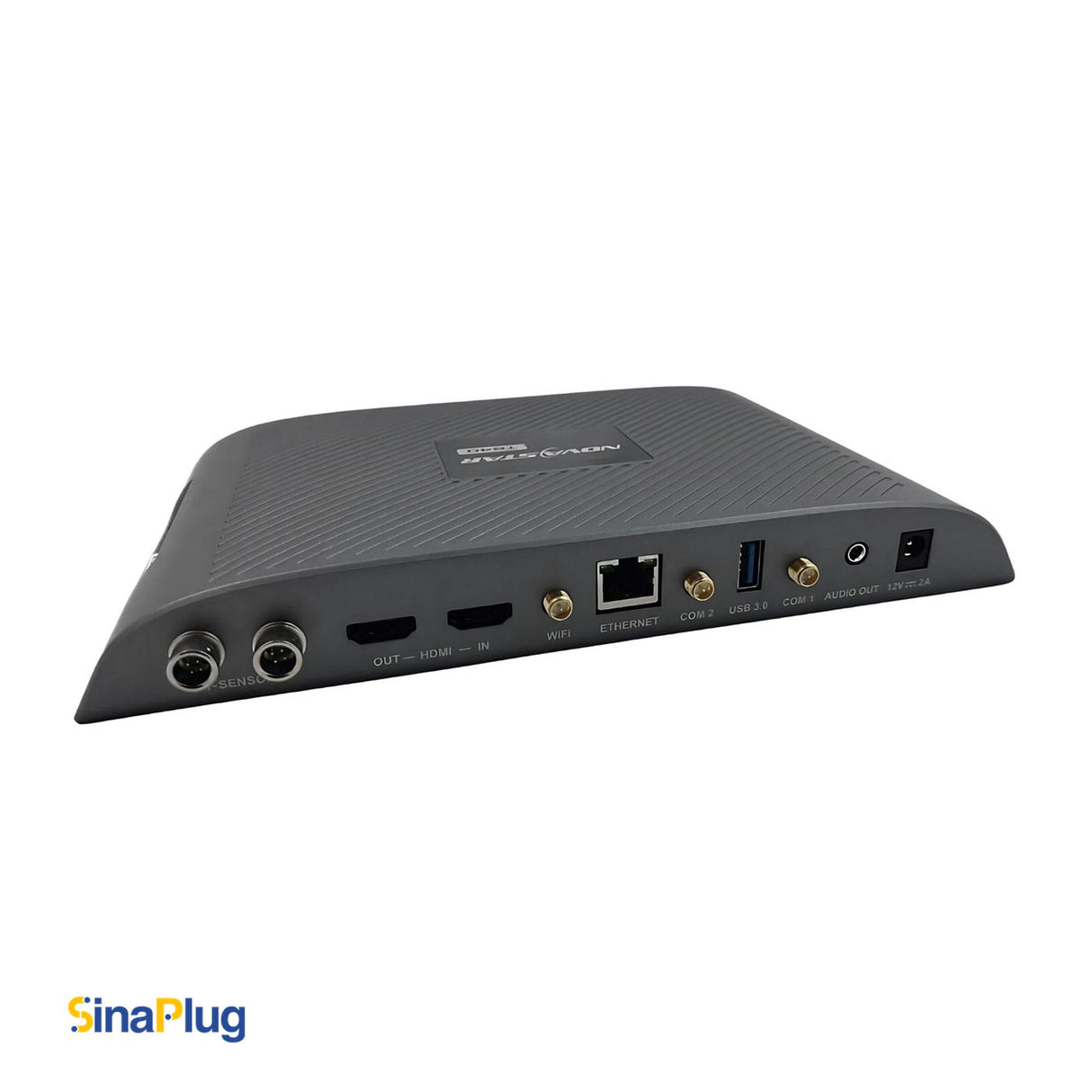

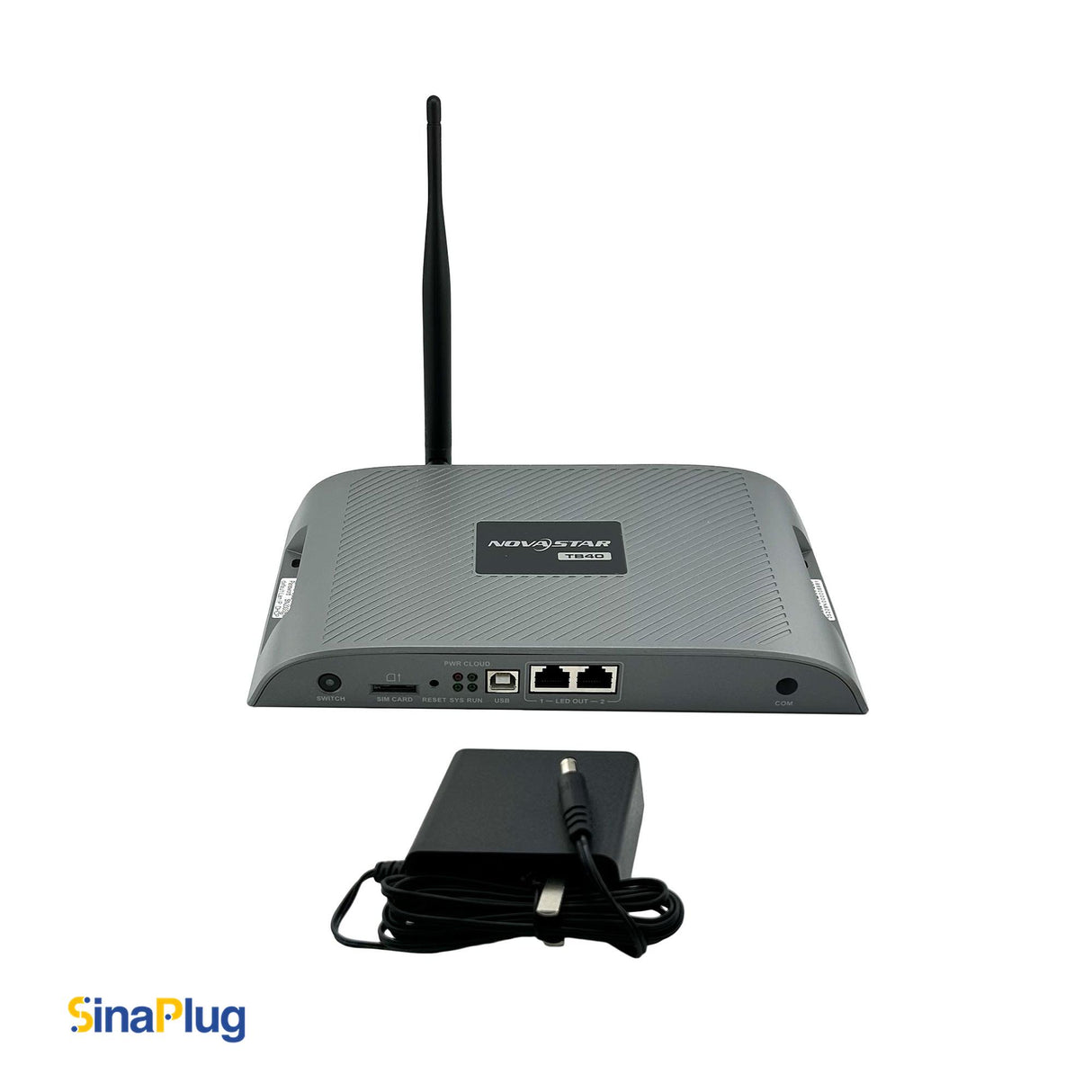

2x Gigabit Ethernet ports
These two ports serve as primary by default.
Users can also set one as primary and the other
as backup. - 1x Stereo audio connector
The audio sample rate of the internal source is
fixed at 48 kHz. The audio sample rate of the
external source supports 32 kHz, 44.1 kHz, or
48 kHz. If NovaStar’s multifunction card is used
for audio output, audio with a sample rate of 48
kHz is required. - 1x HDMI 1.4 connector
Maximum output: 1080p@60Hz, support for
HDMI loop
Input - 1x HDMI 1.4 connector
In synchronous mode, video sources input from
this connector can be scaled to fit the entire
screen automatically. - 2x sensor connectors
Connect to brightness sensors or temperature
and humidity sensors.
Control - 1x USB 3.0 (Type A) port
Allows for playback of content imported from a
USB drive and firmware upgrade over USB. - 1x USB (Type B) port
Reserved - 1x Gigabit Ethernet port
Connects to a LAN, public network, or computer
for content publishing and screen control.
Performance - Powerful processing capacity
− Quad-core ARM A55 processor @1.8 GHz
− Support for H.264/H.265 4K@60Hz video
decoding
- Loading capacity up to 1,300,000 pixels
