NovaStar  |  SKU: PRO-NOV-VX1000xxxx-0

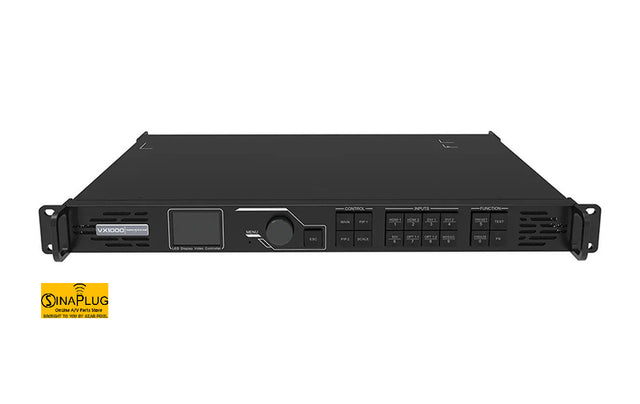

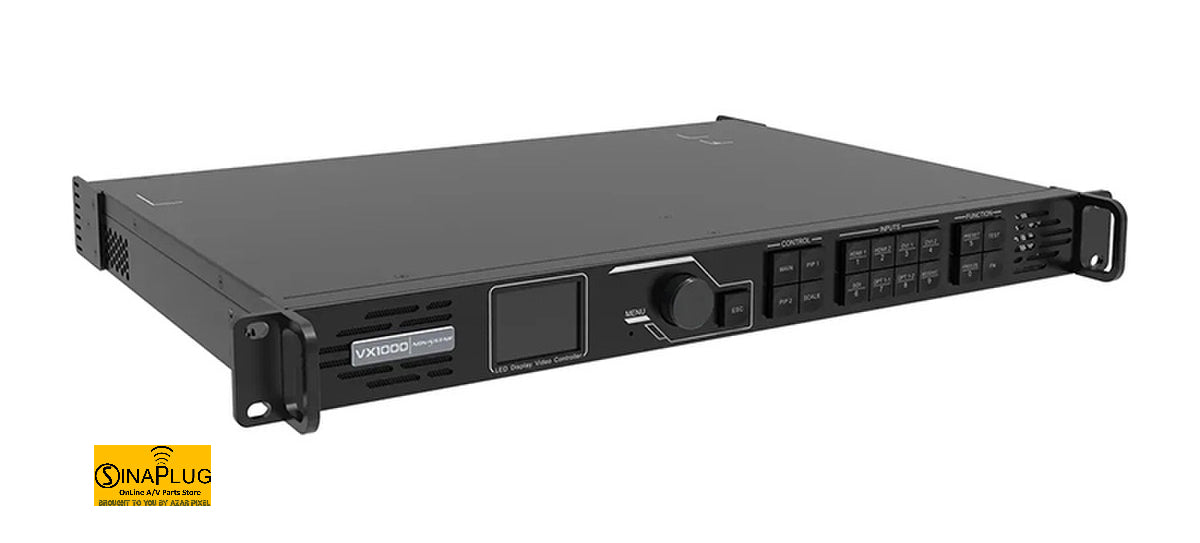

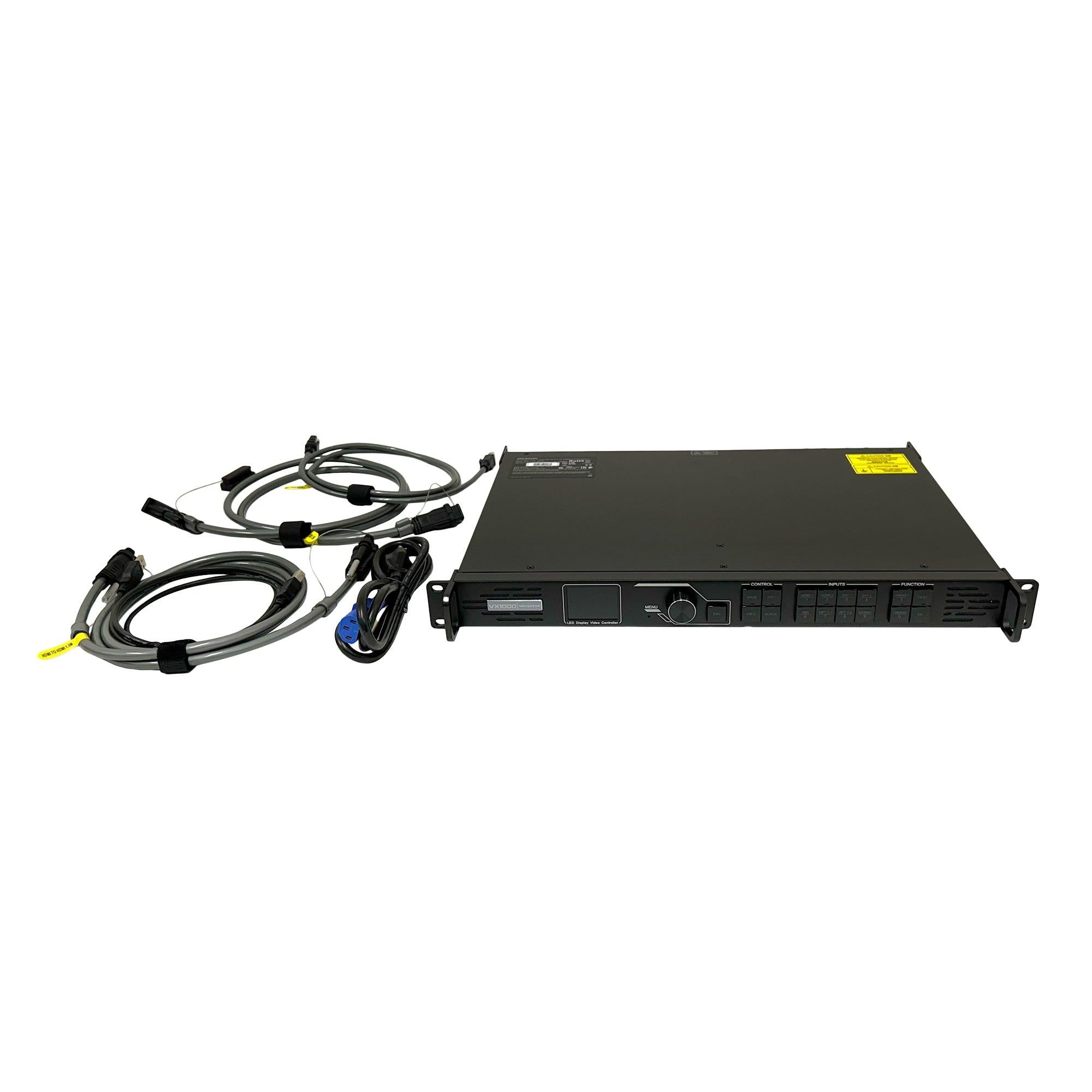

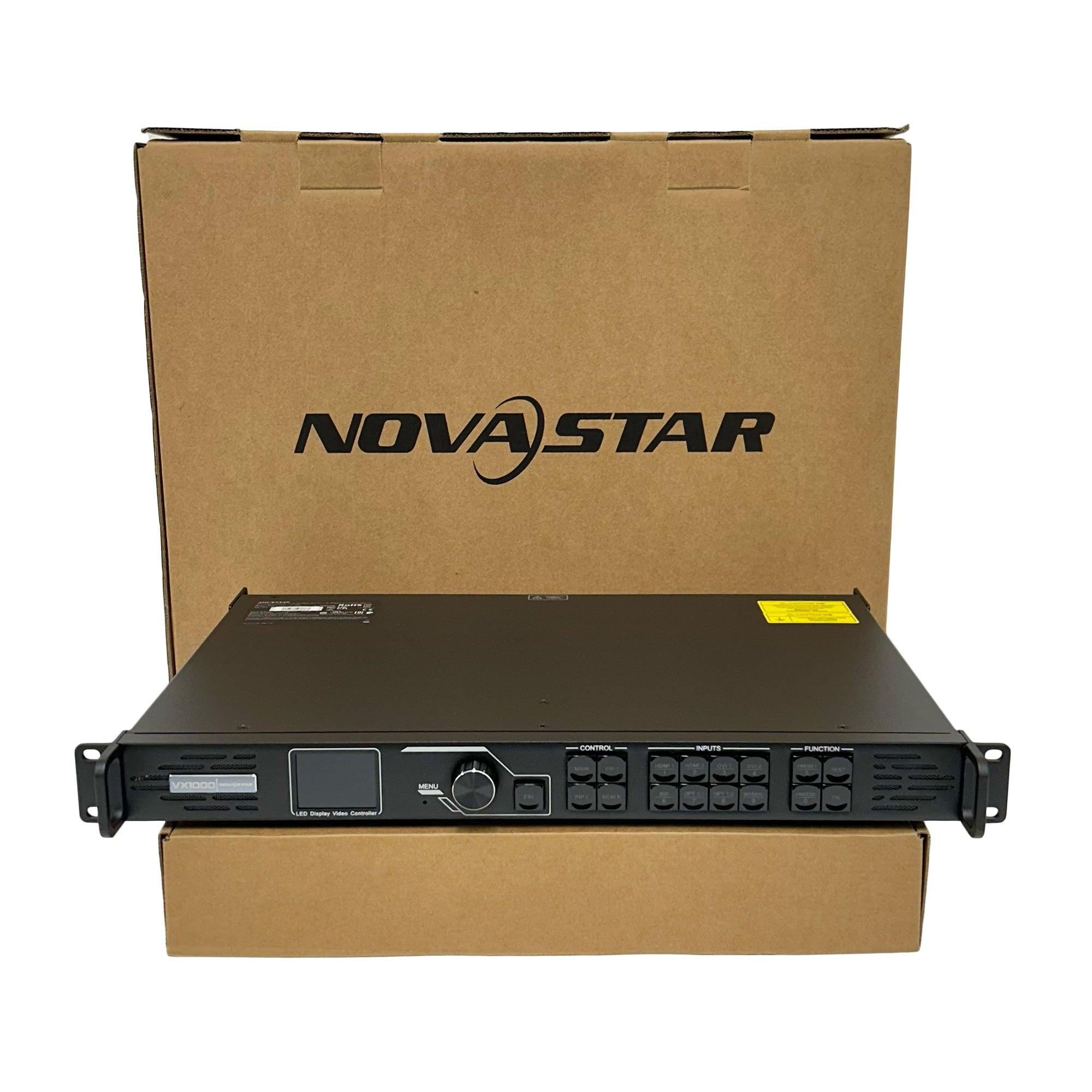

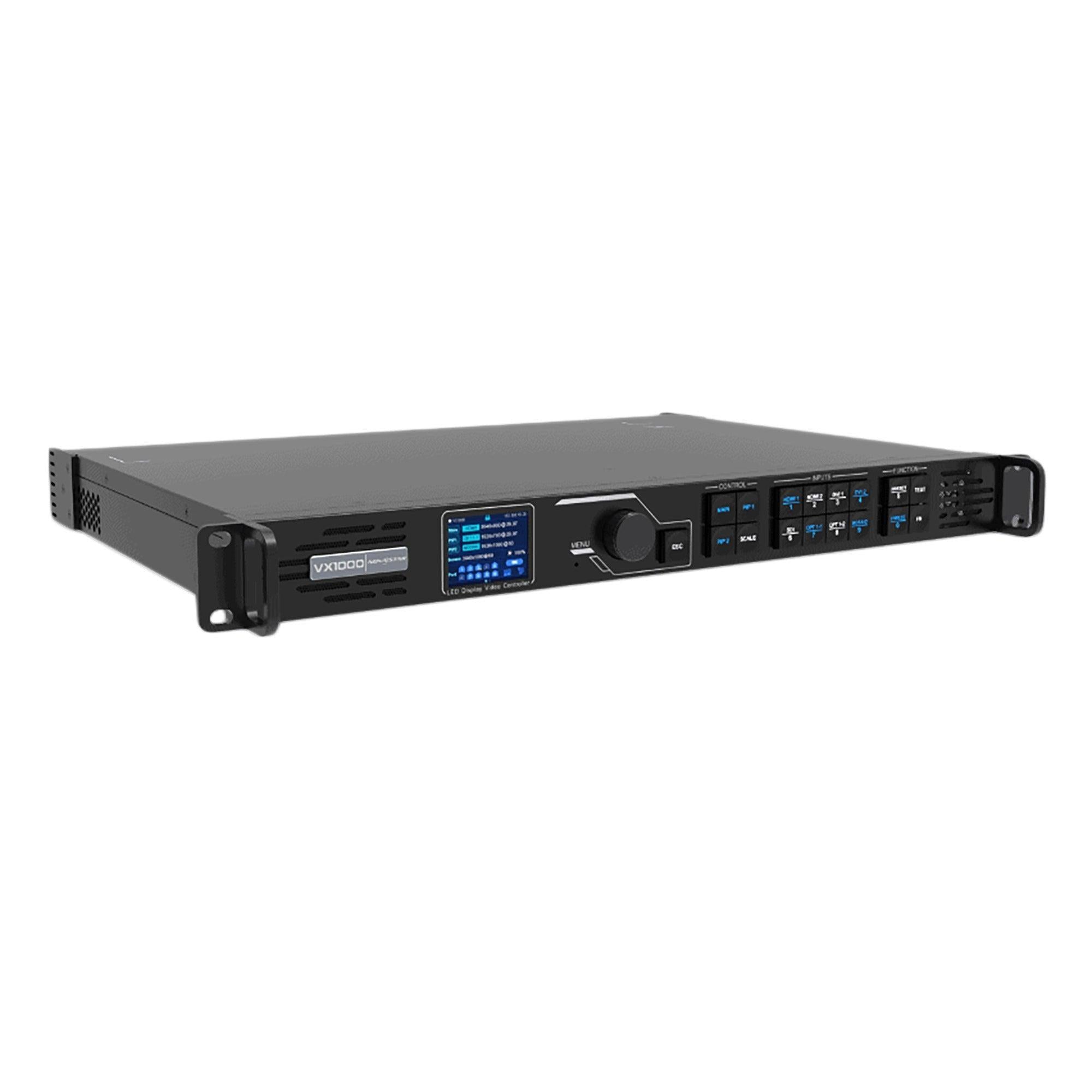

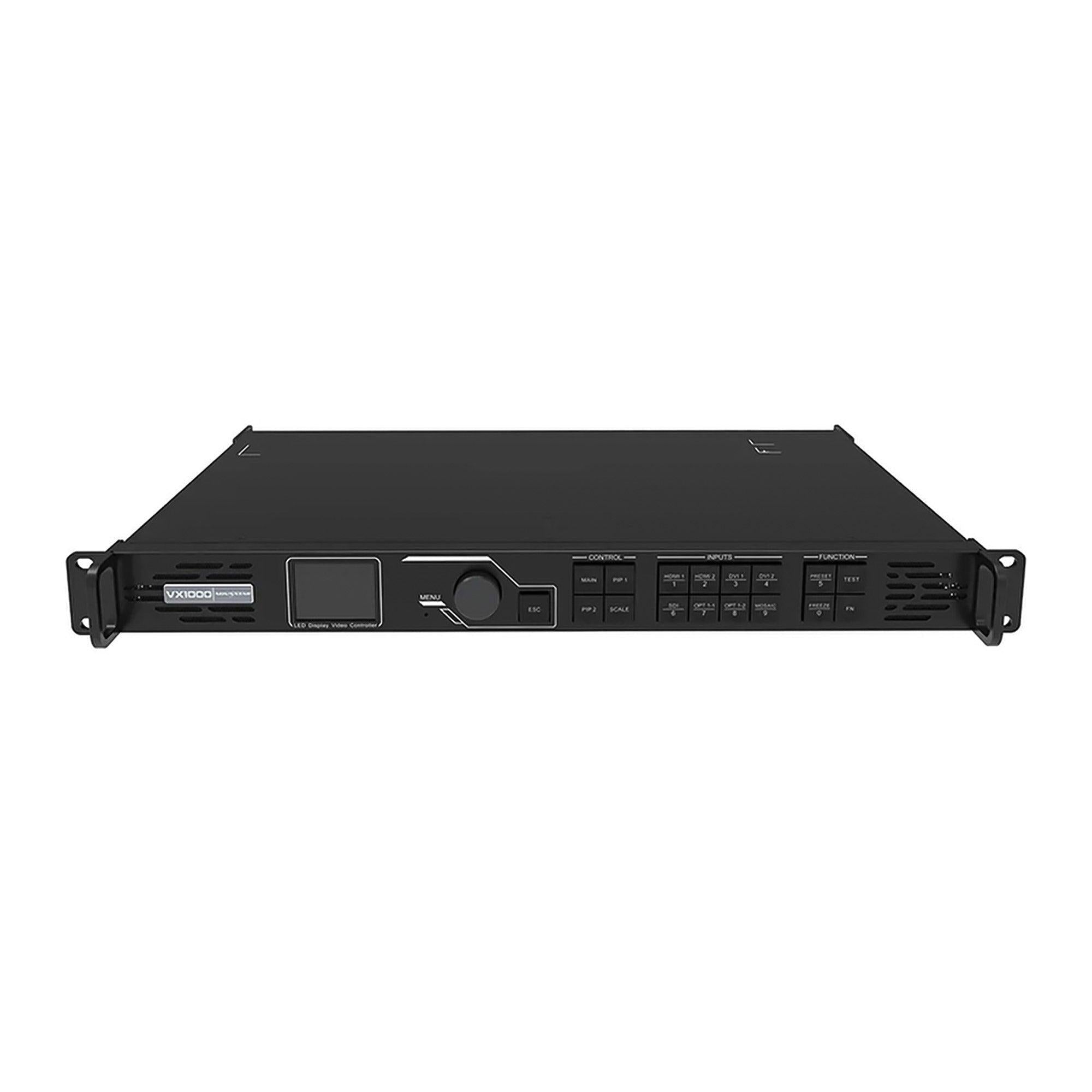

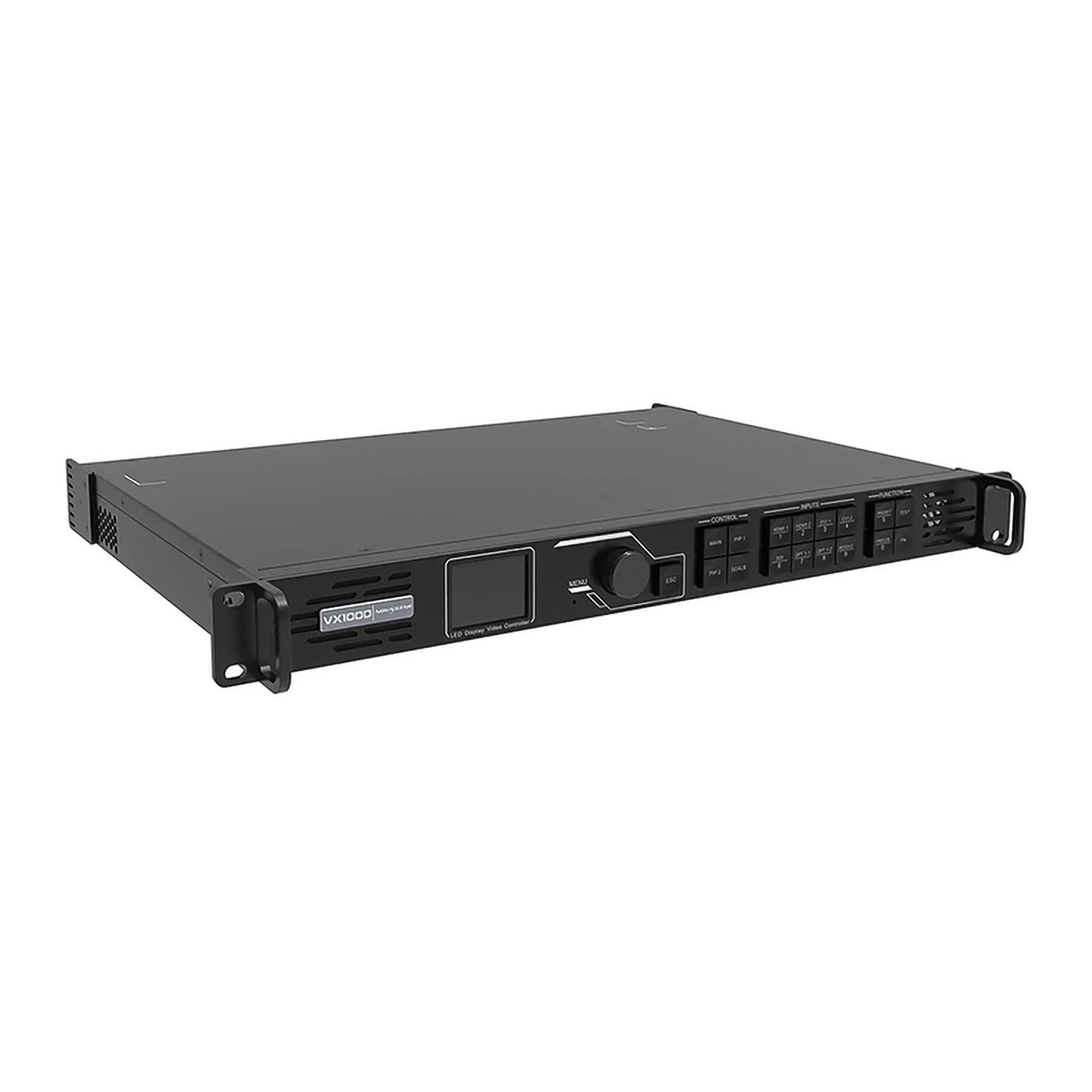

NovaStar VX1000 All-in-One LED Display Controller

$1,780.87 $2,095.00

Documents

Datasheet_NovaStar_VX1000_V1

An innovative all-in-one LED video processor and controller, the NovaStar VX1000 is engineered for seamless compatibility with large-scale LED display installations and is proudly offered by Azar Pixel team. This powerful rackmount device integrates advanced video processing, sending card functionality, and fiber conversion, simplifying complex workflows in professional and demanding settings.

Capable of handling up to 6.5 million pixels and supporting custom resolutions up to 10,240 pixels in width or 8,192 pixels in height, the VX1000 delivers superior image sharpness and versatile scaling options for ultra-wide and tall LED configurations.

It includes a broad range of inputs such as DVI (HDMI 1.4), HDMI 1.4, 3G-SDI, and 10G optical fiber, along with ten Gigabit Ethernet outputs and two 10G optical ports to ensure fast and reliable long-distance data transmission. The DVI (HDMI 1.4) inputs provides the left-eye image, and the right-eye image when connected with the EMT200 3D emitter and 3D glasses, enabling synchronized 3D display.

Designed for high reliability, the VX1000 supports multiple hot backup options, pixel-level brightness and chroma calibration, 3D display support, and low-latency operation, making it ideal for live events, rental setups, stage productions, and fine-pitch LED screens.

With certifications including CE, CB, UL, CMIM, EAC, FCC, IC, RCM, UKCA, NOM, KC and an operating temperature range from 0°C to +45°C whenever powered via a 100-240VAC input voltage consuming maximum power of 35W, the VX1000 is a durable and dependable solution for critical professional applications.

Key Featuresof VX1000

Loading Capacity

  • Up to 6,500,000 pixels
  • Maximum width: 10,240 pixels
  • Maximum height: 8,192 pixels

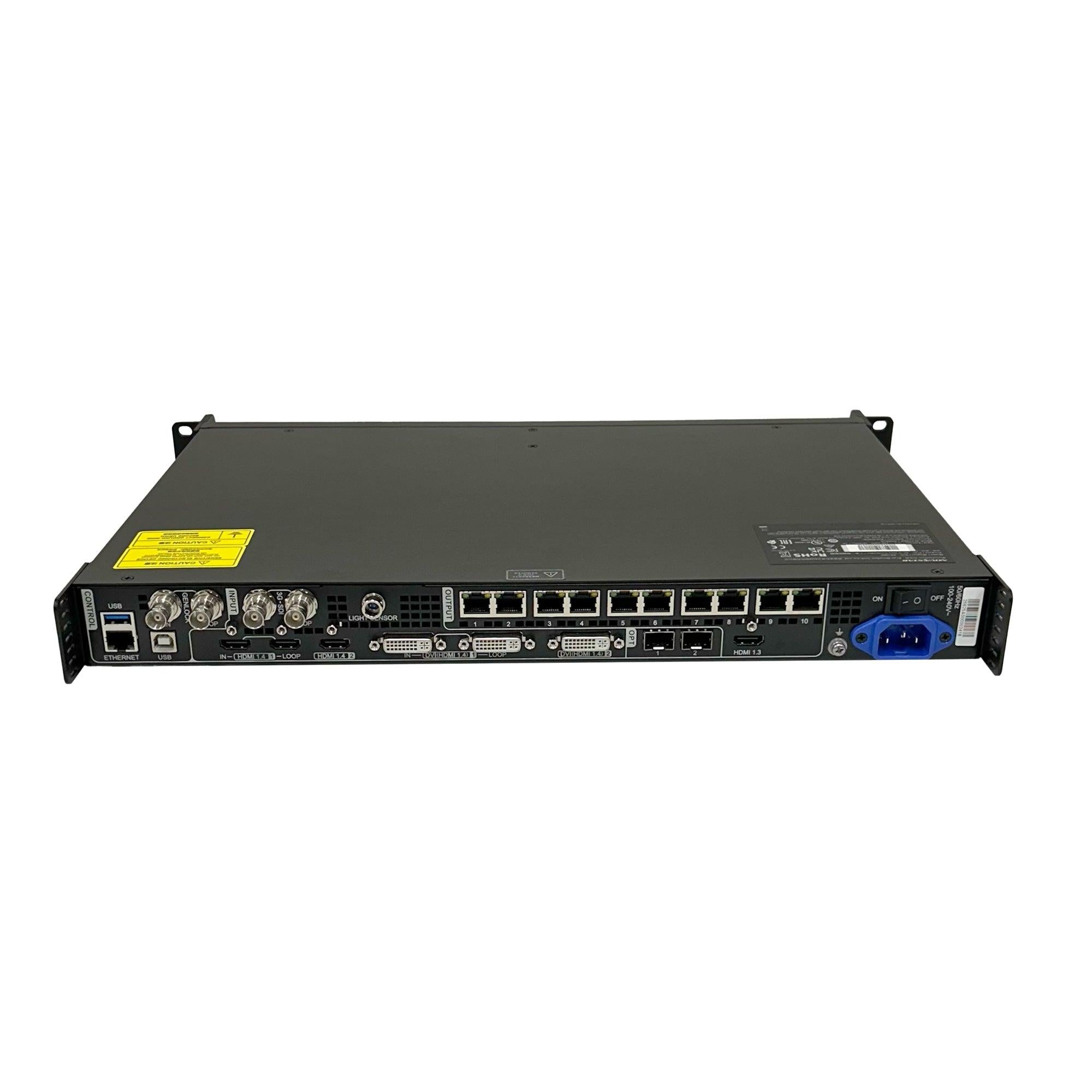

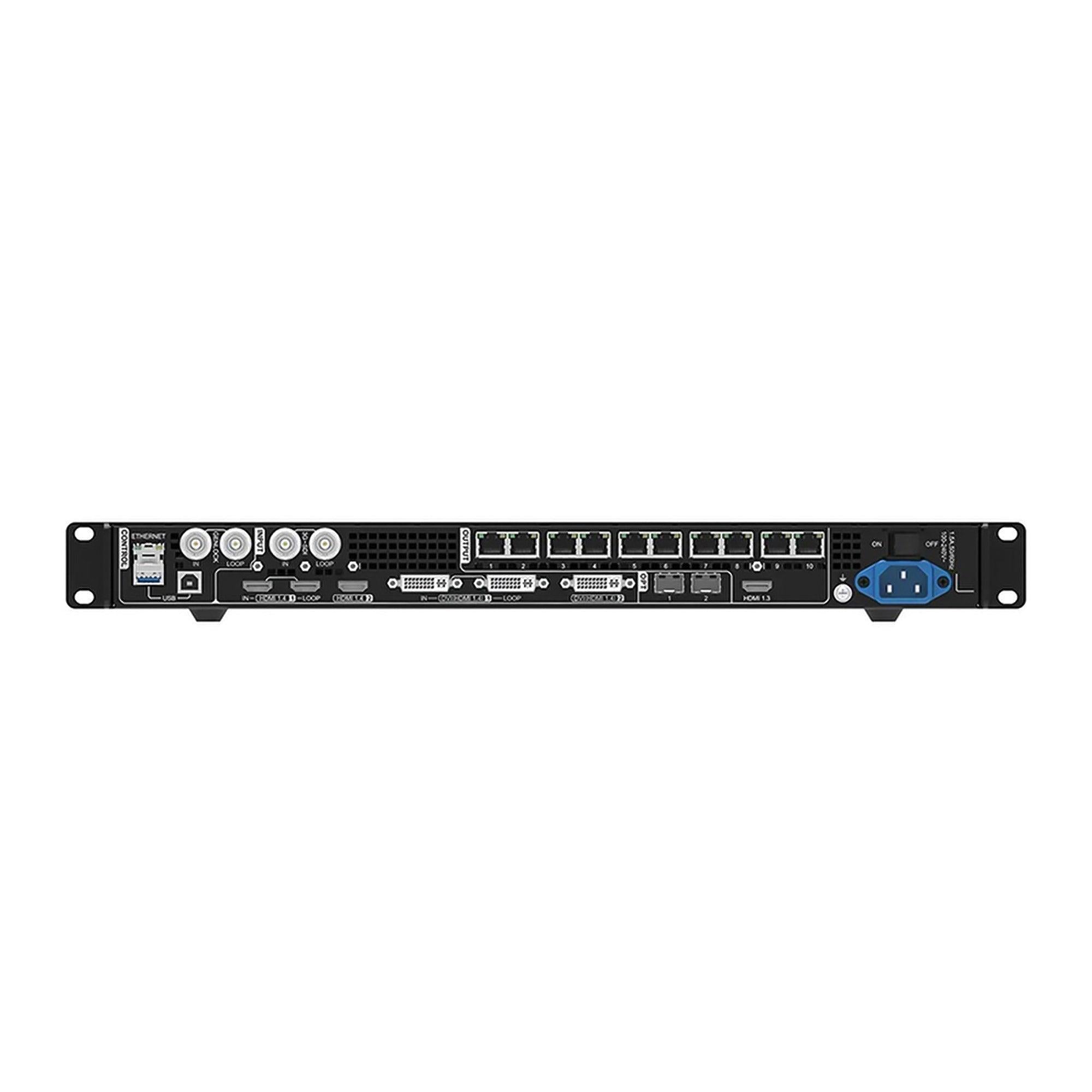

Input

  • 1× DVI (HDMI 1.4, up to 3840×1080@60Hz or 3840×2160@30Hz, Mosaic supported)
  • 1x DVI (HDMI 1.4) (IN & LOOP)
  • 1× HDMI 1.4 (IN & LOOP, up to 3840×1080@60Hz or 3840×2160@30Hz)
  • 1x HDMI 1.4 (IN & LOOP)
  • 1× 3G-SDI (IN & LOOP, up to 1920×1080@60Hz)
  • 1× 10G SFP - Hot Swappable optical fiber (OPT1, configurable as input or output, optional)

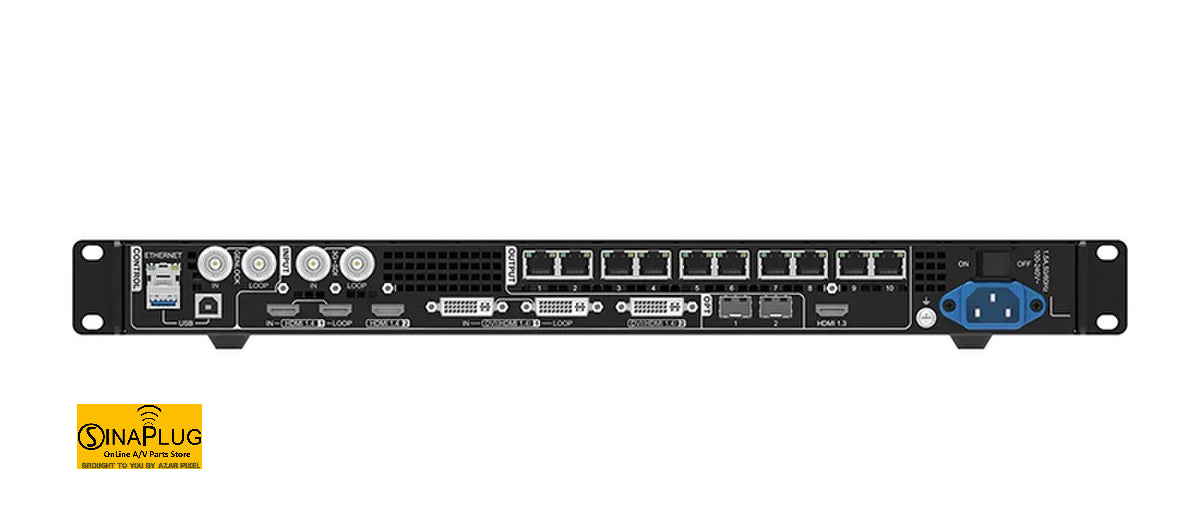

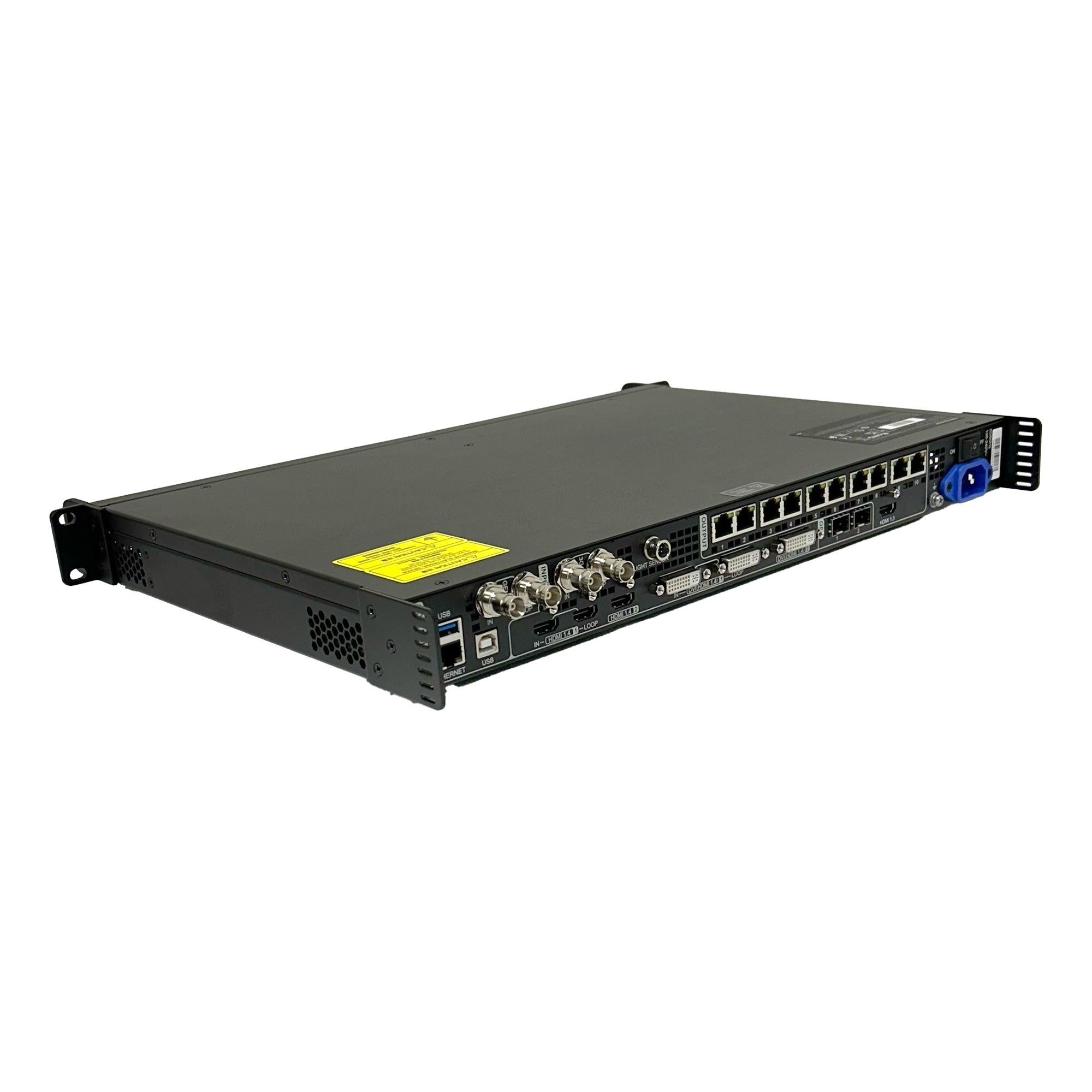

Output

  • 10x Gigabit Ethernet ports
  • 1x HDMI 1.3 (support monitor and video output, adjustable resolutions)
  • 2× 10G SFP - Hot Swappable optical fiber ports (optional, up to 10km single mode or 300m multimode)

Control

  • 1x Ethernet port (network/PC control)
  • 1x USB Type-B port (PC or cascading)
  • 1x USB Type-A port (for cascading)
  • 1x GENLOCK IN-LOOP (bi-level, tri-level sync for multi-unit alignment)

Sensing

  • 1x Light sensor connector (for automatic screen brightness adjustment)

Advanced Features

  • All-in-one: video controller, fiber converter, bypass modes
  • Stepless image scaling (SuperView III processing)
  • Supporting V-Can, and NovaLCT controlling software
  • Pixel Level Brightness and Chroma Calibration
  • 3 independent layers (customizable size, position, priority)
  • Multiple hot backup options (between devices, Fiber/Ethernet ports, and input sources)
  • Up to 10 user-defined presets
  • 3D Display Support
  • All-round color adjustment (brightness, contrast, saturation, hue and Gamma)
  • Support audio input (with HDMI input source) and output (via a multifunction card)
  • Low Latency mode for real-time video
  • Mosaic mode (cascading up to 4 units for large displays)
  • Certifications: CE, CB, UL, CMIM, EAC, FCC, IC, RCM, UKCA, NOM, KC

Dimensions (L*W*H)

  • 484mm * 351mm * 50mm
