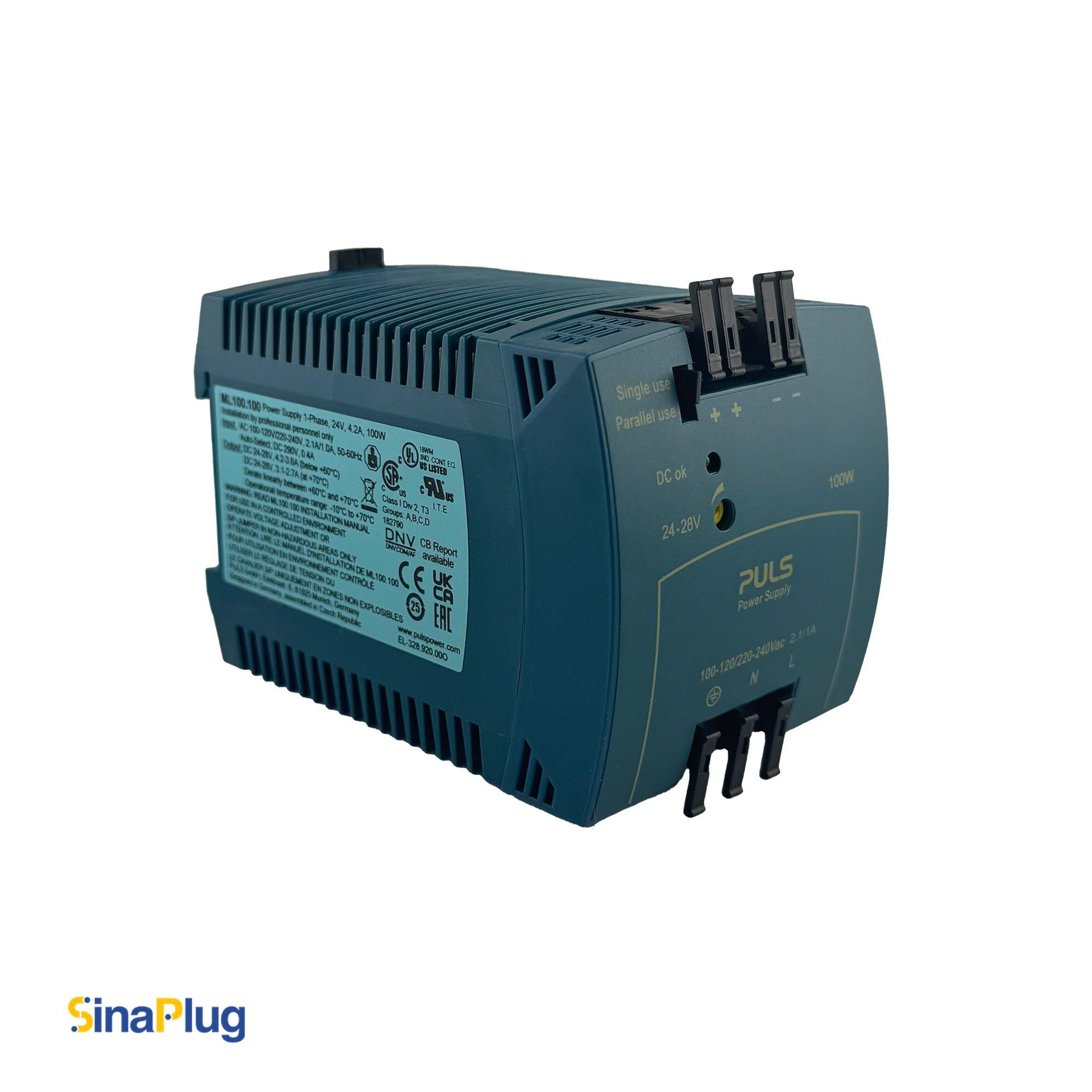

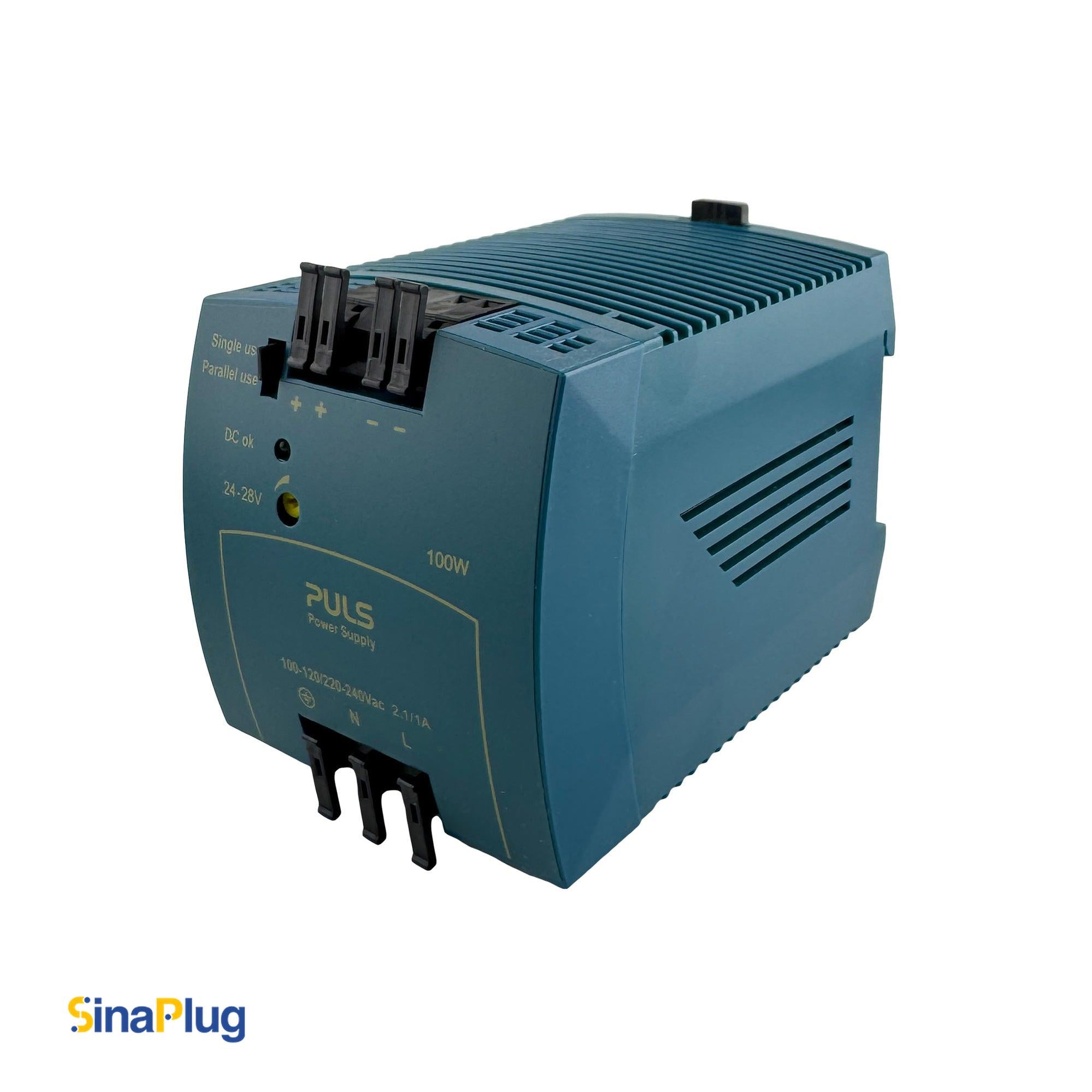

Pulse ML100.100 Power supply (24V, 4.2A)

The Pulse ML100.100 is a superior power supply that provides exceptional reliability, guaranteeing consistent performance in LED equipment, particularly in industrial applications, thanks to its excellent 90% efficiency and load regulation of ±0.5%.

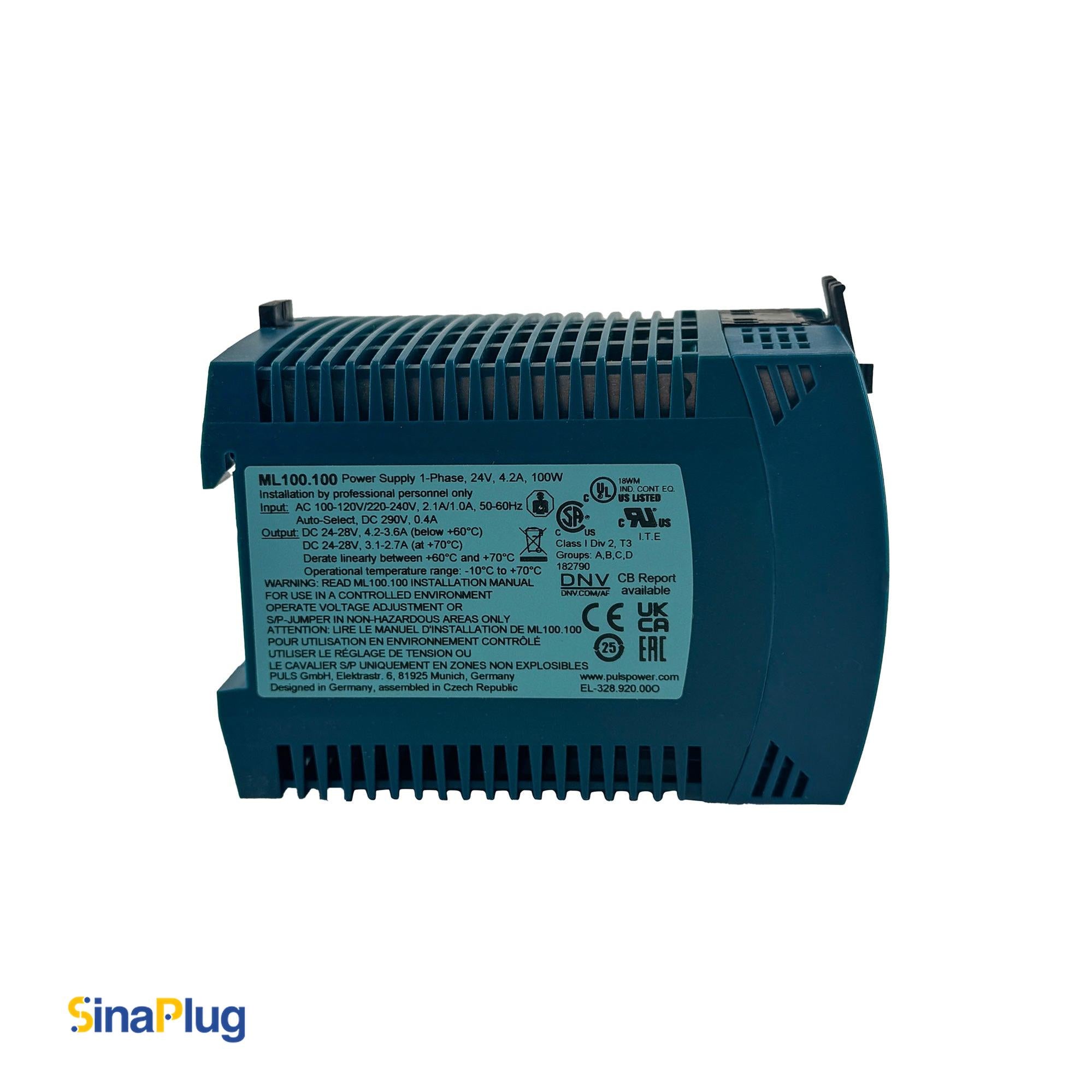

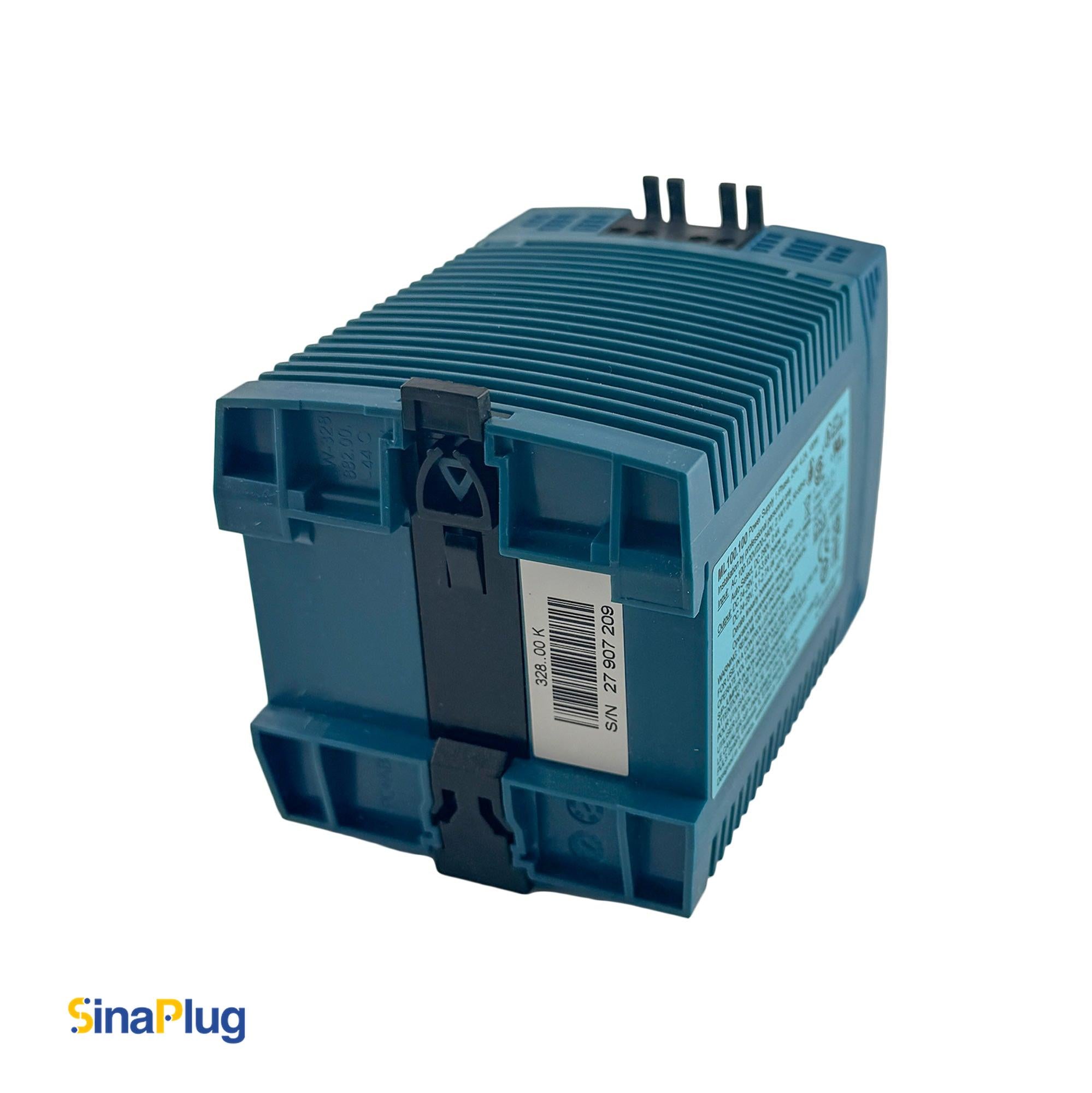

The ML100.100 provides a rated output power of 100W and delivers 4.2A at 24V across two consistent output channels with an adjustable 24-28V range from two input ranges of 100-120 VAC and 220-240 VAC (auto-select). This DIN-rail power supply can be mounted on TS35/7,5 or TS35/15 rails.

Its spring clamp terminals, as compared to traditional screw-type connections, are maintenance-free and easier to use (mount and connect without any tools required), cost less wiring time, and provide a secure connection to any conductor size, ensuring consistent performance under various conditions.

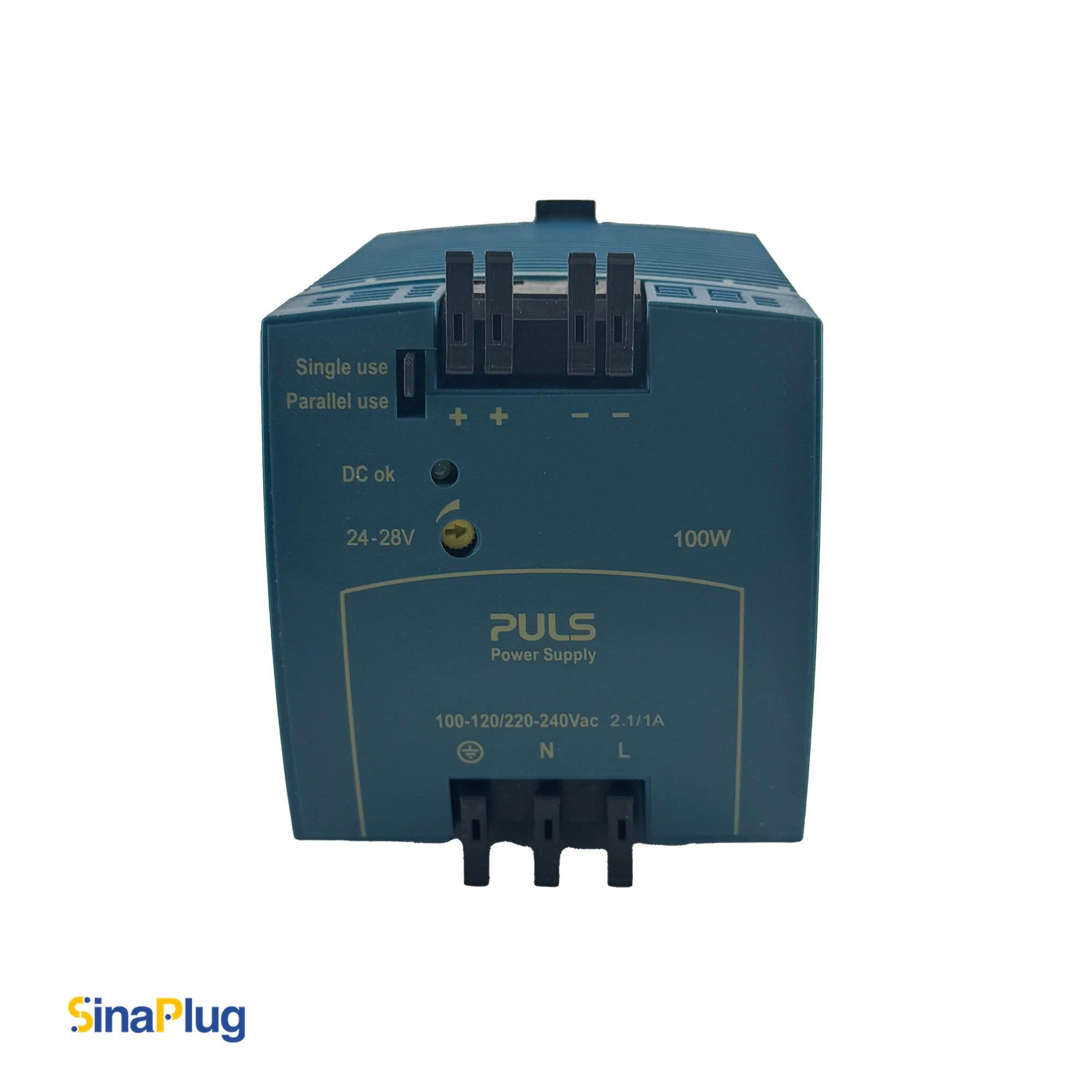

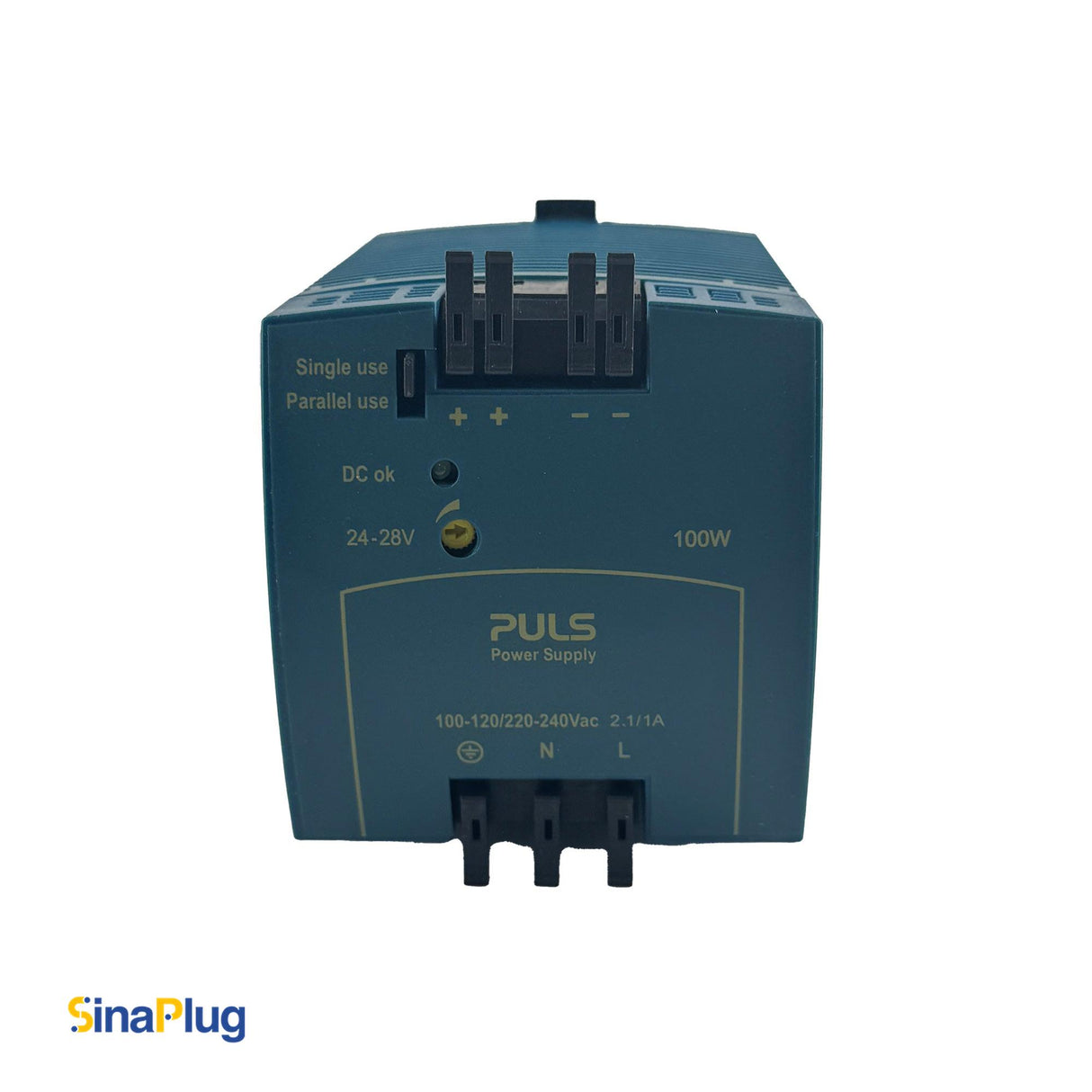

This standard-sized power supply from the MiniLine series can switch between single operation and parallel operation (by front panel jumper), allowing it to achieve a total output current greater than a single power supply, provide redundancy, improve reliability, avoid thermal issues, and enhance efficiency, which helps in maintaining system stability and reliability.

The ML100.100's excellent 90% efficiency ensures minimal heat production, outstanding 500K hours MTBF, and long-term operation in demanding situations. It can operate using natural air convection (by preserving at least 25mm installation distance surrounding) across ambient temperature ranges from -10°C to +70°C. Additionally, it is rated IP20 for protection against solid objects and dust.

The ML100.100’s overload behavior provides a high output overload capability of up to 1.9 times the rated current, allowing it to start heavy loads Thanks to its Pulse Overload Design, Additionally, it features a unique open circuit protection that is essential for maintaining the safety and reliability of electrical systems, especially in industrial and high-voltage applications

This open circuit protection is crucial for preventing damage to devices like current transformers (CTs) and LED drivers when there is a break in the circuit continuity, which can lead to dangerous voltage levels and potential damage.

In addition to the advanced protections such as overload, open-circuit, and short-circuit protections, it is certified by all major safety approvals IEC/UL60950-1, EN50178, EN 60529, IEC 61010-2-201, 2014/35/EU (LVD), 2014/30/ EU (EMC), 2011/65/EU (RoHS), allowing it to meet the worldwide energy requirement.

Pulse's AC/DC power supplies are renowned for their high reliability and stable operation, thanks to their complete protection functions, long lifespan, vibration resistance, and maintenance-free design. These features ensure consistent performance under expected conditions, making them a superior choice compared to other products.
