Seetronic  |  SKU: PCN-SET-SAC3FCAxxx-0

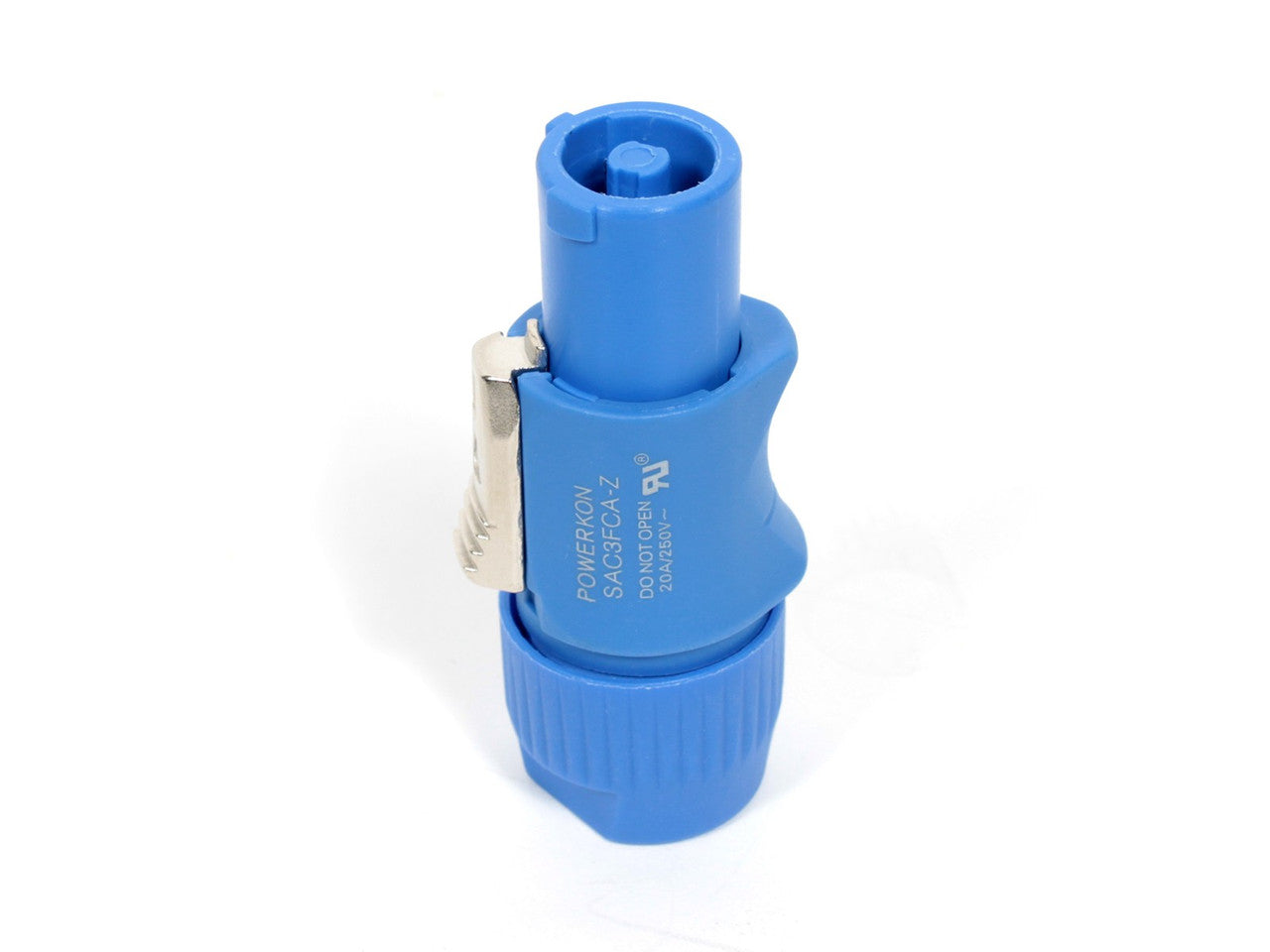

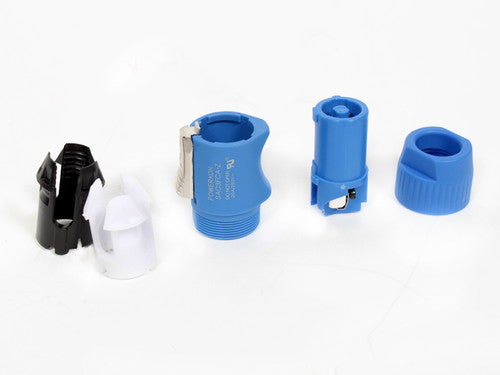

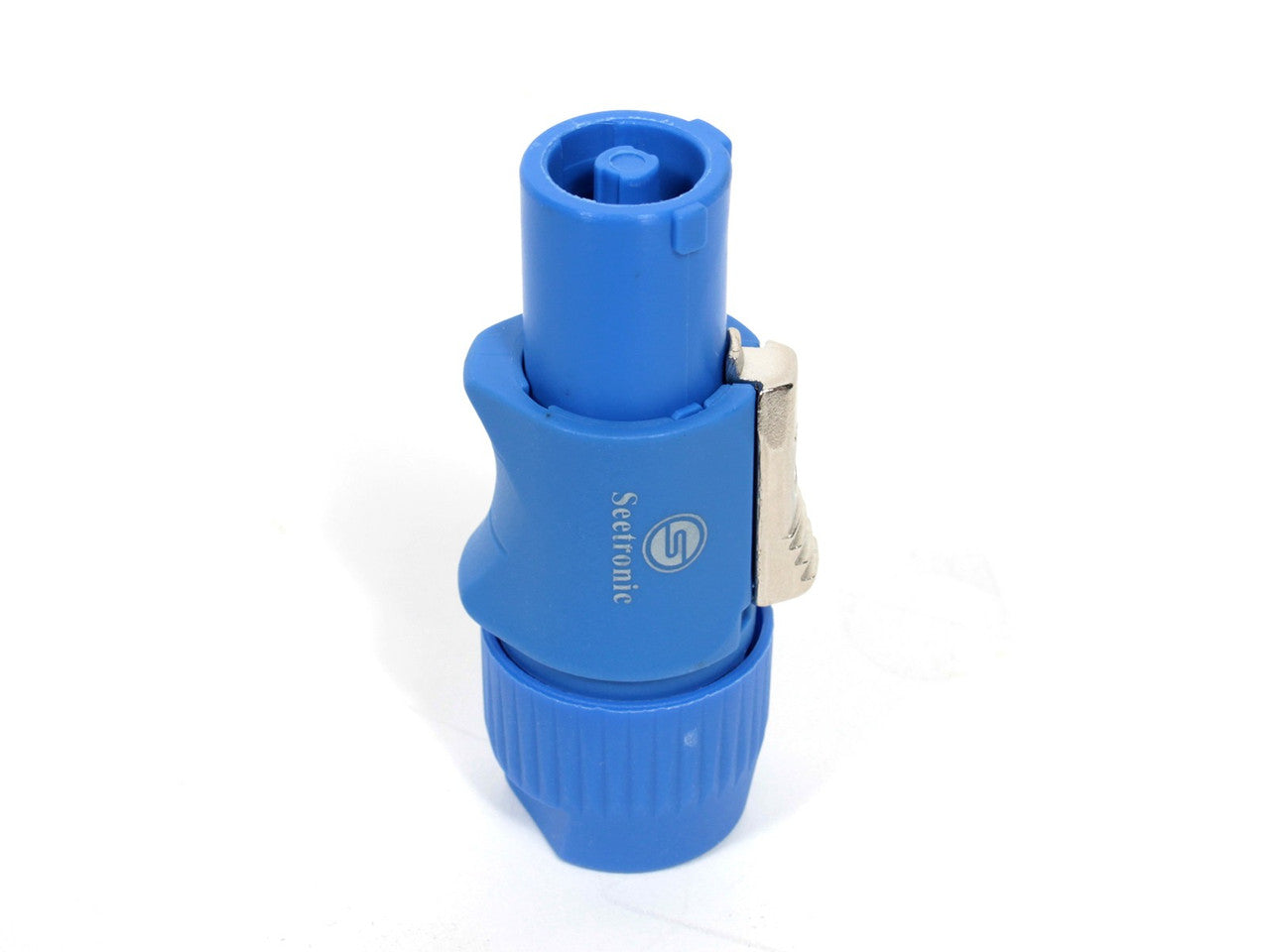

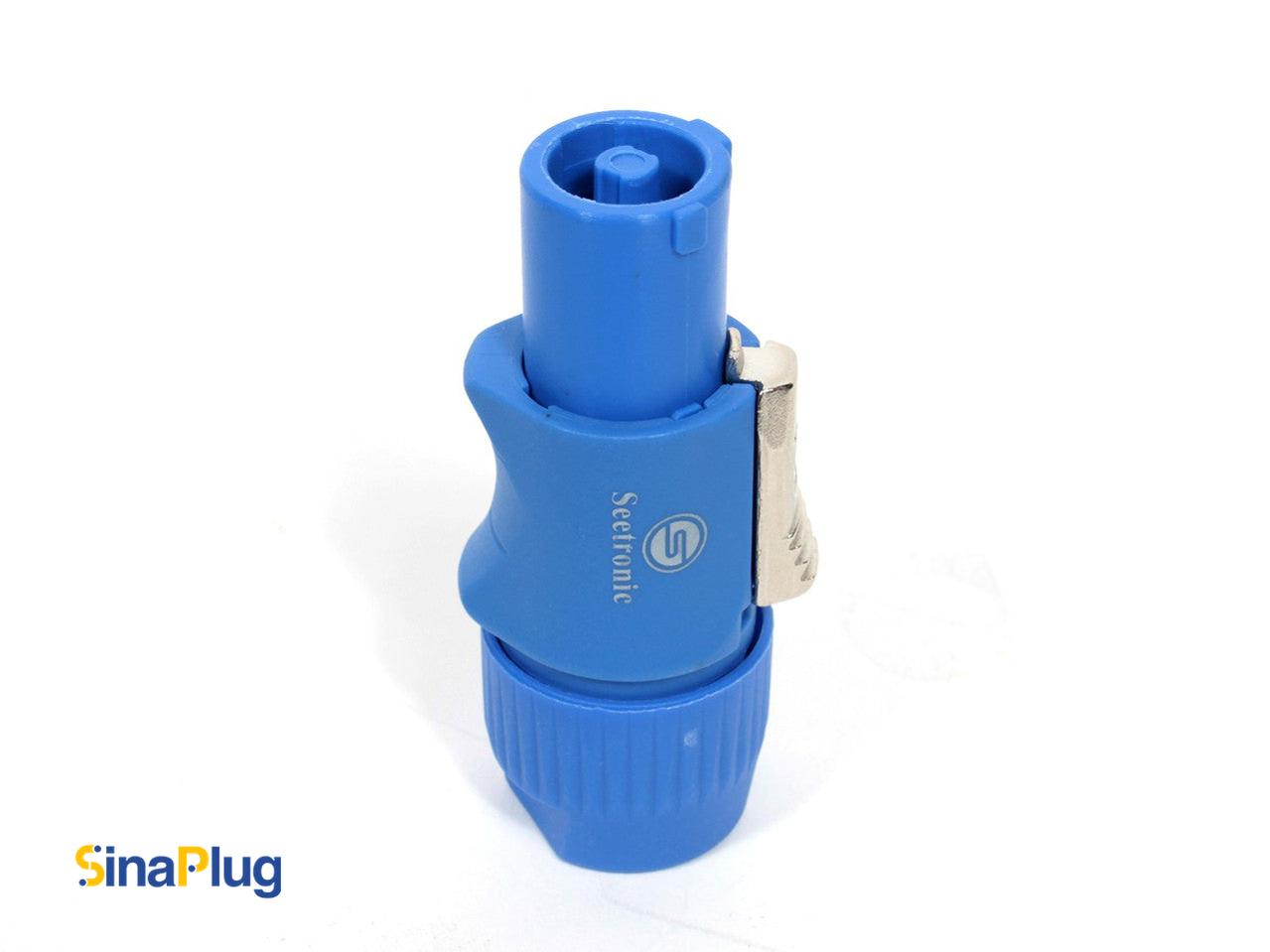

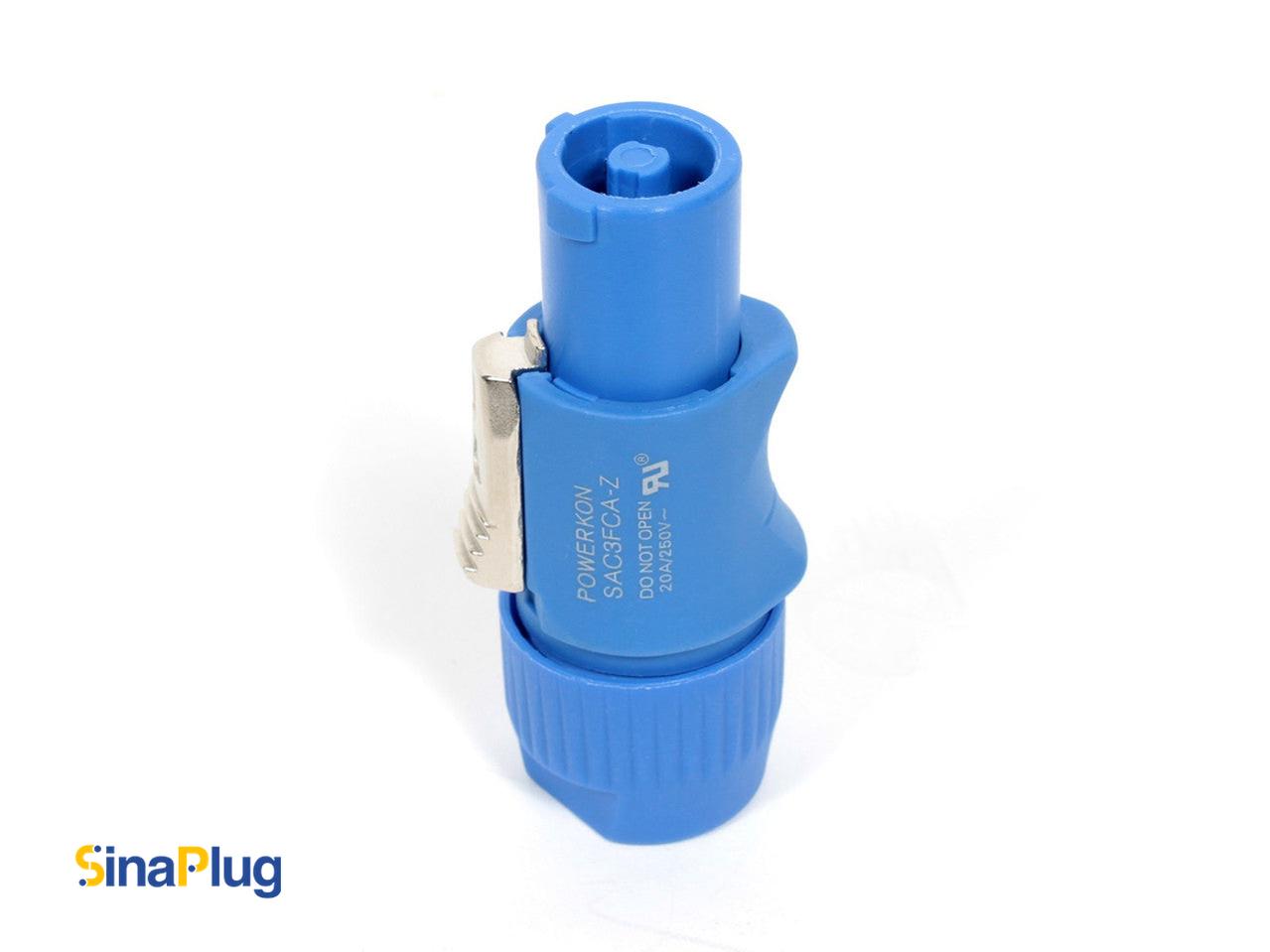

Seetronic SAC3FCA Power-In Plug (Male Connector of SAC3MPA Socket)

$7.79 $10.99

Buy at discounted prices

Minimum Qty Maximum Qty Discount
10 49 7% off
50 99 12% off
100 + 15% off

Documents

Datasheet_Seetronic_SAC3FCA_V1

A widely-used lockable power-in Male connector, supplied by Azar Pixel, The Seetronic SAC3FCA power-in cable connector offers an exceptional high performance for only indoor power applications. UL1977, IEC61984, IEC60320-1, and GB/T 34989 are just few standards that make this connector an excellent powering connection solution that can withstand temperature range of -30°C to +80°C.

The inner Dimensions of this lockable three-core connector is about 17.5 mm and 27.1 mm in outer diameter which matches with SAC3MCA plug or SAC3MPA/SAC3MPA-M, providing secure line, neutral, and safety grounding connections in various LED and A/V equipment and designed to handle up to 20A of electricity at 250V AC.

Key Features of SAC3FCA

Electrical Specifications

  • Number of Contacts: 3 (Line, Neutral, PE)
  • Rated Current: 20A
  • Rated Voltage: 250V AC
  • Maximum Contact Resistance: 5 mΩ
  • Dielectric Strength: 4000V DC
  • Insulation Resistance: over 1000 MΩ
  • Certifications: UL: E359036, VDE: 40044166, TUV: N8A1083360006, CQC: CQC23003410678
  • Standards: UL1977, IEC61984, IEC60320-1, GB/T 34989

Mechanical Specifications

  • Service Life: Over 1000 mating cycles
  • Cable Size: 2.5 mm² (12 AWG)
  • Cable Outside Diameter (OD): 8 – 12 mm
  • Terminal Type: Screw type terminals

Material Parameters

  • Housing Material: PA (Polyamide)
  • Contact Material: Crafted from copper alloy with silver surface plating

Environmental Parameters

  • Flame Retardant Rating: UL94-V0
  • Temperature Range: -30°C to +80°C

Advanced Features

  • Lockable three-core power-in plug (Male connector)
  • Compatibility with SAC3MCA plug or SAC3MPA/SAC3MPA-M socket
  • High rated power capacity up to 20A at 250V AC (UL certified)

Dimensions (L*W*H)

  • 69.8mm * 31.45mm * 27.1mm
